Nissan Ariya: 12-volt battery

Basic information

• If the 12-volt battery is labeled "do not open" it is maintenance free and 12- volt battery fluid should not be checked. It is recommended that you visit a NISSAN certified ARIYA dealer or a qualified specialist workshop to confirm the 12-volt battery's performance.
• Keep the 12-volt battery surface clean and dry. Clean the 12-volt battery with a solution of baking soda and water.
• Make certain the terminal connections are clean and securely tightened.
• If the vehicle is not to be used for 30 days or longer, disconnect the negative 12-volt battery terminal cable to prevent discharging it.

NOTE

Care should be taken to avoid situations that can lead to potential 12-volt battery discharge and potential no-start conditions such as:

1. Installation or extended use of electronic accessories that consume 12- volt battery power when the EV system is not running (Phone chargers, GNSS, DVD players, etc.).

2. Vehicle is not driven regularly and/or only driven short distances.

In these cases, the 12-volt battery may need to be charged to maintain 12-volt battery health.

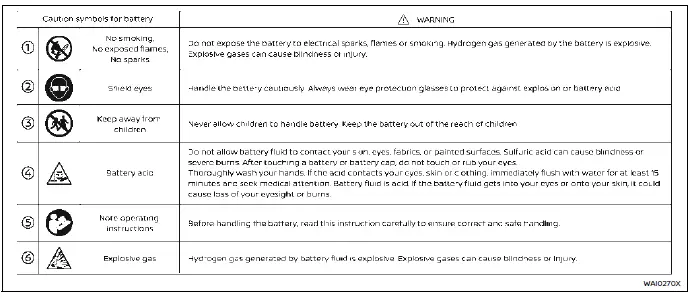

WARNING

• Do not operate the vehicle if the fluid in the 12-volt battery is low.

  Low 12-volt battery fluid can cause a higher load on the 12-volt battery which can generate heat, reduce 12-volt battery life, and in some cases lead to an explosion.

• Do not expose the 12-volt battery to flames or electrical sparks.

  Hydrogen gas generated by the 12-volt battery is explosive. Do not allow 12-volt battery fluid to contact your skin, eyes, fabrics or painted surfaces. After touching a 12-volt battery or 12-volt battery cap, do not touch or rub your eyes.

  Thoroughly wash your hands. If the acid contacts your eyes, skin or clothing, immediately flush with water for at least 15 minutes and seek medical attention.

• When working on or near a 12-volt battery, always wear suitable eye protection and remove all jewelry.
• 12-volt battery posts, terminals and related accessories contain lead and lead compounds. Wash hands after handling.
• Keep the 12-volt battery out of the reach of children.
• Do not tip the 12-volt battery.

NOTE

Do not try to open the top of the 12-volt battery.

This 12-volt battery is not equipped with removable vent caps.

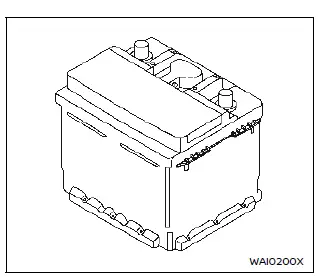

12-volt battery

For a maintenance free battery, it is not required to check the fluid level. However, NISSAN recommends to check it periodically at a NISSAN certified ARIYA dealer.

NOTE

For replacing the 12-volt battery, it is recommended that you visit a NISSAN certified ARIYA dealer.

Jump starting

Jump starting provides power to the 12 volt system to allow the electrical systems to operate. The electrical systems must be operating to allow the Li-ion battery to be charged. Jump starting does not charge the Li-ion battery. The Li-ion battery must be charged before the vehicle can be driven.

If jump starting is necessary, see "Jump starting". If the power switch does not switch to READY to drive position by jump starting, the 12-volt battery may have to be replaced. It is recommended that you contact a NISSAN certified ARIYA dealer.
