Nissan Ariya: Removal and Installation

• Driver Seat Control Unit
• Steering Column Control Module
• Seat Memory Switch
• Tilt & Telescopic Switch

Driver Seat Control Unit

Removal and Installation

REMOVAL

Remove driver seat. Refer to Removal and Installation.

Disconnect driver seat control unit connector.

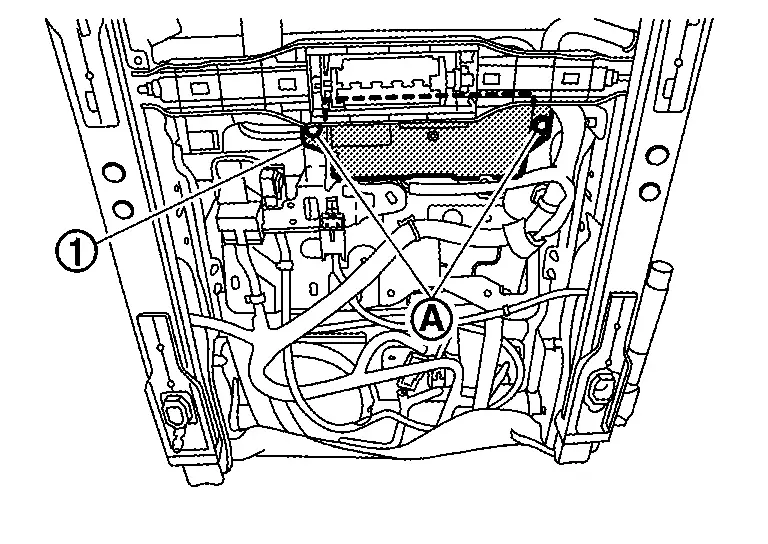

Remove the mounting bolts and then remove driver seat control unit .

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

Be sure to perform ADDITIONAL SERVICE WHEN REPLACING DRIVER SEAT CONTROL UNIT when replacing driver seat control unit. Or not doing so, driver seat control unit control function does not operate normally. Refer to Description.

Steering Column Control Module

Removal and Installation

REMOVAL

Remove instrument panel assembly. Refer to Removal & Installation.

Disconnect steering column control module connector.

Remove the mounting screw and then remove steering column control module .

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

Be sure to perform ADDITIONAL SERVICE WHEN REPLACING STEERING COLUMN CONTROL MODULE when replacing steering column control module. Or not doing so, steering column control module control function does not operate normally. Refer to Description.

Seat Memory Switch

Removal and Installation

REMOVAL

Remove front door finisher. Refer to Removal and Installation.

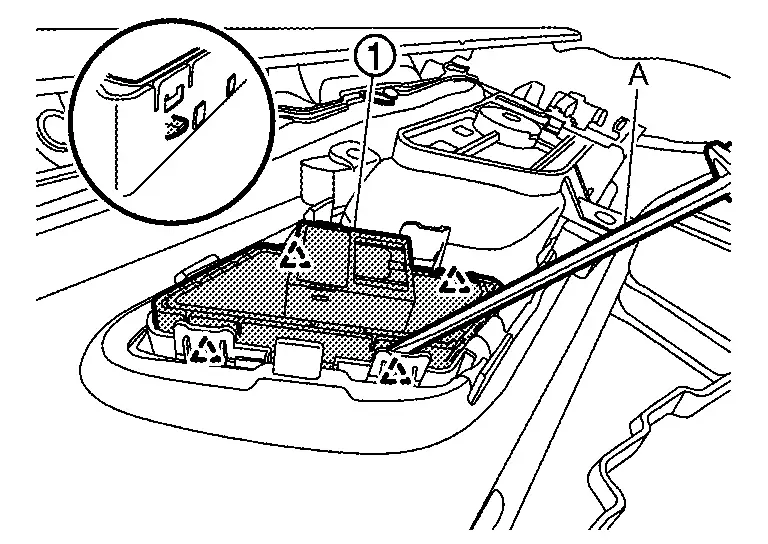

Disengage the fixing pawls using a remover tool (A) and then remove seat memory switch .

: Pawl

INSTALLATION

Install in the reverse order of removal.

Tilt & Telescopic Switch

Removal and Installation

REMOVAL

Remove steering column lower cover. Refer to Removal & Installation.

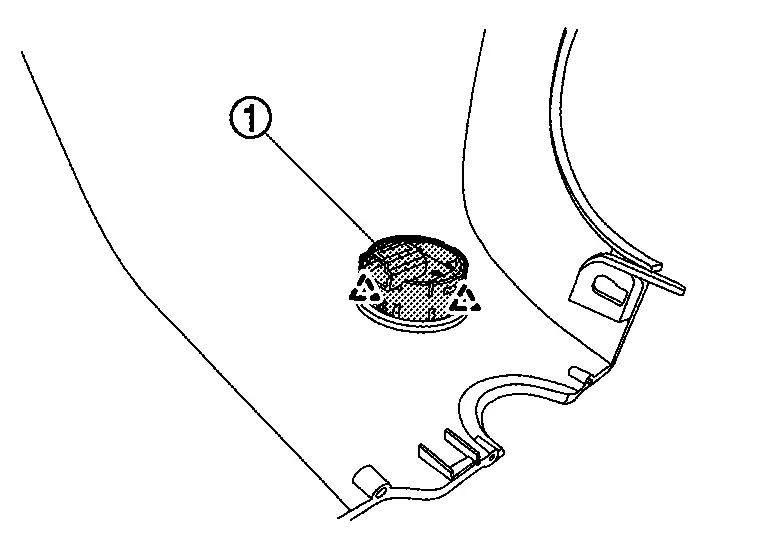

Disengage the fixing pawls and then remove tilt & telescopic switch .

: Pawl

INSTALLATION

Install in the reverse order of removal.
