Nissan Ariya: Component Parts

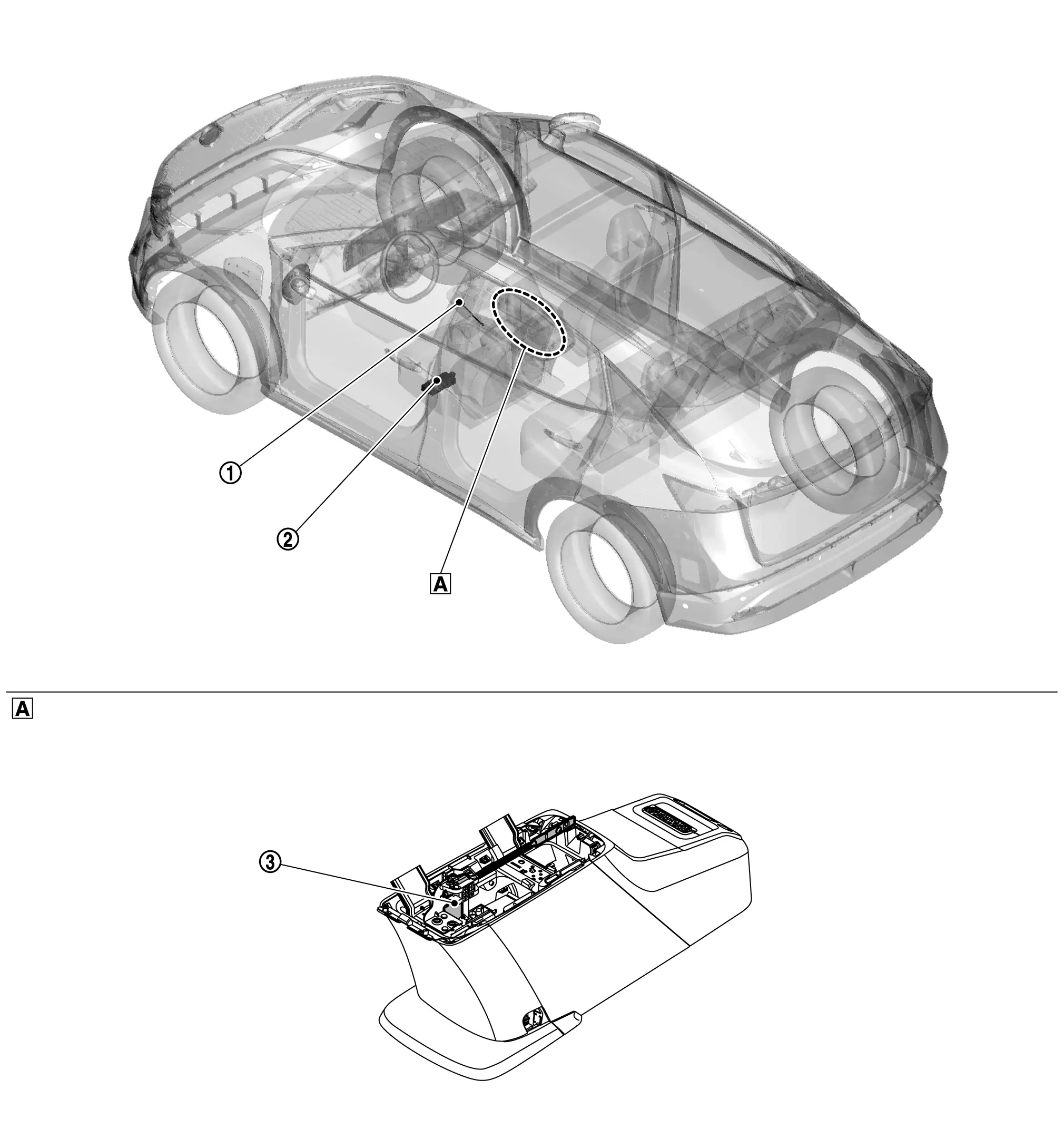

Electric Center Console Box

	Console slide switch		Driver seat control unit		Console slide motor
	View with console slide upper removed

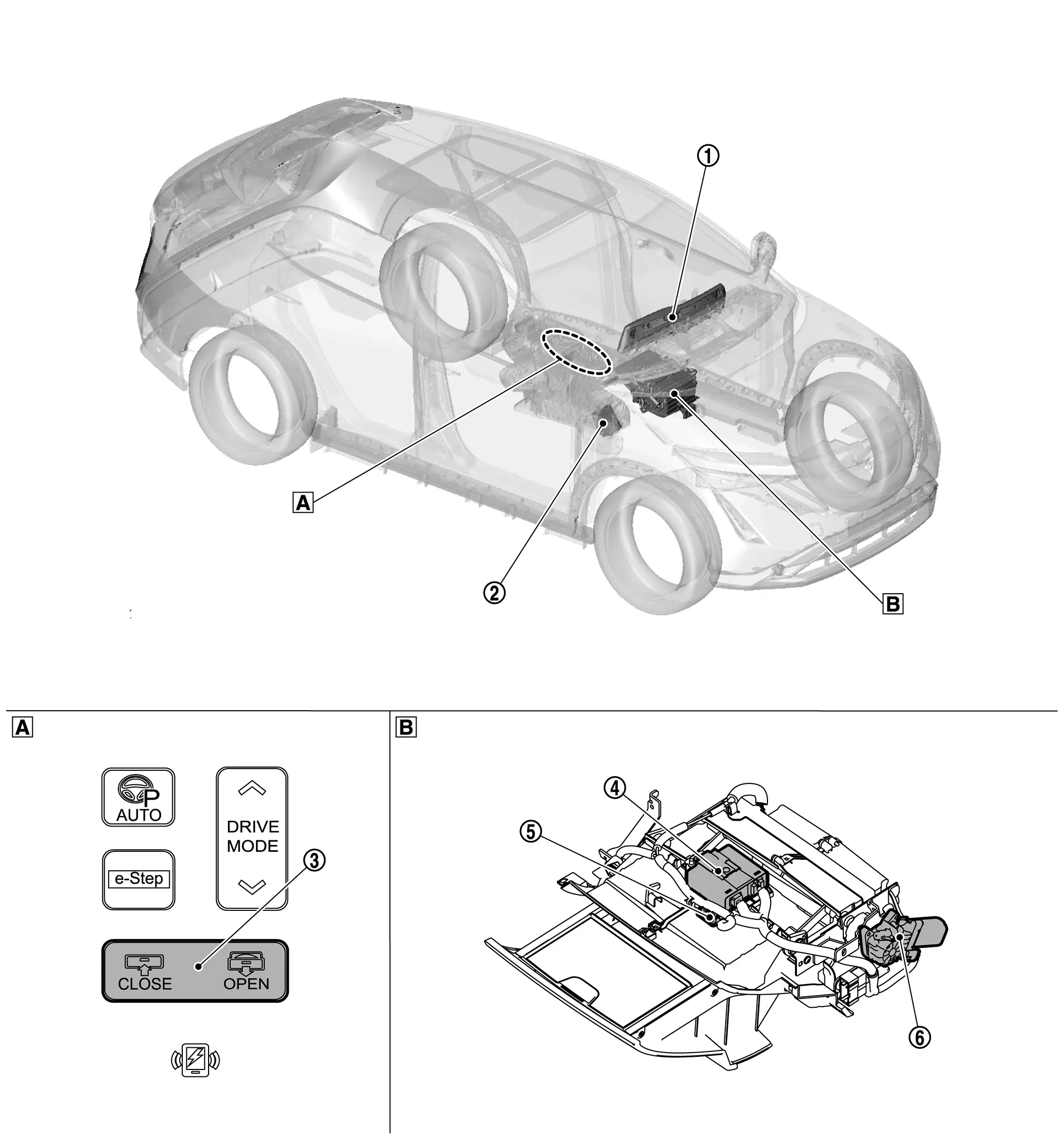

Integrated interface display (combination meter)	BCM	Flexible center storage OPEN/CLOSE switch
Flexible center storage control module	Flexible center storage lamp	Flexible center storage motor
Center console finisher	Flexible center storage

COMPONENT FUNCTION WITHIN SYSTEM

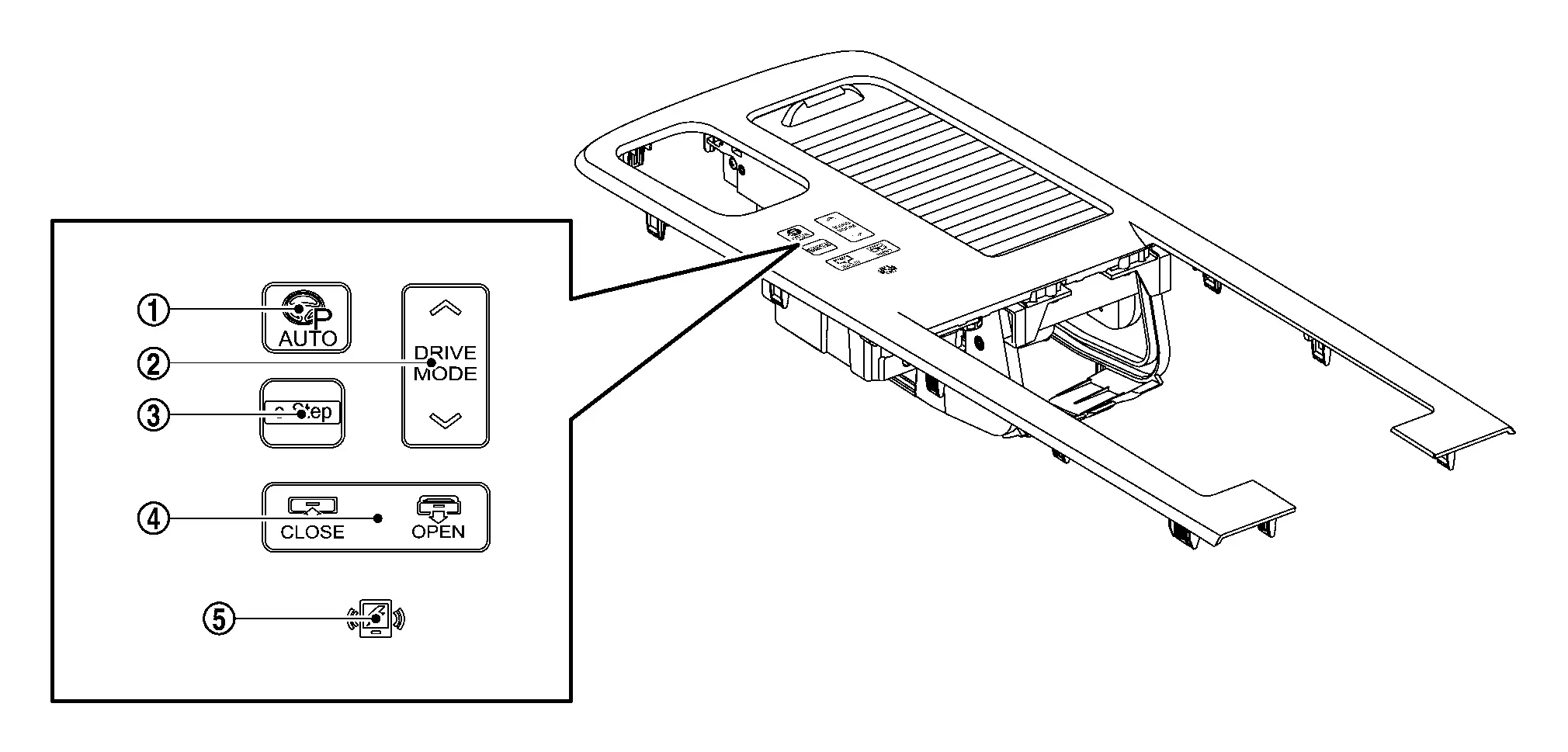

	ProPILOT Park switch		Drive mode select switch		e-Step switch
	Flexible center storage OPEN/CLOSE switch (with flexble center storage models)		Wireless charger indicator

Transmits following switch operations to each ECU.
- Drive mode select switch
- ProPILOT Park switch
- e-Step switch
- Flexible center storage OPEN/CLOSE switch (with flexible center storage models)
Indicates charging state of the electronic device using the wireless charger by the indicator lamp. Refer to System Description.

INDIVIDUAL COMPONENT FUNCTION

Detects that the finger touched switch panel surface of the center console finisher.
When the pressure is detected on each switch, it is determined that the each switch has been operated.

COMPONENT OPERATION

Detects switch panel operation then give a feedback by vibration.
Indicates the each switch on the surface of the switch panel by the power switch ON.

COMPONENT PARTS LOCATION

Installed to the upper side of the center console.

COMPONENT FUNCTION WITHIN SYSTEM

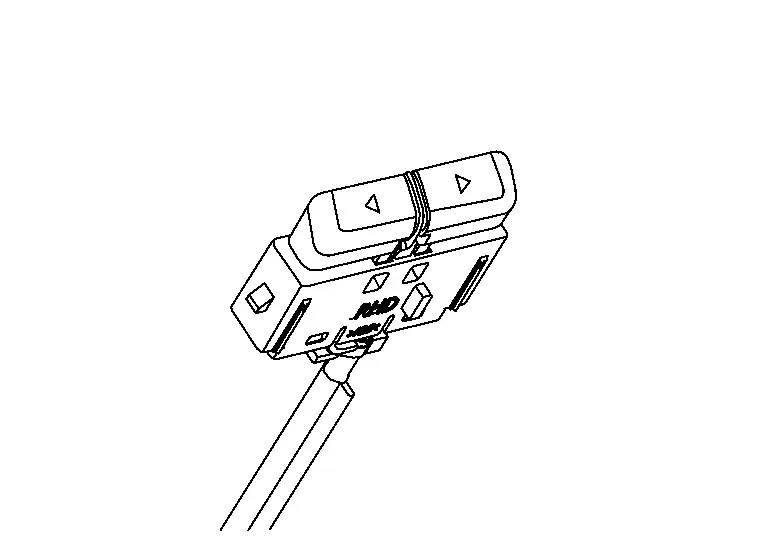

By operating the console slide switch, it can be slid the upper side of the center console forward and backward.

INDIVIDUAL COMPONENT FUNCTION

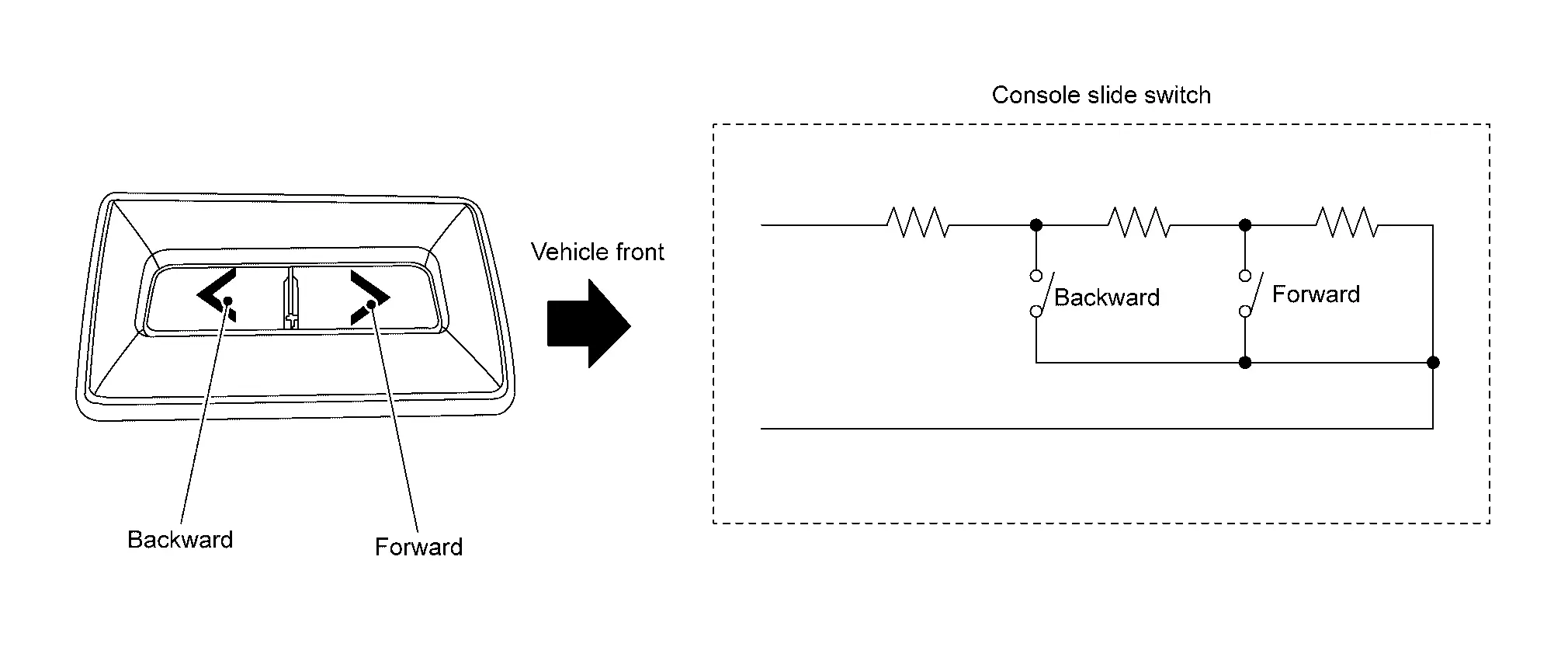

Detects forward side switch operation and retreat side switch operation of the console slide switch.

COMPONENT OPERATION

Transmits forward side switch operation and retreat side switch operation of the console slide switch to driver seat control unit.

COMPONENT PARTS LOCATION

Installed to the side of (driver side) the electric center console box.

COMPONENT FUNCTION WITHIN SYSTEM

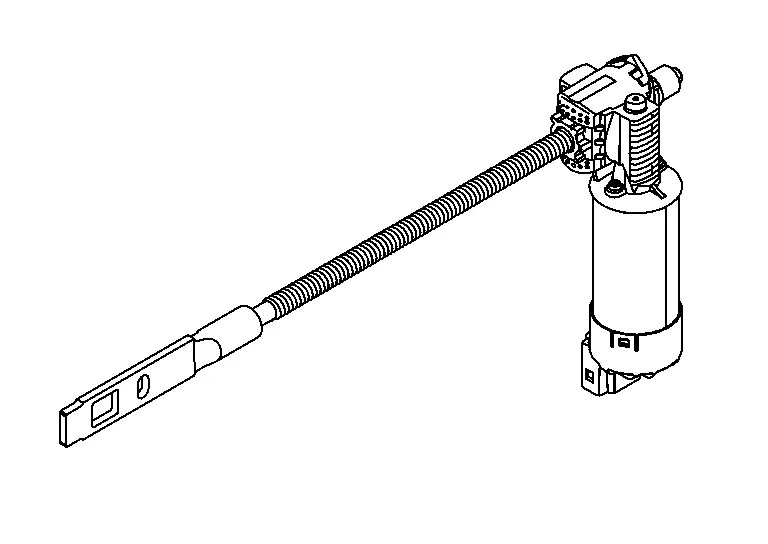

Moves the upper side of the center console in the direction corresponding to the console slide switch operation.

INDIVIDUAL COMPONENT FUNCTION

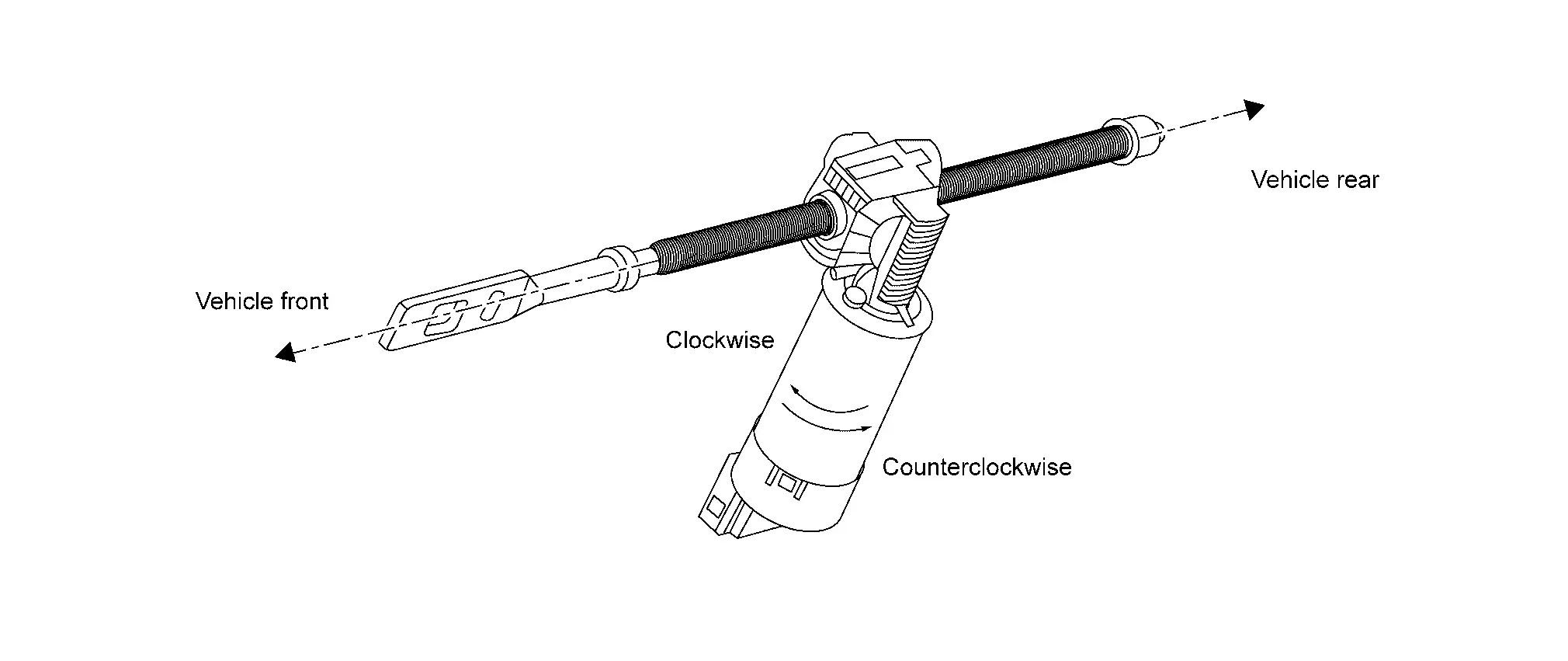

Moves the upper side of center console forward and backward.

COMPONENT OPERATION

Moves the upper side of center console forward and backward by the output signal from the driver seat control unit.

COMPONENT PARTS LOCATION

Installed to inside of the electric center console box.

COMPONENT FUNCTION WITHIN SYSTEM

Open and close the lid by operating OPEN/CLOSE switch of center console finisher.

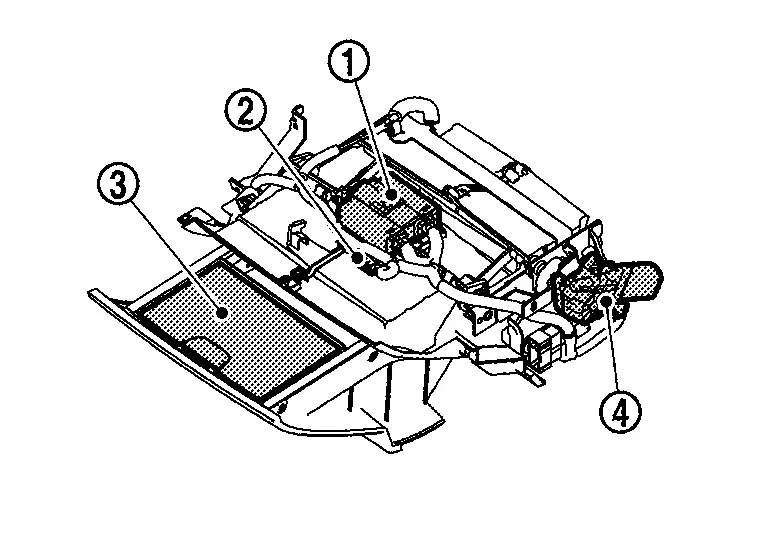

Flexible center storage is operated by following parts.

Parts		Description
	Flexible center storage control module	Controls flexible center storage.
	Flexible center storage lamp	Lights when lid of flexible center storage is opened and closed.
	Slide table	Can be used as a table by sliding.
	Flexible center storage motor	Open and close lid of flexible center storage.

INDIVIDUAL COMPONENT FUNCTION

Flexible center storage can store up to 3 kg (6.6 lb).
Slide table of flexible center storage can put the luggage up to 5 kg (11.0 lb).

COMPONENT OPERATION

When pinching is detected during close operation the flexible center storage reveres approximately 30 mm (1.18 in).
When the load of 12 kg (26.4 lb)on the tip of lid is detected with flexible center storage is open it closes.

COMPONENT PARTS LOCATION

Installed to the center of instrument panel.
