Nissan Ariya: Component Parts
Intelligent Rear View Mirror System

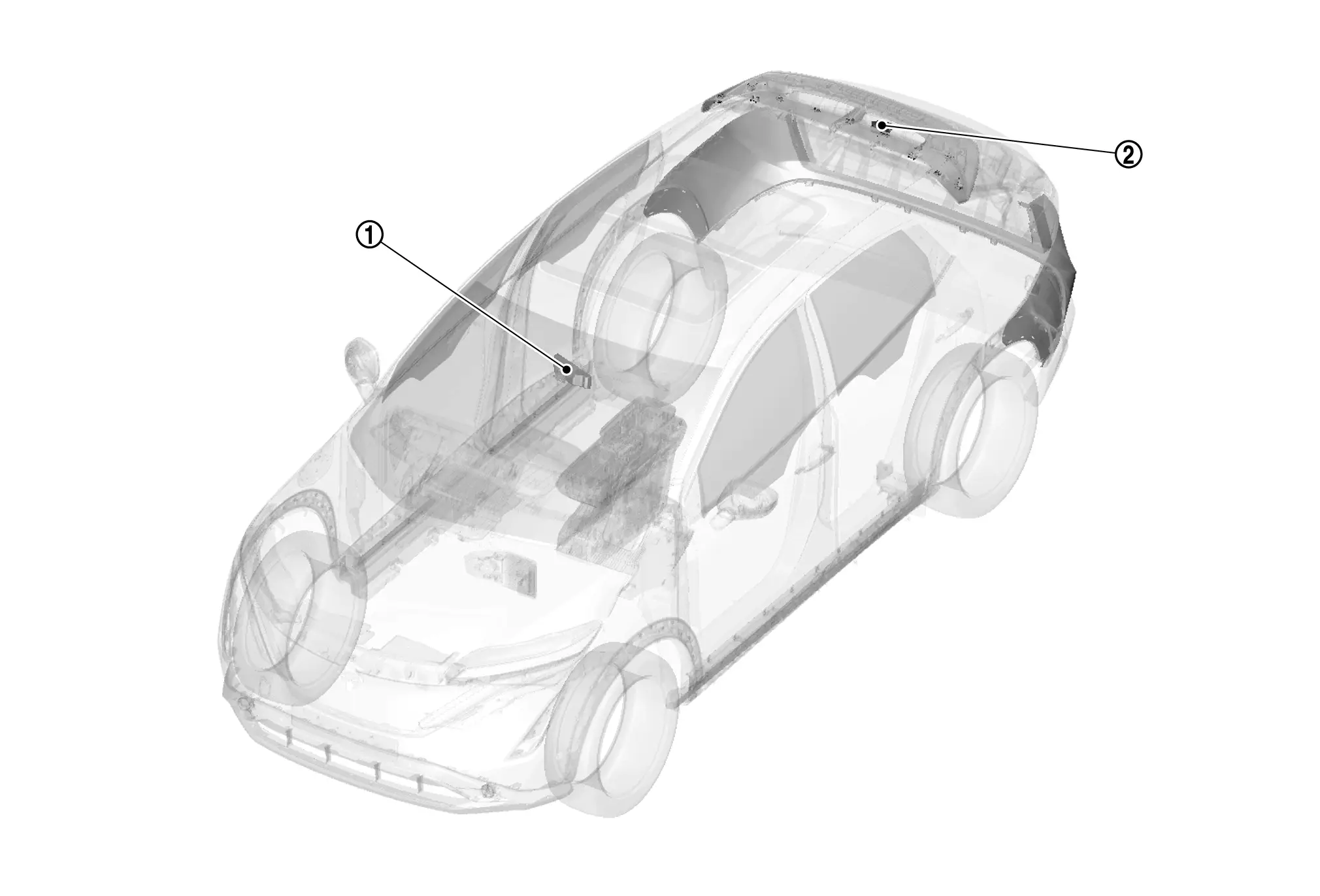

Component Parts Location
 |
Intelligent rear view mirror |  |
Intelligent rear view mirror camera |

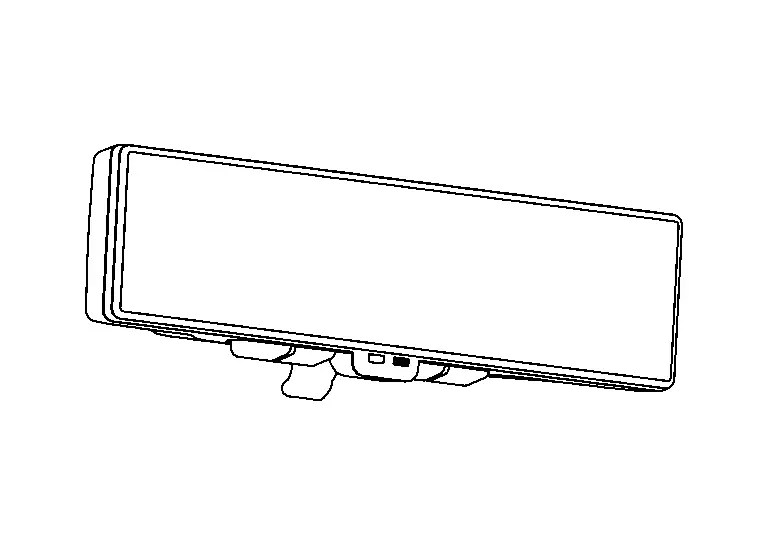

Intelligent Rear View Mirror
COMPONENT FUNCTION WITHIN THE SYSTEM
Receives the LVDS (camera image signal) from intelligent rear view mirror camera and outputs to LCD monitor.
INDIVIDUAL COMPONENT FUNCTION
Controls the brightness adjustment, screen position adjustment, language settings and MENU text ON/OFF display switch over function to LCD monitor.
COMPONENT OPERATION
When the supply lever of intelligent rear view mirror lower part is in ON, switch from normal rear view mirror to intelligent rear view mirror.
COMPONENT PARTS LOCATION
This is installed in windshield glass. Refer to Component Parts Location.

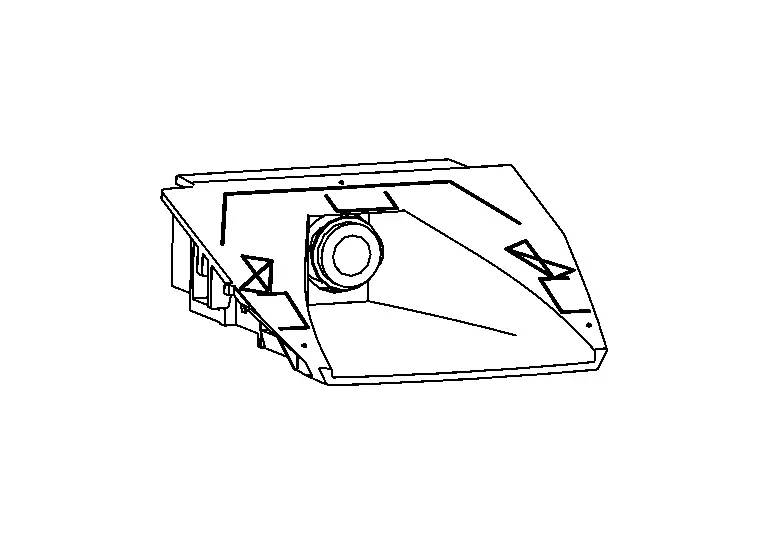

Intelligent Rear View Mirror Camera
COMPONENT FUNCTION WITHIN THE SYSTEM
Sends the LVDS (camera image signal) to intelligent rear view mirror.
INDIVIDUAL COMPONENT FUNCTION
Power is supplied from intelligent rear view mirror camera and captures the vehicle rear side image.
COMPONENT OPERATION
Converts the captured image to LVDS (camera image signal).
COMPONENT PARTS LOCATION
This is installed in back door window glass. Refer to Component Parts Location.

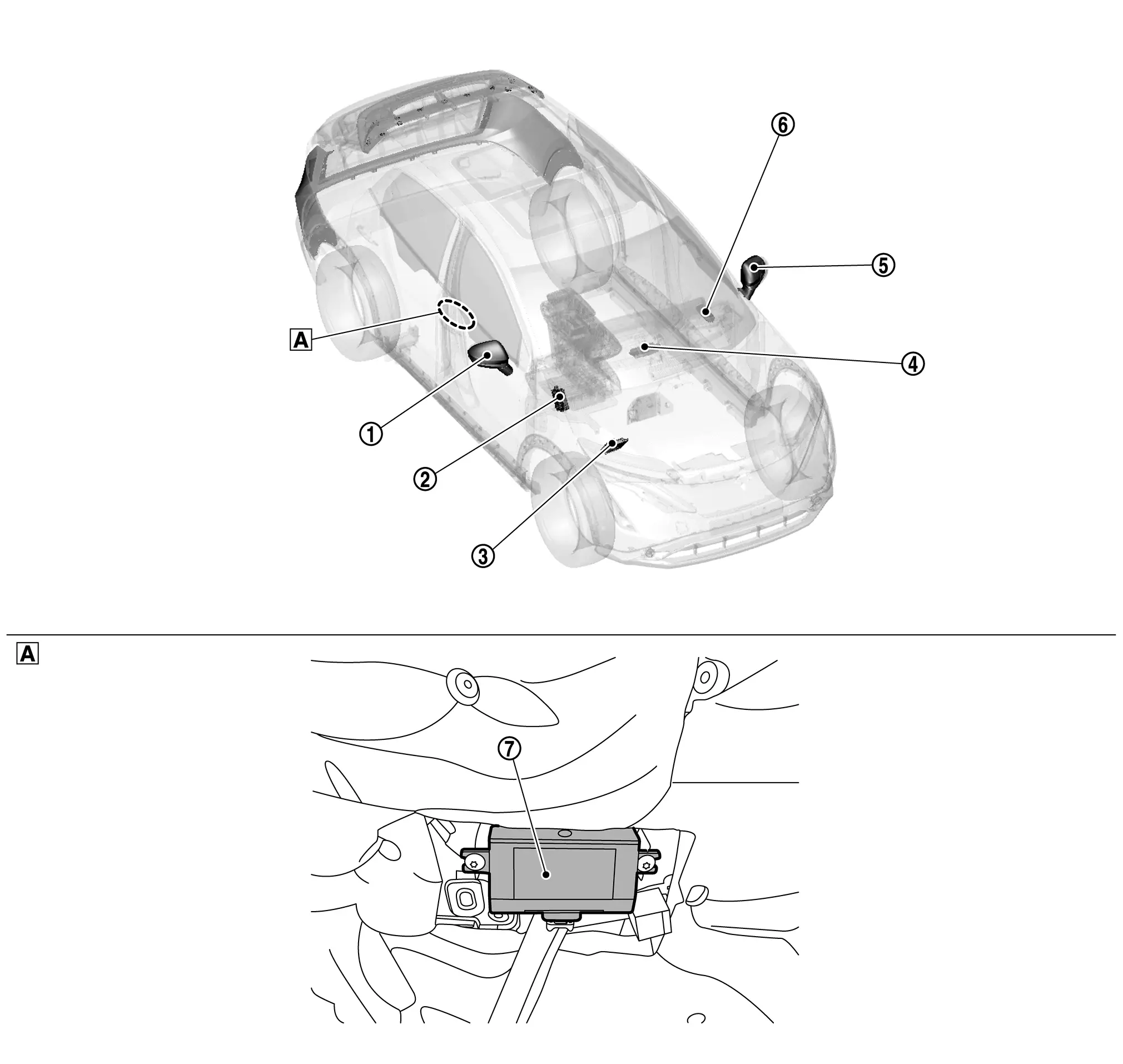

Door Mirror System
Component Parts Location
|
Door mirror (passenger side) | |
BCM Refer to Component Parts Location. |
 |
VCM Refer to Component Parts Location. |
 |
Driver seat control unit Refer to Component Parts Location. |
 |
Door mirror (driver side) |  |
Power window main switch |
 |
Passenger door mirror control module | ||||
 |
View with front door finisher (passenger side) removed |

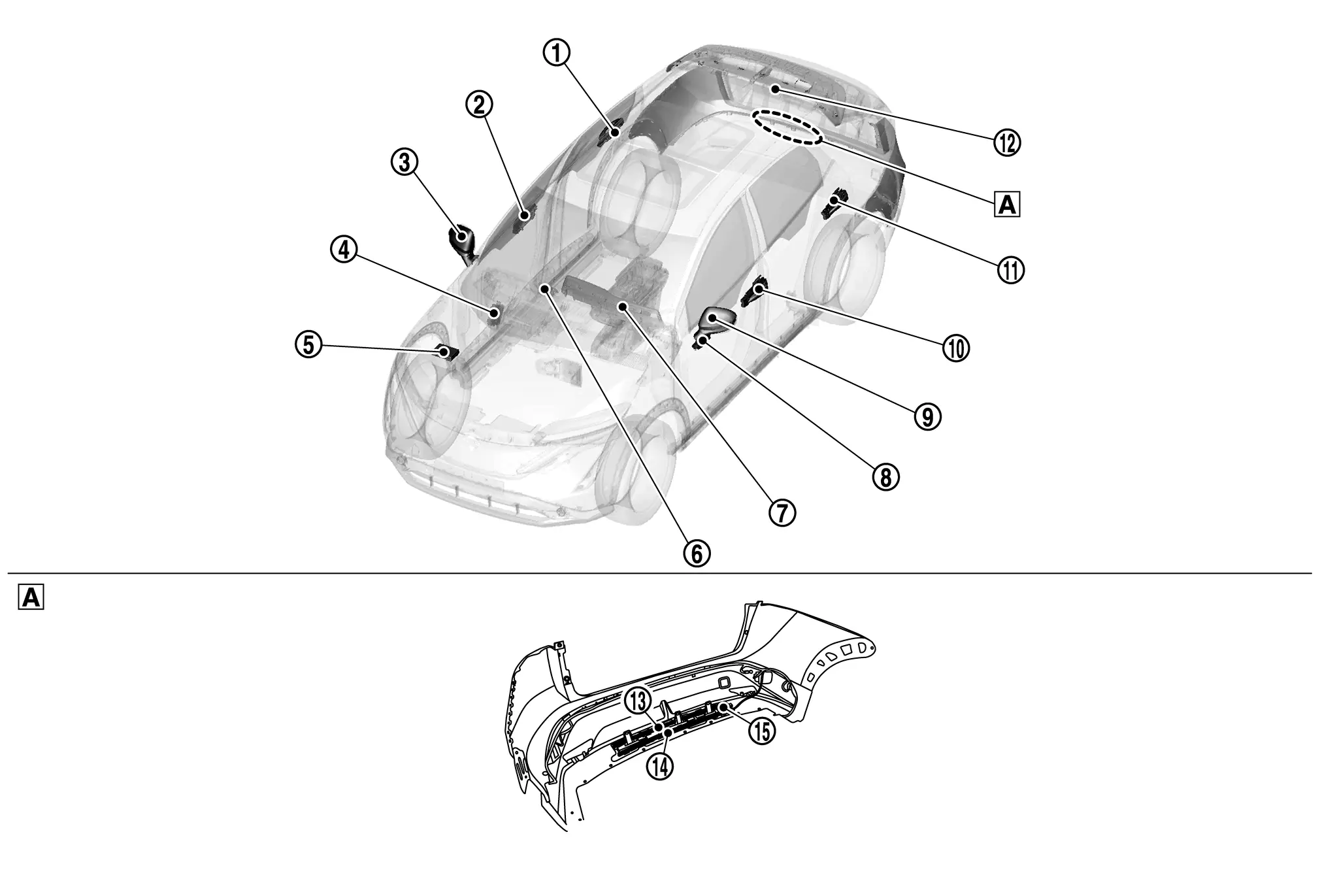

Auto Retractable Door Mirror System
Component Parts Location
|
One touch sensor (rear RH) | |
One touch sensor (front RH) | |
Door mirror (passenger side) |
|
BCM Refer to Component Parts Location. |
|
IPDM E/R Refer to Component Parts Location. |
|
Intelligent Key unit Refer to Component Parts Location. |
|
Combination meter Refer to Component Parts Location. |
 |
Power window main switch |  |
Door mirror (driver side) |
 |
One touch sensor (front LH) |  |
One touch sensor (rear LH) |  |
Back door opener switch assembly (back door request switch) |
 |
Hands free sensor (upper side) |  |
Hands free sensor (lower side) |  |
Hands free sensor control unit |
|
View with back side of rear bumper fascia |

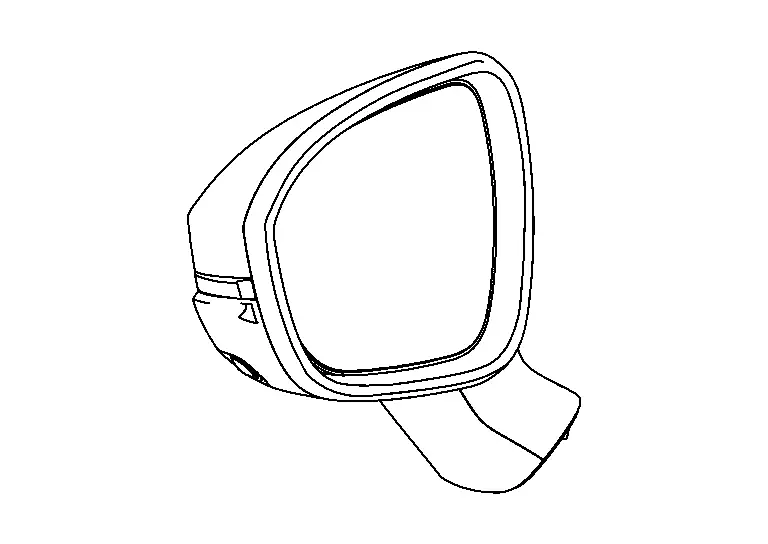

Door Miiror
WITHOUT AUTOMATIC DRIVE POSITIONER
COMPONENT FUNCTION WITHIN SYSTEM
Door mirror is controlled by operating a power window main switch.
INDIVIDUAL COMPONENT FUNCTION
-
It makes mirror face operate from side to side and up and down via integrated motor.
-
It makes door mirror operate open and close via integrated motor.
COMPONENT OPERATION
-
Mirror face angle adjustment is performed when mirror switch is operated.
-
Folding motor retracts door mirror is performed when open/close switch operated.
COMPONENT PARTS LOCATION
Door mirror is installed in front door panel. Refer to Component Parts Location.
WITH AUTOMATIC DRIVE POSITIONER
COMPONENT FUNCTION WITHIN SYSTEM
Door mirror is controlled by power window main switch and passenger door mirror control module.
INDIVIDUAL COMPONENT FUNCTION
-
It makes mirror face operate from side to side and up and down via integrated motor.
-
It makes door mirror operate open and close via integrated motor.
COMPONENT OPERATION
-
Mirror face angle adjustment is performed when mirror switch is operated.
-
Folding motor retracts door mirror is performed when open/close switch operated.
COMPONENT PARTS LOCATION
Door mirror is installed in front door panel. Refer to Component Parts Location.
Power Window Main Switch
WITHOUT AUTOMATIC DRIVE POSITIONER
COMPONENT FUNCTION WITHIN SYSTEM
Power window main switch controls door mirror.
INDIVIDUAL COMPONENT FUNCTION

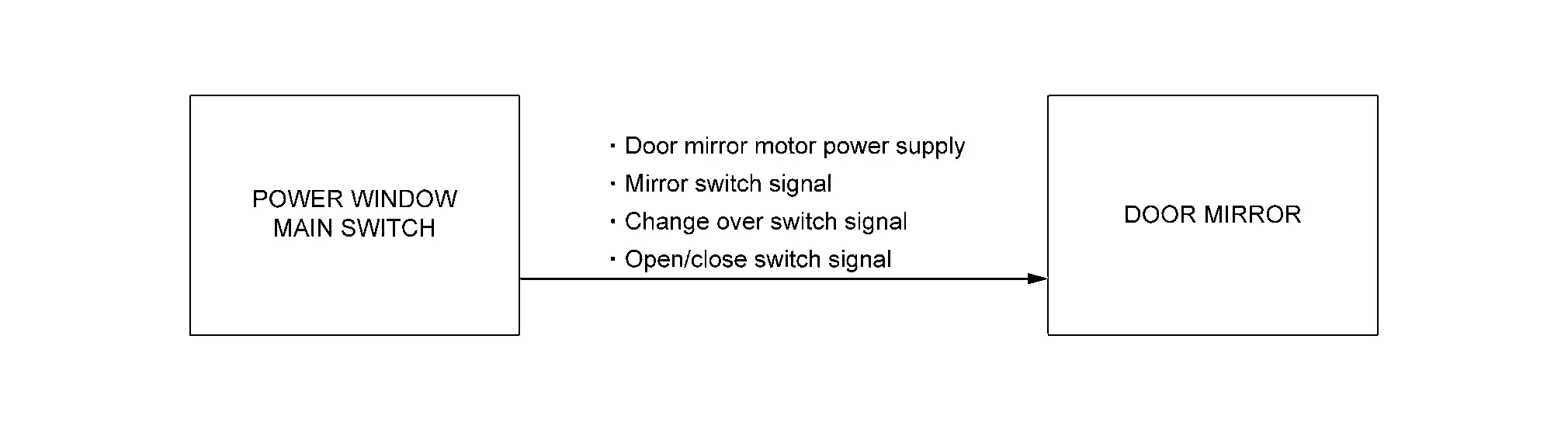

When door mirror switch is operated, following signal is sent from door mirror switch to door mirror.
-
Door mirror motor power supply
-
Mirror switch signal
-
Changeover switch signal
-
Open/close switch signal
COMPONENT OPERATION
-
Mirror face angle adjustment is performed when mirror switch is operated.
-
The door mirror for which angle adjustment is performed is switch by operating the changeover switch.
COMPONENT PARTS LOCATION
Power window main switch is integrated in front door finisher. Refer to Component Parts Location.
WITH AUTOMATIC DRIVE POSITIONER
COMPONENT FUNCTION WITHIN SYSTEM
Power window main switch controls door mirror (driver side).
INDIVIDUAL COMPONENT FUNCTION

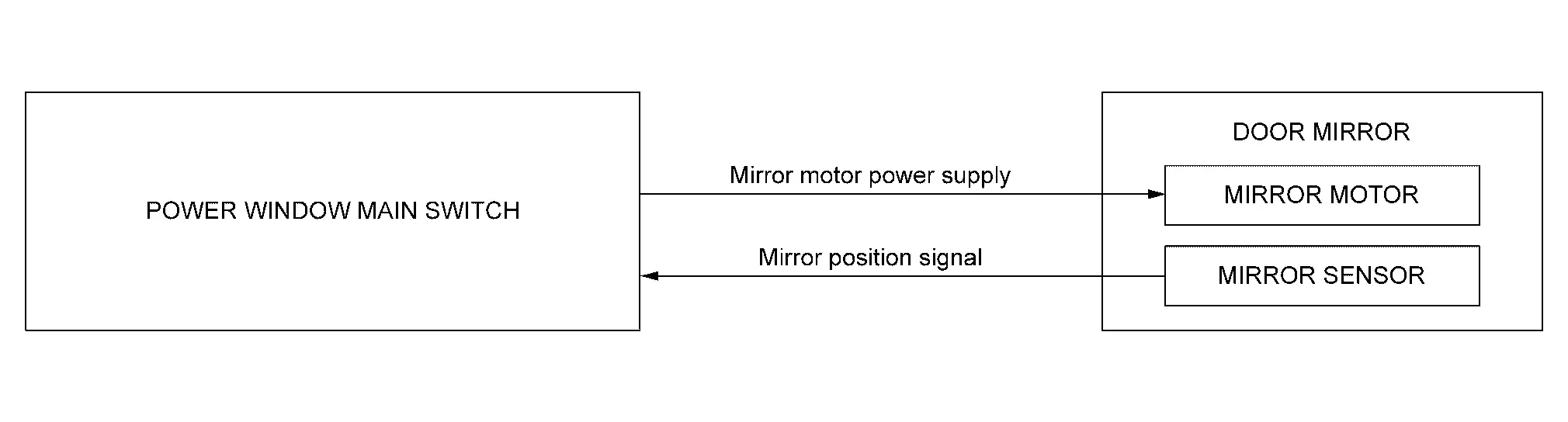

When door mirror switch is operated, following signal is sent from door mirror switch to door mirror.
-
Mirror motor power supply
-
Mirror position signal
COMPONENT OPERATION
-
Mirror face angle adjustment is performed when mirror switch is operated.
-
The door mirror for which angle adjustment is performed is switch by operating the changeover switch.
COMPONENT PARTS LOCATION
Power window main switch is integrated in front door finisher. Refer to Component Parts Location.

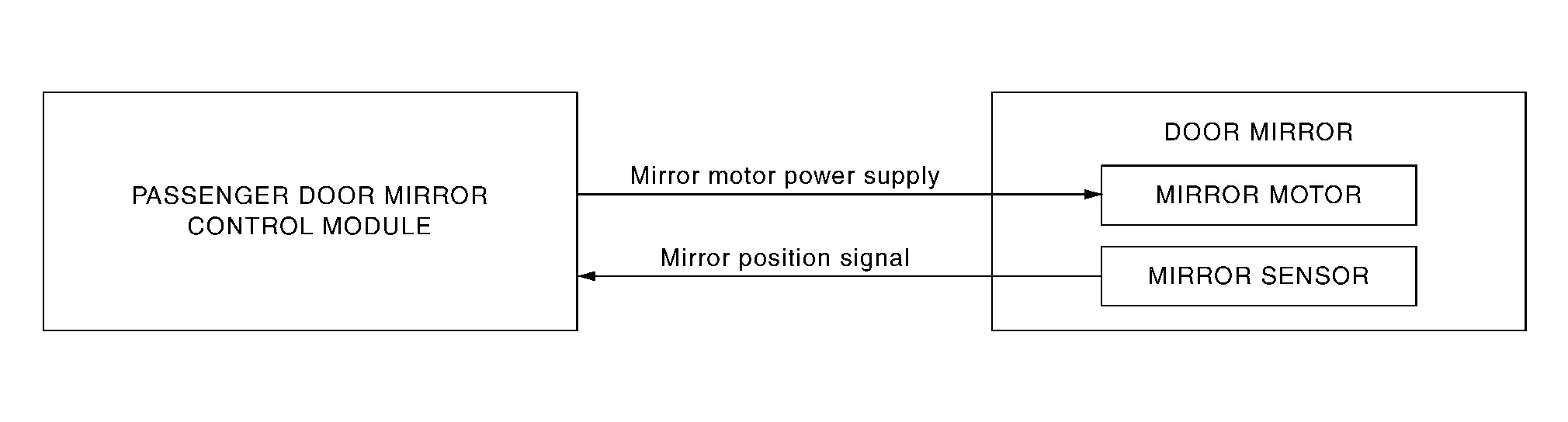

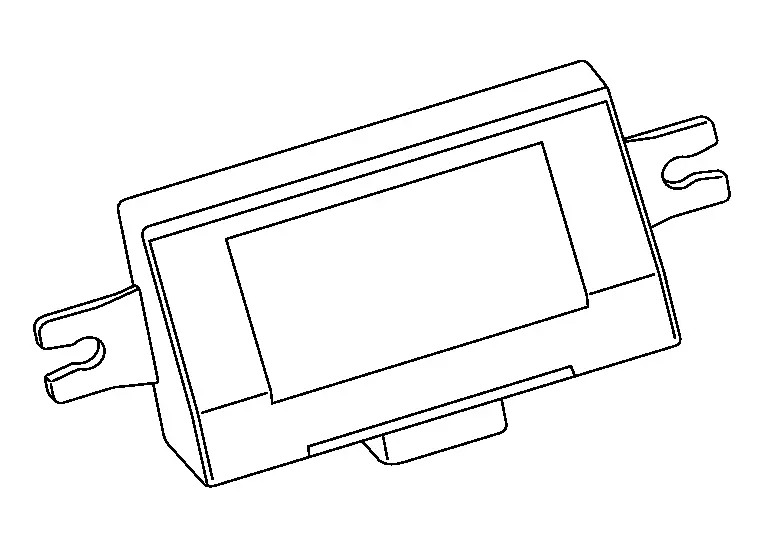

Passenger Door Mirror Control Module
COMPONENT FUNCTION WITHIN SYSTEM
Passenger door mirror control module supplies mirror motor power supply in door mirror (passenger side) and operates door mirror (passenger side).
INDIVIDUAL COMPONENT FUNCTION
-
Passenger door mirror control module transmits the mirror motor power supply to door mirror (passenger side).
-
Passenger door mirror control module receives the mirror position signal from door mirror (passenger side).
COMPONENT OPERATION
-
The mirror control signal is transmitted to passenger door mirror control module from BCM via LIN communication.
-
When the mirror control signal is detected, passenger door mirror control module activated mirror motor (passenger side).
COMPONENT PARTS LOCATION
Passenger door mirror control module is installed in front door finisher. Refer to Component Parts Location.
Nissan Ariya (FE0) 2023-2025 Service & Repair Manual
