Mechanical System. Reduction Gear
Structure

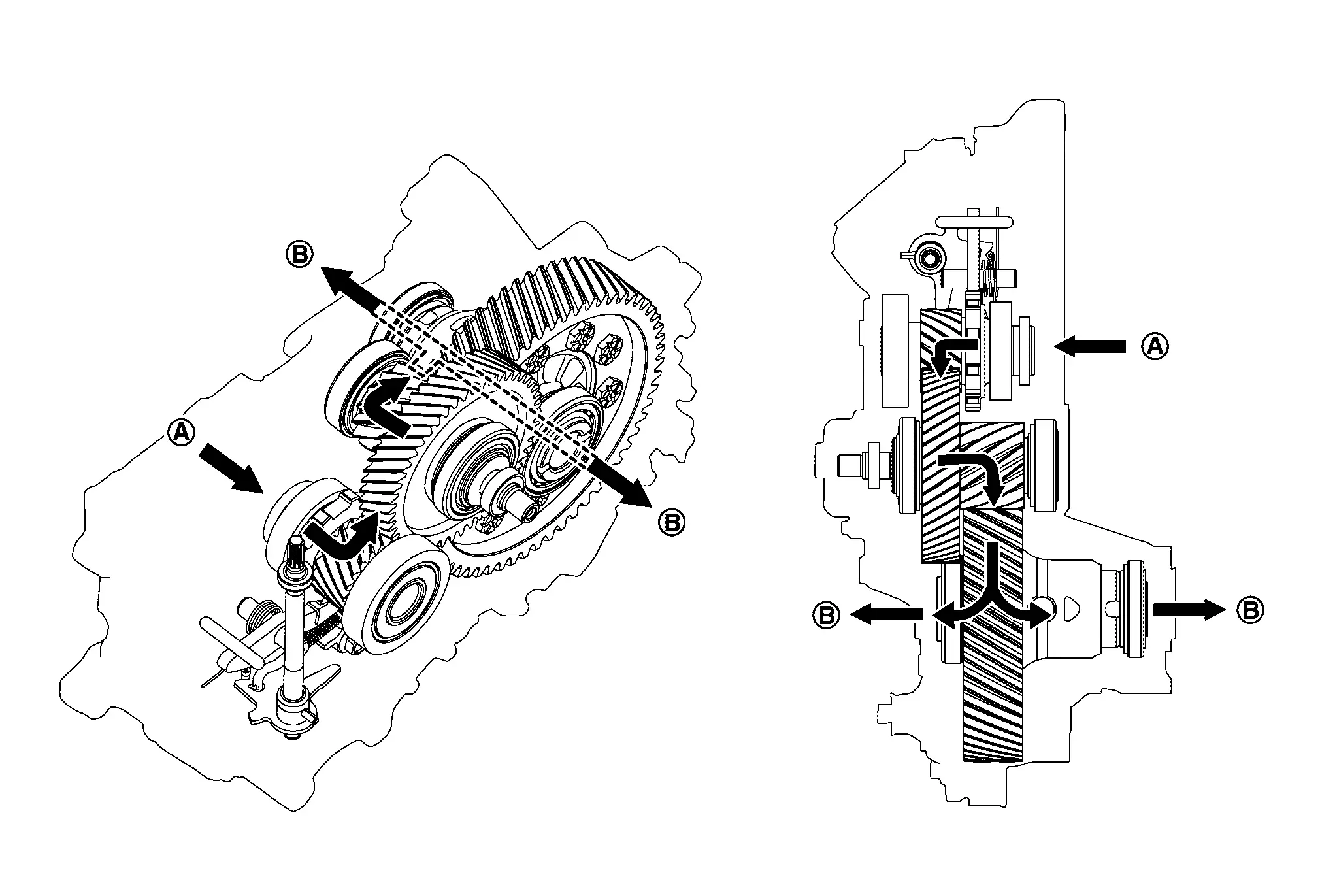

POWER TRANSMISSION DIAGRAM
 |
From front traction motor |  |
To drive shift |
EARTH BRUSH
An earth brush
is installed on the end of the reduction gear main shaft, grounding electrical noise transmitted from the motor shaft to the reduction gear case.

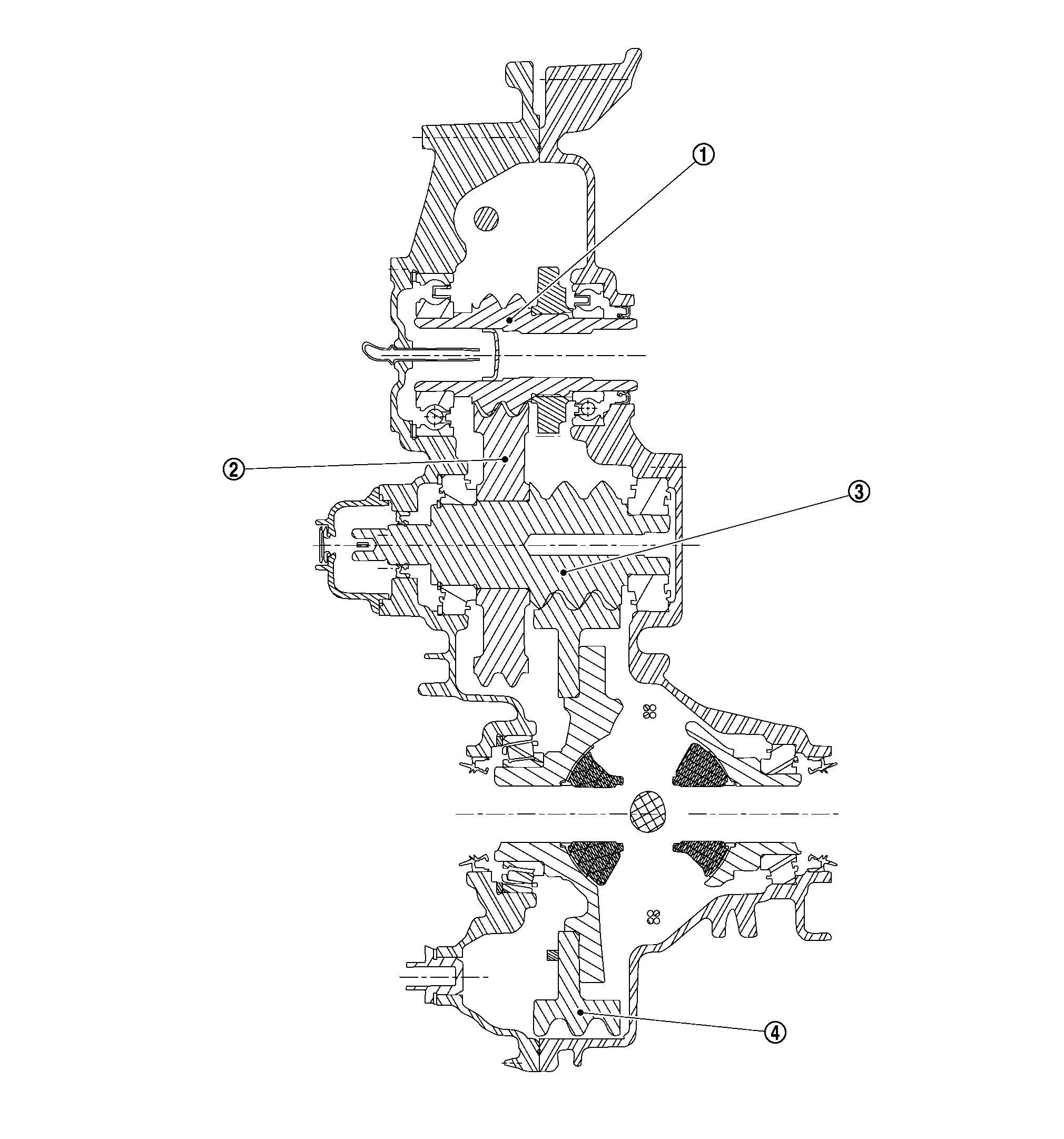

Sectional View
|
Input gear |  |
Mainshaft gear |  |
Mainshaft |
 |
Final gear |
