Nissan Ariya: Horn

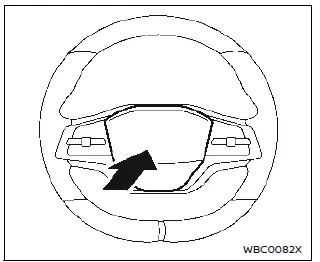

To sound the horn, push the center pad area of the steering wheel.

WARNING

Do not disassemble the horn. Doing so could affect proper operation of the supplemental front air bag system.

Tampering with the supplemental front air bag system may result in serious personal injury.

Heated steering wheel

Example

Example

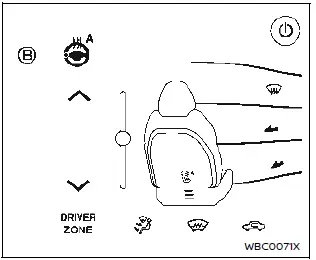

The control keys are displayed on the touch screen display.

1. Start the EV system.

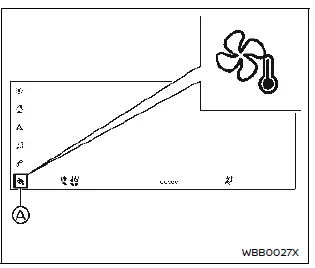

2. To display the air conditioner screen, touch the key A on the touch screen display.

3. Touch the key B to select the mode.

1. Auto mode (orange)
2. Manual mode (orange)
3. Off (gray)

If the surface temperature of the steering wheel is below 86 to 104ºF (30 to 40ºC), the system will heat the steering wheel and cycle off and on to maintain a temperature above 86 to 104ºF (30 to 40ºC).

The indicator light will remain on as long as the system is on.

In the AUTO mode, the temperature control intensity level can be selected by the touch screen display. The heated steering wheel system is automatically turned off after 30 minutes.
