Flexible Center Storage Control Module
Physical Values

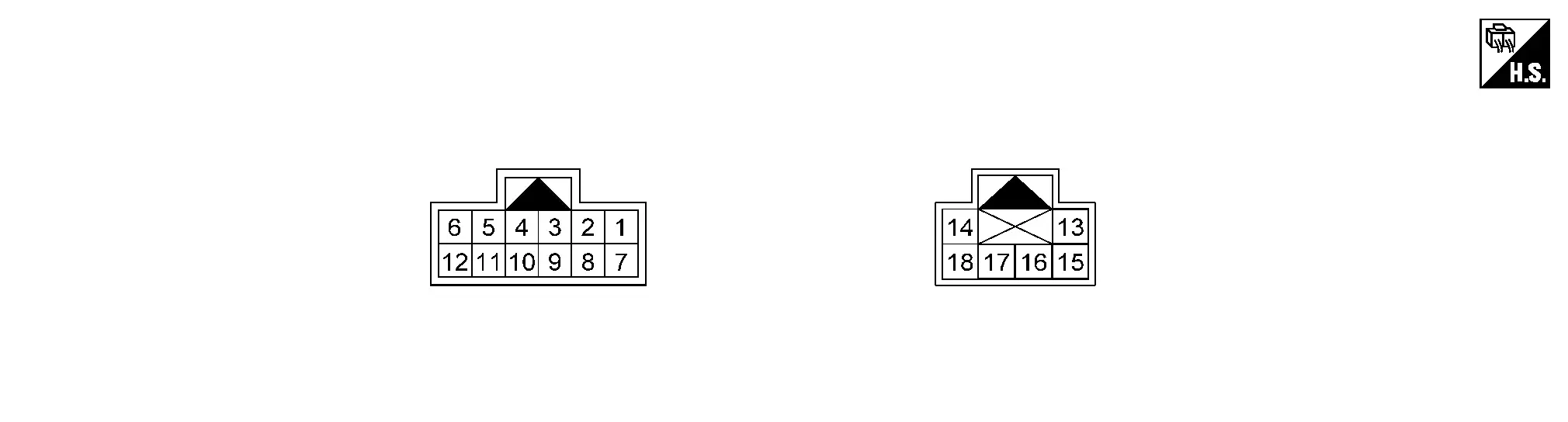

TERMINAL LAYOUT
PHYSICAL VALUES
| Terminal No. | Description | Condition | Voltage | |||
|---|---|---|---|---|---|---|
| + | - | Signal name | Input/Output | |||
|
1 (G) |
Ground | Auto ACC | Input | Power switch | ON or OFF (auto ACC status) | Battery voltage |
| Other than above | 0 V | |||||
| 2* | — | — | — | — | — | — |
|
3 (R) |
Ground |

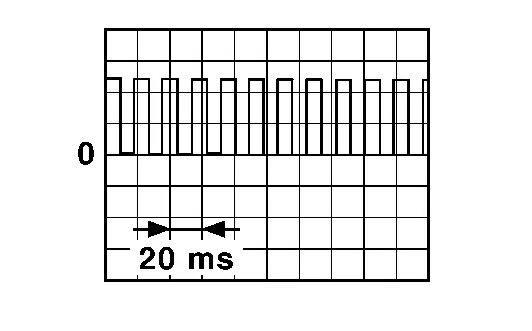

Nissan Ariya Vehicle speed (8 pulse) |
Input | Power switch ON | Nissan Ariya Vehicle speed is approximately 40 km/h (24.8 MPH) |
The maximum voltage varies depending on the specification (destination unit).
|
| 4* | — | — | — | — | — | — |
|
5 (P) |
Ground | Full close switch | Input | Flexible center storage lid | Full close | 0 V |
| Other than above | 5 V | |||||
|
6 (Y) |
Ground | Full open switch | Input | Flexible center storage lid | Full close | 0 V |
| Other than above | 5 V | |||||
| 7* | — | — | — | — | — | — |
|
8 (Y) |
Ground | OPEN switch | Input | Flexible center strage OPEN switch | Push | 5 V |
| Release | 0 V | |||||
|
9 (L) |
Ground | CLOSE switch | Input | Flexible center strage CLOSE switch | Push | 5 V |
| Release | 0 V | |||||
|
10 (GR) |
Ground | Close reminder | Output | Nissan Ariya Vehicle speed | More than 15 km/h (9.3 MPH) | 1.2 V |
| Less than 15 km/h (9.3 MPH) | 0 V | |||||
| 11* | — | — | — | — | — | — |
|
12 (B) |
Ground | Flexible center strage lamp | Output | Flexible center strage lamp | ON | 9 V |
| OFF | 0 V | |||||
|
13 (R) |
Ground | Battery power supply | Input | — | Battery voltage | |
|
14 (P) |
Ground | Flexible center strage motor (OPEN) | Output | Flexible center storage lid | OPEN | 12 V |
| CLOSE | 0.13 V | |||||
| 15* | — | — | — | — | — | — |
|
16 (B) |
Ground | Ground | — | — | 0 V | |
| 17* | — | — | — | — | — | — |
|
18 (B) |
Ground | Flexible center strage motor (CLOSE) | Output | Flexible center storage lid | CLOSE | 12 V |
| OPEN | 0.13 V | |||||
NOTE:
*: The harness is connected, but not used
Fail-safe
Refer to Fail-safe.
