Nissan Ariya: Intelligent Driver Alertness (I-DA)

Basic information

WARNING

Failure to follow the warnings and instructions for proper use of the I-DA system could result in serious injury or death.

• The I-DA system is only a warning to inform the driver of a potential lack of driver attention or drowsiness.

  It will not steer the vehicle or prevent loss of control.

• The I-DA system does not detect and provide an alert of the driver's lack of attention or fatigue in every situation.
• It is the driver's responsibility to:
  • Stay alert.
  • Drive safely.
  • Keep the vehicle in the traveling lane.
  • Be in control of the vehicle at all times.
  • Avoid driving when tired.
  • Avoid distractions (texting, etc).

The I-DA system helps alert the driver if the system detects a lack of attention or driving fatigue.

The system monitors driving style and steering behavior over a period of time, and it detects changes from the normal pattern. If the system detects that driver attention is decreasing over a period of time, the system uses audible and visual warnings to suggest that the driver take a break.

I-DA system operation

Example

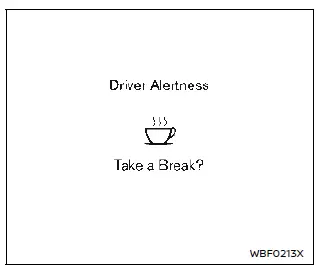

If the system detects driver fatigue or that driver attention is decreasing, the message "Take a Break?" appears in the vehicle information display and a chime sounds when the vehicle is driven at speeds above 37 MPH (60 km/h).

The system continuously monitors driver attention and can provide multiple warnings per trip.

The system resets and starts reassessing driving style and steering behavior when the power switch is cycled from the ON to the OFF position and back to the ON position.

The system will not operate when Steering Assist system is activated.

How to enable/disable the I-DA system

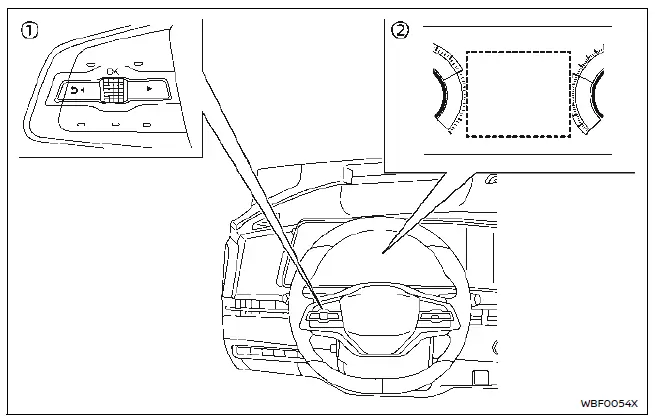

1. Steering-wheel-mounted control (left side)
2. Vehicle information display

How to enable/disable the I-DA system Perform the following steps to enable or disable the I-DA system.

1. Push the button until "Settings" appears in the vehicle information display and push the scroll dial.

Use the scroll dial to select "Driver Assistance." Then push the scroll dial.

2. Select "Driver Monitor" and push the scroll dial.

3. Select "Driver Alertness" and use the scroll dial to turn the system on or off.

NOTE

The I-DA system will automatically be turned on when the EV system is restarted.

I-DA system limitations

WARNING

Listed below are the system limitations for the I-DA system. Failure to operate the vehicle in accordance with these system limitations could result in serious injury or death.

• The I-DA system may not operate properly and may not provide an alert in the following conditions:
  • Poor road conditions such as an uneven road surface or pot holes.
  • Strong side wind.
  • If you have adopted a sporty driving style with higher cornering speeds or higher rates of acceleration.
  • Frequent lane changes or changes to vehicle speed.
• The I-DA system will not provide an alert in the following conditions:
  • Vehicle speeds lower than 37 MPH (60 km/h).
  • Short lapses of attention.
  • Instantaneous distractions such as dropping an object.

System malfunction

If the I-DA system malfunctions, the "Malfunction See Owner's Manual" warning message will appear in the vehicle information display and the function will be stopped automatically.

Action to take

Stop the vehicle in a safe location, place the vehicle in P (Park) position, turn the EV system off and restart the EV system. If the warning message continues to appear, have the system checked. It is recommended that you visit a NISSAN certified ARIYA dealer for this service.
