Nissan Ariya: Removal and Installation

• Map Lamp
• Vanity Mirror Lamp
• Glove Box Lamp
• Personal Lamp
• Luggage Room Lamp
• Charge Port Light

Map Lamp

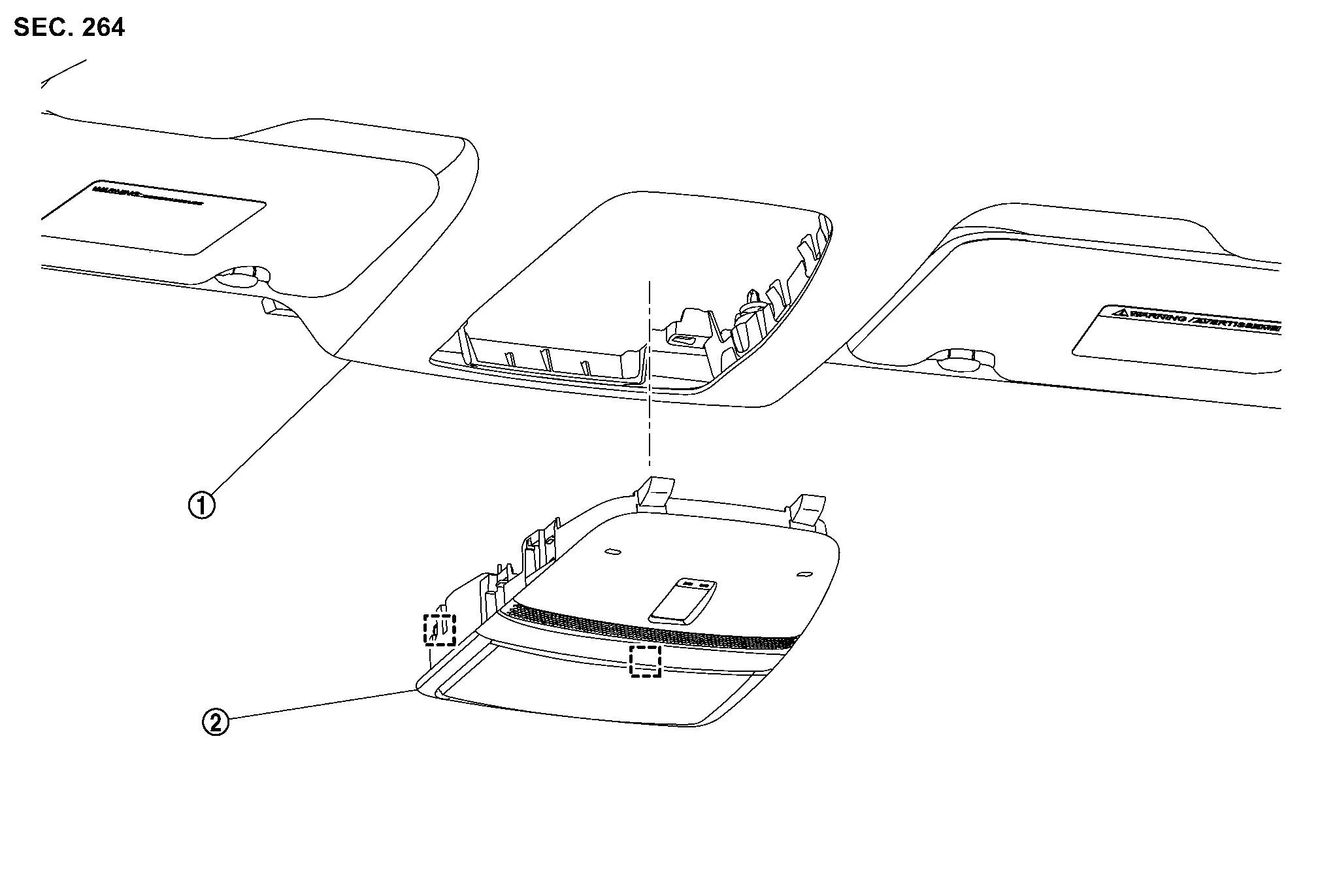

Exploded View

	Headlining assembly		Map lamp assembly
	: Metal clip

Removal & Installation

REMOVAL

CAUTION:

• Disconnect the battery negative terminal or remove power circuit fuse when performing the operation for preventing electric leakage. Refer to Precautions for Removing Battery Terminal.

• When removing, always use a remover tool that is mode of plastic.

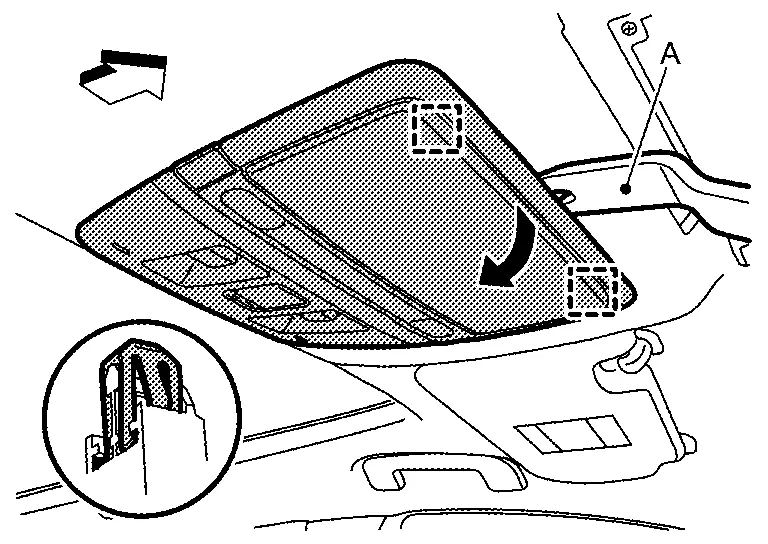

Disengage map lamp assembly fixing metal clips using a remover tool (A).

	: Metal clip
	: Nissan Ariya Vehicle front

Disconnect harness connectors, and then remove map lamp assembly.

INSTALLATION

Install in the reverse order of removal.

Replacement

MAP LAMP

CAUTION:

• Disconnect the battery negative terminal or remove power circuit fuse when performing the operation for preventing electric leakage. Refer to Precautions for Removing Battery Terminal.

• Replacement of a single part is not possible due to the integrated structure with map lamp assembly. When replacement, replace map lamp assembly as a single part. Refer to Removal & Installation.

Vanity Mirror Lamp

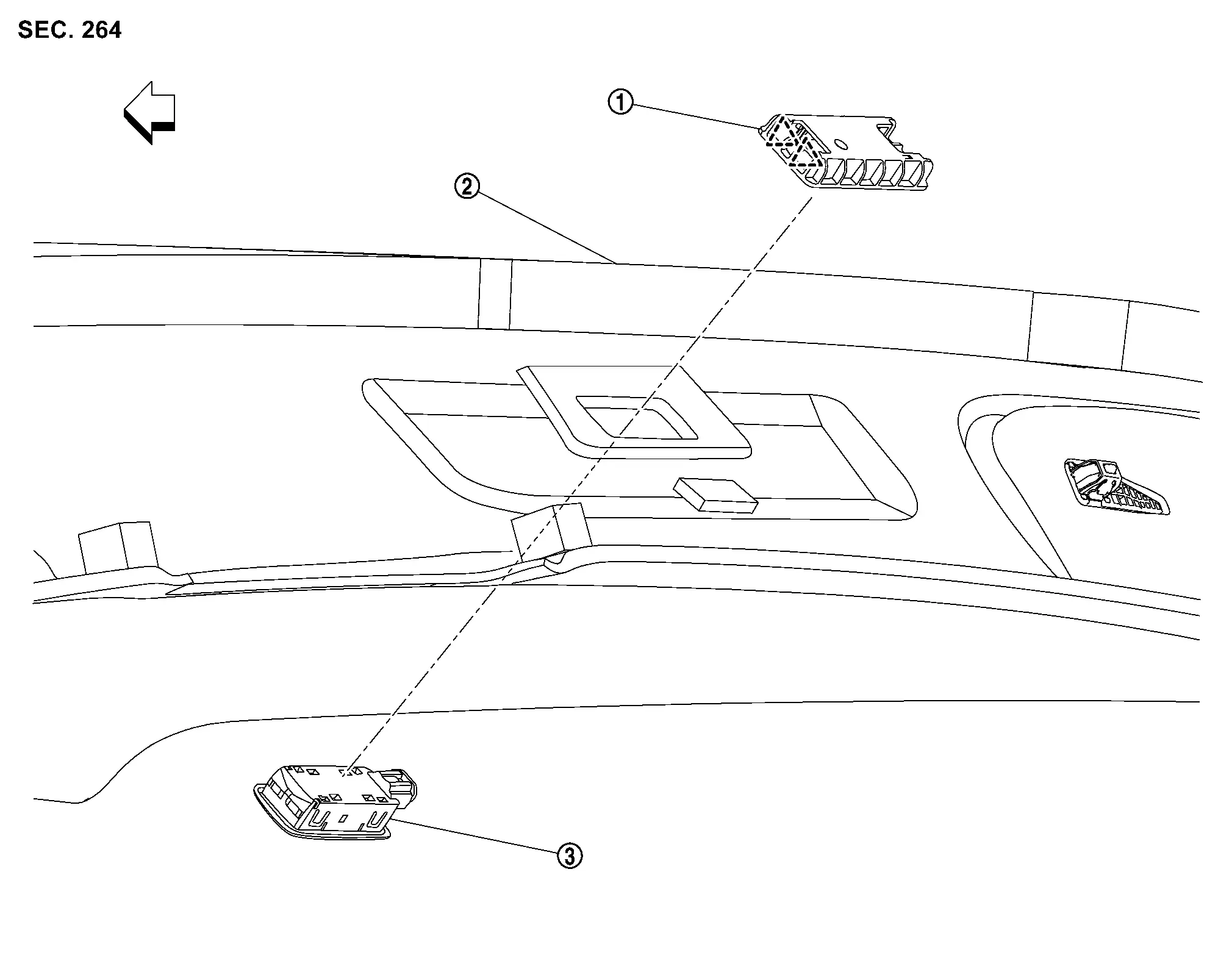

Exploded View

	Vanity mirror lamp bracket		Headlining assembly		Vanity mirror lamp assembly
	: Pawl

Removal & Installation

REMOVAL

CAUTION:

• Disconnect the battery negative terminal or remove power circuit fuse when performing the operation for preventing electric leakage. Refer to Precautions for Removing Battery Terminal.

• When removing, always use a remover tool that is mode of plastic.

Remove headlining assembly. Refer to Removal & Installation.

Disconnect vanity mirror lamp harness connector.

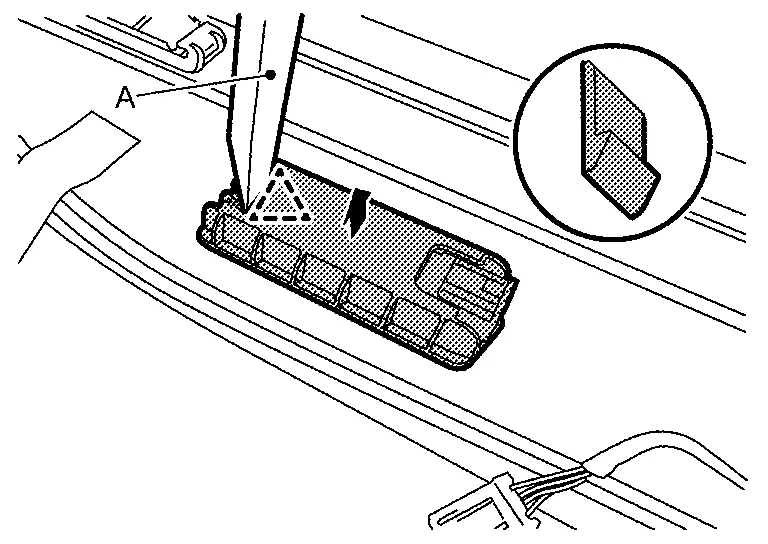

Disengage vanity mirror lamp assembly fixing pawl using a remover tool (A), and then remove vanity mirror lamp bracket.

: Pawl

Remove vanity mirror lamp assembly form headlining assembly.

INSTALLATION

Install in the reverse order of removal.

Replacement

VANITY MIRROR LAMP

CAUTION:

Replacement of bulb is not possible due to the adoption of LED. When replacement, replace vanity mirror lamp as a single part. Refer to Removal & Installation.

Glove Box Lamp

Exploded View

Glove box lamp is integrated structure with glove box. For exploded view of instrument panel, refer to Exploded View.

Replacement

GLOVE BOX LAMP

CAUTION:

• Disconnect the battery negative terminal or remove power circuit fuse when performing the operation for preventing electric leakage. Refer to Precautions for Removing Battery Terminal.

• Replacement of bulb is not possible due to the adoption of LED. When replacement,　replace glove box as a single part. Refer to Removal & Installation.

Personal Lamp

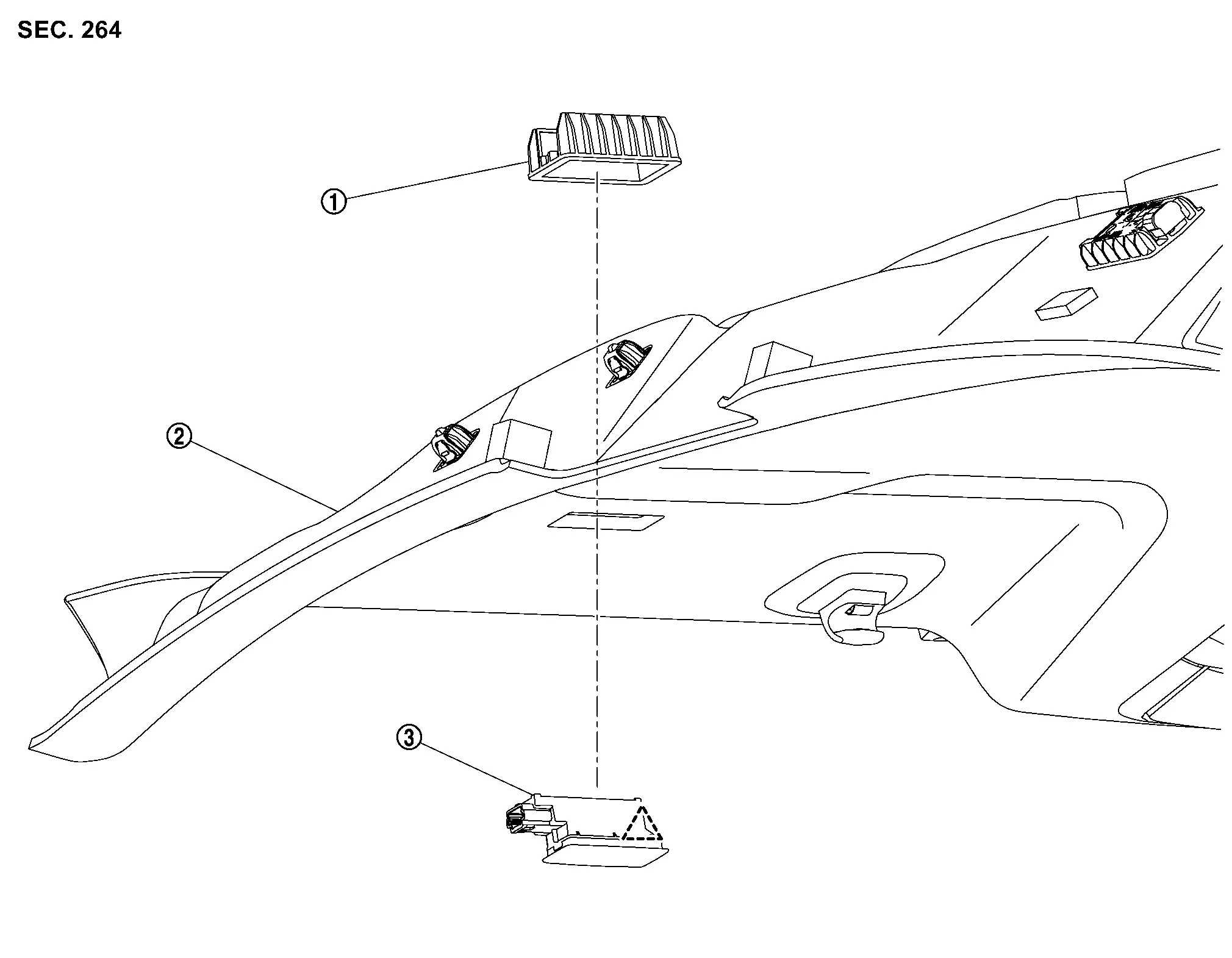

Exploded View

	Personal lamp bracket		Headlining assembly		Personal lamp
	: Pawl
	: Nissan Ariya Vehicle front

Removal & Installation

REMOVAL

CAUTION:

Disconnect the battery negative terminal or remove power circuit fuse when performing the operation for preventing electric leakage. Refer to Precautions for Removing Battery Terminal.

Remove headlining assembly. Refer to Removal & Installation.

Disconnect personal lamp harness connector.

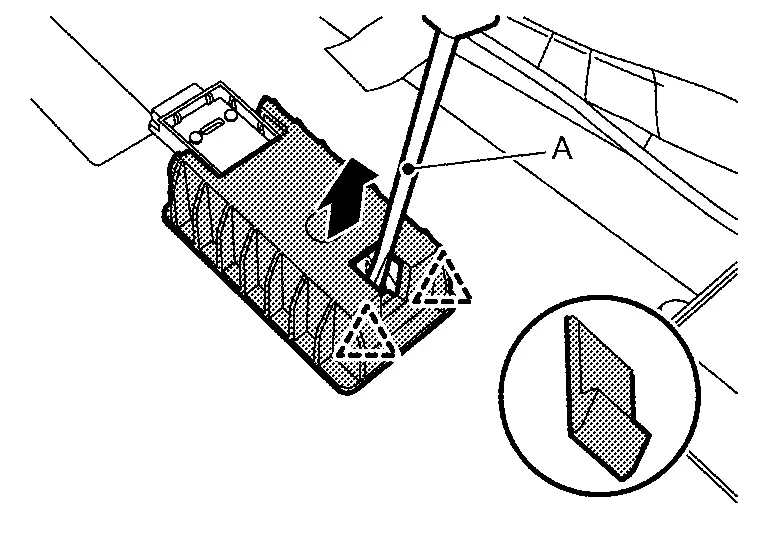

Disengage personal lamp bracket fixing pawls using a remover tool (A), and then remove personal lamp bracket.

: Pawl

Remove personal lamp form headlining assembly.

INSTALLATION

Install in the reverse order of removal.

Replacement

PERSONAL LAMP

CAUTION:

• Disconnect the battery negative terminal or remove power circuit fuse when performing the operation for preventing electric leakage. Refer to Precautions for Removing Battery Terminal.

• Replacement of bulb is not possible due to the adoption of LED. When replacement, replace personal lamp as a single part. Refer to Removal & Installation.

Luggage Room Lamp

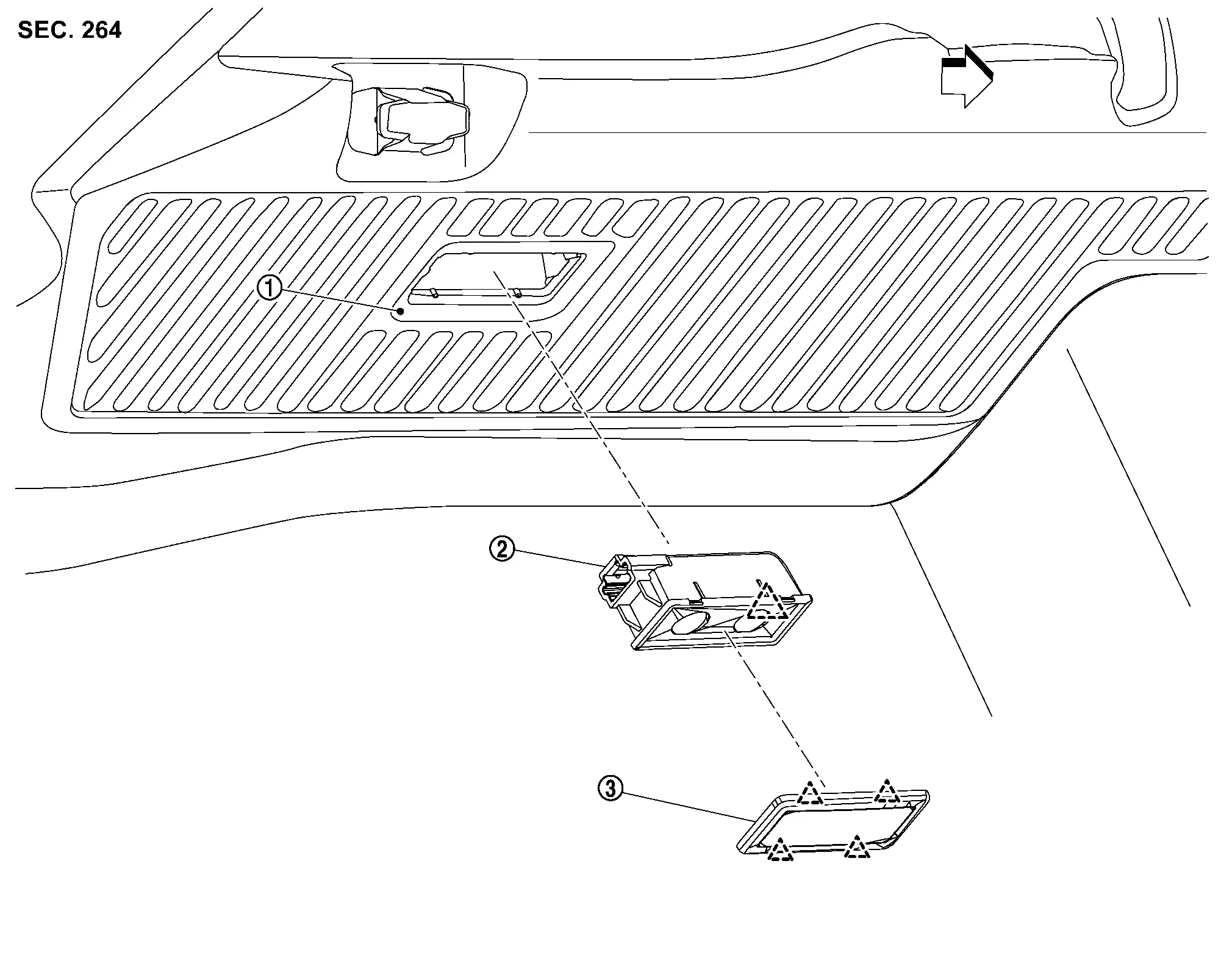

Exploded View

	Luggage side lower finisher		Luggage room lamp housing		lens
	: Pawl
	: Nissan Ariya Vehicle front

Removal & Installation

CAUTION:

• Disconnect the battery negative terminal or remove power circuit fuse when performing the operation for preventing electric leakage. Refer to Precautions for Removing Battery Terminal.

• When removing, always use a remover tool that is mode of plastic.

REMOVAL

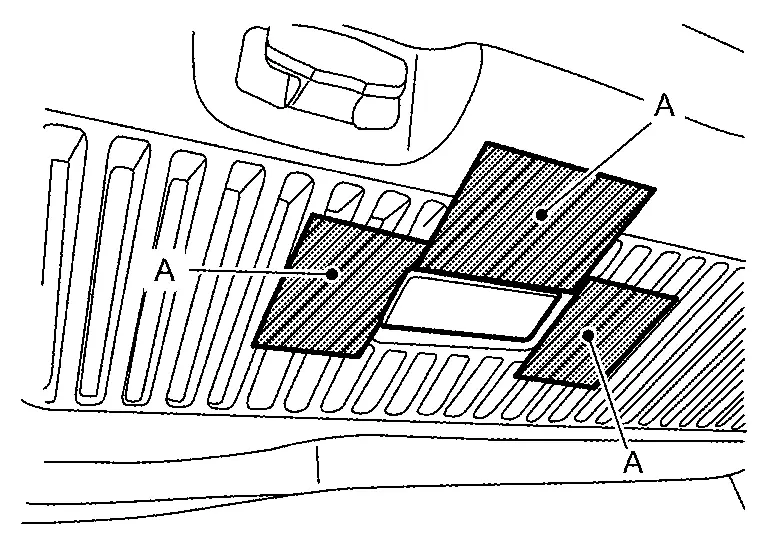

Apply protective tapes (A) on luggage side lower finisher to protect it from damage.

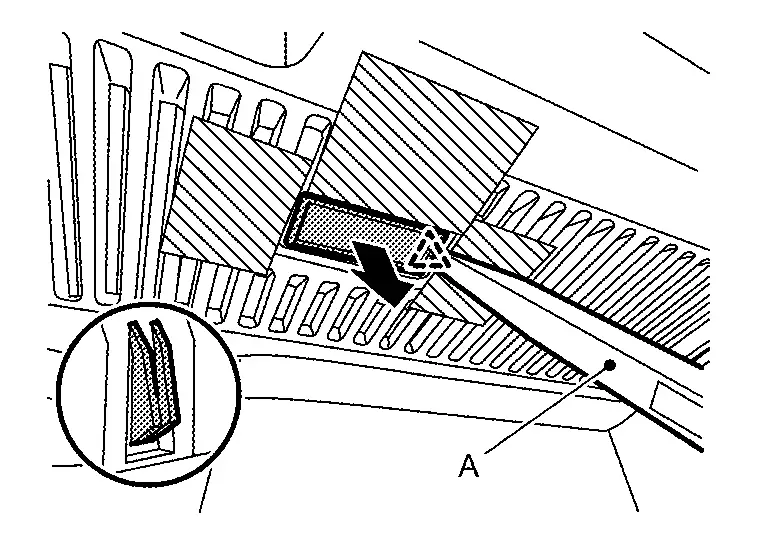

Disengage lens fixing pawls using a remover tool (A).

: Pawl

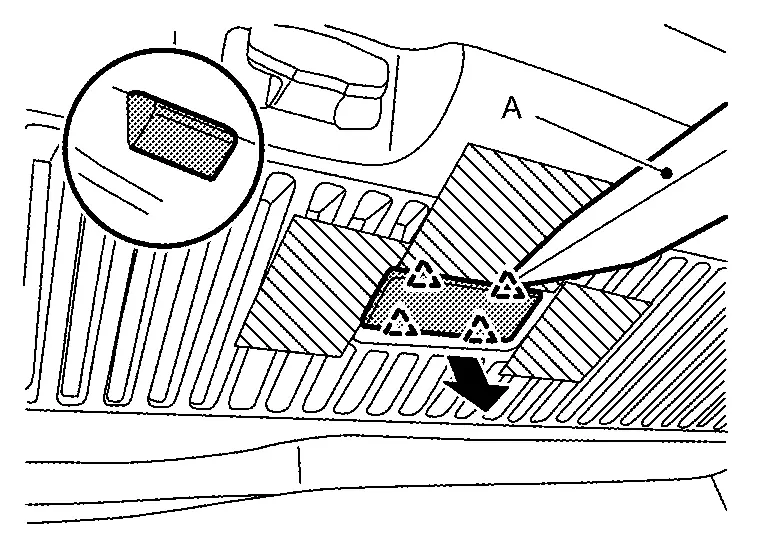

Disengage luggage room lamp housing fixing pawl using a remover tool (A).

: Pawl

Disconnect luggage room lamp harness connector, and then remove luggage room lamp.

INSTALLATION

Install in the reverse order of removal.

Replacement

LUGGAGE ROOM LAMP

CAUTION:

• Disconnect battery negative terminal or remove power circuit fuse when performing the operation for preventing electric leakage. Refer to Precautions for Removing Battery Terminal.

• Replacement of bulb is not possible due to the adoption of LED. When replacement, replace luggage room lamp as a single part. Refer to Removal & Installation.

Charge Port Light

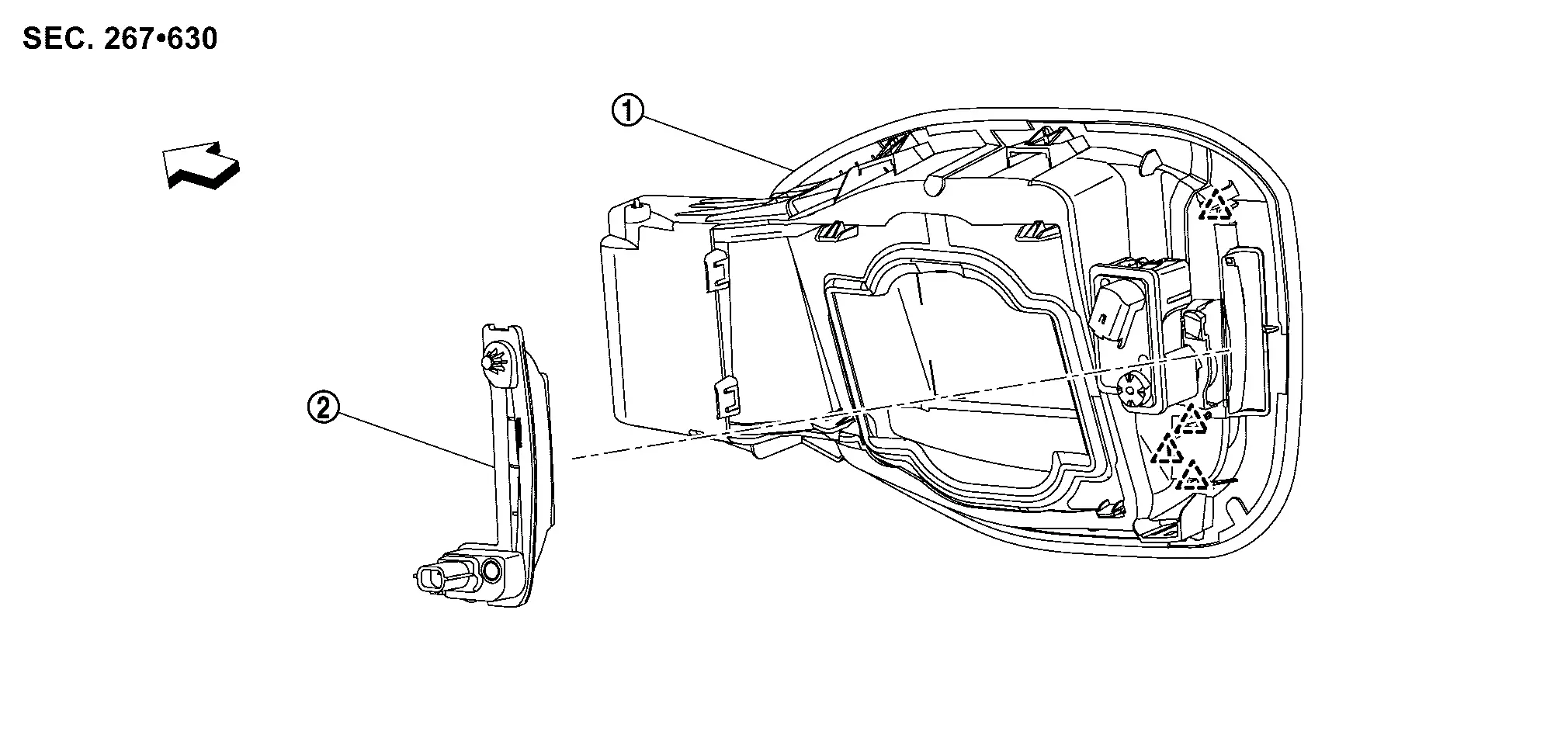

Exploded View

	Charge port base assembly		Charge port light
	: Nissan Ariya Vehicle front

Removal & Installation

REMOVAL

CAUTION:

Disconnect the battery negative terminal or remove power circuit fuse when performing the operation for preventing electric leakage. Refer to Precautions for Removing Battery Terminal.

Remove charge port base assembly. Refer to Removal & Installation.

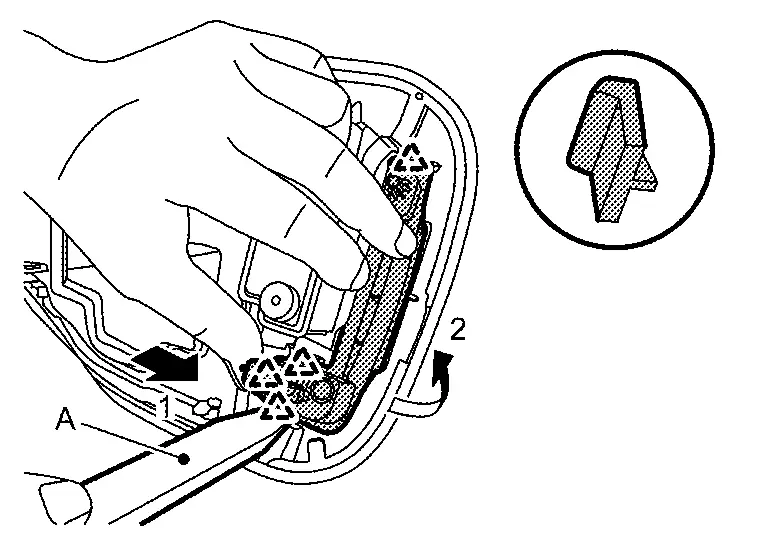

Pushing the charging port light outward according to the procedure shown by arrow 1 in the figure.

: Pawl

Disengage charging port light fixing pawls using a remover tool (A) according to the procedure shown by arrow 2 in the figure, and then remove charging port light.

INSTALLATION

Install in the reverse order of removal.

Replacement

CHARGE PORT LIGHT

CAUTION:

• Disconnect battery negative terminal or remove power circuit fuse when performing the operation for preventing electric leakage. Refer to Precautions for Removing Battery Terminal.

• Replacement of bulb is not possible due to the adoption of LED. When replacement, replace charge port light as a single part. Refer to Removal & Installation.
