Nissan Ariya: Lane Departure Warning (LDW)

Basic information

WARNING

Failure to follow the warnings and instructions for proper use of the LDW system could result in serious injury or death.

• This system is only a warning device to inform the driver of a potential unintended lane departure.

  It will not steer the vehicle or prevent loss of control. It is the driver's responsibility to stay alert, drive safely, keep the vehicle in the traveling lane, and be in control of the vehicle at all times.

The LDW system will operate when the vehicle is driven at speeds of approximately 37 - 125 MPH (60 - 200 km/h), and the lane markings are clearly visible on the road.

The LDW system monitors the lane markers on the traveling lane using the camera unit located above the inside mirror.

The LDW system warns the driver that the vehicle is beginning to leave the driving lane with an indicator and a steering wheel vibration.

LDW system operation

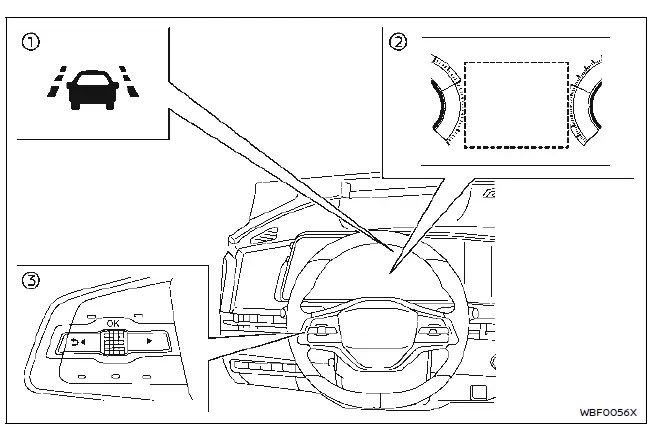

1. LDW indicator (on the vehicle information display)
2. Vehicle information display
3. Steering-wheel-mounted controls (left side)

The LDW system provides a lane departure warning function when the vehicle is driven at speeds of approximately 37 - 125 MPH (60 - 200 km/h) and the lane markings are clear. When the vehicle approaches either the left or the right side of the traveling lane, the steering wheel will vibrate and the LDW indicator on the vehicle information display will blink to alert the driver.

The warning function will stop when the vehicle returns inside of the lane markers.

How to enable/disable the LDW system

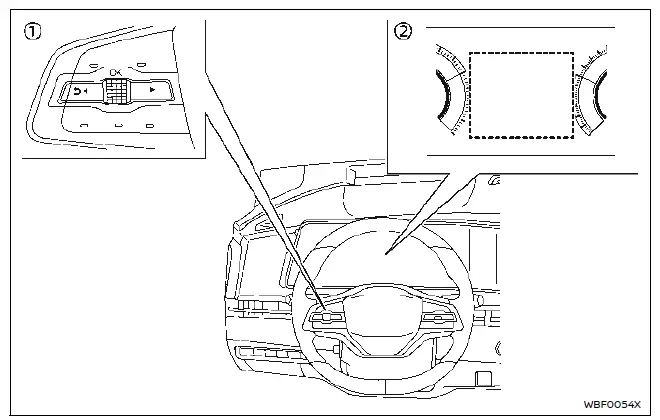

1. Steering-wheel-mounted controls (left side)
2. Vehicle information display

Perform the following steps to enable or disable the LDW system.

1. Push the button until "Settings" appears in the vehicle information display and then push the scroll dial. Use the scroll dial to select "Driver Assistance". Then push the scroll dial.

2. Select "Lane Assist" and push the scroll dial.

3. Select "Warning" and push the scroll dial.

NOTE

If you disable the LDW system, the system will remain disabled the next time you start the vehicle's EV system.

LDW system limitations

WARNING

Listed below are the system limitations for the LDW system. Failure to follow the warnings and instructions for proper use of the LDW system could result in serious injury or death.

• The system will not operate at speeds below approximately 37 MPH (60 km/h) or if it cannot detect lane markers.
• Do not use the LDW system under the following conditions as it may not function properly:
  • During bad weather (rain, fog, snow, etc.).
  • When driving on slippery roads, such as on ice or snow.
  • When driving on winding or uneven roads.
  • When there is a lane closure due to road repairs.
  • When driving in a makeshift or temporary lane.
  • When driving on roads where the lane width is too narrow.
  • When driving without normal tire conditions (for example, tire wear, low tire pressure, installation of tire chains or non-standard wheels).
  • When the vehicle is equipped with non-original brake parts or suspension parts.
  • When towing a trailer or other vehicle (AWD models).
• The system may not function properly under the following conditions:
  • On roads where there are multiple parallel lane markers; lane markers that are faded or not painted clearly; yellow painted lane markers; non-standard lane markers; or lane markers covered with water, dirt, snow, etc.
  • On roads where discontinued lane markers are still detectable.
  • On roads where there are sharp curves.
  • On roads where there are sharply contrasting objects, such as shadows, snow, water, wheel ruts, seams or lines remaining after road repairs.

    (The LDW system could detect these items as lane markers.)

  • On roads where the traveling lane merges or separates.
  • When the vehicle's traveling direction does not align with the lane marker.
  • When traveling close to the vehicle in front of you, which obstructs the lane camera unit detection range.
  • When rain, snow, dirt or object adheres to the windshield in front of the lane camera unit.
  • When the headlights are not bright due to dirt on the lens or if the aiming is not adjusted properly.
  • When strong light enters the lane camera unit. (For example, the light directly shines on the front of the vehicle at sunrise or sunset.)
  • When a sudden change in brightness occurs. (For example, when the vehicle enters or exits a tunnel or under a bridge.)
• Steering wheel vibration may not be felt depending on the road surface conditions.

System temporarily unavailable

Condition A:

If the vehicle is parked in direct sunlight under high temperature conditions (over approximately 104ºF (40ºC) ) and then started, the LDW system may be deactivated automatically and the following message will appear in the vehicle information display.

• "Unavailable Camera Temperature High"

When the interior temperature is reduced, the LDW system will resume operating automatically.

Condition B:

The warning function of the LDW system is not designed to work under the following conditions:

• When you operate the lane change signal and change traveling lanes in the direction of the signal. (The LDW system will become operable again approximately 2 seconds after the lane change signal is turned off.)
• When the vehicle speed lowers to less than approximately 37 MPH (60 km/h).

Action to take:

After the above conditions have finished and the necessary operating conditions are satisfied, the LDW system will resume.

System malfunction

If the LDW system malfunctions, it will cancel automatically and "Malfunction See Owner's Manual" warning message will appear in the vehicle information display.

If the warning message appears, pull off the road to a safe location and stop the vehicle. Place the power switch in the OFF position and restart the EV system. If the warning message continues to appear, have the system checked. It is recommended that you visit a NISSAN certified ARIYA dealer for this service.

System maintenance

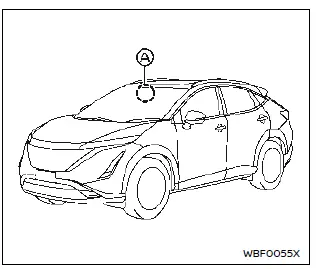

The lane camera unit for the LDW system is located above the inside mirror.

To keep the proper operation of the LDW system and prevent a system malfunction, be sure to observe the following:

• Always keep the windshield clean.

  - Do not attach a sticker (including transparent material) or install an accessory near the camera unit.

• Do not place reflective materials, such as white paper or a mirror, on the instrument panel. The reflection of sunlight may adversely affect the camera unit's capability of detecting the lane markers.
• Do not strike or damage the areas around the camera unit. Do not touch the camera lens or remove the screw located on the camera unit. If the camera unit is damaged due to an accident, it is recommended that you visit a NISSAN certified ARIYA dealer.
