Nissan Ariya: Li-Ion Battery
Nissan Ariya (FE0) 2023-2025 Service & Repair Manual / Electric Power Train / Ev Battery System :: 66kwh Li-Ion Battery / Service Data / Li-Ion Battery
2wd
Service Data
| Items | Specification | ||
|---|---|---|---|
| Type | Li-ion battery | ||
| Structure |
12 modules [2P96S (192 cells)] |
||
| Rated voltage | (V) | Approx. 353 | |
| Battery capacity | (kWh) | Approx. 66 | |
| Weight | [kg(lb)] | Approx. 451 (994.5) | |
|
|
|||

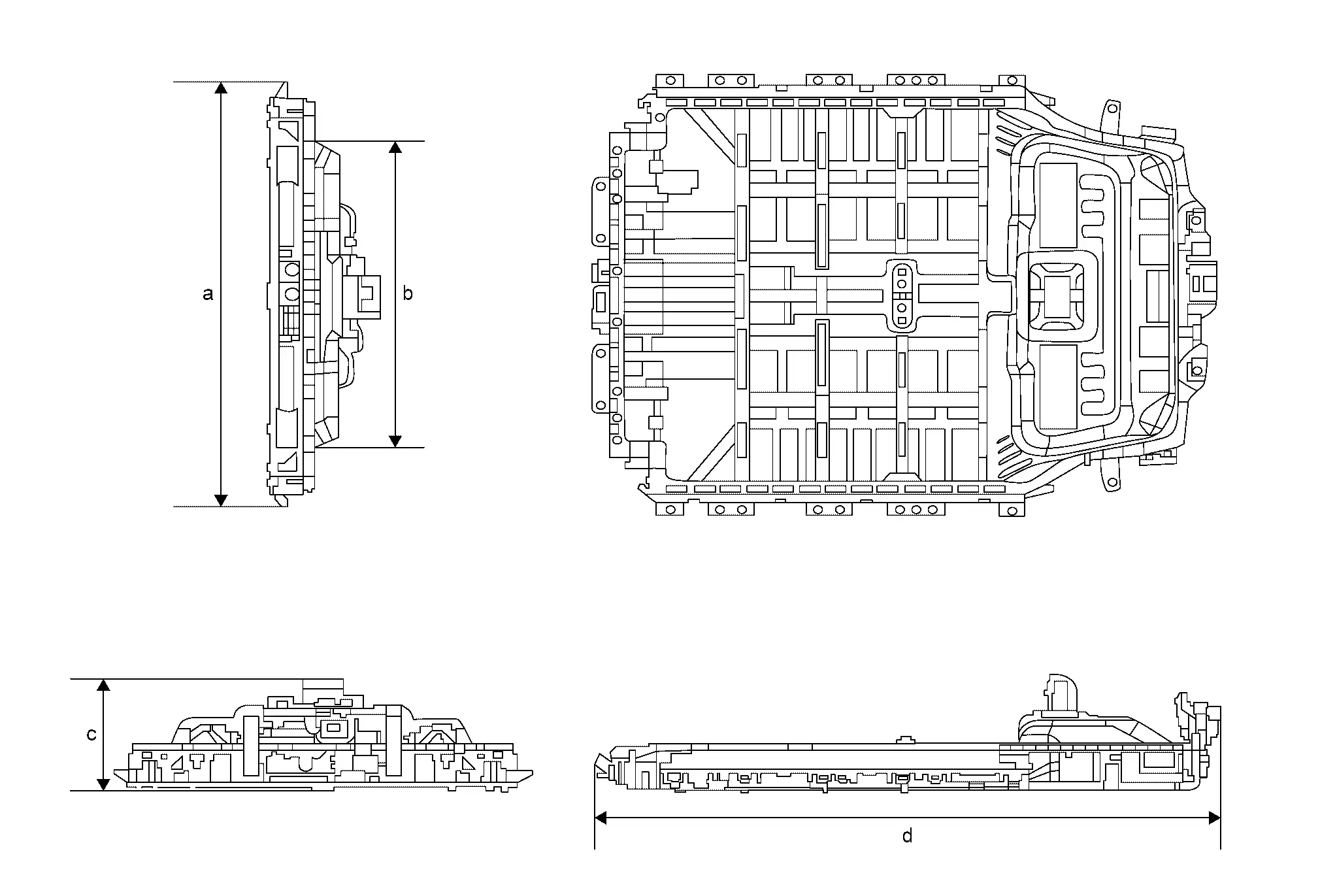

| External dimension | “a” | [mm(in)] | 1456 (57.32) |
| “b” | [mm(in)] | - | |
| “c” | [mm(in)] | 384.6 (15.14) | |
| “d” | [mm(in)] | 2099.4 (82.65) | |
Awd
Service Data
| Items | Specification | ||
|---|---|---|---|
| Type | Li-ion battery | ||
| Structure | 16 modules [2P96S (192 cells)] | ||
| Rated voltage | (V) | Approx. 352 | |
| Battery capacity | (kWh) | Approx. 66 | |
| Weight | [kg(lb)] | Approx. 455 (1003.3) | |
|
|
|||
| External dimension | “a” | [mm (in)] | 1456 (57.32) |
| “b” | [mm (in)] | - | |
| “c” | [mm (in)] | 384.6 (15.14) | |
| “d” | [mm (in)] | 2101.5 (82.74) | |
