Nissan Ariya: Ecu Diagnosis Information
Nissan Ariya (FE0) 2023-2025 Service & Repair Manual / Body Exterior, Doors, Roof & Vehicle Security / Roof / Ecu Diagnosis Information
Bcm Nissan Ariya 1st generation
List of ECU Reference
| ECU | Reference |
|---|---|
| BCM | Reference Value |
| Fail-safe | |
| DTC Inspection Priority Chart | |
| DTC Index |
Sunroof Motor Assembly Nissan Ariya 2025
Reference Value

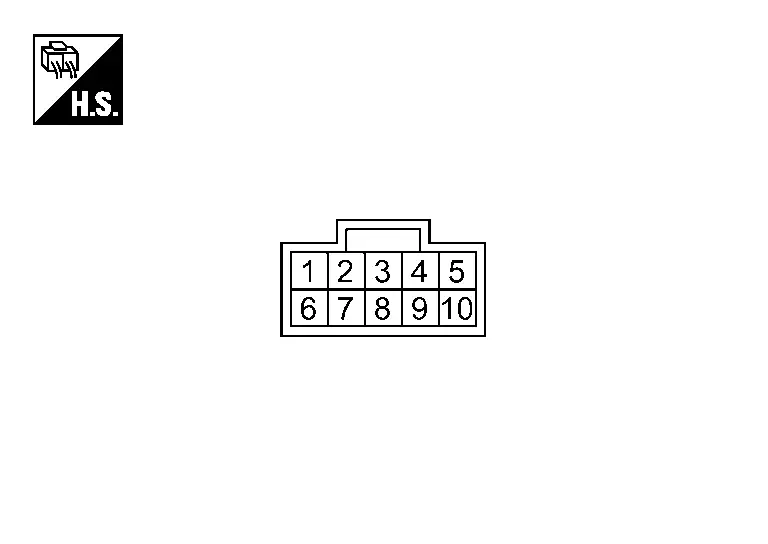

TERMINAL LAYOUT
PHYSICAL VALUES
|
Terminal No. (Wire color) | Description | Condition | Value | |||
|---|---|---|---|---|---|---|
| + | – | Signal name | Input/Output | |||
|
1 (B) |
Ground | Ground | — | — | 0 - 1 V | |
|
4 (W) |
Ground | Sunroof Tilt UP signal | Input | Sunroof switch | Operate (PUSH) | 0 - 1 V |
| Other than above | 9 - 16 V | |||||
|
5 (L) |
Ground | Sunroof OPEN signal | Input | Sunroof switch | Operate(OPEN) | 0 - 1 V |
| Other than above | 9 - 16 V | |||||
|
6 (R) |
Ground | Auto ACC power supply | Input | Power switch | OFF (auto ACC status) or ON | 9 - 16 V |
| OFF (other than auto ACC status) | 0 - 1 V | |||||
|
7 (GR) |
Ground | Communication line | Input/Output | Power switch ON |
|
|
|
9 (P) |
Ground | LIN communication signal | Input/Output | Power switch ON |
|
|
|
10 (V) |
Ground | Sunroof CLOSE/Tilt DOWN signal | Input | Sunroof switch | Operate (CLOSE) | 0 - 1 V |
| Other than above | 9 - 16 V | |||||
