Nissan Ariya: Ecu Diagnosis Information
Nissan Ariya (FE0) 2023-2025 Service & Repair Manual / Body Interior / Seat / Ecu Diagnosis Information
Driver Lumbar Support Control Module
Reference Value

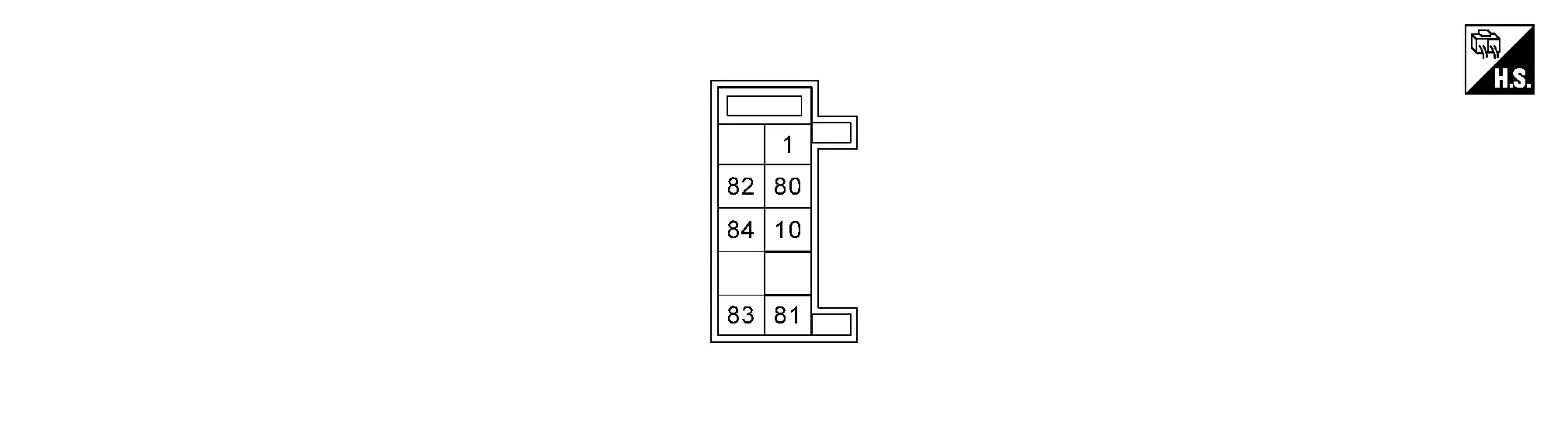

TERMINAL LAYOUT
PHYSICAL VALUES
|
Terminal No. (Wire color) | Description | Condition |
Value (Approx.) | |||
|---|---|---|---|---|---|---|
| + | - | Signal name | Input/output | |||
|
1 (R) |
Ground | Battery power supply | Input | Always | Battery voltage | |
|
10 (B) |
Ground | Ground | — | Always | 0 V | |
|
80 (W) |
Ground | Lumbar support switch | Input | Lumbar support switch | Operate (forward) | 0.57 V |
| Operate (backward) | 0.24 V | |||||
| Operate (upward) | 3.42 V | |||||
| Operate (downward) | 1.32 V | |||||
| Release | 12.5 V | |||||
|
81 (L) |
Ground | Lumbar support switch ground | — | Always | 0 V | |
|
82 (Y) |
Ground | Lumbar support pump | Output | Lumbar support | Operate (forward/upward/downward) | 12 V |
| Other than the above | 0 – 1 V | |||||
|
83 (P) |
Ground | Lumbar support pump ground | — | Always | 0 – 1 V | |
|
84 (G) |
Ground | LIN | Input/Output | When the power consumption control of driver seat control unit is in wake-up state. |
|
|
| When the power consumption control of driver seat control unit is in sleep state. | 12.5 V | |||||
