Nissan Ariya: Basic Inspection

• Diagnosis and Repair Work Flow
• Steering Wheel

Diagnosis and Repair Work Flow

Work Flow

DETAILED FLOW

OBTAIN INFORMATION ABOUT SYMPTOM

Interview the customer to obtain the malfunction information (conditions and environment when the malfunction occurred) as much as possible when the customer brings the Nissan Ariya vehicle in.

>>

GO TO 2.

REPRODUCE THE MALFUNCTION INFORMATION

Check the malfunction on the Nissan Ariya vehicle that the customer describes.

Inspect the relation of the symptoms and the condition when the symptoms occur.

>>

GO TO 3.

IDENTIFY THE MALFUNCTIONING SYSTEM WITH “SYMPTOM DIAGNOSIS”

Use “Symptom diagnosis” from the symptom inspection result in step 2 and then identify where to start performing the diagnosis based on possible causes and symptoms.

>>

GO TO 4.

IDENTIFY THE MALFUNCTIONING PARTS WITH “COMPONENT DIAGNOSIS”

Perform the diagnosis with “Component diagnosis” of the applicable system.

>>

GO TO 5.

REPAIR OR REPLACE THE MALFUNCTIONING PARTS

Repair or replace the specified malfunctioning parts.

>>

GO TO 6.

FINAL CHECK

Check that malfunctions are not reproduced when obtaining the malfunction information from the customer, referring to the symptom inspection result in step 2.

Are the malfunctions corrected?

YES>>

INSPECTION END

NO>>

GO TO 2.

Steering Wheel

How to Check

STEERING WHEEL AXIAL END PLAY

1. Check if movement exists when steering wheel is moved up and down, to the left and right and to the axial direction.

   Steering wheel axial end play

   : Refer to STEERING WHEEL : Service Data

2. Check the following items when steering wheel axial end play is out of the standard.

   Check the steering column assembly mounting condition. Refer to STEERING COLUMN : Exploded View

STEERING WHEEL PLAY

1. Turn steering wheel so that front wheels come to the straight-ahead position.

2. Start engine and lightly turn steering wheel to the left and right until front wheels start to move.

3. Measure steering wheel movement on the outer circumference.

   Steering wheel play on the outer circumference

   : Refer to STEERING WHEEL : Service Data

4. Check the following items when steering wheel play is out of the standard.

   • Check backlash for each joint of steering column assembly.

   • Check installation condition of steering gear assembly.

NEUTRAL POSITION STEERING WHEEL

Check neutral position on steering wheel after confirming that wheel alignment is correct. Refer to WHEEL ALIGNMENT : Inspection.

1. Turn tires to the straight ahead position on a flat surface equalizing left and right individual toe, check if steering wheel is in the neutral position.

2. If it is not in the neutral position, place steering wheel in the neutral position and perform wheel alignment again. Refer to WHEEL ALIGNMENT : Inspection.

STEERING WHEEL TURNING FORCE

1. Park vehicle on a level and dry surface, set parking brake.

2. Tires need to be inflated to normal pressure. Refer to TIRE AIR PRESSURE : Service Data

3. Start engine.

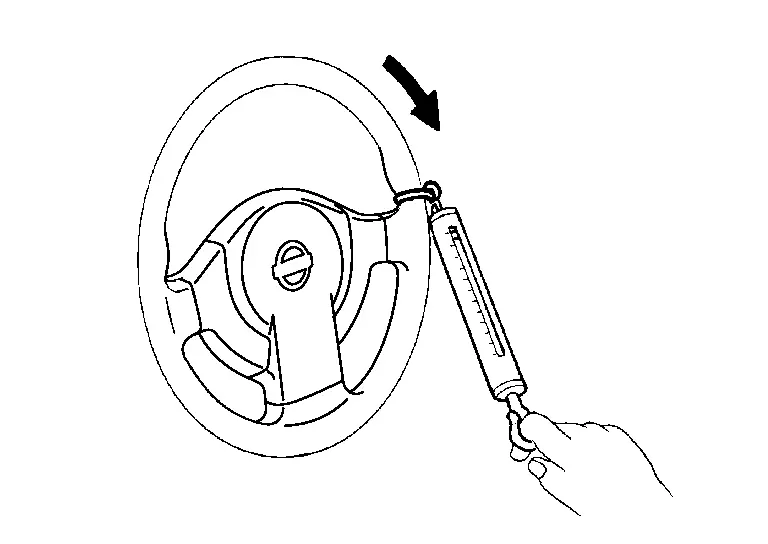

4. Check steering wheel turning force using pull gauge [SST: — (J-44372)] when steering wheel has been turned 360° from neutral position.



   Steering wheel turning force

   : Refer to STEERING WHEEL : Service Data

5. If steering wheel turning force is above specification, check steering gear for malfunction.

FRONT WHEEL TURNING ANGLE

1. Perform toe-in inspection. Refer to WHEEL ALIGNMENT : Inspection.

   CAUTION:

   Perform front wheel turning angle inspection, after toe-in inspection.

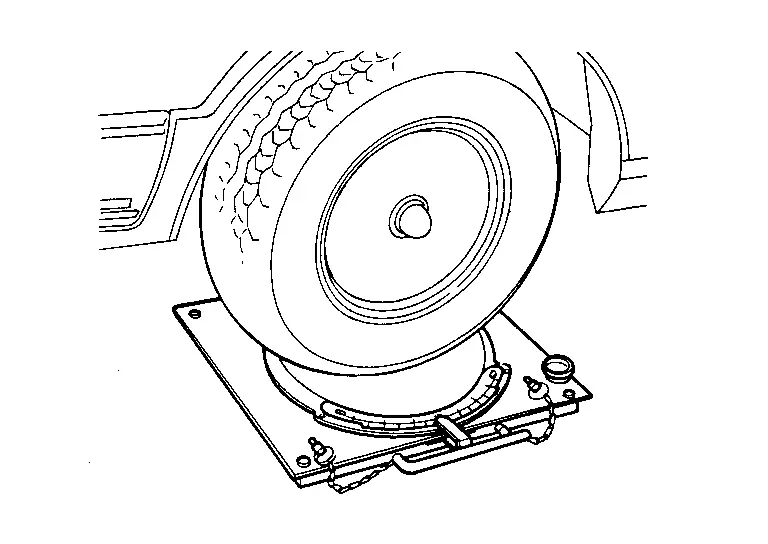

2. Place front wheels on turning radius gauges and rear wheels on stands, so that Nissan Ariya vehicle can be level.



3. With the engine at idle, turn steering wheel from full left stop to full right stop and measure the turning angles.

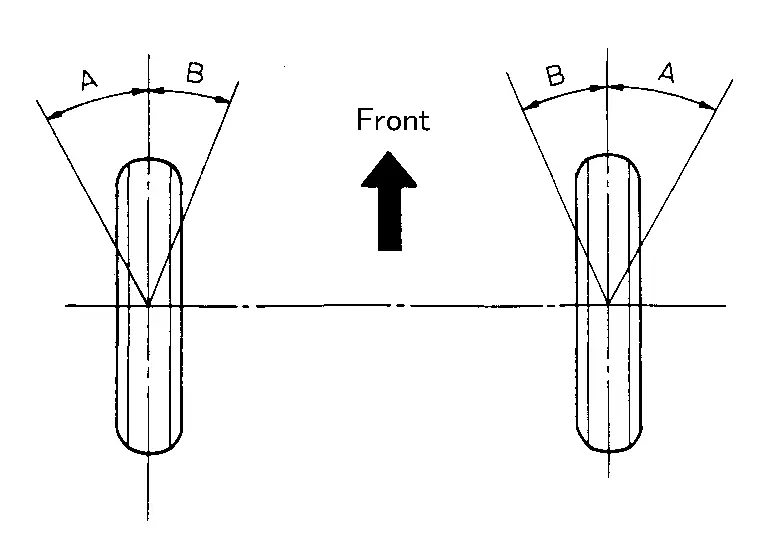

   A	: Inner wheel angle
   B	: Outer wheel angle

   Steering angle

   : STEERING ANGLE : Service Data

4. Check the following items when turning angle is out of the standard.

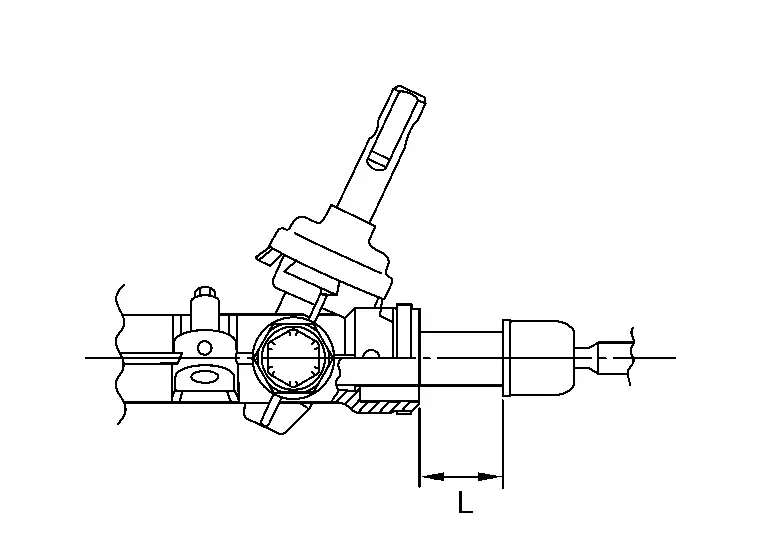

   1. Check rack stroke (L).



      Rack stroke neutral position (L)

      : Refer to STEERING GEAR AND LINKAGE : Service Data

   2. Disassemble steering gear assembly to check the cause that rack stroke is outside of the standard.

      • Steering angles are not adjustable. Check steering gear assembly, steering column assembly, and front suspension components for wear or damage if any of the turning angles are different from the specified value. Replace any of them, if any non-standard condition exists.
