Nissan Ariya: Wiper and washer switch

Basic information

WARNING

In freezing temperatures the washer solution may freeze on the windshield and obscure your vision which may lead to an accident. Warm windshield with the defroster before you wash the windshield.

CAUTION

• Do not operate the washer continuously for more than 30 seconds.
• Do not operate the washer if the reservoir tank is empty.
• Do not fill the window washer reservoir tank with washer fluid concentrates at full strength.

  Some methyl alcohol based washer fluid concentrates may permanently stain the grille if spilled while filling the window washer reservoir tank.

• Pre-mix washer fluid concentrates with water to the manufacturer's recommended levels before pouring the fluid into the window washer reservoir tank. Do not use the window washer reservoir tank to mix the washer fluid concentrate and water.

If the windshield wiper operation is interrupted by snow or ice, the wiper may stop moving to protect its motor. If this occurs, turn the wiper switch to the OFF position and remove the snow or ice that is on and around the wiper arms. In approximately 1 minute, turn the switch on again to operate the wiper.

Windshield wiper and washer operation

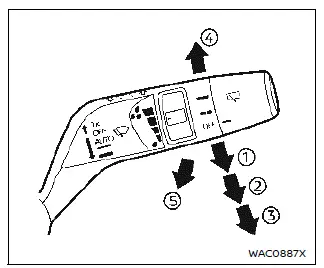

Type A (if so equipped)

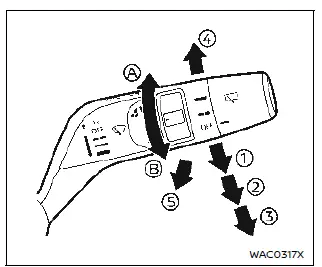

Type B (if so equipped)

The windshield wiper and washer operates when the power switch is in the ON position.

Push the lever down to operate the wiper at the following speed:

1. Type A: AUTO - see "Rain-sensing auto wiper system (if so equipped)".

   Type B: Intermittent - intermittent operation can be adjusted by turning the knob toward A (Faster) or B (Slower). Also, the intermittent operation speed varies in accordance with the vehicle speed. (For example, when the vehicle speed is high, the intermittent operation speed will be faster.)

2. Low - continuous low speed operation
3. High - continuous high speed operation

If the power switch is placed in the OFF position while the wiper operates in the high speed position, the wiper will not operate the next time the power switch is placed in the ON position. To operate the wiper, move the lever to any position other than high speed.

Push the lever up 4 to have one sweep operation of the wiper.

Pull the lever toward you 5 to operate the washer. Then the wiper will also operate several times.

NOTE:

The Speed Dependent feature may be disabled.

Rain-sensing auto wiper system (if so equipped)

The rain-sensing auto wiper system can automatically turn on the wipers and adjust the wiper speed depending on the rainfall and the vehicle speed by using the rain sensor located on the upper part of the windshield.

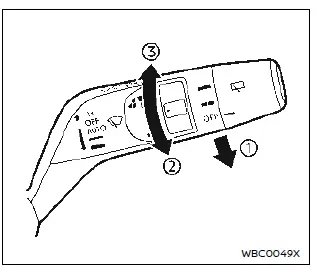

To set the rain-sensing auto wiper system, push the lever down to the "AUTO" position 1. The wiper will sweep once while the power switch is in the "ON" position.

The rain sensor sensitivity level can be adjusted by turning the knob toward 2 (Low) or (High).

• High - High sensitive operation
• Low - Low sensitive operation

To turn the rain-sensing auto wiper system off, push up the lever to the "OFF" position, or pull down the lever to the other.

CAUTION

Do not touch the rain sensor and around it when the wiper switch is in the "AUTO" position and the power switch is in the "ON" position. The wipers may operate unexpectedly and cause an injury or may damage a wiper.

• The rain-sensing auto wipers are intended for use during rain. If the switch is left in the "AUTO" position, the wipers may operate unexpectedly when dirt, fingerprints, oil film or insects are stuck on or around the sensor. The wipers may also operate when exhaust gas or moisture affect the rain sensor.
• When the windshield glass is coated with water repellent, the speed of the rain-sensing auto wipers may be higher even though the amount of the rainfall is small.
• Be sure to turn off the rain-sensing auto wiper system when you use a car wash.
• The rain-sensing auto wipers may not operate if rain does not hit the rain sensor even if it is raining.
• Using genuine wiper blades is recommended for proper operation of the rain-sensing auto wiper system.

Rear window wiper and washer operation

WARNING

In freezing temperatures the washer solution may freeze on the rear window glass and obscure your vision.

Warm the rear window with the defroster before you wash the rear window.

CAUTION

• Do not operate the washer continuously for more than 30 seconds.
• Do not operate the washer if the reservoir tank is empty.
• Do not fill the window washer reservoir tank with washer fluid concentrates at full strength.

  Some methyl alcohol based washer fluid concentrates may permanently stain the grille if spilled while filling the window washer reservoir tank.

• Pre-mix washer fluid concentrates with water to the manufacturer's recommended levels before pouring the fluid into the window washer reservoir tank. Do not use the window washer reservoir tank to mix the washer fluid concentrate and water.

If the rear window wiper operation is interrupted by snow or ice, the wiper may stop moving to protect its motor. If this occurs, turn the wiper switch to the OFF position and remove the snow or ice that is on and around the wiper arms. In approximately 1 minute, turn the switch on again to operate the wiper.

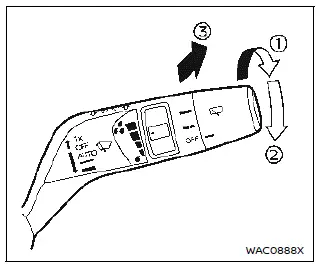

Example

The rear window wiper and washer operate when the power switch is in the ON position.

Turn the switch clockwise from the OFF position to operate the wiper.

1. Intermittent (INT) - intermittent operation (not adjustable)
2. Low (ON) - continuous low speed operation

Push the switch forward 3 to operate the washer. Then the wiper will also operate several times.

Reverse Link feature:

When the windshield wiper switch is on, moving the shift lever to the R (Reverse) position will operate the rear window wiper.

NOTE

The Reverse Link feature may be disabled.
