Nissan Ariya: A/c Unit Assembly

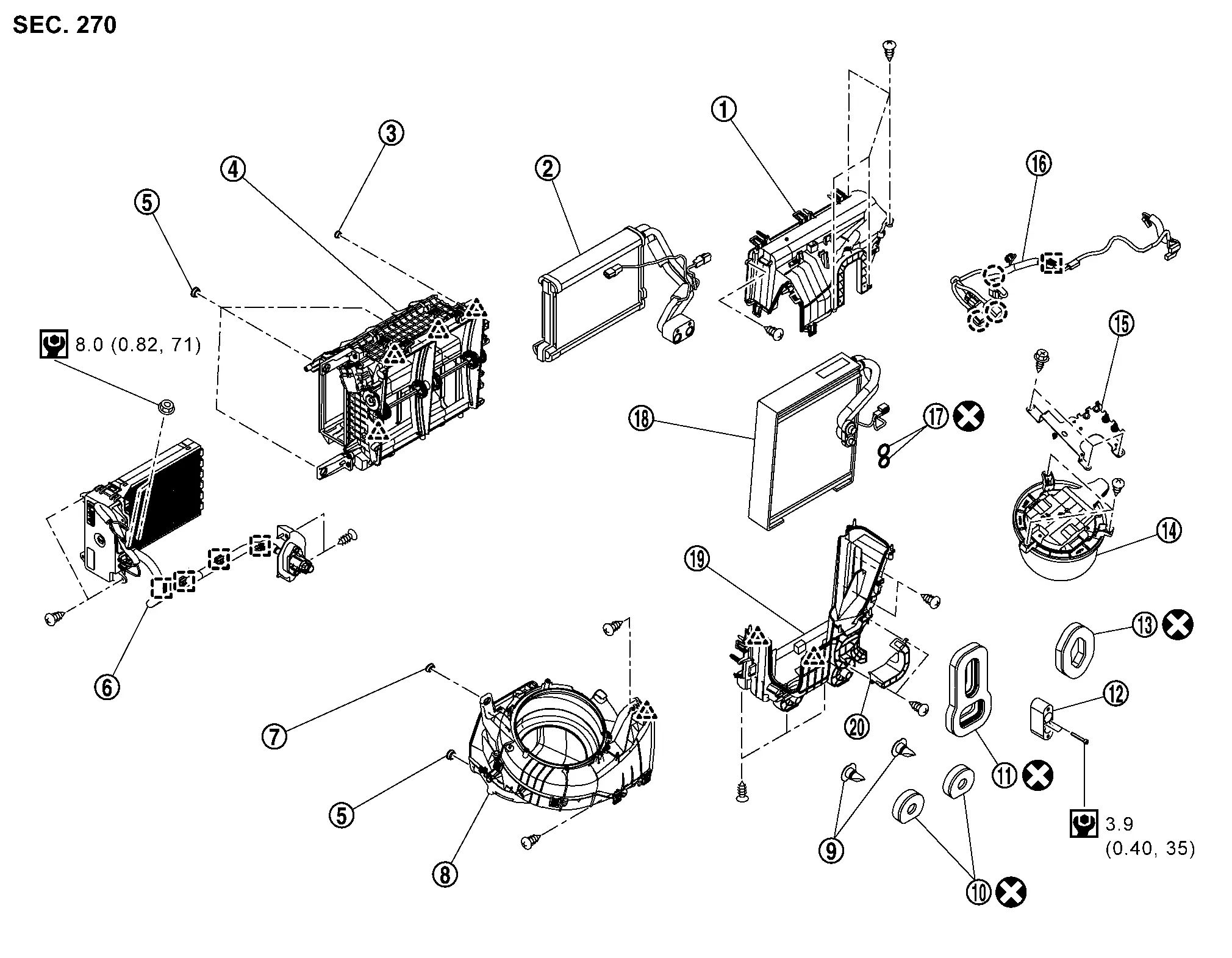

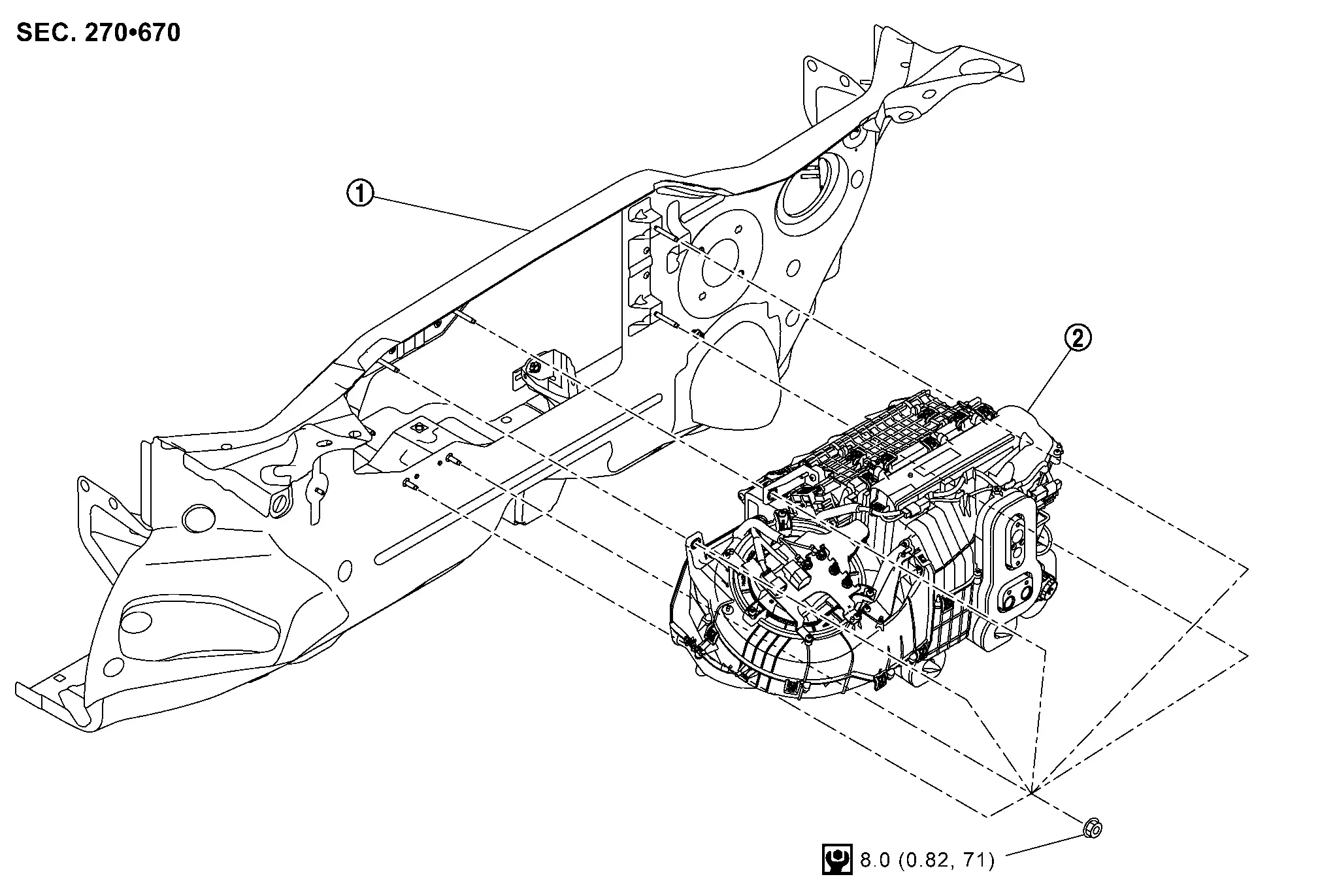

Exploded View

	Lower dash assembly		A/C unit assembly
	: N•m （kg-m, in-lb）

	Front case upper		Inner condenser		Collar 1
	Rear case		Collar 2		PTC heater
	Collar 3		Blower case		Drain hose
	Drain seal		Pipe seal		Evaporator connector
	PTC seal		Blower motor		Sub harness bracket
	Sub harness		O-ring		Evaporator
	Front case lower		Pipe cover
	：Clip
	：Metal clip
	：Always replace after every disassembly.
	：N•m （kg-m, in-lb）

• A/c Unit Assembly
• Evaporator
• Inner Condenser

A/c Unit Assembly

Removal & Installation

Since hybrid vehicles and electric vehicles contain a high voltage battery, there is the risk of electric shock, electric leakage, or similar accidents if the high voltage component and Nissan Ariya vehicle are handled incorrectly. Be sure to follow the correct work procedures when performing inspection and maintenance.

WARNING:

• Be sure to remove the service plug in order to disconnect the high voltage circuits before performing inspection or maintenance of high voltage system harnesses and parts.

• The removed service plug must always be carried in a pocket of the responsible worker or placed in the tool box during the procedure to prevent the plug from being connected by mistake.

• Be sure to wear insulating protective equipment consisting of glove, shoes, face shield and glasses before beginning work on the high voltage system.

• Never allow workers other than the responsible person to touch the Nissan Ariya vehicle containing high voltage parts. To keep others from touching the high voltage parts, these parts must be covered with an insulating sheet except when using them.

• Refer to Precautions for High Voltage.

CAUTION:

• Never bring the vehicle into the READY status with the service plug removed unless otherwise instructed in the Service Manual. A malfunction may occur if this is not observed.

• Perform lubricant return operation before each refrigeration system disassembly. However, if a large amount of refrigerant or lubricant is detected, never perform lubricant return operation. Refer to Perform Lubricant Return Operation.

REMOVAL

Follow the instructions below before starting the procedure.

CAUTION:

• Disconnect high voltage circuit. Refer to HOW TO DISCONNECT HIGH VOLTAGE : Precautions.

• Check voltage in high voltage circuit. Refer to CHECK VOLTAGE IN HIGH VOLTAGE CIRCUIT : Precautions.

Use a refrigerant collecting equipment (for HFO-1234yf) to discharge the refrigerant. Refer to Recycle Refrigerant.

Remove A/C unit assembly cover. Refer to Removal & Installation.

Remove A/C unit assembly mounting nuts, and then remove A/C unit assembly from Nissan Ariya vehicle.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• For the A/C unit assembly mounting nuts, tighten the nuts in the order of 1→2 in the figure, and then tighten the other nuts.



• Use a refrigerant collecting equipment (for HFO-1234yf) to charge the refrigerant. Refer to Charge Refrigerant.

Evaporator

Removal & Installation

REMOVAL

Remove blower case assembly and PTC heater harness from A/C unit case assembly referring to PTC heater removal procedure 1 to 4. Refer to Removal & Installation.

Remove inner condenser. Refer to Removal & Installation.

Disconnect intake sensor harness connector.

Remove intake sensor harness connector from front case upper.

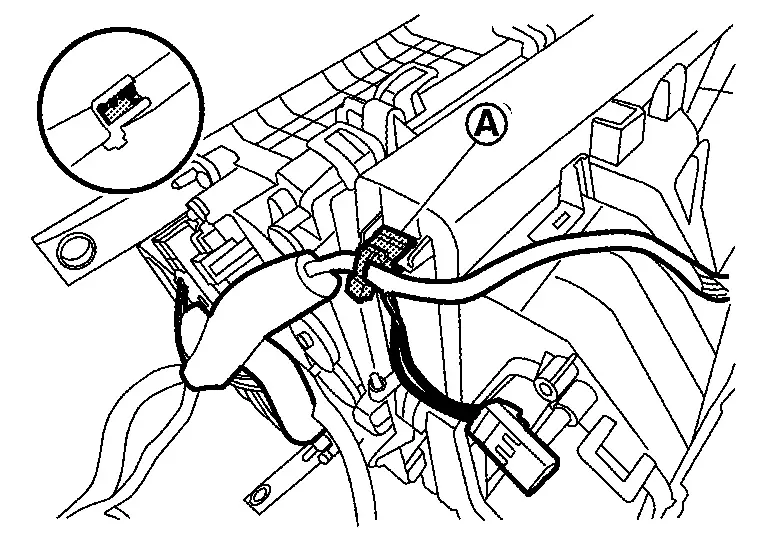

Disengage sub harness fixing clip .

Remove air mix door motor (driver side). Refer to Removal & Installation.

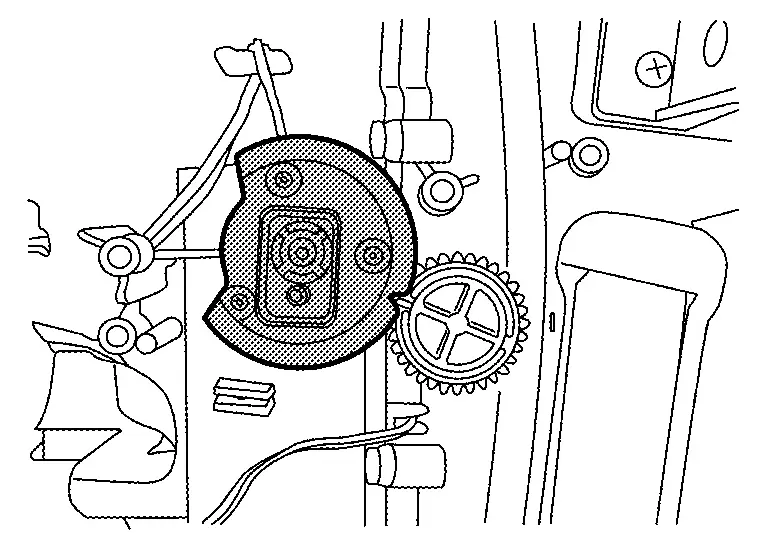

Remove air mix door gear link (driver side).

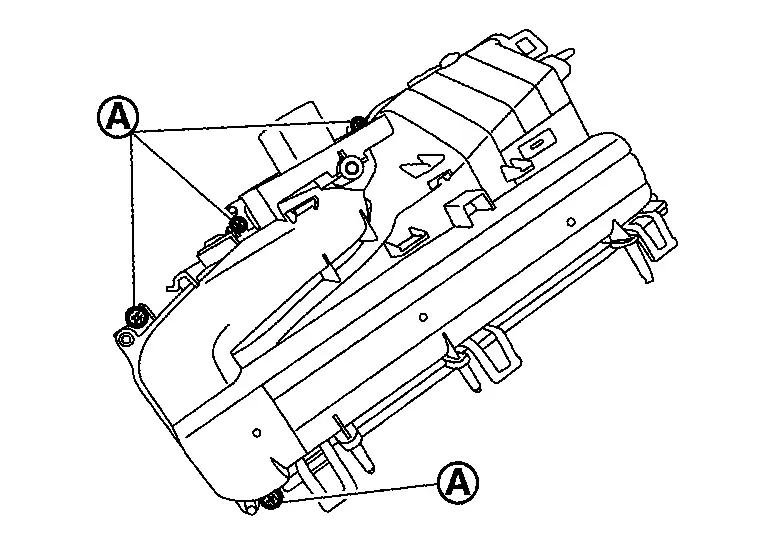

Remove right side fixing screws of front case.

Remove lower side fixing screws of front case.

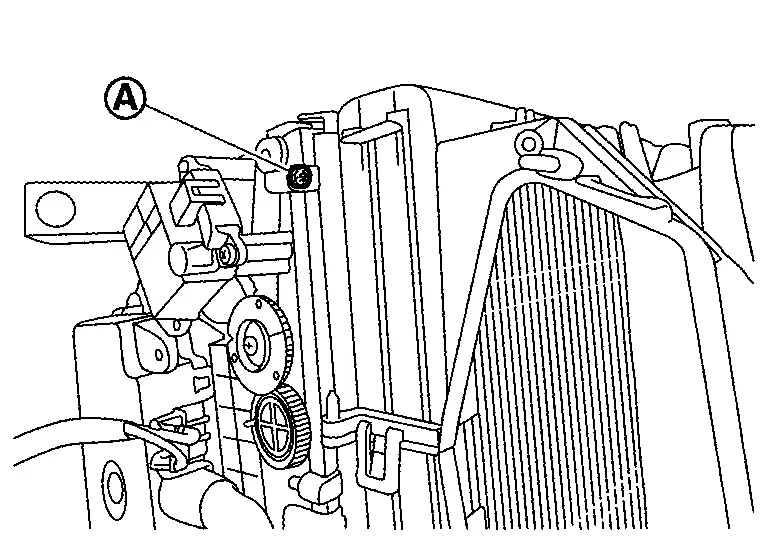

Remove upper side fixing screw of front case.

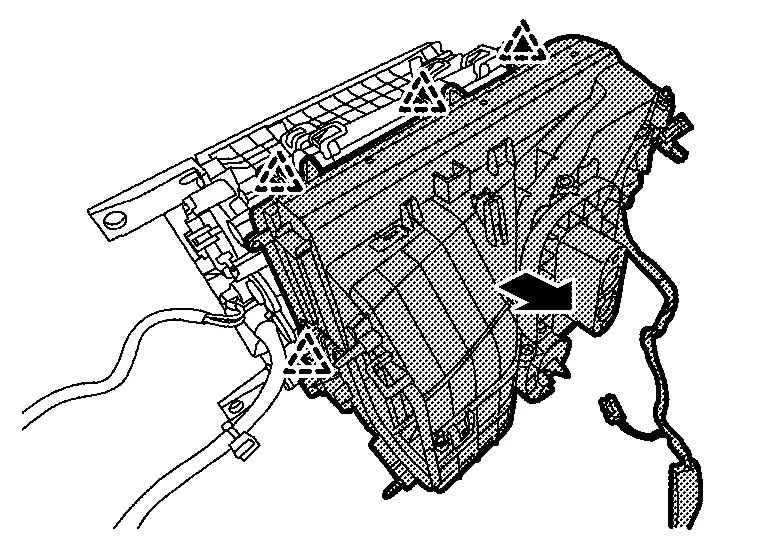

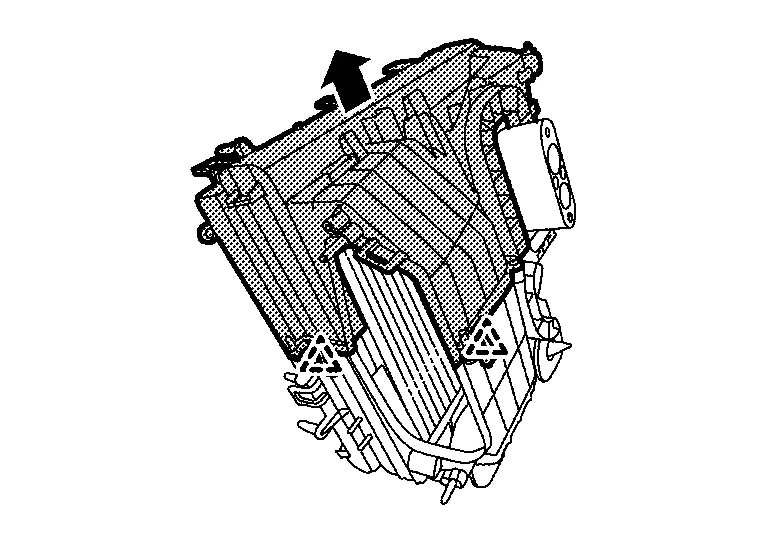

Disengage fixing pawls, and then remove front case.

: Pawl

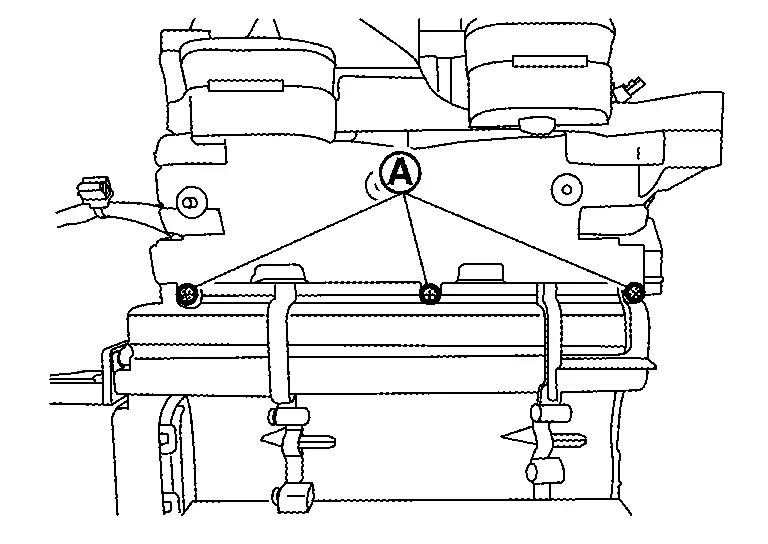

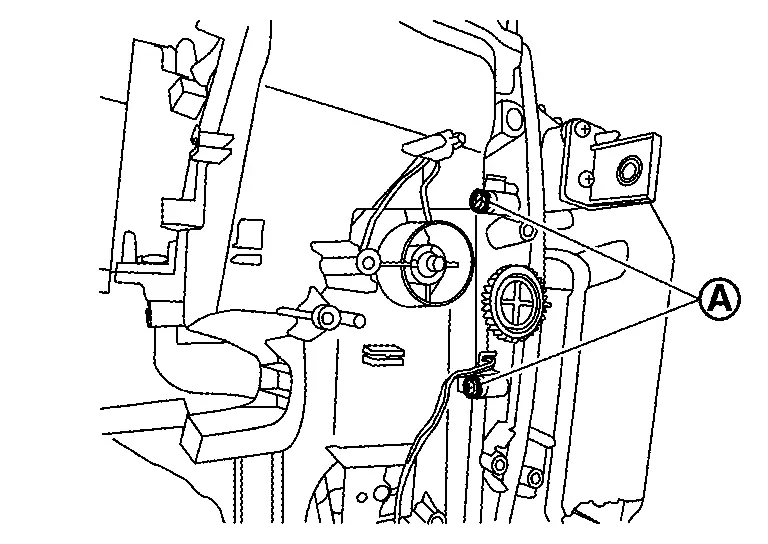

Remove front case upper fixing screws .

Disengage fixing pawls, and then remove front case upper.

: Pawl

Pull out evaporator from front case lower and remove it.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• The air conditioning evaporator should never be repaired or replaced with a part from another Nissan Ariya vehicle. To replace a damaged or leaking evaporator, use only a new genuine NISSAN replacement part or equivalent.

• Perform lubricant adjusting procedure before installing new evaporator. Refer to Lubricant Adjusting Procedure for Components Replacement Except  Compressor.

NOTE:

This label indicates that the evaporator complies with SAE J2842.

Inner Condenser

Removal & Installation

REMOVAL

Remove A/C unit assembly. Refer to Removal & Installation.

Disconnect compressor discharge refrigerant temperature sensor harness connector and inner condenser discharge refrigerant temperature sensor harness connector.

Remove harness connectors of compressor discharge refrigerant temperature sensor and inner condenser discharge refrigerant temperature sensor from front case upper.

Remove pipe seal.

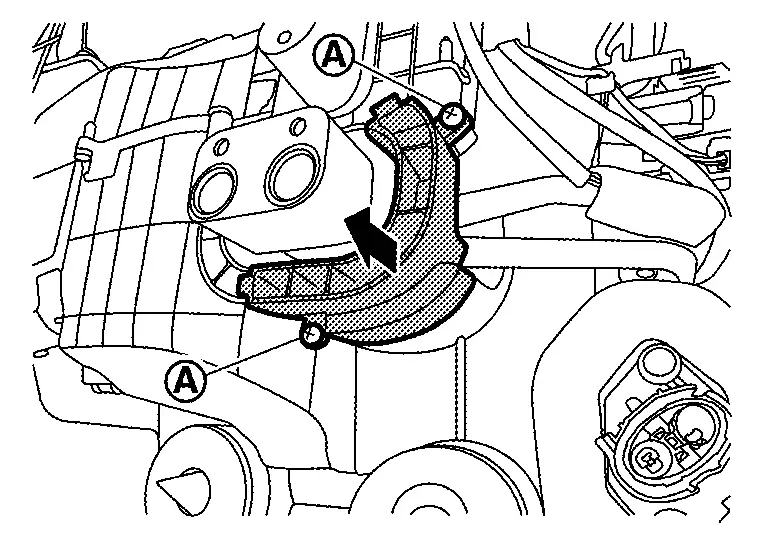

Remove fixing screws , and then remove pipe cover.

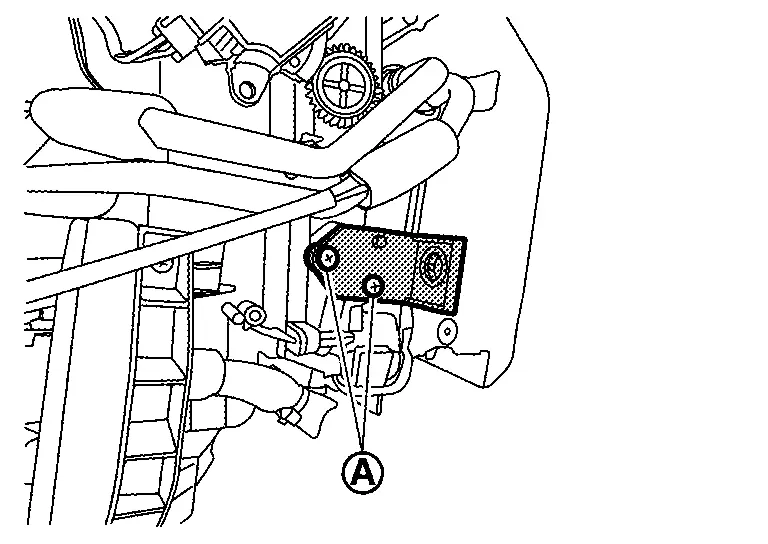

Remove fixing screws , and then remove bracket.

Pull out inner condenser from rear case and remove it.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• The air conditioning inner condenser should never be repaired or replaced with a part from another Nissan Ariya vehicle. To replace a damaged or leaking inner condenser, use only a new genuine NISSAN replacement part or equivalent.

• Perform lubricant adjusting procedure before installing new inner condenser. Refer to Lubricant Adjusting Procedure for Components Replacement Except  Compressor.

NOTE:

This label indicates that the inner condenser complies with SAE J2842.
