Nissan Ariya: Removal and Installation. Accelerator Control System

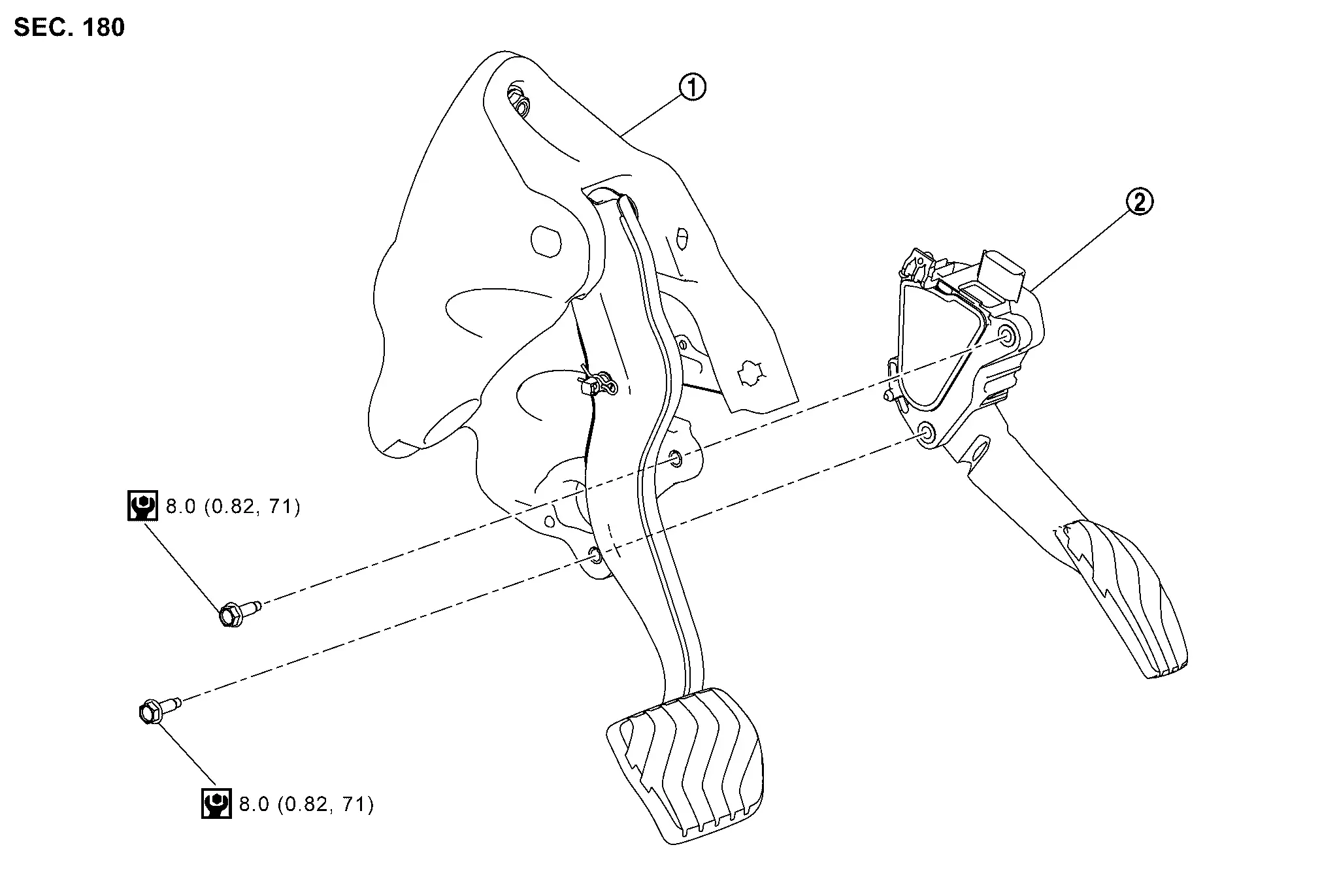

ACCELERATOR CONTROL SYSTEM : Exploded View

	Brake pedal assembly		Accelerator pedal assembly
	: N·m (kg-m, in-lb)

ACCELERATOR CONTROL SYSTEM : Removal & Installation

REMOVAL

CAUTION:

• Never disassemble accelerator pedal assembly. Never remove accelerator pedal position sensor from accelerator pedal assembly.

• Avoid impact from dropping etc. during handling.

• Be careful to keep accelerator pedal assembly away from water.

Loosen mounting bolts, and remove accelerator pedal assembly.

Disconnect accelerator pedal position sensor harness connector.

INSTALLATION

Note the following, and install in the reverse order of removal.

1. Insert the hook part of the accelerator pedal assembly into the positioning hole of the brake pedal bracket.

2. Insert the locating pin of the accelerator pedal assembly into the positioning hole of the brake pedal bracket.



   CAUTION:

   • When inserting accelerator pedal assembly to protrusion , never scratch locating hole with the protrusion.

   • Tighten bolts with the locating pin securely inserted in the bracket hole.

3. Perform inspection after installation. Refer to Inspection

CAUTION:

When harness connector of accelerator pedal position sensor is disconnected, perform “ACCELERATOR PEDAL RELEASED POSITION LEARNING”. Refer to Work Procedure.

ACCELERATOR CONTROL SYSTEM : Inspection

• Check accelerator pedal moves smoothly within the whole operation range when it is fully depressed and released.

  CAUTION:

  When e-Pedal Step is ON, decelerating with a stronger deceleration by releasing the accelerator pedal, if the deceleration becomes weak, decelerate by depressing the brake pedal as necessary.

• Check accelerator pedal securely returns to the fully released position.

• For the electrical inspection of accelerator pedal position sensor. Refer to Work Procedure.
