Nissan Ariya: Preparation. Brake System
Nissan Ariya (FE0) 2023-2025 Service & Repair Manual / Brakes / Brake System / Preparation. Brake System
Special Service Tool
|
Tool number (TechMate No.) Tool name | Description | |
|---|---|---|
|

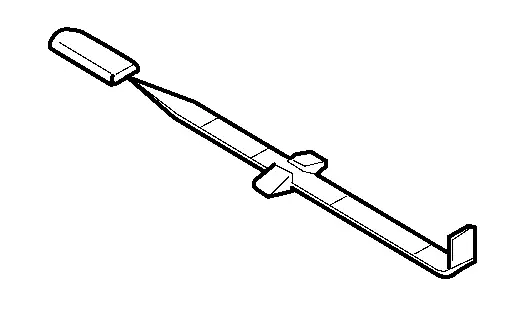

— (J-46532) Brake height tool |
|
Measuring brake pedal height |
|

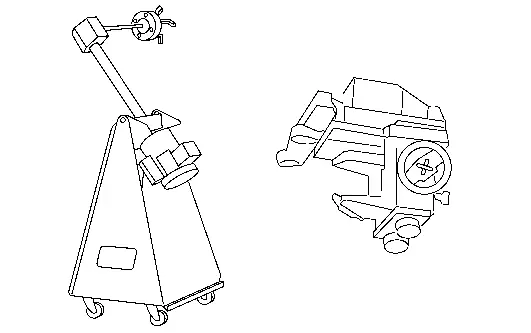

38-PFM92 ( — ) ProCut™ PFM Series Lathe |
|
Refinishing rotors |
|
KV991J0080 (J-45741) ABS active wheel sensor tester |
|
Checking operation of ABS active wheel sensors |
Commercial Service Tools
| Tool name | Description | |
| Power tool |
|
Loosening nuts, screws and bolts |
| Brake caliper wrench |
|
Return the piston |

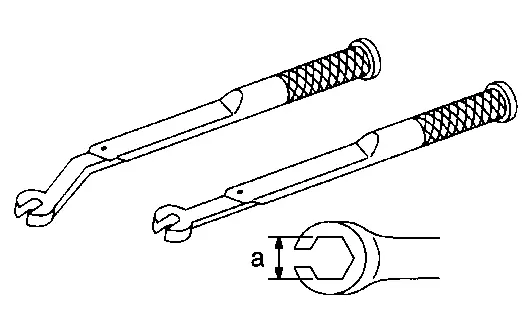

| Flare nut torque wrench |
|
Installing brake piping a: 10 mm (0.39 in),11 mm (0.43 in),12 mm (0.47 in) |
|
1. Flare nut crowfoot 2. Torque wrench |
|
Tightening brake tube flare nuts a: 10 mm (0.39 in),11 mm (0.43 in),12 mm (0.47 in) |
