Nissan Ariya: Climate controlled seats

NOTE

The climate controlled seats consume less power than the heater and air conditioner and can be used to either help extend driving range by reducing heater and air conditioner use or to maximize comfort by supplementing the heater and air conditioner.

The climate controlled seats warm the front seats by built-in heaters or cool the front seats by ventilating the seat surface.

The control keys are displayed on the touch screen display and can be operated independently of each other.

1. Start the EV system.

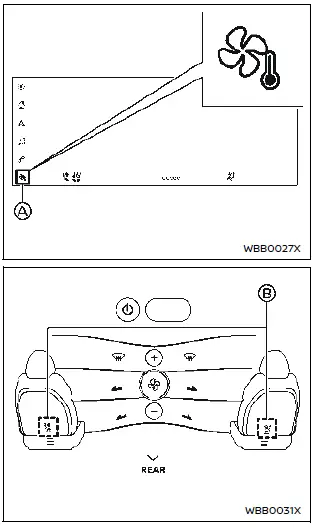

2. To display the climate control screen, touch the key A on the touch screen display.

3. Touch the or key B.

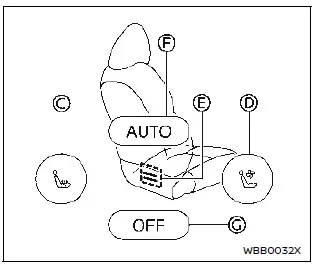

4. To warm the seat, touch the key C (once, twice or three times). The indicator E illuminates in orange depending on the heat level.

To ventilate the seat, touch the key D (once, twice or three times). The indicator E illuminates in blue depending on the ventilation level.

You can also select the AUTO mode by touching the "AUTO" key F.

For the AUTO mode, the temperature control intensity level can be adjusted.

5. To turn off, touch the "OFF" key G.

When the vehicle's interior is warmed or cooled, or before you leave the vehicle, be sure to turn off the climate controlled seats.

To check the air filters for the climate controlled seats, it is recommended you visit a NISSAN certified ARIYA dealer.

WARNING

Do not use or allow occupants to use the climate controlled seats if you or the occupants cannot monitor seat temperatures or have an inability to feel pain in those body parts in contact with the seat. Use of the climate controlled seats by such people could result in serious injury.

CAUTION

• The 12-volt battery could run down if the climate controlled seat is operated while the power switch is not in the READY to drive position.
• Do not use the climate controlled seat for extended periods or when no one is using the seat.
• Do not put anything on the seat which insulates heat, such as a blanket, cushion, seat cover, etc.

  Otherwise, the seat may become overheated.

• Do not place anything hard or heavy on the seat or pierce it with a pin or similar object. This may result in damage to the climate controlled seat.
• Any liquid spilled on the seat should be removed immediately with a dry cloth.
• The climate controlled seat has an air filter. Do not operate climate controlled seat without an air filter. This may result in damage to the system.
• When cleaning the seat, never use gasoline, thinner, or any similar materials.
• If any malfunctions are found or the climate controlled seat does not operate, turn the switch off and have the system checked. It is recommended you visit a NISSAN certified ARIYA dealer for this service.

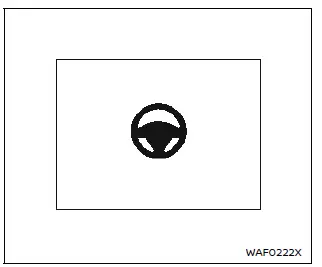

Steering Assist switch

The Steering Assist switch is used to temporarily turn on and off the Steering Assist system.

You can also use the "Driver Assistance" menu in the vehicle information display to turn on and off the Steering Assist system.

The Steering Assist system controls the steering system to help keep your vehicle near the center of the lane when driving.
