Nissan Ariya: Component Parts

Component Parts Location

Back of instrument lower panel (LH side)

Instrument lower panel

	Combination meter Refer to Component Parts Location. for detailed installation location.		BCM Refer to Component Parts Location. for detailed installation location.		VCM Refer to Component Parts Location. for detailed installation location.
	ABS actuator and electric unit (control unit) Refer to Component Parts Location. for detailed installation location.		Chassis control module		Automatic brake hold switch indicator
	Automatic brake hold switch

• Chassis Control Module
• Automatic Brake Hold Switch

Chassis Control Module

Component Description

FUNCTIONS WITHIN THE SYSTEM

Chassis control module controls automatic brake hold function and e-Step function according to the signals from each sensor, each switch and each control unit.

INDIVIDUAL FUNCTIONS WITHIN THE SYSTEM

• Receives the signals required to activate the automatic brake hold function and e-Pedal Step function from each control unit.

• Transmits the signals required to activate the automatic brake hold function and e-Pedal Step function to each control unit.

PARTS LOCATION

Refer to Component Parts Location.

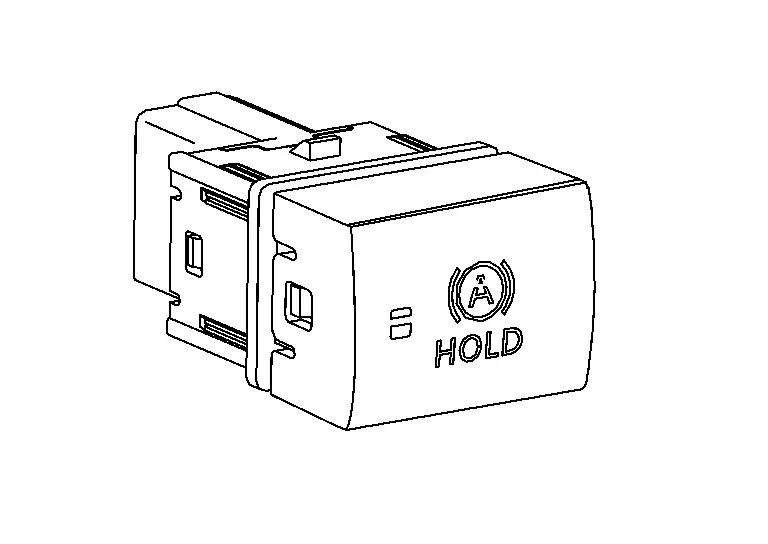

Automatic Brake Hold Switch

Component Description

FUNCTIONS WITHIN THE SYSTEM

By operating automatic brake hold switch, turn ON/OFF automatic brake hold function.

NOTE:

Automatic brake hold function retains the last state until the driver changes the option even if the power switch OFF.

INDIVIDUAL FUNCTIONS WITHIN THE SYSTEM

• Turns ON/OFF automatic brake hold switch, and turns ON/OFF automatic brake hold function by chassis control module.

• According to the control of chassis control module, automatic brake hold switch indicator turns ON/OFF.

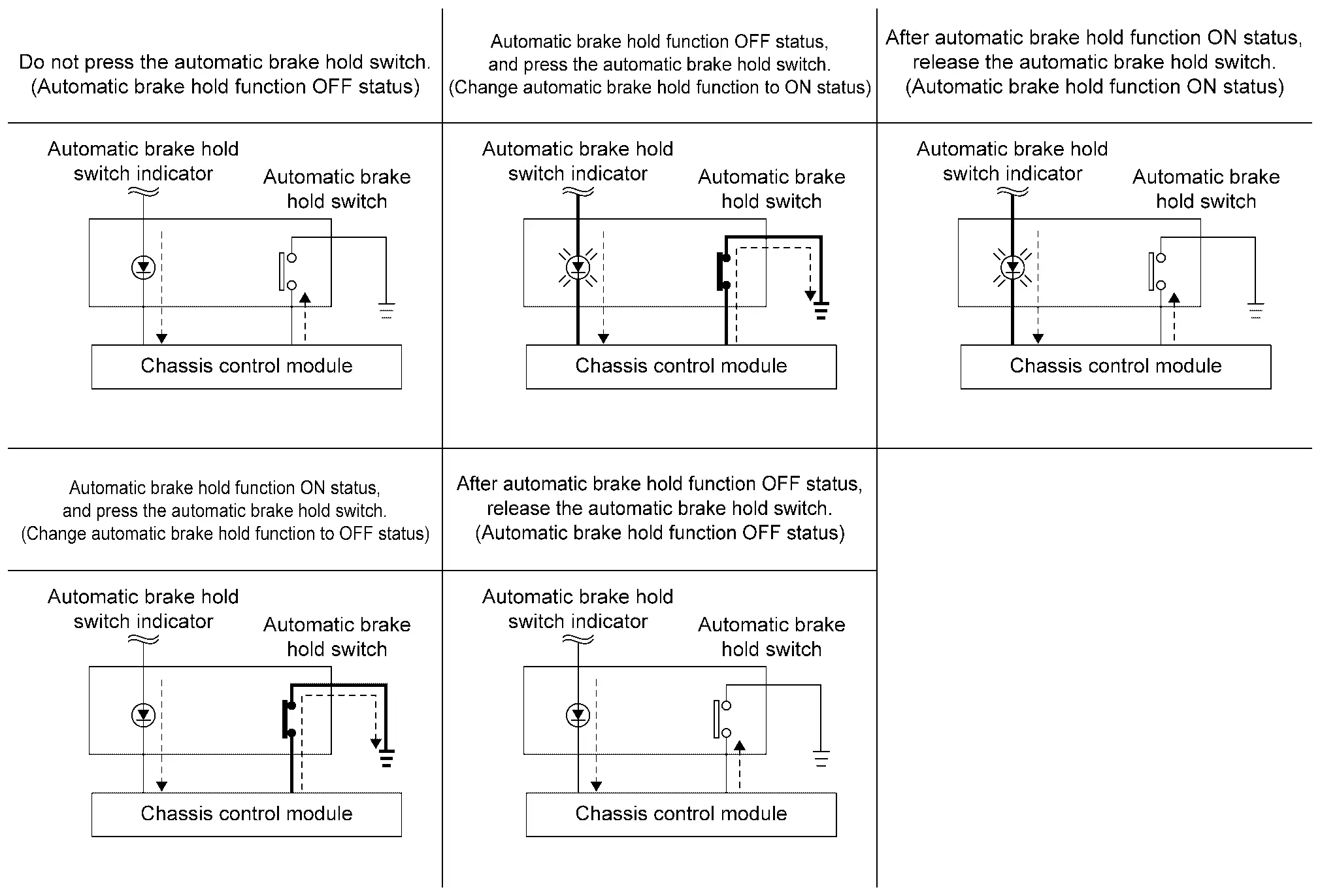

INDIVIDUAL OPERATION

• A normal open type is used for automatic brake hold switch.



• If automatic brake hold switch is pressed when automatic brake hold function is OFF, automatic brake hold function turns ON. In addition, automatic brake hold switch indicator illuminates.

  NOTE:

  Automatic brake hold function retains the last state until the driver changes the option even if the power switch OFF.

• If automatic brake hold switch is pressed when automatic brake hold function is ON, automatic brake hold function turns OFF. In addition, automatic brake hold switch indicator turns OFF. [If automatic brake hold indicator lamp (white or green) is ON, it turns OFF.]

  NOTE:

  To turn OFF automatic brake hold function while the brakes are held by automatic brake hold function, press automatic brake hold switch while depressing brake pedal.

PARTS LOCATION

Refer to Component Parts Location.
