Nissan Ariya: Component Parts

• Eps System
• Steering Gear Assembly

Eps System

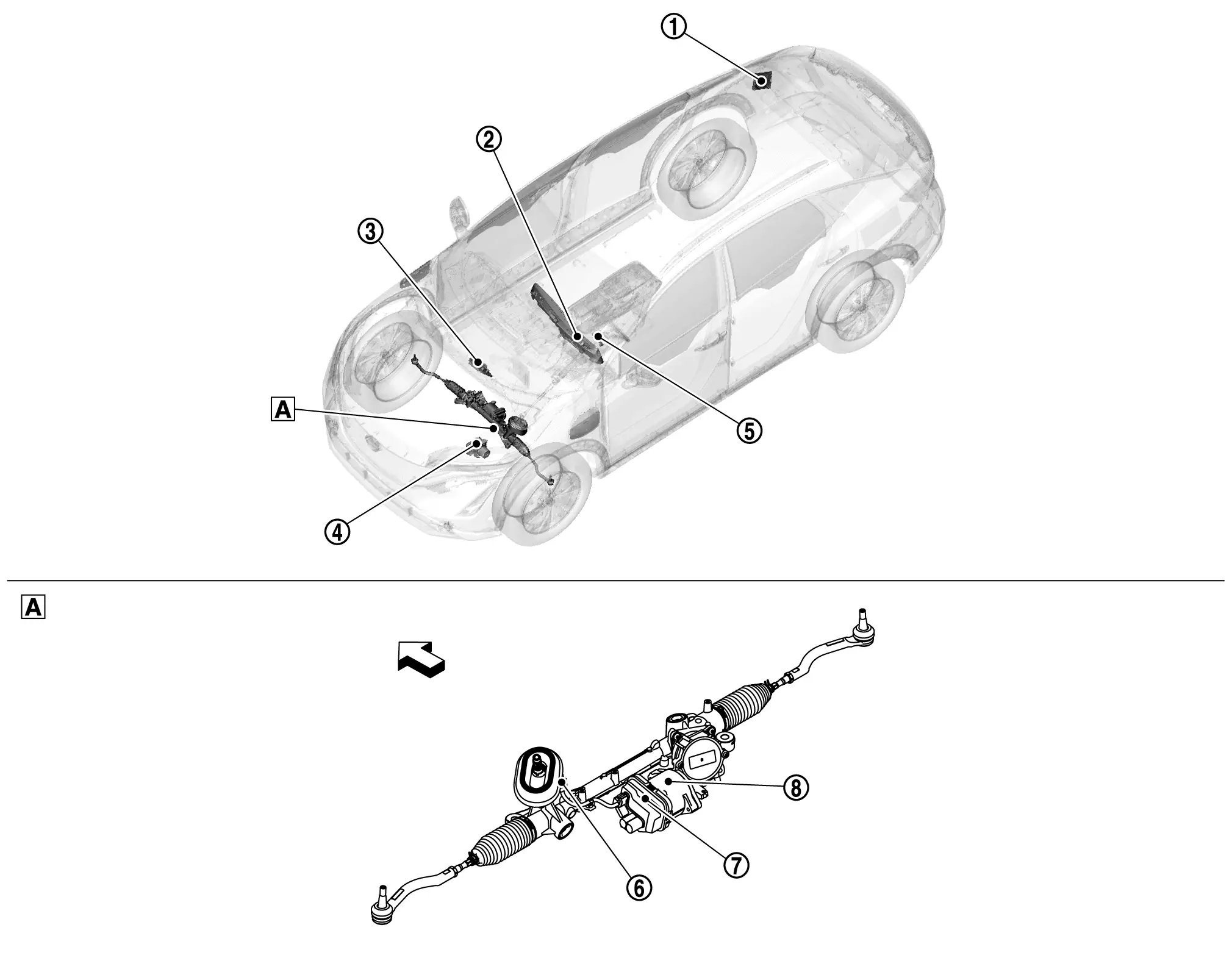

Component Parts Location

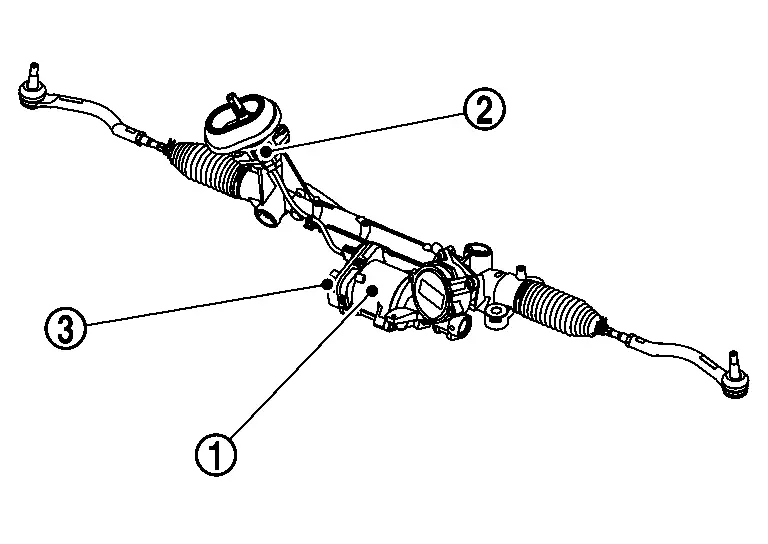

Steering gear assembly

	ADAS control unit 2 Refer to Component Part Location .for detailed installation location.		Combination meter Refer to Component part location .for detailed installation location.		VCM Refer to Component part location .for detailed installation location.
	ABS actuator and electric unit (control unit) Refer toComponent part Location. for detailed installation location.		Steering angle sensor Refer toComponent part Location. for detailed installation location.		Power steering torque sensor
	Power steering control module		EPS motor
	Nissan Ariya Vehicle front

Steering Gear Assembly

Component Description

FUNCTIONS WITHIN THE SYSTEM

The steering gear assembly is primarily composed of EPS motor , power steering torque sensor and power steering control module .

POWER STEERING CONTROL MODULE

• By receiving steering angle sensor signal ,vehicle speed signal and power steering torque sensor signal, the power steering control module calculates the current of motor drive according to the driving conditions. The power steering control module controls the EPS motor.

• Diagnoses can be performed via CONSULT.

POWER STEERING TORQUE SENSOR

Power steering torque sensor detects the steering torque, and transmit the signal to power steering control module.

EPS MOTOR

The EPS motor provides the assist torque according to the signal from power steering control module.

INDIVIDUAL OPERATION

Refer to System Description .

PARTS LOCATION

Refer to Componenet Part Location .
