Front Traction Motor System
Front Traction Motor
Inverter (front)
Traction Motor Oil Pump Relay

Front Traction Motor System

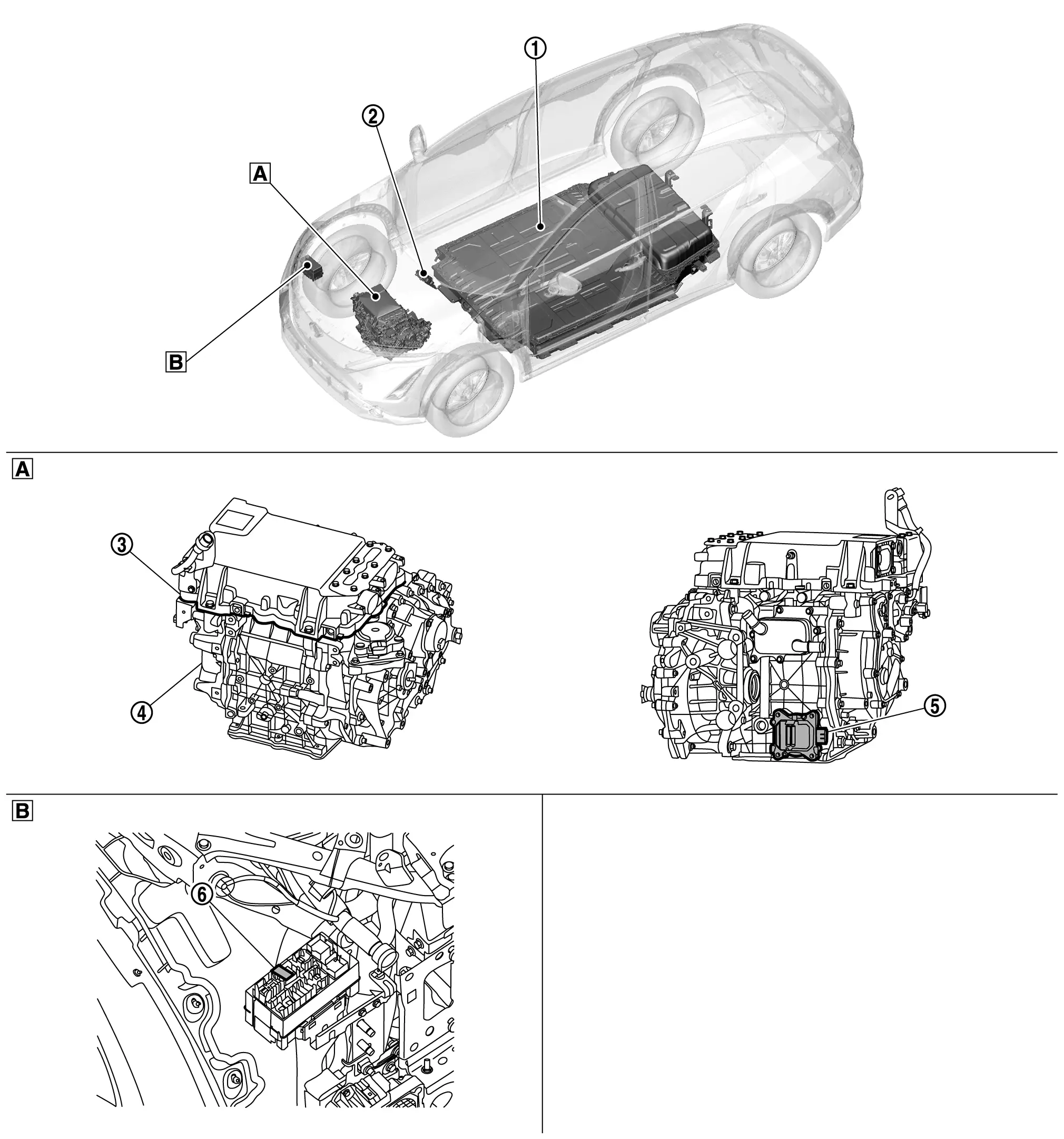

Component Parts Location

LBC (Li-ion battery controller) Refer to Component Parts Location (66kWh Li-ion battery, 2WD models), Component Parts Location (66kWh Li-ion battery, AWD models), Component Parts Location (91kWh Li-ion battery, 2WD models) or Component Parts Location(91kWh Li-ion battery, AWD models).	VCM Refer to Component Parts Location.	Inverter (front)
Front traction motor	Front traction motor oil pump	Traction motor oil pump relay
Motor room	Right back side of front bumper

Front Traction Motor

Component Description

FUNCTIONS WITHIN THE SYSTEM

Converts electric energy stored in Li-ion battery to driving force (rotation torque) and turns tire.
Converts the kinetic energy to electric energy during deceleration and charges the Li-ion battery. (Regeneration function)

INDIVIDUAL FUNCTION WITHIN SYSTEM

FRONT TRACTION MOTOR

The front traction motor contains an “Externally Excited Synchronous Motor (EESM)”. A permanent magnet is embedded inside the rotor core, and the rotating magnetic field generated by the stator coil is used to generate rotational torque.

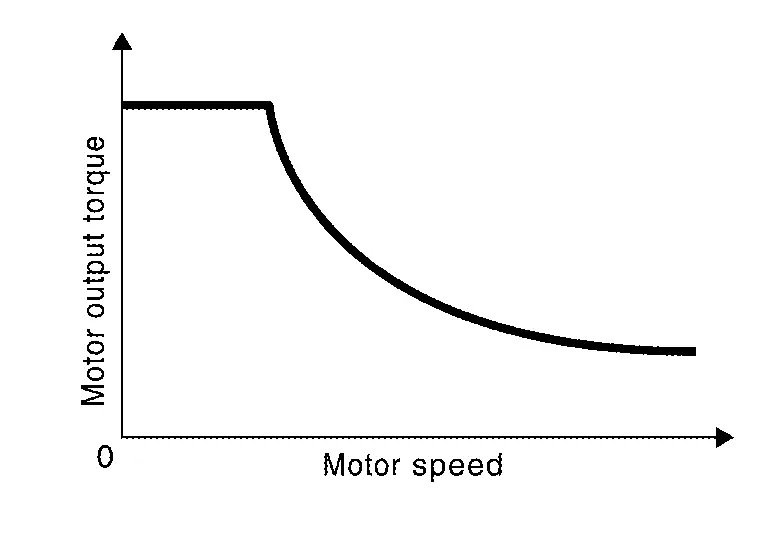

The front traction motor is able to generate torque even when the Nissan Ariya vehicle is stopped, and outputs maximum drive torque when the vehicle starts moving in order to provide good initial acceleration.

FRONT TRACTION MOTOR RESOLVER

The front traction motor resolver is located coaxially with the front traction motor, and detects the rotor rotation angle. The rotation angle is sent to the motor controller.

CAUTION:

If the inverter (front) or front traction motor is replaced, be sure to perform writing of the front traction motor resolver offset. Refer to Work Procedure.

FRONT TRACTION MOTOR TEMPERATURE SENSOR

The front traction motor temperature sensor detects the temperature of the stator inside the front traction motor, and sends that temperature information to the motor controller.

FRONT TRACTION MOTOR OIL TEMPERATURE SENSOR

The front traction motor temperature sensor detects the temperature of the oil inside the front traction motor, and sends that temperature information to the motor controller.

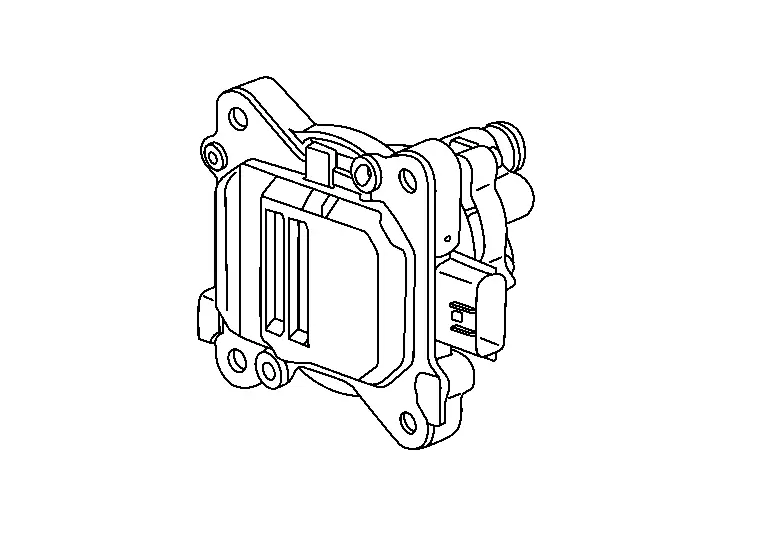

FRONT TRACTION MOTOR OIL PUMP

This pump circulates oil inside the front traction motor in order to lubricate the bearings and cool the inside of the motor.
When the traction motor oil pump relay turns ON, power is supplied to the front traction motor oil pump, operating it. (In READY state, the pump operates continuously.)
The pump speed is controlled according to the speed command from the inverter (front).

INDIVIDUAL OPERATION

Refer to Structure and Operation.

COMPONENT PARTS LOCATION

Front traction motor is installed in the motor room.

Inverter (front)

Component Description

FUNCTIONS WITHIN THE SYSTEM

Inverter (front) converts DC power from Li-ion battery to AC power, and controls the front traction motor output.

INDIVIDUAL FUNCTION WITHIN SYSTEM

INVERTER (FRONT)

NOTE:

Control of the front traction motor and control of EV system CAN communications with other control modules is actually performed by the motor controller. However, because the motor controller is installed inside the inverter (front), the motor controller is here referred to as the inverter (front).

The inverter (front) is composed of the motor controller, driver, smoothing capacitor, hybrid battery pack current sensor, coolant temperature sensor, power module, and excitation module.
The inverter (front) controls the traction motor based on the target motor torque signal transmitted by EV system CAN from the VCM.

MOTOR CONTROLLER

The motor controller receives the rotor rotation angle from the front traction motor resolver and the front traction motor current value from the current sensor, and creates the pulse signal for driving the IGBT (Insulated Gate Bipolar Transistor).
The motor controller detects the front traction motor temperature from the front traction motor temperature sensor. It limits the output torque (protection control) according to the degree of heating of the front traction motor.

DRIVER

The driver converts the pulse signal (12 V) from the motor controller to a high voltage signal (300 V) and drives the IGBT.
The driver of power module side that has the voltage monitoring circuit monitors the voltage of high voltage circuit in the inverter (front) and transmits the voltage value to the motor controller.

POWER MODULE

A power module is comprised of six units of the power semiconductor IGBT (Insulated Gate Bipolar Transistor).
The IGBT is a semiconductor switch enabling high speed switch-over between ON and OFF.
The IGBT converts direct current from the Li-ion battery into alternate current using the IGBT switching triggered by the IGBT driver signal and supplies alternate current to the front traction motor.

Excitation module

Excitation module is consisted of two IGBTs (power transistor) and two diodes.
Power is supplied to the rotor coil to generate magnetic force in the rotor coil.

SMOOTHING CONDENSER

The smoothing condenser controls the voltage ripple which occurs as a result of IGBT switching.

CURRENT SENSOR

A hybrid battery pack current sensor is placed in the U-phase, V-phase, and W-phase of the front traction motor. It detects the current that is supplied to the motor, and feeds back the current value to the motor controller.

DISCHARGE RESISTER

The discharge resistor discharges the high voltage in case the inverter (front) is unable to discharge the remaining high voltage in the high voltage circuit due to a malfunction.

POWER MODULE TEMPERATURE SENSOR

The power module temperature sensor is located in the power module and detects the power module temperature. It then transmits this temperature data to the motor controller.

DRIVER PRINT CIRCUIT BOARD TEMPERATURE SENSOR

A driver print circuit board temperature sensor is located on the power module side driver print circuit board, and detects the temperature at each driver print circuit board. It then transmits this temperature data to the motor controller.

EXCITATION PRINT CIRCUIT BOARD TEMPERATURE SENSOR

The excitation print circuit board temperature sensor detects the temperature of the metal board of the excitation module, and transmits this temperature data to the motor controller.

COOLANT TEMPERATURE SENSOR

The water temperature sensor that is installed in the inverter (front) detects coolant temperature of inverter (front) and transmits its temperature information to motor controller.

INDIVIDUAL OPERATION

Inverter (front) drives front traction motor accurately based on resolver detection signal and current sensor detection signal.
The inverter (front) performs charging judgement for the high voltage circuit and also discharges the voltage inside the circuit.
The inverter (front) performs vibration control in order to improve accelerator response and provide good acceleration while driving.

COMPONENT PARTS LOCATION

Inverter (front) is installed in the motor room.
