Nissan Ariya: Description

• Outline
• Component Parts. Can System

Outline

How to Use This Section

INFORMATION

• “CAN” of LAN Section describes information peculiar to a vehicle and inspection procedures.

• For trouble diagnosis procedure, Refer to Trouble Diagnosis Flow Chart.

ABBREVIATION LIST

Unit name abbreviations in CONSULT CAN diagnosis and in this section are as per the following list.

Component Parts. Can System

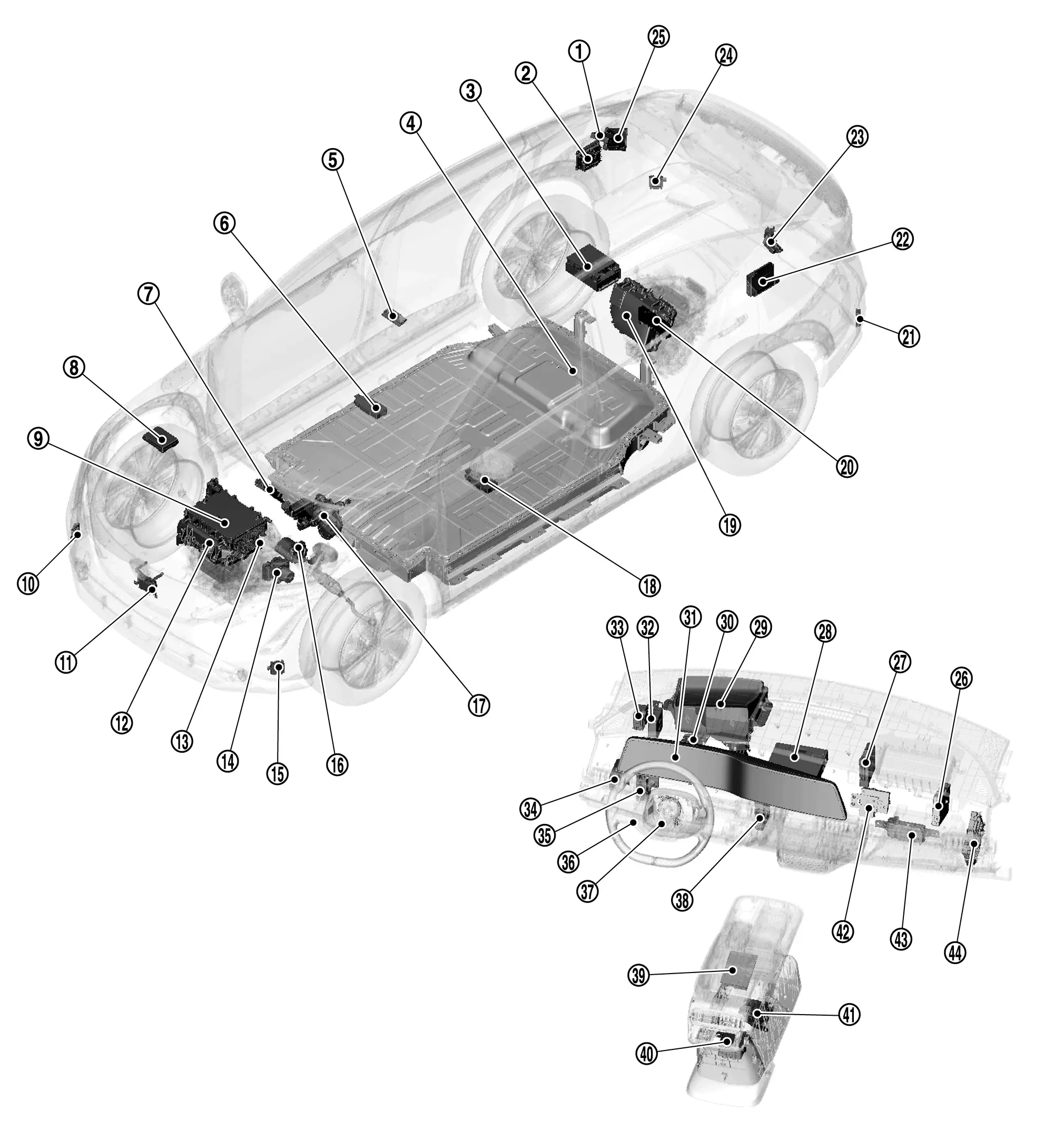

Component Parts Location

	Automatic back door control unit		BOSE amp. *1 Active noise control unit *2		12V sub battery (lithium ion battery)
	Li-ion battery		Front camera unit		Passenger seat control unit
	VCM		IPDM E/R		ON-board charger
	Side radar front RH		Distance sensor		Inverter (front)
	DC/DC converter		ABS actuator and electric unit (control unit)		Side radar front LH
	Power steering control module		Electrically-driven intelligent brake unit		Driver seat control unit
	Inverter (rear)		Power network separate relay		Side radar rear LH
	Around view monitor control unit		Sonar control unit		Side radar rear RH
	ADAS control unit 2		A/C auto amp.		Heat pump control unit
	AV control unit		Head Up Display unit		Driver monitor camera control unit
	Combination meter		Steering column control module		Chassis control module
	Approaching Nissan Ariya vehicle sound for pedestrians (VSP) control unit		8CH CAN gateway		Data link connector
	Steering angle sensor		TCU		Wireless charger unit
	Electric shift control module		Air bag diagnosis sensor unit		Intelligent Key unit
	CPLC		BCM

*1: With BOSE audio

*2: Without BOSE audio

Trouble Diagnosis
