Nissan Ariya: Door Motor

Exploded View

	Sub harness		A/C unit case		Air mix door motor (driver side)
	Sub harness		Distribution box		Mode door motor (driver side)
	Mode door motor (passenger side)		Bracket		Intake box
	Intake door motor		Blower case assembly		Air mix door motor (passenger side)
	Rear ventilator duct		Rear mode door motor
	： Clip
	： Pawl
	： Metal clip
	: N·m (kg-m, in-lb)

• Intake Door Motor
• Mode Door Motor
• Air Mix Door Motor

Intake Door Motor

Removal & Installation

REMOVAL

Remove intake & distribution box. Refer to Removal & Installation.

Remove fixing screws , and then remove fuse bracket.

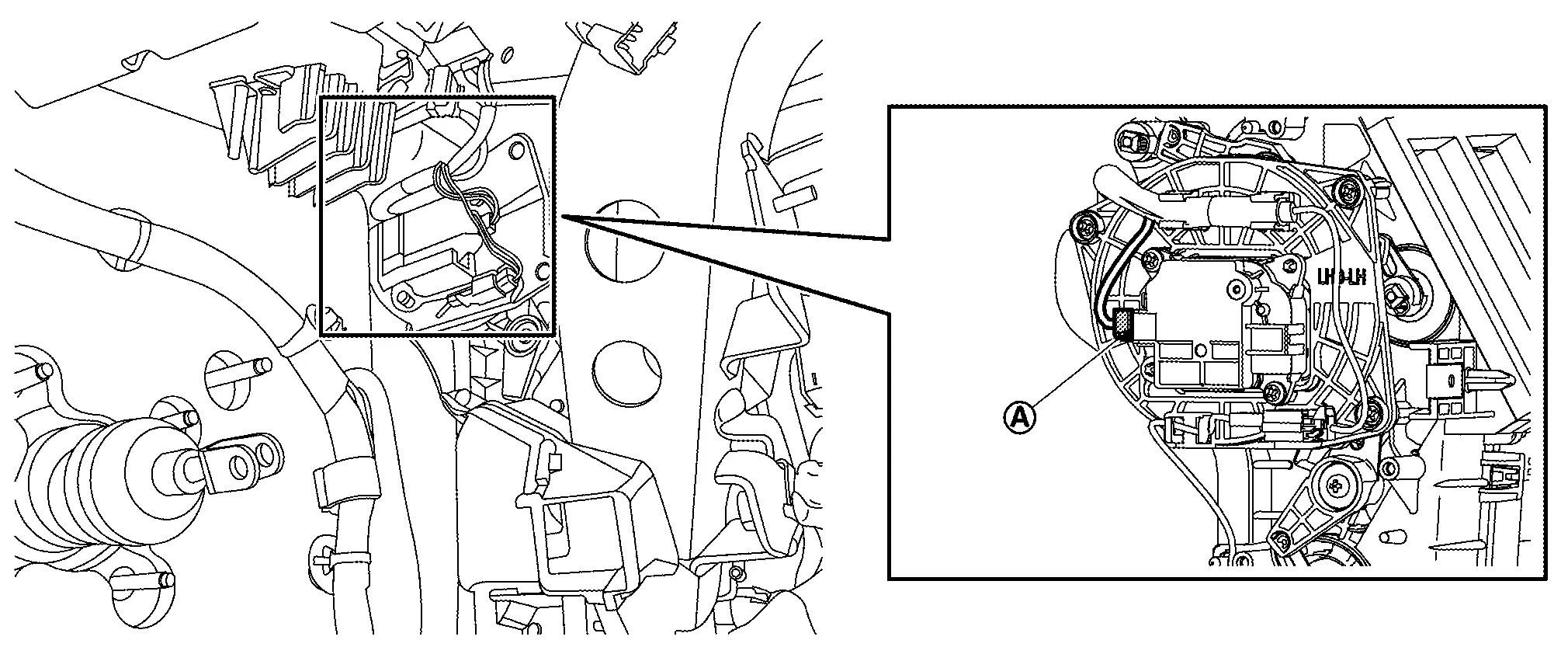

Disconnect intake door motor harness connector .

Remove fixing screws , and then remove Intake door motor.

INSTALLATION

Install in the reverse order of removal.

Mode Door Motor

Removal & Installation

REMOVAL

Mode Door Motor (Driver Side)

Remove heat pump C/U bracket. Refer to Removal & Installation.

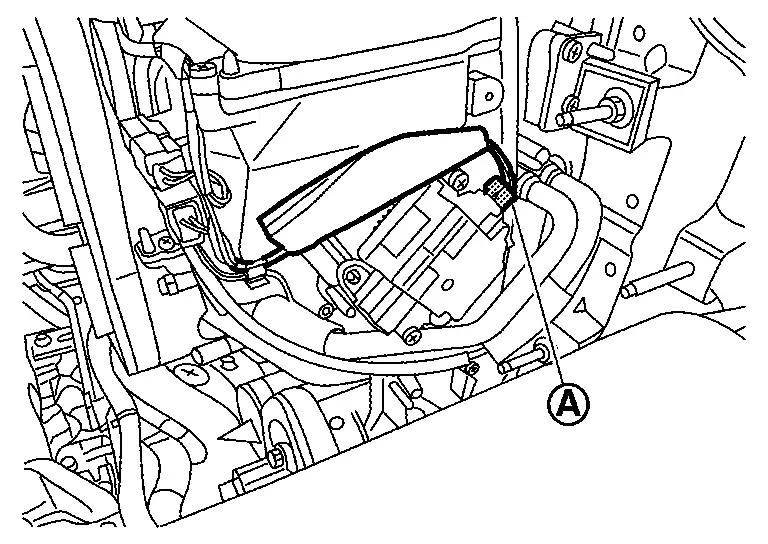

Disconnect mode door motor (driver side) harness connector .

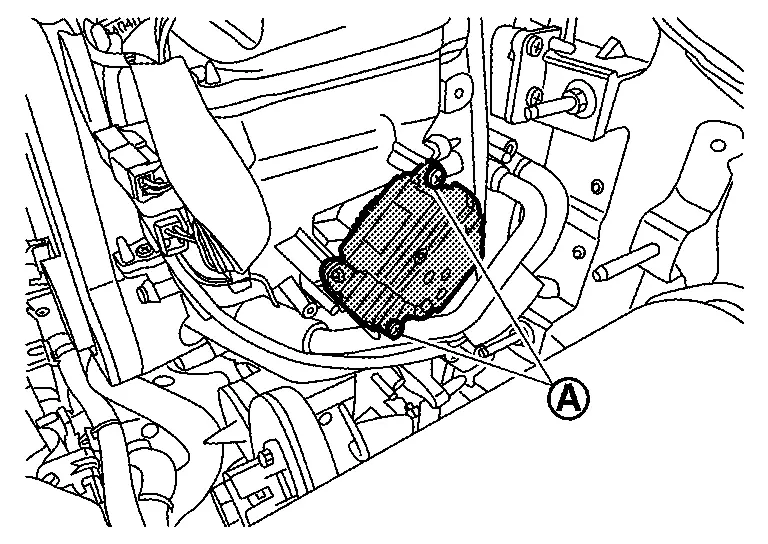

Remove fixing screws , and then remove mode door motor (driver side).

Mode Door Motor (Passenger Side)

Remove intake & distribution box. Refer to Removal & Installation.

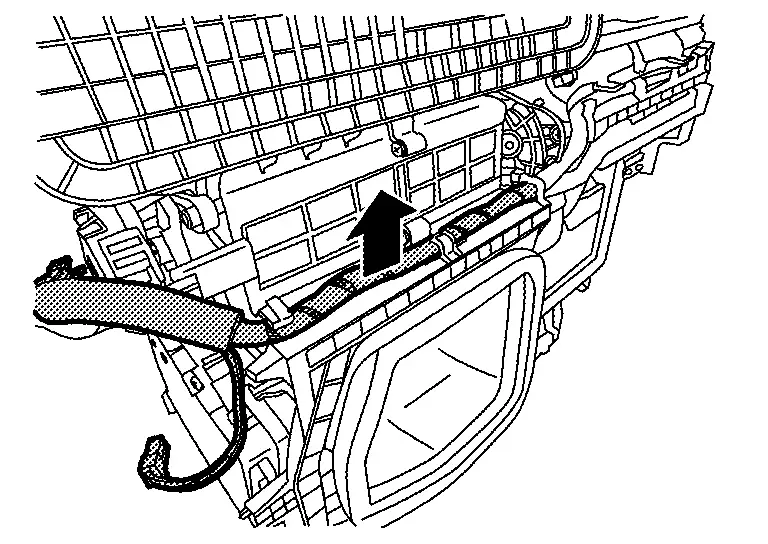

Remove intake box from distribution box.Remove sub harness from intake box .

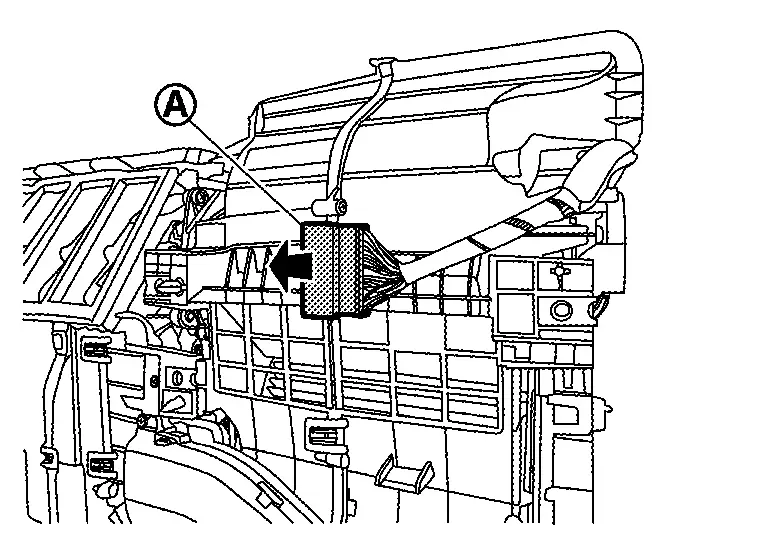

Disconnect intake door motor harness connector. Refer to Removal & Installation. Remove sub harness from intake box.

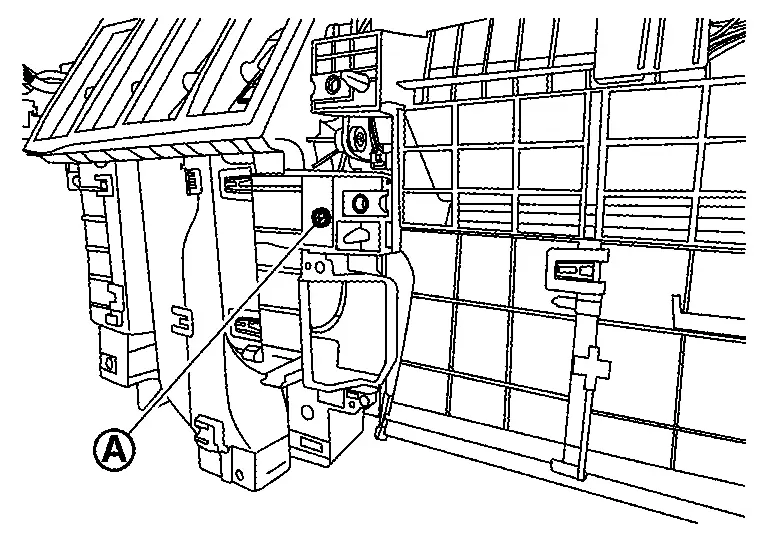

Remove front foot duct RH. Refer to Removal & Installation. Remove distribution box fixing screw .

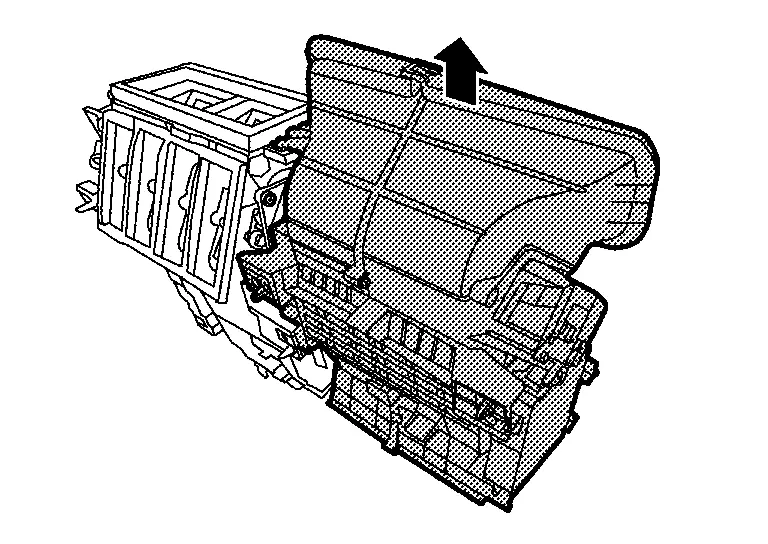

Remove intake box from distribution box.

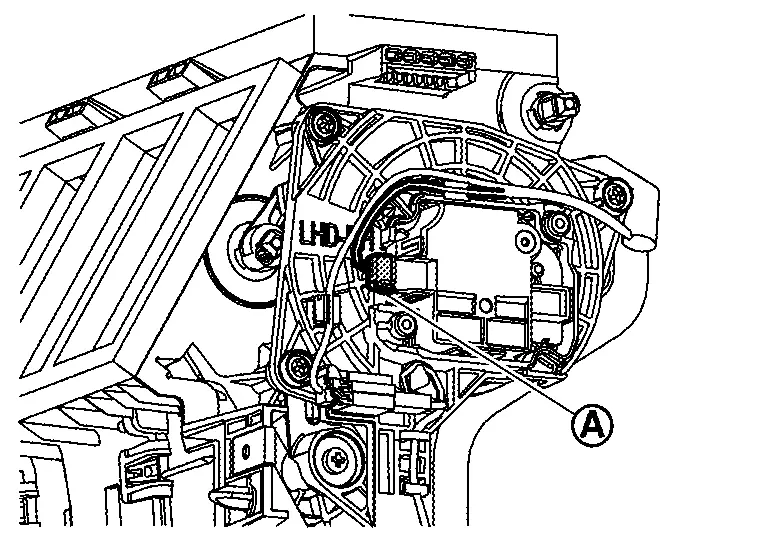

Disconnect mode door motor (passenger side) harness connector .

Disconnect PTC heater outlet air temperature sensor (passenger side) harness connector. Refer to Removal & Installation.

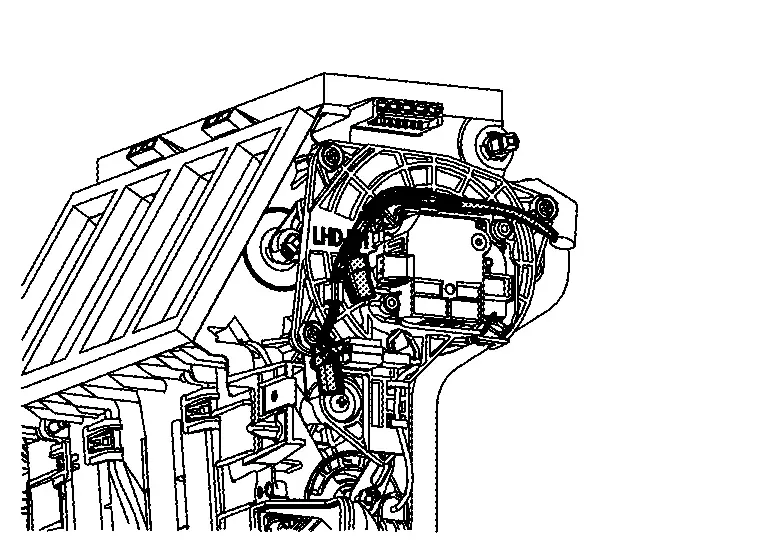

Remove sub harness from bracket.

Remove PTC heater outlet air temperature sensor (passenger side) harness connector from bracket. Refer to Removal & Installation.

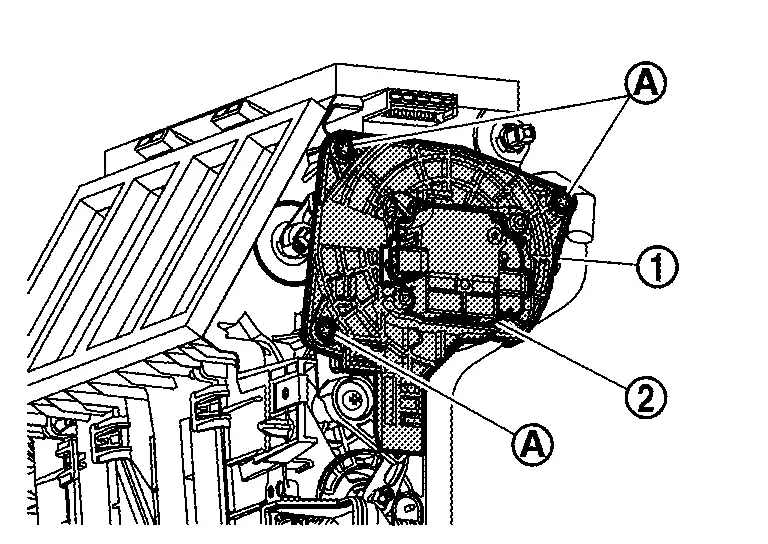

Remove fixing screws , and then remove bracket and mode door motor (passenger side) as a set.

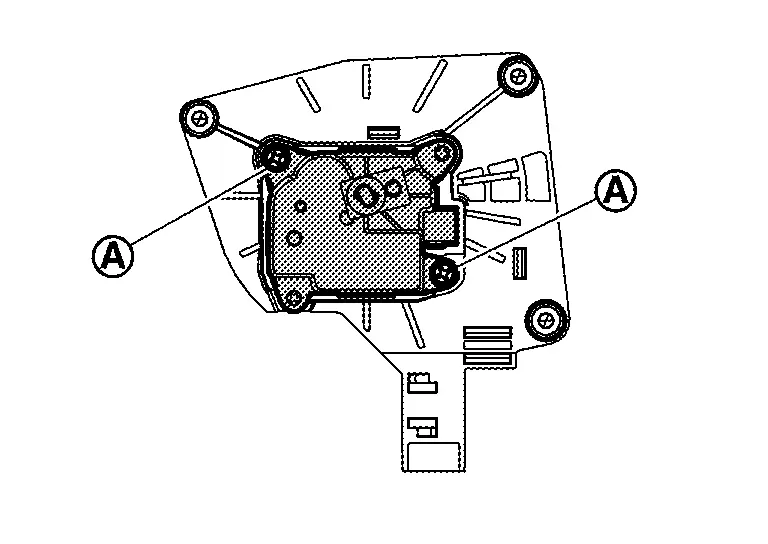

Remove fixing screws , and then remove mode door motor (passenger side).

Rear Mode Door Motor

Remove center console. Refer to Removal & Installation.

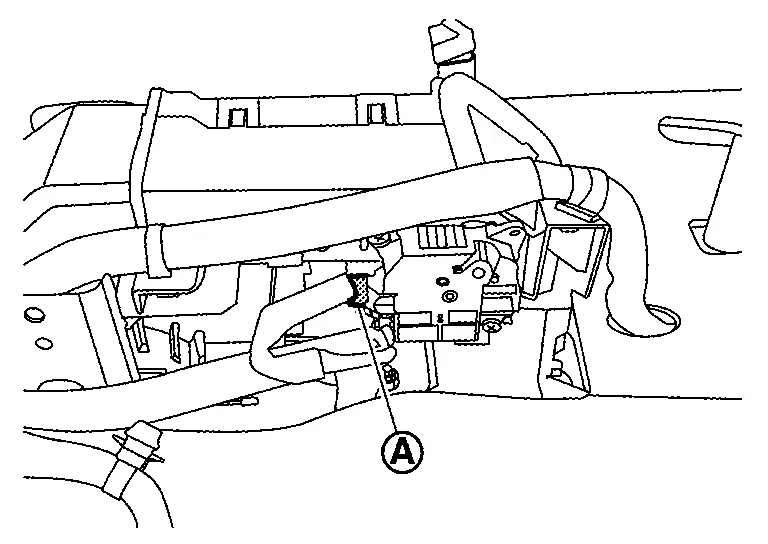

Disconnect rear mode door motor harness connector .

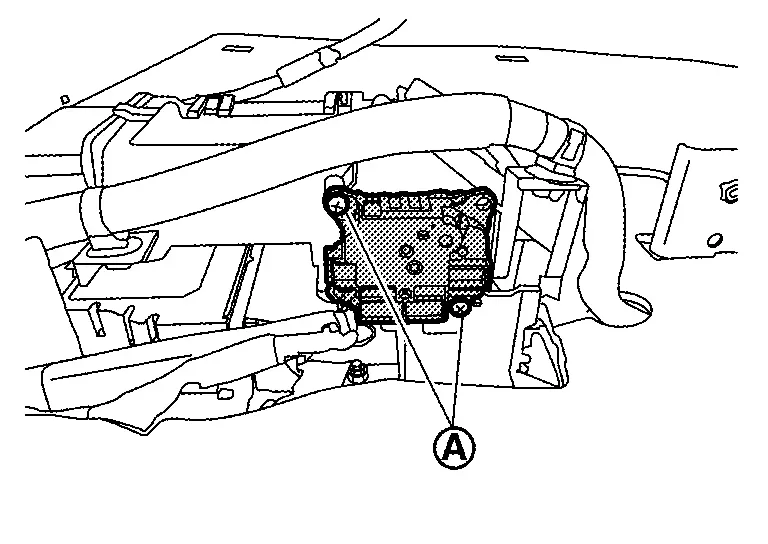

Remove fixing screws , and then remove rear mode door motor.

INSTALLATION

Install in the reverse order of removal.

Air Mix Door Motor

Removal & Installation

REMOVAL

Air Mix Door Motor (Driver Side)

Remove A/C unit assembly cover. Refer to Removal & Installation.

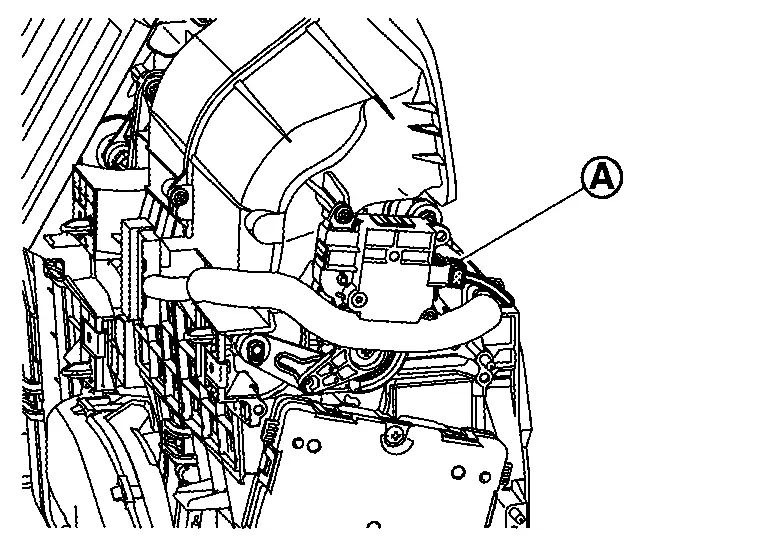

Disconnect air mix door motor (driver side) harness connector .

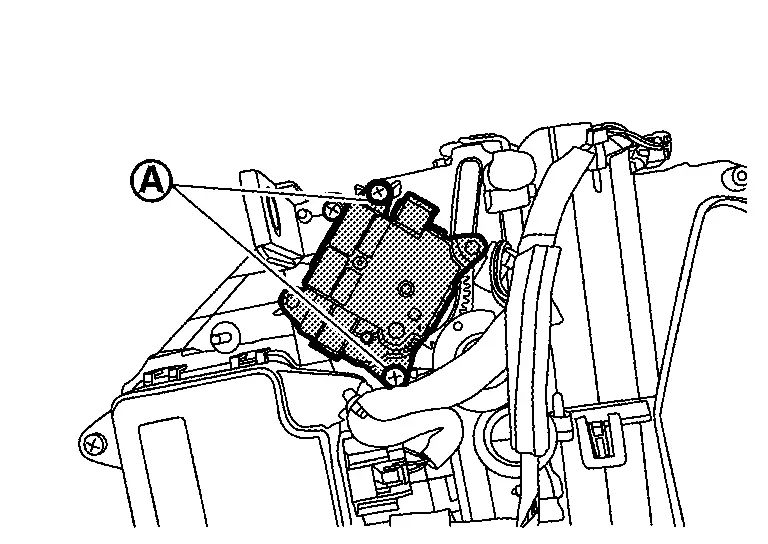

Remove fixing screws , and then remove air mix door motor (driver side).

Air Mix Door Motor (Passenger Side)

Remove blower case assembly from A/C unit case assembly referring to PTC heater removal procedure 1 to 3. Refer to Removal & Installation.

Disconnect air mix door motor (passenger side) harness connector .

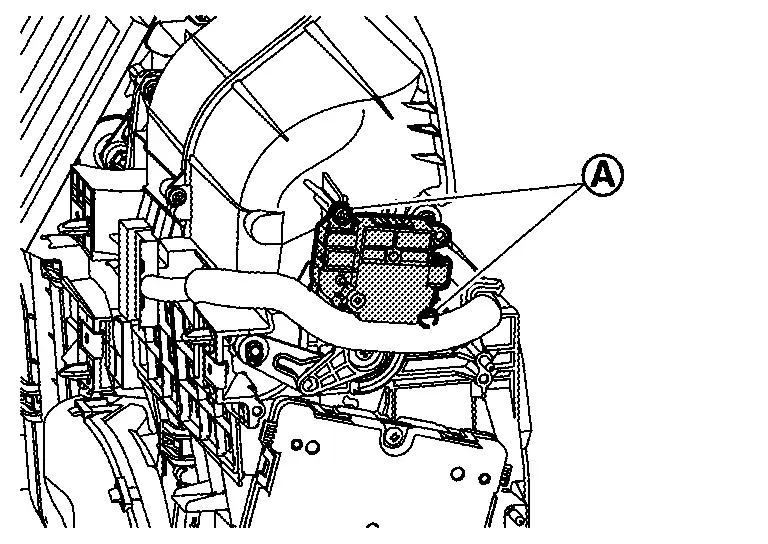

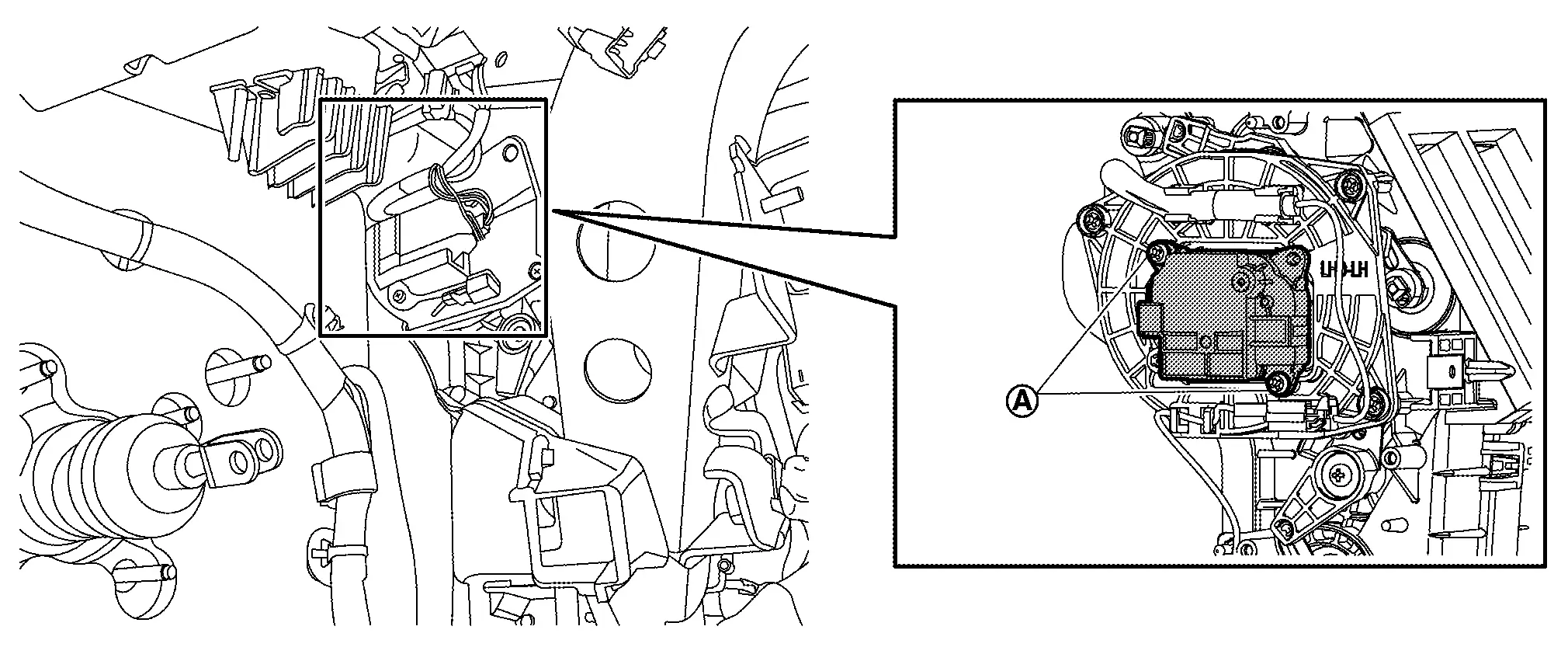

Remove fixing screws , and then remove air mix door motor (passenger side).

INSTALLATION

Install in the reverse order of removal.
