Nissan Ariya: Preparation. Front Axle System
Nissan Ariya (FE0) 2023-2025 Service & Repair Manual / Transmission & Driveline / Front Axle / Preparation. Front Axle System
FRONT AXLE SYSTEM : Special Service Tools
|
Tool number Tool name | Description | |
|---|---|---|
|

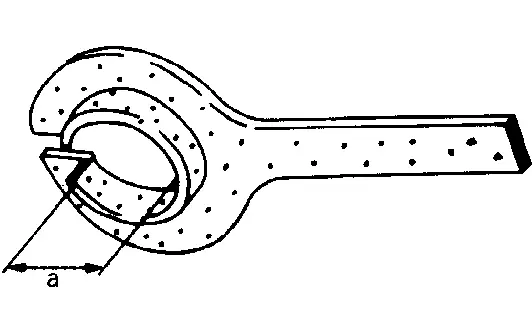

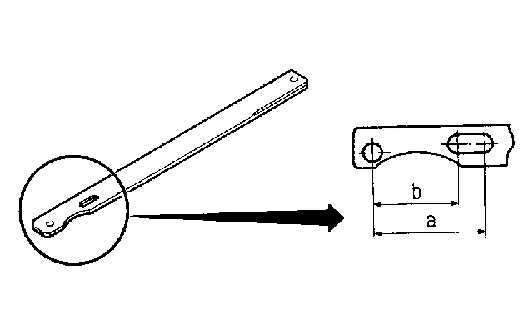

KV40104000 Hub lock nut wrench a: 85 mm (3.35 in) b: 65 mm (2.56 in) |
|
Removing and Installing wheel hub lock nut. |
|

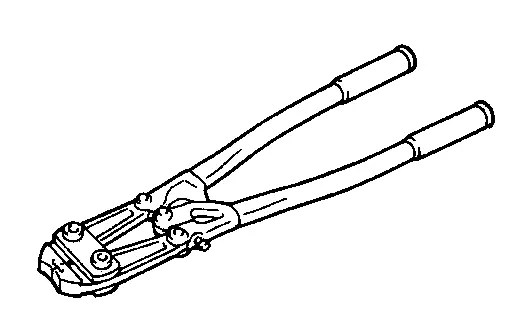

KV40107300 Boot band crimping tool |
|
Installing boot band |
|

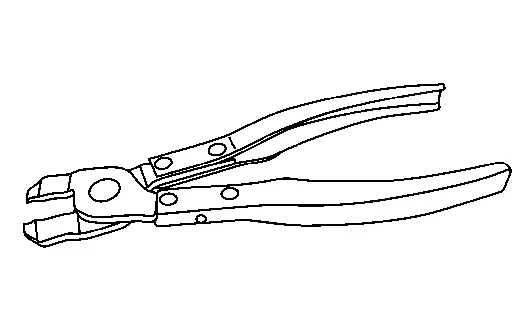

KV40107310 Boot band crimping tool |
|
Installing boot band |
|
KV40107500 Drive shaft attachment |
|
Removing drive shaft |
|
KV38107900 Protector a: 32 mm (1.26 in) dia. |
|
Installing drive shaft |
|

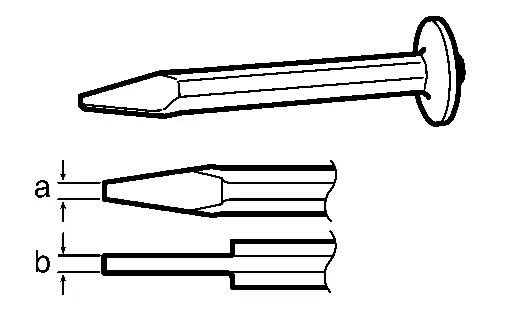

KV40108700 Lock nut crimp punch a: 5 mm (0.20 in) b: 7 mm (0.28 in) |
|
Installing wheel hub lock nut |
|

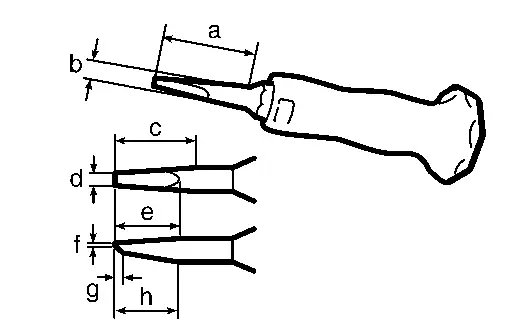

KV40108800 Lock nut chisel a: 44.5 mm (1.752 in) b: 10 mm (0.39 in) dia. c: 31 mm (1.22 in) d: 4.5 mm (0.177 in) e: 26 mm (1.02 in) f: 0.4 mm (0.016 in) g: 4 mm (0.16 in) h: 24 mm (0.94 in) |
|
Removing wheel hub lock nut |
FRONT AXLE SYSTEM : Commercial Service Tools or/and Repair Part
| Tool name | Description | |
|---|---|---|
| Ball joint remover |
|
Removing hub bolt |
| Drive shaft puller |
|
Removing drive shaft joint sub assembly |

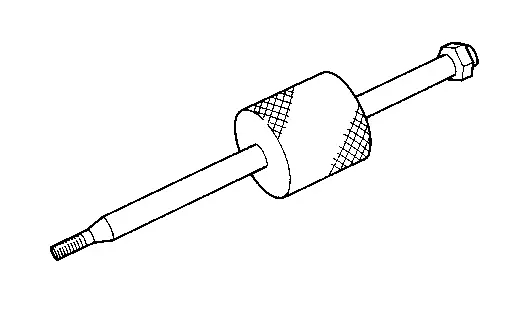

| Sliding hammer |
|
Removing drive shaft |
|

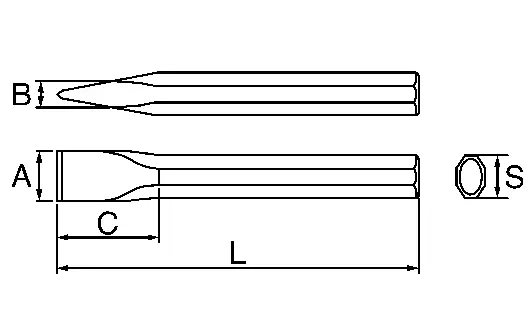

Chisel A: 16 – 32 mm (0.63 – 1.26 in) B: 10 mm (0.39 in) or more C: 40 – 70 mm (1.57 – 2.76 in) L: 220 mm (7.87 in) or less S: 14 mm (0.55 in) or more |
|
Removing and installing steering knuckle and strut assembly |
FRONT AXLE SYSTEM : Lubricant or/and Sealant
| Name | Description |
|---|---|
| NISSAN Genuine grease or equivalent |
|
| Apply paste [service parts (440037S000)] | Joint sub-assembly |
