Nissan Ariya: Vehicle Information
Nissan Ariya (FE0) 2023-2025 Service & Repair Manual / General Information / General Information / Vehicle Information
Model Variation
FOR USA
| Destination | Body | Motor | Axle | Handle | Transmission | Grade | Model |
|---|---|---|---|---|---|---|---|
| USA |
SUV (WIDE) |
AM67 | 2WD | LHD | Reducer for electrical Nissan Ariya vehicle | ENGAGE/EVOLVE/EMPOWER (L3) | VSGALD9–3UA |
| VENTURE (L2) | VSGALC9–BUA | ||||||
| ENGAGE/EVOLVE/EMPOWER (L3) | VSGALD9–BUA | ||||||
| AM67 + AM67 | AWD | VSGNLD9–3UA | |||||
| VSGNLD9–BUA | |||||||
| PLAT (L4) | VSGNLE9–BUA |
Model variation code (Prefix and suffix designations)
FOR CANADA
| Destination | Body | Motor | Axle | Handle | Transmission | Grade | Model |
|---|---|---|---|---|---|---|---|
| Canada |
SUV (WIDE) |
AM67 | 2WD | LHD | Reducer for electrical Nissan Ariya vehicle | ENGAGE/EVOLVE (L3) | VSGALD9–3NA |
| VENTURE (L2) | VSGALC9–BNA | ||||||
| ENGAGE/EVOLVE (L3) | VSGALD9–BNA | ||||||
| AM67 + AM67 | AWD | VSGNLD9–3NA | |||||
| VSGNLD9–BNA | |||||||
| PLAT (L4) | VSGNLE9–BNA |

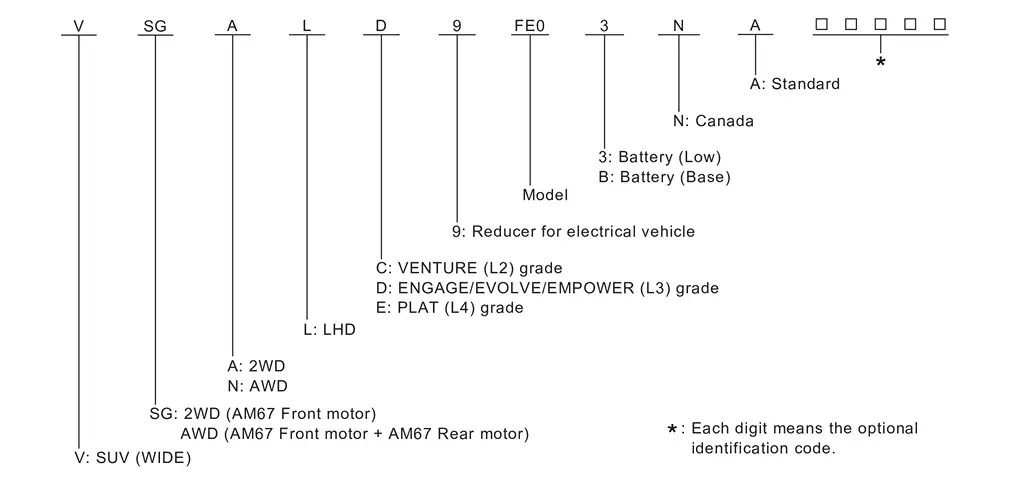

Model variation code (Prefix and suffix designations)
Information About Identification or Model Code

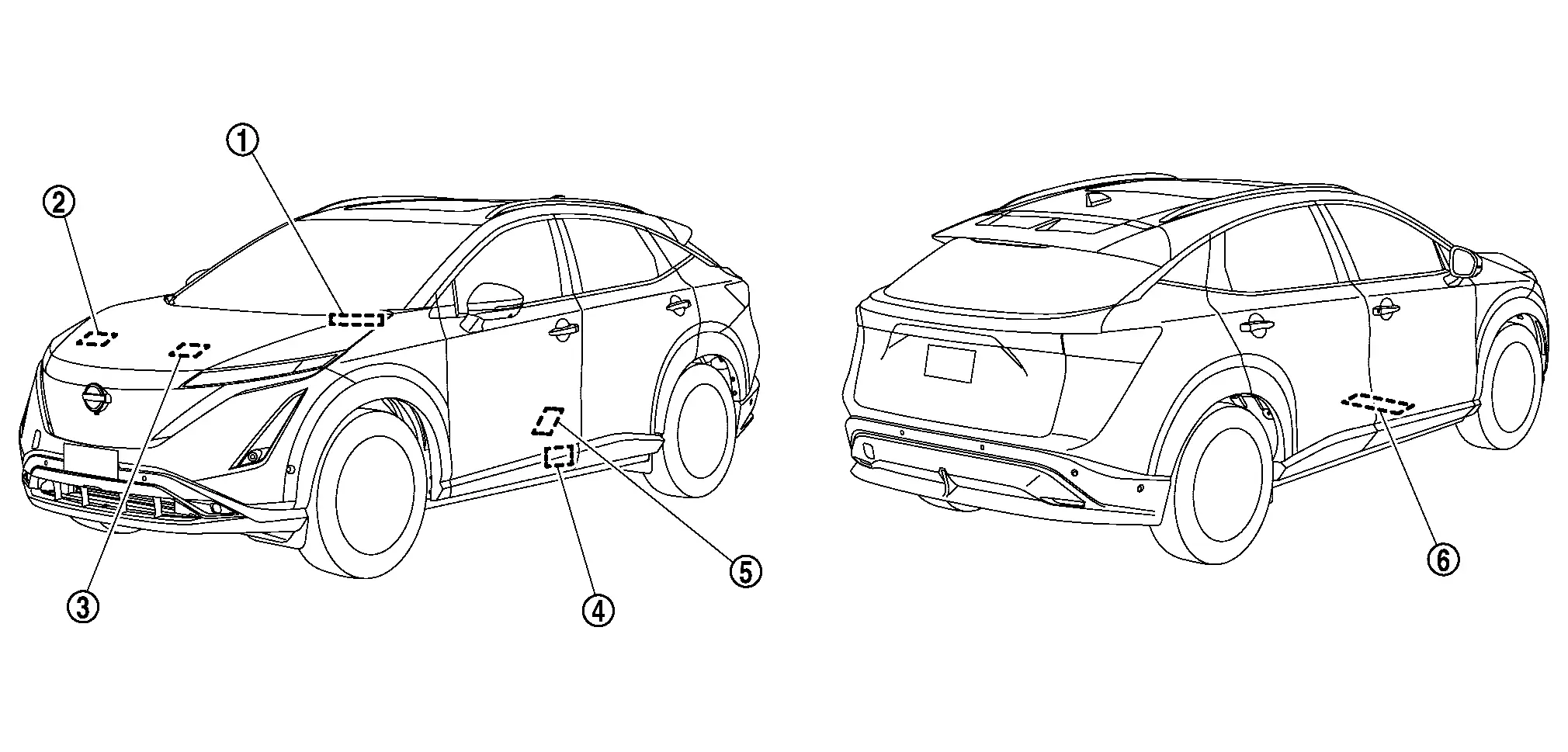

IDENTIFICATION NUMBER
 |
Nissan Ariya Vehicle identification plate |  |
Emission control information label |  |
Air conditioner specification label |
 |
|
 |
Tire placard |  |
Nissan Ariya Vehicle identification number (Chassis number) |

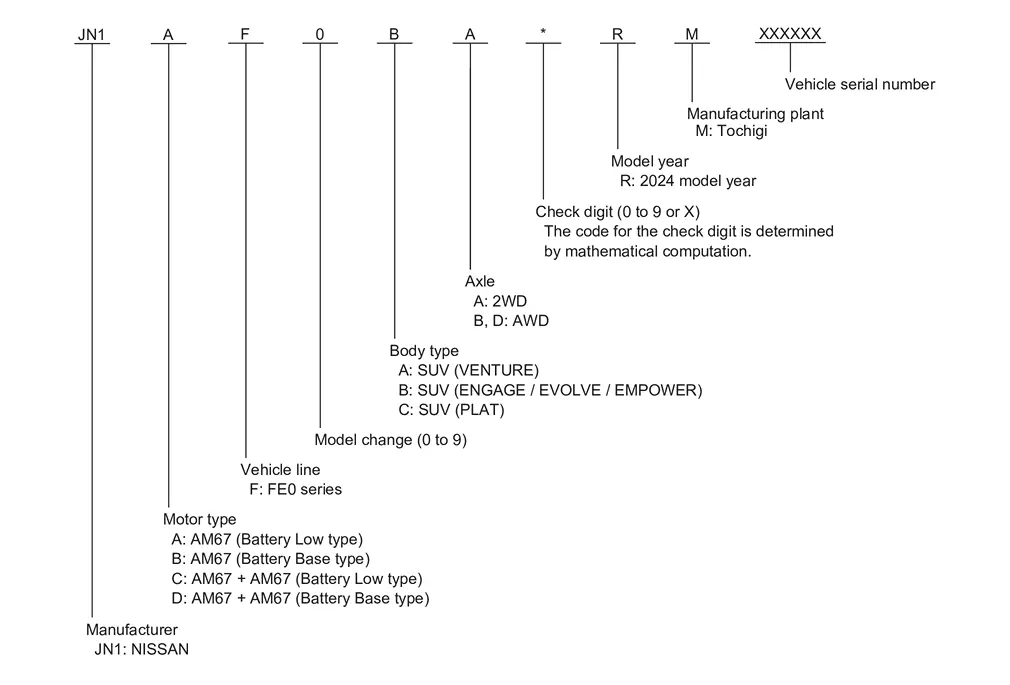

VEHICLE IDENTIFICATION NUMBER ARRANGEMENT
CERTIFICATION LABEL

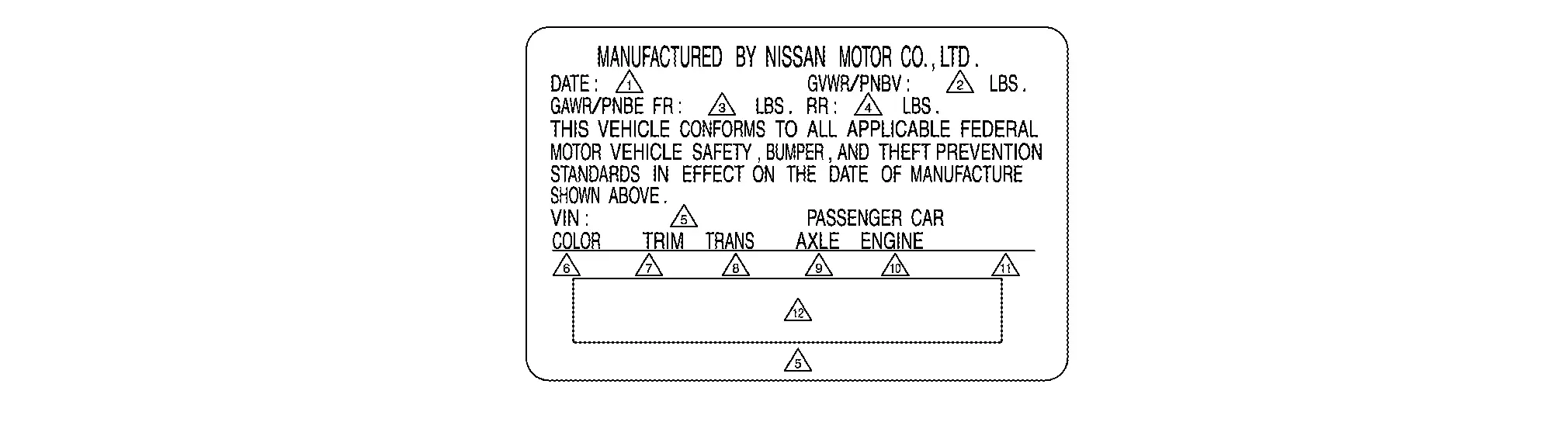

FMVSS certification label (For USA)
|
MFR Month/Year | |
Gross Nissan Ariya vehicle weight rating | |
Gross axle weight rating (Front) |
|
Gross axle weight rating (Rear) | |
Nissan Ariya Vehicle identification number | |
Body color code |
 |
Trim color code |  |
Transmission model |  |
Axle model |
 |
Motor model |  |
Motor displacement |  |
Vin bar code |
CMVSS certification label (For Canada)
|
MFR Month/Year | |
Gross Nissan Ariya vehicle weight rating | |
Gross axle weight rating (Front) |
|
Gross axle weight rating (Rear) | |
Nissan Ariya Vehicle identification number | |
Body color code |
|
Trim color code | |
Transmission model | |
Axle model |
|
Motor model | |
Motor displacement | |
Vin bar code |

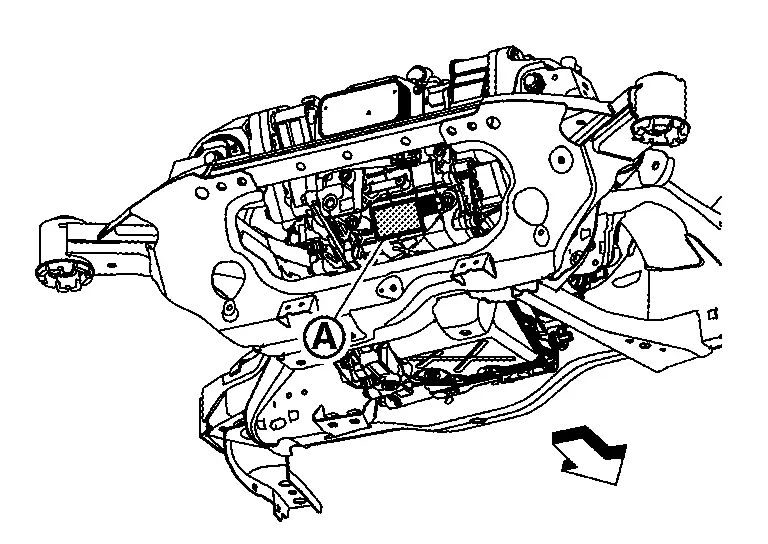

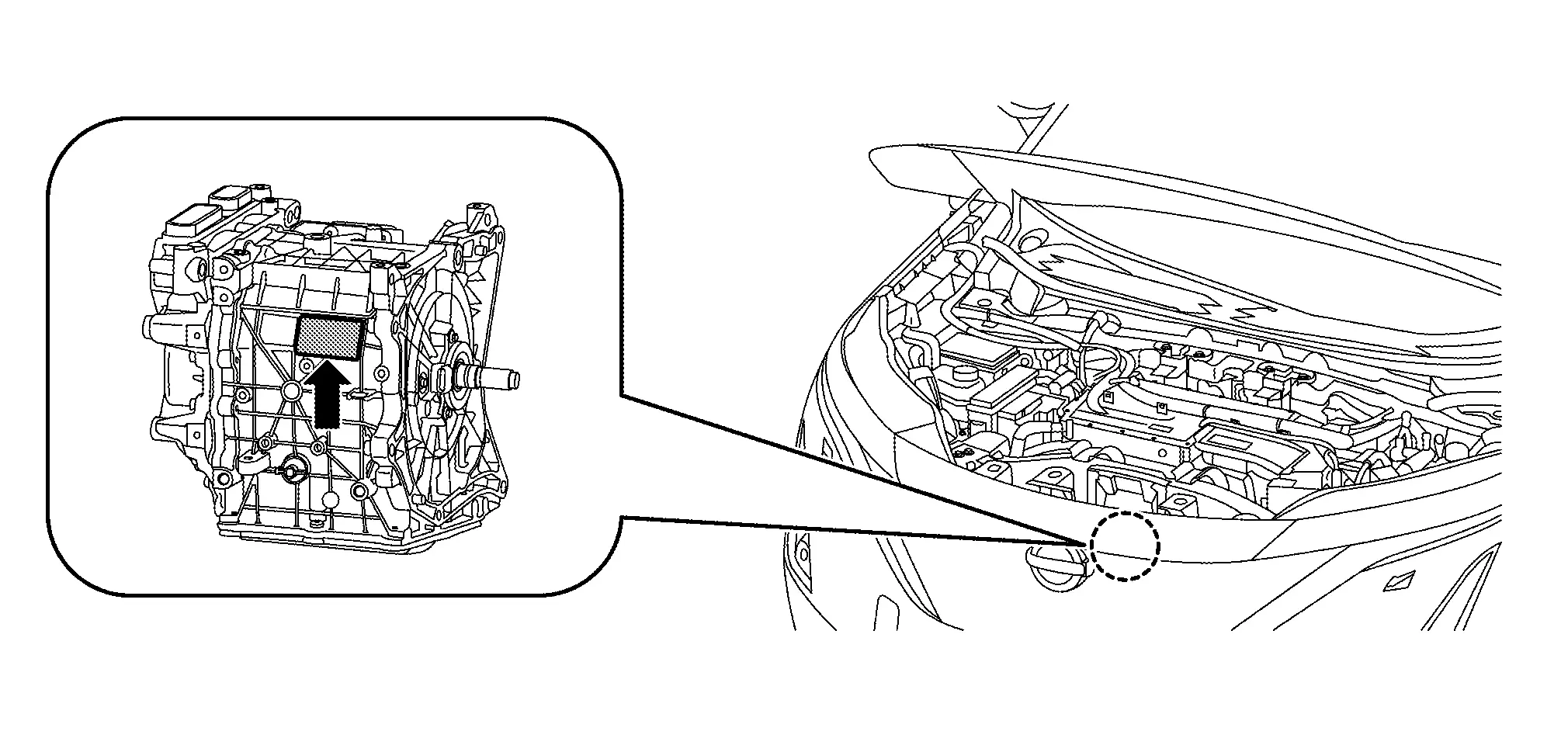

MOTOR SERIAL NUMBER
Front
Rear (For AWD models)
 |
: Nissan Ariya Vehicle front |
 |
: Motor type and serial number |
Dimensions
Unit: mm (in)
| Overall length | 4,645 (182.9) |
| Overall width | 1,900 (74.8) |
| Overall height |
1,660 (65.4)*1 1,670 (65.7)*2 |
| Front tread | 1,635 (64.4) |
| Rear tread | 1,635 (64.4) |
| Wheelbase | 2,775 (109.3) |
*1: Models without ProPILOT Assist 2.0
*2: Models with ProPILOT Assist 2.0
Wheels Tires
| Conventional | 19 inch | Tire | 235/55R19 101V | |
| Road wheel | Size | 19 × 7-1/2J | ||
| Inset | 45 mm (1.77 in) | |||
| 20 inch | Tire | 255/45R20 101V | ||
| Road wheel | Size | 20 × 8J | ||
| Inset | 50 mm (1.97 in) | |||
| Spare | Tire Puncture repair kit | |||
Nissan Ariya (FE0) 2023-2025 Service & Repair Manual
