Nissan Ariya: Removal and Installation

• Windshield Glass
• Back Door Window Glass
• Front Door Glass
• Front Door Sealing Screen
• Front Door Lower Sash
• Front Door Glass Run Lower Sash
• Front Door Glass Run
• Front Door Regulator
• Rear Door Glass
• Rear Door Sealing Screen
• Rear Door Glass Run Lower Sash
• Rear Door Glass Run
• Rear Door Regulator

Windshield Glass

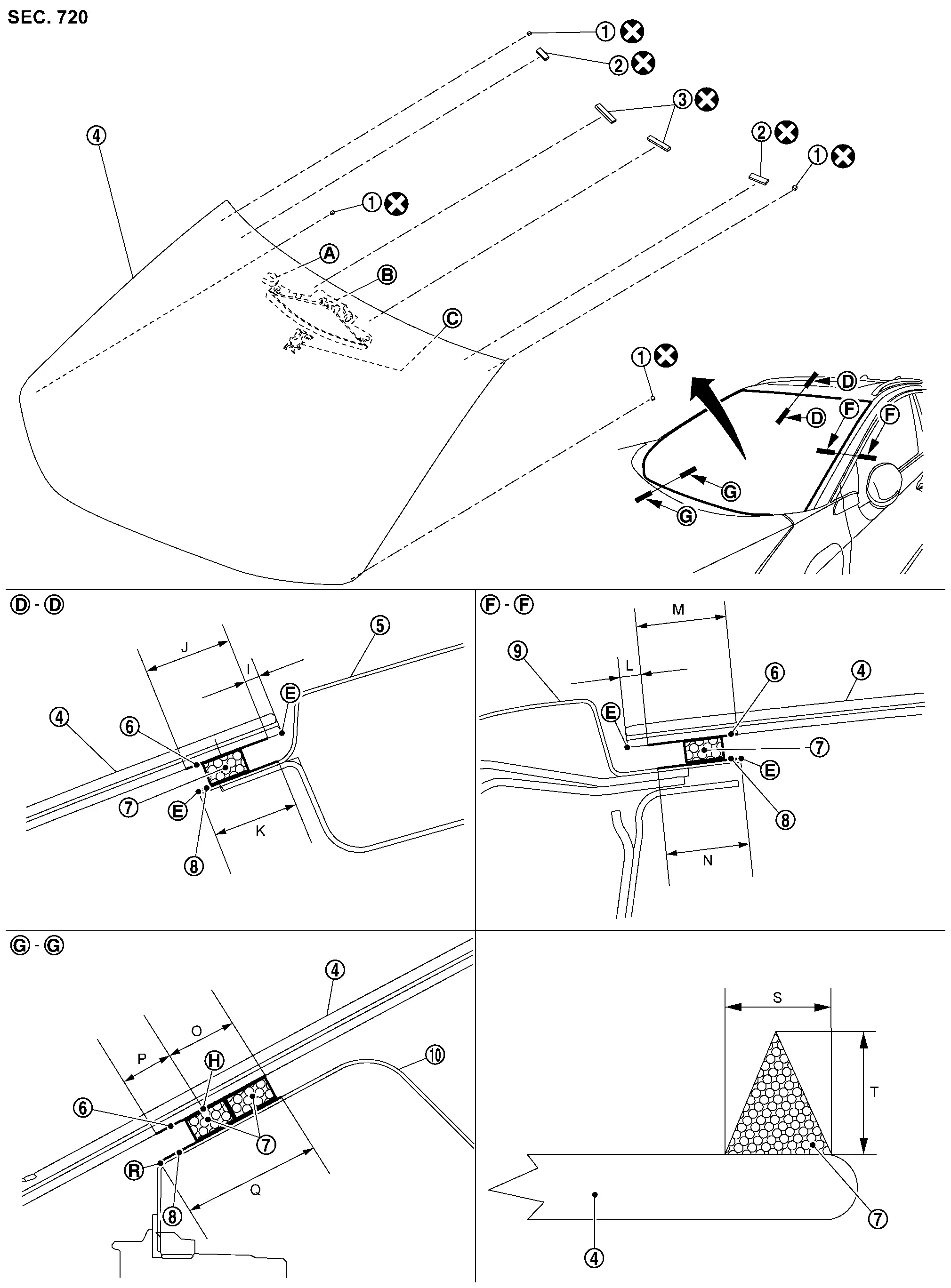

Exploded View

	Spacer A		Clip		Spacer B
	Windshield glass		Roof panel		Glass side primer
	Adhesive		Painted surface primer		Body side outer panel
	Dash upper panel
	: Humidity sensor bracket (if equipped)*2
	: Front camera unit and front camera unit cover bracket (if equipped)*2
	: Inside mirror base*
	: Edge
	: Adhesive matching mark
	: R end
	: Always replace after every disassembly.

Unit: mm (in)

Portion			Primer range	Adhesive range
				S	T
Windshield glass – Roof panel	–	I	3.0 (0.12)	8.0 (0.31) ± 1.0 (0.04)	14.0 (0.55) ± 1.0 (0.04)
		J	19.0 (0.75)
		K	15.4 (0.61)
Windshield glass – Body side outer panel	–	L	6.0 (0.24)
		M	19.0 (0.75)
		N	18.0 (0.71)
Windshield glass – Dash upper panel	–	O	9.5 (0.38)
		P	9.5 (0.38)
		Q	21.0 (0.83)

Removal & Installation

REMOVAL

Replacement Windshield Glass

CAUTION:

Never damage body panel.

Remove front pillar garnish. Refer to Removal & Installation.

Remove headlining assembly. Refer to Removal & Installation.

Remove inside mirror or intelligent rear view mirror. Refer to the following.

• Inside mirror : Removal & Installation.

• Intelligent rear view mirror : Removal & Installation

Remove front camera unit. (with front camera unit).

• Without ProaPILOT ASSIST : Removal and Installation

• With ProaPILOT ASSIST : Removal and Installation

Remove humidity sensor (with humidity sensor). Refer to Removal & Installation.

Remove cowl top cover. Refer to Removal & Installation.

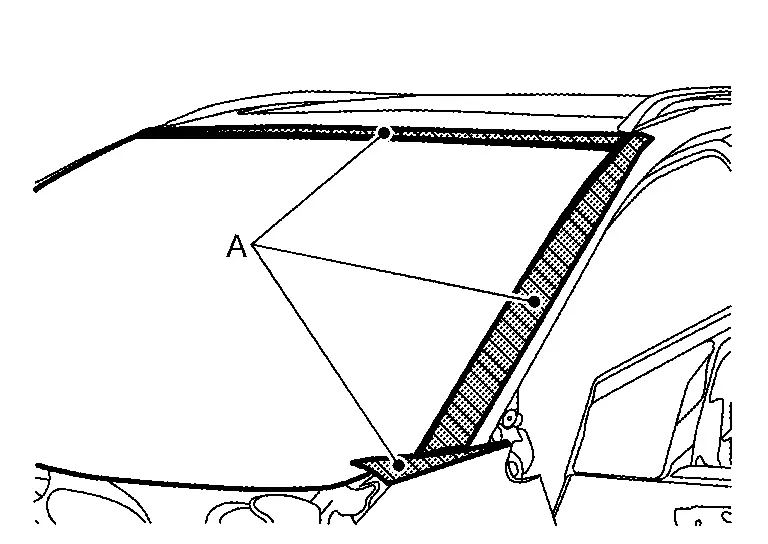

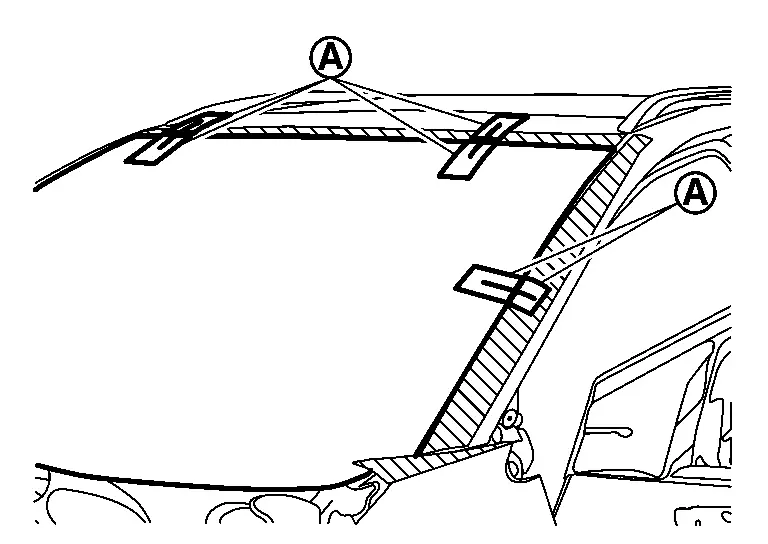

Apply protective tapes (A) on roof panel and body side outer panel around windshield glass to protect painted surface from damage.

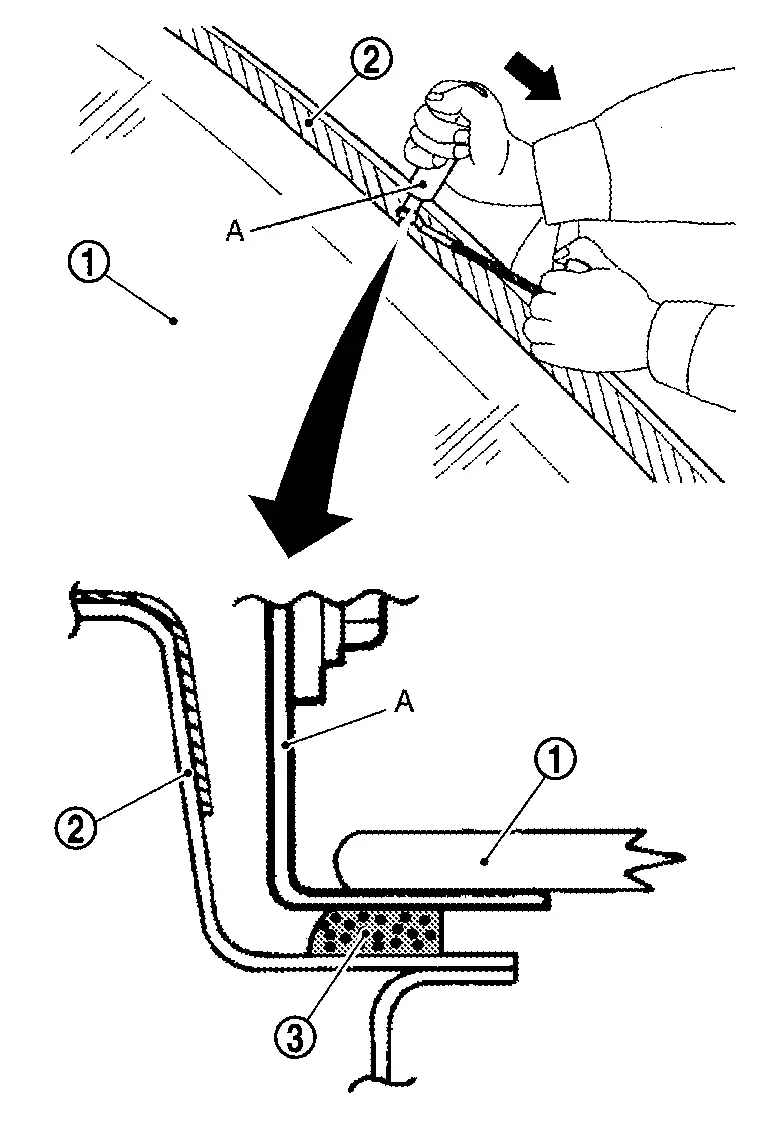

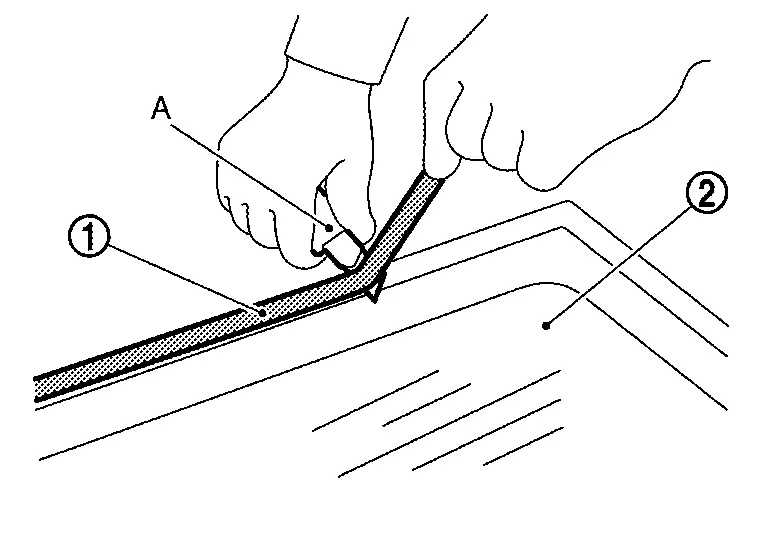

Insert a windshield cutter (A) between windshield glass and body panel . Cut the adhesive by pulling the windshield cutter, keeping the tip parallel to the edge of windshield glass.

CAUTION:

Use piano wire to cut sealant if its difficult to use windshield cutter.

Apply protective standish cover (A) on instrument panel to protect it from damage.

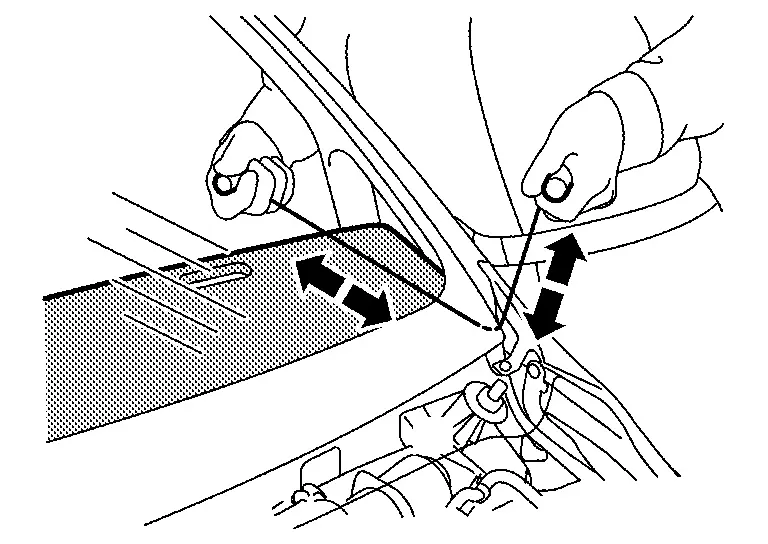

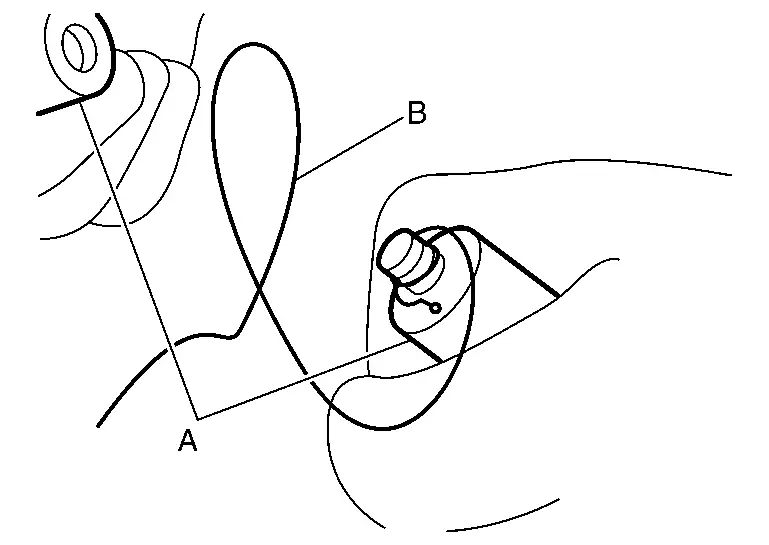

Cut the adhesive using a piano wire.Pass the piano wire (B) from passenger room to bonded area of glass using a wire pierce (A).

CAUTION:

• Never use plane surface of wire pierce tip vertically.

• Never press piano wire excessively against edge of glass.

• Never damage surrounding parts.

Tie both ends of the piano wire (B) to the wire grip (A), etc..

To cut adhesive by using piano wire alongside of windshield glass and body panel.

CAUTION:

• Never press piano wire excessively against edge of glass.

• To cut adhesive, 2 workers are required by all means.

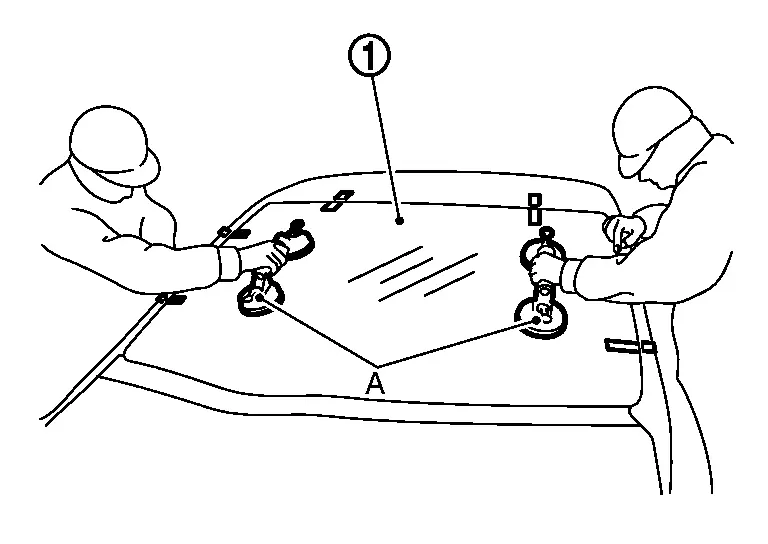

Use suction lifter (A) to remove windshield glass from the Nissan Ariya vehicle.

CAUTION:

Due to weight of windshield glass, 2 workers are required by all means.

Remove remained adhesive, spacer, and clips.

Reuse Windshield Glass

CAUTION:

• Never use a windshield cutter if the windshield glass is reused. (It may scratch the glass surface)

• Never damage windshield glass and body panel.

Remove front pillar garnish. Refer to Removal & Installation.

Remove headlining assembly. Refer to Removal & Installation.

Remove inside mirror or intelligent rear view mirror. Refer to the following.

• Inside mirror : Removal & Installation.

• Intelligent rear view mirror : Removal & Installation

Remove front camera unit. (with front camera unit).

• Without ProaPILOT ASSIST : Removal and Installation

• With ProaPILOT ASSIST : Removal and Installation

Remove humidity sensor (with humidity sensor). Refer to Removal & Installation.

Remove cowl top cover. Refer to Removal & Installation.

Apply protective tapes (A) on roof panel and body side outer panel around windshield glass to protect painted surface from damage.

Apply matching marks to windshield glass, roof panel and both side of body side outer panel.

CAUTION:

To prevent the gap when install windshield glass put on matching marks by all means.

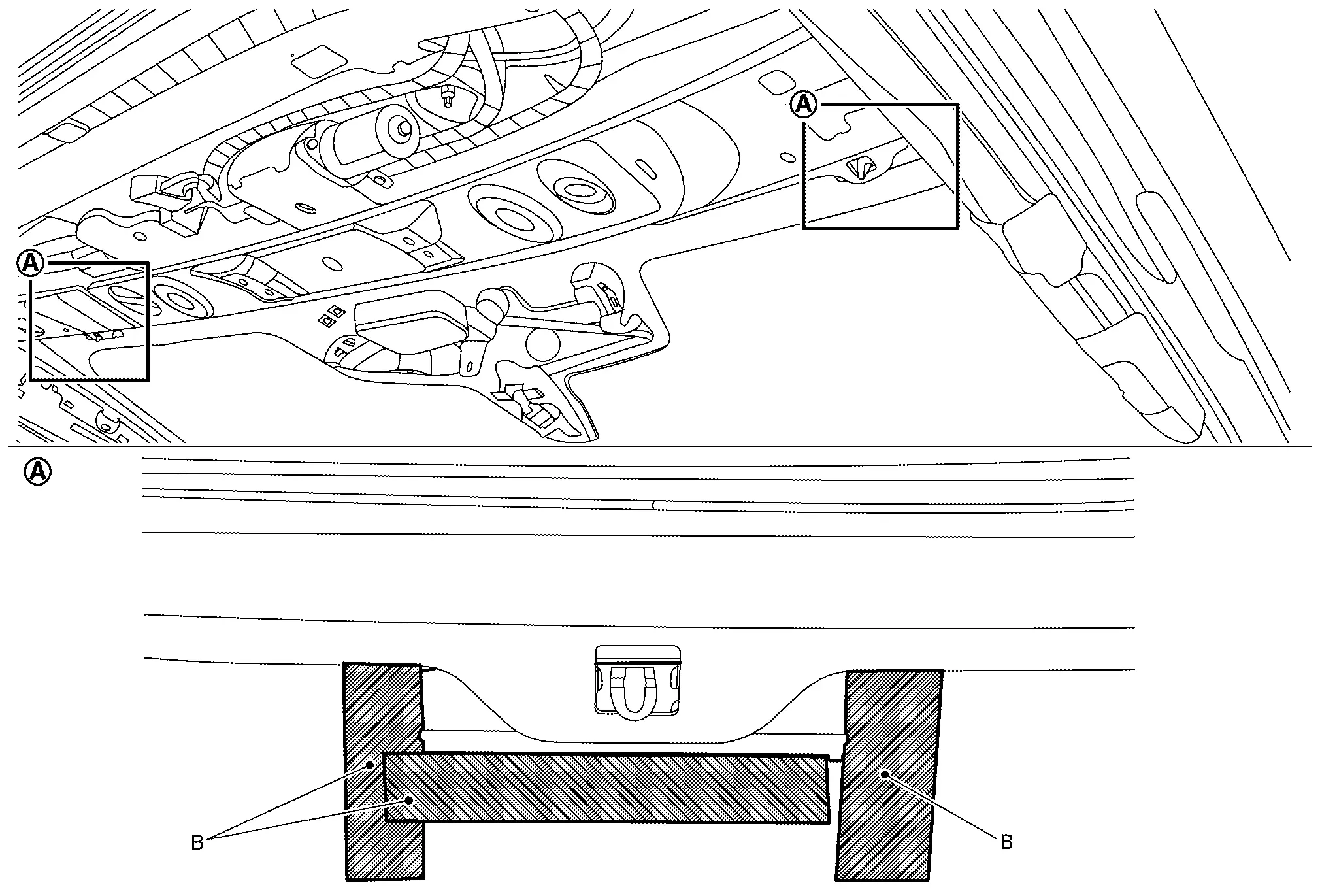

Record the clip install position.Paste the tape (B) as shown in figure for record clip install positions.

Record matching marks of the clip edge on tapes (B).

Apply protective standish cover (A) on instrument panel to protect it from damage.

Cut the adhesive using a piano wire.Pass the piano wire (B) from passenger room to bonded area of glass using a wire pierce (A).

CAUTION:

• Never use plane surface of wire pierce tip vertically.

• Never press piano wire excessively against edge of glass.

• Never damage surrounding parts.

Tie both ends of the piano wire (B) to the wire grip (A), etc..

To cut adhesive by using piano wire alongside of windshield glass and body panel.

CAUTION:

• Never press piano wire excessively against edge of glass.

• To cut adhesive, 2 workers are required by all means.

Use suction lifter to remove windshield glass from the Nissan Ariya vehicle.

CAUTION:

Due to weight of windshield glass, 2 workers are required by all means.

Remove remained adhesive, spacer, and clips.

INSTALLATION

CAUTION:

• Never damage windshield glass, each body panel, and surrounding parts etc.

• Never use windshield glass if it damaged.

• Apply touch-up paint that same as body-color if the painted surface be damaged.

• Wait the painted surface be dry if you painted touch-up paint, and then apply painted surface primer.

• Confirm the type of each primer because its has 2-types. (Never use for wrong side)

• Wipe the primer using degreasing agent etc. if you apply it onto not-adhesive part by mistake.

• Follow the instruction sheet of primer/adhesive when it drying.

Replacement Windshield Glass

Use a cutter knife or scraper, and leave the of adhesive and sealant on the body side approximately 2 mm (0.079 in) (A) to make adhesive and sealant surface smooth.

CAUTION:

• If the bonded area on the body is scratched, apply touch-up paint that same as body-color.

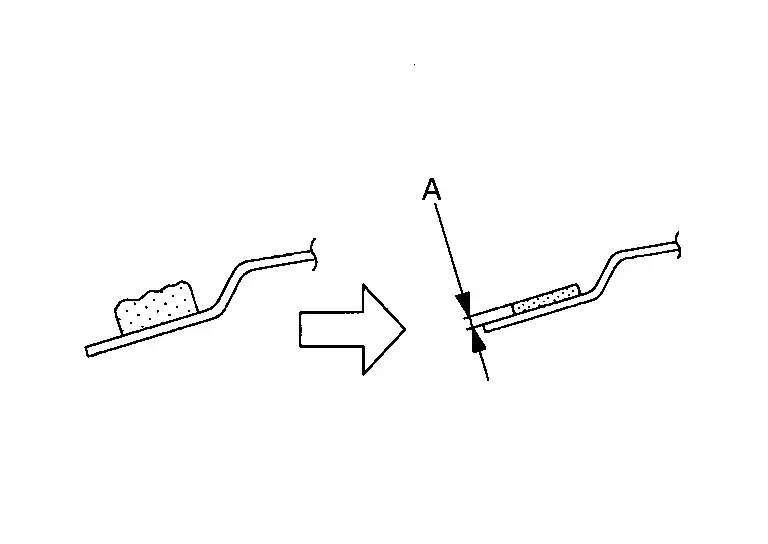

• Smooth out adhesive and sealant surface.

Apply protect tapes (A) to protect painted surface as shown in figure.

Place new windshield glass on the Nissan Ariya vehicle temporarily, put on matching marks on windshield glass, roof panel and both side of body side outer panel.

CAUTION:

To prevent the gap when install new windshield glass put on matching marks by all means.

Use suction lifter (A) to set windshield glass on glass stand (B).

Clean the bonded area on windshield glass and body panel side using a white gasoline or degreasing agent.

Apply glass primer along the entire circumference of windshield glass. The range of glass primer Refer to Exploded View.

Apply painted surface primer to the body side bonding surface. The range of painted surface primer Refer to Exploded View.

Apply adhesive to windshield glass by using a sealant gun. The volume of adhesive Refer to Exploded View.

CAUTION:

• Apply adhesive as shown in figure when you start to applying.



  	: Adhesive matching mark
  C	: 15.0 mm (0.59 in)

• Never make a gap when apply adhesive.

• Overlap and adhesion the adhesive as shown in figure when finish it to applying.



  	: Adhesive matching mark
  C	: 30.0 mm (1.18 in)

Use suction lifter (A) that is installed in advance, align the matching marks between the holder and roof panel hole and between the body panel and windshield glass to install them on the Nissan Ariya vehicle.

CAUTION:

Due to weight of windshield glass, 2 workers are required by all means.

Press entire surface of windshield glass lightly to fit it completely.

CAUTION:

• Correct any adhesive overflow or shortage using a spatula to make the surface smooth.

• Dry the adhesive according to the specification of adhesive kit.

• After installing windshield glass, keep the all door glass open until the adhesive is completely cured.

• Never drive the Nissan Ariya vehicle before the adhesive is completely cured.

Remove protective tapes and matching marks.

Install removed parts.

CAUTION:

• Perform additional service after removing front camera unit (with front camera unit). Refer to Work Procedure.

• Adjust the front wiper arms auto stop position. Refer to Adjustment.

• Check the matching with surrounding parts. Adjust if necessary.

• After installing, perform the inspection. Refer to Inspection.

Reuse Windshield Glass

Use a cutter knife or scraper, and leave the of adhesive and sealant on the body side approximately 2 mm (0.079 in) (A) to make adhesive and sealant surface smooth.

CAUTION:

• If the bonded area on the body is scratched, apply touch-up paint that same as body-color.

• Smooth out adhesive and sealant surface.

Remove remaining adhesive, spacers and clips from windshield glass surface by using cutter knife etc. (A).

CAUTION:

• Be careful to injured your hand by cutter knife etc.

• Smooth out surface of remained adhesive.

Clean the bonded area on windshield glass and body panel side using a white gasoline or degreasing agent.

Install clip.Apply glass primer on windshield glass of clip install position. Remove release liner of double sided tape for installing clip. Install clip on windshield glass according to matching marks of record tapes (B).

Remove record tapes.

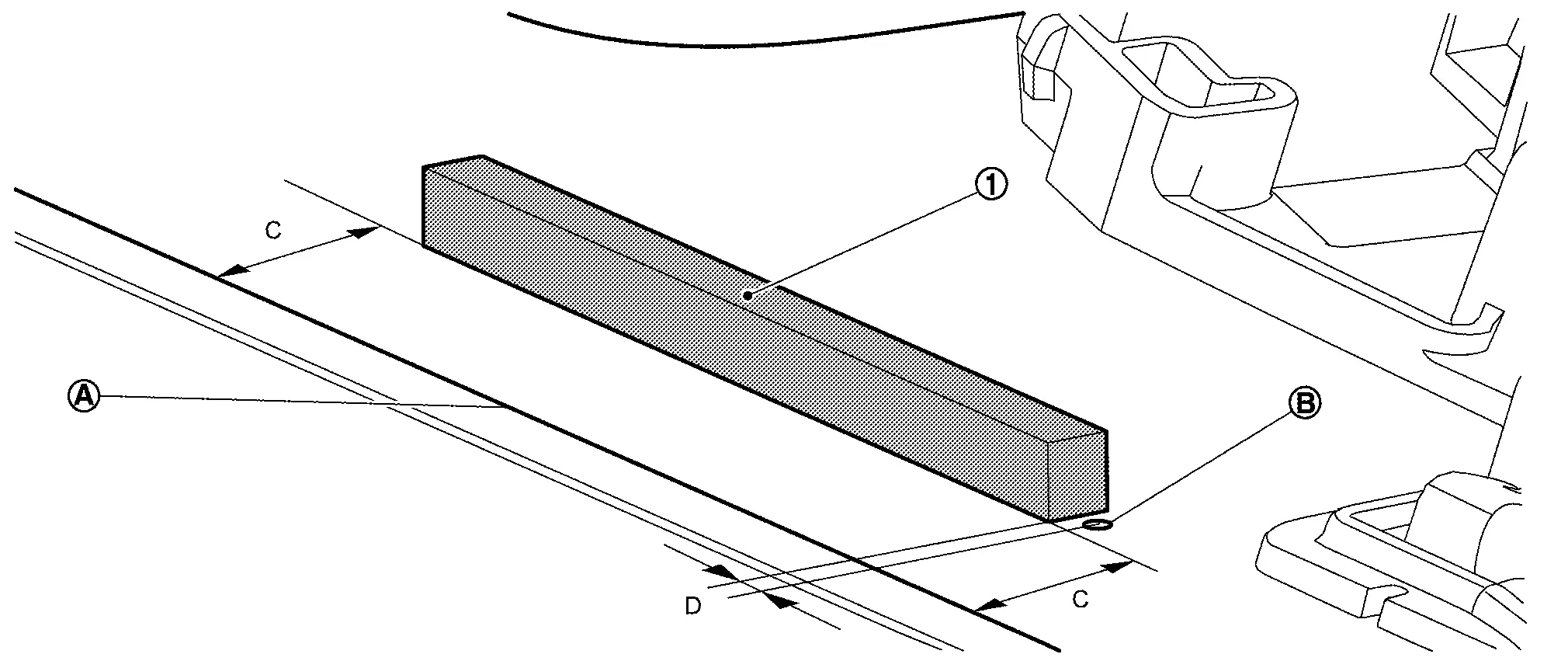

Install spacer A (upper).Apply glass primer on windshield glass of spacer A (upper) install position. Remove release liner of double sided tape for installing spacer A (upper). Install spacer A (upper) inside matching marks on windshield glass as shown in figure.

Install spacer B.Apply glass primer on windshield glass of spacer B install position. Remove release liner of double sided tape for installing spacer B. Install spacer B on windshield glass as shown in figure.

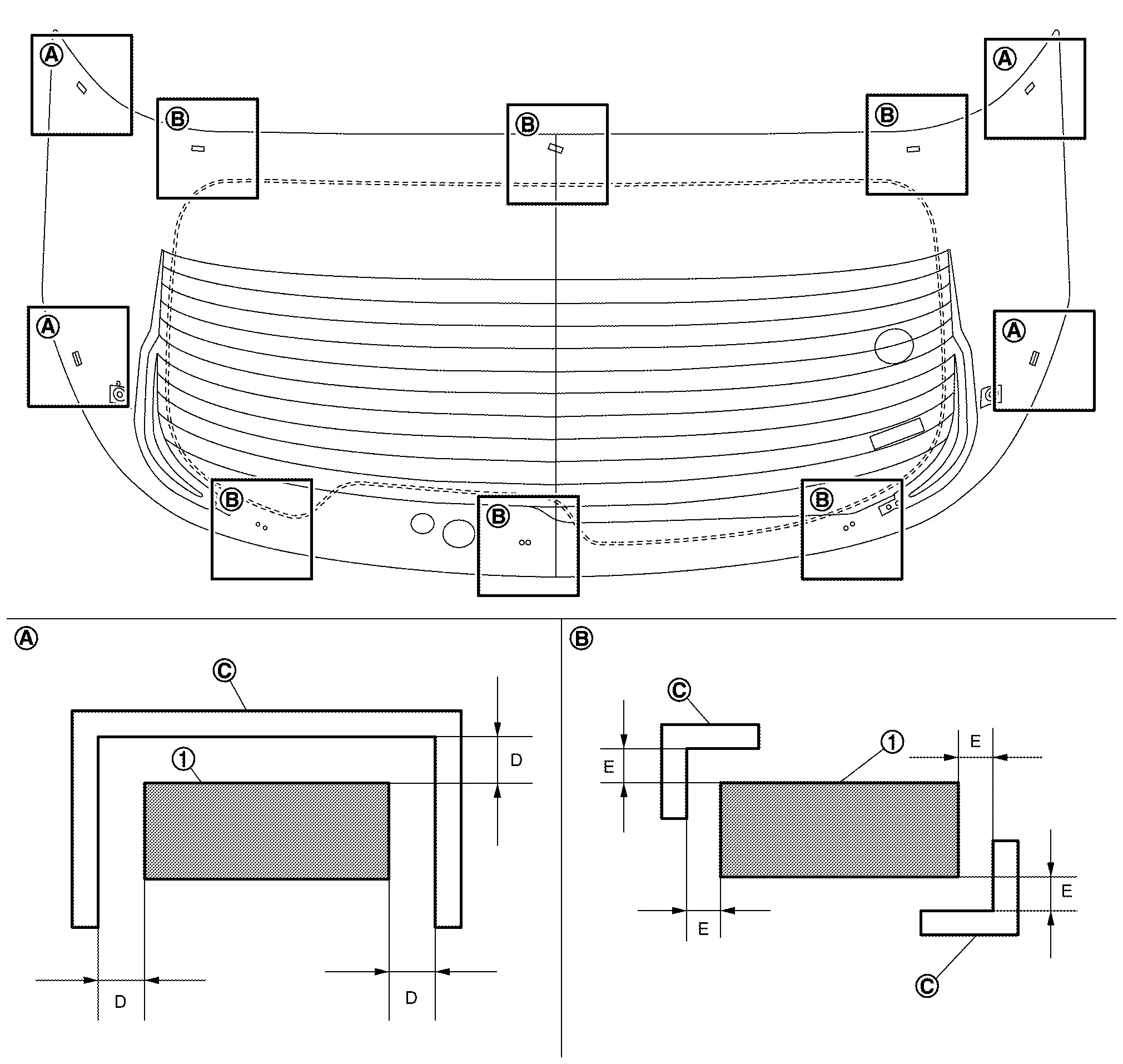

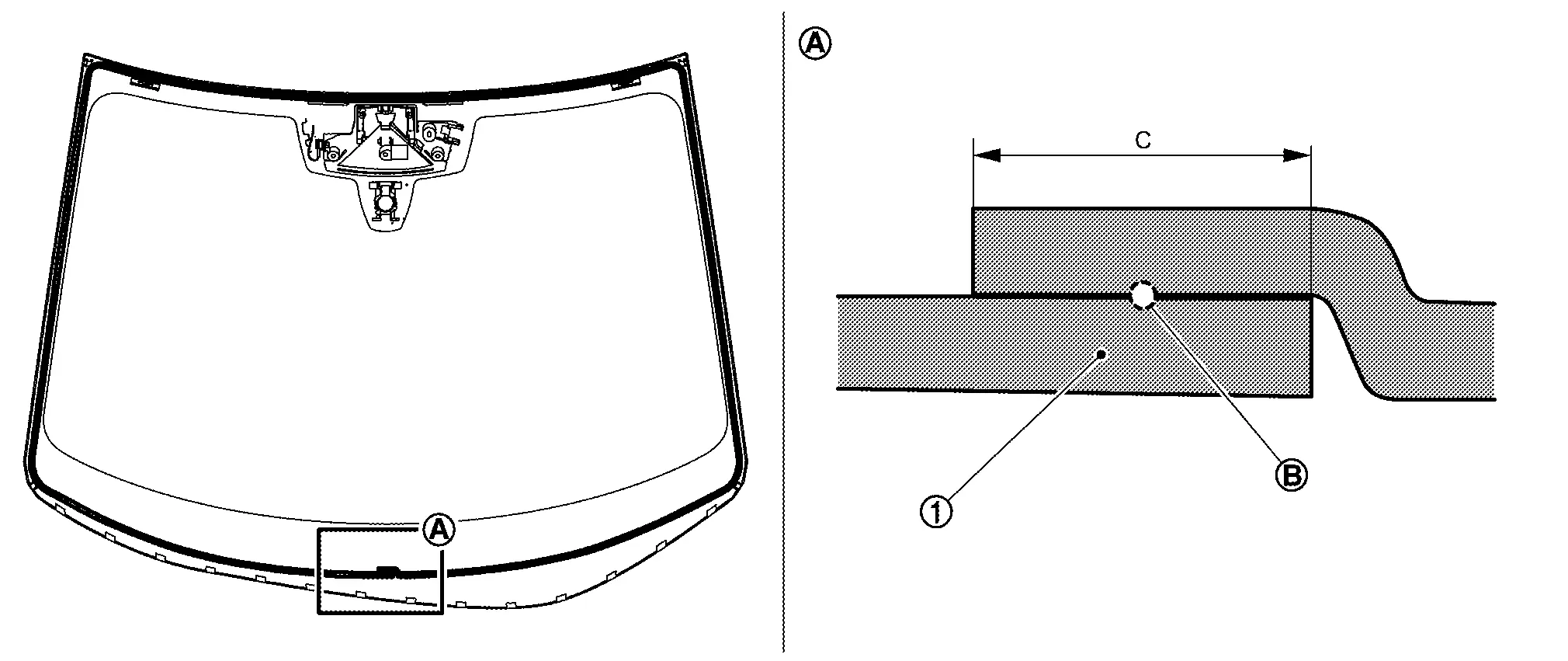

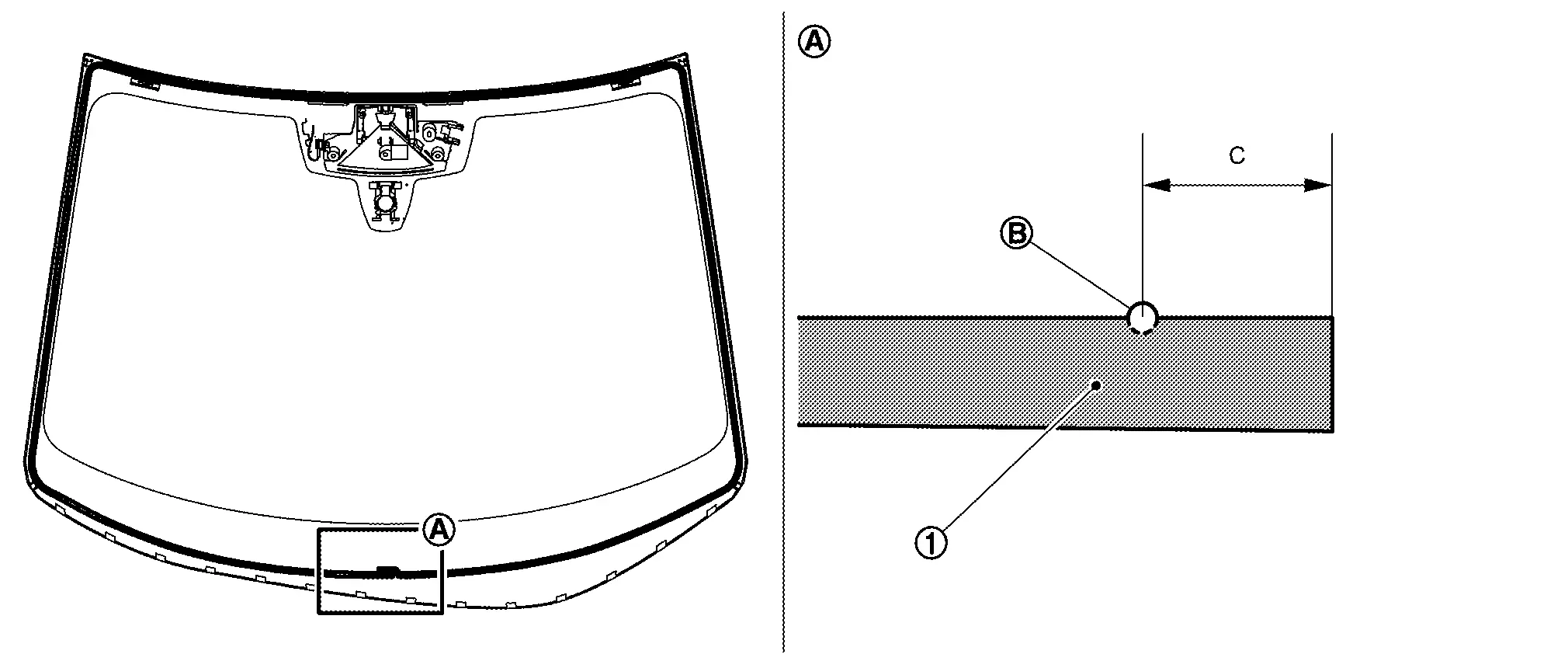

	: Black print edge		: Adhesive matching mark
C	: 19.7 mm ±　1.5 mm (0.78 in ± 0.06 in)	D	: 1.5 mm ±　1.5 mm (0.06 in ± 0.06 in)

Install spacer A (lower).Apply glass primer on windshield glass of spacer A (lower) install position. Remove release liner of double sided tape for installing spacer A (lower). Install spacer A (lower) as shown in figure.

	Windsheild glass
	: Matching mark		: Edge
	: Upper side of windsheild glass

Apply glass primer along the entire circumference of windshield glass. The range of glass primer Refer to Exploded View..

Apply painted surface primer to the body side bonding surface. The range of painted surface primer Refer to Exploded View..

Apply adhesive to windshield glass by using a sealant gun. The volume of adhesive Refer to Exploded View.

CAUTION:

• Apply adhesive as shown in figure when you start to applying.



  	: Adhesive matching mark
  C	: 15.0 mm (0.59 in)

• Never make a gap when apply adhesive.

• Overlap and adhesion the adhesive as shown in figure when finish it to applying.



  	: Adhesive matching mark
  C	: 30.0 mm (1.18 in)

Use suction lifter (A) that is installed in advance, align the matching marks between the holder and roof panel hole and between the body panel and windshield glass to install them on the Nissan Ariya vehicle.

CAUTION:

Due to weight of windshield glass, 2 workers are required by all means.

Press entire surface of windshield glass lightly to fit it completely.

CAUTION:

• Correct any adhesive overflow or shortage using a spatula to make the surface smooth.

• Dry the adhesive according to the specification of adhesive kit.

• After installing windshield glass, keep the all door glass open until the adhesive is completely cured.

• Never drive the Nissan Ariya vehicle before the adhesive is completely cured.

Remove protective tapes and matching marks.

Install removed parts.

CAUTION:

• Perform additional service after removing front camera unit (with front camera unit). Refer to Work Procedure.

• Adjust the front wiper arms auto stop position. Refer to Adjustment.

• Check the matching with surrounding parts. Adjust if necessary.

• After installing, perform the inspection. Refer to Inspection.

Inspection

WATER LEAKAGE INSPECTION

CAUTION:

• Dry adhesive according to the specification of adhesive kit, do the leaking check when adhesive is stiffen.

• If leakage was found, start over from the beginning as windshield glass removal, install and leaking check.

Back Door Window Glass

Exploded View

	Back door panel		Spacer		Back door window glass
	Clip		Glass primer		Adhesive
	Painted surface primer
	Back door outer panel upper
	Back door outer panel lower
	Intelligent room mirror camera bracket*
	Edge
	Adhesive matching mark
	: Always replace after every disassembly.

* : Never disassemble because it is assembly parts with back door window glass. When need replace it, replace back door window glass assembly.

Unit: mm (in)

Portion			Primer range	Adhesive range
				R	S
Back door window glass – Back door outer panel	–	H	5.7 (0.22)	8.0 (0.31)	12.0 (0.47)
		I	15.0 (0.59)
		J	15.0 (0.59)
	–	K	15.8 (0.62)
		L	15.0 (0.59)
		N	15.0 (0.59)
	–	O	6.2 (0.24)
		P	15.0 (0.59)
		Q	15.0 (0.59)

Removal & Installation

REMOVAL

Replacement Back Door Window Glass

CAUTION:

Never reuse back door panel assembly that is removed back door window glass. If back door window glass replace a new one, replace new back door panel assembly as a set.

Reuse Back Door Window Glass

CAUTION:

• Never reuse back door panel after removed back door window glass. Replace to new back door panel.

• Never use a windshield cutter if the back door window glass is reused. (It may scratch the glass surface).

Remove back door inner finisher. Refer to Removal & Installation.

Remove rear wiper motor. Refer to Removal & Installation.

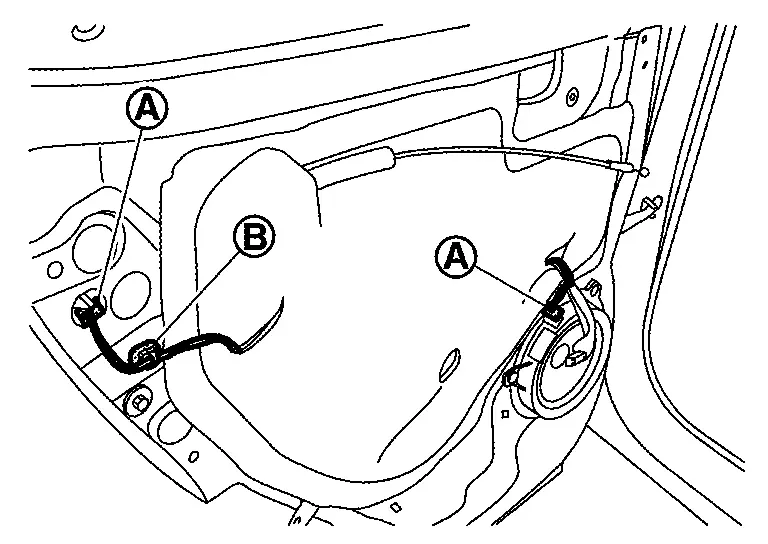

Disconnect window defogger connectors LH side and RH side.

Remove intelligent rear view mirror camera (with intelligent rear view mirror camera). Refer to Removal & Installation.

Remove rear spoiler. Refer to Removal & Installation.

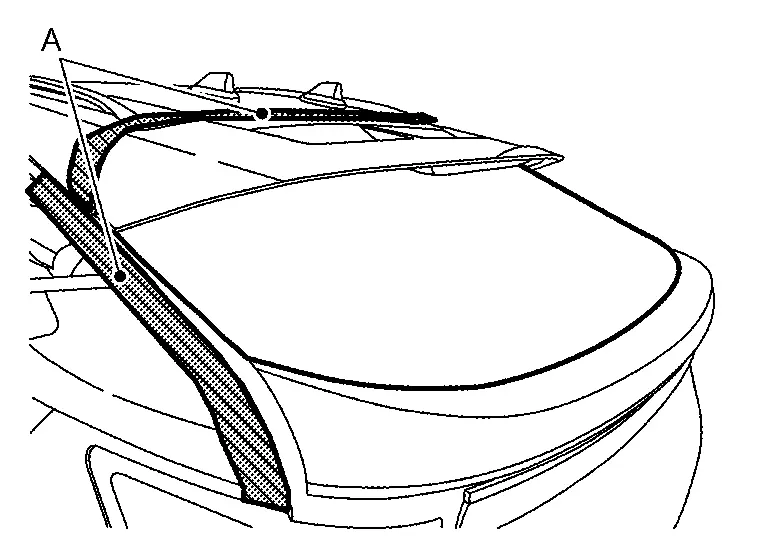

Apply protective tapes (A) on back door outer panel around back door window glass to protect painted surface from damage.

Cut the adhesive using a piano wire.Pass the piano wire passenger room to bonded area of back door window glass using a wire pierce.

CAUTION:

• Never use plane surface of wire pierce tip vertically.

• Never damage surrounding parts.

Tie both ends of the piano wire (B) to wire grip (A), etc..

To cut adhesive, back door window glass clips and spacers by using piano wire alongside of back door window glass.

CAUTION:

To cut adhesive, 2 workers are required by all means.

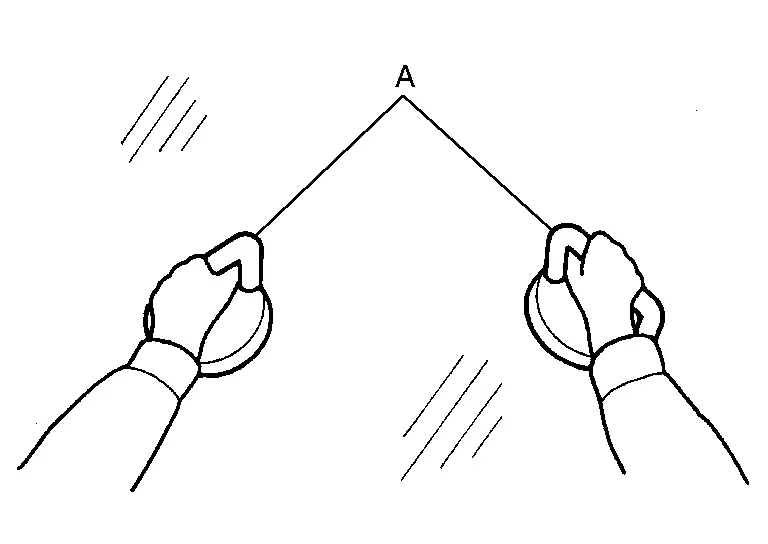

Use suction lifter (A) to remove back door window glass from the Nissan Ariya vehicle.

CAUTION:

Due to weight of back door window glass, 2 workers are required by all means.

Remove back door window glass clips and spacers from back door outer panel.

Remove all parts in back door panel.

INSTALLATION

Replacement Back Door Window Glass

CAUTION:

• Replace a new back door panel when replace new back door window glass. (never reuse back door panel after removed back door window glass)

• Never damage back door window glass, resinous back door outer panel, and surround parts.

• Apply touch-up paint that same as body-color if the painted surface be damaged.

• Wait the painted surface be dry if you painted touch-up paint, and then apply painted surface primer.

• Confirm the type of each primer because its has 2-types. (Never use for wrong side)

• Wipe the primer using degreasing agent etc. if you apply it onto not-adhesive part by mistake.

• Follow the instruction sheet of primer/adhesive when it drying.

Clean the bonded area on back door window glass and back door outer panel using a degreasing agent.

Apply glass primer along the entire circumference of back door window glass. The range of glass primer, Refer to Exploded View.

Apply painted surface primer to the back door outer panel bonding surface. The range of painted surface primer, Refer to Exploded View.

CAUTION:

Follow the bellows steps when to applying primer on back door panel part where is the adhesive had been applied.

Remove protect films of adhesive (that had been applied).

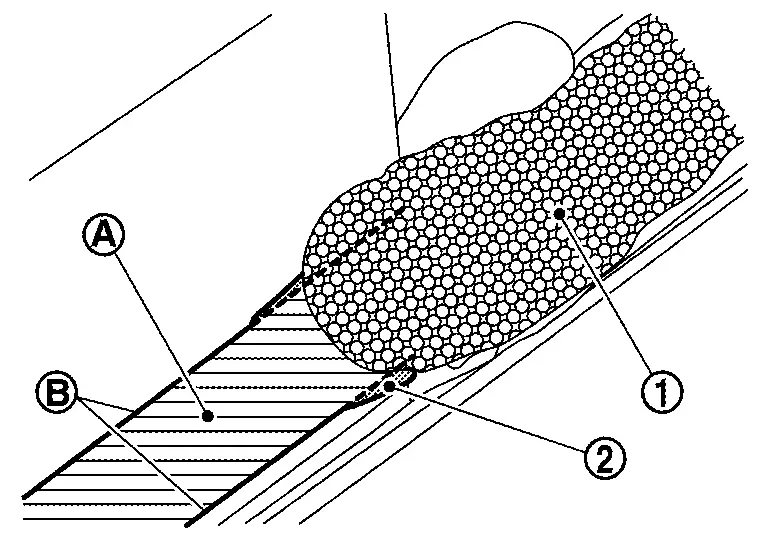

Apply painted surface primer onto back door panel as shown in figure.

CAUTION:

Never apply painted surface primer onto adhesive that had been applied.

	Adhesive (applied)		Panted surface primer (applied)
	The range of painted surface primer		Primer matching marks

Apply adhesive to back door window glass. The range and volume of adhesive, Refer to Exploded View.

CAUTION:

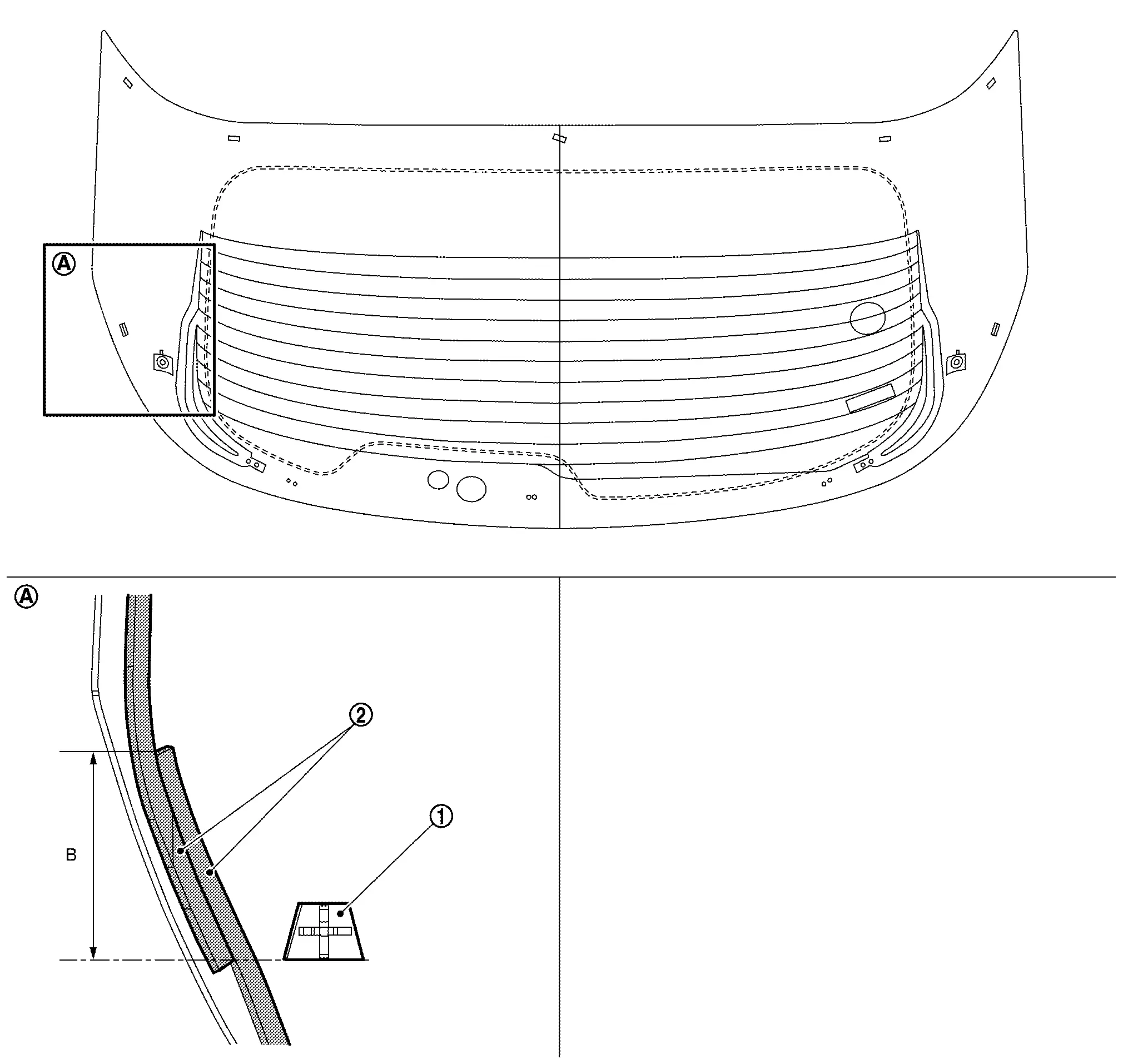

Follow the to applying adhesive of stop / start position are as shown in figure.

	Clip		Adhesive

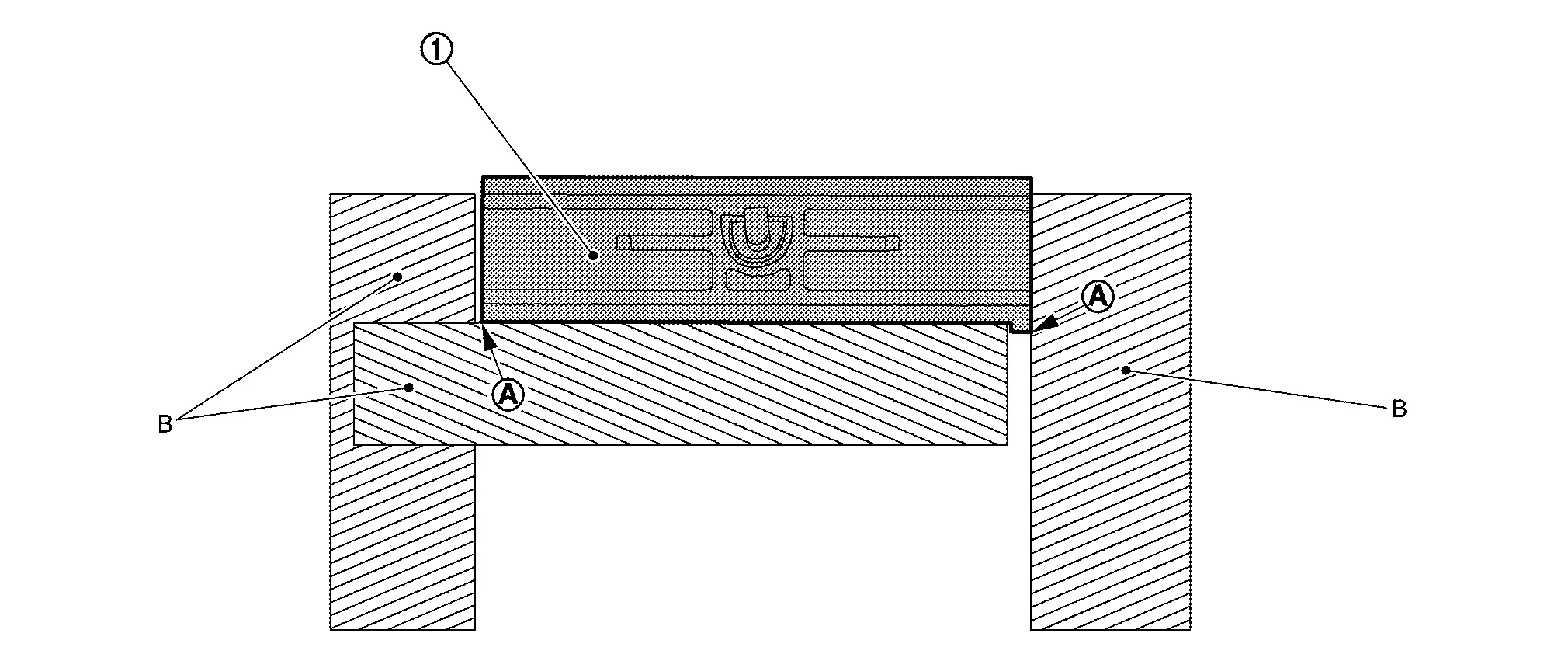

B	: 100 mm (3.94 in)

Install back door window glass to new back door panel.

CAUTION:

Due to weight of back door window glass, 2 workers are required by all means.

Press entire surface of back door window glass lightly to fit it completely.

CAUTION:

• Correct any adhesive overflow or shortage using a spatula to make the surface smooth.

• Dry the adhesive according to the specification of adhesive kit.

• After installing back door window glass, keep the all door glass open until the adhesive is completely cured.

• Never drive the Nissan Ariya vehicle before the adhesive is completely cured.

Remove protective tape.

Install the removed parts.

CAUTION:

• Adjust the rear wiper arm stop position. Refer to Adjustment.

• Check the matching with surrounding parts. Adjust if necessary.

Reuse Back Door Window Glass

CAUTION:

• Replace a new back door panel after removed back door window glass. (Never reuse back door panel)

• Never reuse back door window glass if it has damaged, scratched etc..

• Confirm back door window glass has not damaged.

• Never damage to back door window glass and surrounded part.

• Apply touch-up paint that same as body-color if the painted surface be damaged.

• Wait the painted surface be dry if you painted touch-up paint, and then apply painted surface primer.

• Confirm the type of each primer because its has 2-types. (Never use for wrong side)

• Wipe the primer using degreasing agent etc. if you apply it onto not-adhesive part by mistake.

• Follow the instruction sheet of primer/adhesive when it drying.

Remove remaining adhesive using a cutter knife or scraper smooth out back door window glass surface.

CAUTION:

Smooth out adhesive surface.

Clean the bonded area on back door window glass and back door outer panel using a white gasoline or degreasing agent.

Install spacer.Clean back door window glass to install position of spacer by using white gasoline or degreasing agent. Remove release liner of double sided tape for installing spacer. Install spacer on back door window glass.

CAUTION:

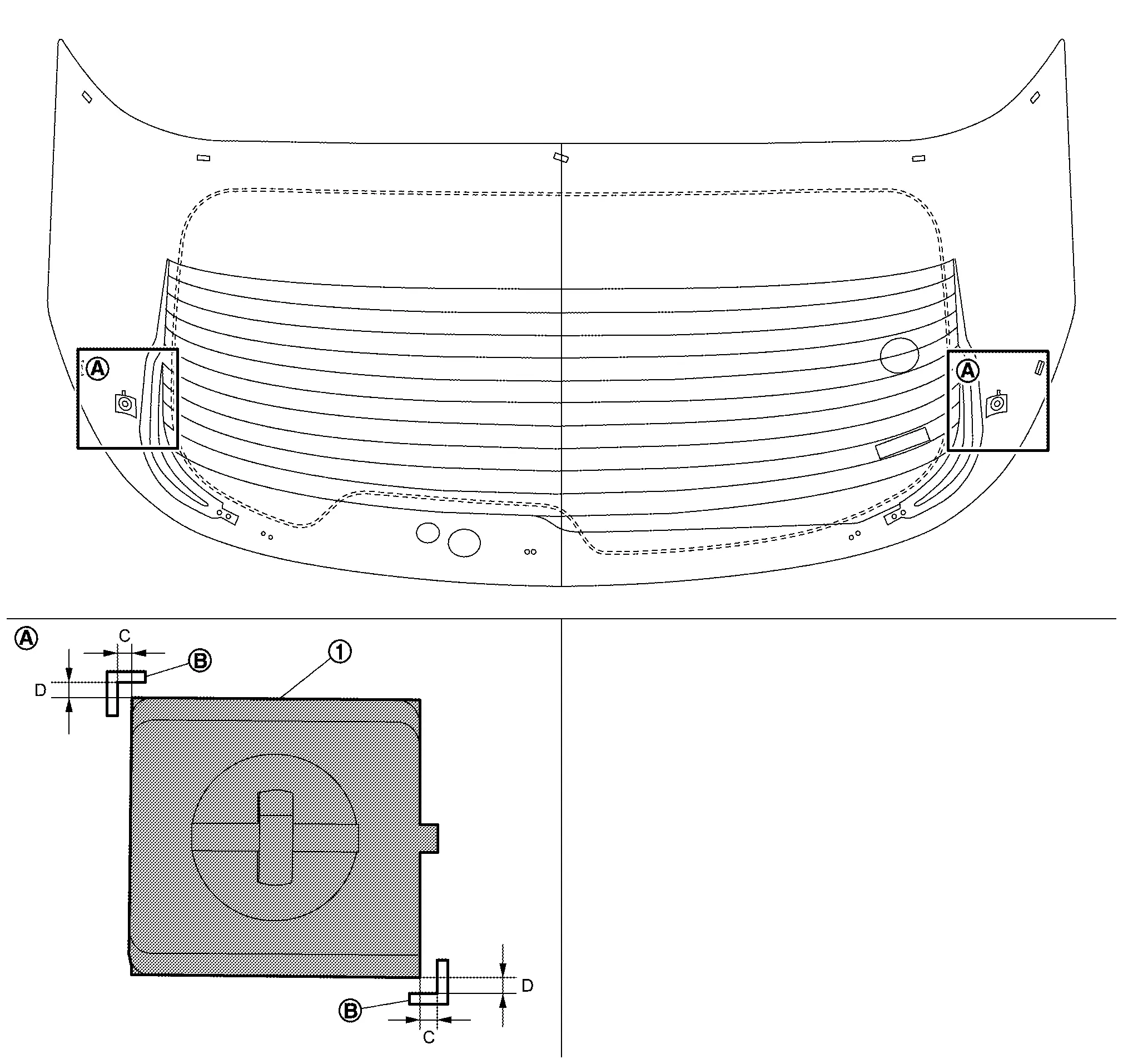

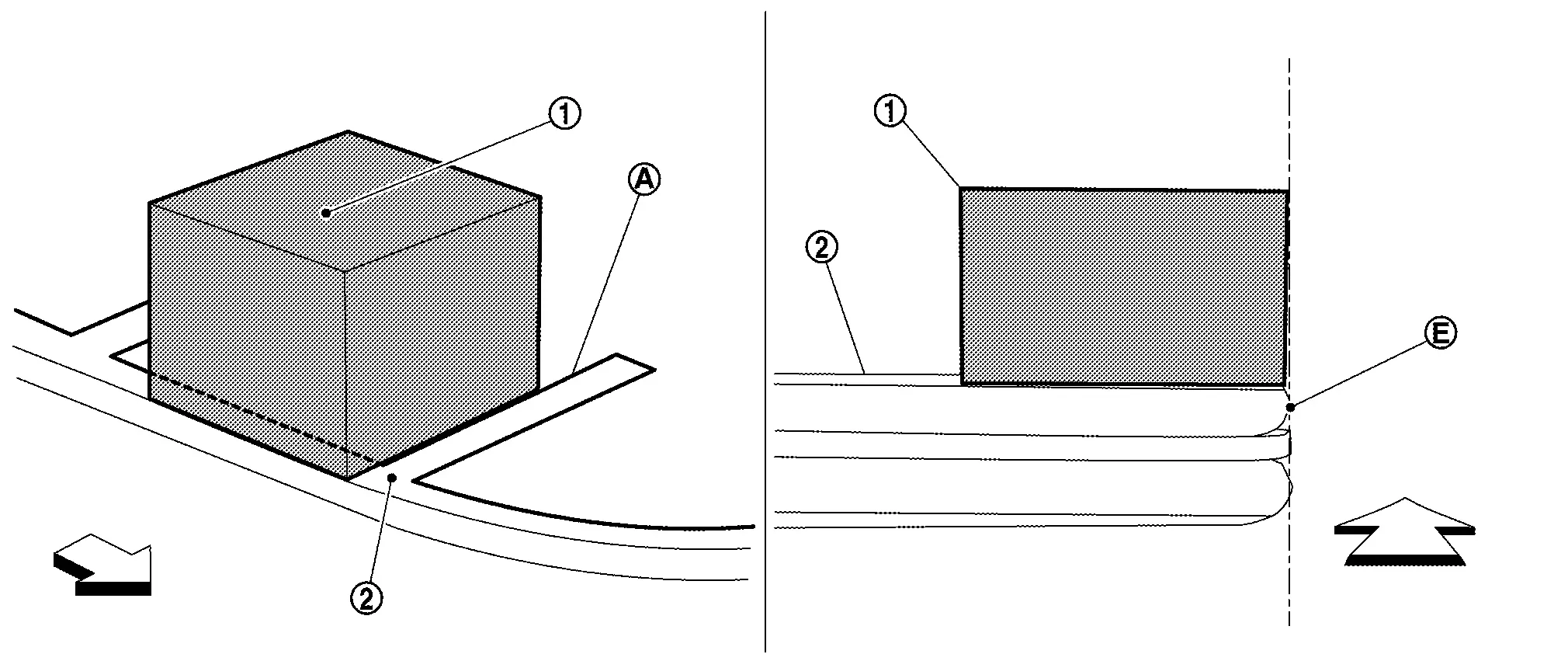

Install spacer as shown in figure.

	: Matching mark
D	: 2.0 ± 2.0 mm (0.08 ± 0.08 in)
E	: 1.5 ± 1.5 mm (0.06 ± 0.06 in)

Install clip.Clean back door window glass to install position of clip by using white gasoline or degreasing agent. Remove release liner of double sided tape for installing clip. Install clip on back door window glass.

CAUTION:

• Install clip as shown in figure.



  	: Matching mark
  C	: 1.3 ± 0.7 mm (0.05 ± 0.03 in)
  D	: 1.5 ± 0.7 mm (0.06 ± 0.03 in)

Apply glass primer along the entire circumference of back door window glass. The range of glass primer, Refer to Exploded View.

Apply painted surface primer to the back door outer panel bonding surface. The range of painted surface primer, Refer to Exploded View.

CAUTION:

Follow the bellows steps when to applying primer on back door panel part where is the adhesive had been applied.

Remove protect films of adhesive (that had been applied).

Apply painted surface primer onto back door panel as shown in figure.

CAUTION:

Never apply painted surface primer onto adhesive that had been applied.

	Adhesive (had been applied)		Panted surface primer (had been applied)
	The range of painted surface primer		Primer matching marks

Apply adhesive to back door window glass. The range of adhesive, Refer to Exploded View.

CAUTION:

Follow the to applying adhesive of stop / start position are as shown in figure.

	Clip		Adhesive
B	: 100 mm (3.94 in)

Install back door window glass to new back door panel.

CAUTION:

Due to weight of back door window glass, 2 workers are required by all means.

Press entire surface of back door window glass lightly to fit it completely.

CAUTION:

• Correct any adhesive overflow or shortage using a spatula to make the surface smooth.

• Dry the adhesive according to the specification of adhesive kit.

• After installing back door window glass, keep the all door glass open until the adhesive is completely cured.

• Never drive the Nissan Ariya vehicle before the adhesive is completely cured.

Remove protective tape.

Install the removed parts.

CAUTION:

• Adjust the rear wiper arm stop position. Refer to Adjustment.

• Check the matching with surrounding parts. Adjust if necessary.

Inspection

WATER LEAKAGE INSPECTION

CAUTION:

• Dry adhesive according to the specification of adhesive kit, do the leaking check when adhesive is stiffen.

• If leakage was found, start over from the beginning as back door window glass removal, install and leaking check.

Front Door Glass

Exploded View

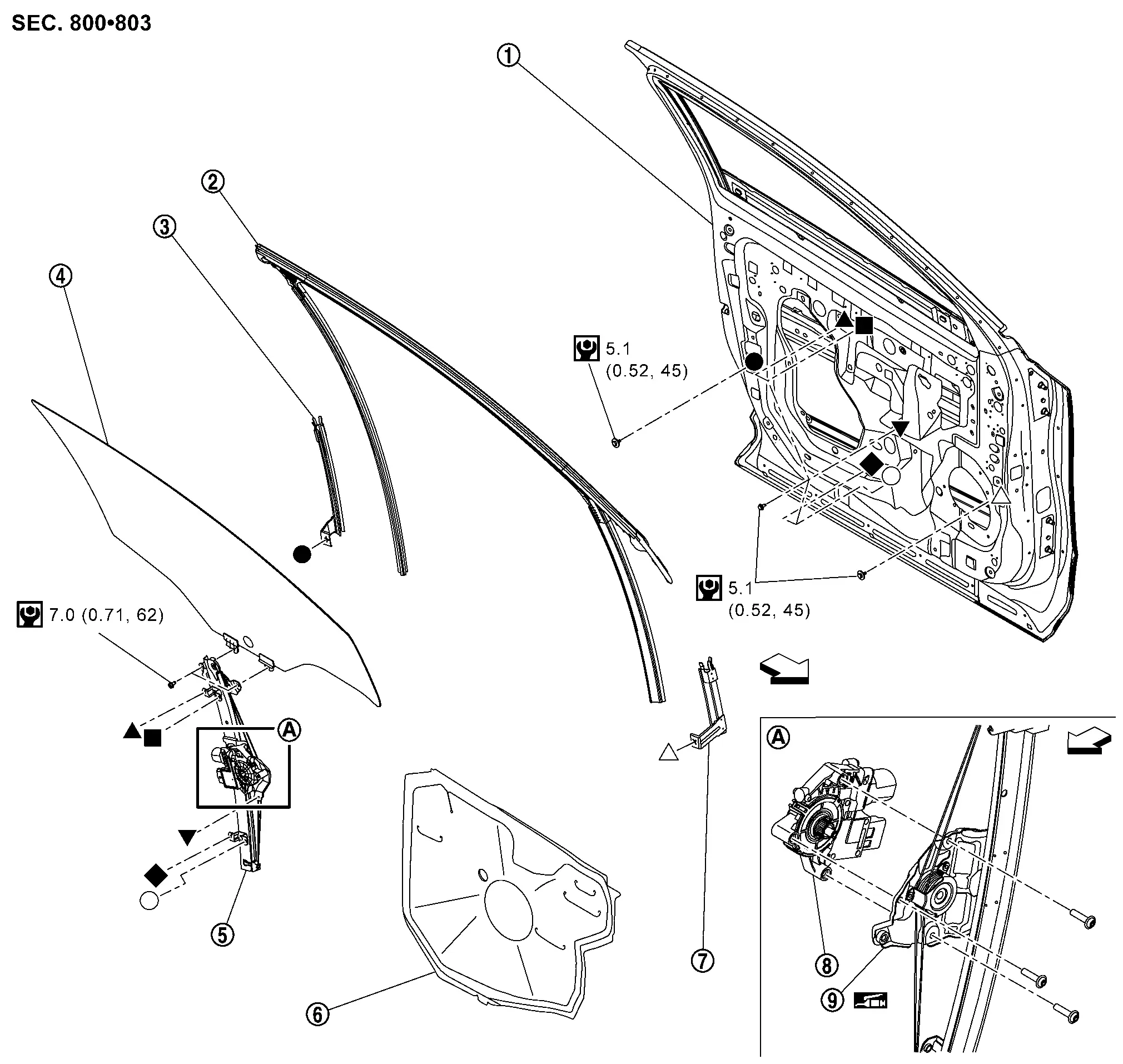

	Front door panel		Front door glass run		Front door glass run lower sash
	Front door glass		Front door regulator assembly		Front door sealing screen
	Front door lower sash		Front door power window motor		Front door regulator
	: Nissan Ariya Vehicle front
	: N·m (kg-m, in-lb)

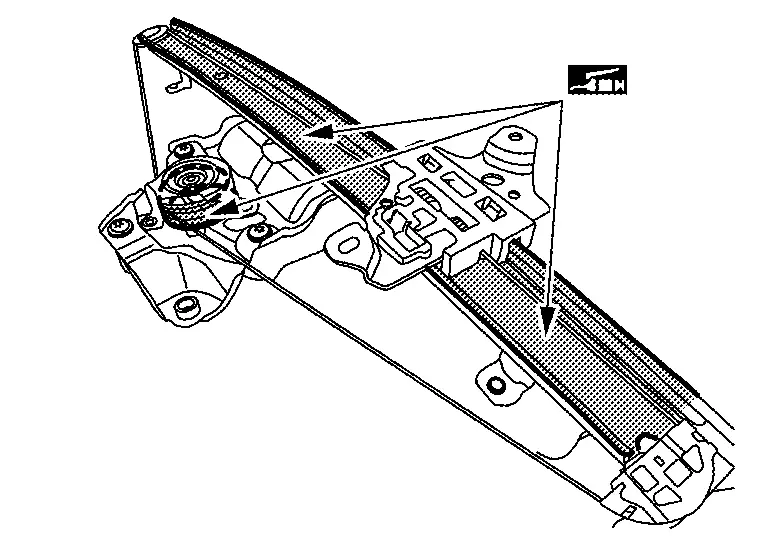

	: Body grease
, , , , , , ,: Indicates that the part is connected at points with same symbol in actual Nissan Ariya vehicle.

Removal & Installation

ADDITIONAL SERVICE

Perform the additional service referencing with the below table for system work normally.

○: Applicable

Parts	Work type		Additional servicve	Reference
	Replacement	Removal
Front door glass	○	○	System initialization	Work Procedure

REMOVAL

CAUTION:

Never damage front door glass and front door panel.

Remove front door finisher. Refer to Removal & Installation.

Remove front door sash inner cover and front door inside seal. Refer to Removal & Installation.

Cut butyl-tape part of to make a work space. Cut the butyl-tape, Refer to Removal & Installation.

Reconnect power window main switch connector.

Operate power window main switch to raise or lower front door glass until front door glass mounting bolts can bee seen, and then remove front door glass mounting bolts.

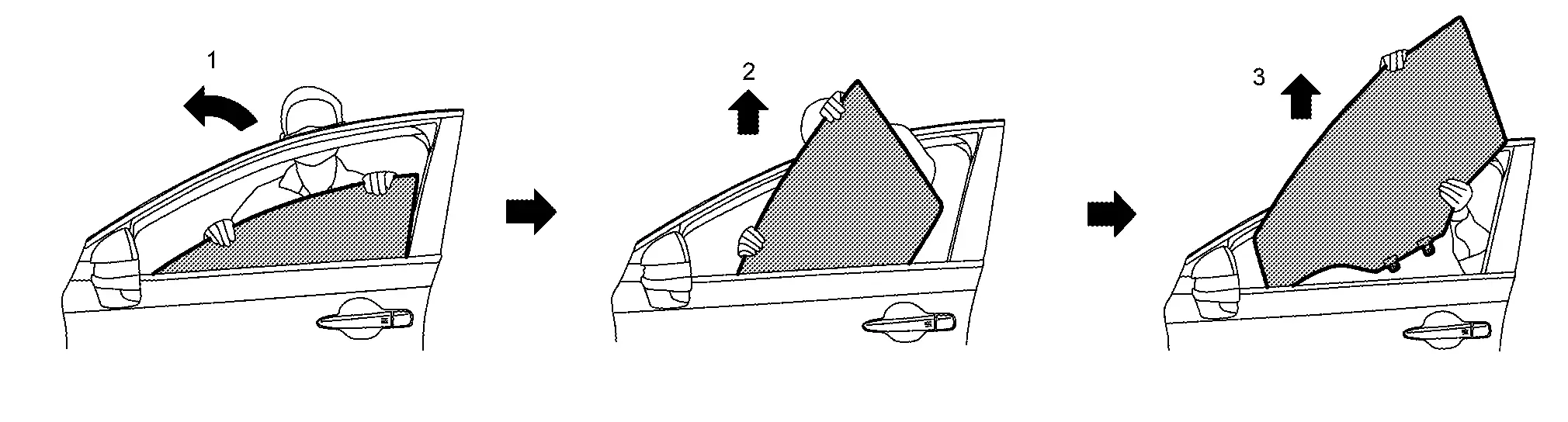

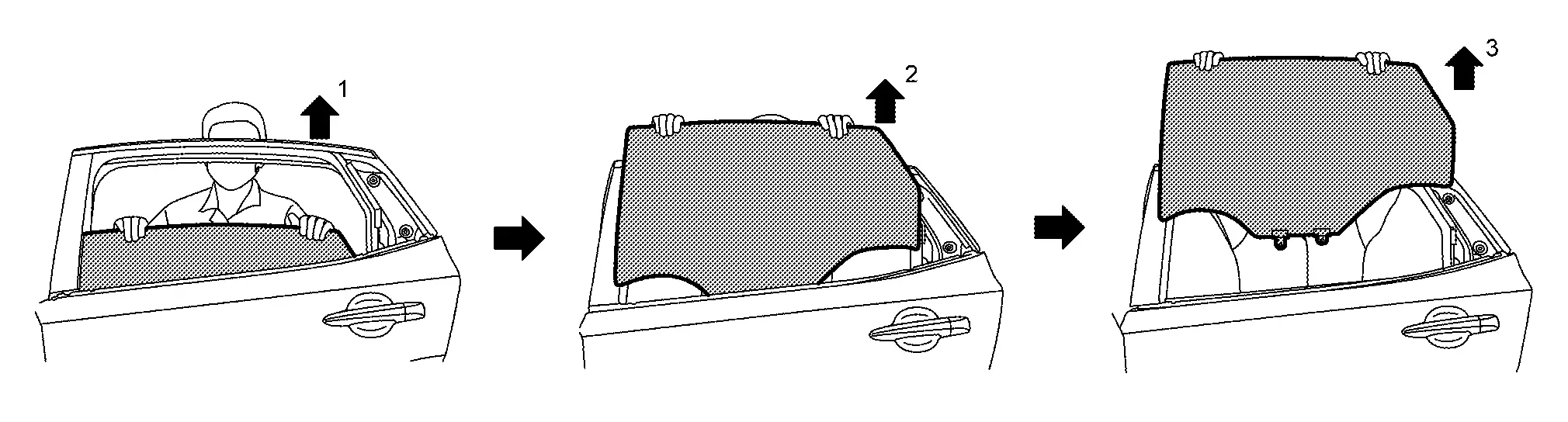

Hold securely front door glass, and then remove it according to numerical order 1→3 indicated by arrows as shown in figure.

CAUTION:

Never damage front door glass, front door glass run and front door panel.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Tighten front door glass mounting bolts to the specified torque. Refer to Exploded View.

• After installing front door glass, perform the inspection and adjustment. Refer to Inspection.

Inspection

SYSTEM INITIALIZATION

Work procedure. Refer to Work Procedure.

FITTING INSPECTION

• Check that front door glass is fit securely into the sash groove.

• Lower front door glass slightly [approximately 10 to 20 mm (0.394 to 0.787 in)], and check that the clearance to the sash is parallel. Loosen the regulator mounting bolts, guide rail mounting bolts, and glass and guide rail mounting bolts to correct the glass position if the clearance between the glass and sash is not parallel.

Front Door Sealing Screen

Removal & Installation

REMOVAL

CAUTION:

• Take the short memo etc. for record how to installed door harness and cable before removing sealing screen.

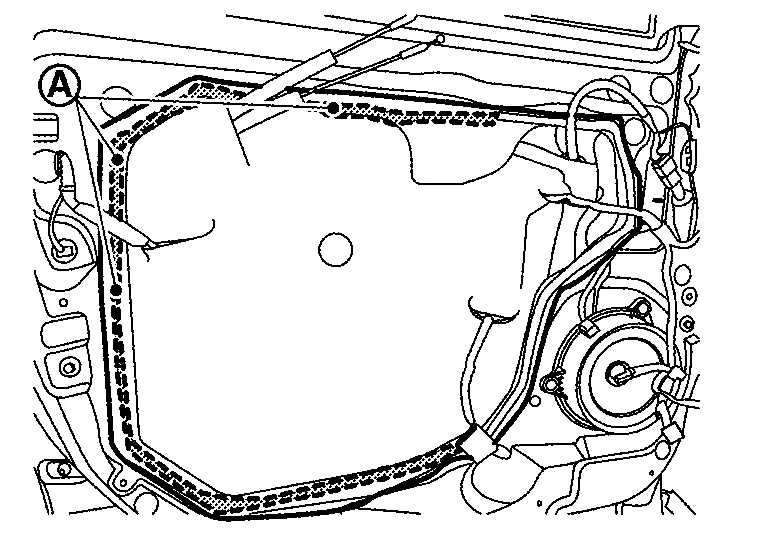

• Take the short memo etc. for record how to installed butyl-tape of sealing screen.

Remove front door finisher. Refer to Removal & Installation.

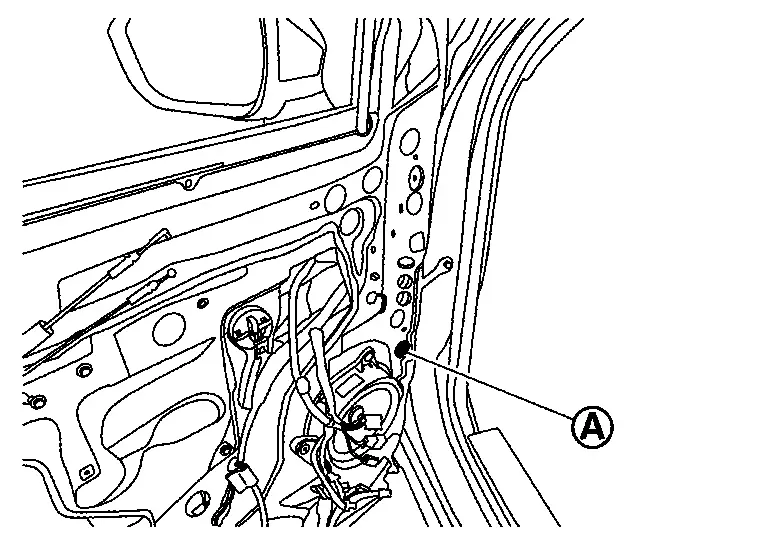

Disconnect front door lock assembly harness connector , and remove harness fixing clip .

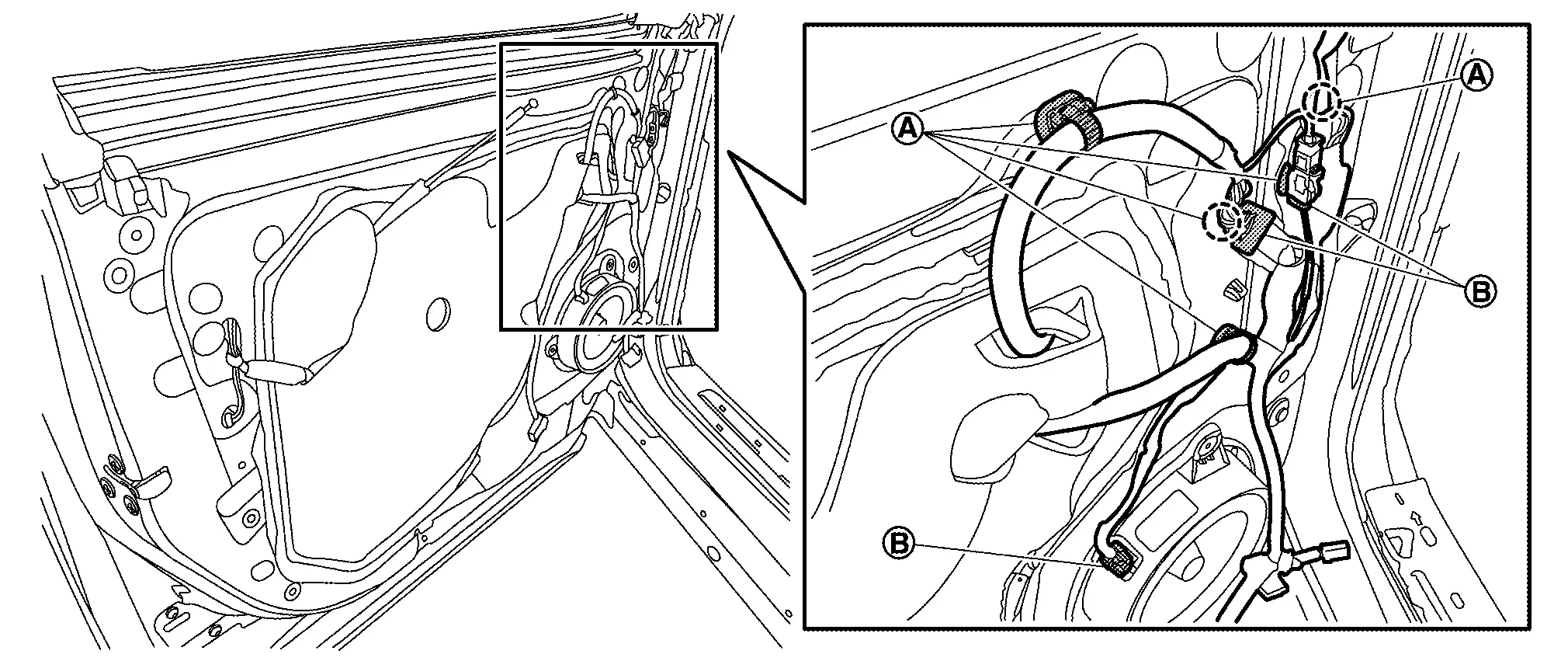

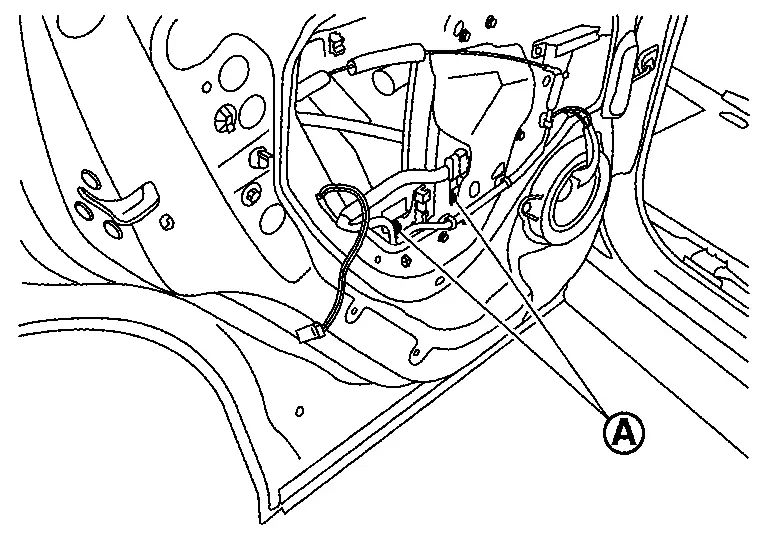

Disconnect door harness connectors , and remove fixing clips .

: Clip

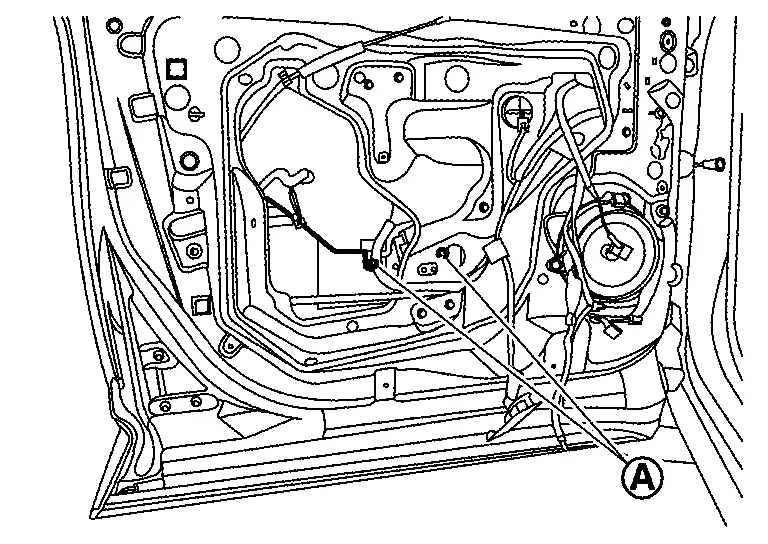

Disconnect door mirror harness connector. Refer to Removal & Installation.

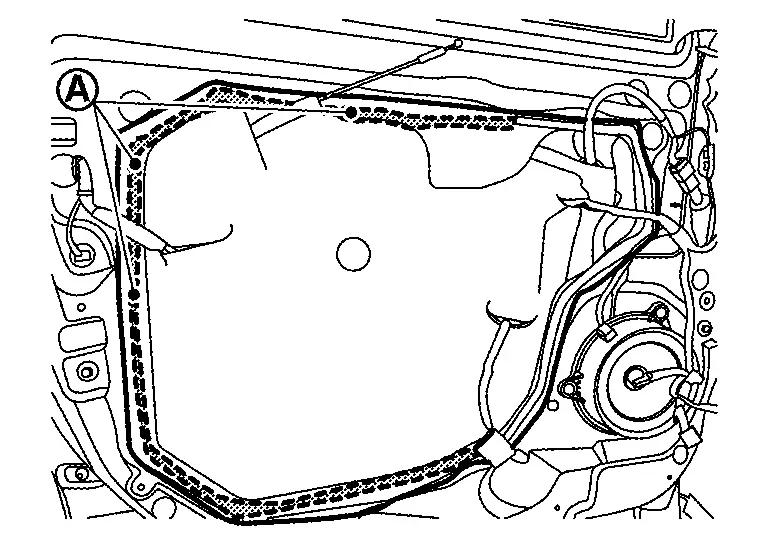

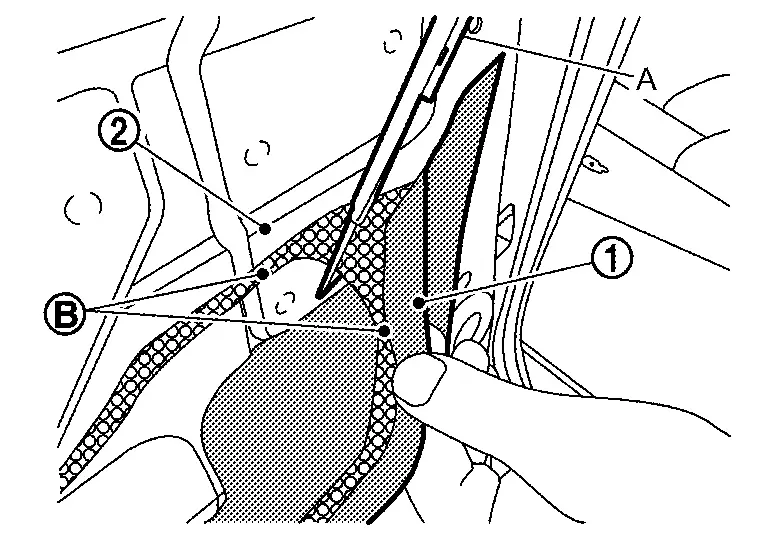

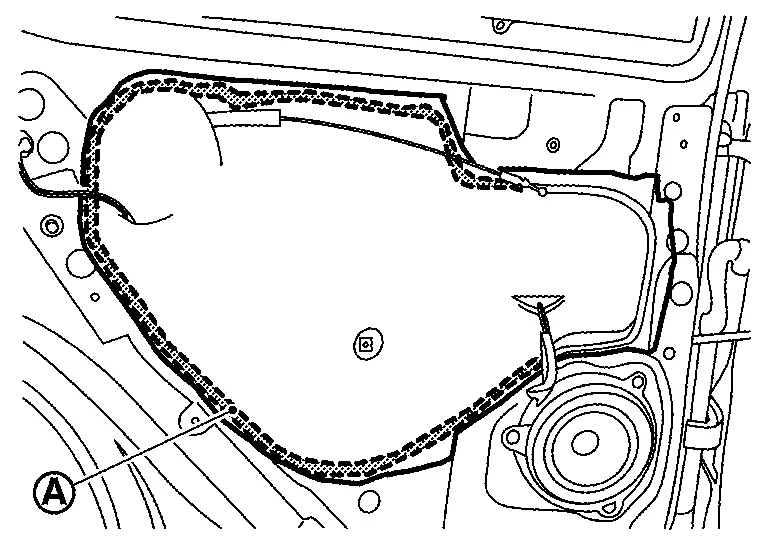

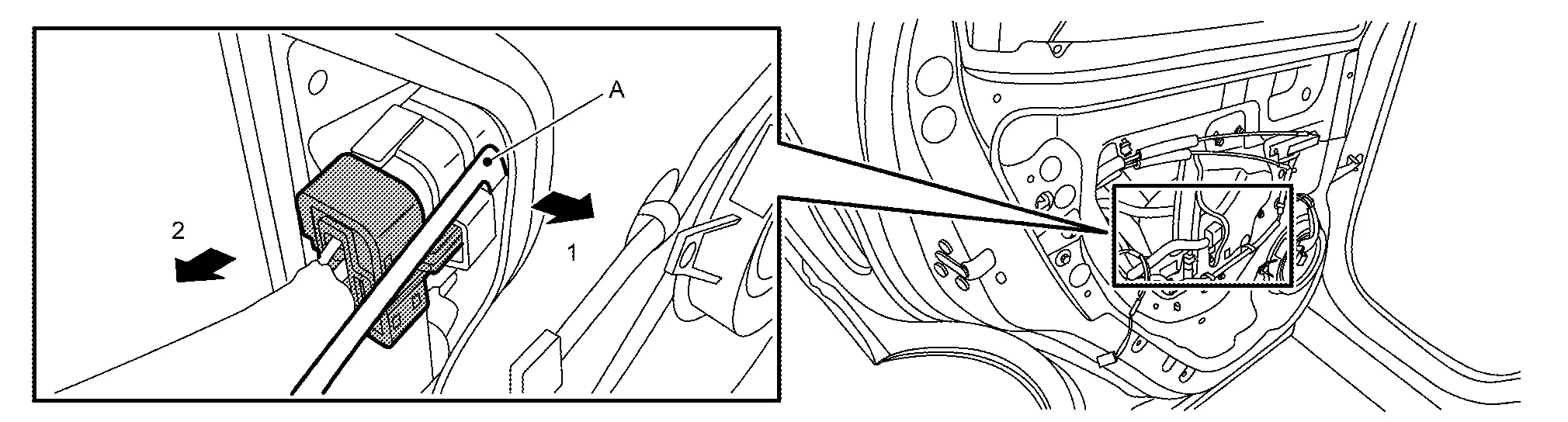

Cut the butyl-tape by using cutter knife (A).

CAUTION:

• Cut the butyl-tape to remaining each side between front door sealing screen and front door panel if front door sealing screen will reuse.



• Never excessively pull front door sealing screen.

Pull out cable and harness, and then remove front door sealing screen.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Never reuse front door sealing screen if it has damaged.

• Never make gap when apply butyl-tape onto new front door sealing screen.

Front Door Lower Sash

Removal & Installation

REMOVAL

CAUTION:

Never damage front door glass and front door panel.

Fully close front door glass.

Remove front door finisher, Refer to Removal & Installation.

Remove front side of front door sealing screen. Cut the butyl-tape, Refer to Removal & Installation.

Remove front door glass run from front door lower sash.

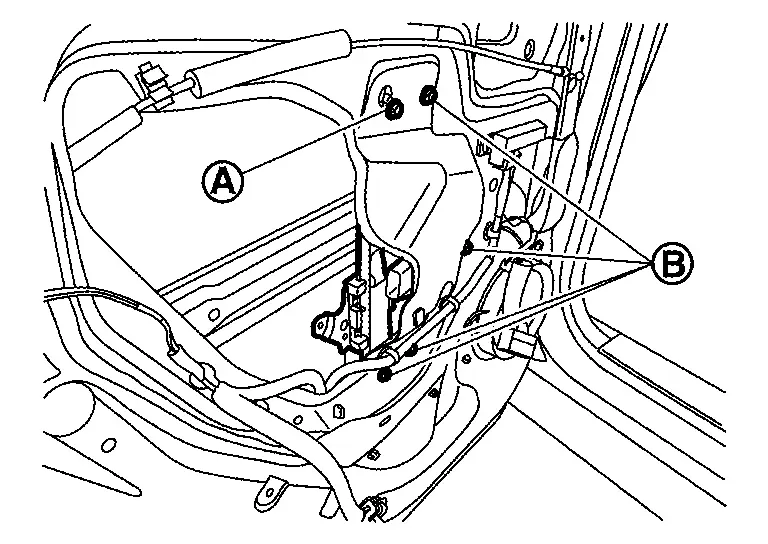

Remove front door lower sash mounting bolt .

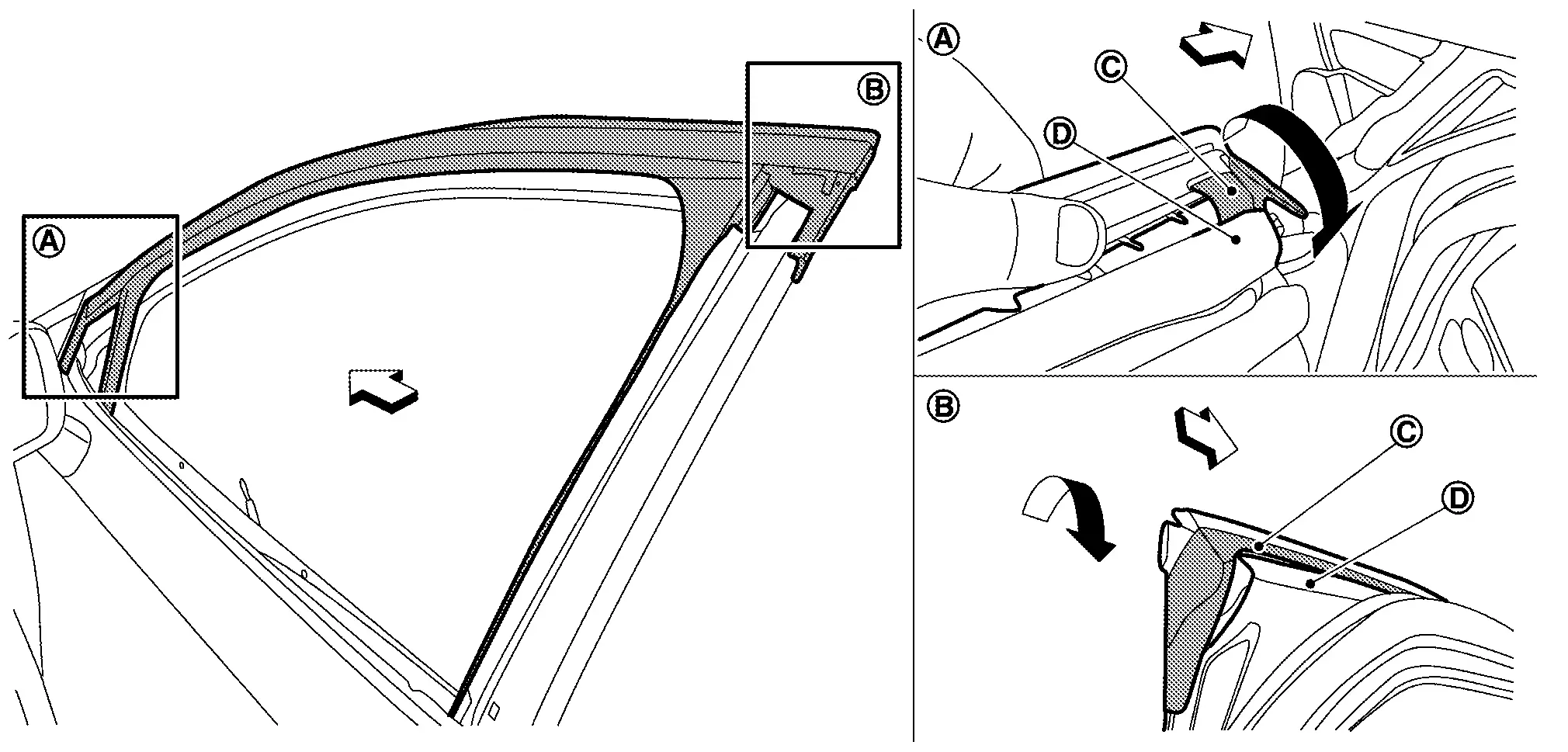

Disengage fixing portion according arrow direction, and then remove front door lower sash from front door panel.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• When installing, insert portion of front door lower sash to hole of front door sash (frond door panel ) as shown in figure.



• When installing front door glass run. Refer to Removal & Installation.

• Tighten specified value the mounting bolt of front door lower sash. Refer to Exploded View.

Front Door Glass Run Lower Sash

Removal & Installation

REMOVAL

CAUTION:

Never damage front door glass and front door panel.

Fully close front door glass.

Remove front door finisher. Refer to Removal & Installation.

Make the work space by cutting butyl-tape part of front door sealing screen. Cut the butyl-tape, Refer to Removal & Installation.

Remove front door glass run from front door glass run lower sash.

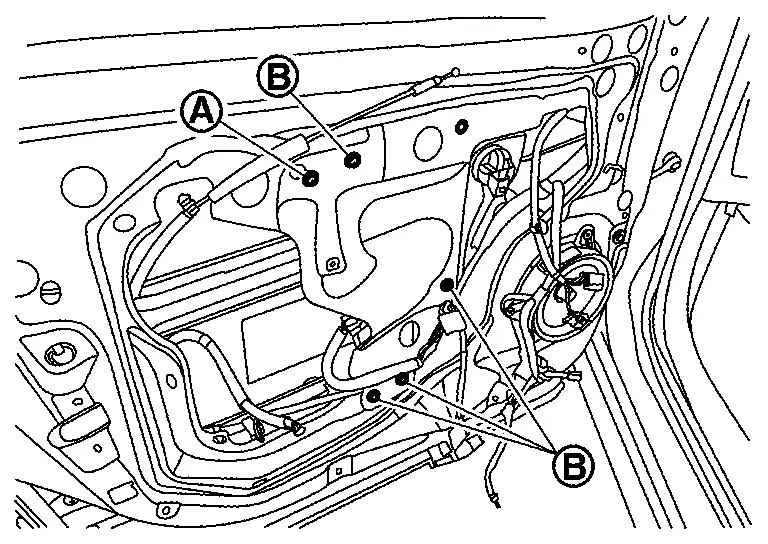

Remove front door glass run lower sash mounting bolt .

Disengage front door glass run lower sash fixing portion by arrow direction as shown in figure.

Remove front door glass run lower sash from open part of front door panel.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• When installing, install portion of front door glass run lower sash to hole of front door sash (front door panel ) as shown in figure.



• Engage front door glass to front door glass run lower sash, and then install front door glass run lower sash.

• Tighten specified value the mounting bolt of front door glass run lower sash. Refer to Exploded View.

• When installing front door glass run, Refer to Removal & Installation.

Front Door Glass Run

Removal & Installation

ADDITIONAL SERVICE

Perform the additional service referencing with the below table for system work normally.

○: Applicable

Parts	Work type		Additional servicve	Reference
	Replacement	Removal
Front door glass run	○	○	System initialization	Work Procedure

REMOVAL

CAUTION:

Never excessively pull front door glass run.

Fully open front door glass.

Remove front door sash cover. Refer to Removal & Installation.

Remove front door outside molding. Refer to Removal & Installation.

Remove front door finisher. Refer to Removal & Installation.

Remove front door sash inner cover and inside seal. Refer to Removal & Installation.

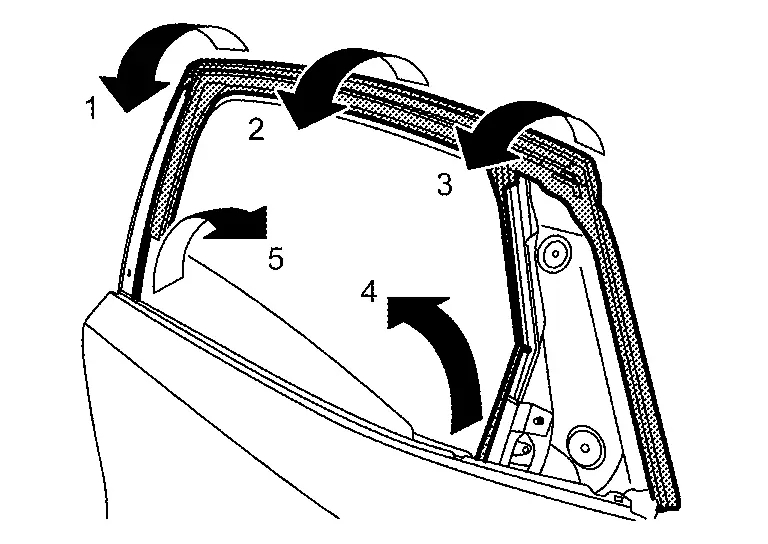

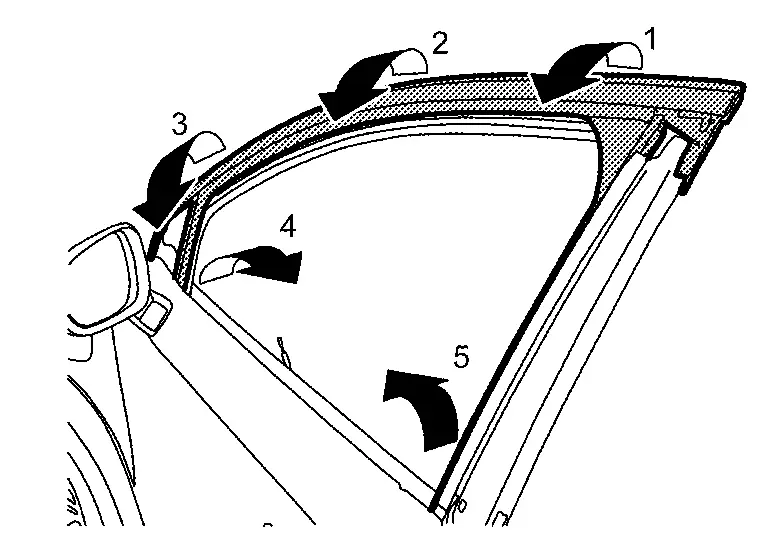

Remove front door glass run according to numerical order 1→5 indicated by arrows as shown in figure.

CAUTION:

Should be pulled out slowly to prevent damage front door glass run.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Replace a new front door glass run if it has damaged, deformed, and broken etc..

• Make sure that front door glass run are engaged to front door lower sash and front door sash (door panel side).

• Install to cover the part of front door panel by the upper side of front door glass run according direction arrow as shown in figure.



• Re-engage front door glass run downward to sash of front door panel after install upper side.

• Engage front side edge of front door glass run onto front door panel as shown in figure.



• Perform inspection and adjustment after installing front door glass run. Refer to Inspection.

Front Door Regulator

Exploded View

For exploded view of front door glass regulator, Refer to Exploded View.

Removal & Installation

ADDITIONAL SERVICE

Perform the additional service referencing with the below table for system work normally.

○: Applicable

Parts	Work type		Additional servicve	Reference
	Replacement	Removal
Front door regulator	○	○	System initialization	Refer to Work Procedure.

REMOVAL

CAUTION:

Never damage front door glass and front door panel.

Remove front door glass. Refer to Removal & Installation.

Disconnect power window motor harness connector .

Loosen front door regulator assembly mounting bolt , and then remove front door regulator assembly mounting bolts .

Remove front door regulator assembly from open part of front door panel.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Check front door regulator parts for lubrication. If necessary, apply body grease.



  : Body grease

• Tighten specified value the mounting bolt of front door regulator. Refer to Exploded View.

• Perform inspection and adjustment after installing front door regulator. Refer to Inspection and Adjustment.

Disassembly & Assembly

ADDITIONAL SERVICE

Perform the additional service referencing with the below table for system work normally.

○: Applicable

Parts	Work type		Additional servicve	Reference
	Replacement	Removal
Power window motor	○	○	System initialization	Refer to Work Procedure.

DISASSEMBLY

Remove front door regulator assembly. Refer to Removal & Installation.

Remove front door power window motor mounting bolts, and then remove front door power window motor.

ASSEMBLY

Note the following item, and then assemble in the reverse order of disassembly.

CAUTION:

Perform inspection and adjustment after installing power window motor. Refer to Inspection and Adjustment.

Inspection and Adjustment

SYSTEM INITIALIZATION

Work procedure. Work Procedure

FITTING INSPECTION

• Check that the glass is fit securely into the sash groove.

• Lower the glass slightly [approximately 10 to 20 mm (0.394 to 0.787 in)], and check that the clearance to the sash is parallel. Loosen the regulator mounting bolts, guide rail mounting bolts, and glass and guide rail mounting bolts to correct the glass position if the clearance between the glass and sash is not parallel.

Rear Door Glass

Exploded View

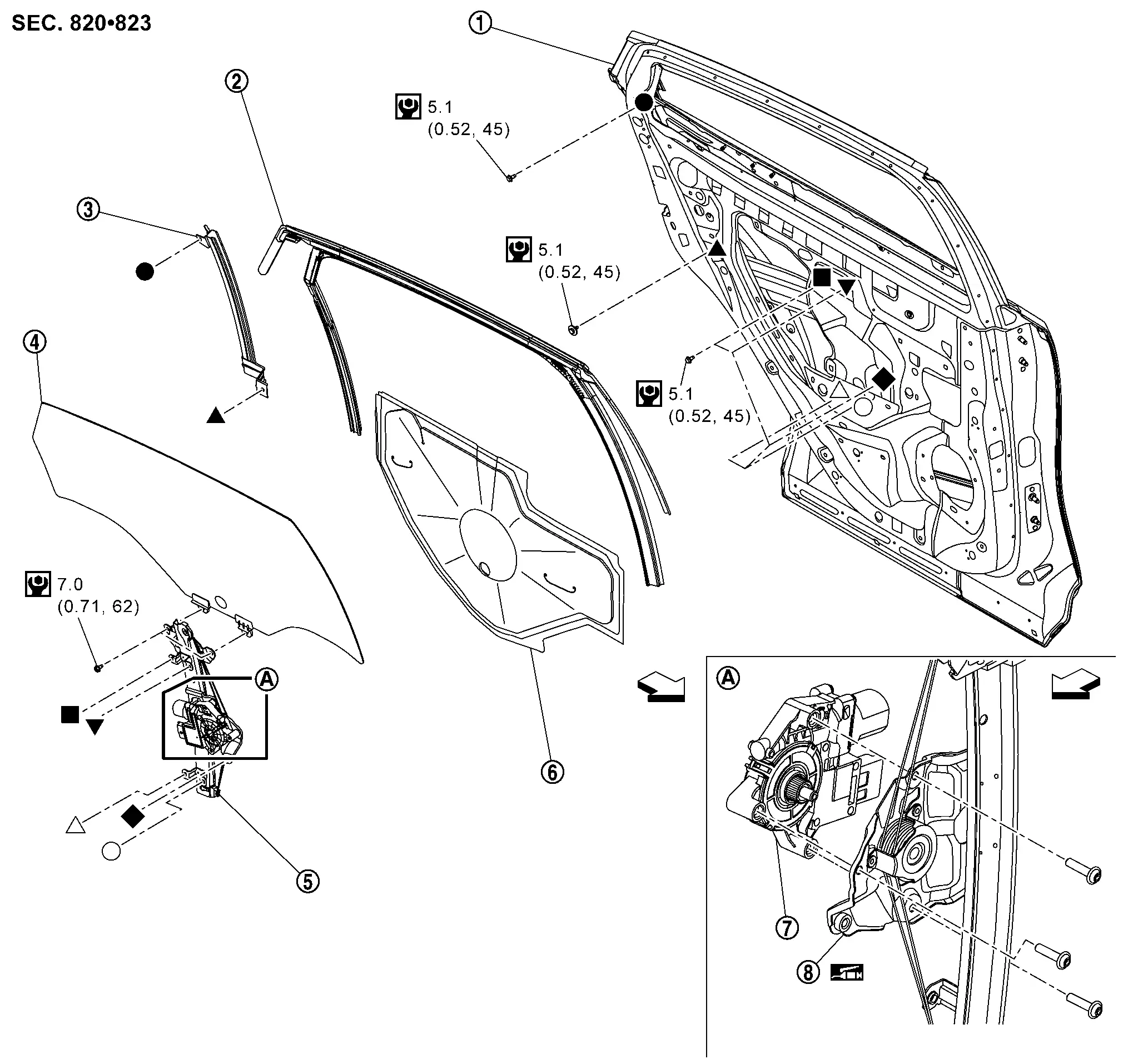

	Rear door panel		Rear door glass run		Rear door glass run lower sash
	Rear door glass		Rear door regulator assembly		Rear door sealing screen
	Rear door power window motor		Rear door regulator
	: Nissan Ariya Vehicle front
	: N·m (kg-m, in-lb)
	: Body grease
, , , , , , : Indicates that the part is connected at points with same symbol in actual Nissan Ariya vehicle.

Removal & Installation

ADDITIONAL SERVICE

Perform the additional service referencing with the below table for system work normally.

○: Applicable

Parts	Work type		Additional servicve	Reference
	Replacement	Removal
Rear door glass	○	○	System initialization	Work Procedure

REMOVAL

CAUTION:

Never damage rear door glass and rear door panel.

Fully close rear door glass.

Remove rear door sash cover. Refer to Removal & Installation.

Remove rear door outside molding. Refer to Removal & Installation.

Remove rear door finisher. Refer to Removal & Installation.

Remove rear door sash inner cover. Refer to Removal & Installation.

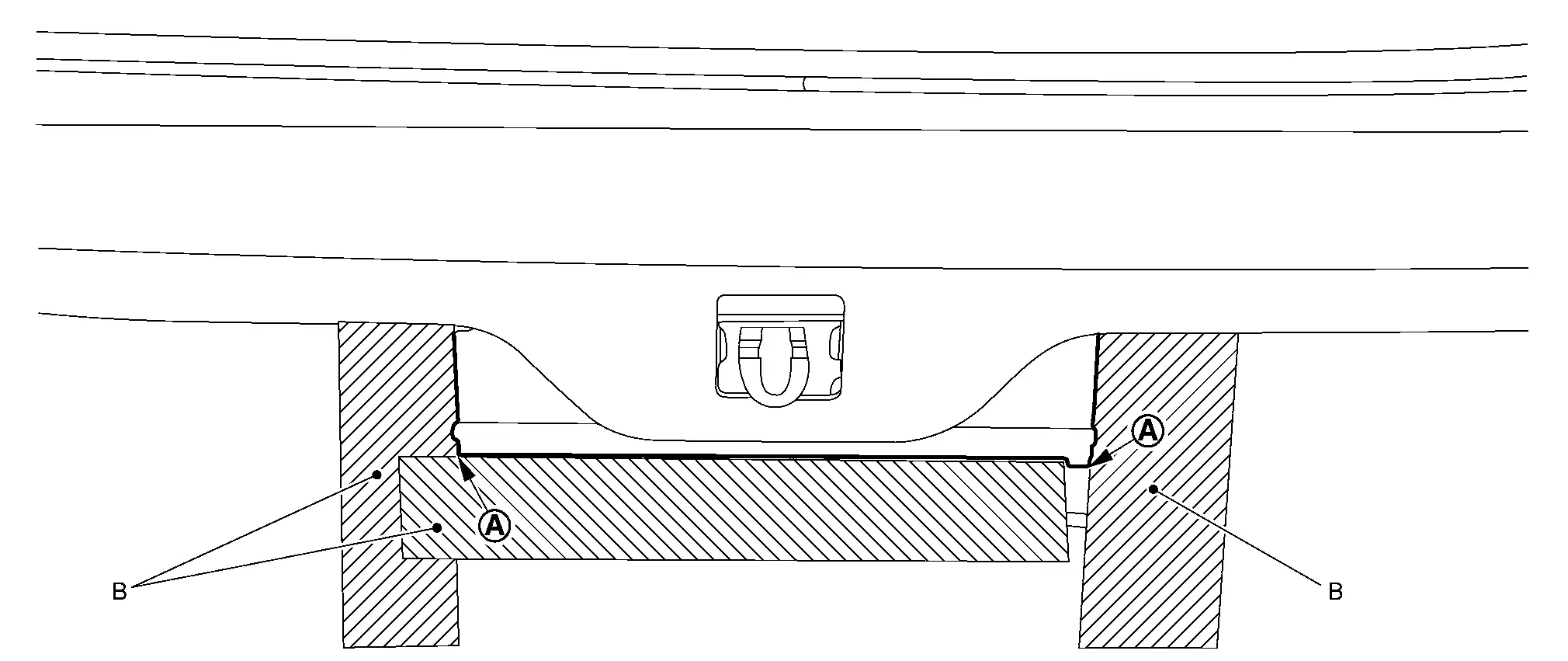

Make the work space by cut the butyl-tape part of as shown in figure. Cut the butyl-tape, Refer to Removal & Installation.

Remove rear door glass run lower sash. Refer to Removal & Installation.

Reconnect power window switch connector.

Operate power window switch to raise or lower rear door glass until rear door glass mounting bolts can be seen, and then remove rear door glass mounting bolts.

Hold securely rear door glass, and then remove it according to numerical order 1→3 indicated by arrows as shown in figure.

CAUTION:

Never damage rear door glass and rear door panel.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

• When installing, engage rear door glass to glass run part of rear door lower sash.

• Tighten specified value rear door glass mounting bolts. Refer to Exploded View.

• Perform inspection and adjustment after installing rear door glass. Refer to Inspection.

Inspection

SYSTEM INITIALIZATION

Refer to Work Procedure.

FITTING INSPECTION

• Check that the glass is fit securely into the sash groove.

• Lower the glass slightly [approximately 10 to 20 mm (0.394 to 0.787 in)], and check that the clearance to the sash is parallel. Loosen the regulator mounting bolts, guide rail mounting bolts, and glass and guide rail mounting bolts to correct the glass position if the clearance between the glass and sash is not parallel.

Rear Door Sealing Screen

Removal & Installation

REMOVAL

CAUTION:

• Take the short memo etc. for record how to installed door harness and cable before removing sealing screen.

• Take the short memo etc. for record how to installed butyl-tape of sealing screen.

Remove rear door finisher. Refer to Removal & Installation.

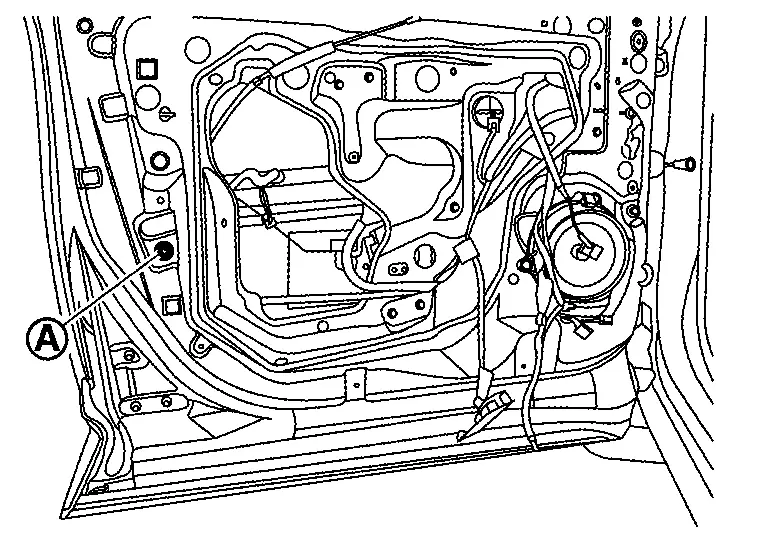

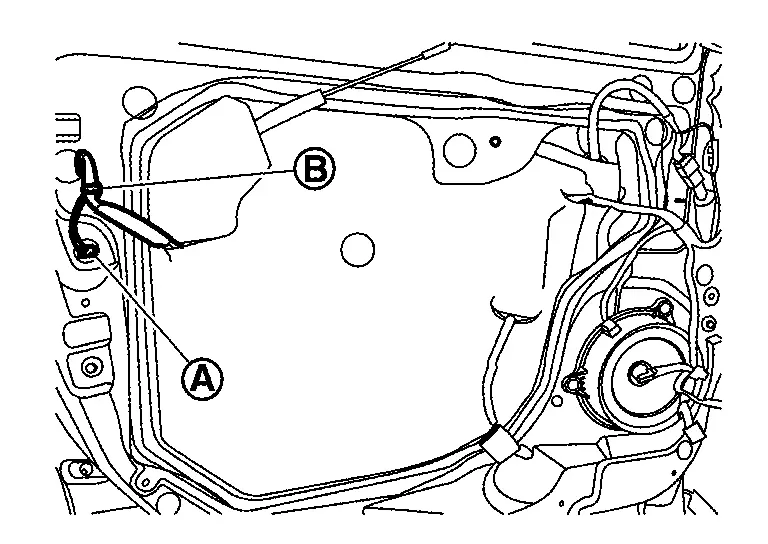

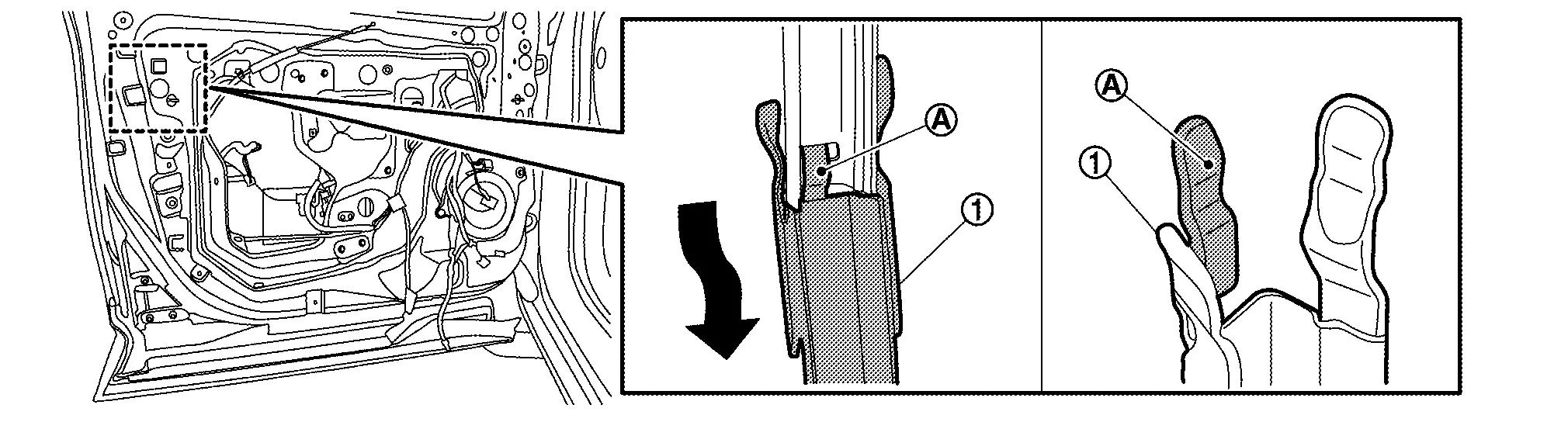

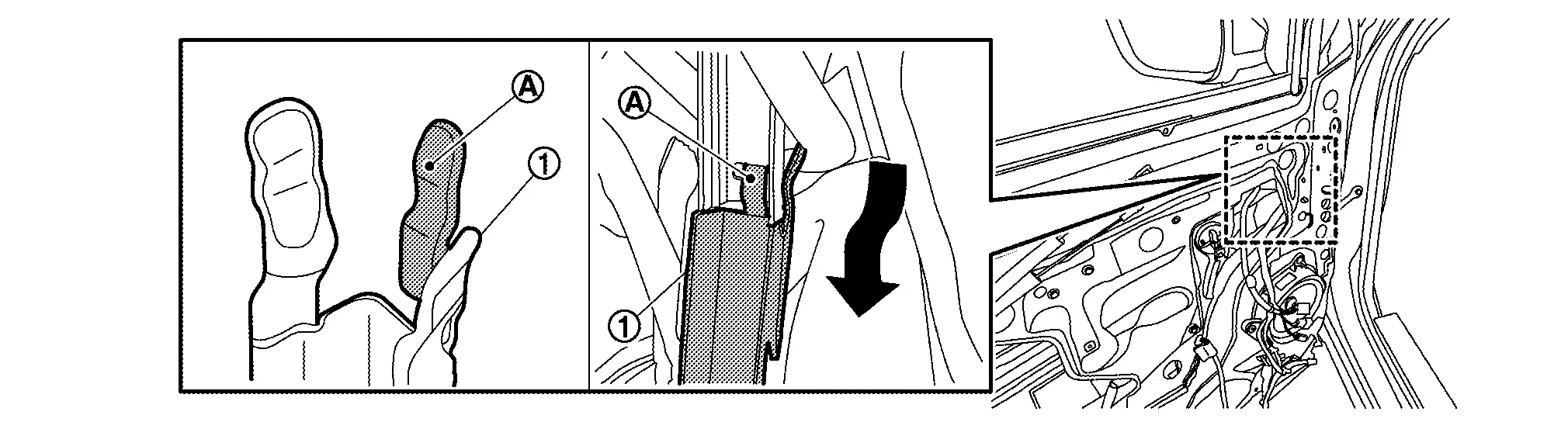

Disconnect rear door lock assembly and rear door speaker harness connector , and then disengage harness fixing clip .

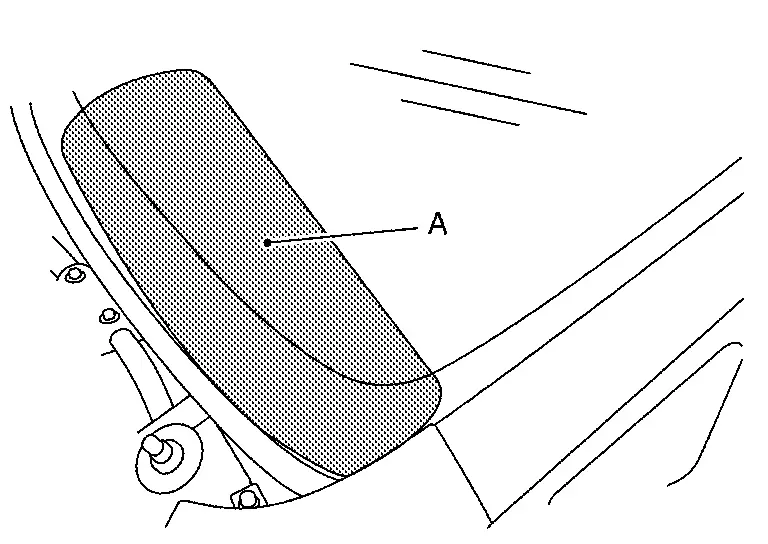

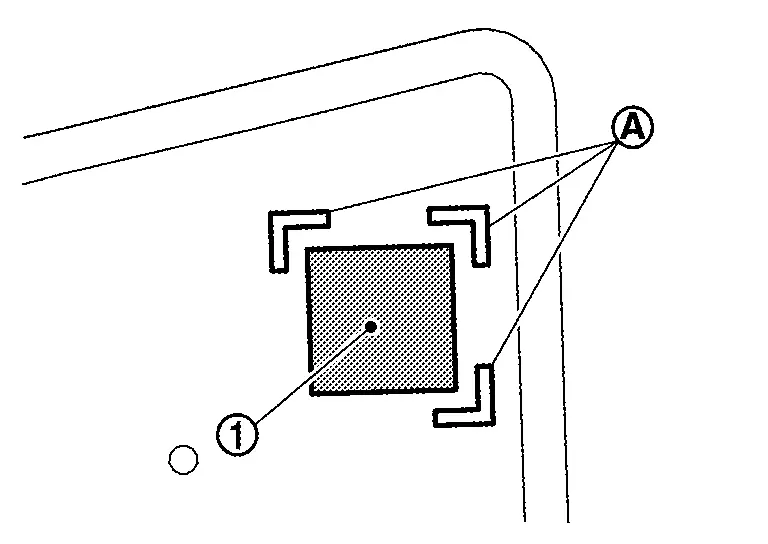

Cut butyl-tape inside of rear door sealing screen by using cutter knife.

CAUTION:

• If reuse rear door sealing screen, cut the butyl-tape by using a cutter knife (A) that to remain both rear door panel and sealing screen .



• Never excessively pull front door sealing screen.

Pull out cable and harness, and then remove rear door sealing screen.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Never reuse rear door sealing screen if it has damaged.

• Never make gap when apply butyl-tape onto new rear door sealing screen.

Rear Door Glass Run Lower Sash

Removal & Installation

REMOVAL

CAUTION:

Never damage rear door glass and rear door panel.

Fully close rear door glass.

Remove rear door sash cover. Refer to Removal & Installation.

Remove rear door outside molding. Refer to Removal & Installation.

Remove rear door finisher. Refer to Removal & Installation.

Remove rear door sash inner cover. Refer to Removal & Installation.

Make the work space by cut the butyl-tape part of as shown in figure. Cut the butyl-tape, Refer to Removal & Installation.

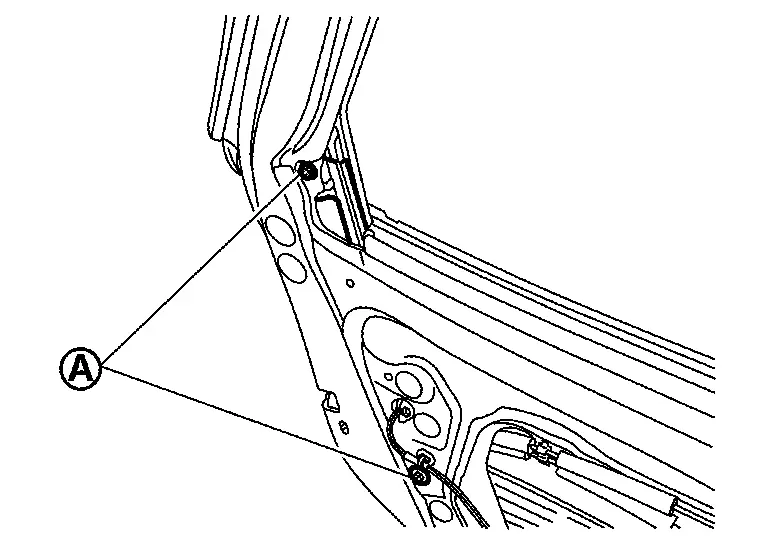

Remove rear door glass run lower sash mounting bolts .

Disengage fixing hook of rear door glass run lower sash from hole of rear door panel .

Disengage rear door glass run portions, and then remove rear door glass run lower sash.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

• Tighten specified value the mounting bolt of rear door lower sash. Refer to Exploded View.

• Engage rear door glass run to rear door glass run lower sash, and then install rear door glass run lower sash to rear door panel.

• When installing rear door glass run, Refer to Removal & Installation.

Rear Door Glass Run

Removal & Installation

ADDITIONAL SERVICE

Perform the additional service referencing with the below table for system work normally.

○: Applicable

Parts	Work type		Additional servicve	Reference
	Replacement	Removal
Rear door glass run	○	○	System initialization	Work Procedure

REMOVAL

CAUTION:

Never excessively pull rear door glass run.

Fully open rear door glass.

Remove rear door sash cover. Refer to Removal & Installation.

Remove rear door outside molding. Refer to Removal & Installation.

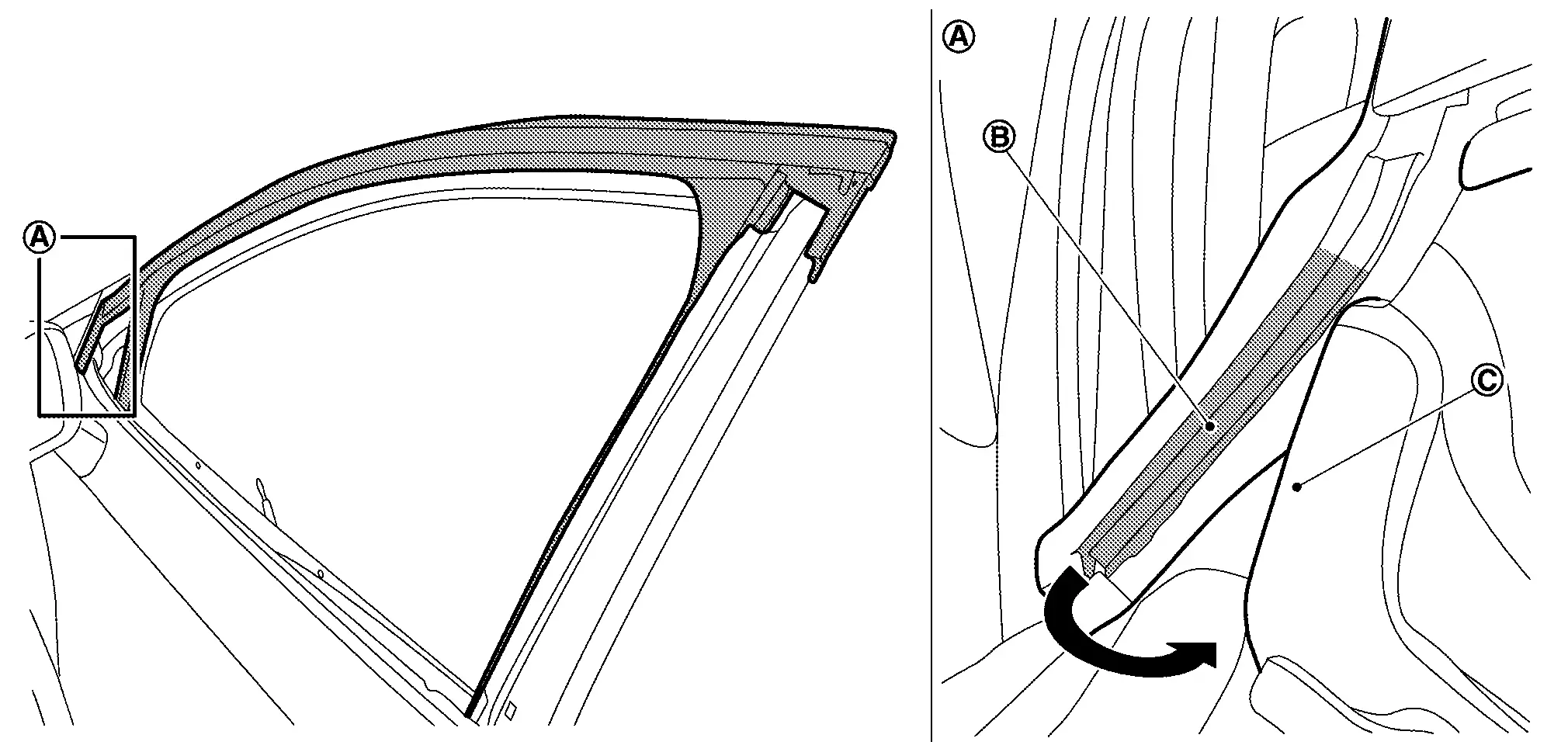

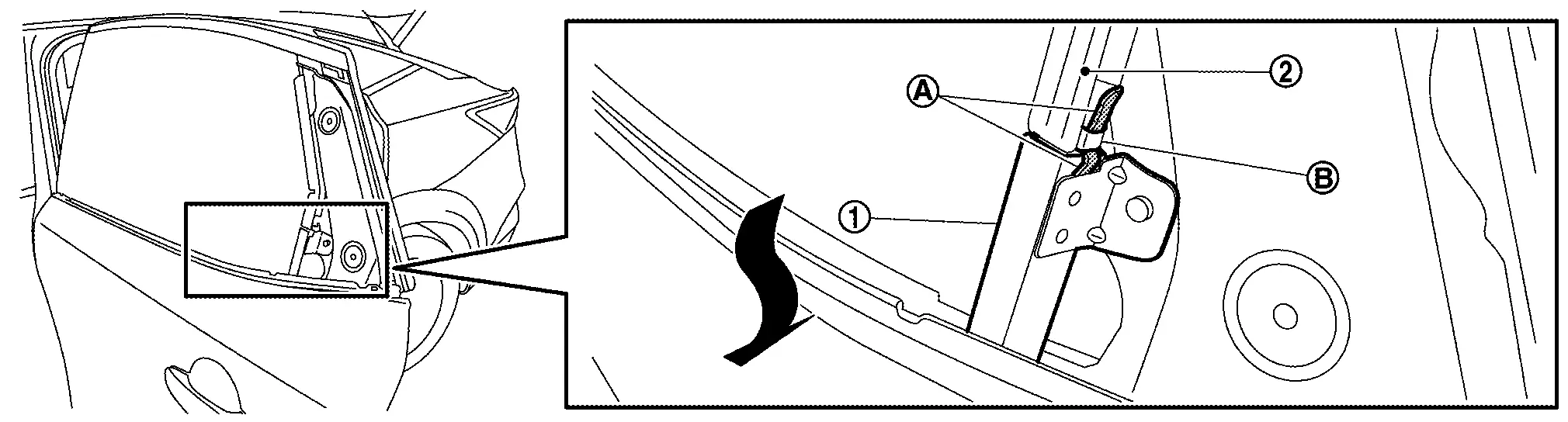

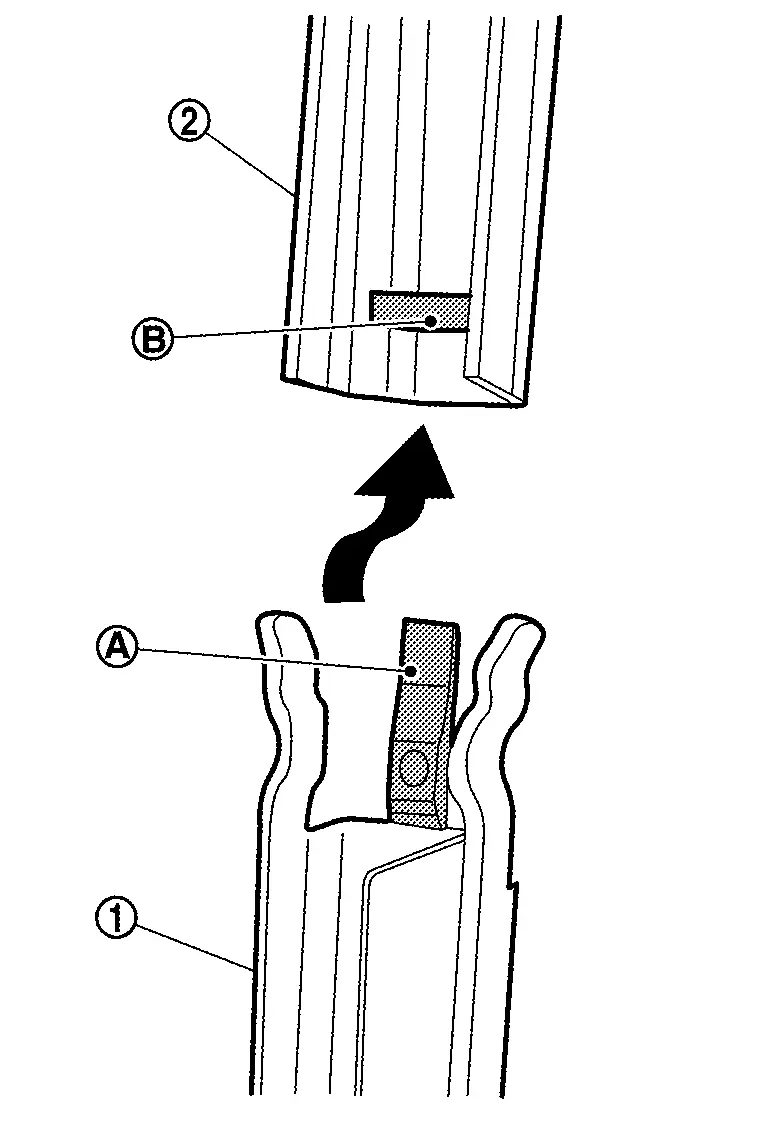

Disengage rear door glass run from rear door panel according to numerical order 1→5 indicated by arrows as shown in figure, and then remove rear door glass run.

CAUTION:

Should be pulled out slowly to prevent damage rear door glass run.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

• Replace a new rear door glass run if it has damaged, deformed, and broken etc..

• Never bite the lip of rear door glass run to between rear door sash, glass run lower sash and rear door glass.

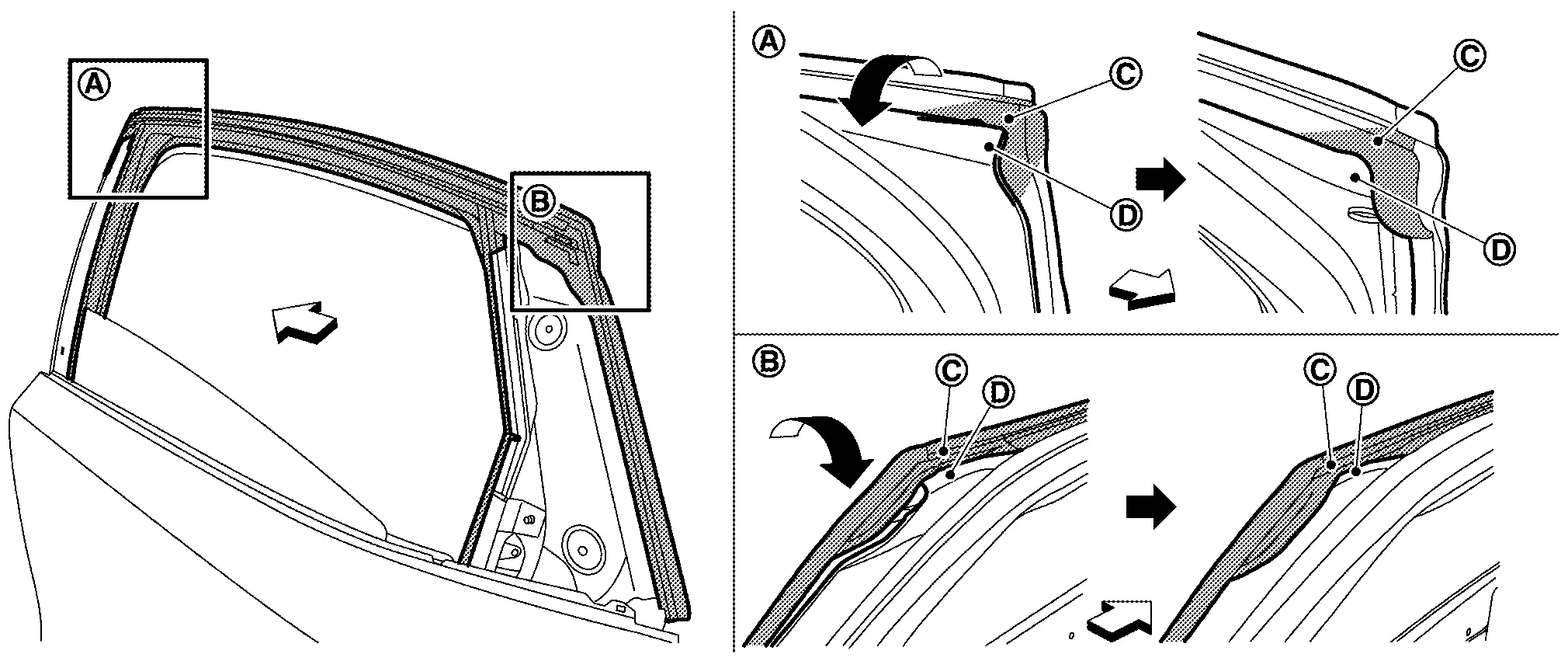

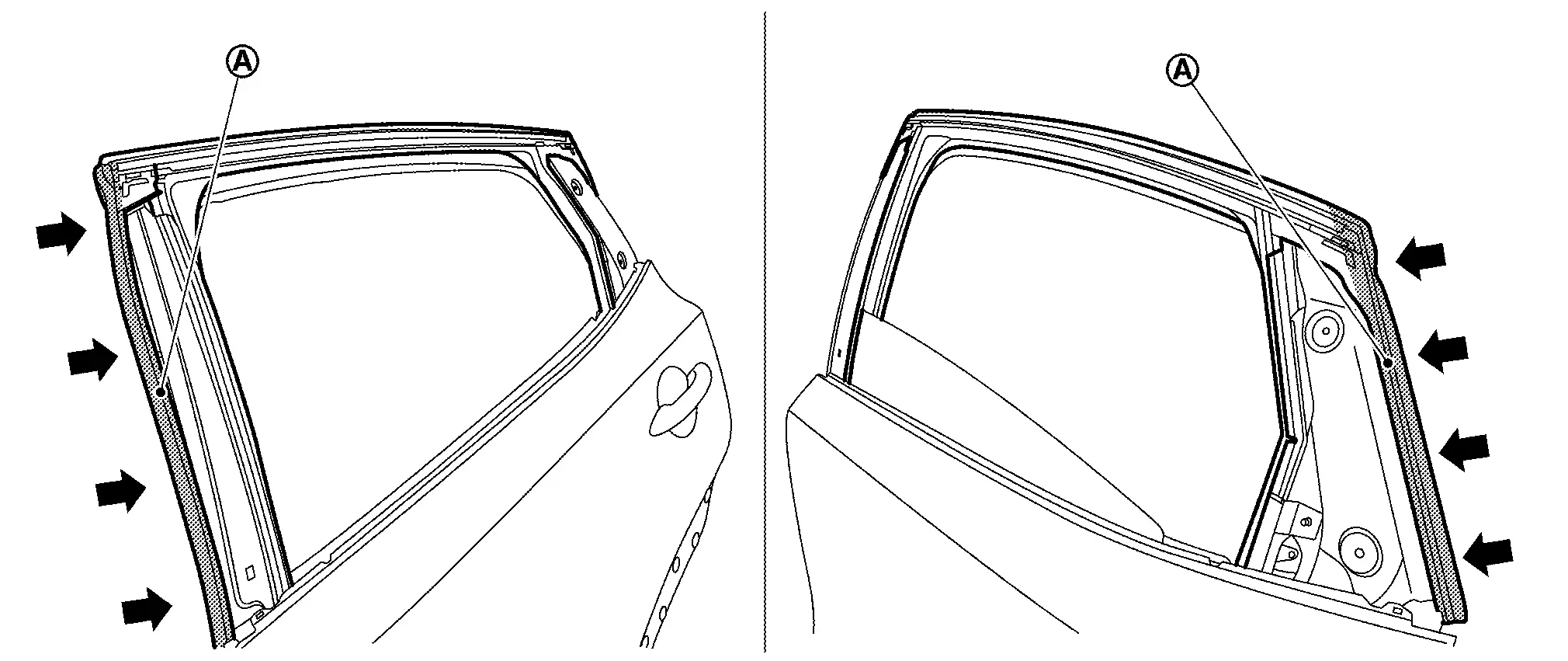

• Install to cover the part of rear door panel by the upper side of rear door glass run according direction arrow as shown in figure.



  ：Nissan Ariya Vehicle front

• Re-engage rear door glass run downward to sash of rear door panel after install upper side.

• Engage front/rear side edge of rear door glass run onto rear door panel as shown in figure.



• Perform inspection and adjustment after installing rear door glass run. Refer to Inspection.

Rear Door Regulator

Exploded View

For exploded view of rear door regulator, Refer to Exploded View.

Removal & Installation

ADDITIONAL SERVICE

Perform the additional service referencing with the below table for system work normally.

○: Applicable

Parts	Work type		Additional servicve	Reference
	Replacement	Removal
Rear door regulator	○	○	System initialization	Work Procedure

REMOVAL

CAUTION:

Never damage rear door glass and rear door panel.

Remove rear door sealing screen. Refer to Removal & Installation.

Remove rear door glass. Refer to Removal & Installation.

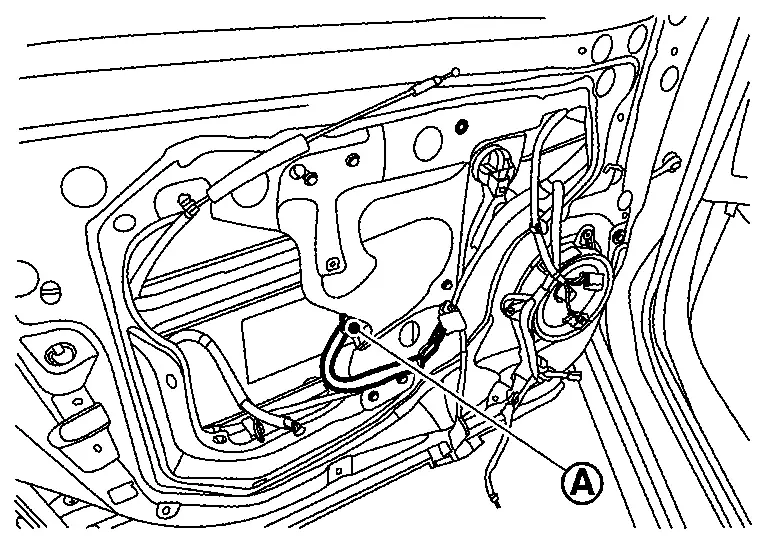

Disconnect rear power window motor harness connector by using remover tool (A) according to numerical order 1→2 indicated by arrows as shown in figure.

Loosen rear door regulator assembly mounting bolt , and then remove rear door regulator assembly mounting bolts .

Remove rear door regulator assembly from open part of rear door panel.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

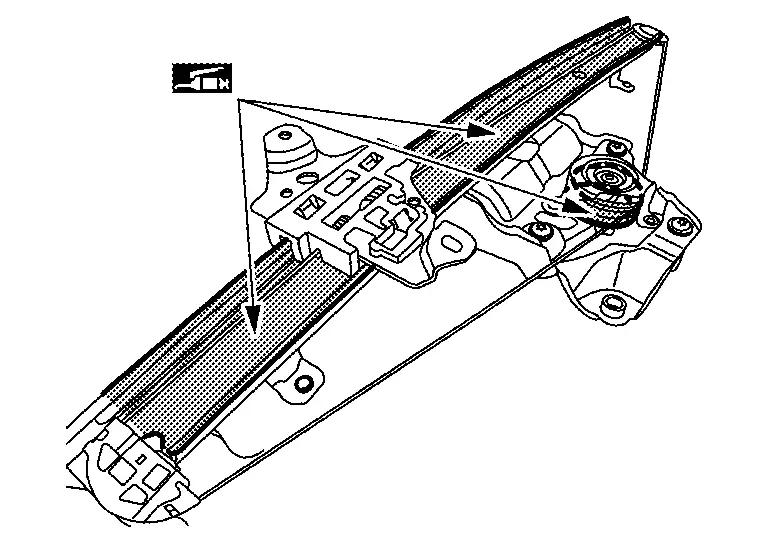

• Check rear door regulator parts for lubrication. If necessary, apply body grease.



  : Body grease

• Tighten specified value the mounting bolt of rear door regulator assembly. Refer to Exploded View.

• After installing rear door regulator, perform inspection and adjustment. Refer to Inspection.

Disassembly & Assembly

ADDITIONAL SERVICE

Perform the additional service referencing with the below table for system work normally.

○: Applicable

Parts	Work type		Additional servicve	Reference
	Replacement	Removal
Rear door regulator	○	○	System initialization	Work Procedure

DISASSEMBLY

Remove rear door regulator assembly. Refer to Removal & Installation.

Remove rear door power window motor mounting bolts, and then remove rear door power window motor.

ASSEMBLY

Note the following item, and then assemble in the reverse order of disassembly.

CAUTION:

Perform inspection and adjustment after installing power window motor. Refer to Inspection.

Inspection

SYSTEM INITIALIZATION

Refer to Work Procedure.

FITTING INSPECTION

• Check that the glass is fit securely into the sash groove.

• Lower the glass slightly [approximately 10 to 20 mm (0.394 to 0.787 in)], and check that the clearance to the sash is parallel. Loosen the regulator mounting bolts, guide rail mounting bolts, and glass and guide rail mounting bolts to correct the glass position if the clearance between the glass and sash is not parallel.
