Nissan Ariya: Removal and Installation. Horn
Nissan Ariya (FE0) 2023-2025 Service & Repair Manual / Driver Controls / Horn / Removal and Installation. Horn

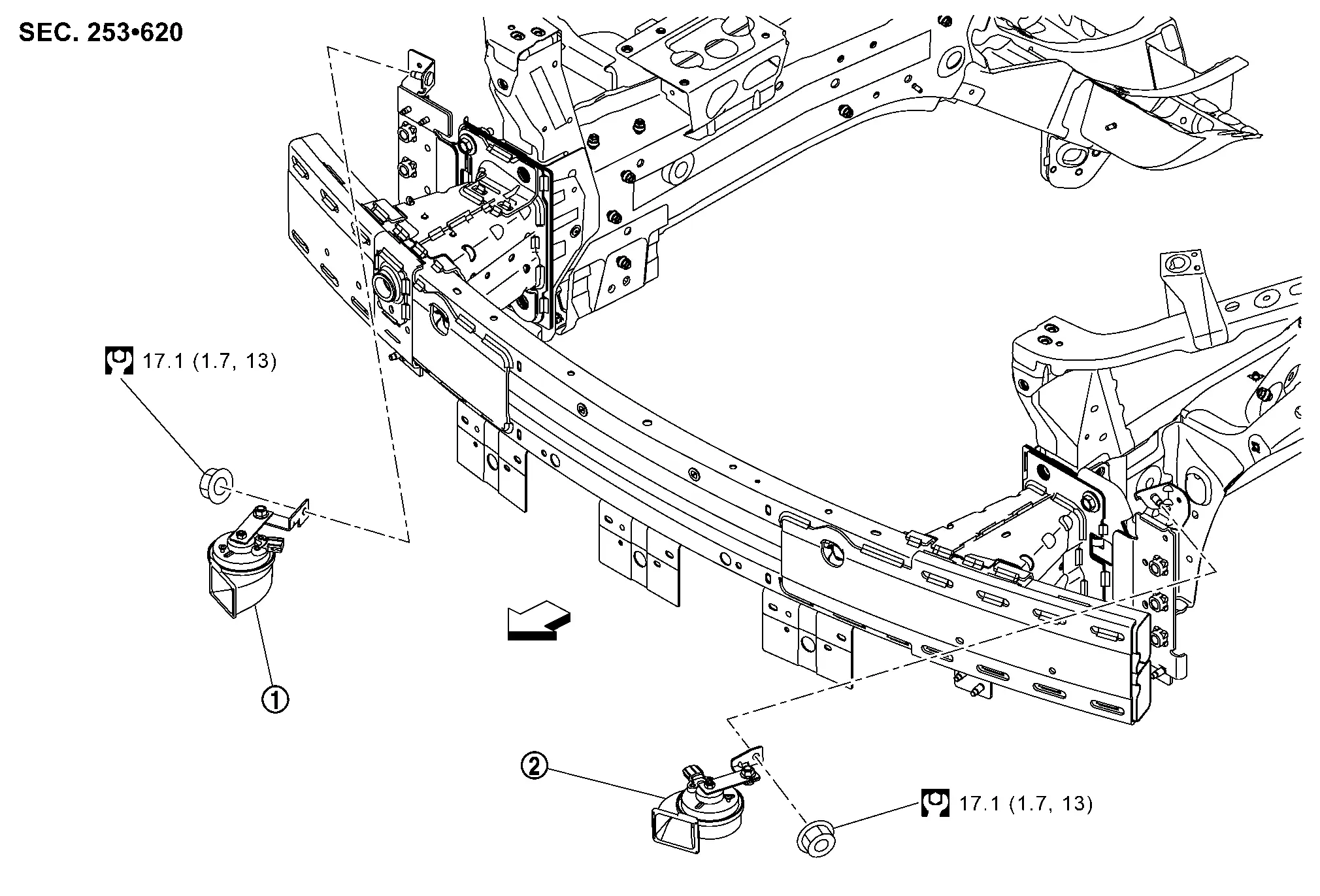

Exploded View
 |
Horn high |  |
Horn low | ||
 |
: Nissan Ariya Vehicle front | ||||
 |
: N·m (kg-m, ft-lb) | ||||
Removal & Installation
REMOVAL
Horn High
Remove front bumper fascia. Refer to Removal & Installation.

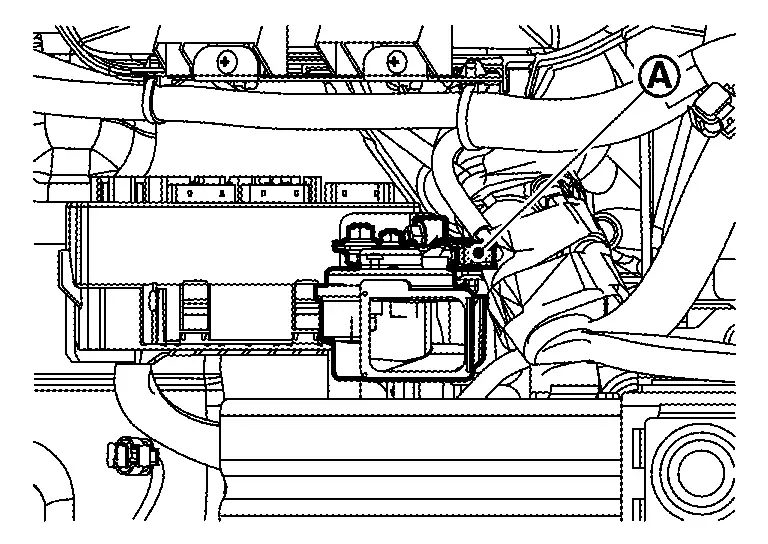

Disconnect harness connector
.

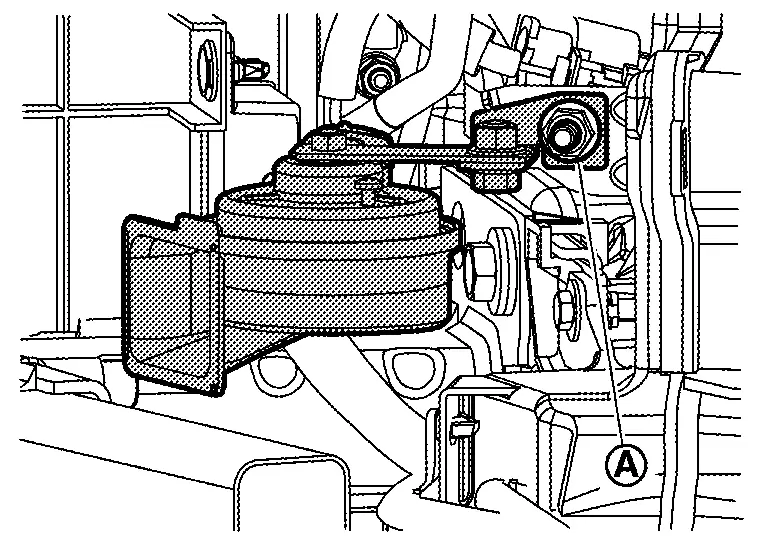

Remove mounting nut , and then remove horn high.
CAUTION:
Never disassemble horn bracket from horn.
Horn Low
Remove front bumper fascia. Refer to Removal & Installation.

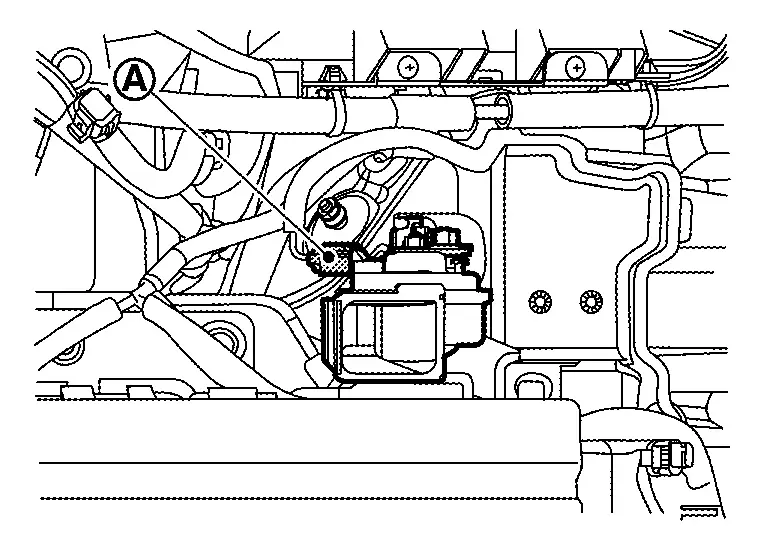

Disconnect harness connector .

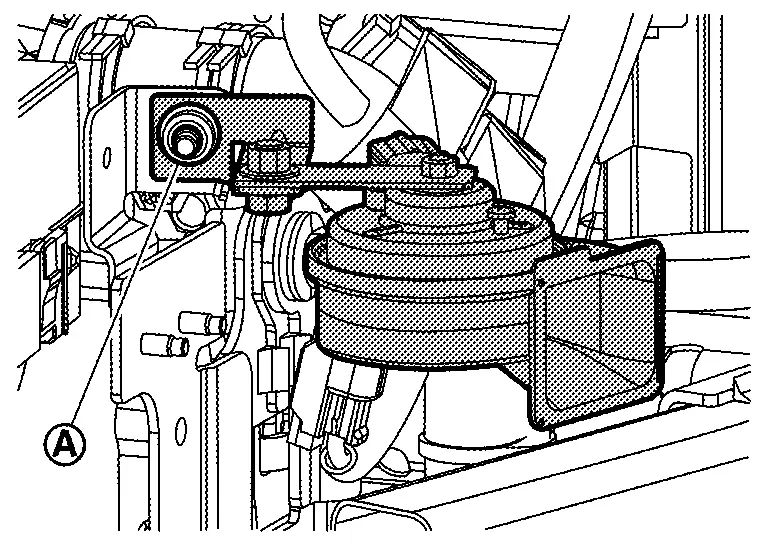

Remove mounting nut , and then remove horn low.
CAUTION:
Never disassemble horn bracket from horn.
INSTALLATION
Install in the reverse order of removal.
