Nissan Ariya: Intelligent Key battery replacement

WARNING

• Ingestion hazard: Death or serious injury can occur if ingested.
• A swallowed button cell or coin battery can cause internal chemical burns in as little as 2 hours.
• Keep new and used batteries out of reach of children.
• Be careful not to allow children to swallow removed parts.
• Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body.
• For treatment information call the National battery ingestion hotline @ 1-800-498-8666.
• There is a danger of explosion if the battery is incorrectly replaced.

  Replace only with the same or equivalent type of battery. Incorrectly replacing the battery can lead to injury or death.

• Do not crush or cut the battery.
• Do not subject the battery to extremely low air pressure at high altitude.

CAUTION

• An improperly disposed battery can harm the environment.

  Always confirm local regulations for battery disposal.

• When changing batteries, do not let dust or oil get on the components.

Replace the battery in the Intelligent Key as follows:

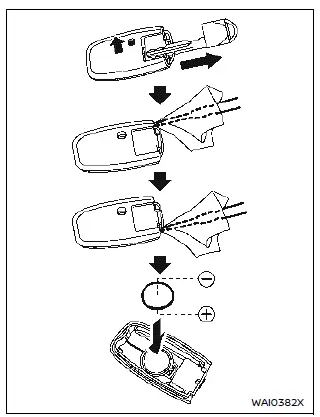

1. Remove the mechanical key from the Intelligent Key.

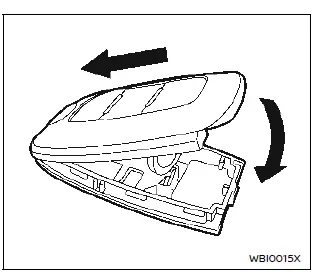

2. Insert a small screwdriver into the slit (on the right and left sides) and twist it to separate the upper part from the lower part. Use a cloth to protect the casing.

3. Replace the battery with a new one.

Recommended battery:

CR2032 or equivalent

• Do not touch the internal circuit and electric terminals as doing so could cause a malfunction.
• Hold the battery by the edges.

  Holding the battery across the contact points will seriously deplete the storage capacity.

• Make sure that the side faces the bottom of the case.

4. Align the tips of the upper and lower parts, and then push them together until it is securely closed.

5. Operate the buttons to check its operation.

If you need any assistance for replacement, it is recommended you visit a NISSAN certified ARIYA dealer for this service

NOTE

FCC Notice:

For USA:

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

For Canada:

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device.

Fuses

Do not open the fuse box.

If you have noticed an electrical equipment malfunction, it is recommended that you consult a NISSAN certified ARIYA dealer.
