Nissan Ariya: Motor Control [inverter (front)]

• P030a-62 Ignition a Control Signal
• P0a00-11 Motor Coolant Temperature Sensor a
• P0a00-13 Motor Coolant Temperature Sensor a
• P0a1b-01 Drive Motor a Control Module
• P0a1b-03 Drive Motor a Control Module
• P0a1b-04 Drive Motor a Control Module
• P0a1b-05 Drive Motor a Control Module
• P0a1b-44 Drive Motor a Control Module
• P0a2a-11 Drive Motor a Temperature Sensor
• P0a2a-13 Drive Motor a Temperature Sensor
• P0a2a-4b Drive Motor a Temperature Sensor
• P0a3f-04 Drive Motor a Position Sensor
• P0a3f-1c Drive Motor a Position Sensor
• P0a51-01 Drive Motor a Current Sensor
• P0a78-48 Drive Motor a Inverter
• P0a78-62 Drive Motor a Inverter
• P0a8b-A2 14 Volt Power Module System Voltage
• P0aed-11 Drive Motor Inverter Temperature Sensor a
• P0aed-13 Drive Motor Inverter Temperature Sensor a
• P0aed-1c Drive Motor Inverter Temperature Sensor a
• P0aed-4b Drive Motor Inverter Temperature Sensor a
• P0be5-1c Drive Motor a Phase U Current Sensor
• P0be9-1c Drive Motor a Phase V Current Sensor
• P0bed-1c Drive Motor a Phase W Current Sensor
• P0bff-11 Drive Motor a Current
• P0bff-12 Drive Motor a Current
• P0bff-18 Drive Motor a Current
• P0c0b-01 Drive Motor a Inverter Power Supply
• P0c0b-04 Drive Motor a Inverter Power Supply
• P0c0b-1c Drive Motor a Inverter Power Supply
• P0c0b-A2 Drive Motor a Inverter Power Supply
• P0cbc-11 Drive Motor a Coolant Temperature Sensor
• P0cbc-13 Drive Motor a Coolant Temperature Sensor
• P0cbc-4b Drive Motor a Coolant Temperature Sensor
• P0cc1-04 Drive Motor a Coolant Pump
• P0cc1-81 Drive Motor a Coolant Pump
• P0cc1-87 Drive Motor a Coolant Pump
• P0d2d-17 Drive Motor a Inverter Voltage Sensor a
• P0da8-00 Hybrid/ev Battery Voltage/drive Motor a Inverter Voltage Correlation
• P2d3b-92 Hybrid/ev Discharge System
• P2e28-01 Drive Motor a Excitation Current Sensor
• P2e28-18 Drive Motor a Excitation Current Sensor
• P2e28-1d Drive Motor a Excitation Current Sensor
• P2e2b-11 Drive Motor a Excitation Current
• P2e2b-12 Drive Motor a Excitation Current
• P2e2b-1c Drive Motor a Excitation Current
• P3081-44 Resolver Offset Value Error
• P3082-44 Roter Resistance Value Error
• P3083-44 Immobilizer
• U2143-82 Can Communication Error (vcm/hcm)
• U2143-83 Can Communication Error (vcm/hcm)
• U2143-87 Can Communication Error (vcm/hcm)
• U2144-82 Can Communication Error (li-Ion Battery)
• U2144-83 Can Communication Error (li-Ion Battery)
• U2144-87 Can Communication Error (li-Ion Battery)
• U2150-87 Can Communication Error (air Bag)

P030a-62 Ignition a Control Signal

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P030A	62	Ignition A Control Signal	Diagnosis condition	At inverter (front) start or READY state
			Signal	Power SW signal
			Threshold	There was a difference between the power SW signal input by hard wire to the inverter (front) and the power SW signal which receives by CAN signal.
			Diagnosis delay time	Within 2 seconds

POSSIBLE CAUSE

• Wiring harness or connector (disconnection or short circuit in the power switch signal circuit)

• Power switch signal (CAN signal)

• Inverter (front)

FAIL-SAFE

—

Confirmation Procedure

PREPARATION BEFORE OPERATION

If another "Confirmation Procedure" was performed immediately before this task, always power switch OFF, exit the Nissan Ariya vehicle and close all doors (including the back door), and wait for at least 60 seconds until the combination meter turns off before starting the next test.

CAUTION:

While waiting, never operate the Nissan Ariya vehicle such as locking, opening, and closing doors. Violation of this caution results in the activation of ACC power supply according to the auto ACC function.

>>

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

1. Power switch ON and wait at least 10 seconds.

2. Check the DTC.

Is “P030A-62 detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

INSPECTION OF THE CAN COMMUNICATION

Inspect the CAN communication circuit. Refer to Trouble Diagnosis Flow Chart.

Is the inspection result normal?

YES>>

GO TO 2.

NO>>

Repair or replace the malfunctioning parts.

INSPECTION OF THE HARNESS CONNECTOR

1. Power switch OFF.

2. Check mating conditions of the harness connector for the inverter (front).

Is the inspection result normal?

YES>>

GO TO 3.

NO>>

Repair or replace the malfunctioning parts.

INSPECTION OF THE CONNECTOR TERMINAL

1. Disconnect the harness connector of the inverter (front).

2. Check the inverter (front) connector for water intrusion, or damage or corrosion of the terminals.

Is the inspection result normal?

YES>>

GO TO 4.

NO>>

Repair or replace the malfunctioning parts.

INSPECTION OF POWER SWITCH CIRCUIT 1

1. Power switch ON.

2. Check the voltage between the harness connector of the inverter (front) and the body ground.

   +		-	Voltage
   Inverter (front)
   Connector	Terminal
   F14	30	Body ground	9 – 16 V

Is the inspection result normal?

YES>>

GO TO 8.

NO>>

GO TO 5.

INSPECTION OF POWER SWITCH CIRCUIT 2

1. Power switch OFF.

2. Disconnect the IPDM E/R harness connector.

3. Check continuity between the IPDM E/R harness connector and inverter (front) harness connector.

   IPDM E/R		Inverter (front)		Continuity
   Connector	Terminal	Connector	Terminal
   E40	25	F14	30	Existed

Is the inspection result normal?

YES>>

GO TO 6.

NO>>

Repair or replace the malfunctioning parts.

INSPECTION OF POWER SWITCH CIRCUIT 3

Check continuity between the IPDM E/R harness connector and body ground.

IPDM E/R		−	Continuity
Connector	Terminal
E40	25	Body ground	Not existed

Is the inspection result normal?

YES>>

GO TO 7.

NO>>

Repair or replace the malfunctioning parts.

INSPECTION OF POWER SWITCH CIRCUIT 4

Inspect the following items:

• Disconnection or short circuit in the wiring harness between the power switch and IPDM E/R

• 5A fuse (#144)

>>

Repair or replace the malfunctioning parts.

PERFORM THE DTC CONFIRMATION PROCEDURE

1. Connect the disconnected harness connector of the inverter (front).

2. Perform the DTC CONFIRMATION PROCEDURE. Refer to Confirmation Procedure.

Is “P030A-62 detected?

YES>>

Replace the inverter (front). Refer to INVERTER (FRONT) : Removal & Installation.

NO>>

INSPECTION END

P0a00-11 Motor Coolant Temperature Sensor a

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P0A00	11	Motor Electronics Coolant Temperature Sensor A	Diagnosis condition	READY state
			Signal	Coolant temperature sensor signal
			Threshold	The coolant temperature sensor value deviated from the prescribed value.
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

Coolant temperature sensor circuit in the inverter (front)

FAIL-SAFE

Send coolant temperature that cannot be used to VCM.

Confirmation Procedure

PREPARATION BEFORE OPERATION

If another "Confirmation Procedure" was performed immediately before this task, always power switch OFF exit the Nissan Ariya vehicle and close all doors (including the back door), and wait for at least 60 seconds until the combination meter turns off before starting the next test.

CAUTION:

While waiting, never operate the Nissan Ariya vehicle such as locking, opening, and closing doors. Violation of this caution results in the activation of ACC power supply according to the auto ACC function.

>>

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

1. Power switch ON and wait at least 10 seconds.

2. Check the DTC.

Is “P0A00-11 detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

REPLACEMENT OF THE INVERTER (FRONT)

Replace the inverter (front). Refer to INVERTER (FRONT) : Removal & Installation.

>>

END

P0a00-13 Motor Coolant Temperature Sensor a

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P0A00	13	Motor Electronics Coolant Temperature Sensor A	Diagnosis condition	READY state
			Signal	Coolant temperature sensor signal
			Threshold	The coolant temperature sensor value deviated from the prescribed value
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

Coolant temperature sensor circuit in the inverter (front)

FAIL-SAFE

Send coolant temperature that cannot be used to VCM.

Confirmation Procedure

PREPARATION BEFORE OPERATION

If another "Confirmation Procedure" was performed immediately before this task, always power switch OFF exit the Nissan Ariya vehicle and close all doors (including the back door), and wait for at least 60 seconds until the combination meter turns off before starting the next test.

CAUTION:

While waiting, never operate the Nissan Ariya vehicle such as locking, opening, and closing doors. Violation of this caution results in the activation of ACC power supply according to the auto ACC function.

>>

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

1. Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.

2. Check the DTC.

Is “P0A00-13 detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

REPLACEMENT OF THE INVERTER (FRONT)

Replace the inverter (front). Refer to INVERTER (FRONT) : Removal & Installation.

>>

END

P0a1b-01 Drive Motor a Control Module

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P0A1B	01	Drive Motor A Control Module	Diagnosis condition	At inverter (front) start
			Signal	―
			Threshold	An error was detected related to the controller inside the inverter (front).
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

Inverter (front)

FAIL-SAFE

Control of the front traction motor stops. Or, the vehicle cannot be started (READY status cannot be achieved).

Confirmation Procedure

PREPARATION BEFORE OPERATION

If another "Confirmation Procedure" was performed immediately before this task, always power switch OFF exit the Nissan Ariya vehicle and close all doors (including the back door), and wait for at least 60 seconds until the combination meter turns off before starting the next test.

CAUTION:

While waiting, never operate the Nissan Ariya vehicle such as locking, opening, and closing doors. Violation of this caution results in the activation of ACC power supply according to the auto ACC function.

>>

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

1. Power switch ON and wait at least 10 seconds.

2. Check the DTC.

Is “P0A1B-01 detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

REPLACEMENT OF THE INVERTER (FRONT)

Replace the inverter (front). Refer to INVERTER (FRONT) : Removal & Installation.

>>

END

P0a1b-03 Drive Motor a Control Module

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P0A1B	03	Drive Motor A Control Modul	Diagnosis condition	At inverter (front) start or READY state
			Signal	—
			Threshold	An error was detected related to the controller inside the inverter (front).
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

Inverter (front)

FAIL-SAFE

Control of the front traction motor stops. Or, the vehicle cannot be started (READY status cannot be achieved).

Confirmation Procedure

PREPARATION BEFORE OPERATION

If another "Confirmation Procedure" was performed immediately before this task, always power switch OFF exit the Nissan Ariya vehicle and close all doors (including the back door), and wait for at least 60 seconds until the combination meter turns off before starting the next test.

CAUTION:

While waiting, never operate the Nissan Ariya vehicle such as locking, opening, and closing doors. Violation of this caution results in the activation of ACC power supply according to the auto ACC function.

>>

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

1. Power switch ON and wait at least 10 seconds.

2. Check the DTC.

Is “P0A1B-03 detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

REPLACEMENT OF THE INVERTER (FRONT)

Replace the inverter (front). Refer to INVERTER (FRONT) : Removal & Installation.

>>

END

P0a1b-04 Drive Motor a Control Module

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P0A1B	04	Drive Motor A Control Module	Diagnosis condition	READY state
			Signal	—
			Threshold	An error was detected related to the controller inside the inverter (front).
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

Inverter (front)

FAIL-SAFE

Control of the front traction motor stops. Or, the vehicle cannot be started (READY status cannot be achieved).

Confirmation Procedure

PREPARATION BEFORE OPERATION

If another "Confirmation Procedure" was performed immediately before this task, always power switch OFF exit the Nissan Ariya vehicle and close all doors (including the back door), and wait for at least 60 seconds until the combination meter turns off before starting the next test.

CAUTION:

While waiting, never operate the Nissan Ariya vehicle such as locking, opening, and closing doors. Violation of this caution results in the activation of ACC power supply according to the auto ACC function.

>>

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

1. Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.

2. Check the DTC.

Is “P0A1B-04 detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

REPLACEMENT OF THE INVERTER (FRONT)

Replace the inverter (front). Refer to INVERTER (FRONT) : Removal & Installation.

>>

END

P0a1b-05 Drive Motor a Control Module

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P0A1B	05	Drive Motor A Control Module	Diagnosis condition	READY state
			Signal	—
			Threshold	An error was detected related to the controller inside the inverter (front).
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

Inverter (front)

FAIL-SAFE

Control of the front traction motor stops. Or, the vehicle cannot be started (READY status cannot be achieved).

Confirmation Procedure

PREPARATION BEFORE OPERATION

If another "Confirmation Procedure" was performed immediately before this task, always power switch OFF exit the Nissan Ariya vehicle and close all doors (including the back door), and wait for at least 60 seconds until the combination meter turns off before starting the next test.

CAUTION:

While waiting, never operate the Nissan Ariya vehicle such as locking, opening, and closing doors. Violation of this caution results in the activation of ACC power supply according to the auto ACC function.

>>

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

1. Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.

2. Check the DTC.

Is “P0A1B-05 detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

CHECK FOR DTC RELATED TO THE HIGH VOLTAGE SYSTEM

With CONSULT

1. Power switch ON and wait at least 10 seconds.

2. Check the DTCs related to the high voltage system.

Is a DTC related to the high voltage system other than the inverter (front) detected?

YES>>

Check the detected DTC.

NO>>

GO TO 2.

INSPECTION OF THE CAN COMMUNICATION CIRCUIT

Inspect the CAN communication circuit. Refer to Trouble Diagnosis Flow Chart.

Is the inspection result normal?

YES>>

GO TO 3.

NO>>

Repair or replace the malfunctioning parts.

REPLACEMENT OF THE INVERTER (FRONT)

Replace the inverter (front). Refer to INVERTER (FRONT) : Removal & Installation.

>>

END

P0a1b-44 Drive Motor a Control Module

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P0A1B	44	Drive Motor A Control Module	Diagnosis condition	At inverter (front) start
			Signal	—
			Threshold	An error was detected at the data consistency check for the memory inside the inverter (front).
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

• 12V battery was disconnected while writing of the resolver offset value and rotor resistance value was in progress.

• Inverter (front)

FAIL-SAFE

—

Confirmation Procedure

PREPARATION BEFORE OPERATION

If another "Confirmation Procedure" was performed immediately before this task, always power switch OFF exit the Nissan Ariya vehicle and close all doors (including the back door), and wait for at least 60 seconds until the combination meter turns off before starting the next test.

CAUTION:

While waiting, never operate the Nissan Ariya vehicle such as locking, opening, and closing doors. Violation of this caution results in the activation of ACC power supply according to the auto ACC function.

>>

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

1. Power switch ON and wait at least 10 seconds.

2. Check the DTC.

Is P0A1B-44 detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

REPLACEMENT OF THE INVERTER (FRONT)

Replace the inverter (front). Refer to INVERTER (FRONT) : Removal & Installation.

>>

END

P0a2a-11 Drive Motor a Temperature Sensor

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P0A2A	11	Drive Motor A Temperature Sensor	Diagnosis condition	READY state
			Signal	Temperature sensor signal of front traction motor
			Threshold	Disconnection or short circuit in the front traction motor temperature sensor circuit
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

• Wiring harness or connector (Disconnection or short circuit in the front traction motor temperature sensor circuit)

• Front traction motor (front traction motor temperature sensor)

• Inverter (front)

FAIL-SAFE

Send front traction motor temperature of 180°C (356°F) to the VCM.

Confirmation Procedure

PREPARATION BEFORE OPERATION

If another "Confirmation Procedure" was performed immediately before this task, always power switch OFF exit the Nissan Ariya vehicle and close all doors (including the back door), and wait for at least 60 seconds until the combination meter turns off before starting the next test.

CAUTION:

While waiting, never operate the Nissan Ariya vehicle such as locking, opening, and closing doors. Violation of this caution results in the activation of ACC power supply according to the auto ACC function.

>>

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

1. Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.

2. Check the DTC.

Is “P0A2A-11 detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

INSPECTION OF THE TEMPERATURE SENSOR CIRCUIT OF THE FRONT TRACTION MOTOR

Inspect the temperature sensor circuit of the front traction motor. Refer to Diagnosis Procedure.

>>

INSPECTION END

P0a2a-13 Drive Motor a Temperature Sensor

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P0A2A	13	Drive Motor A Temperature Sensor	Diagnosis condition	READY state
			Signal	Temperature sensor signal of front traction motor
			Threshold	Disconnection or short circuit in the front traction motor temperature sensor circuit
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

• Wiring harness or connector (Disconnection or short circuit in the front traction motor temperature sensor circuit)

• Front traction motor (front traction motor temperature sensor)

• Inverter (front)

FAIL-SAFE

Send front traction motor temperature of 180°C (356°F) to the VCM.

Confirmation Procedure

PREPARATION BEFORE OPERATION

If another "Confirmation Procedure" was performed immediately before this task, always power switch OFF exit the Nissan Ariya vehicle and close all doors (including the back door), and wait for at least 60 seconds until the combination meter turns off before starting the next test.

CAUTION:

While waiting, never operate the Nissan Ariya vehicle such as locking, opening, and closing doors. Violation of this caution results in the activation of ACC power supply according to the auto ACC function.

>>

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

1. Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.

2. Check the DTC.

Is “P0A2A-13 detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

INSPECTION OF THE TEMPERATURE SENSOR CIRCUIT OF THE FRONT TRACTION MOTOR

Inspect the temperature sensor circuit of the front traction motor. Refer to Diagnosis Procedure.

>>

INSPECTION END

P0a2a-4b Drive Motor a Temperature Sensor

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P0A2A	4B	Drive Motor A Temperature Sensor	Diagnosis condition	READY state
			Signal	—
			Threshold	Overheat error was detected at the front traction motor (stator).
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

• Oil coolant system for front traction motor

• Leakage of front traction motor oil

• Wiring harness or connector (Disconnection or short circuit in the front traction motor temperature sensor circuit)

• Front traction motor (front traction motor temperature sensor)

• Inverter (front)

FAIL-SAFE

The driving torque of the front traction motor is limited to 0 Nm.

Confirmation Procedure

PREPARATION BEFORE OPERATION

If another "Confirmation Procedure" was performed immediately before this task, always power switch OFF exit the Nissan Ariya vehicle and close all doors (including the back door), and wait for at least 60 seconds until the combination meter turns off before starting the next test.

CAUTION:

While waiting, never operate the Nissan Ariya vehicle such as locking, opening, and closing doors. Violation of this caution results in the activation of ACC power supply according to the auto ACC function.

>>

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

1. Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.

2. Drive the vehicle for at least 20 minutes to warm it up.

3. Fully depress the accelerator pedal and accelerate the Nissan Ariya vehicle from 0 km/h (0 MPH) to 10 km/h (6 MPH). Repeat this for 10 times without interruption to the maximum extent possible.

4. Stop the Nissan Ariya vehicle

5. Check the DTC.

Is “P0A2A-4B detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

CHECK FOR DTC RELATED TO THE HIGH VOLTAGE COOLING SYSTEM

With CONSULT

1. Power ON and wait at least 10 seconds.

2. Check "Self Diagnostic Result" of "EV/HEV".

Is a DTC related to the high voltage cooling system detected?

YES>>

Check the detected DTC item. Refer to DTC Index.

NO>>

GO TO 2.

INSPECTION OF COOLANT

Inspect the coolant level and leakage of coolant. Refer to COOLANT : Inspection.

YES>>

GO TO 3.

NO>>

Repair or replace the malfunctioning parts.

INSPECTION OF THE COOLANT HOSE

Check for clogging or twisting of the hose of the oil coolant circuit for the front traction motor.

Is the inspection result normal?

YES>>

GO TO 4.

NO>>

Repair or replace the malfunctioning parts.

INSPECTION FOR FRONT TRACTION MOTOR OIL

Check visually for leakage of the front traction motor oil.

Is the inspection result normal?

YES>>

GO TO 5.

NO>>

Replace the front traction motor. Refer to FRONT TRACTION MOTOR : Removal & Installation.

INSPECTION OF THE TEMPERATURE SENSOR CIRCUIT OF THE FRONT TRACTION MOTOR

Inspect the temperature sensor circuit of the front traction motor. Refer to Diagnosis Procedure.

>>

INSPECTION END

P0a3f-04 Drive Motor a Position Sensor

DTC Description

CAUTION:

When installing the 12V battery into the vehicle, a DTC may be stored as a result of fluctuations in the voltage input into the inverter.

If a DTC remains in the past malfunctions, check the history of 12V battery removal and installation.

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P0A3F	04	Drive Motor A Position Sensor	Diagnosis condition	At inverter (front) start or READY state
			Signal	Front traction motor resolver signal
			Threshold	An error was detected at the front traction motor resolver system.
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

• Wiring harness or connector (disconnection or short circuit in the resolver circuit of the front traction motor)

• Front traction motor (traction motor resolver)

• Inverter (front)

FAIL-SAFE

Control of the front traction motor stops. Or, the vehicle cannot be started (READY status cannot be achieved).

Confirmation Procedure

PREPARATION BEFORE OPERATION

If another "Confirmation Procedure" was performed immediately before this task, always power switch OFF exit the Nissan Ariya vehicle and close all doors (including the back door), and wait for at least 60 seconds until the combination meter turns off before starting the next test.

CAUTION:

While waiting, never operate the Nissan Ariya vehicle such as locking, opening, and closing doors. Violation of this caution results in the activation of ACC power supply according to the auto ACC function.

>>

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

1. Power switch ON and wait at least 10 seconds.

2. Check the DTC.

Is “P0A3F-04 detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

INSPECTION OF THE FRONT TRACTION MOTOR RESOLVER CIRCUIT

Inspect the front traction motor resolver circuit. Refer to Diagnosis Procedure.

>>

INSPECTION END

P0a3f-1c Drive Motor a Position Sensor

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P0A3F	1C	Drive Motor A Position Sensor	Diagnosis condition	READY state
			Signal	Front traction motor resolver signal
			Threshold	An error was detected at the front traction motor resolver system.
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

• Wiring harness or connector (disconnection or short circuit in the resolver circuit of the front traction motor)

• Front traction motor (traction motor resolver)

• Inverter (front)

FAIL-SAFE

Control of the front traction motor stops. Or, the vehicle cannot be started (READY status cannot be achieved).

Confirmation Procedure

PREPARATION BEFORE OPERATION

If another "Confirmation Procedure" was performed immediately before this task, always power switch OFF exit the Nissan Ariya vehicle and close all doors (including the back door), and wait for at least 60 seconds until the combination meter turns off before starting the next test.

CAUTION:

While waiting, never operate the Nissan Ariya vehicle such as locking, opening, and closing doors. Violation of this caution results in the activation of ACC power supply according to the auto ACC function.

>>

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

1. Set to READY and wait for at least 10 seconds.

2. Check the DTC.

Is “P0A3F-1C detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

INSPECTION OF THE FRONT TRACTION MOTOR RESOLVER CIRCUIT

Inspect the front traction motor resolver circuit. Refer to Diagnosis Procedure.

>>

INSPECTION END

P0a51-01 Drive Motor a Current Sensor

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P0A51	01	Drive Motor A Current Sensor	Diagnosis condition	READY state
			Signal	—
			Threshold	Any of the following was detected. The current sensor value deviated from the prescribed value. The sum of the 3 phases currents deviated from the prescribed value.
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

Current sensor circuit in the inverter (front)

FAIL-SAFE

Control of the front traction motor stops.

Confirmation Procedure

PREPARATION BEFORE OPERATION

If another "Confirmation Procedure" was performed immediately before this task, always power switch OFF exit the Nissan Ariya vehicle and close all doors (including the back door), and wait for at least 60 seconds until the combination meter turns off before starting the next test.

CAUTION:

While waiting, never operate the Nissan Ariya vehicle such as locking, opening, and closing doors. Violation of this caution results in the activation of ACC power supply according to the auto ACC function.

>>

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

1. Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds

2. Depress the accelerator pedal to increase the Nissan Ariya vehicle speed up to 10 km/h (6 MPH).

3. Stop the vehicle.

4. Check the DTC.

Is “P0A51-01 detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

REPLACEMENT OF THE INVERTER (FRONT)

Replace the inverter (front). Refer to INVERTER (FRONT) : Removal & Installation.

>>

END

P0a78-48 Drive Motor a Inverter

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P0A78	48	Drive Motor A Inverter	Diagnosis condition	READY state
			Signal	—
			Threshold	An error signal from the LBC was received.
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

EV battery system

FAIL-SAFE

Limits drive torque of front traction motor

Confirmation Procedure

PREPARATION BEFORE OPERATION

If another "Confirmation Procedure" was performed immediately before this task, always power switch OFF exit the Nissan Ariya vehicle and close all doors (including the back door), and wait for at least 60 seconds until the combination meter turns off before starting the next test.

CAUTION:

While waiting, never operate the Nissan Ariya vehicle such as locking, opening, and closing doors. Violation of this caution results in the activation of ACC power supply according to the auto ACC function.

>>

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

1. Set to READY and wait for at least 10 seconds.

2. Check the DTC.

Is “P0A78-48 detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

INSPECTION OF THE EV BATTERY SYSTEM

Inspect the EV battery system. Refer to Work Flow (66kWh Li-ion battery models) or Work Flow (91kWh Li-ion battery models).

>>

INSPECTION END

P0a78-62 Drive Motor a Inverter

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P0A78	62	Drive Motor A Inverter	Diagnosis condition	READY state
			Signal	—
			Threshold	There was an inconsistency between the voltage value detected by the voltage monitor circuit and the system main relay ON/OFF that is received via CAN.
			Diagnosis delay time	Within 2 seconds

POSSIBLE CAUSE

• CAN signal (system main relay ON/OFF signal)

• System main relay

• Voltage monitor circuit in the inverter (front)

FAIL-SAFE

Control of the front traction motor stops. Or, no limitation

Confirmation Procedure

PREPARATION BEFORE OPERATION

If another "Confirmation Procedure" was performed immediately before this task, always power switch OFF exit the Nissan Ariya vehicle and close all doors (including the back door), and wait for at least 60 seconds until the combination meter turns off before starting the next test.

CAUTION:

While waiting, never operate the Nissan Ariya vehicle such as locking, opening, and closing doors. Violation of this caution results in the activation of ACC power supply according to the auto ACC function.

>>

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

1. Set to READY and wait for at least 10 seconds.

2. Check the DTC.

Is “P0A78-62 detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

WARNING:

Since hybrid vehicles and electric Nissan Ariya vehicles contain a high voltage battery, there is the risk of electric shock, electric leakage, or similar accidents if the high voltage component and Nissan Ariya vehicle are handled incorrectly. Be sure to follow the correct work procedures when performing inspection and maintenance.

WARNING:

• Be sure to remove the service plug in order to disconnect the high voltage circuits before performing inspection or maintenance of high voltage system harnesses and parts.

• The removed service plug must always be carried in a pocket of the responsible worker or placed in the tool box during the procedure to prevent the plug from being connected by mistake.

• Be sure to wear insulating protective equipment before beginning work on the high voltage system.

• Never allow workers other than the responsible person to touch the Nissan Ariya vehicle containing high voltage parts. To keep others from touching the high voltage parts, these parts must be covered with an insulating sheet except when using them.

• Refer to HIGH VOLTAGE PRECAUTIONS : Precautions.

CAUTION:

Never bring the vehicle into the READY status with the service plug removed unless otherwise instructed in the Service Manual. A malfunction may occur if this is not observed.

INSPECTION OF THE CAN COMMUNICATION CIRCUIT

Inspect the CAN communication circuit. Refer to Trouble Diagnosis Flow Chart.

Is the inspection result normal?

YES>>

GO TO 2.

NO>>

Repair or replace the malfunctioning parts.

CHECK FOR DTC RELATED TO THE HIGH VOLTAGE SYSTEM

With CONSULT

1. Power switch ON and wait at least 10 seconds.

2. Check the DTCs related to the high voltage system.

Is a DTC related to the high voltage system other than the inverter (front) detected?

YES>>

Check the detected DTC.

NO>>

GO TO 3.

PRECONDITIONING

WARNING:

Follow the instructions below before starting the procedure.

1. Disconnect high voltage circuit. Refer to HOW TO DISCONNECT HIGH VOLTAGE : Precautions.

2. Check voltage in high voltage circuit. Refer to CHECK VOLTAGE IN HIGH VOLTAGE CIRCUIT : Precautions.

>>

GO TO 4.

INSPECTION OF THE HIGH VOLTAGE HARNESS

Inspect the high voltage harness between the Li-ion battery and the inverter (front).

Is the inspection result normal?

YES>>

GO TO 5.

NO>>

Repair or replace the malfunctioning parts.

INSPECTION OF THE SYSTEM MAIN RELAY CIRCUIT

Inspect the circuits of system main relays 1 and 2.

• System main relay 1: Refer to Diagnosis Procedure (66kWh Li-ion battery models) or Diagnosis Procedure (91kWh Li-ion battery models).

• System main relay 2: Refer to Diagnosis Procedure (66kWh Li-ion battery models) or Diagnosis Procedure (91kWh Li-ion battery models).

Is the inspection result normal?

YES>>

Replace the inverter (front). Refer to INVERTER (FRONT) : Removal & Installation.

NO>>

Repair or replace the malfunctioning parts.

P0a8b-A2 14 Volt Power Module System Voltage

DTC Description

CAUTION:

When installing the 12V battery into the vehicle, a DTC may be stored as a result of fluctuations in the voltage input into the inverter.

If a DTC remains in the past malfunctions, check the history of 12V battery removal and installation.

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P0A8B	A2	14 Volt Power Module System Voltage	Diagnosis condition	At inverter (front) start (power switch ON, READY state, or auto ACC ON state)
			Signal	—
			Threshold	Voltage supplied to the inverter (front) by the 12V battery dropped below 9 V.
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

• 12V battery voltage drop

• Wiring harness or connector (disconnection or short circuit of 12V battery voltage supply circuit)

• Inverter (front)

FAIL-SAFE

Control of the front traction motor stops.

Confirmation Procedure

PREPARATION BEFORE OPERATION

If another "Confirmation Procedure" was performed immediately before this task, always power switch OFF exit the Nissan Ariya vehicle and close all doors (including the back door), and wait for at least 10 minutes until the combination meter turns off before starting the next test.

CAUTION:

While waiting, never operate the Nissan Ariya vehicle such as locking, opening, and closing doors. Violation of this caution results in the activation of ACC power supply according to the auto ACC function.

>>

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

1. Power switch ON and wait at least 10 seconds.

2. Check the DTC.

Is “P0A8B-A2 detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

INSPECTION OF THE 12V BATTERY

Inspect the 12V battery. Refer to Work Flow.

Is the inspection result normal?

YES>>

GO TO 2.

NO>>

Repair or replace the malfunctioning parts.

CHECK FUSE

1. Power switch OFF.

2. Check that the 10A fuse (#93) is not blown.

Is the fuse blown?

YES>>

Replace the blown fuse after repairing the affected circuit.

NO>>

GO TO 3.

INSPECTION OF THE HARNESS CONNECTOR

1. Power switch OFF.

2. Check mating conditions of the harness connector for the inverter (front).

Is the inspection result normal?

YES>>

GO TO 4.

NO>>

Repair or replace the malfunctioning parts.

INSPECTION OF THE CONNECTOR TERMINAL

1. Disconnect the harness connector of the inverter (front).

2. Check the inverter (front) connector for water intrusion, or damage or corrosion of the terminals.

Is the inspection result normal?

YES>>

GO TO 5.

NO>>

Repair or replace the malfunctioning parts.

INSPECTION OF THE 12V BATTERY POWER SUPPLY CIRCUIT

1. Power switch ON.

2. Check the voltage between the harness connector terminals of the inverter (front).

Inverter (front)			Voltage
Connector	Terminal
F14	18	4	9 – 16 V
	28	14

Is the inspection result normal?

YES>>

Replace the inverter (front). Refer to INVERTER (FRONT) : Removal & Installation.

NO>>

GO TO 6.

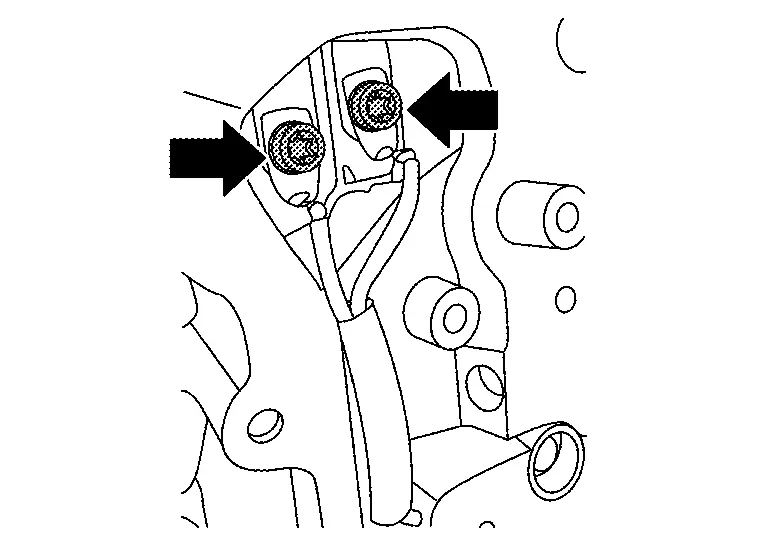

INSPECTION OF THE GROUND CIRCUIT FOR THE INVERTER (FRONT)

Check continuity between the harness connector of the inverter (front) and the body ground.

Inverter (front)		−	Continuity
Connector	Terminal
F14	4	Body ground	Exsited
	14

Is the inspection result normal?

YES>>

GO TO 7.

NO>>

Repair or replace the malfunctioning parts.

INSPECTION OF 12V BATTERY POWER SUPPLY CIRCUIT 2

Inspect the following items:

• Disconnection or short circuit in the wiring harness between harness connector terminals No. 18 and No. 28 between the 12V battery and the inverter (front).

• 10A fuse (#93)

>>

Repair or replace the malfunctioning parts.

P0aed-11 Drive Motor Inverter Temperature Sensor a

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P0AED	11	Drive Motor Inverter Temperature Sensor A	Diagnosis condition	READY state
			Signal	—
			Threshold	Any of the following was detected. The excitation print circuit board temperature sensor value deviated from the prescribed value. The driver print circuit board temperature sensor value deviated from the prescribed value.
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

Excitation print circuit board temperature sensor circuit or driver print circuit board temperature sensor circuit in the inverter (front)

FAIL-SAFE

—

Confirmation Procedure

PREPARATION BEFORE OPERATION

If another "Confirmation Procedure" was performed immediately before this task, always power switch OFF exit the Nissan Ariya vehicle and close all doors (including the back door), and wait for at least 60 seconds until the combination meter turns off before starting the next test.

CAUTION:

While waiting, never operate the Nissan Ariya vehicle such as locking, opening, and closing doors. Violation of this caution results in the activation of ACC power supply according to the auto ACC function.

>>

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

1. Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.

2. Check the DTC.

Is “P0AED-11 detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

REPLACEMENT OF THE INVERTER (FRONT)

Replace the inverter (front). Refer to INVERTER (FRONT) : Removal & Installation.

>>

END

P0aed-13 Drive Motor Inverter Temperature Sensor a

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P0AED	13	Drive Motor Inverter Temperature Sensor A	Diagnosis condition	READY state
			Signal	—
			Threshold	Any of the following was detected. The excitation print circuit board temperature sensor value deviated from the prescribed value. The driver print circuit board temperature sensor value deviated from the prescribed value.
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

Excitation print circuit board temperature sensor circuit or driver print circuit board temperature sensor circuit in the inverter (front)

FAIL-SAFE

—

Confirmation Procedure

PREPARATION BEFORE OPERATION

If another "Confirmation Procedure" was performed immediately before this task, always power switch OFF exit the Nissan Ariya vehicle and close all doors (including the back door), and wait for at least 60 seconds until the combination meter turns off before starting the next test.

CAUTION:

While waiting, never operate the Nissan Ariya vehicle such as locking, opening, and closing doors. Violation of this caution results in the activation of ACC power supply according to the auto ACC function.

>>

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

1. Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.

2. Check the DTC.

Is “P0AED-13 detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

REPLACEMENT OF THE INVERTER (FRONT)

Replace the inverter (front). Refer to INVERTER (FRONT) : Removal & Installation.

>>

END

P0aed-1c Drive Motor Inverter Temperature Sensor a

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P0AED	1C	Drive Motor Inverter Temperature Sensor A	Diagnosis condition	READY state
			Signal	—
			Threshold	The power module temperature sensor value deviated from the prescribed value.
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

Power module temperature sensor circuit in the inverter (front)

FAIL-SAFE

—

Confirmation Procedure

PREPARATION BEFORE OPERATION

If another "Confirmation Procedure" was performed immediately before this task, always power switch OFF exit the Nissan Ariya vehicle and close all doors (including the back door), and wait for at least 60 seconds until the combination meter turns off before starting the next test.

CAUTION:

While waiting, never operate the Nissan Ariya vehicle such as locking, opening, and closing doors. Violation of this caution results in the activation of ACC power supply according to the auto ACC function.

>>

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

1. Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.

2. Check the DTC.

Is “P0AED-1C detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

REPLACEMENT OF THE INVERTER (FRONT)

Replace the inverter (front). Refer to INVERTER (FRONT) : Removal & Installation.

>>

END

P0aed-4b Drive Motor Inverter Temperature Sensor a

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P0AED	4B	Drive Motor Inverter Temperature Sensor A	Diagnosis condition	At inverter (front) start or READY state
			Signal	—
			Threshold	Any of the following was detected. The temperature in the inverter (front) exceeded the prescribed value. Overheat detected by hardware.
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

• Coolant system for inverter (front)

• Inverter (front)

FAIL-SAFE

The driving torque of the front traction motor is limited to 0 Nm. Or, control of the front traction motor stops.

Confirmation Procedure

PREPARATION BEFORE OPERATION

If another "Confirmation Procedure" was performed immediately before this task, always power switch OFF exit the Nissan Ariya vehicle and close all doors (including the back door), and wait for at least 60 seconds until the combination meter turns off before starting the next test.

CAUTION:

While waiting, never operate the Nissan Ariya vehicle such as locking, opening, and closing doors. Violation of this caution results in the activation of ACC power supply according to the auto ACC function.

>>

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

1. Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.

2. Drive the vehicle for at least 20 minutes to warm it up.

3. Fully depress the accelerator pedal and accelerate the Nissan Ariya vehicle from 0 km/h (0 MPH) to 10 km/h (6 MPH). Repeat this for 10 times without interruption to the maximum extent possible.

4. Stop the Nissan Ariya vehicle.

5. Check the DTC.

Is “P0AED-4B detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

CHECK FOR DTC RELATED TO THE HIGH VOLTAGE COOLING SYSTEM

With CONSULT

1. Power switch ON and wait at least 10 seconds.

2. Check "Self Diagnostic Result" of "EV/HEV".

Is a DTC related to the high voltage cooling system detected?

YES>>

Check the detected DTC item. Refer to DTC Index.

NO>>

GO TO 2.

INSPECTION OF COOLANT

Inspect the coolant volume and leakage of coolant. Refer to COOLANT : Inspection.

Is the inspection result normal?

YES>>

GO TO 3.

NO>>

Repair or replace the malfunctioning parts.

INSPECTION OF THE COOLANT HOSE

Check for clogging or twisting of the hose in the coolant system for the inverter (front).

Is the inspection result normal?

YES>>

GO TO 4.

NO>>

Repair or replace the malfunctioning parts.

PERFORM THE DTC CONFIRMATION PROCEDURE

Perform the DTC CONFIRMATION PROCEDURE. Refer to Confirmation Procedure.

YES>>

Replace the inverter (front). Refer to INVERTER (FRONT) : Removal & Installation.

NO>>

INSPECTION END

P0be5-1c Drive Motor a Phase U Current Sensor

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P0BE5	1C	Drive Motor A Phase U Current Sensor	Diagnosis condition	At inverter (front) start
			Signal	—
			Threshold	The U-phase current sensor output deviated from the prescribed value
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

U-phase current sensor circuit in the inverter (front)

FAIL-SAFE

The vehicle cannot be started (READY status cannot be achieved).

Confirmation Procedure

PREPARATION BEFORE OPERATION

If another "Confirmation Procedure" was performed immediately before this task, always power switch OFF exit the Nissan Ariya vehicle and close all doors (including the back door), and wait for at least 60 seconds until the combination meter turns off before starting the next test.

CAUTION:

While waiting, never operate the Nissan Ariya vehicle such as locking, opening, and closing doors. Violation of this caution results in the activation of ACC power supply according to the auto ACC function.

>>

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

1. Power switch ON and wait at least 10 seconds.

2. Check the DTC.

Is “P0BE5-1C detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

REPLACEMENT OF THE INVERTER (FRONT)

Replace the inverter (front). Refer to INVERTER (FRONT) : Removal & Installation.

>>

END

P0be9-1c Drive Motor a Phase V Current Sensor

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P0BE9	1C	Drive Motor A Phase V Current Sensor	Diagnosis condition	At inverter (front) start
			Signal	—
			Threshold	The V-phase current sensor output deviated from the prescribed value.
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

V-phase current sensor circuit in the inverter (front)

FAIL-SAFE

The vehicle cannot be started (READY status cannot be achieved).

Confirmation Procedure

PREPARATION BEFORE OPERATION

If another "Confirmation Procedure" was performed immediately before this task, always power switch OFF exit the Nissan Ariya vehicle and close all doors (including the back door), and wait for at least 60 seconds until the combination meter turns off before starting the next test.

CAUTION:

While waiting, never operate the Nissan Ariya vehicle such as locking, opening, and closing doors. Violation of this caution results in the activation of ACC power supply according to the auto ACC function.

>>

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

1. Power switch ON and wait at least 10 seconds.

2. Check the DTC.

Is “P0BE9-1C detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

REPLACEMENT OF THE INVERTER (FRONT)

Replace the inverter (front). Refer to INVERTER (FRONT) : Removal & Installation.

>>

END

P0bed-1c Drive Motor a Phase W Current Sensor

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P0BED	1C	Drive Motor A Phase W Current Sensor	Diagnosis condition	At inverter (front) start
			Signal	—
			Threshold	The W-phase current sensor output deviated from the prescribed value.
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

W-phase current sensor circuit in the inverter (front)

FAIL-SAFE

The vehicle cannot be started (READY status cannot be achieved).

Confirmation Procedure

PREPARATION BEFORE OPERATION

If another "Confirmation Procedure" was performed immediately before this task, always power switch OFF exit the Nissan Ariya vehicle and close all doors (including the back door), and wait for at least 60 seconds until the combination meter turns off before starting the next test.

CAUTION:

While waiting, never operate the Nissan Ariya vehicle such as locking, opening, and closing doors. Violation of this caution results in the activation of ACC power supply according to the auto ACC function.

>>

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

1. Power switch ON and wait at least 10 seconds.

2. Check the DTC.

Is “P0BED-1C detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

REPLACEMENT OF THE INVERTER (FRONT)

Replace the inverter (front). Refer to INVERTER (FRONT) : Removal & Installation.

>>

END

P0bff-11 Drive Motor a Current

DTC Description

CAUTION:

When installing the 12V battery into the vehicle, a DTC may be stored as a result of fluctuations in the voltage input into the inverter.

If a DTC remains in the past malfunctions, check the history of 12V battery removal and installation.

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P0BFF	11	Drive Motor A Current	Diagnosis condition	READY state
			Signal	—
			Threshold	A power module error was detected.
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

Power module in the inverter (front)

FAIL-SAFE

Control of the front traction motor stops.

Confirmation Procedure

PREPARATION BEFORE OPERATION

If another "Confirmation Procedure" was performed immediately before this task, always power switch OFF exit the Nissan Ariya vehicle and close all doors (including the back door), and wait for at least 60 seconds until the combination meter turns off before starting the next test.

CAUTION:

While waiting, never operate the Nissan Ariya vehicle such as locking, opening, and closing doors. Violation of this caution results in the activation of ACC power supply according to the auto ACC function.

>>

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

1. Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.

2. Fully depress the accelerator pedal to increase the Nissan Ariya vehicle speed up to 10 km/h (6 MPH).

3. Stop the vehicle.

4. Check the DTC.

Is “P0BFF-11 detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

REPLACEMENT OF THE INVERTER (FRONT)

Replace the inverter (front). Refer to INVERTER (FRONT) : Removal & Installation.

>>

END

P0bff-12 Drive Motor a Current

DTC Description

CAUTION:

When installing the 12V battery into the vehicle, a DTC may be stored as a result of fluctuations in the voltage input into the inverter.

If a DTC remains in the past malfunctions, check the history of 12V battery removal and installation.

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P0BFF	12	Drive Motor A Current	Diagnosis condition	READY state
			Signal	—
			Threshold	A power module error was detected.
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

Power module in the inverter (front)

FAIL-SAFE

Control of the front traction motor stops.

Confirmation Procedure

PREPARATION BEFORE OPERATION

If another "Confirmation Procedure" was performed immediately before this task, always power switch OFF exit the Nissan Ariya vehicle and close all doors (including the back door), and wait for at least 60 seconds until the combination meter turns off before starting the next test.

CAUTION:

While waiting, never operate the Nissan Ariya vehicle such as locking, opening, and closing doors. Violation of this caution results in the activation of ACC power supply according to the auto ACC function.

>>

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

1. Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.

2. Fully depress the accelerator pedal to increase the Nissan Ariya vehicle speed up to 10 km/h (6 MPH).

3. Stop the vehicle.

4. Check the DTC.

Is “P0BFF-12 detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

REPLACEMENT OF THE INVERTER (FRONT)

Replace the inverter (front). Refer to INVERTER (FRONT) : Removal & Installation.

>>

END

P0bff-18 Drive Motor a Current

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P0BFF	18	Drive Motor A Current	Diagnosis condition	READY state
			Signal	—
			Threshold	A power module error was detected.
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

Power module in the inverter (front)

FAIL-SAFE

Control of the front traction motor stops.

Confirmation Procedure

PREPARATION BEFORE OPERATION

If another "Confirmation Procedure" was performed immediately before this task, always power switch OFF exit the Nissan Ariya vehicle and close all doors (including the back door), and wait for at least 60 seconds until the combination meter turns off before starting the next test.

CAUTION:

While waiting, never operate the Nissan Ariya vehicle such as locking, opening, and closing doors. Violation of this caution results in the activation of ACC power supply according to the auto ACC function.

>>

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

1. Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.

2. Fully depress the accelerator pedal to increase the Nissan Ariya vehicle speed up to 10 km/h (6 MPH).

3. Stop the vehicle.

4. Check the DTC.

Is “P0BFF-18 detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

REPLACEMENT OF THE INVERTER (FRONT)

Replace the inverter (front). Refer to INVERTER (FRONT) : Removal & Installation.

>>

END

P0c0b-01 Drive Motor a Inverter Power Supply

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P0C0B	01	Drive Motor A Inverter Power Supply	Diagnosis condition	At inverter (front) start or READY state
			Signal	—
			Threshold	An error was detected related to the internal power supply of the inverter (front).
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

Inverter (front)

FAIL-SAFE

Control of the front traction motor stops. Or, the vehicle cannot be started (READY status cannot be achieved).

Confirmation Procedure

PREPARATION BEFORE OPERATION

If another "Confirmation Procedure" was performed immediately before this task, always power switch OFF exit the Nissan Ariya vehicle and close all doors (including the back door), and wait for at least 60 seconds until the combination meter turns off before starting the next test.

CAUTION:

While waiting, never operate the Nissan Ariya vehicle such as locking, opening, and closing doors. Violation of this caution results in the activation of ACC power supply according to the auto ACC function.

>>

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

1. Power switch ON and wait at least 10 seconds.

2. Check the DTC.

Is “P0C0B-01 detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

REPLACEMENT OF THE INVERTER (FRONT)

Replace the inverter (front). Refer to INVERTER (FRONT) : Removal & Installation.

>>

END

P0c0b-04 Drive Motor a Inverter Power Supply

DTC Description

CAUTION:

When installing the 12V battery into the vehicle, a DTC may be stored as a result of fluctuations in the voltage input into the inverter.

If a DTC remains in the past malfunctions, check the history of 12V battery removal and installation.

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P0C0B	04	Drive Motor A Inverter Power Supply	Diagnosis condition	At inverter (front) start
			Signal	—
			Threshold	An error was detected related to the internal power supply of the inverter (front).
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

Inverter (front)

FAIL-SAFE

Control of the front traction motor stops. Or, the vehicle cannot be started (READY status cannot be achieved).

Confirmation Procedure

PREPARATION BEFORE OPERATION

If another "Confirmation Procedure" was performed immediately before this task, always power switch OFF exit the Nissan Ariya vehicle and close all doors (including the back door), and wait for at least 60 seconds until the combination meter turns off before starting the next test.

CAUTION:

While waiting, never operate the Nissan Ariya vehicle such as locking, opening, and closing doors. Violation of this caution results in the activation of ACC power supply according to the auto ACC function.

>>

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

1. Power switch ON and wait at least 10 seconds.

2. Check the DTC.

Is “P0C0B-04 detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

REPLACEMENT OF THE INVERTER (FRONT)

Replace the inverter (front). Refer to INVERTER (FRONT) : Removal & Installation.

>>

END

P0c0b-1c Drive Motor a Inverter Power Supply

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P0C0B	1C	Drive Motor A Inverter Power Supply	Diagnosis condition	READY state
			Signal	—
			Threshold	An error was detected related to the internal power supply of the inverter (front).
			Diagnosis delay time	—

POSSIBLE CAUSE

Inverter (front)

FAIL-SAFE

Control of the front traction motor stops. Or, the vehicle cannot be started (READY status cannot be achieved).

Confirmation Procedure

PREPARATION BEFORE OPERATION

If another "Confirmation Procedure" was performed immediately before this task, always power switch OFF exit the Nissan Ariya vehicle and close all doors (including the back door), and wait for at least 60 seconds until the combination meter turns off before starting the next test.

CAUTION:

While waiting, never operate the Nissan Ariya vehicle such as locking, opening, and closing doors. Violation of this caution results in the activation of ACC power supply according to the auto ACC function.

>>

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

1. Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.

2. Check the DTC.

Is “P0C0B-1C detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

REPLACEMENT OF THE INVERTER (FRONT)

Replace the inverter (front). Refer to INVERTER (FRONT) : Removal & Installation.

>>

END

P0c0b-A2 Drive Motor a Inverter Power Supply

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P0C0B	A2	Drive Motor A Inverter Power Supply	Diagnosis condition	READY state
			Signal	—
			Threshold	An error was detected related to the internal power supply of the inverter (front).
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

Inverter (front)

FAIL-SAFE

Control of the front traction motor stops. Or, the vehicle cannot be started (READY status cannot be achieved).

Confirmation Procedure

PREPARATION BEFORE OPERATION

If another "Confirmation Procedure" was performed immediately before this task, always power switch OFF exit the Nissan Ariya vehicle and close all doors (including the back door), and wait for at least 60 seconds until the combination meter turns off before starting the next test.

CAUTION:

While waiting, never operate the Nissan Ariya vehicle such as locking, opening, and closing doors. Violation of this caution results in the activation of ACC power supply according to the auto ACC function.

>>

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

1. Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.

2. Check the DTC.

Is “P0C0B-A2 detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

REPLACEMENT OF THE INVERTER (FRONT)

Replace the inverter (front). Refer to INVERTER (FRONT) : Removal & Installation.

>>

END

P0cbc-11 Drive Motor a Coolant Temperature Sensor

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P0CBC	11	Drive Motor A Coolant Temperature Sensor	Diagnosis condition	READY state
			Signal	Oil temperature sensor signal of the front traction motor
			Threshold	Disconnection or short circuit in the oil temperature sensor circuit of the front traction motor
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

• Wiring harness or connector (disconnection or short circuit in the oil temperature sensor circuit of the front traction motor)

• Front traction motor (oil temperature sensor of the front traction motor)

• Inverter (front)

FAIL-SAFE

—

Confirmation Procedure

PREPARATION BEFORE OPERATION

If another "Confirmation Procedure" was performed immediately before this task, always power switch OFF exit the Nissan Ariya vehicle and close all doors (including the back door), and wait for at least 60 seconds until the combination meter turns off before starting the next test.

CAUTION:

While waiting, never operate the Nissan Ariya vehicle such as locking, opening, and closing doors. Violation of this caution results in the activation of ACC power supply according to the auto ACC function.

>>

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

1. Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.

2. Check the DTC.

Is “P0CBC-11 detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

INSPECTION OF THE OIL TEMPERATURE SENSOR CIRCUIT OF THE FRONT TRACTION MOTOR

Inspect the oil temperature sensor circuit of the front traction motor. Refer to Diagnosis Procedure.

>>

INSPECTION END

P0cbc-13 Drive Motor a Coolant Temperature Sensor

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P0CBC	13	Drive Motor A Coolant Temperature Sensor	Diagnosis condition	READY state
			Signal	Oil temperature sensor signal of the front traction motor
			Threshold	Disconnection or short circuit in the oil temperature sensor circuit of the front traction motor
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

• Wiring harness or connector (disconnection or short circuit in the oil temperature sensor circuit of the front traction motor)

• Front traction motor (oil temperature sensor of the front traction motor)

• Inverter (front)

FAIL-SAFE

—

Confirmation Procedure

PREPARATION BEFORE OPERATION

If another "Confirmation Procedure" was performed immediately before this task, always power switch OFF exit the Nissan Ariya vehicle and close all doors (including the back door), and wait for at least 60 seconds until the combination meter turns off before starting the next test.

CAUTION:

While waiting, never operate the Nissan Ariya vehicle such as locking, opening, and closing doors. Violation of this caution results in the activation of ACC power supply according to the auto ACC function.

>>

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

1. Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.

2. Check the DTC.

Is “P0CBC-13 detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

INSPECTION OF THE OIL TEMPERATURE SENSOR CIRCUIT OF THE FRONT TRACTION MOTOR

Inspect the oil temperature sensor circuit of the front traction motor. Refer to Diagnosis Procedure.

>>

INSPECTION END

P0cbc-4b Drive Motor a Coolant Temperature Sensor

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P0CBC	4B	Drive Motor A Coolant Temperature Sensor	Diagnosis condition	READY state
			Signal	Oil temperature sensor signal of the front traction motor
			Threshold	Overheat error was detected at the front traction motor.
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

• Oil coolant system for front traction motor

• Leakage of front traction motor oil

• Wiring harness or connector (disconnection or short circuit in the oil temperature sensor circuit of the front traction motor)

• Front traction motor (oil temperature sensor of the front traction motor)

• Inverter (front)

FAIL-SAFE

The driving torque of the front traction motor is limited to 0 Nm.

Confirmation Procedure

PREPARATION BEFORE OPERATION

If another "Confirmation Procedure" was performed immediately before this task, always power switch OFF exit the Nissan Ariya vehicle and close all doors (including the back door), and wait for at least 60 seconds until the combination meter turns off before starting the next test.

CAUTION:

While waiting, never operate the Nissan Ariya vehicle such as locking, opening, and closing doors. Violation of this caution results in the activation of ACC power supply according to the auto ACC function.

>>

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

1. Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.

2. Drive the vehicle for at least 20 minutes to warm it up.

3. Fully depress the accelerator pedal and accelerate the Nissan Ariya vehicle from 0 km/h (0 MPH) to 10 km/h (6 MPH). Repeat this for 10 times without interruption to the maximum extent possible.

4. Stop the Nissan Ariya vehicle.

5. Check the DTC.

Is “P0CBC-4B detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

CHECK FOR DTC RELATED TO THE HIGH VOLTAGE COOLING SYSTEM

With CONSULT

1. Power switch ON and wait at least 10 seconds.

2. Check "Self Diagnostic Result" of "EV/HEV".

Is a DTC related to the high voltage cooling system detected?

YES>>

Check the detected DTC item. Refer to DTC Index.

NO>>

GO TO 2.

INSPECTION OF COOLANT

Inspect the coolant volume and leakage of coolant. Refer to COOLANT : Inspection.

Is the inspection result normal?

YES>>

GO TO 3.

NO>>

Repair or replace the malfunctioning parts.

INSPECTION OF THE COOLANT HOSE

Check for clogging or twisting of the hose of the oil coolant circuit for the front traction motor.

Is the inspection result normal?

YES>>

GO TO 4.

NO>>

Repair or replace the malfunctioning parts.

INSPECTION FOR FRONT TRACTION MOTOR OIL

Check visually for leakage of the front traction motor oil.

Is the inspection result normal?

YES>>

GO TO 5.

NO>>

 Replace the front traction motor. Refer to FRONT TRACTION MOTOR : Removal & Installation.

INSPECTION OF THE OIL TEMPERATURE SENSOR

Inspect the oil temperature sensor circuit of the front traction motor. Refer to Diagnosis Procedure.

>>

INSPECTION END

P0cc1-04 Drive Motor a Coolant Pump

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P0CC1	04	Drive Motor A Coolant Pump Control	Diagnosis condition	READY state
			Signal	Front traction motor oil pump signal
			Threshold	Error notification signal was received from the oil pump of the front traction motor.
			Diagnosis delay time	Within 10 seconds

POSSIBLE CAUSE

• Wiring harness or connector

  (Disconnection or short circuit in the oil temperature sensor of the front traction motor)

  (Disconnection or short circuit in the oil pump of the front traction motor)

• Front traction motor

  (Oil temperature sensor of the front traction motor)

  (Oil pump of the front traction motor)

• Inverter (front)

FAIL-SAFE

The driving torque of the front traction motor is limited to 30%.

Confirmation Procedure

PREPARATION BEFORE OPERATION

If another "Confirmation Procedure" was performed immediately before this task, always power switch OFF exit the Nissan Ariya vehicle and close all doors (including the back door), and wait for at least 60 seconds until the combination meter turns off before starting the next test.

CAUTION:

While waiting, never operate the Nissan Ariya vehicle such as locking, opening, and closing doors. Violation of this caution results in the activation of ACC power supply according to the auto ACC function.

>>

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

1. Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.

2. Check the DTC.

Is “P0CC1-04 detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

CHECK FOR DTC RELATED TO THE FRONT TRACTION MOTOR OIL TEMPERATURE SENSOR

With CONSULT

1. Power switch ON.

2. Check "Self Diagnostic Result" of "MOTOR CONTROL".

Is DTC related to the front traction motor oil temperature sensor detected?

YES>>

Inspect the oil temperature sensor circuit of the front traction motor. Refer to Diagnosis Procedure.

NO>>

GO TO 2.

INSPECTION OF THE OIL PUMP CIRCUIT OF THE FRONT TRACTION MOTOR

Inspect the oil pump circuit of the front traction motor. Refer to Diagnosis Procedure.

>>

INSPECTION END

P0cc1-81 Drive Motor a Coolant Pump

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P0CC1	81	Drive Motor A Coolant Pump Control	Diagnosis condition	READY state
			Signal	Front traction motor oil pump signal
			Threshold	Error notification signal was received from the oil pump of the front traction motor.
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

• Wiring harness or connector

  (Disconnection or short circuit in the oil temperature sensor of the front traction motor)

  (Disconnection or short circuit in the oil pump of the front traction motor)

• Front traction motor

  (Oil temperature sensor of the front traction motor)

  (Oil pump of the front traction motor)

• Inverter (front)

FAIL-SAFE

—

Confirmation Procedure

PREPARATION BEFORE OPERATION

If another "Confirmation Procedure" was performed immediately before this task, always power switch OFF exit the Nissan Ariya vehicle and close all doors (including the back door), and wait for at least 60 seconds until the combination meter turns off before starting the next test.

CAUTION:

While waiting, never operate the Nissan Ariya vehicle such as locking, opening, and closing doors. Violation of this caution results in the activation of ACC power supply according to the auto ACC function.

>>

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

1. Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.

2. Check the DTC.

Is “P0CC1-81 detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

CHECK FOR DTC RELATED TO THE FRONT TRACTION MOTOR OIL TEMPERATURE SENSOR

With CONSULT

1. Power switch ON.

2. Check "Self Diagnostic Result" of "MOTOR CONTROL".

Is DTC related to the front traction motor oil temperature sensor detected?

YES>>

Inspect the oil temperature sensor circuit of the front traction motor. Refer to Diagnosis Procedure .

NO>>

GO TO 2 .

INSPECTION OF THE OIL PUMP CIRCUIT OF THE FRONT TRACTION MOTOR

Inspect the oil pump circuit of the front traction motor. Refer to Diagnosis Procedure .

>>

INSPECTION END

P0cc1-87 Drive Motor a Coolant Pump

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P0CC1	87	Drive Motor A Coolant Pump Control	Diagnosis condition	READY state
			Signal	Front traction motor oil pump signal
			Threshold	An error was detected in LIN communication at the front traction motor oil pump.
			Diagnosis delay time	Within 10 seconds

POSSIBLE CAUSE

• Wiring harness or connector

  (Disconnection or short circuit in the oil temperature sensor of the front traction motor)

  (Disconnection or short circuit in the oil pump of the front traction motor)

• Front traction motor

  (Oil temperature sensor of the front traction motor)

  (Oil pump of the front traction motor)

• Inverter (front)

FAIL-SAFE

The driving torque of the front traction motor is limited to 30%.

Confirmation Procedure

PREPARATION BEFORE OPERATION

If another "Confirmation Procedure" was performed immediately before this task, always power switch OFF exit the Nissan Ariya vehicle and close all doors (including the back door), and wait for at least 60 seconds until the combination meter turns off before starting the next test.

CAUTION:

While waiting, never operate the Nissan Ariya vehicle such as locking, opening, and closing doors. Violation of this caution results in the activation of ACC power supply according to the auto ACC function.

>>

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

1. Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.

2. Check the DTC.

Is “P0CC1-87 detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

CHECK FOR DTC RELATED TO THE FRONT TRACTION MOTOR OIL TEMPERATURE SENSOR

With CONSULT

1. Power switch ON.

2. Check "Self Diagnostic Result" of "MOTOR CONTROL".

Is DTC related to the front traction motor oil temperature sensor detected?

YES>>

Inspect the oil temperature sensor circuit of the front traction motor. Refer to Diagnosis Procedure .

NO>>

GO TO 2 .

INSPECTION OF THE OIL PUMP CIRCUIT OF THE FRONT TRACTION MOTOR

Inspect the oil pump circuit of the front traction motor. Refer to Diagnosis Procedure .

>>

INSPECTION END

P0d2d-17 Drive Motor a Inverter Voltage Sensor a

DTC Description

CAUTION:

When installing the 12V battery into the vehicle, a DTC may be stored as a result of fluctuations in the voltage input into the inverter.

If a DTC remains in the past malfunctions, check the history of 12V battery removal and installation.

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P0D2D	17	Drive Motor A Inverter Voltage Sensor A	Diagnosis condition	READY state
			Signal	—
			Threshold	High voltage exceeded the upper limit where operation is possible at the inverter (front).
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

• Inverter (front)

• System main relay

• Li-ion battery

FAIL-SAFE

Control of the front traction motor stops.

Confirmation Procedure

PREPARATION BEFORE OPERATION

If another "Confirmation Procedure" was performed immediately before this task, always power switch OFF exit the Nissan Ariya vehicle and close all doors (including the back door), and wait for at least 60 seconds until the combination meter turns off before starting the next test.

CAUTION:

While waiting, never operate the Nissan Ariya vehicle such as locking, opening, and closing doors. Violation of this caution results in the activation of ACC power supply according to the auto ACC function.

>>

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

1. Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.

2. Check the DTC.

Is “P0D2D-17 detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

WARNING:

Since hybrid vehicles and electric Nissan Ariya vehicles contain a high voltage battery, there is the risk of electric shock, electric leakage, or similar accidents if the high voltage component and Nissan Ariya vehicle are handled incorrectly. Be sure to follow the correct work procedures when performing inspection and maintenance.

WARNING:

• Be sure to remove the service plug in order to disconnect the high voltage circuits before performing inspection or maintenance of high voltage system harnesses and parts.

• The removed service plug must always be carried in a pocket of the responsible worker or placed in the tool box during the procedure to prevent the plug from being connected by mistake.

• Be sure to wear insulating protective equipment before beginning work on the high voltage system.

• Never allow workers other than the responsible person to touch the Nissan Ariya vehicle containing high voltage parts. To keep others from touching the high voltage parts, these parts must be covered with an insulating sheet except when using them.

• Refer to HIGH VOLTAGE PRECAUTIONS : Precautions.

CAUTION:

Never bring the vehicle into the READY status with the service plug removed unless otherwise instructed in the Service Manual. A malfunction may occur if this is not observed.

CHECK FOR DTC RELATED TO THE HIGH VOLTAGE SYSTEM

With CONSULT

1. Power switch ON and wait at least 10 seconds.

2. Check the DTCs related to the high voltage system.

Is a DTC related to the high voltage system other than the inverter (front) detected?

YES>>

Check the detected DTC.

NO>>

GO TO 2.

PRECONDITIONING

WARNING:

Follow the instructions below before starting the procedure.

1. Disconnect high voltage circuit. Refer to HOW TO DISCONNECT HIGH VOLTAGE : Precautions.

2. Check voltage in high voltage circuit. Refer to CHECK VOLTAGE IN HIGH VOLTAGE CIRCUIT : Precautions.

>>

GO TO 3.

INSPECTION OF THE HIGH VOLTAGE HARNESS

Inspect the high voltage harness between the Li-ion battery and the inverter (front).

Is the inspection result normal?

YES>>

GO TO 4.

NO>>

Repair or replace the malfunctioning parts.

INSPECTION OF THE SYSTEM MAIN RELAY CIRCUIT

Inspect the circuits of system main relays 1 and 2.

• System main relay 1: Refer to Diagnosis Procedure (66kWh Li-ion battery models) or Diagnosis Procedure (91kWh Li-ion battery models).

• System main relay 2: Refer to Diagnosis Procedure (66kWh Li-ion battery models) or Diagnosis Procedure (91kWh Li-ion battery models).

Is the inspection result normal?

YES>>

Replace the inverter (front). Refer to INVERTER (FRONT) : Removal & Installation.

NO>>

Repair or replace the malfunctioning parts.

P0da8-00 Hybrid/ev Battery Voltage/drive Motor a Inverter Voltage Correlation

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P0DA8	00	Hybrid/EV Battery Voltage/Drive Motor A Inverter Voltage Correlation	Diagnosis condition	READY state
			Signal	—
			Threshold	The high voltage monitor value inside the inverter (front) and the LBC recognized voltage that is received via CAN were compared and the prescribed value was exceeded.
			Diagnosis delay time	Within 10 seconds

POSSIBLE CAUSE

• Inverter (front)

• Li-ion battery

FAIL-SAFE

Control of the front traction motor stops.

Confirmation Procedure

PREPARATION BEFORE OPERATION

If another "Confirmation Procedure" was performed immediately before this task, always power switch OFF exit the Nissan Ariya vehicle and close all doors (including the back door), and wait for at least 60 seconds until the combination meter turns off before starting the next test.

CAUTION:

While waiting, never operate the Nissan Ariya vehicle such as locking, opening, and closing doors. Violation of this caution results in the activation of ACC power supply according to the auto ACC function.

>>

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

1. Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.

2. Check the DTC.

Is “P0DA8-00 detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

WARNING:

Since hybrid vehicles and electric Nissan Ariya vehicles contain a high voltage battery, there is the risk of electric shock, electric leakage, or similar accidents if the high voltage component and Nissan Ariya vehicle are handled incorrectly. Be sure to follow the correct work procedures when performing inspection and maintenance.

WARNING:

• Be sure to remove the service plug in order to disconnect the high voltage circuits before performing inspection or maintenance of high voltage system harnesses and parts.

• The removed service plug must always be carried in a pocket of the responsible worker or placed in the tool box during the procedure to prevent the plug from being connected by mistake.

• Be sure to wear insulating protective equipment before beginning work on the high voltage system.

• Never allow workers other than the responsible person to touch the Nissan Ariya vehicle containing high voltage parts. To keep others from touching the high voltage parts, these parts must be covered with an insulating sheet except when using them.

• Refer to HIGH VOLTAGE PRECAUTIONS : Precautions.

CAUTION:

Never bring the vehicle into the READY status with the service plug removed unless otherwise instructed in the Service Manual. A malfunction may occur if this is not observed.

CHECK FOR DTC RELATED TO THE HIGH VOLTAGE SYSTEM

With CONSULT

1. Power switch ON and wait at least 10 seconds.

2. Check the DTCs related to the high voltage system.

Is a DTC related to the high voltage system other than the inverter (front) detected?

YES>>

Check the detected DTC.

NO>>

GO TO 2.

PRECONDITIONING

WARNING:

Follow the instructions below before starting the procedure.

1. Disconnect high voltage circuit. Refer to HOW TO DISCONNECT HIGH VOLTAGE : Precautions.

2. Check voltage in high voltage circuit. Refer to CHECK VOLTAGE IN HIGH VOLTAGE CIRCUIT : Precautions.

>>

GO TO 3.

INSPECTION OF THE HIGH VOLTAGE HARNESS

Inspect the high voltage harness between the Li-ion battery and the inverter (front).

Is the inspection result normal?

YES>>

Replace the inverter (front). Refer to INVERTER (FRONT) : Removal & Installation.

NO>>

Repair or replace the malfunctioning parts.

P2d3b-92 Hybrid/ev Discharge System

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P2D3B	92	Hybrid/EV Discharge System	Diagnosis condition	At shutdown (after high voltage relay opens)
			Signal	—
			Threshold	A discharge error was detected at the smoothing capacitor. NOTE: Discharge of the smoothing capacitor is performed by IGBT switching. If IGBT switching stopped as a result of a different malfunction, the discharge process cannot be performed and P2D3B-92 is also detected as a side-effect of the malfunction.
			Diagnosis delay time	Within 3 seconds

POSSIBLE CAUSE

• Inverter (front)

• System main relay

FAIL-SAFE

—

Confirmation Procedure

PREPARATION BEFORE OPERATION

If another "Confirmation Procedure" was performed immediately before this task, always power switch OFF exit the Nissan Ariya vehicle and close all doors (including the back door), and wait for at least 60 seconds until the combination meter turns off before starting the next test.

CAUTION:

While waiting, never operate the Nissan Ariya vehicle such as locking, opening, and closing doors. Violation of this caution results in the activation of ACC power supply according to the auto ACC function.

>>

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

1. Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.

2. Check the DTC.

Is “P2D3B-92 detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

DTC CHECK (MOTOR CONTROL)

With CONSULT

1. Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.

2. Check "Self Diagnostic Result" under "MOTOR CONTROL".

Is a DTC P2D3B-92 detected at the same time as another DTC?

YES>>

Check the DTC Inspection Priority Chart, and perform diagnosis for the DTC with the higher inspection priority. Refer to DTC Inspection Priority Chart.

NO>>

GO TO 2.

CHECK FOR DTC RELATED TO THE HIGH VOLTAGE SYSTEM

With CONSULT

Check the DTCs related to the high voltage system.

Is a DTC related to the high voltage system other than the inverter (front) detected?

YES>>

Check the detected DTC.

NO>>

Replace the inverter (front). Refer to INVERTER (FRONT) : Removal & Installation.

P2e28-01 Drive Motor a Excitation Current Sensor

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P2E28	01	Drive Motor A Excitation Current Sensor	Diagnosis condition	READY state
			Signal	—
			Threshold	Excitation module current is not flowing normally.
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

• Inverter (front)

• Front traction motor

FAIL-SAFE

Control of the front traction motor stops.

Confirmation Procedure

PREPARATION BEFORE OPERATION

If another "Confirmation Procedure" was performed immediately before this task, always power switch OFF exit the Nissan Ariya vehicle and close all doors (including the back door), and wait for at least 60 seconds until the combination meter turns off before starting the next test.

CAUTION:

While waiting, never operate the Nissan Ariya vehicle such as locking, opening, and closing doors. Violation of this caution results in the activation of ACC power supply according to the auto ACC function.

>>

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

1. Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.

2. Increase the vehicle speed to 10 km/h (6 MPH).

3. Stop the Nissan Ariya vehicle.

4. Check the DTC.

Is “P2E28-01 detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

DTC CHECK (MOTOR CONTROL)

With CONSULT

1. Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.

2. Check "Self Diagnostic Result" under "MOTOR CONTROL".

Is a DTC P2E28-01 detected at the same time as another DTC?

YES>>

Check the DTC Inspection Priority Chart, and perform diagnosis for the DTC with the higher inspection priority. Refer to DTC Inspection Priority Chart.

NO>>

GO TO 2.

INSPECTION OF THE EXCITATION CIRCUIT

1. Remove the inverter (front) and front traction motor from the Nissan Ariya vehicle. Refer to INVERTER (FRONT) : Removal & Installation.

2. Remove the excitation cover and inspect the connection conditions of the bus bar and excitation harness of the inverter (front).



Is the inspection result normal?

YES>>

GO TO 3.

NO>>

Repair or replace the malfunctioning parts.

CHECK OF THE ROTOR COIL RESISTANCE VALUE AT

Check the rotor coil resistance value at the front traction motor. Refer to Component Inspection.

Is the inspection result normal?

YES>>

Replace the inverter (front). Refer to INVERTER (FRONT) : Removal & Installation.

NO>>

Replace the front traction motor. Refer to FRONT TRACTION MOTOR : Removal & Installation.

P2e28-18 Drive Motor a Excitation Current Sensor

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P2E28	18	Drive Motor A Excitation Current Sensor	Diagnosis condition	READY state
			Signal	—
			Threshold	Excitation module current is not flowing normally.
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

• Inverter (front)

• Front traction motor

FAIL-SAFE

Control of the front traction motor stops.

Confirmation Procedure

PREPARATION BEFORE OPERATION

If another "Confirmation Procedure" was performed immediately before this task, always power switch OFF exit the Nissan Ariya vehicle and close all doors (including the back door), and wait for at least 60 seconds until the combination meter turns off before starting the next test.

CAUTION:

While waiting, never operate the Nissan Ariya vehicle such as locking, opening, and closing doors. Violation of this caution results in the activation of ACC power supply according to the auto ACC function.

>>

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

1. Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.

2. Increase the vehicle speed to 10 km/h (6 MPH).

3. Stop the Nissan Ariya vehicle.

4. Check the DTC.

Is “P2E28-18 detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

DTC CHECK (MOTOR CONTROL)

With CONSULT

1. Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.

2. Check "Self Diagnostic Result" under "MOTOR CONTROL".

Is a DTC P2E28-18 detected at the same time as another DTC?

YES>>

Check the DTC Inspection Priority Chart, and perform diagnosis for the DTC with the higher inspection priority. Refer to DTC Inspection Priority Chart.

NO>>

GO TO 2.

INSPECTION OF THE EXCITATION CIRCUIT

1. Remove the inverter (front) and front traction motor from the Nissan Ariya vehicle. Refer to INVERTER (FRONT) : Removal & Installation.

2. Remove the excitation cover and inspect the connection conditions of the bus bar and excitation harness of the inverter (front).



Is the inspection result normal?

YES>>

GO TO 3.

NO>>

Repair or replace the malfunctioning parts.

CHECK OF THE ROTOR COIL RESISTANCE VALUE AT THE FRONT TRACTION MOTOR

Check the rotor coil resistance value at the front traction motor. Refer to Component Inspection.

Is the inspection result normal?

YES>>

Replace the inverter (front). Refer to INVERTER (FRONT) : Removal & Installation.

NO>>

 Replace the front traction motor. Refer to FRONT TRACTION MOTOR : Removal & Installation.

P2e28-1d Drive Motor a Excitation Current Sensor

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P2E28	1D	Drive Motor A Excitation Current Sensor	Diagnosis condition	READY state
			Signal	—
			Threshold	Excitation module current is not flowing normally.
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

• Inverter (front)

• Front traction motor

FAIL-SAFE

—

Confirmation Procedure

PREPARATION BEFORE OPERATION

If another "Confirmation Procedure" was performed immediately before this task, always power switch OFF exit the Nissan Ariya vehicle and close all doors (including the back door), and wait for at least 60 seconds until the combination meter turns off before starting the next test.

CAUTION:

While waiting, never operate the Nissan Ariya vehicle such as locking, opening, and closing doors. Violation of this caution results in the activation of ACC power supply according to the auto ACC function.

>>

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

1. Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.

2. Increase the vehicle speed to 10 km/h (6 MPH).

3. Stop the Nissan Ariya vehicle.

4. Check the DTC.

Is “P2E28-1D detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

DTC CHECK (MOTOR CONTROL)

With CONSULT

1. Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.

2. Check "Self Diagnostic Result" under "MOTOR CONTROL".

Is a DTC P2E28-1D detected at the same time as another DTC?

YES>>

Check the DTC Inspection Priority Chart, and perform diagnosis for the DTC with the higher inspection priority. Refer to DTC Inspection Priority Chart.

NO>>

GO TO 2.

INSPECTION OF THE EXCITATION CIRCUIT

1. Remove the inverter (front) and front traction motor from the Nissan Ariya vehicle. Refer to INVERTER (FRONT) : Removal & Installation.

2. Remove the excitation cover and inspect the connection conditions of the bus bar and excitation harness of the inverter (front).



Is the inspection result normal?

YES>>

GO TO 3.

NO>>

Repair or replace the malfunctioning parts.

CHECK OF THE ROTOR COIL RESISTANCE VALUE AT THE FRONT TRACTION MOTOR

Check the rotor coil resistance value at the front traction motor. Refer to Component Inspection.

Is the inspection result normal?

YES>>

Replace the inverter (front). Refer to INVERTER (FRONT) : Removal & Installation.

NO>>

Replace the front traction motor. Refer to FRONT TRACTION MOTOR : Removal & Installation.

P2e2b-11 Drive Motor a Excitation Current

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P2E2B	11	Drive Motor A Excitation Current	Diagnosis condition	READY state
			Signal	—
			Threshold	An excitation module error was detected.
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

Inverter (front)

FAIL-SAFE

Control of the front traction motor stops

Confirmation Procedure

PREPARATION BEFORE OPERATION

If another "Confirmation Procedure" was performed immediately before this task, always power switch OFF exit the Nissan Ariya vehicle and close all doors (including the back door), and wait for at least 60 seconds until the combination meter turns off before starting the next test.

CAUTION:

While waiting, never operate the Nissan Ariya vehicle such as locking, opening, and closing doors. Violation of this caution results in the activation of ACC power supply according to the auto ACC function.

>>

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

1. Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.

2. Depress the accelerator pedal to increase the Nissan Ariya vehicle speed up to 10 km/h (6 MPH).

3. Stop the vehicle.

4. Check the DTC.

Is “P2E2B-11 detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

INSPECTION OF THE EXCITATION CIRCUIT

• Remove the inverter (front) and front traction motor from the Nissan Ariya vehicle. Refer to INVERTER (FRONT) : Removal & Installation.

• Remove the excitation cover and inspect the connection conditions of the bus bar and excitation harness of the inverter (front).



Is the inspection result normal?

YES>>

GO TO 2.

NO>>

Repair or replace the malfunctioning parts.

REPLACEMENT OF THE INVERTER (FRONT)

Replace the inverter (front). Refer to INVERTER (FRONT) : Removal & Installation.

>>

END

P2e2b-12 Drive Motor a Excitation Current

DTC Description

CAUTION:

When installing the 12V battery into the vehicle, a DTC may be stored as a result of fluctuations in the voltage input into the inverter.

If a DTC remains in the past malfunctions, check the history of 12V battery removal and installation.

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P2E2B	12	Drive Motor A Excitation Current	Diagnosis condition	READY state
			Signal	—
			Threshold	An excitation module error was detected.
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

• Front traction motor

• Inverter (front)

FAIL-SAFE

Control of the front traction motor stops

Confirmation Procedure

PREPARATION BEFORE OPERATION

If another "Confirmation Procedure" was performed immediately before this task, always power switch OFF exit the Nissan Ariya vehicle and close all doors (including the back door), and wait for at least 60 seconds until the combination meter turns off before starting the next test.

CAUTION:

While waiting, never operate the Nissan Ariya vehicle such as locking, opening, and closing doors. Violation of this caution results in the activation of ACC power supply according to the auto ACC function.

>>

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

1. Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.

2. Depress the accelerator pedal to increase the Nissan Ariya vehicle speed up to 10 km/h (6 MPH).

3. Drive the vehicle for approximately 5 minutes.

4. Stop the Nissan Ariya vehicle.

5. Check the DTC.

Is “P2E2B-12 detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

INSPECTION OF SHORT CIRCUIT CONDITION FOR FRONT TRACTION MOTOR ROTOR COIL

1. Remove the inverter (front) and front traction motor from the Nissan Ariya vehicle. Refer to INVERTER (FRONT) : Removal & Installation.

2. Remove the excitation cover then disconnect excitation harness from bus bar of the inverter (front).



3. Check the rotor coil resistance value at the front traction motor and check for short circuits.



   Front traction motor		Resistance value in short circuit condition
   Terminal
   Ex+	Ex-	4.55 Ω or less

Is the resistance value 4.55 Ω or less?

YES>>

The rotor coil has malfunctioned (short circuit condition). Replace the front traction motor. Refer to FRONT TRACTION MOTOR : Removal & Installation.

NO>>

GO TO 2.

REPLACEMENT OF THE INVERTER (FRONT)

Replace the inverter (front). Refer to INVERTER (FRONT) : Removal & Installation.

>>

END

P2e2b-1c Drive Motor a Excitation Current

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P2E2B	1C	Drive Motor A Excitation Current	Diagnosis condition	At inverter (front) start
			Signal	—
			Threshold	An excitation module error was detected.
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

Inverter (front)

FAIL-SAFE

Control of the front traction motor stops

Confirmation Procedure

PREPARATION BEFORE OPERATION

If another "Confirmation Procedure" was performed immediately before this task, always power switch OFF exit the Nissan Ariya vehicle and close all doors (including the back door), and wait for at least 60 seconds until the combination meter turns off before starting the next test.

CAUTION:

While waiting, never operate the Nissan Ariya vehicle such as locking, opening, and closing doors. Violation of this caution results in the activation of ACC power supply according to the auto ACC function.

>>

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

1. Power switch ON and wait at least 10 seconds.

2. Check the DTC.

Is “P2E2B-1C detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

REPLACEMENT OF THE INVERTER (FRONT)

Replace the inverter (front). Refer to INVERTER (FRONT) : Removal & Installation.

>>

END

P3081-44 Resolver Offset Value Error

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P3081	44	Resolver Offset Value Error	Diagnosis condition	At inverter (front) start
			Signal	—
			Threshold	Any of the following was detected. An error in the value written to internal memory No data was written to internal memory An error value was written during work for writing to internal memory
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

• Inverter (front)

• Resolver offset value was not written or there was an error in the work.

FAIL-SAFE

Change the resolver offset value to the default value. This reduces torque because optimal control of the rotor position is not possible.

Confirmation Procedure

PREPARATION BEFORE OPERATION

If another "Confirmation Procedure" was performed immediately before this task, always power switch OFF exit the Nissan Ariya vehicle and close all doors (including the back door), and wait for at least 60 seconds until the combination meter turns off before starting the next test.

CAUTION:

While waiting, never operate the Nissan Ariya vehicle such as locking, opening, and closing doors. Violation of this caution results in the activation of ACC power supply according to the auto ACC function.

>>

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

1. Power switch ON and wait at least 10 seconds.

2. Check the DTC.

Is “P3081-44 detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

WRITING THE RESOLVER OFFSET VALUE

1. Perform the work to write the resolver offset value. Refer to Work Procedure.

2. Perform the DTC CONFIRMATION PROCEDURE. Refer to Confirmation Procedure.

Is “P3081-44 detected?

YES>>

Replace the inverter (front). Refer to INVERTER (FRONT) : Removal & Installation.

NO>>

INSPECTION END

P3082-44 Roter Resistance Value Error

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC Detection Conditions
P3082	44	Rotor Resistance Value Error	Diagnosis condition	At inverter (front) start
			Signal	—
			Threshold	Any of the following was detected. An error in the value written to internal memory No data was written to internal memory An error value was written during work for writing to internal memory
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

• Inverter (front)

• Rotor resistance value was not written or there was an error in the work.

FAIL-SAFE

Change the rotor resistance value to the default value. This will make it more likely that torque will be limited for temperature protection.

Confirmation Procedure

PREPARATION BEFORE OPERATION

If another "Confirmation Procedure" was performed immediately before this task, always power switch OFF exit the Nissan Ariya vehicle and close all doors (including the back door), and wait for at least 60 seconds until the combination meter turns off before starting the next test.

CAUTION:

While waiting, never operate the Nissan Ariya vehicle such as locking, opening, and closing doors. Violation of this caution results in the activation of ACC power supply according to the auto ACC function.

>>

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

1. Power switch ON and wait at least 10 seconds.

2. Check the DTC.

Is “P3082-44 detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

WRITING THE ROTOR RESISTANCE VALUE

1. Perform the work to write the rotor resistance value.

2. Perform the DTC CONFIRMATION PROCEDURE. Refer to Confirmation Procedure.

Is “P3082-44 detected?

YES>>

Replace the inverter (front). Refer to INVERTER (FRONT) : Removal & Installation.

NO>>

INSPECTION END

P3083-44 Immobilizer

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P3083	44	Immobilizer	Diagnosis condition	At inverter (front) start
			Signal	—
			Threshold	No data was written to internal memory
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

Inverter (front)

FAIL-SAFE

—

Confirmation Procedure

PREPARATION BEFORE OPERATION

If another "Confirmation Procedure" was performed immediately before this task, always power switch OFF exit the Nissan Ariya vehicle and close all doors (including the back door), and wait for at least 60 seconds until the combination meter turns off before starting the next test.

CAUTION:

While waiting, never operate the Nissan Ariya vehicle such as locking, opening, and closing doors. Violation of this caution results in the activation of ACC power supply according to the auto ACC function.

>>

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

1. Power switch ON and wait at least 10 seconds.

2. Check the DTC.

Is “P3083-44 detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

REPLACEMENT OF THE INVERTER (FRONT)

Replace the inverter (front). Refer to INVERTER (FRONT) : Removal & Installation.

>>

END

U2143-82 Can Communication Error (vcm/hcm)

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
U2143	82	CAN communication error (VCM/HCM)	Diagnosis condition	READY state
			Signal	EV system CAN communication signal
			Threshold	Any of the following was detected. CAN signal cannot be received from the VCM. There is an error in the CAN signal received from the VCM.
			Diagnosis delay time	Within 10 seconds

POSSIBLE CAUSE

• Inverter (front)

• VCM

• CAN communications line [between inverter (front) and VCM]

FAIL-SAFE

Vehicle stops (torque 0 Nm), or the driving torque of the front traction motor is limited, or is not limited.

Confirmation Procedure

PREPARATION BEFORE OPERATION

If another "Confirmation Procedure" was performed immediately before this task, always power switch OFF exit the Nissan Ariya vehicle and close all doors (including the back door), and wait for at least 60 seconds until the combination meter turns off before starting the next test.

CAUTION:

While waiting, never operate the Nissan Ariya vehicle such as locking, opening, and closing doors. Violation of this caution results in the activation of ACC power supply according to the auto ACC function.

>>

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

1. Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.

2. Check the DTC.

Is “U2143-82 detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

Perform diagnosis of the CAN communication system. Refer to Trouble Diagnosis Flow Chart.

U2143-83 Can Communication Error (vcm/hcm)

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
U2143	83	CAN communication error (VCM/HCM)	Diagnosis condition	READY state
			Signal	EV system CAN communication signal
			Threshold	Any of the following was detected. CAN signal cannot be received from the VCM. There is an error in the CAN signal received from the VCM.
			Diagnosis delay time	Within 10 seconds

POSSIBLE CAUSE

• Inverter (front)

• VCM

• CAN communications line [between inverter (front) and VCM]

FAIL-SAFE

Vehicle stops (torque 0 Nm), or the driving torque of the front traction motor is limited, or is not limited.

Confirmation Procedure

PREPARATION BEFORE OPERATION

If another "Confirmation Procedure" was performed immediately before this task, always power switch OFF exit the Nissan Ariya vehicle and close all doors (including the back door), and wait for at least 60 seconds until the combination meter turns off before starting the next test.

CAUTION:

While waiting, never operate the Nissan Ariya vehicle such as locking, opening, and closing doors. Violation of this caution results in the activation of ACC power supply according to the auto ACC function.

>>

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

1. Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.

2. Check the DTC.

Is “U2143-83 detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

Perform diagnosis of the CAN communication system. Refer to Trouble Diagnosis Flow Chart.

U2143-87 Can Communication Error (vcm/hcm)

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
U2143	87	CAN communication error (VCM/HCM)	Diagnosis condition	READY state
			Signal	EV system CAN communication signal
			Threshold	Any of the following was detected. CAN signal cannot be received from the VCM. There is an error in the CAN signal received from the VCM.
			Diagnosis delay time	Within 10 seconds

POSSIBLE CAUSE

• Inverter (front)

• VCM

• CAN communications line [between inverter (front) and VCM]

FAIL-SAFE

Vehicle stops (torque 0 Nm), or the driving torque of the front traction motor is limited, or is not limited.

Confirmation Procedure

PREPARATION BEFORE OPERATION

If another "Confirmation Procedure" was performed immediately before this task, always power switch OFF exit the Nissan Ariya vehicle and close all doors (including the back door), and wait for at least 60 seconds until the combination meter turns off before starting the next test.

CAUTION:

While waiting, never operate the Nissan Ariya vehicle such as locking, opening, and closing doors. Violation of this caution results in the activation of ACC power supply according to the auto ACC function.

>>

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

1. Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.

2. Check the DTC.

Is “U2143-87 detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

Perform diagnosis of the CAN communication system. Refer to Trouble Diagnosis Flow Chart.

U2144-82 Can Communication Error (li-Ion Battery)

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
U2144	82	CAN communication error (Li-ion battery)	Diagnosis condition	READY state
			Signal	EV system CAN communication signal
			Threshold	Any of the following was detected. CAN signal cannot be received from the LBC. There is an error in the CAN signal received from the LBC.
			Diagnosis delay time	Within 2 seconds

POSSIBLE CAUSE

• Inverter (front)

• LBC

• CAN communications line [between inverter (front) and LBC]

FAIL-SAFE

The driving torque of the front traction motor is limited. Or, no limitation

Confirmation Procedure

PREPARATION BEFORE OPERATION

If another "Confirmation Procedure" was performed immediately before this task, always power switch OFF exit the Nissan Ariya vehicle and close all doors (including the back door), and wait for at least 60 seconds until the combination meter turns off before starting the next test.

CAUTION:

While waiting, never operate the Nissan Ariya vehicle such as locking, opening, and closing doors. Violation of this caution results in the activation of ACC power supply according to the auto ACC function.

>>

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

1. Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.

2. Check the DTC.

Is “U2144-82 detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

Perform diagnosis of the CAN communication system. Refer to Trouble Diagnosis Flow Chart.

U2144-83 Can Communication Error (li-Ion Battery)

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
U2144	83	CAN communication error (Li-ion battery)	Diagnosis condition	READY state
			Signal	EV system CAN communication signal
			Threshold	Any of the following was detected. CAN signal cannot be received from the LBC. There is an error in the CAN signal received from the LBC.
			Diagnosis delay time	Within 2 seconds

POSSIBLE CAUSE

• Inverter (front)

• LBC

• CAN communications line [between inverter (front) and LBC]

FAIL-SAFE

The driving torque of the front traction motor is limited. Or, no limitation

Confirmation Procedure

PREPARATION BEFORE OPERATION

If another "Confirmation Procedure" was performed immediately before this task, always power switch OFF exit the Nissan Ariya vehicle and close all doors (including the back door), and wait for at least 60 seconds until the combination meter turns off before starting the next test.

CAUTION:

While waiting, never operate the Nissan Ariya vehicle such as locking, opening, and closing doors. Violation of this caution results in the activation of ACC power supply according to the auto ACC function.

>>

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

1. Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.

2. Check the DTC.

Is “U2144-83 detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

Perform diagnosis of the CAN communication system. Refer to Trouble Diagnosis Flow Chart.

U2144-87 Can Communication Error (li-Ion Battery)

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
U2144	87	CAN communication error (Li-ion battery)	Diagnosis condition	READY state
			Signal	EV system CAN communication signal
			Threshold	Any of the following was detected. CAN signal cannot be received from the LBC. There is an error in the CAN signal received from the LBC.
			Diagnosis delay time	Within 2 seconds

POSSIBLE CAUSE

• Inverter (front)

• LBC

• CAN communications line [between inverter (front) and LBC]

FAIL-SAFE

The driving torque of the front traction motor is limited. Or, no limitation

Confirmation Procedure

PREPARATION BEFORE OPERATION

If another "Confirmation Procedure" was performed immediately before this task, always power switch OFF exit the Nissan Ariya vehicle and close all doors (including the back door), and wait for at least 60 seconds until the combination meter turns off before starting the next test.

CAUTION:

While waiting, never operate the Nissan Ariya vehicle such as locking, opening, and closing doors. Violation of this caution results in the activation of ACC power supply according to the auto ACC function.

>>

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

1. Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.

2. Check the DTC.

Is “U2144-87 detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

Perform diagnosis of the CAN communication system. Refer to Trouble Diagnosis Flow Chart.

U2150-87 Can Communication Error (air Bag)

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
U2150	87	CAN communication error (AIRBAG)	Diagnosis condition	READY state
			Signal	EV system CAN communication signal
			Threshold	CAN signal cannot be received from the air bag diagnosis sensor unit
			Diagnosis delay time	Within 2 seconds

POSSIBLE CAUSE

• Inverter (front)

• Air bag diagnosis sensor unit

• CAN communications line [between inverter (front) and air bag diagnosis sensor unit]

FAIL-SAFE

—

Confirmation Procedure

PREPARATION BEFORE OPERATION

If another "Confirmation Procedure" was performed immediately before this task, always power switch OFF exit the Nissan Ariya vehicle and close all doors (including the back door), and wait for at least 60 seconds until the combination meter turns off before starting the next test.

CAUTION:

While waiting, never operate the Nissan Ariya vehicle such as locking, opening, and closing doors. Violation of this caution results in the activation of ACC power supply according to the auto ACC function.

>>

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

1. Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.

2. Check the DTC.

Is “U2150-87 detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

Perform diagnosis of the CAN communication system. Refer to Trouble Diagnosis Flow Chart.
