Nissan Ariya: Outside Key Antenna

• Rear Door
• Rear Bumper

Rear Door

Removal and Installation

REMOVAL

Remove rear door finisher. Refer to Removal & Installation.

Disconnect outside key antenna (rear door) harness connector.

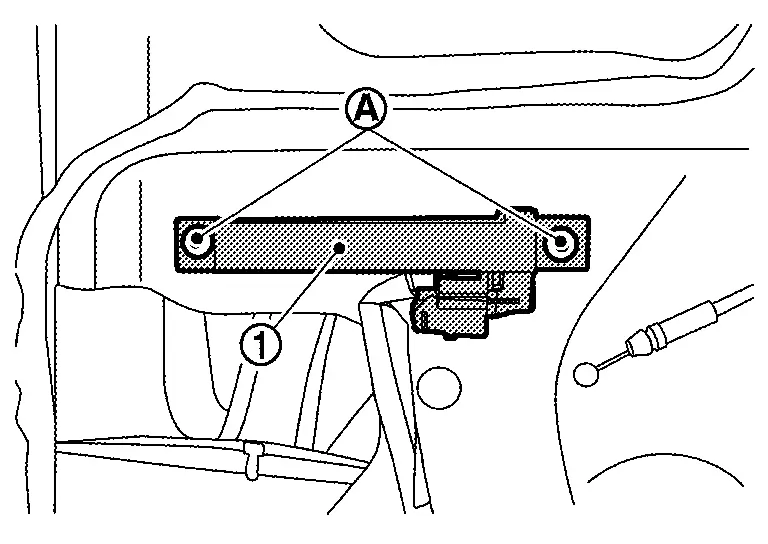

Remove the outside key antenna (rear door) fixing screws , and then remove outside key antenna (rear door) .

INSTALLATION

Install in the reverse order of removal.

Rear Bumper

Removal and Installation

REMOVAL

Remove rear bumper fascia. Refer to Removal & Installation.

Disconnect outside key antenna (rear bumper) harness connector.

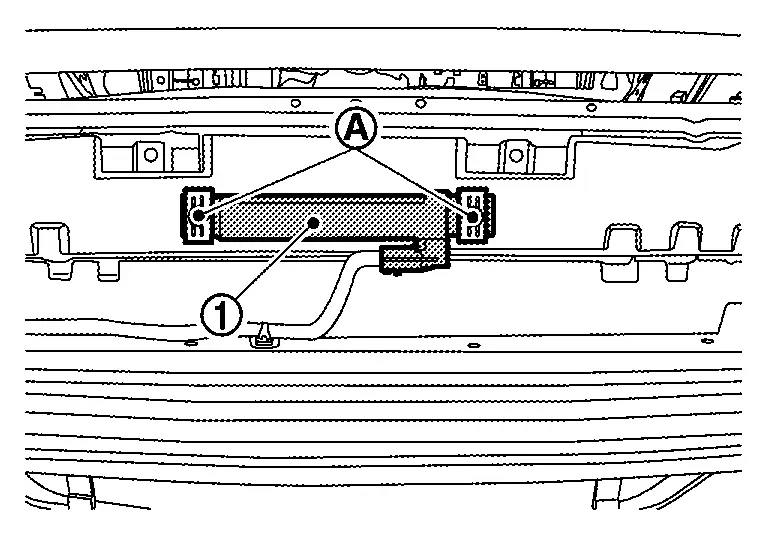

Remove the outside key antenna (rear bumper) fixing clips , and then remove outside key antenna (rear bumper) .

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

Never reuse fixing clip. Always replace it with a new one when it is removed.
