Nissan Ariya: Removal and Installation

• Electric Parking Brake Control Module
• Parking Brake Control
• Parking Brake Actuator
• Parking Brake Switch

Electric Parking Brake Control Module

ELECTRIC PARKING BRAKE CONTROL MODULE : Removal & Installation

NOTE:

Electric parking brake control module is integrated with the ABS actuator and electric unit.

• Always perform "Additional service when replacing the ABS actuator and electric unit". Refer to Work Procedure.

Parking Brake Control

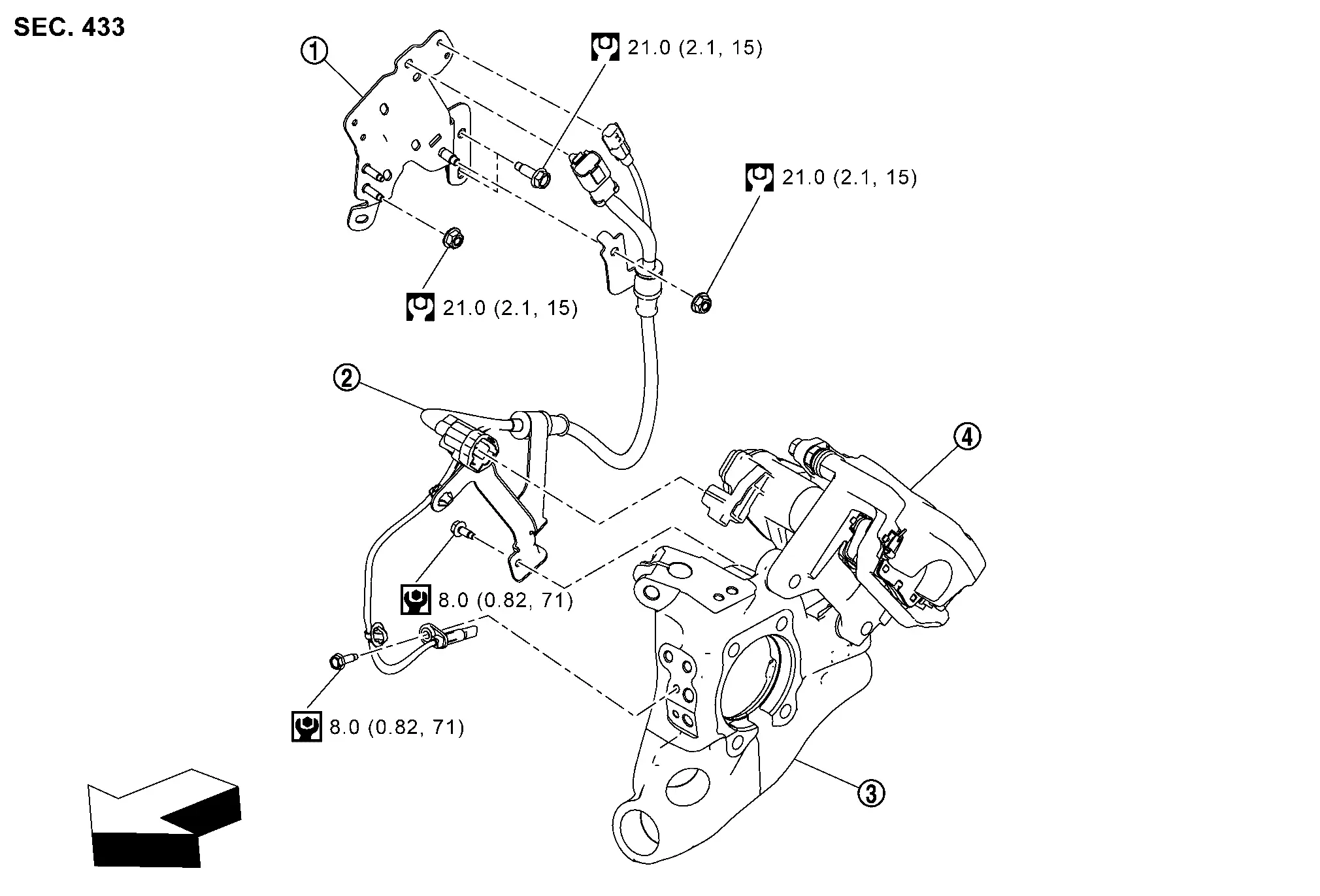

PARKING BRAKE CONTROL : Exploded View

	Bracket		Parking brake actuator harness LH and rear LH wheel sensor		Axle housing
	Rear brake caliper
	: Nissan Ariya Vehicle front
	: N·m (kg-m, ft-lb)
	: N·m (kg-m, in-lb)

NOTE:

Rear RH wheel sensor is symmetrically opposite of LH.

PARKING BRAKE CONTROL : Removal & Installation

REMOVAL

Power switch ON.

CAUTION:

Never put vehicle in READY state.

Release the parking brake.

CAUTION:

If parking brake cannot be released with parking brake switch, release it manually. Refer to Description.

Power switch OFF.

Disconnect 12V battery negative terminal. Refer to Removal and Installation.

Remove rear tire assembly with power tool. Refer to Removal and Installation.

Disconnect parking brake actuator harness and Nissan Ariya vehicle side harness connector of rear wheel sensor.

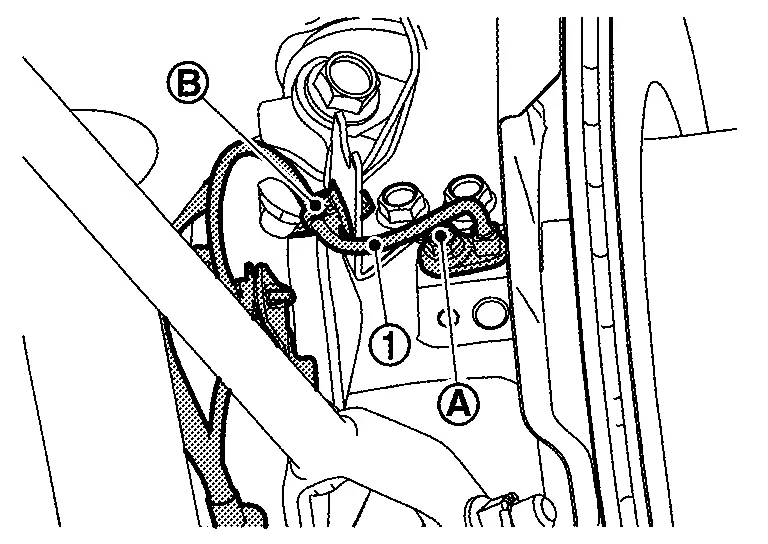

Remove parking brake actuator harness, rear wheel sensor harness mounting bolt and harness clip and then remove parking brake actuator harness and rear wheel sensor harness from axle housing.

CAUTION:

Take out parking brake actuator harness and rear wheel sensor harness without rotating and pulling as much as possible.

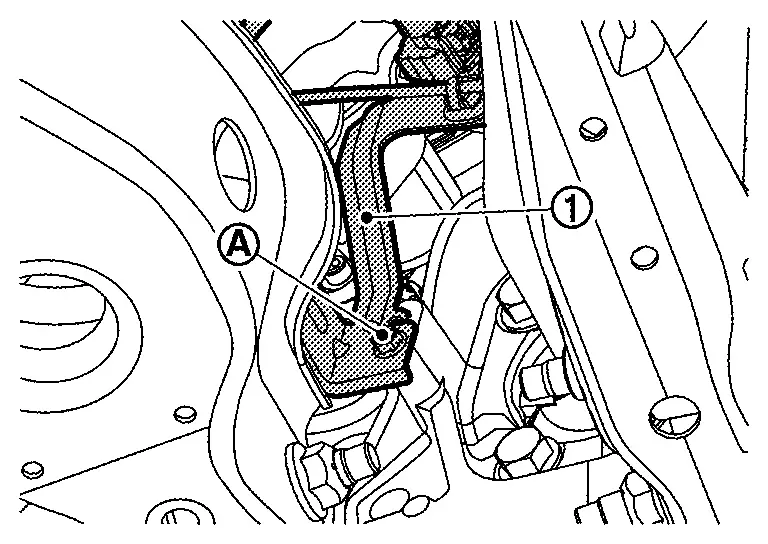

Remove bracket mounting bolt and then remove bracket .

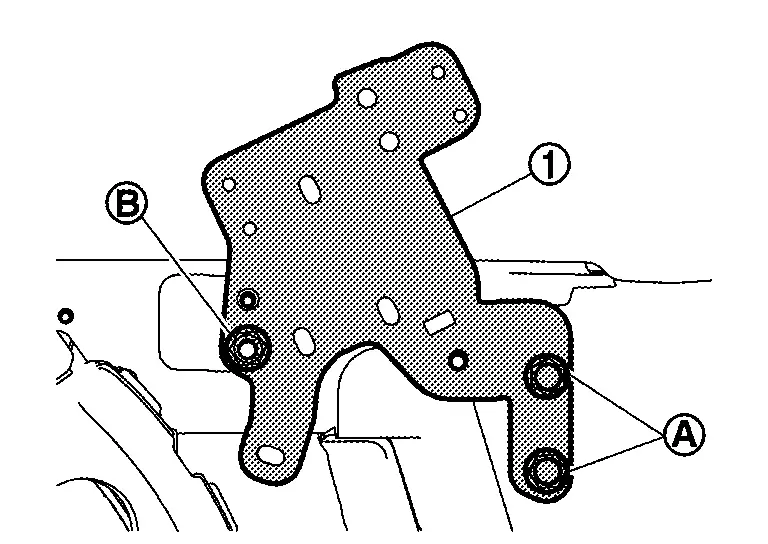

Remove bracket mounting bolts and nuts and then remove bracket from Nissan Ariya vehicle.

Remove connector clip and harness clip of height sensor from bracket (left side only).

INSTALLATION

Note the following, and install in the reverse order of removal.

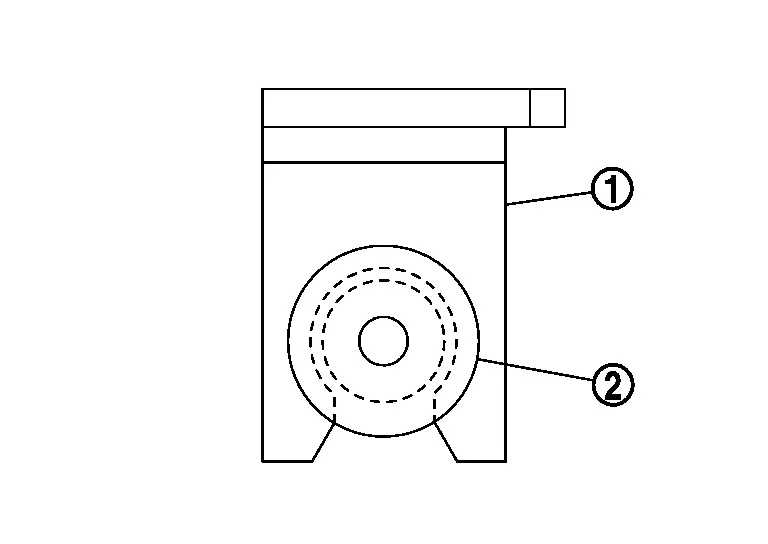

• When installing rear wheel sensor, avoid twisting rear wheel sensor harness and securely push grommet into bracket . Also, after installation, check that rear wheel sensor harness is not twisted.



Parking Brake Actuator

PARKING BRAKE ACTUATOR : Removal & Installation

Removal

Since parking brake actuator is not allowed to disassemble, replace rear brake caliper assembly if parking brake actuator needs to be replaced. Refer to Removal and Installation.

Parking Brake Switch

PARKING BRAKE SWITCH : Removal & Installation

REMOVAL

Remove instrument lower panel. Refer to Removal and Installation.

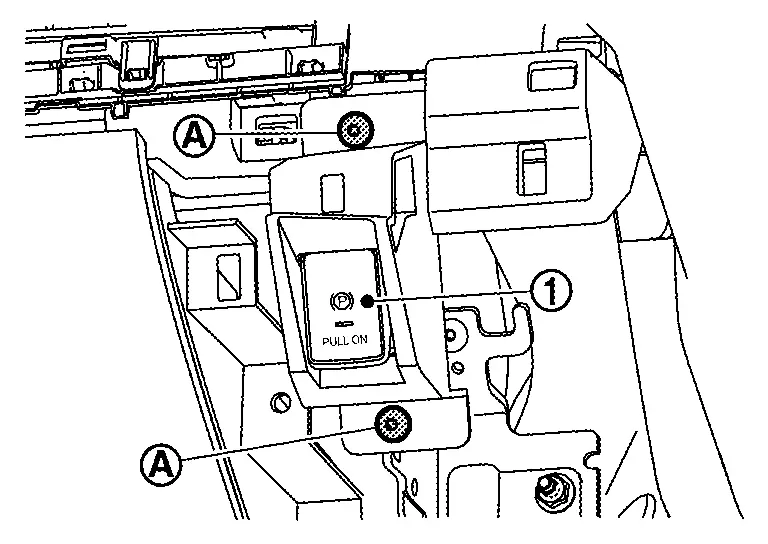

Remove parking brake mounting screws , and then remove parking brake switch bracket from instrument panel.

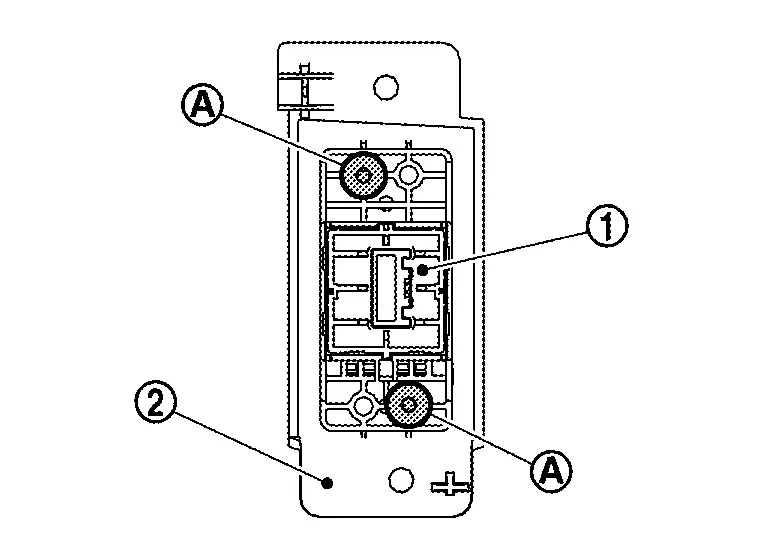

Remove parking brake mounting screws , and then remove parking brake switch from parking brake switch bracket .

INSTALLATION

Install in the reverse order of removal.
