Nissan Ariya: With Vdc

Nissan Ariya (FE0) 2023-2025 Service & Repair Manual / Brakes / Brake Control System / With Vdc

Preparation. Brake Control System

COMMERCIAL SERVICE TOOLS OR/AND REPAIR PART : Preparation

Tool name Description

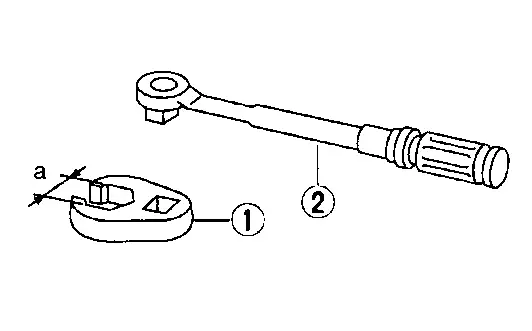

1. Flare nut crowfoot

2. Torque wrench

Tightening brake tube flare nuts

a: 10 mm (0.39 in)/12 mm (0.47 in)

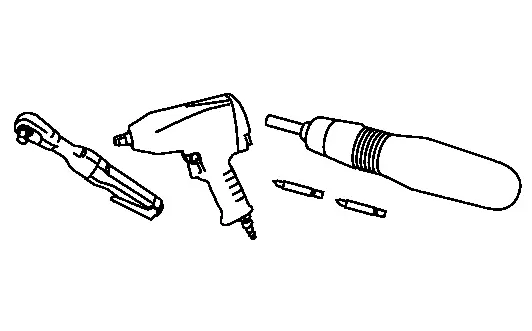

Power tool

Loosening nuts, screws and bolts

SPECIAL SERVICE TOOL : Preparation

The actual shape of the tools may differ from those illustrated here.

Tool number

(TechMate No.)

Tool name
  Description

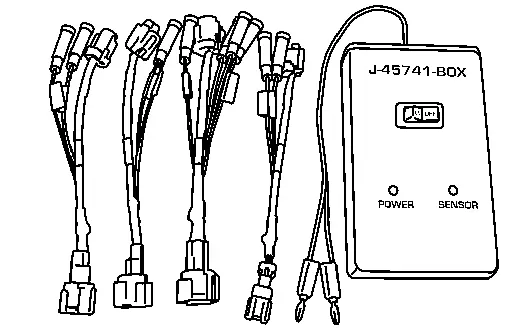

KV991J0080   

(J-45741)

ABS active wheel sensor tester

Checking operation of ABS active wheel sensors

Ecu Diagnosis Information. Abs Actuator and Electric Unit (control Unit)

DTC Index

DTC Display item VDC warning lamp ABS warning lamp Brake warning lamp Brake system warning lamp Refer to
C1040-63 Emergency brake OFF OFF OFF OFF DTC Description
C1040-64 Emergency brake OFF OFF OFF OFF DTC Description
C1040-92 Emergency brake OFF OFF OFF OFF DTC Description
C1041-55 Configuration OFF ON OFF OFF DTC Description
C1042-04 Cut valve 1 ON ON ON ON DTC Description
C1043-04 Cut valve 2 ON ON ON ON DTC Description
C1046-04 Suction valve 1 ON ON ON ON DTC Description
C1047-04 Suction valve 2 ON ON ON ON DTC Description
C1048-04 Valve relay ON ON ON ON DTC Description
C1048-11 Valve relay ON ON ON ON DTC Description
C1048-92 Valve relay ON ON ON ON DTC Description
C1049-04 Front left ABS IN valve ON ON ON ON DTC Description
C104A-04 Front left ABS OUT valve ON ON ON ON DTC Description
C104B-04 Front right ABS IN valve ON ON ON ON DTC Description
C104C-04 Front right ABS OUT valve ON ON ON ON DTC Description
C104D-04 Rear left ABS IN valve ON ON ON ON DTC Description
C104E-04 Rear left ABS OUT valve ON ON ON ON DTC Description
C104F-04 Rear right ABS IN valve ON ON ON ON DTC Description
C1050-04 Rear right ABS OUT valve ON ON ON ON DTC Description
C1051-04 Pump motor ON ON ON OFF DTC Description
C1051-13 Pump motor ON ON ON ON DTC Description
C1051-1C Pump motor ON ON ON ON DTC Description
C1055-49 CAN system ON ON OFF ON DTC Description
C1056-13 Battery power supply OFF OFF OFF ON DTC Description
C1056-16 Battery power supply ON ON ON ON DTC Description
C1056-17 Battery power supply ON ON ON ON DTC Description
C1058-01 Control unit ON ON ON ON DTC Description
C1058-04 Control unit OFF OFF OFF ON DTC Description
C1058-42 Control unit ON ON ON ON DTC Description
C1058-44 Control unit ON ON ON ON DTC Description
C1058-49 Control unit ON ON ON ON DTC Description
C1058-51 Control unit ON ON ON ON DTC Description
C1058-92 Control unit ON ON ON ON DTC Description
C1059-92 Control unit ON ON ON ON DTC Description
C105A-92 Control unit ON ON ON ON DTC Description
C105C-92 Control unit OFF OFF OFF OFF DTC Description
C105D-7B Brake fluid level low ON ON ON ON DTC Description
C105E-92 Pressure sensor not calibration OFF OFF OFF ON DTC Description
C105E-93 Pressure sensor not calibration OFF OFF OFF ON DTC Description
C105F-85 Control unit OFF OFF OFF OFF DTC Description
C105F-92 Control unit OFF OFF OFF OFF DTC Description
C1061-02 Front left wheel sensor ON ON OFF ON DTC Description
C1061-07 Front left wheel sensor ON ON OFF ON DTC Description
C1061-09 Front left wheel sensor ON ON OFF ON DTC Description
C1061-11 Front left wheel sensor ON ON OFF ON DTC Description
C1061-12 Front left wheel sensor ON ON OFF ON DTC Description
C1061-13 Front left wheel sensor ON ON OFF ON DTC Description
C1061-1C Front left wheel sensor ON ON ON ON DTC Description
C1061-38 Front left wheel sensor ON ON OFF ON DTC Description
C1061-4A Front left wheel sensor ON ON OFF ON DTC Description
C1061-64 Front left wheel sensor ON ON OFF ON DTC Description
C1061-92 Front left wheel sensor ON ON OFF ON DTC Description
C1063-02 Front right wheel sensor ON ON OFF ON DTC Description
C1063-07 Front right wheel sensor ON ON OFF ON DTC Description
C1063-09 Front right wheel sensor ON ON OFF ON DTC Description
C1063-11 Front right wheel sensor ON ON OFF ON DTC Description
C1063-12 Front right wheel sensor ON ON OFF ON DTC Description
C1063-13 Front right wheel sensor ON ON OFF ON DTC Description
C1063-1C Front right wheel sensor ON ON ON ON DTC Description
C1063-38 Front right wheel sensor ON ON OFF ON DTC Description
C1063-4A Front right wheel sensor ON ON OFF ON DTC Description
C1063-64 Front right wheel sensor ON ON OFF ON DTC Description
C1063-92 Front right wheel sensor ON ON OFF ON DTC Description
C1065-02 Rear left wheel sensor ON ON OFF ON DTC Description
C1065-07 Rear left wheel sensor ON ON OFF ON DTC Description
C1065-09 Rear left wheel sensor ON ON OFF ON DTC Description
C1065-11 Rear left wheel sensor ON ON OFF ON DTC Description
C1065-12 Rear left wheel sensor ON ON OFF ON DTC Description
C1065-13 Rear left wheel sensor ON ON OFF ON DTC Description
C1065-1C Rear left wheel sensor ON ON ON ON DTC Description
C1065-38 Rear left wheel sensor ON ON OFF ON DTC Description
C1065-4A Rear left wheel sensor ON ON OFF ON DTC Description
C1065-64 Rear left wheel sensor ON ON OFF ON DTC Description
C1065-92 Rear left wheel sensor ON ON OFF ON DTC Description
C1067-02 Rear right wheel sensor ON ON OFF ON DTC Description
C1067-07 Rear right wheel sensor ON ON OFF ON DTC Description
C1067-09 Rear right wheel sensor ON ON OFF ON DTC Description
C1067-11 Rear right wheel sensor ON ON OFF ON DTC Description
C1067-12 Rear right wheel sensor ON ON OFF ON DTC Description
C1067-13 Rear right wheel sensor ON ON OFF ON DTC Description
C1067-1C Rear right wheel sensor ON ON ON ON DTC Description
C1067-38 Rear right wheel sensor ON ON OFF ON DTC Description
C1067-4A Rear right wheel sensor ON ON OFF ON DTC Description
C1067-64 Rear right wheel sensor ON ON OFF ON DTC Description
C1067-92 Rear right wheel sensor ON ON OFF ON DTC Description
C1068-95 Front wheel sensor OFF OFF OFF OFF DTC Description
C1069-95 Rear wheel sensor OFF OFF OFF OFF DTC Description
C106A-04 Wheel sensor ON ON ON ON DTC Description
C106A-55 Wheel sensor ON ON ON ON DTC Description
C106A-62 Wheel sensor ON ON ON ON DTC Description
C106A-64 Wheel sensor ON ON ON ON DTC Description
C106A-95 Wheel sensor ON ON ON ON DTC Description
C106B-64 Stop lamp switch ON OFF OFF ON DTC Description
C106C-01 Pressure sensor ON OFF OFF ON DTC Description
C106C-02 Pressure sensor ON OFF OFF ON DTC Description
C106C-16 Pressure sensor ON OFF OFF ON DTC Description
C106C-17 Pressure sensor ON OFF OFF ON DTC Description
C106C-64 Pressure sensor ON OFF OFF ON DTC Description
C106E-54 Steering angle sensor ON OFF OFF OFF DTC Description
C106E-55 Steering angle sensor ON OFF OFF OFF DTC Description
C106E-64 Steering angle sensor ON OFF OFF OFF DTC Description
C106F-54 Steering angle sensor ON OFF OFF OFF DTC Description
C1070-01 Side G sensor ON ON OFF OFF DTC Description
C1070-54 Side G sensor ON ON OFF OFF DTC Description
C1070-64 Side G sensor ON ON OFF OFF DTC Description
C1071-54 Decel G sensor ON ON OFF OFF DTC Description
C1071-61 Decel G sensor ON ON OFF OFF DTC Description
C1071-64 Decel G sensor ON ON OFF OFF DTC Description
C1072-01 Yaw rate sensor ON ON OFF OFF DTC Description
C1072-64 Yaw rate sensor ON ON OFF OFF DTC Description
C1072-83 Yaw rate sensor ON ON OFF OFF DTC Description
C1076-55 Not configured ON ON ON ON DTC Description
C1077-55 Downhill drive support switch ON ON ON OFF DTC Description
C1077-92 Downhill drive support switch OFF OFF OFF OFF DTC Description
C1078-55 Not configuration OFF ON OFF OFF DTC Description
C1079-55 Not configuration OFF ON OFF OFF DTC Description
C107A-55 Not configuration ON ON OFF OFF DTC Description
C107B-53 Nissan Ariya Vehicle dynamics control function OFF OFF OFF OFF DTC Description
C107C-53 Not configuration OFF OFF OFF OFF DTC Description
C1080-86 ECM ON OFF OFF ON DTC Description
C1082-86 CAN communication error (TCM) OFF OFF OFF ON DTC Description
C1083-86 Steering angle sensor ON OFF OFF OFF DTC Description
C1085-86 Combination meter ON OFF OFF OFF DTC Description
C1086-86 CAN communication error (BCM) ON OFF OFF ON DTC Description
C1087-86 Intelligent power distribution module engine room OFF OFF OFF ON DTC Description
C1088-86 AV system OFF OFF OFF OFF DTC Description
C1090-86 ADAS control unit OFF OFF OFF OFF DTC Description
C1092-86 4WD/AWD control unit OFF OFF OFF OFF DTC Description
C1094-86 VCM/ECM ON ON OFF OFF DTC Description
C1095-86 Electrically-driven intelligent brake unit OFF OFF OFF OFF DTC Description
C1096-86 Chassis control module OFF OFF OFF ON DTC Description
C1098-86 AVM OFF OFF OFF ON DTC Description
C10AA-63 Pump motor OFF OFF OFF OFF DTC Description
C10AC-54 Calibration incomplete ON OFF OFF OFF DTC Description
C10AD-04 Brake backup function OFF OFF OFF OFF DTC Description
C10AF-01 Pressure sensor OFF OFF OFF OFF DTC Description
C10B0-01 Parking brake actuator (right) OFF OFF OFF ON DTC Description
C10B0-09 Parking brake actuator (right) OFF OFF OFF ON DTC Description
C10B1-01 Parking brake actuator (left) OFF OFF OFF ON DTC Description
C10B1-09 Parking brake actuator (left) OFF OFF OFF ON DTC Description
C10B2-01 Parking brake switch OFF OFF OFF ON DTC Description
C10B2-64 Parking brake switch OFF OFF OFF ON DTC Description
C10B3-44 Parking brake control module OFF OFF OFF ON DTC Description
C10B3-49 Parking brake control module OFF OFF OFF ON DTC Description
C10B3-53 Parking brake control module OFF OFF OFF ON DTC Description
C10B3-55 Parking brake control module OFF OFF OFF ON DTC Description
C10B3-68 Parking brake control module OFF OFF OFF ON DTC Description
C10B4-98 Overheat OFF OFF OFF ON DTC Description
C10B5-76 Parking brake assembly check OFF OFF OFF ON DTC Description
C10B6-68 Parking brake system OFF OFF OFF ON DTC Description
C10B7-16 Parking brake power supply OFF OFF OFF ON DTC Description
C10B7-17 Parking brake power supply OFF OFF OFF ON DTC Description
C10B8-77 Parking brake system OFF OFF OFF ON DTC Description
C10B9-77 Parking brake system OFF OFF OFF ON DTC Description
U0073-00 Control module comm Bus A Off ON OFF OFF OFF DTC Description
U0073-88 Control module comm Bus A Off ON OFF OFF OFF DTC Description
U0076-00 Control module comm Bus D Off ON OFF OFF OFF DTC Description
U0076-88 Control module comm Bus D Off ON OFF OFF OFF DTC Description
U2112-87 CAN communication error brake unit OFF OFF OFF OFF DTC Description
U2140-87 Controller area network communication error (Engine control module) OFF OFF OFF OFF DTC Description
U2143-87 Controller area network communication error (Nissan Ariya Vehicle control module/Hybrid control module) OFF OFF OFF ON DTC Description
U214E-87 CAN communication error combination meter OFF OFF OFF ON DTC Description
U214F-87 CAN communication error (BCM) ON OFF OFF ON DTC Description
U2152-87 CAN communication error advanced driver assistant systems control unit OFF OFF OFF OFF DTC Description
U2154-87 CAN communication error multimedia interface unit OFF OFF OFF OFF DTC Description
U2156-87 CAN communication error steering angel sensor ON OFF OFF OFF DTC Description
U215B-87 CAN communication error (IPDM E/R) OFF OFF OFF OFF DTC Description
U2212-87 CAN communication error brake unit OFF OFF OFF ON DTC Description
U2240-87 Controller area network communication error (Engine control module) ON OFF OFF ON DTC Description
U2241-87 Controller area network communication error (transmission control module) OFF OFF OFF ON DTC Description
U2243-87 Controller area network communication error (Nissan Ariya Vehicle control module/Hybrid control module) ON OFF OFF OFF DTC Description
U224E-87 CAN communication error combination meter ON OFF OFF OFF DTC Description
U2252-87 CAN communication error advanced driver assistant systems control unit OFF OFF OFF OFF DTC Description
U225B-87 CAN communication error (IPDM E/R) OFF OFF OFF ON DTC Description
U2275-87 CAN communication error around view monitor control unit OFF OFF OFF OFF DTC Description
U2276-87 CAN communication error (chassis control module/steering angle sensor) OFF OFF OFF ON DTC Description

Values On The Diagnosis Tool

NOTE:

  • The following table includes information (items) inapplicable to this Nissan Ariya vehicle. For information (items) applicable to this vehicle, refer to CONSULT display items.

  • Perform all self-diagnosis and delete stored DTC after execute Data monitor.

Item Condition Reference values in normal operation
Steering angle When driving straight 0±2.5 deg
When steering wheel is steered to RH by 90° Approx. +90 deg
When steering wheel is steered to LH by 90° Approx. -90 deg
Battery voltage Power switch ON 10 - 16 V
Front LH wheel speed Nissan Ariya Vehicle stopped 0.00 km/h (MPH)
When driving*1 Nearly matches the speedometer display (within ±10%)
Front RH wheel speed Nissan Ariya Vehicle stopped 0.00 km/h (MPH)
When driving*1 Nearly matches the speedometer display (within ±10%)
Rear LH wheel speed Nissan Ariya Vehicle stopped 0.00 km/h (MPH)
When driving*1 Nearly matches the speedometer display (within ±10%)
Rear RH wheel speed Nissan Ariya Vehicle stopped 0.00 km/h (MPH)
When driving*1 Nearly matches the speedometer display (within ±10%)
Nissan Ariya Vehicle speed Vehicle stopped 0.00 km/h (MPH)
When driving*1 Nearly matches the speedometer display (within ±10%)
Odometer Always Nearly matches the odometer display
Decel G sensor Nissan Ariya Vehicle stopped Approx. 0 m/s2
During acceleration Positive value
During deceleration Negative value
Side G sensor Nissan Ariya Vehicle stopped Approx. 0 G
Turning right Negative value
Turning left Positive value
Yaw rate sensor Nissan Ariya Vehicle stopped Approx. 0 deg/s
Turning right Negative value
Turning left Positive value
Master cylinder pressure Brake pedal not depressed Approx. 0 bar
Brake pedal depressed

(-40) - (+300) bar

(Pressure increases according to pedal effort)
Valve, pump motor Active On
Inactive Off
Front left / Rear right valve Active On
Inactive Off
Front right / Rear left valve Active On
Inactive Off
Front left / Rear right pump Active On
Inactive Off
Front right / Rear left pump Active On
Inactive Off
Rear right ABS OUT valve*2 Active On
Inactive Off
Rear right ABS IN valve*2 Active On
Inactive Off
Rear left ABS OUT valve*2 Active On
Inactive Off
Rear left ABS IN valve*2 Active On
Inactive Off
Front right ABS OUT valve*2 Active On
Inactive Off
Front right ABS IN valve*2 Active On
Inactive Off
Front left ABS OUT valve*2 Active On
Inactive Off
Front left ABS IN valve*2 Active On
Inactive Off
Front tire diameter Always Tire diameter (mm)
Transmission type M/T models M/T
A/T models A/T
CVT models CVT
DCT models DCT
Type is not configuration Not
Parking brake type Manual parking models 1
Electric parking brake models (Cable type) 2
Electric parking brake models (drum brake type) 3
Electric parking brake models (disc brake type) 4
Electric parking brake mode Customer mod Mode 1
Factory mode Mode 2
Actuator voltage (right) Power switch ON 10 - 16 V
Actuator voltage (left) Power switch ON 10 - 16 V
Actuator current (right) Active Approx. 16.9 A
Inactive Approx. 0 A
Actuator current (left) Active Approx. 16.9 A
Inactive Approx. 0 A
Slope ratio When on a level road Approx. 0 %
When on a sloping road (-90) - (+90) %
Brake force (right) Active Approx. 0 N
Inactive 9 - 25.0 kN
Brake force (right) Active Approx. 0 N
Inactive 9 - 25.0 kN
Parking brake switch Parking brake switch is not operated N
Parking brake switch is pulled Pull
Parking brake switch is pushed Push
Parking brake switch is malfunctioning Malfunction
Malfunction level Normal Normal
Malfunctioning (part replacement required) Repair
Malfunctioning (function stopped) Stop
Brake status (left) Apply (start) Active 1
Apply (during) Active 2
Apply (end) Active 3
Release (start) Release 1
Release (during) Release 2
Release (end) Release 3
When replacing brake pad Release 4
Unknown Unknown
Initialize Initial
Brake status (right) Apply (start) Active 1
Apply (during) Active 2
Apply (end) Active 3
Release (start) Release 1
Release (during) Release 2
Release (end) Release 3
When replacing brake pad Release 4
Unknown Unknown
Initialize Initial
Brake disc rotor temperature 1 Always Changes according to (current) temperature of disc rotor
Parking brake active status display Release Release
Apply (when the parking brake switch is pulled once) Active 1
Apply (when the parking brake switch is pulled twice ore more) Active 2
Not confirmed Unconfirmed
Parking brake malfunction display Normal Normal
Malfunction Malfunction 1
Displays but not used Malfunction 2
Nissan Ariya Vehicle status No warning Not
Vehicle is move backward Warning
Electric parking brake warning 1 No warning Off
When the driver gets out of the Nissan Ariya vehicle without activating electric parking brake system. Warning
Parking brake warning 1 No warning No
When the condition that the electric parking brake system is turned ON under the condition that it is unable to be activated. Warning 1
When the condition that the electric parking brake system is turned ON again under the condition that it is unable to be activated. Warning 2
Parking brake warning 2 No warning No

When the parking brake switch is pressed without depressing the brake pedal.

(Displays the “Press brake pedal” by information display in the combination meter)
Warning 1

When the parking brake switch is pressed again without depressing the brake pedal.

(Displays the “Press brake pedal” by information display in the combination meter)
Warning 2
Parking brake warning 3 No warning No

When the parking brake switch is continued to be pulled while the Nissan Ariya vehicle is travelling.

(Displays the “Release parking brake” by information display in the combination meter, master warning lamp turns ON and buzzer is operate)
Warning
Parking brake warning 4 No warning No

When the electric parking brake system cannot be cancelled automatically after trying this opening the driver's door.

(Displays the “Release parking brake” by information display in the combination meter)
Warning 1

When the electric parking brake system cannot be cancelled automatically after trying this again opening the driver's door.

(Displays the “Release parking brake” by information display in the combination meter)
Warning 2
Electric parking brake switch indicator*3 When the parking switch indicator lamp is OFF. Off
When the parking switch indicator lamp is ON. On
When the parking switch indicator lamp is blinking. Blink
Electric parking brake warning 2 When the electric parking brake system is normal. Not
When the malfunctioning of electric parking brake system is detected. Warning 1
When the critical malfunctioning of electric parking brake system is being detected. Warning 2
When the wrong operation of electric parking brake system is detected. Warning 3
OFF switch When the VDC function setting is OFF. On
When the VDC function setting is ON. Off
Brake pedal When the brake pedal depressed. On
When the brake pedal not depressed. Off
When the not judged. No
Hazard lamp When the hazard lamp is turn ON. On
When the hazard lamp is turn OFF. Off
Stop lamp When the stop lamp is turn ON. On
When the stop lamp is turn OFF. Off
Nissan Ariya Vehicle status When the sleep status. 1
Displays but not used. 2
When the operation suspended. 3
When the auto ACC status. 4
Displays but not used. 5
When the power switch ON. 6
When the traction motor wake up. 7
When the Nissan Ariya vehicle to READY. 8
When the automatic start. 9
When the power switch OFF. 10
Steering wheel speed When the driving straight. Approx. 0 deg/s
When the steering wheel is steered to RH. Positive value
When the steering wheel is steered to LH. Negative value

*1: Confirm tire pressure is standard value.

*2: Display occasionally changes On/Off for a moment after power switch is ON. This is operation for checking purposes and is not a malfunction.

*3: Refer to Warning / Indicator / Chime List. for ON/OFF/BRINK conditions of each warning lamp and each indicator lamp.

Fail-safe

Refer to Fail-safe.

DTC Inspection Priority Chart

When multiple DTCs are displayed simultaneously, check one by one depending on the following priority list.

Priority Detected Item (DTC)
1
  • U0073-00 Control module comm Bus A Off

  • U0073-88 Control module comm Bus A Off

  • U0076-00 Control module comm Bus D Off

  • U0076-88 Control module comm Bus D Off

2
  • C1082-86 CAN communication error (TCM)

  • C1086-86 CAN communication error (BCM)

  • U2112-87 CAN communication error brake unit

  • U2140-87 Controller area network communication error (Engine control module)

  • U2143-87 Controller area network communication error (Nissan Ariya Vehicle control module/Hybrid control module)

  • U214E-87 CAN communication error combination meter

  • U214F-87 CAN communication error (BCM)

  • U2152-87 CAN communication error advanced driver assistant systems control unit

  • U2154-87 CAN communication error multimedia interface unit

  • U2156-87 CAN communication error steering angel sensor

  • U215B-87 CAN communication error (IPDM E/R)

  • U2212-87 CAN communication error brake unit

  • U2240-87 Controller area network communication error (Engine control module)

  • U2241-87 Controller area network communication error (transmission control module)

  • U2243-87 Controller area network communication error (Nissan Ariya Vehicle control module/Hybrid control module)

  • U224E-87 CAN communication error combination meter

  • U2252-87 CAN communication error advanced driver assistant systems control unit

  • U225B-87 CAN communication error (IPDM E/R)

  • U2275-87 CAN communication error around view monitor control unit

  • U2276-87 CAN communication error (chassis control module/steering angle sensor)

3
  • C1041-55 Configuration

  • C1058-01 Control unit

  • C1058-04 Control unit

  • C1058-42 Control unit

  • C1058-44 Control unit

  • C1058-49 Control unit

  • C1058-51 Control unit

  • C1058-92 Control unit

  • C1059-92 Control unit

  • C105A-92 Control unit

  • C105C-92 Control unit

  • C105F-85 Control unit

  • C105F-92 Control unit

  • C1076-55 Not configured

  • C1078-55 Not configuration

  • C1079-55 Not configuration

  • C107A-55 Not configuration

  • C107B-53 Nissan Ariya Vehicle dynamics control function

  • C107C-53 Not configuration

  • C10B3-49 Parking brake control module

  • C10B3-53 Parking brake control module

  • C10B3-55 Parking brake control module

  • C10B3-68 Parking brake control module

  • C10B5-76 Parking brake assembly check

  • C10B6-68 Parking brake system

  • C10B8-77 Parking brake system

  • C10B9-77 Parking brake system

4
  • C1040-63 Emergency brake

  • C1040-64 Emergency brake

  • C1040-92 Emergency brake

  • C106B-64 Stop lamp switch

  • C106E-54 Steering angle sensor

  • C106E-55 Steering angle sensor

  • C106E-64 Steering angle sensor

  • C106F-54 Steering angle sensor

  • C1077-55 Downhill drive support switch

  • C1077-92 Downhill drive support switch

  • C1080-86 ECM

  • C1083-86 Steering angle sensor

  • C1085-86 Combination meter

  • C1087-86 Intelligent power distribution module engine room

  • C1088-86 AV system

  • C1090-86 ADAS control unit

  • C1092-86 4WD/AWD control unit

  • C1094-86 VCM/ECM

  • C1095-86 Electrically-driven intelligent brake unit

  • C1096-86 Chassis control module

  • C1098-86 AVM

5
  • C1048-04 Valve relay

  • C1048-11 Valve relay

  • C1048-92 Valve relay

  • C1051-04 Pump motor

  • C1051-13 Pump motor

  • C1051-1C Pump motor

  • C1056-13 Battery power supply

  • C1056-16 Battery power supply

  • C1056-17 Battery power supply

  • C10AA-63 Pump motor

  • C10B0-09 Parking brake actuator (right)

  • C10B1-09 Parking brake actuator (left)

  • C10B7-16 Parking brake power supply

  • C10B7-17 Parking brake power supply

6
  • C1042-04 Cut valve 1

  • C1043-04 Cut valve 2

  • C1046-04 Suction valve 1

  • C1047-04 Suction valve 2

  • C1049-04 Front left ABS IN valve

  • C104A-04 Front left ABS OUT valve

  • C104B-04 Front right ABS IN valve

  • C104C-04 Front right ABS OUT valve

  • C104D-04 Rear left ABS IN valve

  • C104E-04 Rear left ABS OUT valve

  • C104F-04 Rear right ABS IN valve

  • C1050-04 Rear right ABS OUT valve

  • C1055-49 CAN system

  • C105E-92 Pressure sensor not calibration

  • C105E-93 Pressure sensor not calibration

  • C106C-01 Pressure sensor

  • C106C-02 Pressure sensor

  • C106C-16 Pressure sensor

  • C106C-17 Pressure sensor

  • C106C-64 Pressure sensor

  • C1070-01 Side G sensor

  • C1070-54 Side G sensor

  • C1070-64 Side G sensor

  • C1071-54 Decel G sensor

  • C1071-61 Decel G sensor

  • C1071-64 Decel G sensor

  • C1072-01 Yaw rate sensor

  • C1072-64 Yaw rate sensor

  • C1072-83 Yaw rate sensor

  • C10AC-54 Calibration incomplete

  • C10AD-04 Brake backup function

  • C10AF-01 Pressure sensor

  • C10B4-98 Overheat

7
  • C1061-02 Front left wheel sensor

  • C1061-07 Front left wheel sensor

  • C1061-09 Front left wheel sensor

  • C1061-11 Front left wheel sensor

  • C1061-12 Front left wheel sensor

  • C1061-13 Front left wheel sensor

  • C1061-1C Front left wheel sensor

  • C1061-38 Front left wheel sensor

  • C1061-4A Front left wheel sensor

  • C1061-64 Front left wheel sensor

  • C1061-92 Front left wheel sensor

  • C1063-02 Front right wheel sensor

  • C1063-07 Front right wheel sensor

  • C1063-09 Front right wheel sensor

  • C1063-11 Front right wheel sensor

  • C1063-12 Front right wheel sensor

  • C1063-13 Front right wheel sensor

  • C1063-1C Front right wheel sensor

  • C1063-38 Front right wheel sensor

  • C1063-4A Front right wheel sensor

  • C1063-64 Front right wheel sensor

  • C1063-92 Front right wheel sensor

  • C1065-02 Rear left wheel sensor

  • C1065-07 Rear left wheel sensor

  • C1065-09 Rear left wheel sensor

  • C1065-11 Rear left wheel sensor

  • C1065-12 Rear left wheel sensor

  • C1065-13 Rear left wheel sensor

  • C1065-1C Rear left wheel sensor

  • C1065-38 Rear left wheel sensor

  • C1065-4A Rear left wheel sensor

  • C1065-64 Rear left wheel sensor

  • C1065-92 Rear left wheel sensor

  • C1067-02 Rear right wheel sensor

  • C1067-07 Rear right wheel sensor

  • C1067-09 Rear right wheel sensor

  • C1067-11 Rear right wheel sensor

  • C1067-12 Rear right wheel sensor

  • C1067-13 Rear right wheel sensor

  • C1067-1C Rear right wheel sensor

  • C1067-38 Rear right wheel sensor

  • C1067-4A Rear right wheel sensor

  • C1067-64 Rear right wheel sensor

  • C1067-92 Rear right wheel sensor

  • C1068-95 Front wheel sensor

  • C1069-95 Rear wheel sensor

  • C106A-04 Wheel sensor

  • C106A-55 Wheel sensor

  • C106A-62 Wheel sensor

  • C106A-64 Wheel sensor

  • C106A-95 Wheel sensor

  • C10B0-01 Parking brake actuator (right)

  • C10B1-01 Parking brake actuator (left)

  • C10B2-01 Parking brake switch

  • C10B2-64 Parking brake switch

  • C10B3-44 Parking brake control module

8
  • C105D-7B Brake fluid level low



© 2023-2025 Copyright www.niariya.com
