P030a-62 Ignition a Control Signal

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P030A	62	Ignition A Control Signal	Diagnosis condition	At inverter (rear) start or READY state
			Signal	Power SW signal
			Threshold	There was a difference between the power SW signal input by hard wire to the inverter (rear) and the power SW signal which receives by CAN signal.
			Diagnosis delay time	Within 2 seconds

POSSIBLE CAUSE

Wiring harness or connector (disconnection or short circuit in the power switch signal circuit)
Power switch signal (CAN signal)
Inverter (rear)

FAIL-SAFE

—

Confirmation Procedure

PREPARATION BEFORE OPERATION

If another "Confirmation Procedure" was performed immediately before this task, always power switch OFF, exit the Nissan Ariya vehicle and close all doors (including the back door), and wait for at least 60 seconds until the combination meter turns off before starting the next test.

CAUTION:

While waiting, never operate the Nissan Ariya vehicle such as locking, opening, and closing doors. Violation of this caution results in the activation of ACC power supply according to the auto ACC function.

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

Power switch ON and wait at least 10 seconds.
Check the DTC.

Is "P030A-62" detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

INSPECTION OF THE CAN COMMUNICATION

Inspect the CAN communication circuit. Refer to Trouble Diagnosis Flow Chart.

Is the inspection result normal?

YES>>

GO TO 2.

NO>>

Repair or replace the malfunctioning parts.

INSPECTION OF THE HARNESS CONNECTOR

Power switch OFF.
Check mating conditions of the harness connector for the inverter (rear).

Is the inspection result normal?

YES>>

GO TO 3.

NO>>

Repair or replace the malfunctioning parts.

INSPECTION OF THE CONNECTOR TERMINAL

Disconnect the harness connector of the inverter (rear).
Check the inverter (rear) connector for water intrusion, or damage or corrosion of the terminals.

Is the inspection result normal?

YES>>

GO TO 4.

NO>>

Repair or replace the malfunctioning parts.

INSPECTION OF POWER SWITCH CIRCUIT 1

Power switch ON.
Check the voltage between the harness connector of the inverter (rear) and the body ground.

+ - Voltage

Inverter (rear)

Connector Terminal

B297 30 Body ground 9 – 16 V

+	-	Voltage
B297	30	Body ground	9 – 16 V

Is the inspection result normal?

YES>>

GO TO 8.

NO>>

GO TO 5.

INSPECTION OF POWER SWITCH CIRCUIT 2

Power switch OFF.
Disconnect the IPDM E/R harness connector.
Check continuity between the IPDM E/R harness connector and inverter (rear) harness connector.

IPDM E/R Inverter (rear) Continuity

Connector Terminal Connector Terminal

E40 25 B297 30 Existed

IPDM E/R	Inverter (rear)	Continuity
E40	25	B297	30	Existed

Is the inspection result normal?

YES>>

GO TO 6.

NO>>

Repair or replace the malfunctioning parts.

INSPECTION OF POWER SWITCH CIRCUIT 3

Check continuity between the IPDM E/R harness connector and body ground.

IPDM E/R		−	Continuity
Connector	Terminal	−	Continuity
E40	25	Body ground	Not existed

Is the inspection result normal?

YES>>

GO TO 7.

NO>>

Repair or replace the malfunctioning parts.

INSPECTION OF POWER SWITCH CIRCUIT 4

Inspect the following items:

Disconnection or short circuit in the wiring harness between the power switch and IPDM E/R
5A fuse (#144)

Repair or replace the malfunctioning parts.

PERFORM THE DTC CONFIRMATION PROCEDURE

Connect the disconnected harness connector of the inverter (rear).
Perform the DTC CONFIRMATION PROCEDURE. Refer to Confirmation Procedure.

Is "P030A-62" detected?

YES>>

Replace the inverter (rear). Refer to Removal and Installation.

NO>>

INSPECTION END

P0a1c-01 Drive Motor B Control Module

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P0A1C	01	Drive Motor B Control Module	Diagnosis condition	At inverter (rear) start
			Signal	―
			Threshold	An error was detected related to the controller inside the inverter (rear).
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

Inverter (rear)

FAIL-SAFE

Control of the rear traction motor stops. Or, the vehicle cannot be started (READY status cannot be achieved).

Confirmation Procedure

PREPARATION BEFORE OPERATION

If another "Confirmation Procedure" was performed immediately before this task, always power switch OFF exit the Nissan Ariya vehicle and close all doors (including the back door), and wait for at least 60 seconds until the combination meter turns off before starting the next test.

CAUTION:

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

Power switch ON and wait at least 10 seconds.
Check the DTC.

Is "P0A1C-01" detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

REPLACEMENT OF THE INVERTER (REAR)

Replace the inverter (rear). Refer to Removal and Installation.

END

P0a1c-03 Drive Motor B Control Module

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P0A1C	03	Drive Motor B Control Module	Diagnosis condition	At inverter (rear) start or READY state
			Signal	—
			Threshold	An error was detected related to the controller inside the inverter (rear).
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

Inverter (rear)

FAIL-SAFE

Control of the rear traction motor stops. Or, the vehicle cannot be started (READY status cannot be achieved).

Confirmation Procedure

PREPARATION BEFORE OPERATION

CAUTION:

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

Power switch ON and wait at least 10 seconds.
Check the DTC.

Is "P0A1C-03" detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

REPLACEMENT OF THE INVERTER (REAR)

Replace the inverter (rear). Refer to Removal and Installation.

END

P0a1c-04 Drive Motor B Control Module

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P0A1C	04	Drive Motor B Control Module	Diagnosis condition	READY state
			Signal	—
			Threshold	An error was detected related to the controller inside the inverter (rear).
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

Inverter (rear)

FAIL-SAFE

Control of the rear traction motor stops. Or, the vehicle cannot be started (READY status cannot be achieved).

Confirmation Procedure

PREPARATION BEFORE OPERATION

CAUTION:

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.
Check the DTC.

Is "P0A1C-04" detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

REPLACEMENT OF THE INVERTER (REAR)

Replace the inverter (rear). Refer to Removal and Installation.

END

P0a1c-05 Drive Motor B Control Module

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P0A1C	05	Drive Motor B Control Module	Diagnosis condition	READY state
			Signal	—
			Threshold	An error was detected related to the controller inside the inverter (rear).
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

Inverter (rear)

FAIL-SAFE

Control of the rear traction motor stops. Or, the vehicle cannot be started (READY status cannot be achieved).

Confirmation Procedure

PREPARATION BEFORE OPERATION

CAUTION:

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.
Check the DTC.

Is "P0A1C-05" detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

CHECK FOR DTC RELATED TO THE HIGH VOLTAGE SYSTEM

With CONSULT

Power switch ON and wait at least 10 seconds.
Check the DTCs related to the high voltage system.

Is a DTC related to the high voltage system other than the inverter (rear) detected?

YES>>

Check the detected DTC.

NO>>

GO TO 2.

INSPECTION OF THE CAN COMMUNICATION CIRCUIT

Inspect the CAN communication circuit. Refer to Trouble Diagnosis Flow Chart.

Is the inspection result normal?

YES>>

GO TO 3.

NO>>

Repair or replace the malfunctioning parts.

REPLACEMENT OF THE INVERTER (REAR)

Replace the inverter (rear). Refer to Removal and Installation.

END

P0a1c-44 Drive Motor B Control Module

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P0A1C	44	Drive Motor B Control Module	Diagnosis condition	At inverter (rear) start
			Signal	—
			Threshold	An error was detected at the data consistency check for the memory inside the inverter (rear).
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

12V battery was disconnected while writing of the resolver offset value and rotor resistance value was in progress.
Inverter (rear)

FAIL-SAFE

—

Confirmation Procedure

PREPARATION BEFORE OPERATION

CAUTION:

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

Power switch ON and wait at least 10 seconds.
Check the DTC.

Is "P0A1C-44" detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

REPLACEMENT OF THE INVERTER (REAR)

Replace the inverter (rear). Refer to Removal and Installation.

END

P0a30-11 Drive Motor B Temperature Sensor

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P0A30	11	Drive Motor B Temperature Sensor	Diagnosis condition	READY state
			Signal	Temperature sensor signal of rear traction motor
			Threshold	Disconnection or short circuit in the rear traction motor temperature sensor circuit
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

Wiring harness or connector (Disconnection or short circuit in the rear traction motor temperature sensor circuit)
Rear traction motor (rear traction motor temperature sensor)
Inverter (rear)

FAIL-SAFE

Send rear traction motor temperature of 180°C (356°F) to the VCM.

Confirmation Procedure

PREPARATION BEFORE OPERATION

CAUTION:

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.
Check the DTC.

Is "P0A30-11" detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

INSPECTION OF THE TEMPERATURE SENSOR CIRCUIT OF THE REAR TRACTION MOTOR

Inspect the temperature sensor circuit of the rear traction motor. Refer to Diagnosis Procedure.

INSPECTION END

P0a30-13 Drive Motor B Temperature Sensor

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P0A30	13	Drive Motor B Temperature Sensor	Diagnosis condition	READY state
			Signal	Temperature sensor signal of rear traction motor
			Threshold	Disconnection or short circuit in the rear traction motor temperature sensor circuit
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

Wiring harness or connector (Disconnection or short circuit in the rear traction motor temperature sensor circuit)
Rear traction motor (rear traction motor temperature sensor)
Inverter (rear)

FAIL-SAFE

Send rear traction motor temperature of 180°C (356°F) to the VCM.

Confirmation Procedure

PREPARATION BEFORE OPERATION

CAUTION:

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.
Check the DTC.

Is "P0A30-13" detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

INSPECTION OF THE TEMPERATURE SENSOR CIRCUIT OF THE REAR TRACTION MOTOR

Inspect the temperature sensor circuit of the rear traction motor. Refer to Diagnosis Procedure.

INSPECTION END

P0a30-4b Drive Motor B Temperature Sensor

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P0A30	4B	Drive Motor B Temperature Sensor	Diagnosis condition	READY state
			Signal	—
			Threshold	Overheat error was detected at the rear traction motor (stator).
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

Oil coolant system for rear traction motor
Leakage of rear traction motor oil
Wiring harness or connector (Disconnection or short circuit in the rear traction motor temperature sensor circuit)
Rear traction motor (rear traction motor temperature sensor)
Inverter (rear)

FAIL-SAFE

The driving torque of the rear traction motor is limited to 0 Nm.

Confirmation Procedure

PREPARATION BEFORE OPERATION

CAUTION:

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.
Drive the vehicle for at least 20 minutes to warm it up.
Fully depress the accelerator pedal and accelerate the Nissan Ariya vehicle from 0 km/h (0 MPH) to 10 km/h (6 MPH). Repeat this for 10 times without interruption to the maximum extent possible.
Stop the Nissan Ariya vehicle
Check the DTC.

Is "P0A30-4B" detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

CHECK FOR DTC RELATED TO THE HIGH VOLTAGE COOLING SYSTEM

With CONSULT

Power ON and wait at least 10 seconds.
Check "Self Diagnostic Result" of "EV/HEV".

Is a DTC related to the high voltage cooling system detected?

YES>>

Check the detected DTC item. Refer to DTC Index.

NO>>

GO TO 2.

INSPECTION OF COOLANT

Inspect the coolant level and leakage of coolant. Refer to COOLANT : Inspection.

Is the inspection result normal?

YES>>

GO TO 3.

NO>>

Repair or replace the malfunctioning parts.

INSPECTION OF THE COOLANT HOSE

Check for clogging or twisting of the hose of the oil coolant circuit for the rear traction motor.

Is the inspection result normal?

YES>>

GO TO 4.

NO>>

Repair or replace the malfunctioning parts.

INSPECTION FOR REAR TRACTION MOTOR OIL

Check visually for leakage of the rear traction motor oil.

Is the inspection result normal?

YES>>

GO TO 5.

NO>>

Replace the rear traction motor. Refer to Removal and Installation.

INSPECTION OF THE TEMPERATURE SENSOR CIRCUIT OF THE REAR TRACTION MOTOR

Inspect the temperature sensor circuit of the rear traction motor. Refer to Diagnosis Procedure.

INSPECTION END

P0a45-04 Drive Motor B Position Sensor

DTC Description

CAUTION:

When installing the 12V battery into the vehicle, a DTC may be stored as a result of fluctuations in the voltage input into the inverter.

If a DTC remains in the past malfunctions, check the history of 12V battery removal and installation.

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P0A45	04	Drive Motor B Position Sensor	Diagnosis condition	At inverter (rear) start or READY state
			Signal	Rear traction motor resolver signal
			Threshold	An error was detected at the rear traction motor resolver system.
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

Wiring harness or connector (disconnection or short circuit in the resolver circuit of the rear traction motor)
Rear traction motor (traction motor resolver)
Inverter (rear)

FAIL-SAFE

Control of the rear traction motor stops. Or, the vehicle cannot be started (READY status cannot be achieved).

Confirmation Procedure

PREPARATION BEFORE OPERATION

CAUTION:

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

Power switch ON and wait at least 10 seconds.
Check the DTC.

Is "P0A45-04" detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

INSPECTION OF THE REAR TRACTION MOTOR RESOLVER CIRCUIT

Inspect the rear traction motor resolver circuit. Refer to Component Inspection.

INSPECTION END

P0a45-1c Drive Motor B Position Sensor

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P0A45	1C	Drive Motor B Position Sensor	Diagnosis condition	READY state
			Signal	Rear traction motor resolver signal
			Threshold	An error was detected at the rear traction motor resolver system.
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

Wiring harness or connector (Disconnection or short circuit in the resolver circuit of the rear traction motor)
Rear traction motor (Traction motor resolver)
Inverter (rear)

FAIL-SAFE

Control of the rear traction motor stops. Or, the vehicle cannot be started (READY status cannot be achieved).

Confirmation Procedure

PREPARATION BEFORE OPERATION

CAUTION:

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

Set to READY and wait for at least 10 seconds.
Check the DTC.

Is "P0A45-1C" detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

INSPECTION OF THE REAR TRACTION MOTOR RESOLVER CIRCUIT

Inspect the rear traction motor resolver circuit. Refer to Component Inspection.

INSPECTION END

P0a55-01 Drive Motor B Current Sensor

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P0A55	01	Drive Motor B Current Sensor	Diagnosis condition	READY state
			Signal	—
			Threshold	Any of the following was detected. The current sensor value deviated from the prescribed value. The sum of the 3 phases currents deviated from the prescribed value.
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

Current sensor circuit in the inverter (rear)

FAIL-SAFE

Control of the rear traction motor stops.

Confirmation Procedure

PREPARATION BEFORE OPERATION

CAUTION:

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds
Depress the accelerator pedal to increase the Nissan Ariya vehicle speed up to 10 km/h (6 MPH).
Stop the vehicle.
Check the DTC.

Is "P0A55-01" detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

REPLACEMENT OF THE INVERTER (REAR)

Replace the inverter (rear). Refer to Removal and Installation.

END

P0a79-48 Drive Motor B Inverter

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P0A79	48	Drive Motor B Inverter	Diagnosis condition	READY state
			Signal	—
			Threshold	An error signal from the LBC was received.
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

EV battery system

FAIL-SAFE

Limits drive torque of rear traction motor

Confirmation Procedure

PREPARATION BEFORE OPERATION

CAUTION:

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

Set to READY and wait for at least 10 seconds.
Check the DTC.

Is "P0A79-48" detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

INSPECTION OF THE EV BATTERY SYSTEM

Inspect the EV battery system.

66kWh Li-ion battery models: Refer to Work Flow.
91kWh Li-ion battery models: Refer to Work Flow.

INSPECTION END

P0a79-62 Drive Motor B Inverter

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P0A79	62	Drive Motor B Inverter	Diagnosis condition	READY state
			Signal	—
			Threshold	There was an inconsistency between the voltage value detected by the voltage monitor circuit and the system main relay ON/OFF that is received via CAN.
			Diagnosis delay time	Within 2 seconds

POSSIBLE CAUSE

CAN signal (system main relay ON/OFF signal)
System main relay
Voltage monitor circuit in the inverter (rear)

FAIL-SAFE

Control of the rear traction motor stops. Or, no limitation

Confirmation Procedure

PREPARATION BEFORE OPERATION

CAUTION:

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

Set to READY and wait for at least 10 seconds.
Check the DTC.

Is "P0A79-62" detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

WARNING:

Since hybrid vehicles and electric Nissan Ariya vehicles contain a high voltage battery, there is the risk of electric shock, electric leakage, or similar accidents if the high voltage component and Nissan Ariya vehicle are handled incorrectly. Be sure to follow the correct work procedures when performing inspection and maintenance.

WARNING:

Be sure to remove the service plug in order to disconnect the high voltage circuits before performing inspection or maintenance of high voltage system harnesses and parts.

The removed service plug must always be carried in a pocket of the responsible worker or placed in the tool box during the procedure to prevent the plug from being connected by mistake.

Be sure to wear insulating protective equipment before beginning work on the high voltage system.

Never allow workers other than the responsible person to touch the Nissan Ariya vehicle containing high voltage parts. To keep others from touching the high voltage parts, these parts must be covered with an insulating sheet except when using them.

Refer to HIGH VOLTAGE PRECAUTIONS : Precautions.

CAUTION:

Never bring the vehicle into the READY status with the service plug removed unless otherwise instructed in the Service Manual. A malfunction may occur if this is not observed.

INSPECTION OF THE CAN COMMUNICATION CIRCUIT

Inspect the CAN communication circuit. Refer to Trouble Diagnosis Flow Chart.

Is the inspection result normal?

YES>>

GO TO 2.

NO>>

Repair or replace the malfunctioning parts.

CHECK FOR DTC RELATED TO THE HIGH VOLTAGE SYSTEM

With CONSULT

Power switch ON and wait at least 10 seconds.
Check the DTCs related to the high voltage system.

Is a DTC related to the high voltage system other than the inverter (rear) detected?

YES>>

Check the detected DTC.

NO>>

GO TO 3.

PRECONDITIONING

WARNING:

Follow the instructions below before starting the procedure.

Disconnect high voltage circuit. Refer to HOW TO DISCONNECT HIGH VOLTAGE : Precautions.
Check voltage in high voltage circuit. Refer to CHECK VOLTAGE IN HIGH VOLTAGE CIRCUIT : Precautions.

GO TO 4.

INSPECTION OF THE HIGH VOLTAGE HARNESS

Inspect the high voltage harness between the Li-ion battery and the inverter (rear).

Is the inspection result normal?

YES>>

GO TO 5.

NO>>

Repair or replace the malfunctioning parts.

INSPECTION OF THE SYSTEM MAIN RELAY CIRCUIT

Inspect the circuits of system main relays 1 and 2.

66kWh Li-ion battery models
- System main relay 1: Refer to Diagnosis Procedure.
- System main relay 2: Refer to Diagnosis Procedure.

91kWh Li-ion battery models
- System main relay 1: Refer to Diagnosis Procedure.
- System main relay 2: Refer to Diagnosis Procedure.

Is the inspection result normal?

YES>>

Replace the inverter (rear). Refer to Removal and Installation.

NO>>

Repair or replace the malfunctioning parts.

P0a8b-A2 14 Volt Power Module System Voltage

DTC Description

CAUTION:

When installing the 12V battery into the vehicle, a DTC may be stored as a result of fluctuations in the voltage input into the inverter.

If a DTC remains in the past malfunctions, check the history of 12V battery removal and installation.

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P0A8B	A2	14 Volt Power Module System Voltage	Diagnosis condition	At inverter (rear) start (power switch ON, READY state, or auto ACC ON state)
			Signal	—
			Threshold	Voltage supplied to the inverter (rear) by the 12V battery dropped below 9 V.
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

12V battery voltage drop
Wiring harness or connector (disconnection or short circuit of 12V battery voltage supply circuit)
Inverter (rear)

FAIL-SAFE

Control of the rear traction motor stops.

Confirmation Procedure

PREPARATION BEFORE OPERATION

CAUTION:

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

Power switch ON and wait at least 10 seconds.
Check the DTC.

Is "P0A8B-A2" detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

INSPECTION OF THE 12V BATTERY

Inspect the 12V battery. Refer to Work Flow.

Is the inspection result normal?

YES>>

GO TO 2.

NO>>

Repair or replace the malfunctioning parts.

INSPECTION OF THE HARNESS CONNECTOR

Power switch OFF.
Check mating conditions of the harness connector for the inverter (rear).

Is the inspection result normal?

YES>>

GO TO 3.

NO>>

Repair or replace the malfunctioning parts.

INSPECTION OF THE CONNECTOR TERMINAL

Disconnect the harness connector of the inverter (rear).
Check the inverter (rear) connector for water intrusion, or damage or corrosion of the terminals.

Is the inspection result normal?

YES>>

GO TO 4.

NO>>

Repair or replace the malfunctioning parts.

INSPECTION OF THE 12V BATTERY POWER SUPPLY CIRCUIT

Power switch ON.
Check the voltage between the harness connector terminals of the inverter (rear).

Inverter (rear)			Voltage
Connector	Terminal		Voltage
B297	18	4	9 – 16 V
B297	28	14	9 – 16 V

Is the inspection result normal?

YES>>

Replace the inverter (rear). Refer to Removal and Installation.

NO>>

GO TO 5.

INSPECTION OF THE GROUND CIRCUIT FOR THE INVERTER (REAR)

Check continuity between the harness connector of the inverter (rear) and the body ground.

Inverter (rear)		−	Continuity
Connector	Terminal	−	Continuity
B297	4	Body ground	Exsited
B297	14	Body ground	Exsited

Is the inspection result normal?

YES>>

GO TO 6.

NO>>

Repair or replace the malfunctioning parts.

INSPECTION OF 12V BATTERY POWER SUPPLY CIRCUIT 2

Inspect the following items:

Disconnection or short circuit in the wiring harness between harness connector terminals No. 18 and No. 28 between the 12V battery and the inverter (rear).
10A fuse (#93)

Repair or replace the malfunctioning parts.

P0af2-11 Drive Motor Inverter Temperature Sensor B

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P0AF2	11	Drive Motor Inverter Temperature Sensor B	Diagnosis condition	READY state
			Signal	—
			Threshold	Any of the following was detected. The excitation print circuit board temperature sensor value deviated from the prescribed value. The driver print circuit board temperature sensor value deviated from the prescribed value.
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

Excitation print circuit board temperature sensor circuit or driver print circuit board temperature sensor circuit in the inverter (rear)

FAIL-SAFE

—

Confirmation Procedure

PREPARATION BEFORE OPERATION

CAUTION:

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.
Check the DTC.

Is "P0AF2-11" detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

REPLACEMENT OF THE INVERTER (REAR)

Replace the inverter (rear). Refer to Removal and Installation.

END

P0af2-13 Drive Motor Inverter Temperature Sensor B

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P0AF2	13	Drive Motor Inverter Temperature Sensor B	Diagnosis condition	READY state
			Signal	—
			Threshold	Any of the following was detected. The excitation print circuit board temperature sensor value deviated from the prescribed value. The driver print circuit board temperature sensor value deviated from the prescribed value.
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

Excitation print circuit board temperature sensor circuit or driver print circuit board temperature sensor circuit in the inverter (rear)

FAIL-SAFE

—

Confirmation Procedure

PREPARATION BEFORE OPERATION

CAUTION:

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.
Check the DTC.

Is "P0AF2-13" detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

REPLACEMENT OF THE INVERTER (REAR)

Replace the inverter (rear). Refer to Removal and Installation.

END

P0af2-1c Drive Motor Inverter Temperature Sensor B

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P0AF2	1C	Drive Motor Inverter Temperature Sensor B	Diagnosis condition	READY state
			Signal	—
			Threshold	The power module temperature sensor value deviated from the prescribed value.
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

Power module temperature sensor circuit in the inverter (rear)

FAIL-SAFE

—

Confirmation Procedure

PREPARATION BEFORE OPERATION

CAUTION:

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.
Check the DTC.

Is "P0AF2-1C" detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

REPLACEMENT OF THE INVERTER (REAR)

Replace the inverter (rear). Refer to Removal and Installation.

END

P0af2-4b Drive Motor Inverter Temperature Sensor B

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P0AF2	4B	Drive Motor Inverter Temperature Sensor B	Diagnosis condition	At inverter (rear) start or READY state
			Signal	—
			Threshold	Any of the following was detected. The temperature in the inverter (rear) exceeded the prescribed value. Overheat detected by hardware.
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

Coolant system for inverter (rear)
Inverter (rear)

FAIL-SAFE

The driving torque of the rear traction motor is limited to 0 Nm. Or, control of the rear traction motor stops.

Confirmation Procedure

PREPARATION BEFORE OPERATION

CAUTION:

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.
Drive the vehicle for at least 20 minutes to warm it up.
Fully depress the accelerator pedal and accelerate the Nissan Ariya vehicle from 0 km/h (0 MPH) to 10 km/h (6 MPH). Repeat this for 10 times without interruption to the maximum extent possible.
Stop the Nissan Ariya vehicle.
Check the DTC.

Is "P0AF2-4B" detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

CHECK FOR DTC RELATED TO THE HIGH VOLTAGE COOLING SYSTEM

With CONSULT

Power switch ON and wait at least 10 seconds.
Check "Self Diagnostic Result" of "EV/HEV".

Is a DTC related to the hgih voltage cooling system detected?

YES>>

Check the detected DTC item. Refer to DTC Index.

NO>>

GO TO 2.

INSPECTION OF COOLANT

Inspect the coolant volume and leakage of coolant. Refer to COOLANT : Inspection.

Is the inspection result normal?

YES>>

GO TO 3.

NO>>

Repair or replace the malfunctioning parts.

INSPECTION OF THE COOLANT HOSE

Check for clogging or twisting of the hose in the coolant system for the inverter (rear).

Is the inspection result normal?

YES>>

GO TO 4.

NO>>

Repair or replace the malfunctioning parts.

PERFORM THE DTC CONFIRMATION PROCEDURE

Perform the DTC CONFIRMATION PROCEDURE. Refer to Confirmation Procedure.

YES>>

Replace the inverter (rear). Refer to Removal and Installation.

NO>>

INSPECTION END

P0bf1-1c Drive Motor B Phase U Current Sensor

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P0BF1	1C	Drive Motor B Phase U Current Sensor	Diagnosis condition	At inverter (rear) start
			Signal	—
			Threshold	The U-phase current sensor output deviated from the prescribed value
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

U-phase current sensor circuit in the inverter (rear)

FAIL-SAFE

The vehicle cannot be started (READY status cannot be achieved).

Confirmation Procedure

PREPARATION BEFORE OPERATION

CAUTION:

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

Power switch ON and wait at least 10 seconds.
Check the DTC.

Is "P0BF1-1C" detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

REPLACEMENT OF THE INVERTER (REAR)

Replace the inverter (rear). Refer to Removal and Installation.

END

P0bf5-1c Drive Motor B Phase V Current Sensor

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P0BF5	1C	Drive Motor B Phase V Current Sensor	Diagnosis condition	At inverter (rear) start
			Signal	—
			Threshold	The V-phase current sensor output deviated from the prescribed value.
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

V-phase current sensor circuit in the inverter (rear)

FAIL-SAFE

The vehicle cannot be started (READY status cannot be achieved).

Confirmation Procedure

PREPARATION BEFORE OPERATION

CAUTION:

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

Power switch ON and wait at least 10 seconds.
Check the DTC.

Is "P0BF5-1C" detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

REPLACEMENT OF THE INVERTER (REAR)

Replace the inverter (rear). Refer to Removal and Installation.

END

P0bf9-1c Drive Motor B Phase W Current Sensor

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P0BF9	1C	Drive Motor B Phase W Current Sensor	Diagnosis condition	At inverter (rear) start
			Signal	—
			Threshold	The W-phase current sensor output deviated from the prescribed value.
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

W-phase current sensor circuit in the inverter (rear)

FAIL-SAFE

The vehicle cannot be started (READY status cannot be achieved).

Confirmation Procedure

PREPARATION BEFORE OPERATION

CAUTION:

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

Power switch ON and wait at least 10 seconds.
Check the DTC.

Is "P0BF9-1C" detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

REPLACEMENT OF THE INVERTER (REAR)

Replace the inverter (rear). Refer to Removal and Installation.

END

P0c02-11 Drive Motor B Current

DTC Description

CAUTION:

When installing the 12V battery into the vehicle, a DTC may be stored as a result of fluctuations in the voltage input into the inverter.

If a DTC remains in the past malfunctions, check the history of 12V battery removal and installation.

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P0C02	11	Drive Motor B Current	Diagnosis condition	READY state
			Signal	—
			Threshold	A power module error was detected.
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

Power module in the inverter (rear)

FAIL-SAFE

Control of the rear traction motor stops.

Confirmation Procedure

PREPARATION BEFORE OPERATION

CAUTION:

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.
Fully depress the accelerator pedal to increase the Nissan Ariya vehicle speed up to 10 km/h (6 MPH).
Stop the vehicle.
Check the DTC.

Is "P0C02-11" detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

REPLACEMENT OF THE INVERTER (REAR)

Replace the inverter (rear). Refer to Removal and Installation.

END

P0c02-12 Drive Motor B Current

DTC Description

CAUTION:

When installing the 12V battery into the vehicle, a DTC may be stored as a result of fluctuations in the voltage input into the inverter.

If a DTC remains in the past malfunctions, check the history of 12V battery removal and installation.

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P0C02	12	Drive Motor B Current	Diagnosis condition	READY state
			Signal	—
			Threshold	A power module error was detected.
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

Power module in the inverter (rear)

FAIL-SAFE

Control of the rear traction motor stops.

Confirmation Procedure

PREPARATION BEFORE OPERATION

CAUTION:

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.
Fully depress the accelerator pedal to increase the Nissan Ariya vehicle speed up to 10 km/h (6 MPH).
Stop the vehicle.
Check the DTC.

Is "P0C02-12" detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

REPLACEMENT OF THE INVERTER (REAR)

Replace the inverter (rear). Refer to Removal and Installation.

END

P0c02-18 Drive Motor B Current

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P0C02	18	Drive Motor B Current	Diagnosis condition	READY state
			Signal	—
			Threshold	A power module error was detected.
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

Power module in the inverter (rear)

FAIL-SAFE

Control of the rear traction motor stops.

Confirmation Procedure

PREPARATION BEFORE OPERATION

CAUTION:

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.
Fully depress the accelerator pedal to increase the Nissan Ariya vehicle speed up to 10 km/h (6 MPH).
Stop the vehicle.
Check the DTC.

Is "P0C02-18" detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

REPLACEMENT OF THE INVERTER (REAR)

Replace the inverter (rear). Refer to Removal and Installation.

END

P0c0e-01 Drive Motor B Inverter Power Supply

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P0C0E	01	Drive Motor B Inverter Power Supply	Diagnosis condition	At inverter (rear) start or READY state
			Signal	—
			Threshold	An error was detected related to the internal power supply of the inverter (rear).
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

Inverter (rear)

FAIL-SAFE

Control of the rear traction motor stops. Or, the vehicle cannot be started (READY status cannot be achieved).

Confirmation Procedure

PREPARATION BEFORE OPERATION

CAUTION:

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

Power switch ON and wait at least 10 seconds.
Check the DTC.

Is "P0C0E-01" detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

REPLACEMENT OF THE INVERTER (REAR)

Replace the inverter (rear). Refer to Removal and Installation.

END

P0c0e-04 Drive Motor B Inverter Power Supply

DTC Description

CAUTION:

When installing the 12V battery into the vehicle, a DTC may be stored as a result of fluctuations in the voltage input into the inverter.

If a DTC remains in the past malfunctions, check the history of 12V battery removal and installation.

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P0C0E	04	Drive Motor B Inverter Power Supply	Diagnosis condition	At inverter (rear) start
			Signal	—
			Threshold	An error was detected related to the internal power supply of the inverter (rear).
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

Inverter (rear)

FAIL-SAFE

Control of the rear traction motor stops. Or, the vehicle cannot be started (READY status cannot be achieved).

Confirmation Procedure

PREPARATION BEFORE OPERATION

CAUTION:

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

Power switch ON and wait at least 10 seconds.
Check the DTC.

Is "P0C0E-04" detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

REPLACEMENT OF THE INVERTER (REAR)

Replace the inverter (rear). Refer to Removal and Installation.

END

P0c0e-1c Drive Motor B Inverter Power Supply

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P0C0E	1C	Drive Motor B Inverter Power Supply	Diagnosis condition	READY state
			Signal	—
			Threshold	An error was detected related to the internal power supply of the inverter (rear).
			Diagnosis delay time	—

POSSIBLE CAUSE

Inverter (rear)

FAIL-SAFE

Control of the rear traction motor stops. Or, the vehicle cannot be started (READY status cannot be achieved).

Confirmation Procedure

PREPARATION BEFORE OPERATION

CAUTION:

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.
Check the DTC.

Is "P0C0E-1C" detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

REPLACEMENT OF THE INVERTER (REAR)

Replace the inverter (rear). Refer to Removal and Installation.

END

P0c0e-A2 Drive Motor B Inverter Power Supply

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P0C0E	A2	Drive Motor B Inverter Power Supply	Diagnosis condition	READY state
			Signal	—
			Threshold	An error was detected related to the internal power supply of the inverter (rear).
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

Inverter (rear)

FAIL-SAFE

Control of the rear traction motor stops. Or, the vehicle cannot be started (READY status cannot be achieved).

Confirmation Procedure

PREPARATION BEFORE OPERATION

CAUTION:

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.
Check the DTC.

Is "P0C0E-A2" detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

REPLACEMENT OF THE INVERTER (REAR)

Replace the inverter (rear). Refer to Removal and Installation.

END

P0da3-17 Drive Motor B Inverter Voltage Sensor a

DTC Description

CAUTION:

When installing the 12V battery into the vehicle, a DTC may be stored as a result of fluctuations in the voltage input into the inverter.

If a DTC remains in the past malfunctions, check the history of 12V battery removal and installation.

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P0DA3	17	Drive Motor B Inverter Voltage Sensor A	Diagnosis condition	READY state
			Signal	—
			Threshold	High voltage exceeded the upper limit where operation is possible at the inverter (rear).
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

Inverter (rear)
System main relay
Li-ion battery

FAIL-SAFE

Control of the rear traction motor stops.

Confirmation Procedure

PREPARATION BEFORE OPERATION

CAUTION:

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.
Check the DTC.

Is "P0DA3-17" detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

WARNING:

CAUTION:

Never bring the vehicle into the READY status with the service plug removed unless otherwise instructed in the Service Manual. A malfunction may occur if this is not observed.

CHECK FOR DTC RELATED TO THE HIGH VOLTAGE SYSTEM

With CONSULT

Power switch ON and wait at least 10 seconds.
Check the DTCs related to the high voltage system.

Is a DTC related to the high voltage system other than the inverter (rear) detected?

YES>>

Check the detected DTC.

NO>>

GO TO 2.

PRECONDITIONING

WARNING:

Follow the instructions below before starting the procedure.

Disconnect high voltage circuit. Refer to HOW TO DISCONNECT HIGH VOLTAGE : Precautions.
Check voltage in high voltage circuit. Refer to CHECK VOLTAGE IN HIGH VOLTAGE CIRCUIT : Precautions.

GO TO 3.

INSPECTION OF THE HIGH VOLTAGE HARNESS

Inspect the high voltage harness between the Li-ion battery and the inverter (rear).

Is the inspection result normal?

YES>>

GO TO 4.

NO>>

Repair or replace the malfunctioning parts.

INSPECTION OF THE SYSTEM MAIN RELAY CIRCUIT

Inspect the circuits of system main relays 1 and 2.

66kWh Li-ion battery models
- System main relay 1: Refer to Diagnosis Procedure.
- System main relay 2: Refer to Diagnosis Procedure.

91kWh Li-ion battery models
- System main relay 1: Refer to Diagnosis Procedure.
- System main relay 2: Refer to Diagnosis Procedure.

Is the inspection result normal?

YES>>

Replace the inverter (rear). Refer to Removal and Installation.

NO>>

Repair or replace the malfunctioning parts.

P0da9-00 Hybrid/ev Battery Voltage/drive Motor B Inverter Voltage Correlation

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P0DA9	00	Hybrid/EV Battery Voltage/Drive Motor B Inverter Voltage Correlation	Diagnosis condition	READY state
			Signal	—
			Threshold	The high voltage monitor value inside the inverter (rear) and the LBC recognized voltage that is received via CAN were compared and the prescribed value was exceeded.
			Diagnosis delay time	Within 10 seconds

POSSIBLE CAUSE

Inverter (rear)
Li-ion battery

FAIL-SAFE

Control of the rear traction motor stops.

Confirmation Procedure

PREPARATION BEFORE OPERATION

CAUTION:

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.
Check the DTC.

Is "P0DA9-00" detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

WARNING:

CAUTION:

Never bring the vehicle into the READY status with the service plug removed unless otherwise instructed in the Service Manual. A malfunction may occur if this is not observed.

CHECK FOR DTC RELATED TO THE HIGH VOLTAGE SYSTEM

With CONSULT

Power switch ON and wait at least 10 seconds.
Check the DTCs related to the high voltage system.

Is a DTC related to the high voltage system other than the inverter (rear) detected?

YES>>

Check the detected DTC.

NO>>

GO TO 2.

PRECONDITIONING

WARNING:

Follow the instructions below before starting the procedure.

Disconnect high voltage circuit. Refer to HOW TO DISCONNECT HIGH VOLTAGE : Precautions.
Check voltage in high voltage circuit. Refer to CHECK VOLTAGE IN HIGH VOLTAGE CIRCUIT : Precautions.

GO TO 3.

INSPECTION OF THE HIGH VOLTAGE HARNESS

Inspect the high voltage harness between the Li-ion battery and the inverter (rear).

Is the inspection result normal?

YES>>

Replace the inverter (rear). Refer to Removal and Installation.

NO>>

Repair or replace the malfunctioning parts.

P2bd8-11 Motor Coolant Temperature Sensor B

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P2BD8	11	Motor Electronics Coolant Temperature Sensor B	Diagnosis condition	READY state
			Signal	Coolant temperature sensor signal
			Threshold	The coolant temperature sensor value deviated from the prescribed value.
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

Coolant temperature sensor circuit in the inverter (rear)

FAIL-SAFE

Send coolant temperature that cannot be used to VCM.

Confirmation Procedure

PREPARATION BEFORE OPERATION

CAUTION:

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

Power switch ON and wait at least 10 seconds.
Check the DTC.

Is "P2BD8-11" detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

REPLACEMENT OF THE INVERTER (REAR)

Replace the inverter (rear). Refer to Removal and Installation.

END

P2bd8-13 Motor Coolant Temperature Sensor B

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P2BD8	13	Motor Electronics Coolant Temperature Sensor B	Diagnosis condition	READY state
			Signal	Coolant temperature sensor signal
			Threshold	The coolant temperature sensor value deviated from the prescribed value
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

Coolant temperature sensor circuit in the inverter (rear)

FAIL-SAFE

Send coolant temperature that cannot be used to VCM.

Confirmation Procedure

PREPARATION BEFORE OPERATION

CAUTION:

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.
Check the DTC.

Is "P2BD8-13" detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

REPLACEMENT OF THE INVERTER (REAR)

Replace the inverter (rear). Refer to Removal and Installation.

END

P2d3b-92 Hybrid/ev Discharge System

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P2D3B	92	Hybrid/EV Discharge System	Diagnosis condition	At shutdown (after high voltage relay opens)
			Signal	—
			Threshold	A discharge error was detected at the smoothing capacitor. NOTE: Discharge of the smoothing capacitor is performed by IGBT switching. If IGBT switching stopped as a result of a different malfunction, the discharge process cannot be performed and P2D3B-92 is also detected as a side-effect of the malfunction.
			Diagnosis delay time	Within 3 seconds

POSSIBLE CAUSE

Inverter (rear)
System main relay

FAIL-SAFE

—

Confirmation Procedure

PREPARATION BEFORE OPERATION

CAUTION:

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.
Check the DTC.

Is "P2D3B-92" detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

DTC CHECK (REAR MOTOR CONTROL)

With CONSULT

Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.
Check "Self Diagnostic Result" under "REAR MOTOR CONTROL".

Is a DTC P2D3B-92 detected at the same time as another DTC?

YES>>

Check the DTC Inspection Priority Chart, and perform diagnosis for the DTC with the higher inspection priority. Refer to DTC Inspection Priority Chart.

NO>>

GO TO 2.

CHECK FOR DTC RELATED TO THE HIGH VOLTAGE SYSTEM

With CONSULT

Check the DTCs related to the high voltage system.

Is a DTC related to the high voltage system other than the inverter (rear) detected?

YES>>

Check the detected DTC.

NO>>

Replace the inverter (rear). Refer to Removal and Installation.

P3081-44 Resolver Offset Value Error

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P3081	44	Resolver Offset Value Error	Diagnosis condition	At inverter (rear) start
			Signal	—
			Threshold	Any of the following was detected. An error in the value written to internal memory No data was written to internal memory An error value was written during work for writing to internal memory
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

Inverter (rear)
Resolver offset value was not written or there was an error in the work.

FAIL-SAFE

Change the resolver offset value to the default value. This reduces torque because optimal control of the rotor position is not possible.

Confirmation Procedure

PREPARATION BEFORE OPERATION

CAUTION:

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

Power switch ON and wait at least 10 seconds.
Check the DTC.

Is "P3081-44" detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

WRITING THE RESOLVER OFFSET VALUE

Perform the work to write the resolver offset value. Refer to Description.
Perform the DTC CONFIRMATION PROCEDURE. Refer to Confirmation Procedure.

Is "P3081-44" detected?

YES>>

Replace the inverter (rear). Refer to Removal and Installation.

NO>>

INSPECTION END

P3082-44 Roter Resistance Value Error

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC Detection Conditions
P3082	44	Rotor Resistance Value Error	Diagnosis condition	At inverter (rear) start
			Signal	—
			Threshold	Any of the following was detected. An error in the value written to internal memory No data was written to internal memory An error value was written during work for writing to internal memory
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

Inverter (rear)
Rotor resistance value was not written or there was an error in the work.

FAIL-SAFE

Change the rotor resistance value to the default value. This will make it more likely that torque will be limited for temperature protection.

Confirmation Procedure

PREPARATION BEFORE OPERATION

CAUTION:

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

Power switch ON and wait at least 10 seconds.
Check the DTC.

Is "P3082-44" detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

WRITING THE ROTOR RESISTANCE VALUE

Perform the work to write the rotor resistance value. Refer to Description.
Perform the DTC CONFIRMATION PROCEDURE. Refer to Confirmation Procedure.

Is "P3082-44" detected?

YES>>

Replace the inverter (rear). Refer to Removal and Installation.

NO>>

INSPECTION END

P3083-44 Immobilizer

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P3083	44	Immobilizer	Diagnosis condition	At inverter (rear) start
			Signal	—
			Threshold	No data was written to internal memory
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

Inverter (rear)

FAIL-SAFE

—

Confirmation Procedure

PREPARATION BEFORE OPERATION

CAUTION:

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

Power switch ON and wait at least 10 seconds.
Check the DTC.

Is "P3083-44" detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

REPLACEMENT OF THE INVERTER (REAR)

Replace the inverter (rear). Refer to Removal and Installation.

END

P30d0-11 Drive Motor B Coolant Temperature Sensor

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P30D0	11	Drive Motor B Coolant Temperature Sensor	Diagnosis condition	READY state
			Signal	Oil temperature sensor signal of the rear traction motor
			Threshold	Disconnection or short circuit in the oil temperature sensor circuit of the rear traction motor
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

Wiring harness or connector (disconnection or short circuit in the oil temperature sensor circuit of the rear traction motor)
Rear traction motor (oil temperature sensor of the rear traction motor)
Inverter (rear)

FAIL-SAFE

—

Confirmation Procedure

PREPARATION BEFORE OPERATION

CAUTION:

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.
Check the DTC.

Is "P30D0-11" detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

INSPECTION OF THE OIL TEMPERATURE SENSOR CIRCUIT OF THE REAR TRACTION MOTOR

Inspect the oil temperature sensor circuit of the rear traction motor. Refer to Diagnosis Procedure.

INSPECTION END

P30d0-13 Drive Motor B Coolant Temperature Sensor

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P30D0	13	Drive Motor B Coolant Temperature Sensor	Diagnosis condition	READY state
			Signal	Oil temperature sensor signal of the rear traction motor
			Threshold	Disconnection or short circuit in the oil temperature sensor circuit of the rear traction motor
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

Wiring harness or connector (Disconnection or short circuit in the oil temperature sensor circuit of the rear traction motor)
Rear traction motor (Oil temperature sensor of the rear traction motor)
Inverter (rear)

FAIL-SAFE

—

Confirmation Procedure

PREPARATION BEFORE OPERATION

CAUTION:

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.
Check the DTC.

Is "P30D0-13" detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

INSPECTION OF THE OIL TEMPERATURE SENSOR CIRCUIT OF THE REAR TRACTION MOTOR

Inspect the oil temperature sensor circuit of the rear traction motor. Refer to Diagnosis Procedure.

INSPECTION END

P30d0-4b Drive Motor B Coolant Temperature Sensor

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P30D0	4B	Drive Motor B Coolant Temperature Sensor	Diagnosis condition	READY state
			Signal	Oil temperature sensor signal of the rear traction motor
			Threshold	Overheat error was detected at the rear traction motor.
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

Oil coolant system for rear traction motor
Leakage of rear traction motor oil
Wiring harness or connector (Disconnection or short circuit in the oil temperature sensor circuit of the rear traction motor)
Rear traction motor (Oil temperature sensor of the rear traction motor)
Inverter (rear)

FAIL-SAFE

The driving torque of the rear traction motor is limited to 0 Nm.

Confirmation Procedure

PREPARATION BEFORE OPERATION

CAUTION:

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.
Drive the vehicle for at least 20 minutes to warm it up.
Fully depress the accelerator pedal and accelerate the Nissan Ariya vehicle from 0 km/h (0 MPH) to 10 km/h (6 MPH). Repeat this for 10 times without interruption to the maximum extent possible.
Stop the Nissan Ariya vehicle.
Check the DTC.

Is "P30D0-4B" detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

CHECK FOR DTC RELATED TO THE HIGH VOLTAGE COOLING SYSTEM

With CONSULT

Power switch ON and wait at least 10 seconds.
Check "Self Diagnostic Result" of "EV/HEV".

Is a DTC related to the high voltage cooling system detected?

YES>>

Check the detected DTC item. Refer to DTC Index.

NO>>

GO TO 2.

INSPECTION OF COOLANT

Inspect the coolant volume and leakage of coolant. Refer to COOLANT : Inspection.

Is the inspection result normal?

YES>>

GO TO 3.

NO>>

Repair or replace the malfunctioning parts.

INSPECTION OF THE COOLANT HOSE

Check for clogging or twisting of the hose of the oil coolant circuit for the rear traction motor.

Is the inspection result normal?

YES>>

GO TO 4.

NO>>

Repair or replace the malfunctioning parts.

INSPECTION FOR REAR TRACTION MOTOR OIL

Check visually for leakage of the rear traction motor oil.

Is the inspection result normal?

YES>>

GO TO 5.

NO>>

Replace the rear traction motor. Refer to Removal and Installation.

INSPECTION OF THE OIL TEMPERATURE SENSOR

Inspect the oil temperature sensor circuit of the rear traction motor. Refer to Diagnosis Procedure.

INSPECTION END

P30e5-04 Drive Motor B Coolant Pump

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P30E5	04	Drive Motor B Coolant Pump Control	Diagnosis condition	READY state
			Signal	Rear traction motor oil pump signal
			Threshold	Error notification signal was received from the oil pump of the rear traction motor.
			Diagnosis delay time	Within 10 seconds

POSSIBLE CAUSE

Wiring harness or connector

(Disconnection or short circuit in the oil temperature sensor of the rear traction motor)

(Disconnection or short circuit in the oil pump of the rear traction motor)
Rear traction motor

(Oil temperature sensor of the rear traction motor)

(Oil pump of the rear traction motor)
Inverter (rear)

FAIL-SAFE

The driving torque of the rear traction motor is limited to 30%.

Confirmation Procedure

PREPARATION BEFORE OPERATION

CAUTION:

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.
Check the DTC.

Is "P30E5-04" detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

CHECK FOR DTC RELATED TO THE REAR TRACTION MOTOR OIL TEMPERATURE SENSOR

With CONSULT

Power switch ON.
Check "Self Diagnostic Result" of "REAR MOTOR CONTROL".

Is a DTC related to the rear traction motor oil temperature sensor detected?

YES>>

Inspect the oil temperature sensor circuit of the rear traction motor. Refer to Diagnosis Procedure.

NO>>

GO TO 2.

INSPECTION OF THE OIL PUMP CIRCUIT OF THE REAR TRACTION MOTOR

Inspect the oil pump circuit of the rear traction motor. Refer to Diagnosis Procedure.

INSPECTION END

P30e5-81 Drive Motor B Coolant Pump

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P30E5	81	Drive Motor B Coolant Pump Control	Diagnosis condition	READY state
			Signal	Rear traction motor oil pump signal
			Threshold	Error notification signal was received from the oil pump of the rear traction motor.
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

Wiring harness or connector

(Disconnection or short circuit in the oil temperature sensor of the rear traction motor)

(Disconnection or short circuit in the oil pump of the rear traction motor)
Rear traction motor

(Oil temperature sensor of the rear traction motor)

(Oil pump of the rear traction motor)
Inverter (rear)

FAIL-SAFE

—

Confirmation Procedure

PREPARATION BEFORE OPERATION

CAUTION:

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.
Check the DTC.

Is "P30E5-81" detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

CHECK FOR DTC RELATED TO THE REAR TRACTION MOTOR OIL TEMPERATURE SENSOR

With CONSULT

Power switch ON.
Check "Self Diagnostic Result" of "REAR MOTOR CONTROL".

Is a DTC related to the rear traction motor oil temperature sensor detected?

YES>>

Inspect the oil temperature sensor circuit of the rear traction motor. Refer to Diagnosis Procedure.

NO>>

GO TO 2.

INSPECTION OF THE OIL PUMP CIRCUIT OF THE REAR TRACTION MOTOR

Inspect the oil pump circuit of the rear traction motor. Refer to Diagnosis Procedure.

INSPECTION END

P30e5-87 Drive Motor B Coolant Pump

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P30E5	87	Drive Motor B Coolant Pump Control	Diagnosis condition	READY state
			Signal	Rear traction motor oil pump signal
			Threshold	An error was detected in LIN communication at the rear traction motor oil pump.
			Diagnosis delay time	Within 10 seconds

POSSIBLE CAUSE

Wiring harness or connector

(Disconnection or short circuit in the oil temperature sensor of the rear traction motor)

(Disconnection or short circuit in the oil pump of the rear traction motor)
Rear traction motor

(Oil temperature sensor of the rear traction motor)

(Oil pump of the rear traction motor)
Inverter (rear)

FAIL-SAFE

The driving torque of the rear traction motor is limited to 30%.

Confirmation Procedure

PREPARATION BEFORE OPERATION

CAUTION:

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.
Check the DTC.

Is "P30E5-87" detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

CHECK FOR DTC RELATED TO THE REAR TRACTION MOTOR OIL TEMPERATURE SENSOR

With CONSULT

Power switch ON.
Check "Self Diagnostic Result" of "REAR MOTOR CONTROL".

Is a DTC related to the rear traction motor oil temperature sensor detected?

YES>>

Inspect the oil temperature sensor circuit of the rear traction motor. Refer to .Diagnosis Procedure

NO>>

GO TO 2.

INSPECTION OF THE OIL PUMP CIRCUIT OF THE REAR TRACTION MOTOR

Inspect the oil pump circuit of the rear traction motor. Refer to Diagnosis Procedure.

INSPECTION END

P30e6-11 Drive Motor B Excitation Current

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P30E6	11	Drive Motor B Excitation Current	Diagnosis condition	READY state
			Signal	—
			Threshold	An excitation module error was detected.
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

Inverter (rear)

FAIL-SAFE

Control of the rear traction motor stops

Confirmation Procedure

PREPARATION BEFORE OPERATION

CAUTION:

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.
Depress the accelerator pedal to increase the Nissan Ariya vehicle speed up to 10 km/h (6 MPH).
Stop the vehicle.
Check the DTC.

Is "P30E6-11" detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

INSPECTION OF THE EXCITATION CIRCUIT

Remove the inverter (rear) and rear traction motor from the Nissan Ariya vehicle. Refer to Removal and Installation.

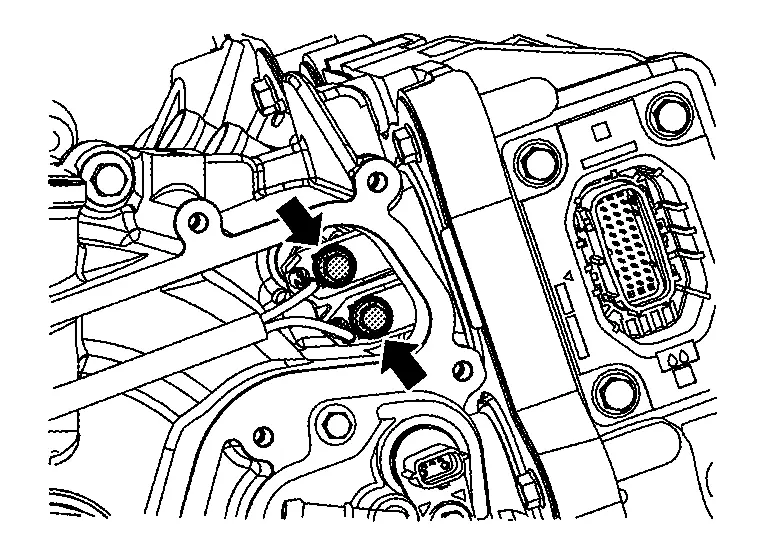

Remove the excitation cover and inspect the connection conditions of the bus bar and excitation harness of the inverter (rear).

Is the inspection result normal?

YES>>

GO TO 2.

NO>>

Repair or replace the malfunctioning parts.

REPLACEMENT OF THE INVERTER (REAR)

Replace the inverter (rear). Refer to Removal and Installation.

END

P30e6-12 Drive Motor B Excitation Current

DTC Description

CAUTION:

When installing the 12V battery into the vehicle, a DTC may be stored as a result of fluctuations in the voltage input into the inverter.

If a DTC remains in the past malfunctions, check the history of 12V battery removal and installation.

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P30E6	12	Drive Motor B Excitation Current	Diagnosis condition	READY state
			Signal	—
			Threshold	An excitation module error was detected.
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

Rear traction motor
Inverter (rear)

FAIL-SAFE

Control of the rear traction motor stops

Confirmation Procedure

PREPARATION BEFORE OPERATION

CAUTION:

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.
Depress the accelerator pedal to increase the Nissan Ariya vehicle speed up to 10 km/h (6 MPH).
Drive the vehicle for approximately 5 minutes.
Stop the Nissan Ariya vehicle.
Check the DTC.

Is "P30E6-12" detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

INSPECTION OF SHORT CIRCUIT CONDITION FOR REAR TRACTION MOTOR ROTOR COIL

Remove the inverter (rear) and rear traction motor from the Nissan Ariya vehicle. Refer to Removal and Installation.
Remove the excitation cover then disconnect excitation harness from bus bar of the inverter (rear).
Check the rotor coil resistance value at the rear traction motor and check for short circuits.

Rear traction motor Resistance value in short circuit condition

Terminal

Ex+ Ex- 4.55 Ω or less

Is the resistance value 4.55 Ω or less?

YES>>

The rotor coil has malfunctioned (short circuit condition). Replace the rear traction motor. Refer to Removal and Installation.

NO>>

GO TO 2.

REPLACEMENT OF THE INVERTER (REAR)

Replace the inverter (rear). Refer to Removal and Installation.

END

P30e6-1c Drive Motor B Excitation Current

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P30E6	1C	Drive Motor B Excitation Current	Diagnosis condition	At inverter (rear) start
			Signal	—
			Threshold	An excitation module error was detected.
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

Inverter (rear)

FAIL-SAFE

Control of the rear traction motor stops

Confirmation Procedure

PREPARATION BEFORE OPERATION

CAUTION:

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

Power switch ON and wait at least 10 seconds.
Check the DTC.

Is "P30E6-1C" detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

REPLACEMENT OF THE INVERTER (REAR)

Replace the inverter (rear). Refer to Removal and Installation.

END

P30e7-01 Drive Motor B Excitation Current Sensor

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P30E7	01	Drive Motor B Excitation Current Sensor	Diagnosis condition	READY state
			Signal	—
			Threshold	Excitation module current is not flowing normally.
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

Inverter (rear)
Rear traction motor

FAIL-SAFE

Control of the rear traction motor stops.

Confirmation Procedure

PREPARATION BEFORE OPERATION

CAUTION:

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.
Increase the vehicle speed to 10 km/h (6 MPH).
Stop the Nissan Ariya vehicle.
Check the DTC.

Is "P30E7-01" detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

DTC CHECK (REAR MOTOR CONTROL)

With CONSULT

Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.
Check "Self Diagnostic Result" under "REAR MOTOR CONTROL".

Is a DTC P30E7-01 detected at the same time as another DTC?

YES>>

Check the DTC Inspection Priority Chart, and perform diagnosis for the DTC with the higher inspection priority. Refer to DTC Inspection Priority Chart.

NO>>

GO TO 2.

INSPECTION OF THE EXCITATION CIRCUIT

Remove the inverter (rear) and rear traction motor from the Nissan Ariya vehicle. Refer to Removal and Installation.
Remove the excitation cover and inspect the connection conditions of the bus bar and excitation harness of the inverter (rear).

Is the inspection result normal?

YES>>

GO TO 3.

NO>>

Repair or replace the malfunctioning parts.

CHECK OF THE ROTOR COIL RESISTANCE VALUE AT THE REAR TRACTION MOTOR

Check the rotor coil resistance value at the rear traction motor. Refer to Component Inspection.

Is the inspection result normal?

YES>>

Replace the inverter (rear). Refer to Removal and Installation.

NO>>

Replace the rear traction motor. Refer to Removal and Installation.

P30e7-18 Drive Motor B Excitation Current Sensor

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P30E7	18	Drive Motor B Excitation Current Sensor	Diagnosis condition	READY state
			Signal	—
			Threshold	Excitation module current is not flowing normally.
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

Inverter (rear)
Rear traction motor

FAIL-SAFE

Control of the rear traction motor stops.

Confirmation Procedure

PREPARATION BEFORE OPERATION

CAUTION:

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.
Increase the vehicle speed to 10 km/h (6 MPH).
Stop the Nissan Ariya vehicle.
Check the DTC.

Is "P30E7-18" detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

DTC CHECK (REAR MOTOR CONTROL)

With CONSULT

Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.
Check "Self Diagnostic Result" under "REAR MOTOR CONTROL".

Is a DTC P30E7-18 detected at the same time as another DTC?

YES>>

Check the DTC Inspection Priority Chart, and perform diagnosis for the DTC with the higher inspection priority. Refer to DTC Inspection Priority Chart.

NO>>

GO TO 2.

INSPECTION OF THE EXCITATION CIRCUIT

Remove the inverter (rear) and rear traction motor from the Nissan Ariya vehicle. Refer to Removal and Installation.
Remove the excitation cover and inspect the connection conditions of the bus bar and excitation harness of the inverter (rear).

Is the inspection result normal?

YES>>

GO TO 3.

NO>>

Repair or replace the malfunctioning parts.

CHECK OF THE ROTOR COIL RESISTANCE VALUE AT THE REAR TRACTION MOTOR

Check the rotor coil resistance value at the rear traction motor. Refer to Component Inspection.

Is the inspection result normal?

YES>>

Replace the inverter (rear). Refer to Removal and Installation.

NO>>

Replace the rear traction motor. Refer to Removal and Installation.

P30e7-1d Drive Motor B Excitation Current Sensor

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
P30E7	1D	Drive Motor B Excitation Current Sensor	Diagnosis condition	READY state
			Signal	—
			Threshold	Excitation module current is not flowing normally.
			Diagnosis delay time	Within 1 second

POSSIBLE CAUSE

Inverter (rear)
Rear traction motor

FAIL-SAFE

—

Confirmation Procedure

PREPARATION BEFORE OPERATION

CAUTION:

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.
Increase the vehicle speed to 10 km/h (6 MPH).
Stop the Nissan Ariya vehicle.
Check the DTC.

Is "P30E7-1D" detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

DTC CHECK (REAR MOTOR CONTROL)

With CONSULT

Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.
Check "Self Diagnostic Result" under "REAR MOTOR CONTROL".

Is a DTC P30E7-1D detected at the same time as another DTC?

YES>>

Check the DTC Inspection Priority Chart, and perform diagnosis for the DTC with the higher inspection priority. Refer to DTC Inspection Priority Chart.

NO>>

GO TO 2.

INSPECTION OF THE EXCITATION CIRCUIT

Remove the inverter (rear) and rear traction motor from the Nissan Ariya vehicle. Refer to Removal and Installation.
Remove the excitation cover and inspect the connection conditions of the bus bar and excitation harness of the inverter (rear).

Is the inspection result normal?

YES>>

GO TO 3.

NO>>

Repair or replace the malfunctioning parts.

CHECK OF THE ROTOR COIL RESISTANCE VALUE AT THE REAR TRACTION MOTOR

Check the rotor coil resistance value at the rear traction motor. Refer to Component Inspection.

Is the inspection result normal?

YES>>

Replace the inverter (rear). Refer to Removal and Installation.

NO>>

Replace the rear traction motor. Refer to Removal and Installation.

U2143-82 Can Comm Circuit

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
U2143	82	CAN communication error (VCM/HCM)	Diagnosis condition	READY state
			Signal	EV system CAN communication signal
			Threshold	Any of the following was detected. CAN signal cannot be received from the VCM. There is an error in the CAN signal received from the VCM.
			Diagnosis delay time	Within 10 seconds

POSSIBLE CAUSE

Inverter (rear)
VCM
CAN communications line [between inverter (rear) and VCM]

FAIL-SAFE

Vehicle stops (torque 0 Nm), or the driving torque of the rear traction motor is limited, or is not limited.

Confirmation Procedure

PREPARATION BEFORE OPERATION

CAUTION:

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.
Check the DTC.

Is "U2143-82" detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

Perform diagnosis of the CAN communication system. Refer to Trouble Diagnosis Flow Chart.

U2143-83 Can Comm Circuit

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
U2143	83	CAN communication error (VCM/HCM)	Diagnosis condition	READY state
			Signal	EV system CAN communication signal
			Threshold	Any of the following was detected. CAN signal cannot be received from the VCM. There is an error in the CAN signal received from the VCM.
			Diagnosis delay time	Within 10 seconds

POSSIBLE CAUSE

Inverter (rear)
VCM
CAN communications line [between inverter (rear) and VCM]

FAIL-SAFE

Vehicle stops (torque 0 Nm), or the driving torque of the rear traction motor is limited, or is not limited.

Confirmation Procedure

PREPARATION BEFORE OPERATION

CAUTION:

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.
Check the DTC.

Is "U2143-83" detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

Perform diagnosis of the CAN communication system. Refer to Trouble Diagnosis Flow Chart.

U2143-87 Can Comm Circuit

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
U2143	87	CAN communication error (VCM/HCM)	Diagnosis condition	READY state
			Signal	EV system CAN communication signal
			Threshold	Any of the following was detected. CAN signal cannot be received from the VCM. There is an error in the CAN signal received from the VCM.
			Diagnosis delay time	Within 10 seconds

POSSIBLE CAUSE

Inverter (rear)
VCM
CAN communications line [between inverter (rear) and VCM]

FAIL-SAFE

Vehicle stops (torque 0 Nm), or the driving torque of the rear traction motor is limited, or is not limited.

Confirmation Procedure

PREPARATION BEFORE OPERATION

CAUTION:

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.
Check the DTC.

Is "U2143-87" detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

Perform diagnosis of the CAN communication system. Refer to Trouble Diagnosis Flow Chart.

U2144-82 Can Comm Circuit

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
U2144	82	CAN communication error (Li-ion battery)	Diagnosis condition	READY state
			Signal	EV system CAN communication signal
			Threshold	Any of the following was detected. CAN signal cannot be received from the LBC. There is an error in the CAN signal received from the LBC.
			Diagnosis delay time	Within 2 seconds

POSSIBLE CAUSE

Inverter (rear)
LBC
CAN communications line [between inverter (rear) and LBC]

FAIL-SAFE

The driving torque of the rear traction motor is limited. Or, no limitation

Confirmation Procedure

PREPARATION BEFORE OPERATION

CAUTION:

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.
Check the DTC.

Is "U2144-82" detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

Perform diagnosis of the CAN communication system. Refer to Trouble Diagnosis Flow Chart.

U2144-83 Can Comm Circuit

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
U2144	83	CAN communication error (Li-ion battery)	Diagnosis condition	READY state
			Signal	EV system CAN communication signal
			Threshold	Any of the following was detected. CAN signal cannot be received from the LBC. There is an error in the CAN signal received from the LBC.
			Diagnosis delay time	Within 2 seconds

POSSIBLE CAUSE

Inverter (rear)
LBC
CAN communications line [between inverter (rear) and LBC]

FAIL-SAFE

The driving torque of the rear traction motor is limited. Or, no limitation

Confirmation Procedure

PREPARATION BEFORE OPERATION

CAUTION:

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.
Check the DTC.

Is "U2144-83" detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

Perform diagnosis of the CAN communication system. Refer to Trouble Diagnosis Flow Chart.

U2144-87 Can Comm Circuit

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
U2144	87	CAN communication error (Li-ion battery)	Diagnosis condition	READY state
			Signal	EV system CAN communication signal
			Threshold	Any of the following was detected. CAN signal cannot be received from the LBC. There is an error in the CAN signal received from the LBC.
			Diagnosis delay time	Within 2 seconds

POSSIBLE CAUSE

Inverter (rear)
LBC
CAN communications line [between inverter (rear) and LBC]

FAIL-SAFE

The driving torque of the rear traction motor is limited. Or, no limitation

Confirmation Procedure

PREPARATION BEFORE OPERATION

CAUTION:

GO TO 2.

PERFORM THE DTC CONFIRMATION PROCEDURE

With CONSULT

Set the Nissan Ariya vehicle to READY and wait for at least 10 seconds.
Check the DTC.

Is "U2144-87" detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

Perform diagnosis of the CAN communication system. Refer to Trouble Diagnosis Flow Chart.

U2150-87 Can Comm Circuit

DTC Description

DTC DETECTION LOGIC

DTC		CONSULT screen terms	DTC detection condition
U2150	87	CAN communication error (Airbag)	Diagnosis condition	READY state
			Signal	EV system CAN communication signal
			Threshold	CAN signal cannot be received from the air bag diagnosis sensor unit
			Diagnosis delay time	Within 2 seconds
