Nissan Ariya: Service Data
Ball Joint
BALL JOINT : Service Data
| Item | Standard |
|---|---|
| Swing torque | 0.5 – 3.4 N·m (0.06 – 0.35 kg-m, 4.42– 30 in-lb) |
| Measurement on spring balance | 13.5 – 91.9 N (1.4 – 9.3 kg, 3.04 – 20.6 lb) |
Wheel Alignment
WHEEL ALIGNMENT : Service Data
FOR 65KW ENGINE
| Item | Standard | |||
|---|---|---|---|---|
| Drive Type | 2WD | 4WD | ||
| Tire size | 235/55R19 | |||
|
Camber Degree minute (Decimal degree) |
Minimum | -1°28’ (-1.47°) | -1°34’ (-1.57°) | |
| Nominal | -0°43’ (-0.72°) | -0°49’ (-0.82°) | ||
| Maximum | 0°02’ (0.03°) | –0°04’ (–0.07°) | ||
| Toe-in |
Total toe-in Distance |
Minimum | In 0.6 mm (In 0.024 in) | In 0.8 mm (In 0.031 in) |
| Nominal | In 3.6 mm (In 0.142 in) | In 3.8 mm (In 0.150 in) | ||
| Maximum | In 6.6 mm (In 0.260 in) | In 6.8 mm (In 0.268 in) | ||
|
Total toe-angle Degree minute Decimal degree) |
Minimum | Out 0° 03' (Out 0.05°) | In 0° 02' (In 0.03°) | |
| Nominal | In 0° 15' (In 0.25°) | In 0° 20' (In 0.33°) | ||
| Maximum | In 0° 33' (In 0.55°) | In 0° 38' (In 0.63°) | ||
Measure value under unladen* conditions.
*: Fuel, engine coolant and lubricant are full. Spare tire, jack, hand tools and mats are in designated positions.
FOR 94KW ENGINE
| Item | Standard | |||
|---|---|---|---|---|
| Drive Type | 2WD | 4WD | ||
| Tire size | 235/55R19 |
235/55R19 255/45R20 | ||
|
Camber Degree minute (Decimal degree) |
Minimum | -1°36’ (-1.60°) | -1°39’ (-1.65°) | |
| Nominal | -0°51’ (-0.85°) | -0°54’ (-0.90°) | ||
| Maximum | –0°06’ (–0.10°) | –0°09’ (–0.15°) | ||
| Toe-in |
Total toe-in Distance |
Minimum | In 0.8 mm (In 0.031 in) | In 1.9 mm (In 0.075 in) |
| Nominal | In 3.8 mm (In 0.150 in) | In 4.9 mm (In 0.193 in) | ||
| Maximum | In 6.8 mm (In 0.268 in) | In 7.9 mm (In 0.311 in) | ||
|
Total toe-angle Degree minute Decimal degree) |
Minimum | In 0° 02' (In 0.03°) | In 0° 06' (In 0.10°) | |
| Nominal | In 0° 20' (In 0.33°) | In 0° 24' (In 0.40°) | ||
| Maximum | In 0° 38' (In 0.63°) | In 0° 42' (In 0.70°) | ||
Measure value under unladen* conditions.
*: Fuel, engine coolant and lubricant are full. Spare tire, jack, hand tools and mats are in designated positions.

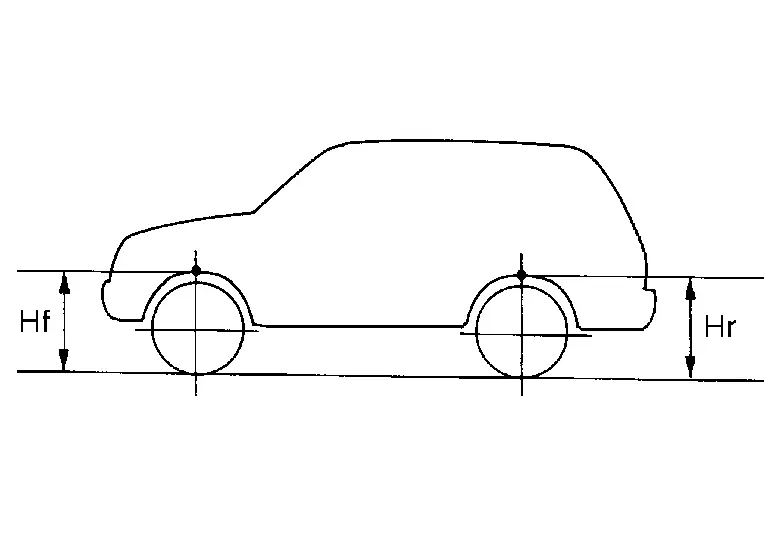

Wheelarch Height
WHEELARCH HEIGHT : Service Data
FOR UNITED STATES
| Item | Standard | ||||
|---|---|---|---|---|---|
| Battery Type | B6 | B9 | |||
| Drive Type | 2WD | 4WD | 2WD | 4WD | |
| Tire size | 235/55R19 | 235/55R19 | 235/55R19 | 255/45R20 | |
| Front (Hf) | 792 mm (31.18 in) | 792 mm (31.18 in) | 793 mm (31.22 in) | 791 mm (31.14 in) | 792 mm (31.18 in) |
| Rear (Hr) | 794 mm (31.26 in) | 790 mm (31.10 in) | 792 mm (31.18 in) | 787 mm (30.98 in) | 788 mm (31.02 in) |
|
|
|||||
Measure value under unladen *conditions.
*: Fuel, engine coolant and lubricant are full. Hand tools and mats are in designated positions.
FOR CANADA
| Item | Standard | ||||
|---|---|---|---|---|---|
| Battery Type | B6 | B9 | |||
| Drive Type | 2WD | 4WD | 2WD | 4WD | |
| Tire size | 235/55R19 | 235/55R19 | 235/55R19 | 255/45R20 | |
| Front (Hf) | 792 mm (31.18 in) | 792 mm (31.18 in) | 794 mm (31.26 in) | 792 mm (31.18 in) | 792 mm (31.18 in) |
| Rear (Hr) | 795 mm (31.30 in) | 791 mm (31.14 in) | 793 mm (31.22 in) | 787 mm (30.98 in) | 788 mm (31.02 in) |
|
|
|||||
Measure value under unladen *conditions.
*: Fuel, engine coolant and lubricant are full. Hand tools and mats are in designated positions.
