Nissan Ariya: Removal and Installation

Electric Shift Selector

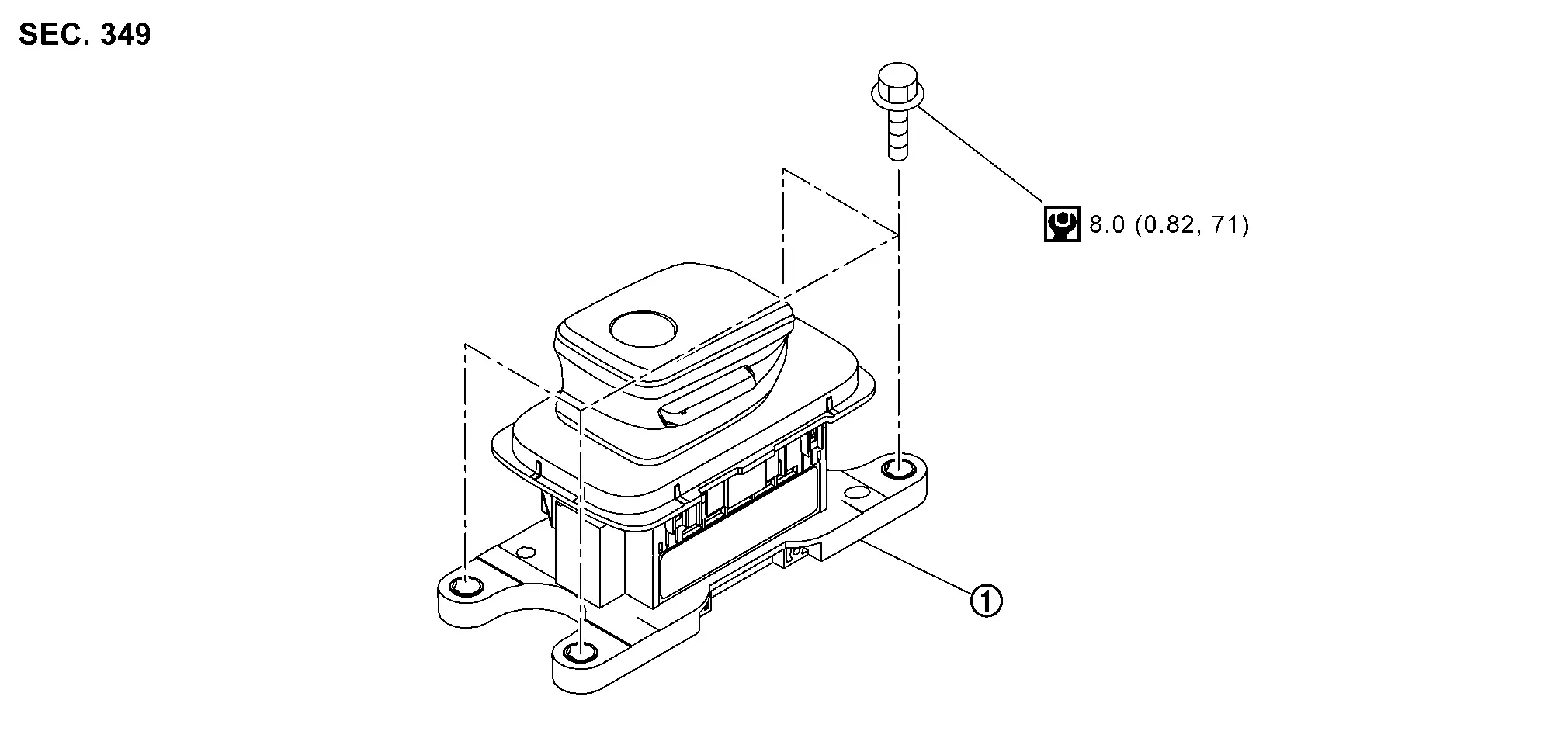

ELECTRIC SHIFT SELECTOR : Exploded View

Electric shift selector
: N·m (kg-m, in-lb)

ELECTRIC SHIFT SELECTOR : Removal & Installation

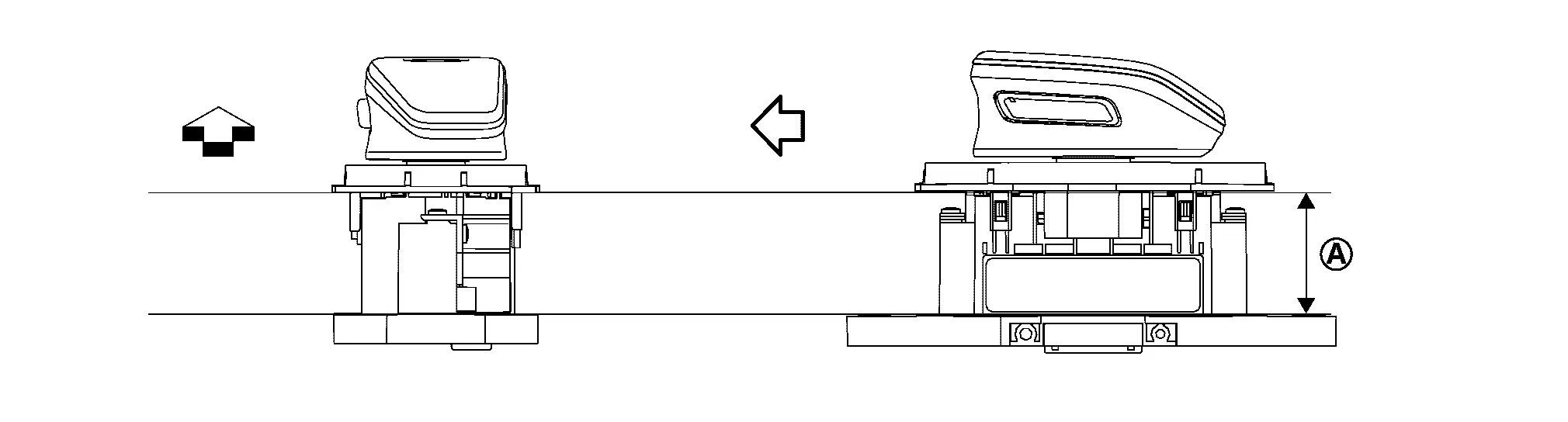

CAUTION:

: Nissan Ariya Vehicle front

  • As part in the figure contains a strong magnet, persons with an electro-medical apparatus should keep it away from his/her body. Otherwise it may cause the electro-medical apparatus to malfunction.

  • Keep it away from magnetic objects such as magnetic cards and metal products (e.g. watches).

  • Never subject the electric shift selector to impact by dropping or hitting, water splash or high humidity.

Removal

Power switch OFF and disconnect the 12V battery cable from the negative terminal. Refer to PRECAUTIONS FOR REMOVING BATTERY TERMINAL : Precautions.

Remove center console finisher and knee pad assembly. Refer to Disassembly & Assembly.

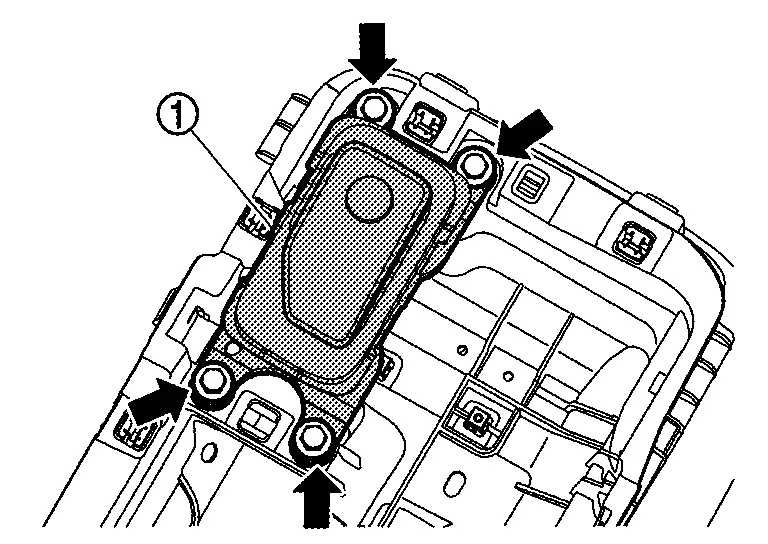

Remove the mounting bolts of electric shift selector .

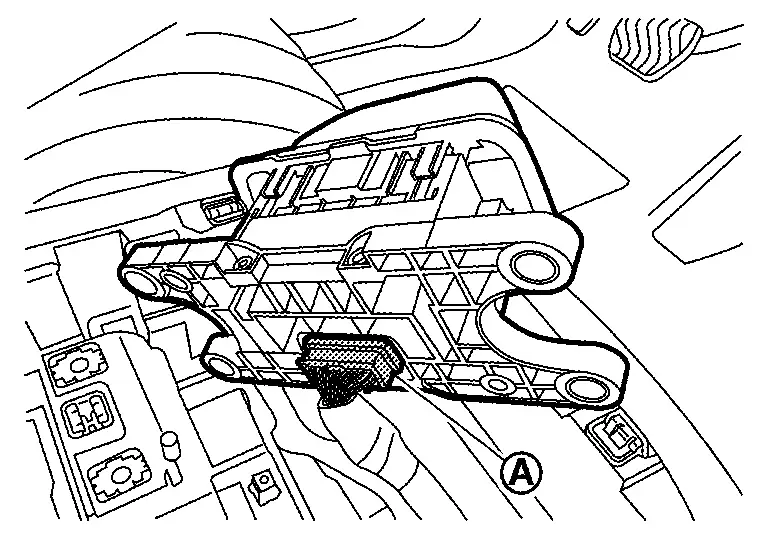

Disconnect the electric shift sensor harness connector .

Remove the electric shift selector.

Installation

Note the following, and install in the reverse order of removal.

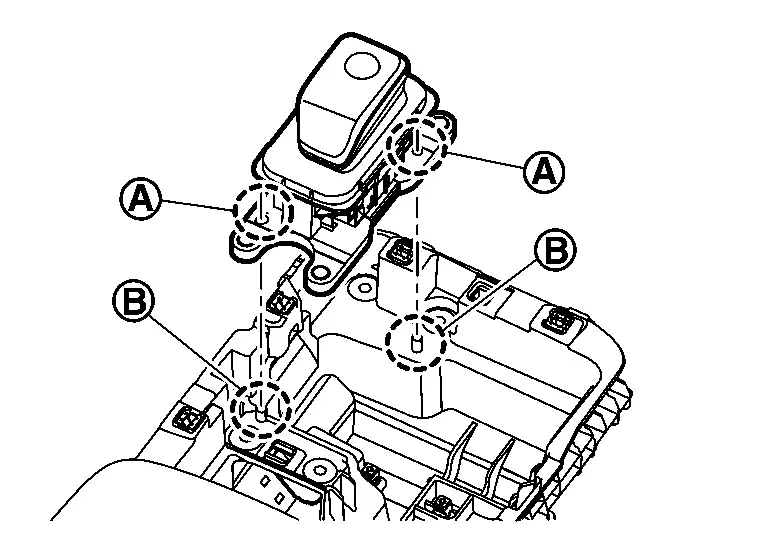

  • When installing electric shift selector, locator holes and locator pins must be aligned.

    CAUTION:

    Never tighten the mounting bolts above the specified torque. If tightened with more than the specified torque, the nut of the bolt receiver may be damaged.

  • Perform inspection after installation. Refer to ELECTRIC SHIFT SELECTOR : Inspection.

ELECTRIC SHIFT SELECTOR : Inspection

Inspection after Installation

  • Shift the selector lever and check that the indication of the selector indicator (on selector lever knob) and the shift position indicator (in the combination meter) correspond to the actual shift position.

  • Check that the shift operation can be performed properly. Refer to Component Description.

Electric Shift Control Module

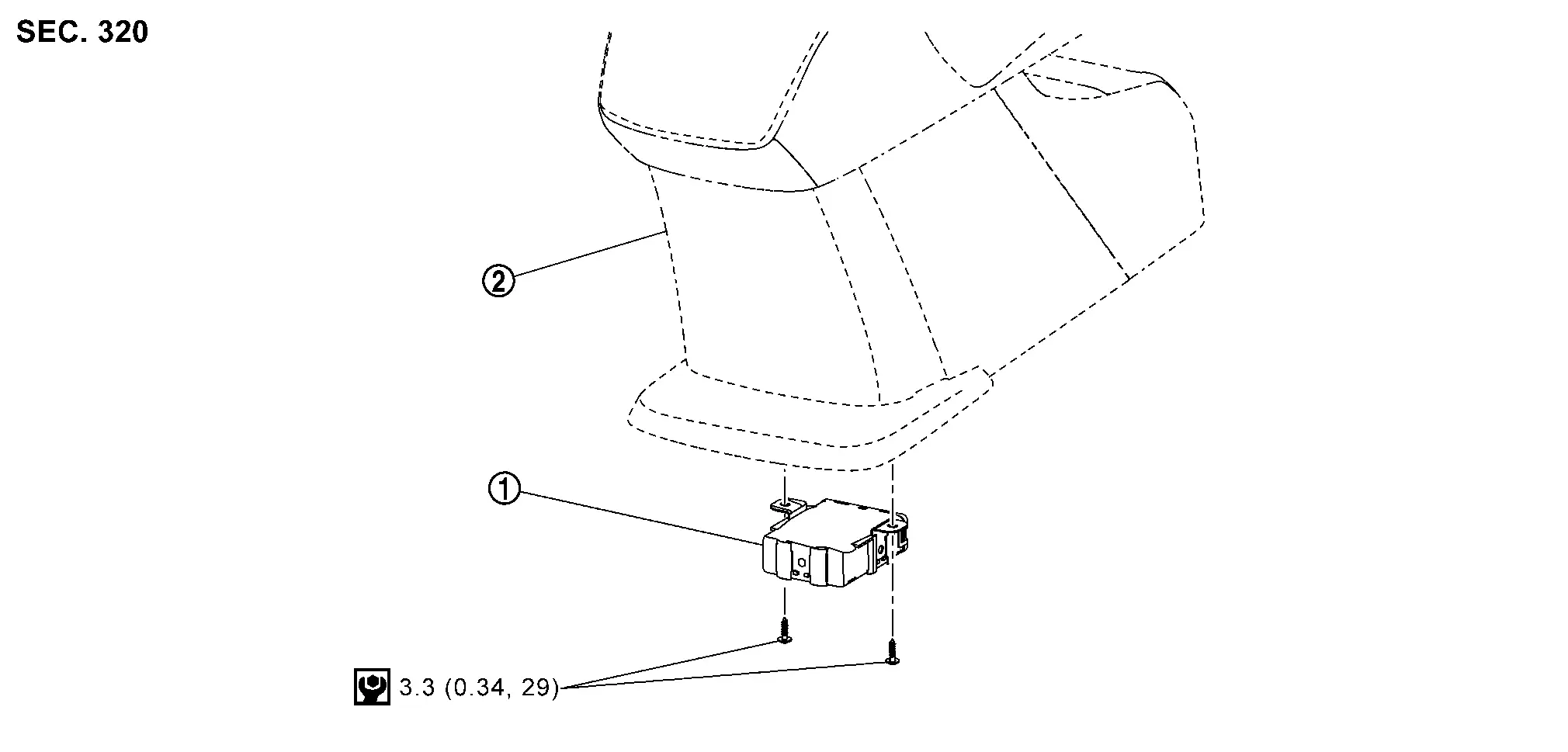

ELECTRIC SHIFT CONTROL MODULE : Exploded View

Electric shift control module Center console assembly
: N·m (kg-m, in-lb)

ELECTRIC SHIFT CONTROL MODULE : Removal & Installation

REMOVAL

Power switch OFF and disconnect the 12V battery cable from the negative terminal. Refer to PRECAUTIONS FOR REMOVING BATTERY TERMINAL : Precautions.

Remove center console assembly. Refer to Removal & Installation.

Disconnect electric shift control module harness connector.

Remove electric shift control module mounting screws and remove electric shift control module .

CAUTION:

Never drop or shock electric shift control module.

INSTALLATION

Note the following, and install in the reverse order of removal.

  • Perform inspection after installation. Refer to ELECTRIC SHIFT CONTROL MODULE : Inspection.

  • When replacing electric shift control module, perform adjustment after installation. Refer to ELECTRIC SHIFT CONTROL MODULE : Adjustment.

ELECTRIC SHIFT CONTROL MODULE : Inspection

Inspection after Installation

  • Shift the selector lever and check that the indication of the selector indicator (on selector lever knob) and the shift position indicator (in the combination meter) correspond to the actual shift position.

  • Check that the shift operation can be performed properly. Refer to Component Description.

ELECTRIC SHIFT CONTROL MODULE : Adjustment

ADJUSTMENT AFTER INSTALLATION

When replaced electric shift control module, perform P position learning of parking actuator. Refer to Work Procedure.
