Nissan Ariya: Removal and Installation

• Power Socket
• Center Console Usb Power Socket : Removal & Installation

Power Socket

CENTER CONSOLE POWER SOCKET : Removal & Installation

REMOVAL

Remove console cover front. Refer to Removal & Installation.

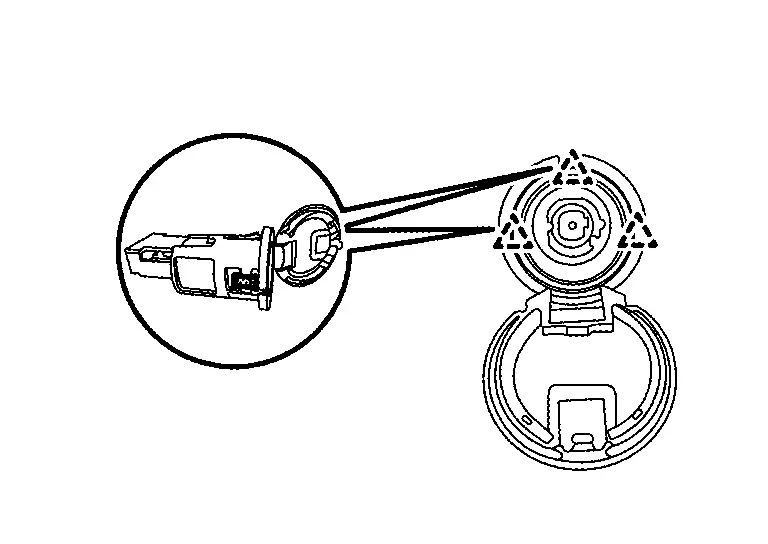

Press the power socket fixing pawls from the back of the console cover front to remove the power socket.

: Pawl

INSTALLATION

Note the following, and install in the reverse order of removal.

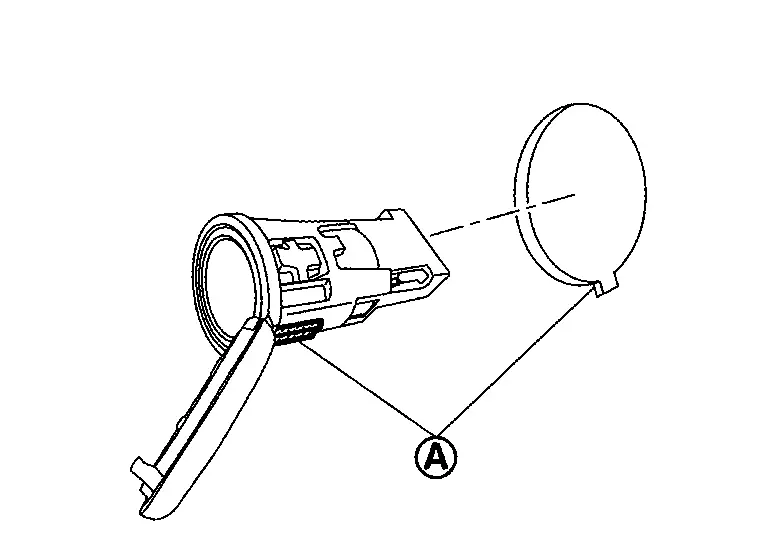

Align the cut outs of center console front power socket and console cover front.

: Cut out

Center Console Usb Power Socket : Removal & Installation

CENTER CONSOLE USB POWER SOCKET : Removal & Installation

REMOVAL

Remove console rear finisher upper. Refer to Removal & Installation.

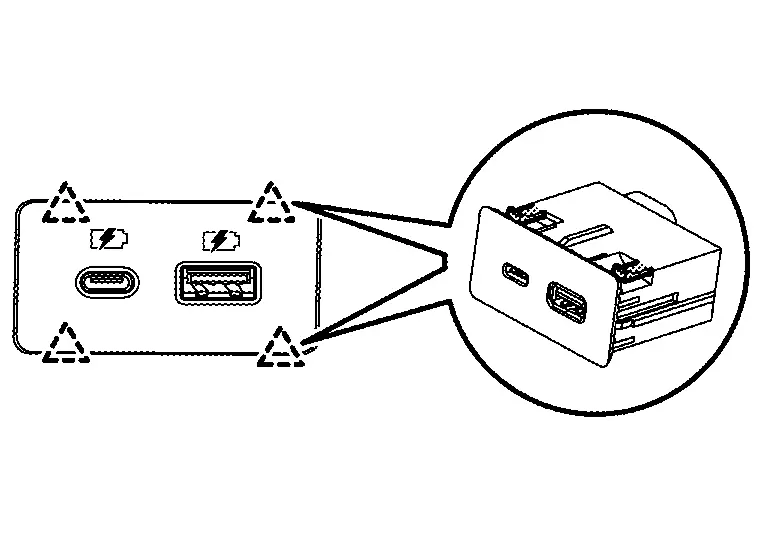

Press the center console USB power socket fixing pawls from the back of the console rear finisher upper to remove the center console USB power socket.

: Pawl

INSTALLATION

Note the following, and then install in the reverse order of removal.

CAUTION:

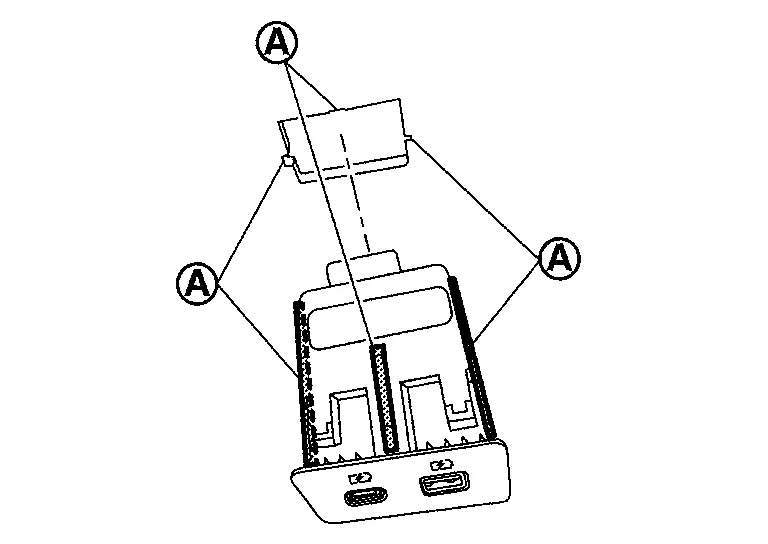

Align the cut outs of center console USB power socket and console rear finisher upper.

: Cut out
