Symptom Table

LOW TIRE PRESSURE WARNING LAMP SYMPTOM CHART

Diagnosis items	Symptom (Power switch ON)	Cause	Action

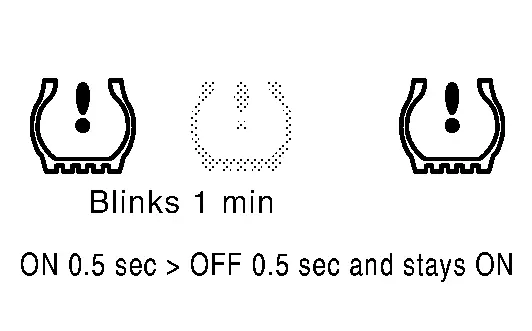

Low tire pressure warning lamp	The low tire pressure warning lamp illuminates for 1 second, then turns OFF.	Wake-up operation for all tire pressure sensors at wheels is completed.	No system malfunctions.

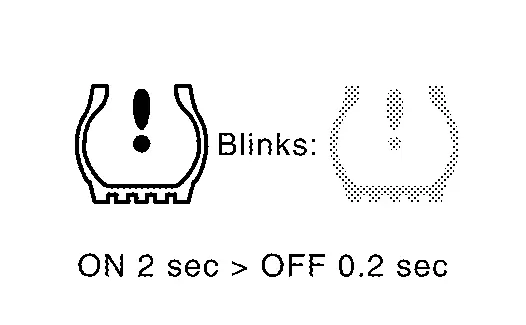

	The low tire pressure warning lamp repeats blinking ON for 2 seconds and OFF for 0.2 seconds.	Wake-up operation for all tire pressure sensors at wheels is not completed.	Perform the ID registration for all tire pressure sensors at wheels. Refer to Work Procedure.

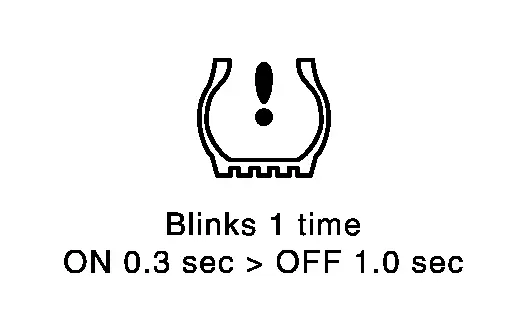

	The low tire pressure warning lamp blinks once.	The front left tire pressure sensor is not activated.	Perform the ID registration for the tire pressure sensor at front left wheel. Refer to Work Procedure.

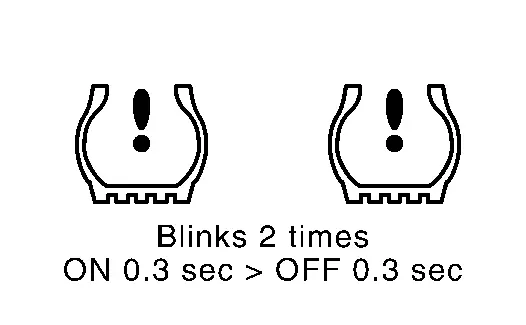

	The low tire pressure warning lamp repeats blinking twice.	The front right tire pressure sensor is not activated.	Perform the ID registration for the tire pressure sensor at front left wheel. Refer to Work Procedure.

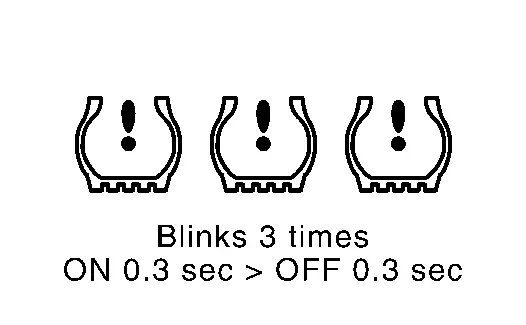

	The low tire pressure warning lamp repeats blinking for 3 times.	The rear right tire pressure sensor is not activated.	Perform the ID registration for the tire pressure sensor at rear right wheel. Refer to Work Procedure.

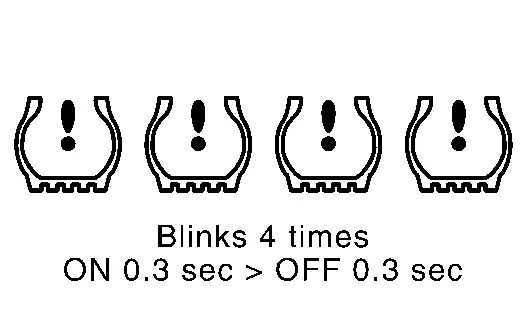

	The low tire pressure warning lamp repeats blinking for 4 times.	The rear left tire pressure sensor is not activated.	Perform the ID registration for the tire pressure sensor at rear left wheel. Refer to Work Procedure.

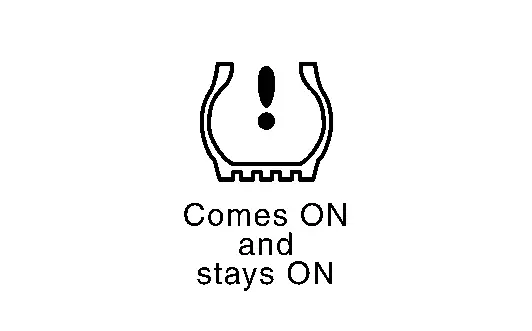

	The low tire pressure warning lamp turns ON and stays illuminated.	Low tire pressure.	Check the tire pressure for all wheels and adjust to the specified value. Refer to Tire Air Pressure.
Low tire pressure warning lamp	The low tire pressure warning lamp repeats blinking at 0.5-second intervals for 1 minute, and then stays illuminated.	The combination meter fuse is open or removed (or pulled out).	Check and install the combination meter fuse. If necessary, replace the fuse.
		The BCM harness connector is removed.	Check the connection conditions of the BCM harness connector, and repair if necessary.
		TPMS malfunction.	Perform CONSULT “Self Diagnostic Result”. Refer to CONSULT Function(BCM-AIR PRESSURE MONITOR). If necessary, perform tire pressure sensor ID registration. Refer to Work Procedure.

NOTE:

If tire pressure sensor wake-up operation is not completed for two or more tire pressure sensors, the applicable low tire pressure warning lamp blinking patterns are displayed continuously.

(Example: Blinks once/OFF/blinks 3 times = Wake-up operation is not completed at the front left wheel and rear right wheel tire pressure sensors.)

Low Tire Pressure Warning Lamp Does Not Turn on

Symptom Description

The low tire pressure warning lamp does not turn ON when the power switch is placed ON.

NOTE:

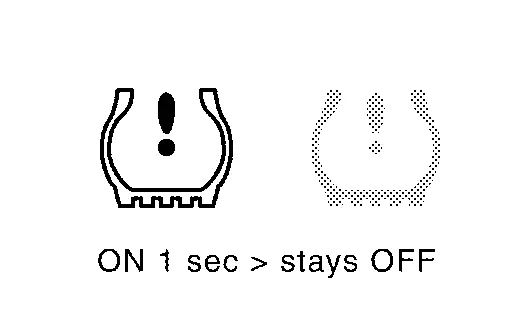

The low tire pressure warning lamp turn ON for approximately 1 second and then turns OFF when the power switch is placed ON. This is to check that no abnormal condition is present in the tire pressure monitoring system.

The combination meter may be malfunctioning or the tire pressure monitoring system may be malfunctioning if the low tire pressure warning lamp does not turn ON when the power switch is placed ON.

Diagnosis Procedure

CHECK TIRE PRESSURE

Power switch ON.

CAUTION:
Never set the Nissan Ariya vehicle to READY.
Check the tire pressure for all wheels and adjust to the specified value. ROAD WHEEL : Service Data

Is the inspection result normal?

YES>>

GO TO 2.

NO>>

Inspect or repair the tires or road wheels.

CHECK LOW TIRE PRESSURE WARNING LAMP TURN ON

Check low tire pressure warning lamp turn ON.

Is the inspection result normal?

YES>>

INSPECTION END

NO >>

GO TO 3.

PERFORM SELF-DIAGNOSIS

With CONSULT

Perform “Self Diagnostic Result” for “AIR PRESSURE MONITOR” of “BCM”.

Is DTC detected?

YES>>

Perform DTC diagnosis procedure. DTC Index

NO>>

GO TO 4.

CHECK BCM POWER SUPPLY AND GROUND CIRCUIT

Perform the trouble diagnosis for power supply and ground circuit. Refer to Diagnosis Procedure

Is the inspection result normal?

YES>>

Replace BCM. Refer to Removal and Installation

NO>>

Repair or replace error-detected parts.

Low Tire Pressure Warning Lamp Does Not Turn Off

Symptom Description

The low tire pressure warning lamp does not turn OFF after several seconds is passed after vehicle is set to ready.

Diagnosis Procedure

CHECK TIRE PRESSURE

Power switch ON.

CAUTION:
Never set the Nissan Ariya vehicle to READY.
Check the tire pressure for all wheels and adjust to the specified value. Refer to TIRE AIR PRESSURE.
Perform TPMS calibration.
Recheck the tire pressure for all wheels. Refer to TIRE AIR PRESSURE.

Is the inspection result normal?

YES>>

GO TO 2.

NO>>

Inspect or repair the tires or wheels.

CHECK LOW TIRE PRESSURE WARNING LAMP OPERATION

Check that the low tire pressure warning lamp is turned OFF after turns ON for approximately 1 second, when the power switch is placed ON.

Is the inspection result normal?

YES>>

Inspection End.

NO >>

GO TO 3.

PERFORM SELF DIAGNOSTIC RESULT

CONSULT

Select “Self Diagnostic Result” mode of “AIR PRESSURE MONITOR”.

Is DTC detected?

YES>>

Perform DTC diagnosis procedure. Refer to DTC Index.

NO>>

GO TO 4.

CHECK BCM POWER SUPPLY AND GROUND CIRCUIT

Perform the trouble diagnosis for power supply and ground circuit. Refer to Diagnosis Procedure.

Is the inspection result normal?

YES>>

Replace BCM. Removal and Installation.

NO>>

Repair or replace error-detected parts.

Low Tire Pressure Warning Lamp Blinks

Diagnosis Procedure

When the power switch ON, the low tire pressure warning lamp blinks. And then 1 minute later, low tire pressure warning lamp turns ON.

CHECK TIRE PRESSURE SENSOR INSTALLATION

Check visually that tire pressure sensors are installed to each wheels correctly.

NOTE:

In the following case, TPMS (tire pressure monitoring system) does not function.

Tire pressure sensor(s) are not installed.

Tire pressure sensor(s) of other cars are installed.

Are the genuine NISSAN tire pressure sensors are installed correctly?

YES>>

GO TO 2.

NO>>

Replace and/or Install tire pressure sensor(s).Removal and InstallationGO TO 3.

PERFORM SELF-DIAGNOSIS

With CONSULT

Perform “Self Diagnostic Result” for “AIR PRESSURE MONITOR” of “BCM”.

Is DTC detected?

YES>>

Perform DTC diagnosis procedure. DTC Index

NO>>

GO TO 4.

TIRE PRESSURE SENSOR ID REGISTRATION

Perform tire pressure sensor ID registration. Work Procedure

Is tire pressure sensor ID registration completed?

YES>>

Adjust the tire pressure for all wheels specified to the value.TIRE AIR PRESSURE INSPECTION END

NO>>

Perform diagnosis procedure of “TIRE PRESSURE SENSOR ID REGISTRATION CANNOT BE COMPLETED”. Diagnosis Procedure

CHECK BCM POWER SUPPLY AND GROUND CIRCUIT

Perform the trouble diagnosis for power supply and ground circuit. Refer to Diagnosis Procedure

Is the inspection result normal?

YES>>

Repair or replace error-detected parts.

NO>>

Replace BCM. Refer to Removal and Installation

Low Tire Pressure Location Indicator Does Not Display

Symptom Description

When low tire pressure, low tire location indicator does not display though low tire pressure warning lamp turns ON.

Diagnosis Procedure

CHECK COMBINATION METER

Check combination meter. Refer to Work Flow.

Is the inspection result normal?

YES>>

GO TO 2.

NO>>

Repair or replace error-detected parts.

CHECK LOW TIRE PRESSURE WHEEL LOCATION INDICATOR OPERATION

Check that the low tire pressure location indicator is turned OFF after turns ON for approximately 1 second, when the power switch is placed ON.

Is the inspection result normal?

YES>>

Check intermittent incident. Refer to Intermittent Incident.

NO>>

Replace the BCM. Refer to Removal and Installation.

Low Tire Pressure Location Indicator Continues Displaying

Diagnosis Procedure

The low tire pressure location indicator continues displaying though low tire pressure warning lamp turns/stays OFF.

CHECK TIRE PRESSURE

Power switch ON.

CAUTION:
Never set the Nissan Ariya vehicle to READY.
Check the tire pressure for all wheels and adjust to the specified value. TIRE AIR PRESSURE

Is the inspection result normal?

YES>>

GO TO 2.

NO>>

Inspect or repair the tires or wheels.

CHECK LOW TIRE PRESSURE LOCATION INDICATOR

Check low tire pressure location indicator.

Does low tire pressure location indicator continues displaying?

YES>>

GO TO 3.

NO >>

INSPECTION END

PERFORM SELF-DIAGNOSIS

With CONSULT

Perform “Self Diagnostic Result” for “AIR PRESSURE MONITOR” of “BCM”.

Is DTC detected?

YES>>

Perform DTC diagnosis procedure. Refer to DTC Index

NO>>

GO TO 4.

CHECK BCM POWER SUPPLY AND GROUND CIRCUIT

Perform the trouble diagnosis for power supply and ground circuit. Refer to Diagnosis Procedure

Is the inspection result normal?

YES>>

Replace BCM. Removal and Installation

NO>>

Repair or replace error-detected parts.

Id Registration Cannot Be Completed

Diagnosis Procedure

CHECK TIRE PRESSURE SENSOR INSTALLATION

Check visually that tire pressure sensors are installed to each wheels correctly.

NOTE:

In the following case, TPMS (tire pressure monitoring system) does not function.

Tire pressure sensor(s) are not installed.

Tire pressure sensor(s) of other cars are installed.

Are the genuine NISSAN tire pressure sensors are installed correctly?

YES>>

GO TO 2.

NO>>

Replace and/or Install tire pressure sensor(s).Refer to Removal and InstallationGO TO 3.

CHECK TIRE PRESSURE SENSOR ACTIVATION TOOL

Check tire pressure sensor activation tool.

Is the inspection result normal?

YES>>

GO TO 3.

NO>>

Replace the battery of tire pressure sensor activation tool or repair/replace the tire pressure sensor activation tool.

TIRE PRESSURE SENSOR ID REGISTRATION

Perform tire pressure sensor ID registration. Refer to Work Procedure

CAUTION:

To perform ID registration, observe the following points:

Never register ID in a place where radio waves are interfered (e.g. radio tower).

Never register ID in a place close to Nissan Ariya vehicles including TPMS.

Is tire pressure sensor ID registration completed?

YES>>

INSPECTION END

NO>>

GO TO 4.

CHECK TIRE PRESSURE SIGNAL

Change the work location and perform ID registration again.

NOTE:

Depending on the tire pressure sensor position*, a blind spot exists, and the tire pressure receiver gets a poor reception. If an ID registration is performed under this condition, the registration may not be completed. In such case, follow the instructions below to improve the radio wave receiving environment.

Rotate tire by 90°, 180°, or 270°. (This step is to change tire pressure sensor position.)

Open the door close to the tire of which ID registration is ongoing.

*: Radio wave reception condition depends on Nissan Ariya vehicle architecture (e.g. body harness layout, tire wheel design) or environment.

When ID registration is performed, which wheels do not react?

All wheels react and ID registration is possible.>>

INSPECTION END

Only certain wheel(s) do not react.>>

Replace applicable tire pressure sensor. Refer to Removal and Installation

All wheels do not react.>>

Replace the BCM. Refer to Removal and Installation

Easy Fill Tire Alert Does Not Activate

Diagnosis Procedure

The Easy Fill Tire Alert does not function while inflating a tire when the select lever position is in P-range with the power switch ON or with the Nissan Ariya vehicle set to READY.

NOTE:

After starting to inflate the tire, it takes a few seconds for the Easy Fill tire alert to function.

If there is no response for approximately 15 seconds or more after inflating the tires, cancel the use of the Easy Fill tire alert function or move the Nissan Ariya vehicle approximately 1 m (3.2 ft) backward or forward to try again. The air filler pressure may be weak or out of service area.

For Easy Fill tire alert, refer to System Description.

LOCATION CHANGE

Move the vehicle to other area and repeat the procedure of the Easy Fill Tire Alert function. Refer to System Description.

Is the function normal?

YES>>

Normal (the Easy Fill Tire Alert may not operate, depending on reception condition.)

NO>>

GO TO 2.

PERFORM BCM SELF DIAGNOSTIC RESULT

CONSULT

Select “Self Diagnostic Result” mode in "AIR PRESSURE MONITOR".

Is any DTC detected?

YES>>

Perform diagnosis for detected DTC. Refer to DTC Index.

NO>>

GO TO 3.

CHECK HAZARD WARNING LAMP OPERATION

Check hazard warning lamp operation with hazard switch.

Does the hazard warning lamp blink?

YES>>

GO TO 4.

NO>>

Perform trouble diagnosis for the hazard warning lamp. Refer to Symptom Table.

PERFORM ELECTRIC SHIFT CONTROL MODULE SELF DIAGNOSTIC RESULT

CONSULT

Select “Self Diagnostic Result” mode for “SHIFT”. Refer to Consult Function.

Is any DTC detected?

YES>>

Perform diagnosis for detected DTC. Refer to DTC Index.

NO>>

GO TO 5.

CHECK HORN OPERATION

Check horn operation.

Is the operation normal?

YES>>

GO TO 6.

NO>>

Repair or replace malfunctioning components.

PERFORM SELF DIAGNOSTIC RESULT

CONSULT

Drive for 10 minutes at a speed of 25 MPH (40 km/h) or more.

CAUTION:
Total time driving at a speed of 25 MPH (40 km/h) or more must be 10 minutes.
Stop the Nissan Ariya vehicle.
Select “Self Diagnostic Result” mode in "AIR PRESSURE MONITOR".

Is any DTC detected?

YES>>

Perform diagnosis for detected DTC. Refer to DTC Index.

NO>>

Replace BCM. Refer to Removal and Installation.

Noise, Vibration and Harshness (nvh) Troubleshooting

NVH Troubleshooting Chart

Use the chart below to find the cause of the symptom. If necessary, repair or replace these parts.

Possible cause and SUSPECTED PARTS	Symptom										Reference
	Tire						Road wheel
	Noise	Shake	Vibration	Shimmy	Judder	Poor quality ride or handling	Noise	Shake	Shimmy, Judder	Poor quality ride or handling
Improper installation, looseness	×	×	—	×	×	×	×	×	×	×	Refer to ROAD WHEEL TIRE : Removal & Installation
Out-of-round	×	×	—	×	×	×	×	×	×	×	Refer to ROAD WHEEL TIRE : Inspection
Unbalance	×	×	—	×	×	×	×	×	×	×	Refer to ROAD WHEEL TIRE : Adjustment
Incorrect tire pressure	×	×	×	×	×	×	—	—	—	—	Refer TIRE AIR PRESSURE : Service Data
Uneven tire wear	×	×	—	×	×	×	—	—	—	—	Refer to ROAD WHEEL TIRE : Inspection
Deformation or damage	×	×	—	×	×	×	×	×	×	×	Refer to ROAD WHEEL TIRE : Inspection
Non-uniformity	×	—	—	×	—	—	—	—	—	—	Refer to ROAD WHEEL TIRE : Inspection
Incorrect tire size	—	×	×	×	×	×	—	—	—	—	Refer TIRE AIR PRESSURE : Service Data
Front axle	×	×	×	×	×	×	×	×	×	×	Refer to NVH Troubleshooting Chart
Drive shaft	×	×	×	—	—	—	×	×	—	—	Refer to NVH Troubleshooting Chart
Rear axle	×	×	×	×	×	—	×	×	×	×	Refer to NVH Troubleshooting Chart
Front suspension	×	×	×	×	×	×	×	×	×	×	Refer to NVH Troubleshooting Chart
Rear suspension	×	×	×	×	×	—	×	×	×	×	Refer to NVH Troubleshooting Chart
Tire	—	—	—	—	—	×	×	×	×	×	Refer to Road wheel and tire in this chart
Road wheel	×	×	—	×	×	×	—	—	—	—	Refer to Road wheel and tire in this chart
Brake	×	×	—	×	×	—	×	×	×	—	Refer to NVH Troubleshooting Chart
Steering	×	×	×	×	×	—	×	×	×	—	Refer to NVH Troubleshooting Chart
