Component Parts. Sunroof System
System

Component Parts. Sunroof System

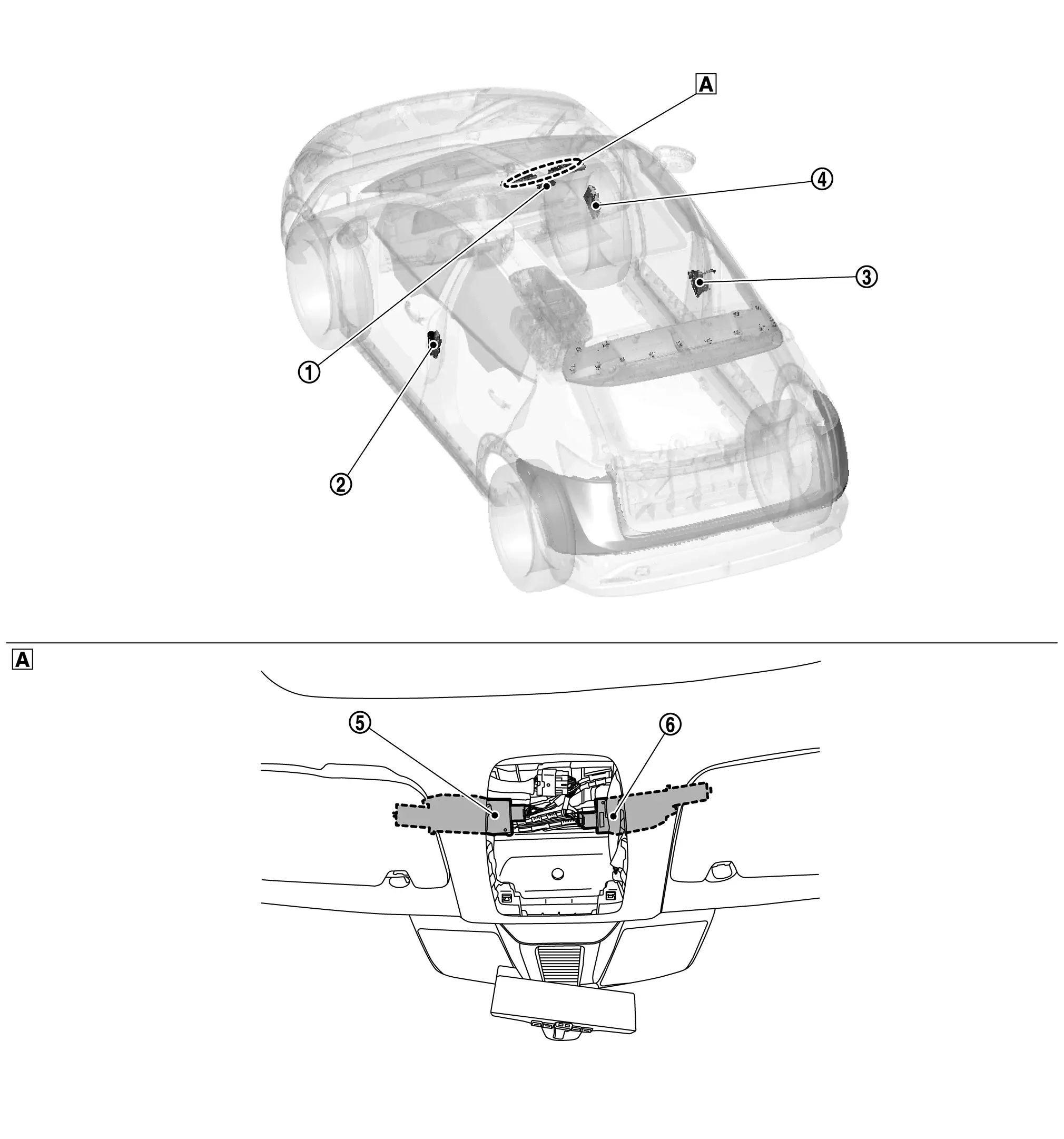

Component Parts Location

Sunroof switch assembly	Front door lock assembly LH (door switch)	Front door lock assembly RH (door switch)
BCM Refer to Component Parts Location.	Sunshade motor assembly	Sunroof motor assembly
View with map lamp assembly removed

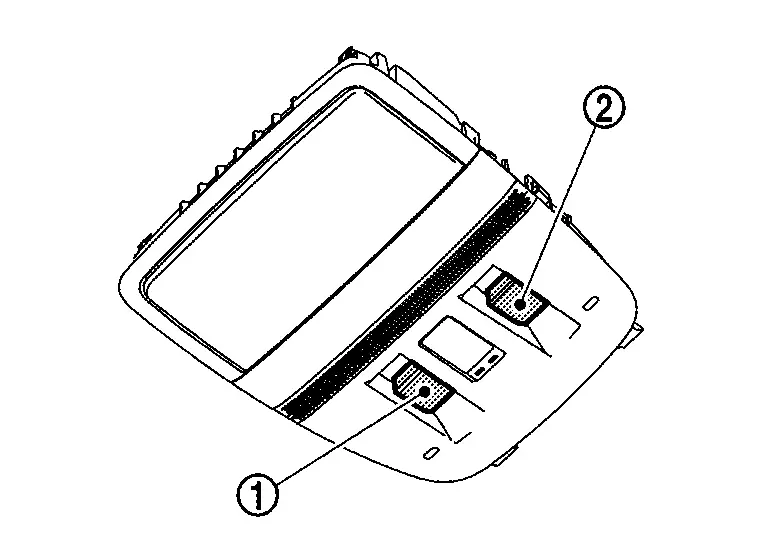

Sunroof Switch Assembly

COMPONENT FUNCTION WITHIN SYSTEM

Transmits operation signal to sunroof motor assembly and sunshade motor assembly.

Sunroof switch

Sunshade switch

INDIVIDUAL COMPONENT FUNCTION

Transmits operation signal to sunroof motor assembly and sunshade motor assembly.

COMPONENT OPERATION

When sunroof switch is operated, it transmits signal to sunroof motor assembly.
When sunshade switch is operated, it transmits signal to sunshade motor assembly.

COMPONENT PARTS LOCATION

Sunroof switch assembly is installed to map lamp assembly. Refer to Component Parts Location.

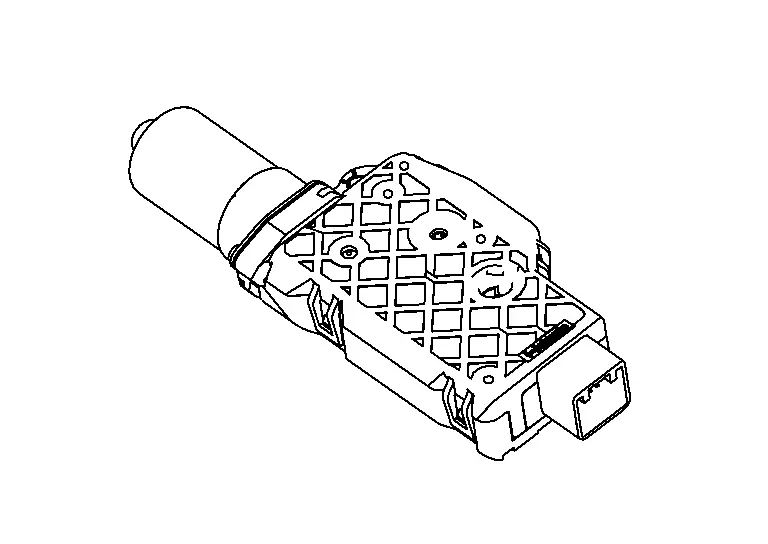

Sunroof Motor Assembly

COMPONENT FUNCTION WITHIN SYSTEM

Sunroof motor assembly controls sunroof.
Sunroof motor assembly controls auto operation.
Sunroof motor assembly controls anti-pinch function.

INDIVIDUAL COMPONENT FUNCTION

Opens/closes and tilts up/down sunroof.

COMPONENT OPERATION

When sunroof motor assembly receives OPEN/CLOSE/Tilt UP/Tilt DOWN signal from sunroof switch assembly, it opens/closes or tilts up/down sunroof.

COMPONENT PARTS LOCATION

Sunroof motor assembly is installed to sunroof unit assembly. Refer to Component Parts Location.

Sunshade Motor Assembly

COMPONENT FUNCTION WITHIN SYSTEM

Sunshade motor assembly controls sunshade.
Sunshade motor assembly controls auto operation.
Sunshade motor assembly controls anti-pinch function.

INDIVIDUAL COMPONENT FUNCTION

Opens/closes sunshade.

COMPONENT OPERATION

When sunshade motor assembly receives OPEN/CLOSE signal from sunroof switch assembly, it opens/closes sunshade.

COMPONENT PARTS LOCATION

Sunshade motor assembly is installed to sunroof unit assembly. Refer to Component Parts Location.

System

System Description

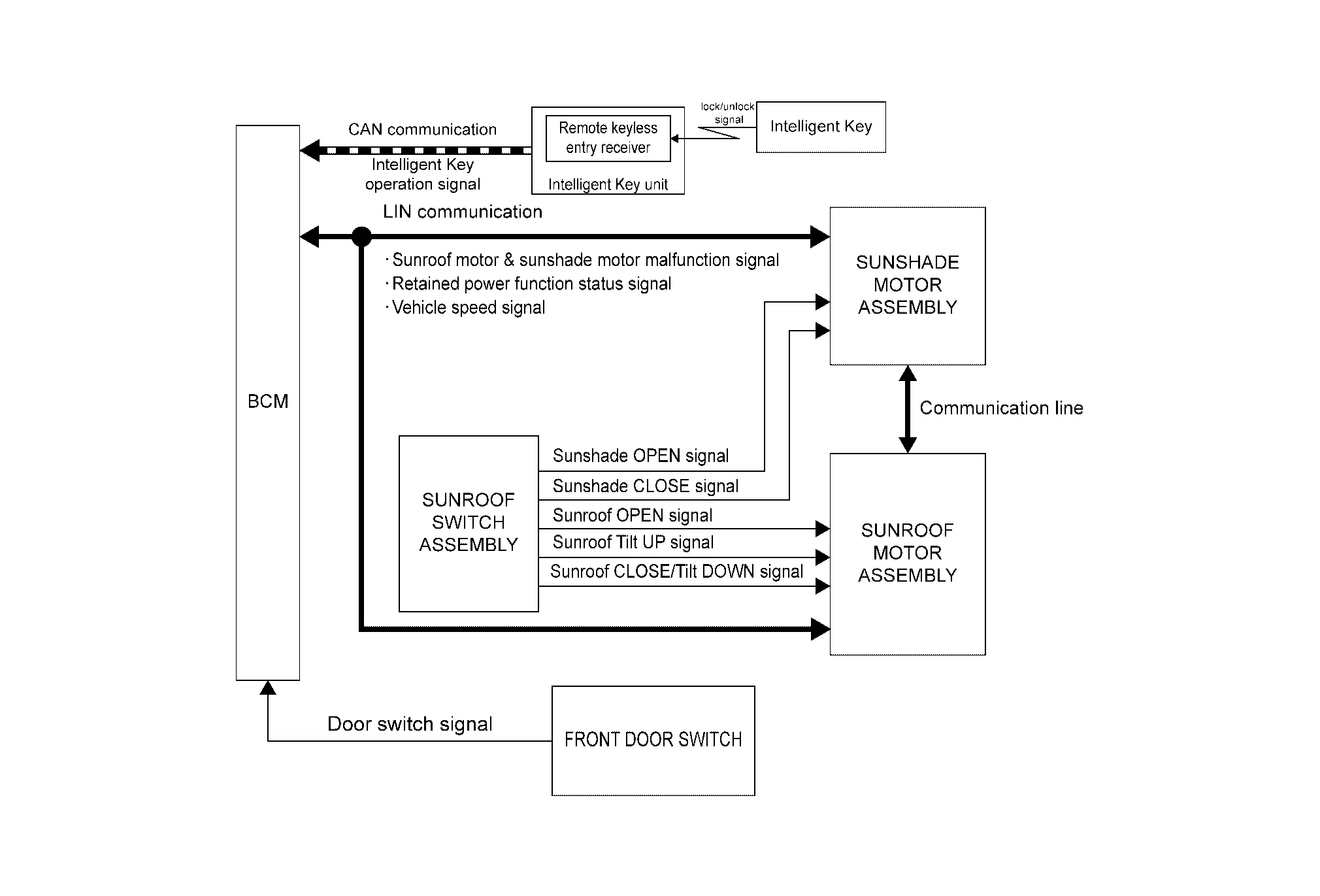

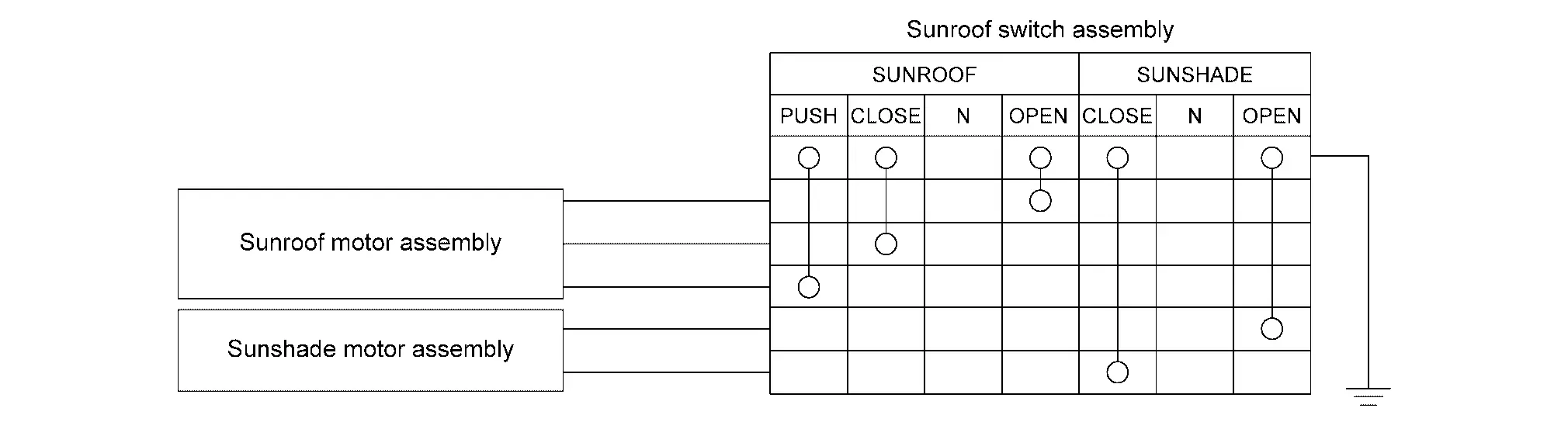

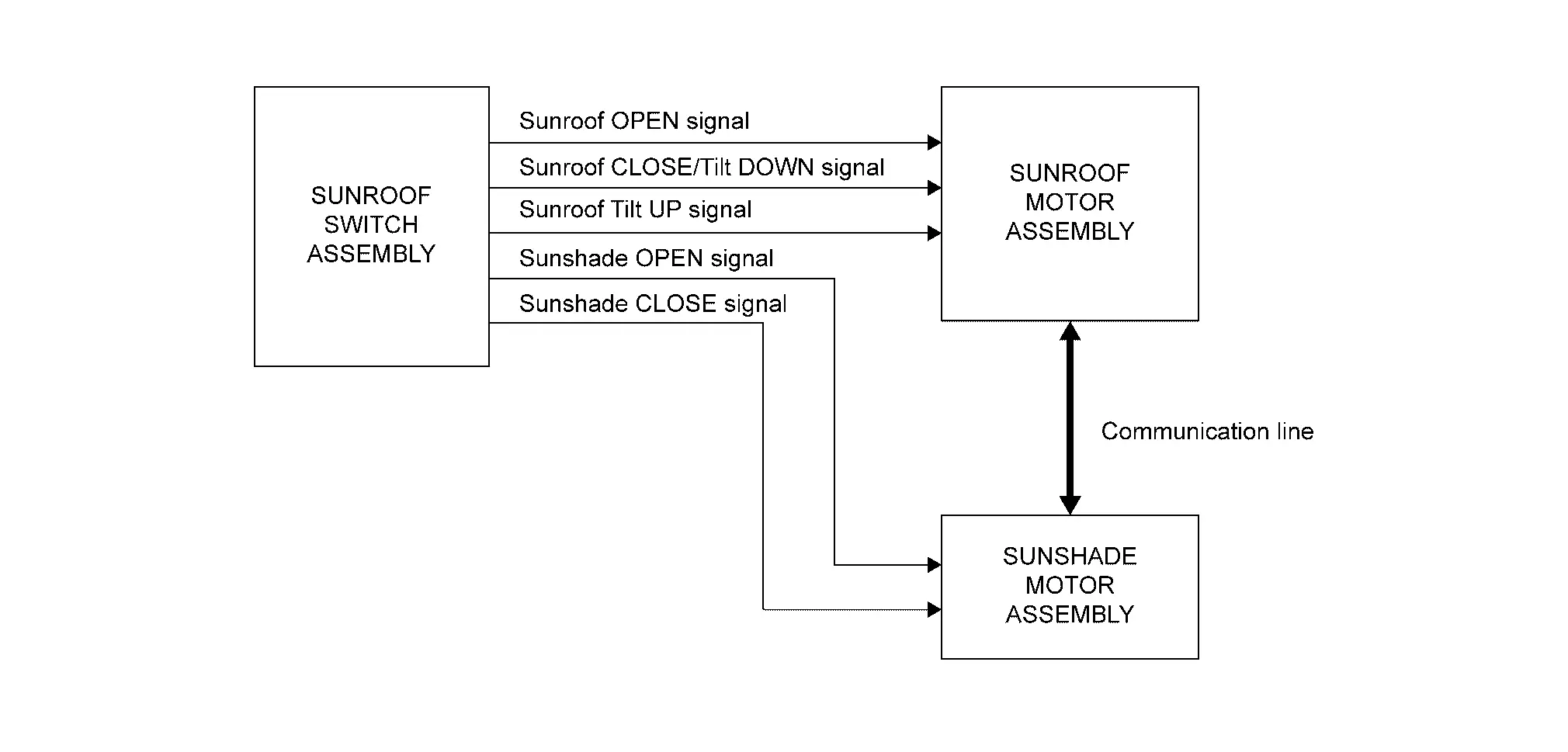

SYSTEM DIAGRAM

Component	Function
Front door switch	Detects front door open/close condition and transmits door switch signal to BCM.
BCM	Controls retained power function.
Sunroof switch assembly	Refer to Sunroof Switch Assembly.
Sunroof motor assembly	Refer to Sunroof Motor Assembly.
Sunshade motor assembly	Refer to Sunshade Motor Assembly.
Intelligent Key unit	Transmits button operation signal to Intelligent Key unit.
Intelligent Key	Detects Intelligent Key is operated, button operation signal to BCM via CAN communication.

SUNROOF SYSTEM

Sunroof and sunshade receives sunroof OPEN/CLOSE/Tilt UP/Tilt DOWN signal and sunshade OPEN/CLOSE signal from sunroof switch assembly to operate sunroof motor assembly and sunshade motor assembly.
Sunroof and sunshade is activated by sunroof switch assembly when power switch turns ON or retained power is operating.

OPERATION DESCRIPTION

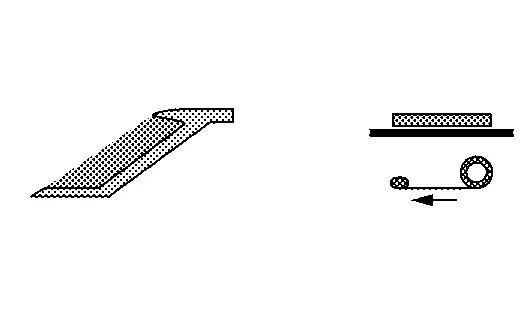

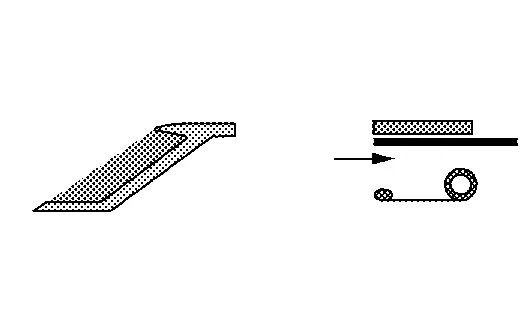

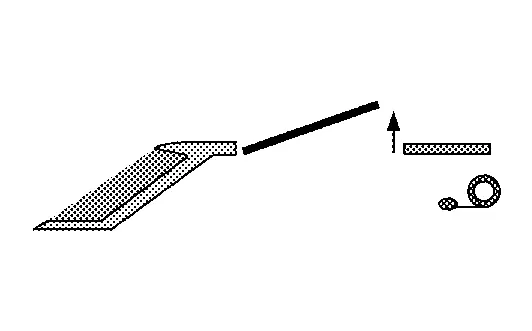

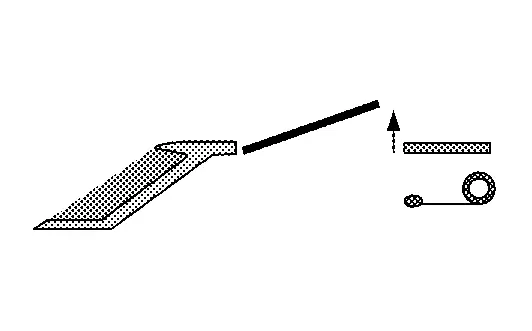

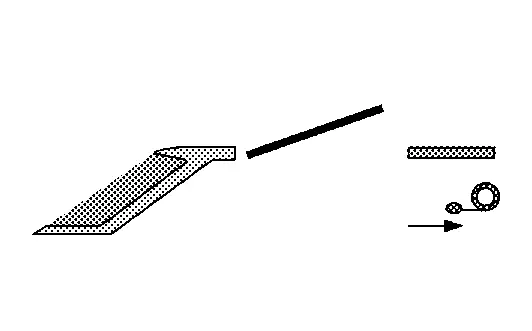

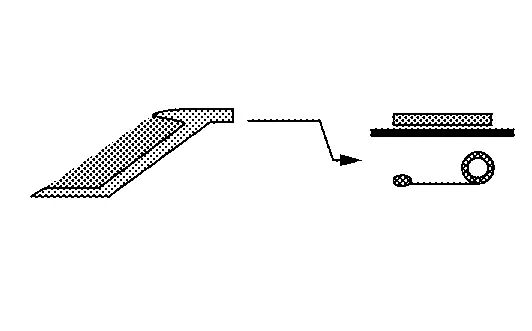

Sunroof and sunshade operate as per the following by operating the sunroof switch and sunshade switch.

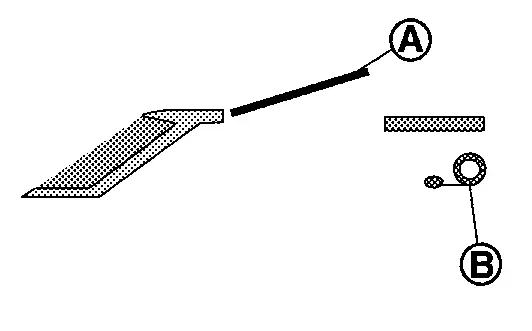

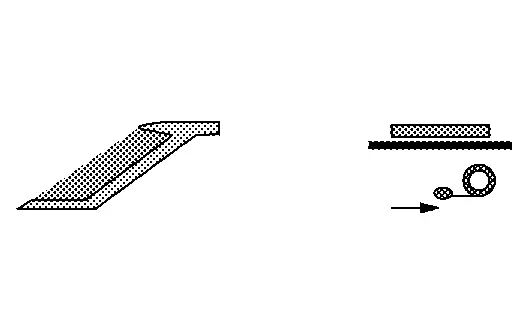

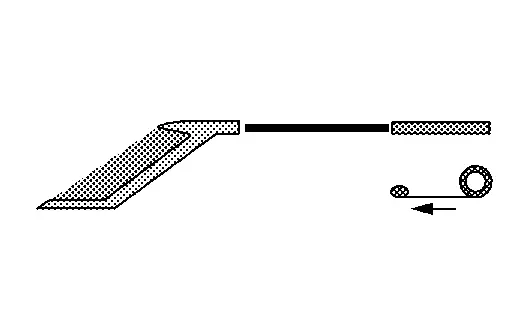

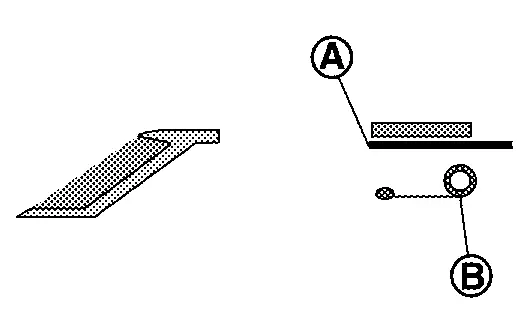

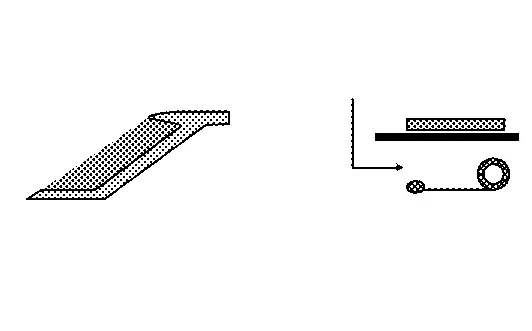

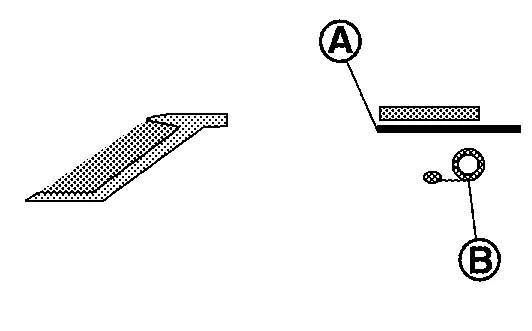

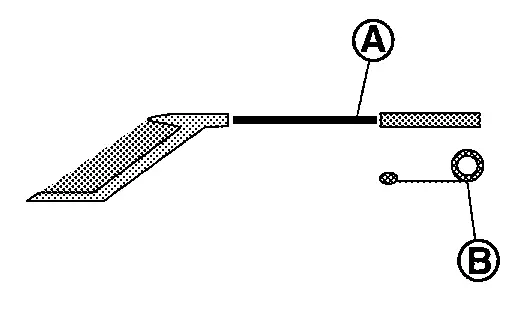

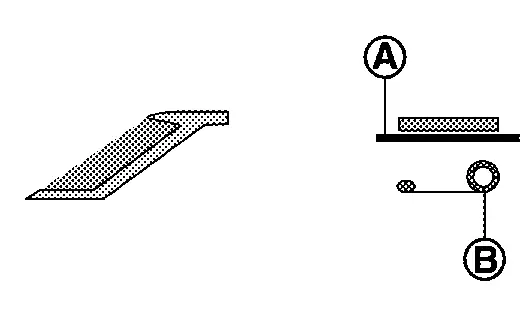

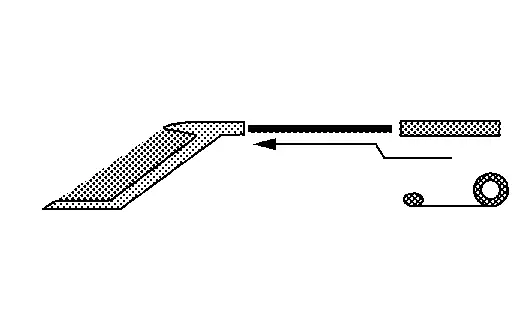

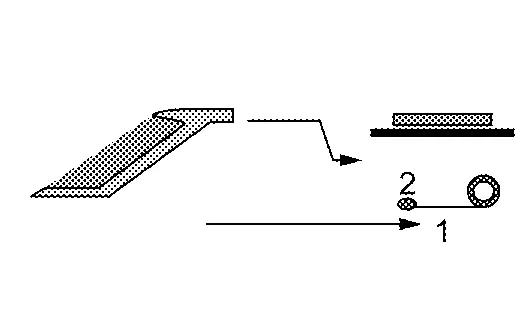

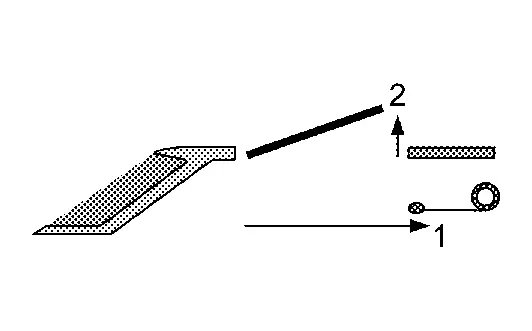

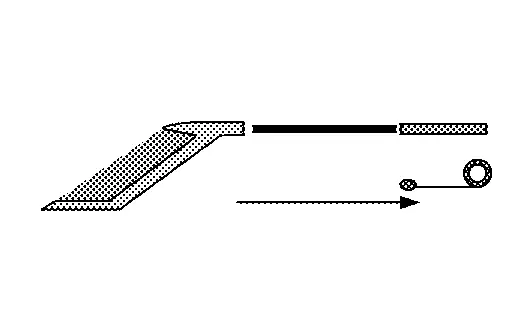

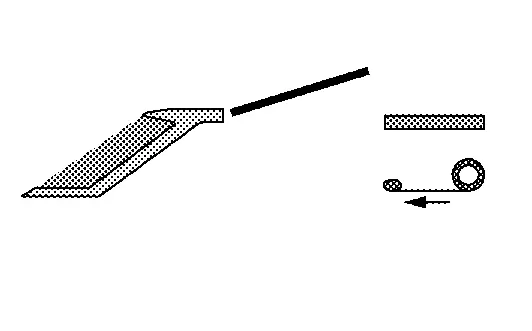

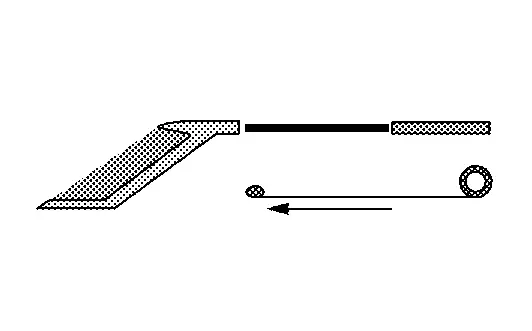

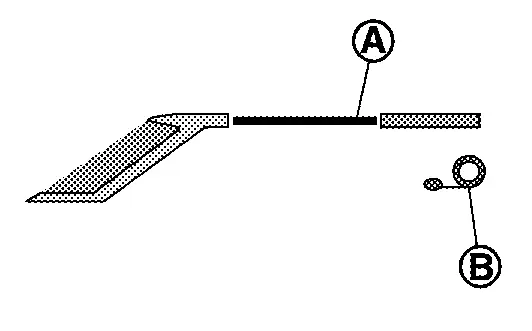

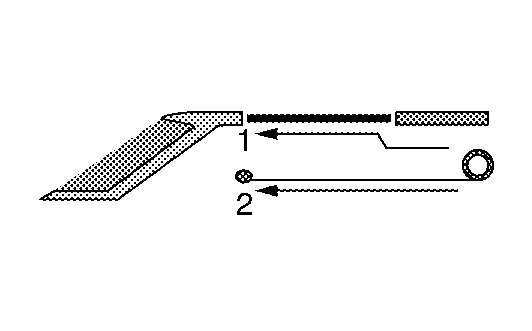

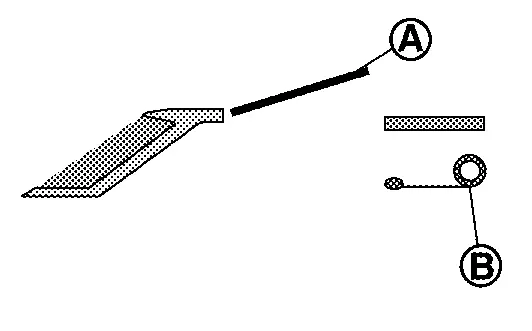

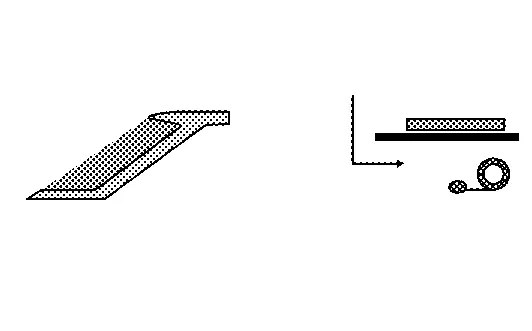

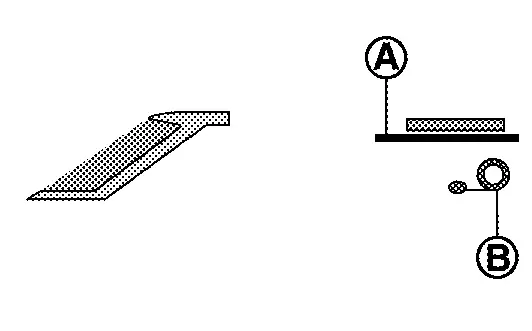

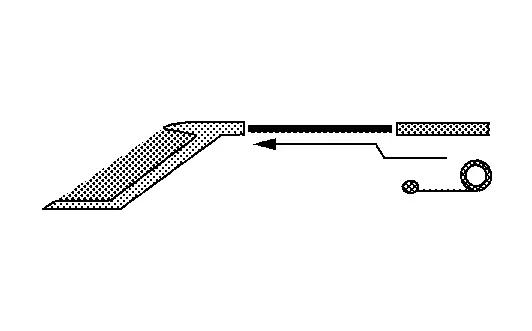

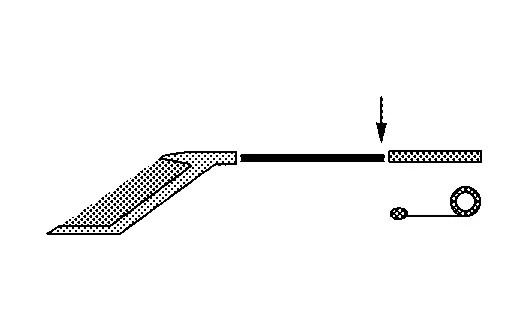

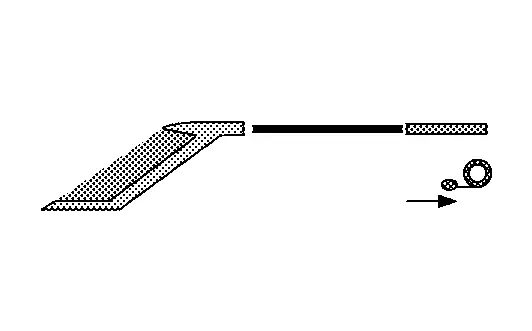

Before operation	Switch operation	Sunroof and sunshade action	After operation

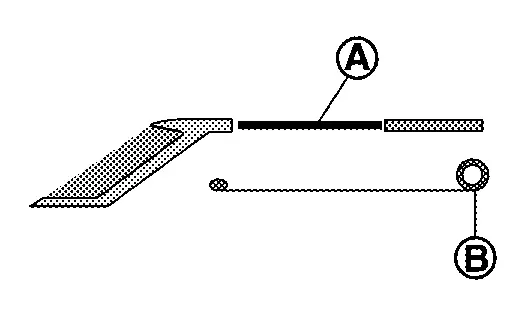

Sunroof: Fully-closed Sunshade: Fully-closed : Sunroof : Sunshade	Sunroof switch PUSH	Sunshade: OPEN (Half-open) Sunroof: Tilt up
	Sunshade switch OPEN	Sunshade: OPEN (Half-open)
	Sunroof switch OPEN	Sunshade: OPEN (Half-open) Sunroof: OPEN (Comfort position)
	Sunroof switch CLOSE Sunshade switch CLOSE	Not action	—
Sunroof: Tilt up Sunshade: Fully-open : Sunroof : Sunshade	Sunroof switch OPEN	Sunroof: Comfort position
	Sunroof switch CLOSE Sunroof switch PUSH	Sunroof: Tilt down
	Sunshade switch CLOSE	Sunshade: CLOSE (Half-open)
	Sunshade switch OPEN	Not action	—
Sunroof: Tilt up Sunshade: Half-open : Sunroof : Sunshade	Sunroof switch OPEN	Sunroof: Comfort position
	Sunroof switch CLOSE Sunroof switch PUSH	Sunroof: Tilt down
	Sunshade switch OPEN	Sunshade OPEN (Fully-open)
	Sunshade switch CLOSE	Not action	—
Sunroof: Fully-close Sunshade: Fully-open : Sunroof : Sunshade	Sunroof switch PUSH	Sunroof: Tilt up
	Sunroof switch OPEN	Sunroof: Comfort position
	Sunshade switch CLOSE	Sunshade: CLOSE (Half-open)
	Sunroof switch CLOSE Sunshade switch OPEN	Not action	—
Sunroof: Fully-close Sunshade: Half-open : Sunroof : Sunshade	Sunroof switch PUSH	Sunroof: Tilt up
	Sunroof switch OPEN	Sunroof: Comfort position
	Sunshade switch OPEN	Sunshade: OPEN (Fully-open)
	Sunshade switch CLOSE	Sunshade: CLOSE
	Sunroof switch CLOSE	Not action	—
Sunroof: Comfort position Sunshade: Fully-open : Sunroof : Sunshade	Sunroof switch OPEN	Sunroof: OPEN (Fully-open)
	Sunroof switch CLOSE	Sunroof: CLOSE
	Sunshade switch CLOSE	Sunshade: CLOSE (Half-open)
	Sunroof switch PUSH	Sunroof: Tilt up
	Sunshade switch OPEN	Not action	—
Sunroof: Comfort position Sunshade: Half-open : Sunroof : Sunshade	Sunroof switch OPEN	Sunroof: OPEN (Fully-open)
	Sunroof switch CLOSE	Sunroof: CLOSE
	Sunshade switch OPEN	Sunshade: OPEN (Fully-open)
	Sunroof switch PUSH	Sunroof: Tilt up
	Sunshade switch CLOSE	Sunroof: CLOSE Sunshade: CLOSE
Sunroof: Fully-open Sunshade: Fully-open : Sunroof : Sunshade	Sunroof switch CLOSE	Sunroof: CLOSE (Fully-close)
	Sunshade switch CLOSE	Sunshade: CLOSE (Half-open)
	Sunroof switch PUSH	Sunroof: Tilt up
	Sunroof switch OPEN Sunshade switch OPEN	Not action	—
Sunroof: Fully-open Sunshade: Half-open : Sunroof : Sunshade	Sunroof switch CLOSE	Sunroof: CLOSE (Fully-close)
	Sunshade switch OPEN	Sunshade: OPEN (Fully-open)
	Sunroof switch PUSH	Sunroof: Tilt up
	Sunshade switch CLOSE	Sunroof: CLOSE Sunshade: CLOSE
	Sunroof switch OPEN	Not action	—

AUTO OPERATION

Sunroof and sunshade operates automatically by operating the sunroof switch assembly.

NOTE:

If initialization setting is not performed, the automatic function does not operate.

During automatic operation, when the sunroof switch assembly is operated, automatic operation can be stopped.

ANTI-PINCH FUNCTION

Sunroof motor assembly monitors the sunroof condition using the signals from sunroof motor. When sunroof motor assembly detects an interruption during auto operation (close or tilt down operation), sunroof motor will tilt up or open [145 mm (5.91 in) or more] sunroof.
Sunshade motor assembly monitors the sunshade condition using the signals from sunshade motor. When sunshade motor assembly detects an interruption during auto close operation, sunshade motor will open [145 mm (5.91 in) or more] sunshade.

CAUTION:

There are some small distances immediately before the closed position which cannot be detected.

NOTE:

If initialization setting is not performed, the anti-pinch function does not operate.

When the distance between pinching position and fully-open position is less than 145 mm (5.91 in), sunroof or sunshade reverses to fully-open position.

LIN COMMUNICATION

Sunroof motor assembly, sunshade motor assembly and BCM transmit and receive sunroof motor & sunshade motor malfunction signal and retained power function status signal the LIN communication.

RETAINED POWER FUNCTION

Retained power operation is an additional power supply function that enables sunroof system to operate for 45 seconds after power switch is turned OFF.

Retained power function canceled any of the following conditions is satisfied.

Front door CLOSE (door switch OFF)→OPEN (door switch ON)
When power switch is ON again.
When timer times out. (45 seconds)

REMOTE CONTROL FUNCTION

Sunroof and sunshade open when the unlock button on Intelligent Key is activated and kept pressed for more than for approximately 3 seconds with the power switch OFF.

OPERATION CONDITION

Power switch OFF.
Sunroof motor assembly and sunshade motor assembly initialized condition.

NOTE:

Sunroof and sunshade stops when the following operations are performed.

When the unlock button is released.

When the power switch is switched ON while the sunroof and sunshade opening is operated.

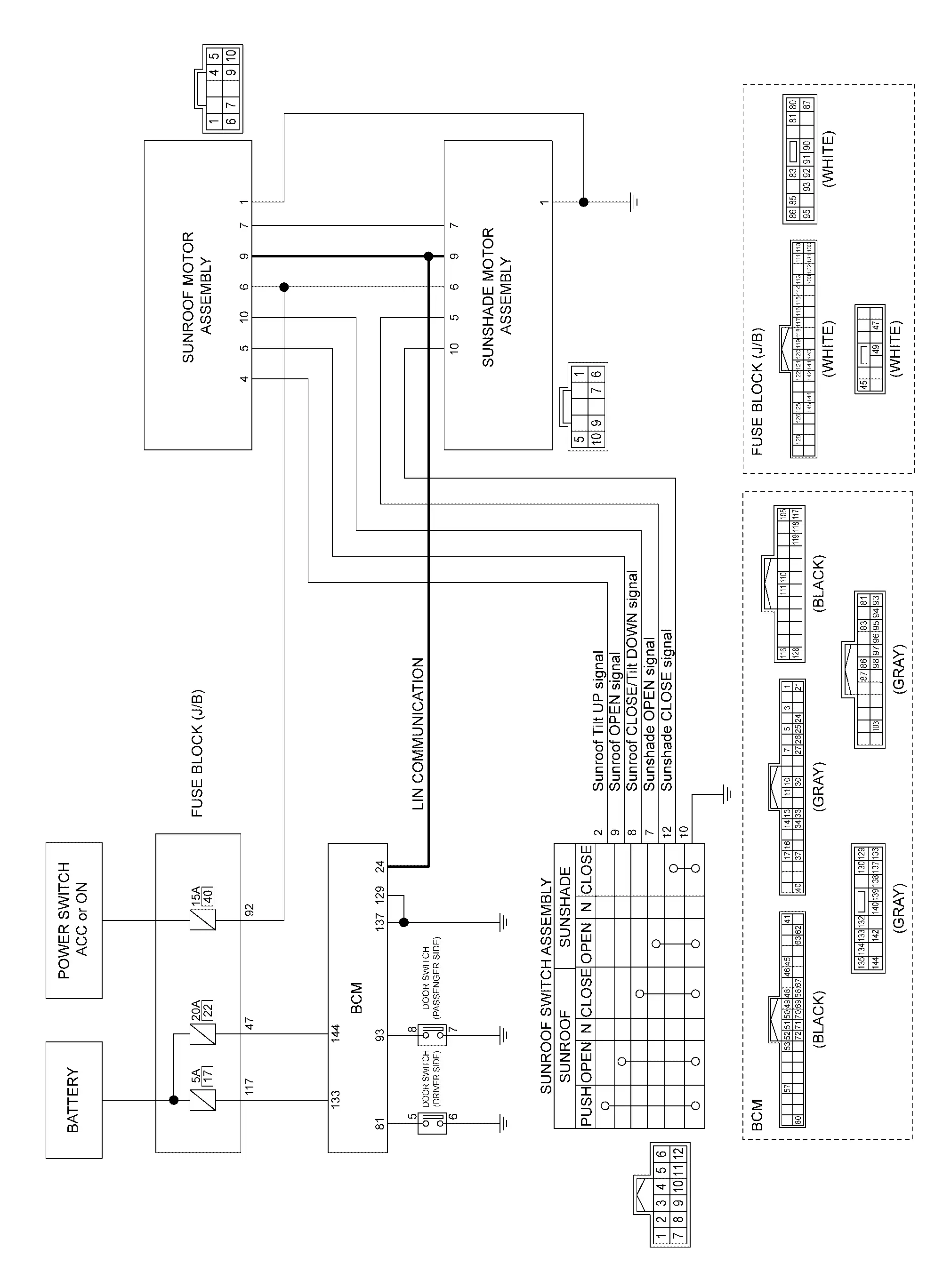

Circuit Diagram

Fail-safe

FAIL-SAFE CONTROL BY SUNROOF MOTOR ASSEMBLY

Sunroof motor assembly switches sunroof operation to fail-safe control when malfunction is detected.

Detected item	Judgment condition	Fail-safe operation	Recovery condition
Non-Initialized condition	When the motor integrated CPU detect sunroof position non-initialized condition	Auto OPEN/CLOSE operation (Anti-pinch) and Tilt UP/Tilt DOWN operation are forbidden	Initialization completed
Thermal protection	When the motor integrated CPU detect temperature increases and exceeds threshold	Sunroof operation is forbidden	Approximately 20 seconds or more passed then operate. (Temperature returns to normal)

FAIL-SAFE CONTROL BY SUNSHADE MOTOR ASSEMBLY

Sunshade motor assembly switches sunshade operation to fail-safe control when malfunction is detected.

Detected item	Judgment condition	Fail-safe operation	Recovery condition
Non-Initialized condition	When the motor integrated CPU detect sunshade position non-initialized condition	Auto OPEN/CLOSE operation (Anti-pinch) is forbidden	Initialization completed
Thermal protection	When the motor integrated CPU detect temperature increases and exceeds threshold	Sunshade operation is forbidden	Approximately 20 seconds or more passed then operate. (Temperature returns to normal)
