Nissan Ariya: System Description

• Component Parts
• System

Component Parts

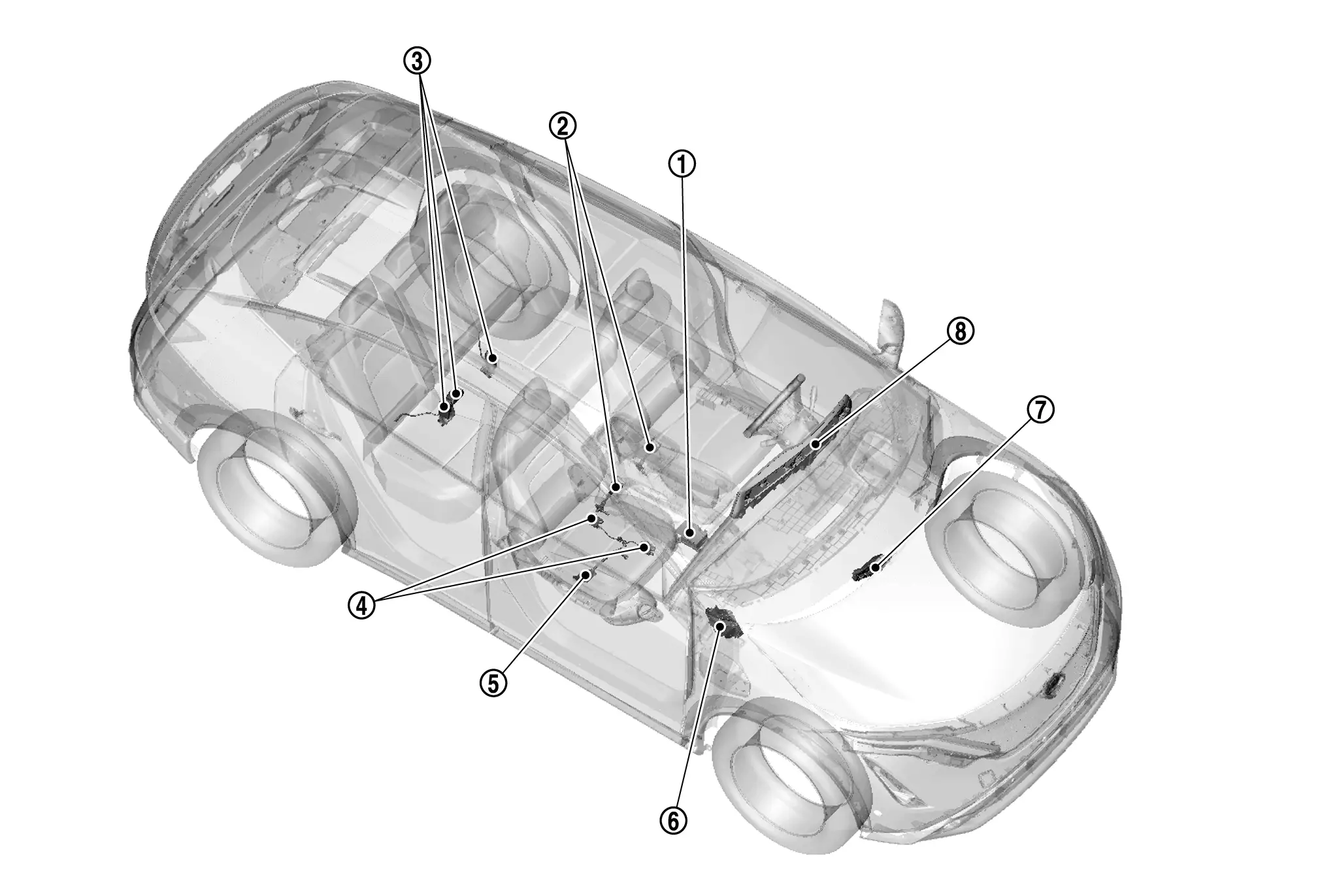

Component Parts Location

	Air bag diagnosis sensor unit Refer to Component Parts Location		Seat belt buckle switch (driver side/passenger side)		Rear seat belt buckle switch (LH/RH/center)
	Occupant detection system sensor		Occupant detection system control unit		BCM Refer to Component Parts Location
	VCM Refer to Component Parts Location		Combination meter

Seat Belt Buckle Switch

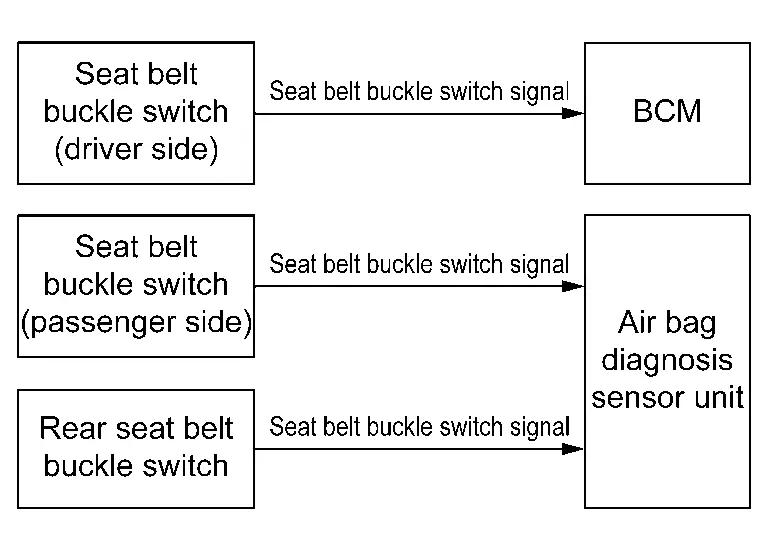

COMPONENT FUNCTION WITHIN SYSTEM

• Transmits seat belt buckle switch (driver side) signal to BCM.

• Transmits seat belt buckle switch (passenger side and rear) signal to air bag diagnosis sensor unit.



INDIVIDUAL COMPONENT FUNCTION

Detects fastened or unfastened status of seat belt.

COMPONENT PARTS LOCATION

Seat belt buckle switch is installed in the seat belt buckle. Refer to Component Parts Location.
