Nissan Ariya: System
Electric Center Console Box
System Description

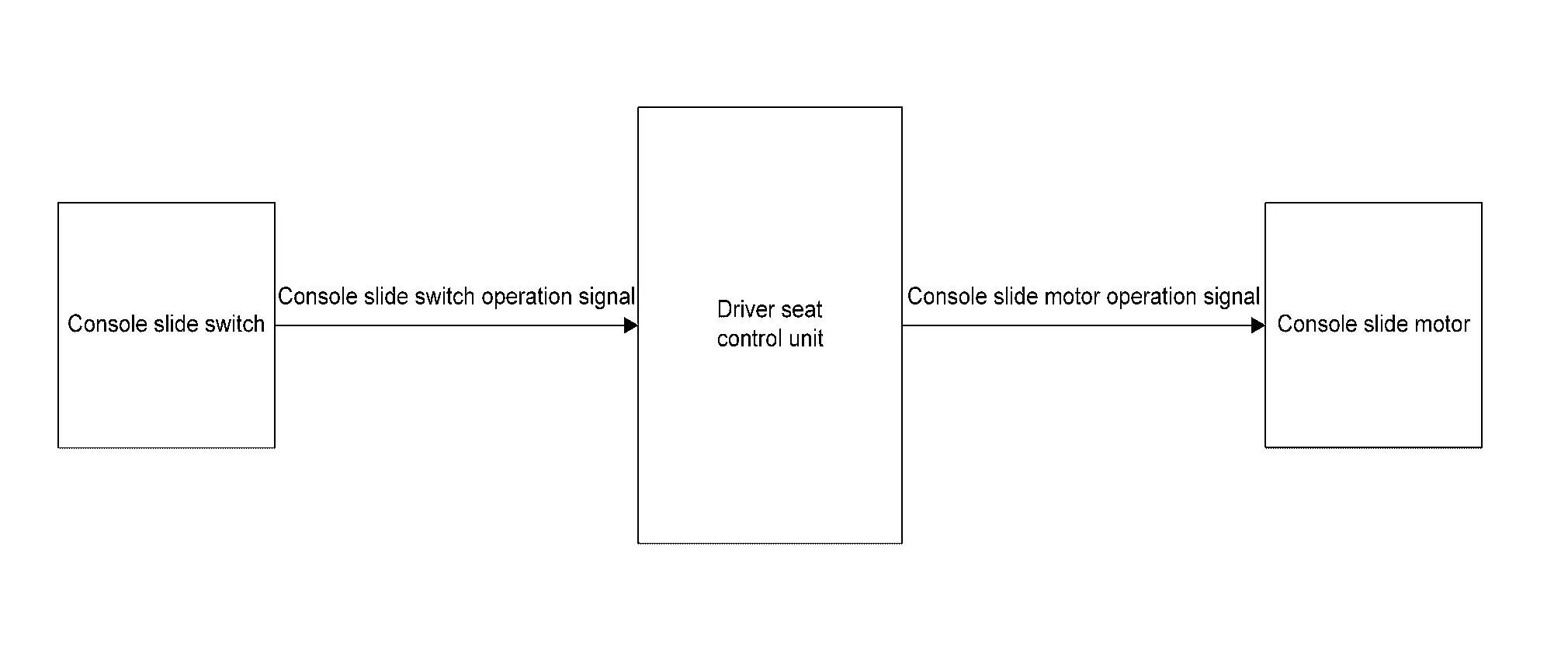

SYSTEM DIAGRAM
| Component parts | Function |
|---|---|
| Driver seat control unit | Inputs the operation signal of the console slide switch then outputs the actuation signal to the console slide motor. |
| Console slide switch | Console Slide Switch |
| Console slide motor | Console Slide Motor |
DESCRIPTION
By controlling the console slide switch at the side of electric center console box, the electric center console box can move upper side of center console forward and backward.

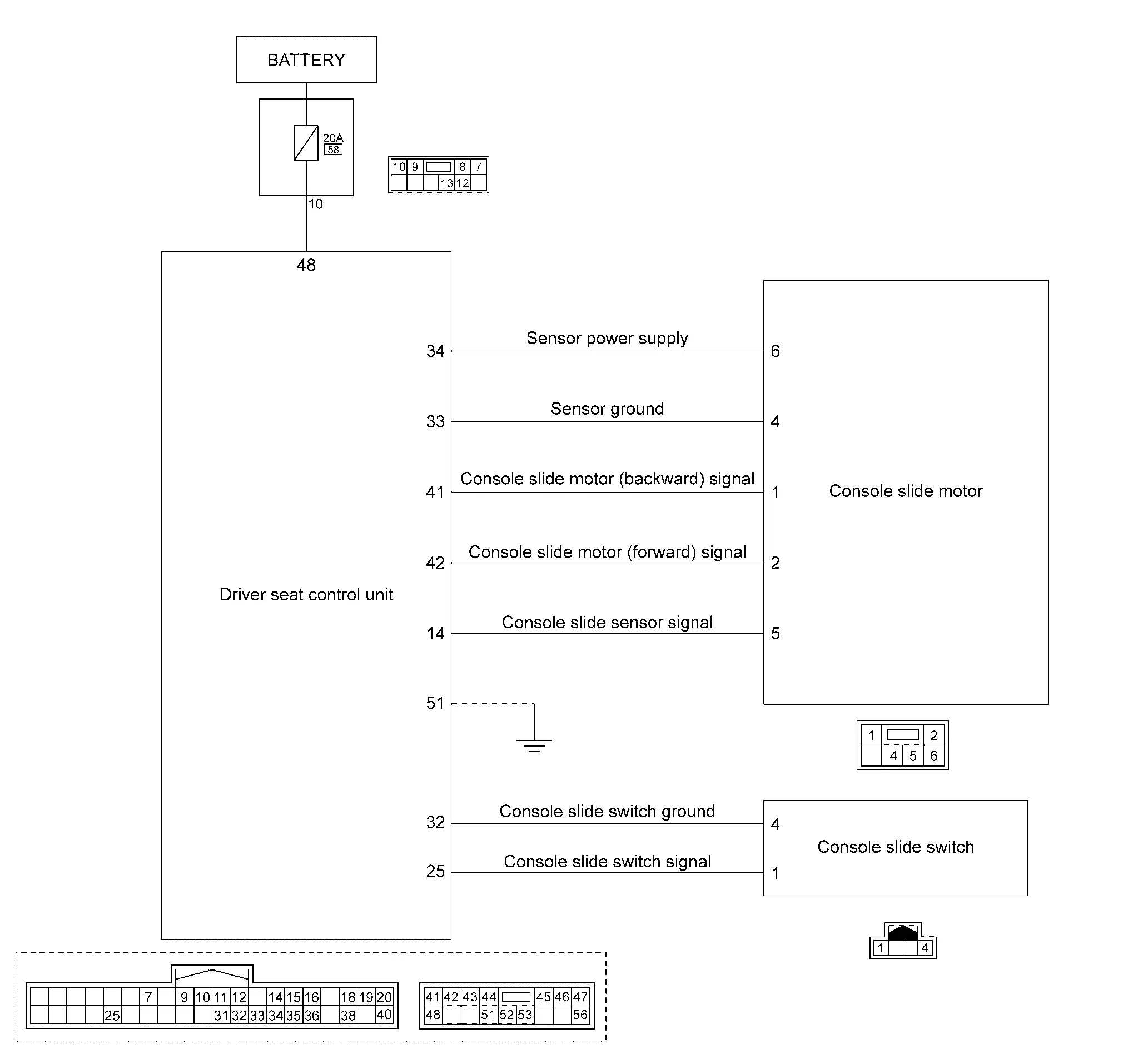

Circuit Diagram
Flexible Center Storage
System Description

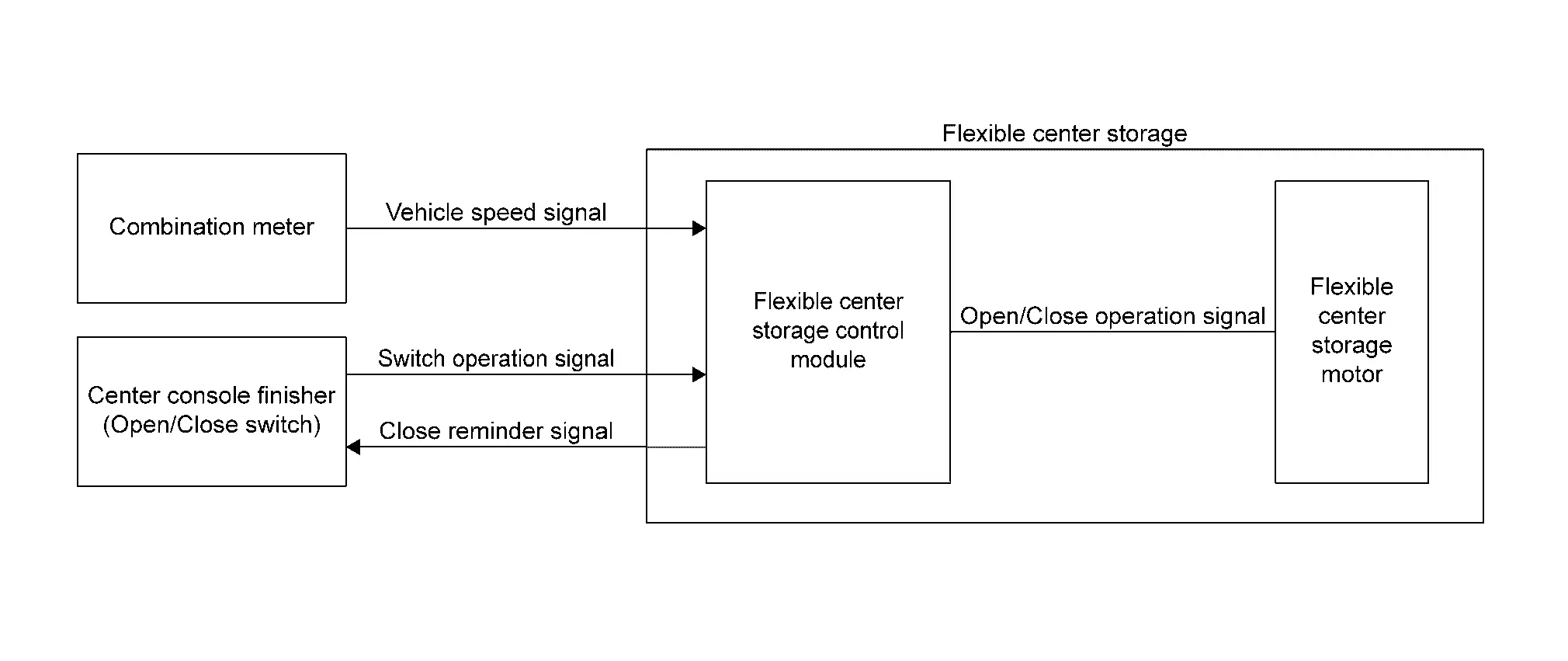

SYSTEM DIAGRAM
| Component parts | Function |
|---|---|
| Flexible center storage | Flexible Center Storage |
| Combination meter | Transmits Nissan Ariya vehicle speed signal to flexible center storage control module. |
| Center console finisher (open/close switch) |
|
DESCRIPTION
-
Flexible center storage operates when power switch is ON or auto ACC state.
-
Lid can be opened and closed while OPEN/CLOSE switch of flexible center storage at center console finisher is pressed.
Close reminder Function
-
When the vehicle speed exceeds 15 km/h (9.3 MPH) with the flexible center storage open, the CLOSE switch at the center console finisher blinks for approximately 65 seconds to prompt the closing operation.
-
When the lid is closed the CLOSE switch indicator will stop blinking.

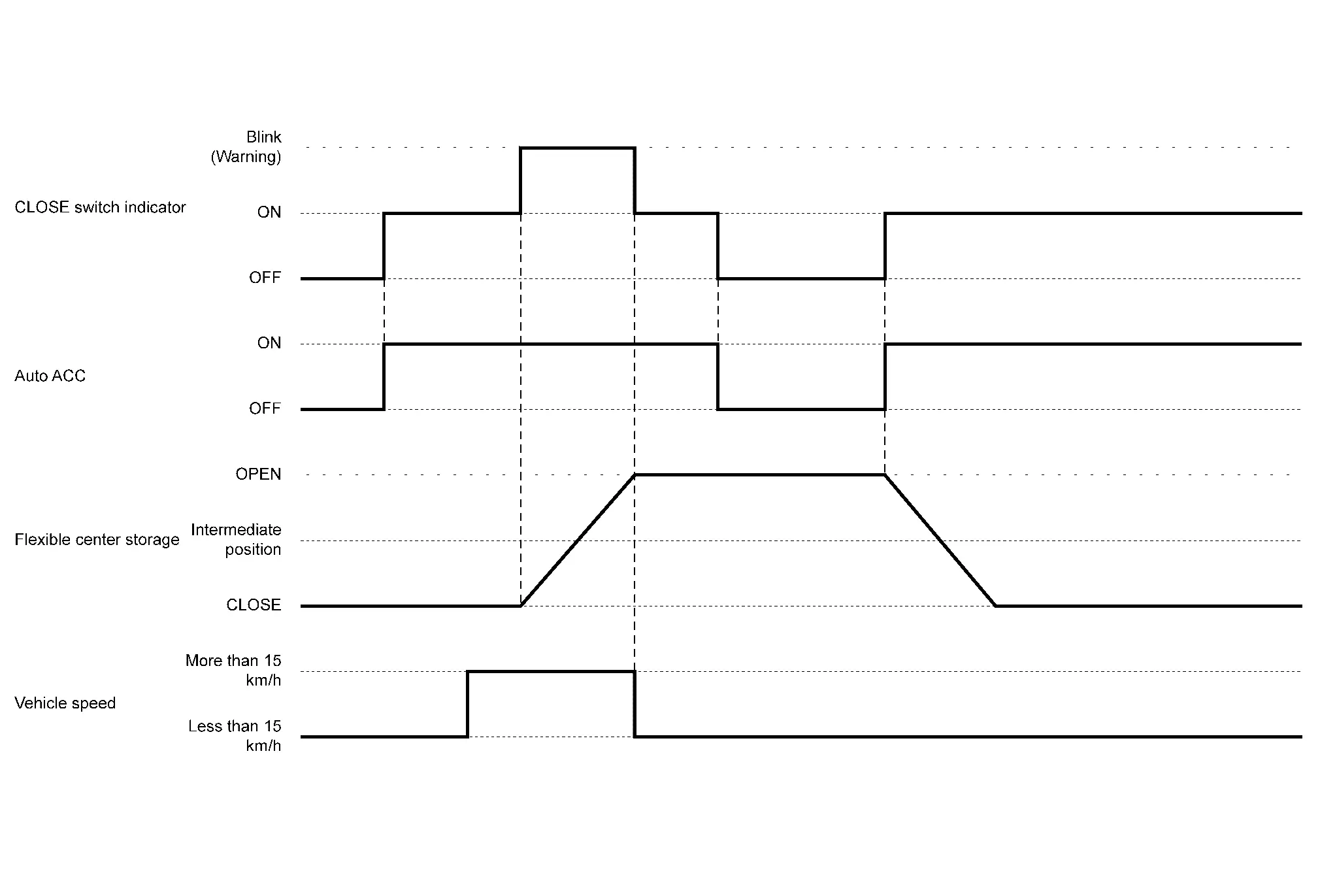

Timing chart
Reverse function
-
When pinching foreign substance is detected during close operation of the lid of flexible center storage, it reverses the operation.
-
When the load of 12 kg (26.4 lb) or more on the tip of lid is detected during open operation of the lid of flexible center storage, it reverses the operation.

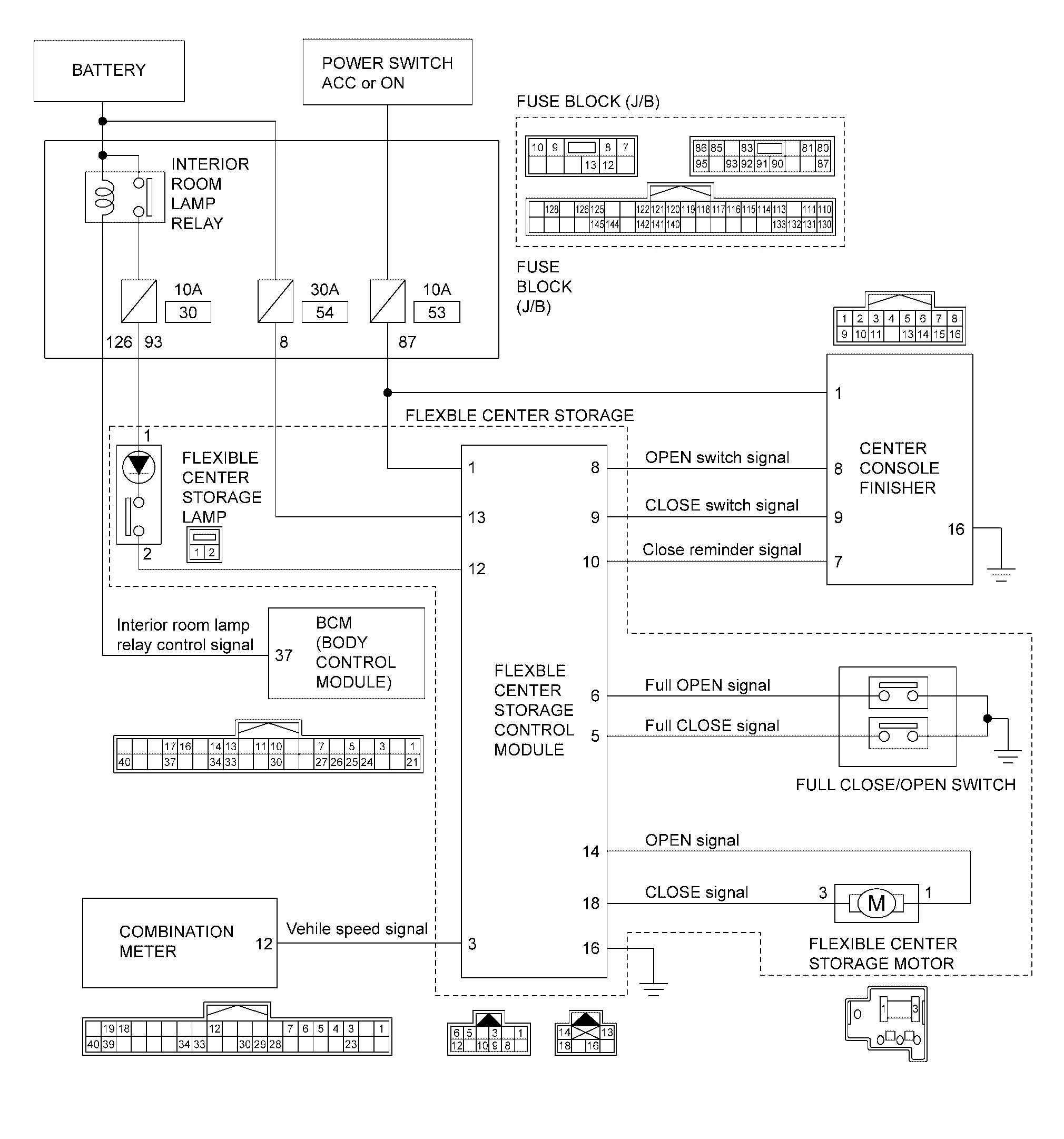

Circuit Diagram
Fail-safe
| Malfunction items | Fail-safe in operation |
|---|---|
| Hall sensor (integrated in flexible center storage motor) | Flexible center storage control module prohibits reverse operation. |
|
Voltage abnormality of flexible center storage control module
|
Flexible center storage control module stops output signal to flexible center storage motor. |
