Nissan Ariya: Vsp [approaching Vehicle Sound for Pedestrians (vsp) Control Unit]

• B2860-87 Vsp Control Unit
• B2861-87 Vsp Speaker Lh
• B2863-87 Battery Voltage
• U0075-00 Vsp Control Unit
• Power Supply and Ground Circuit
• Approaching Vehicle Sound for Pedestrians (vsp) Speaker Signal Circuit
• Approaching Vehicle Sound for Pedestrians (vsp) Speaker

B2860-87 Vsp Control Unit

DTC Description

DTC DETECTION LOGIC

DTC No.	CONSULT screen terms	DTC detection condition
B2860–87	VSP control unit	Diagnosis condition	When power switch is ON.
		Signal (terminal)	—
		Threshold	When detecting error during the initial diagnosis of the CAN controller of VSP control unit.
		Diagnosis delay time	2 seconds or more

POSSIBLE CAUSE

VSP control unit.

FAIL-SAFE

• VSP function stops.

• Charge sound system does not operate.

Confirmation Procedure

PERFORM DTC CONFIRMATION PROCEDURE

CONSULT

1. Set Nissan Ariya vehicle to ready and wait for 2 seconds or more.

2. Select “Self Diagnostic Result” mode of "VSP".

3. Check if the DTC “B2860–87" is detected in “Self Diagnostic Result” mode of “VSP”.

Is “B2860–87” detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: Inspection End.

DTC Diagnosis Procedure

PERFORM SELF DIAGNOSTIC RESULT

CONSULT

1. Power switch ON.

2. Erase “Self Diagnostic Result”.

3. Perform DTC confirmation procedure again. Refer to DTC Confirmation Procedure.

Is “B2860–87” detected?

YES>>

Replace VSP control unit. Refer to APPROACHING Nissan Ariya Vehicle SOUND FOR PEDESTRIANS (VSP) CONTROL UNIT : Removal & Installation.

NO>>

Inspection End.

B2861-87 Vsp Speaker Lh

DTC Description

DTC DETECTION LOGIC

DTC No.	CONSULT screen terms	DTC detection condition
B2861–87	VSP speaker LH	Diagnosis condition	When power switch is ON.
		Signal (terminal)	VSP speaker signal LH
		Threshold	Abnormal VSP speaker signal is detected
		Diagnosis delay time	2 seconds or more

POSSIBLE CAUSE

VSP control unit.

VSP speaker.

FAIL-SAFE

• VSP function stops.

• Charge sound system does not operate.

Confirmation Procedure

PERFORM DTC CONFIRMATION PROCEDURE

CONSULT

1. Power switch ON.

2. Power switch OFF and wait at least 30 seconds.

3. Power switch ON and wait at least 30 seconds or more.

4. Select “Self Diagnostic Result” mode of “VSP”.

5. Check DTC.

Is DTC "B2861–87" detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: Inspection End.

DTC Diagnosis Procedure

CHECK VSP SPEAKER SIGNAL CIRCUIT

1. Power switch ON.

2. Erase DTC.

3. Check the VSP speaker signal circuit. Refer to Diagnosis Procedure.

Is the inspection result normal?

YES>>

Replace VSP control unit. Refer to APPROACHING Nissan Ariya Vehicle SOUND FOR PEDESTRIANS (VSP) CONTROL UNIT : Removal & Installation.

NO>>

Repair or replace malfunctioning parts.

B2863-87 Battery Voltage

DTC Description

DTC DETECTION LOGIC

DTC No.	CONSULT screen terms	DTC detection condition
B2863–87	Battery voltage	Diagnosis condition	When power switch is ON.
		Signal (terminal)	Battery power supply
		Threshold	Low or high voltage is detected.
		Diagnosis delay time	—

POSSIBLE CAUSE

• Battery power supply

FAIL-SAFE

• VSP system: Function stops due to power supply issue.

• Speakers inoperative

Confirmation Procedure

PERFORM DTC CONFIRMATION PROCEDURE

CONSULT

1. Power switch ON.

2. Select “Self Diagnostic Result” mode of “VSP”.

3. Check DTC.

Is DTC "B2863–87" detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO>>

To check malfunction symptom before repair. Refer to Intermittent Incident.

DTC Diagnosis Procedure

CHECK VSP CONTROL UNIT POWER SUPPLY AND GROUND CIRCUIT

Check power supply and ground circuit of VSP control unit. Refer to Diagnosis Procedure.

Is the inspection result normal?

YES>>

Replace VSP control unit. Refer to APPROACHING Nissan Ariya Vehicle SOUND FOR PEDESTRIANS (VSP) CONTROL UNIT : Removal & Installation.

NO>>

Repair or replace the malfunctioning parts. Inspection End

U0075-00 Vsp Control Unit

DTC Description

Description

CAN (Controller Area Network) is a serial communication system for real time application. It is an on-Nissan Ariya vehicle multiplex communication system with high data communication speed and excellent error detectability. Many electronic control units are equipped onto Nissan Ariya vehicles, and each control unit shares information and links with other control units during operation (not independent). In CAN communication, control units are connected with two communication lines (CAN-High line, CAN-Low line) allowing a high rate of information transmission with less wiring. Each control unit transmits/receives data but selectively reads required data only.

CAN Communication Signal Chart. Refer to CAN Communication Signal Chart.

DTC DETECTION LOGIC

DTC No.	CONSULT screen terms	DTC detection condition
U0075-00	Control module communication bus C off	Diagnosis condition	When power switch is ON.
		Signal (terminal)	CAN communication signal
		Threshold	When VSP control unit is not transmitting or receiving CAN communication
		Diagnosis delay time	2 seconds or more

POSSIBLE CAUSE

CAN communication system.

FAIL-SAFE

• VSP function stops when there is a communication break.

• Charge sound system does not operate

Confirmation Procedure

PERFORM DTC CONFIRMATION PROCEDURE

CONSULT

1. Set Nissan Ariya vehicle to ready and wait for 2 seconds or more.

2. Select “Self Diagnostic Result” mode of "VSP".

3. Check if the DTC “U0075-00” is detected in “Self Diagnostic Result” mode of “VSP”.

Is “U0075-00” detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: Inspection End.

DTC Diagnosis Procedure

PERFORM SELF DIAGNOSTIC RESULT

CONSULT

1. Power switch ON and wait for 2 seconds or more.

2. Erase “Self Diagnostic Result”.

3. Perform DTC confirmation procedure again. Refer to DTC Confirmation Procedure.

Is “U0075-00” detected?

YES>>

Refer to Trouble Diagnosis Flow Chart.

NO>>

Inspection End.

Power Supply and Ground Circuit

Diagnosis Procedure

CHECK FUSE

Check for blown fuses.

Signal name	Fuse No.	Capacity
Battery power supply	105	10 A
Power switch ON signal	3	10 A

Is the inspection result normal?

YES>>

GO TO 2.

NO>>

Be sure to eliminate cause of malfunction before installing new fuse.

CHECK POWER SUPPLY CIRCUIT

1. Power switch ON.

2. Check voltage between VSP control unit harness connector and ground.

   VSP control unit		Signal name	Power switch position	Value (Approx.)
   Connector	Terminal
   M45	13	Battery power supply	OFF	Battery voltage
   	11	Power switch ON signal	ON

Is the inspection result normal?

YES>>

GO TO 3.

NO>>

Repair or replace VSP control unit power supply harness.

CHECK GROUND CIRCUIT

1. Power switch OFF.

2. Disconnect VSP control unit connector.

3. Check continuity between VSP control unit harness connector and ground.

   VSP control unit		—	Continuity
   Connector	Terminal
   M45	1	Ground	Existed

Is the inspection result normal?

YES>>

Inspection End.

NO>>

Repair or replace VSP control unit ground harness.

Approaching Vehicle Sound for Pedestrians (vsp) Speaker Signal Circuit

Component Function Check

CHECK VSP SPEAKER OPERATION

CONSULT

1. Power switch ON.

2. Select the “ACTIVE TEST” item "VSP SPEAKER LH" and "VSP SPEAKER RH" of “VSP”.

3. Activate "VSP SPEAKER LH" and "VSP SPEAKER RH" and check that VSP speaker operates.

Is the inspection result normal?

YES>>

Inspection End.

NO>>

Refer to Diagnosis Procedure.

Diagnosis Procedure

CHECK VSP SPEAKER SIGNAL CIRCUIT

1. Power switch OFF.

2. Disconnect VSP control unit and VSP speaker connector.

3. Check continuity between VSP control unit harness connector and VSP speaker harness connector.

   VSP control unit			VSP speaker			Continuity
   Connector		Terminal	Connector		Terminal
   LH	M45	7	LH	B198	2	Existed
   		8			1
   RH		9	RH	E111	2
   		10			1

4. Check continuity between VSP control unit harness connector and ground.

   VSP control unit			—	Continuity
   Connector		Terminal
   LH	M45	7	Ground	Not existed
   		8
   RH		9
   		10

Is the inspection result normal?

YES>>

GO TO 2.

NO>>

Repair harness or connector.

CHECK VSP SPEAKER OUTPUT SIGNAL

CONSULT

1. Connect VSP control unit and VSP speaker connector.

2. Connect the CONSULT.

3. Power switch ON.

4. Select the “ACTIVE TEST” for the “VSP” and select "VSP SPEAKER LH" and "VSP SPEAKER RH".

5. Check signal between VSP control unit harness connector.

   VSP control unit				Voltage (Approx.)
   Connector		Terminal
   		(+)	(–)

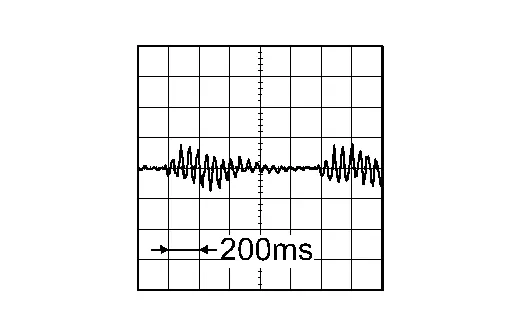

   LH	M45	8	7	NOTE: Waveform varies depending on tone and sound level.
   RH		10	9	NOTE: Waveform varies depending on tone and sound level.

Is the inspection result normal?

YES>>

Replace VSP speaker. Refer to APPROACHING Nissan Ariya Vehicle SOUND FOR PEDESTRIANS (VSP) SPEAKER : Removal & Installation.

NO>>

Replace VSP control unit. Refer to APPROACHING Nissan Ariya Vehicle SOUND FOR PEDESTRIANS (VSP) CONTROL UNIT : Removal & Installation.

Approaching Vehicle Sound for Pedestrians (vsp) Speaker

Component Inspection

CHECK VSP SPEAKER

1. Power switch OFF.

2. Disconnect VSP speaker connector.

3. Check resistance between VSP speaker terminals.

VSP speaker				Resistance
Connector		Terminals
LH	B198	1	2	Approx. 4 Ω
RH	E111

Is the inspection result normal?

YES>>

Inspection End.

NO >>

Replace VSP speaker. Refer to APPROACHING Nissan Ariya Vehicle SOUND FOR PEDESTRIANS (VSP) SPEAKER : Removal & Installation.
