Component Parts Location
Approaching Vehicle Sound for Pedestrians (vsp) Control Unit
Approaching Vehicle Sound for Pedestrians (vsp) Speakers

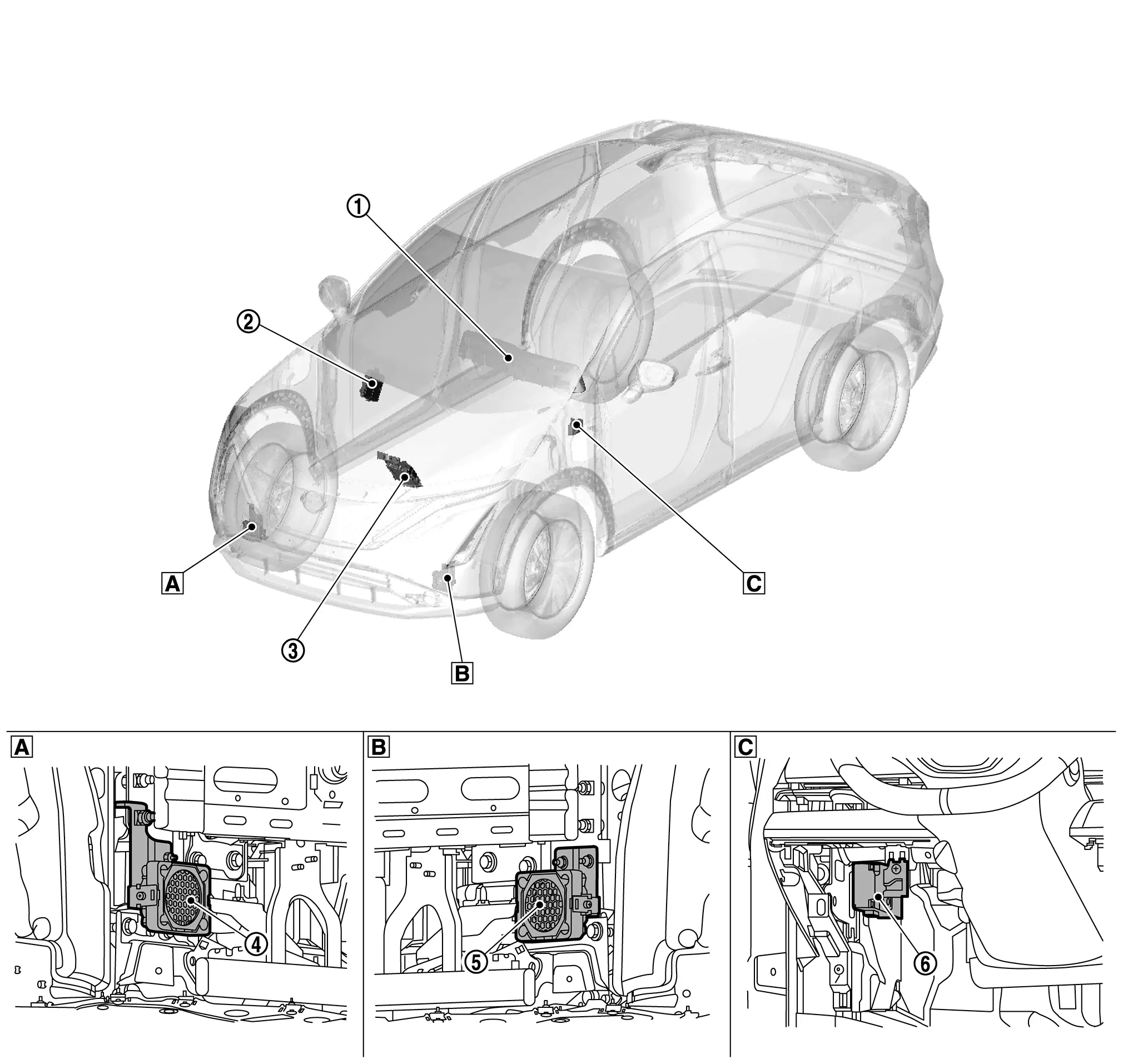

Component Parts Location

Combination meter	BCM Refer to Component Parts Location.	VCM Refer to Component Parts Location.
Approaching Nissan Ariya vehicle sound for pedestrians (VSP) speaker (RH)	Approaching Nissan Ariya vehicle sound for pedestrians (VSP) speaker (LH)	Approaching Nissan Ariya vehicle sound for pedestrians (VSP) control unit
Right inside of front bumper	Left inside of front bumper	Inside of instrument lower panel

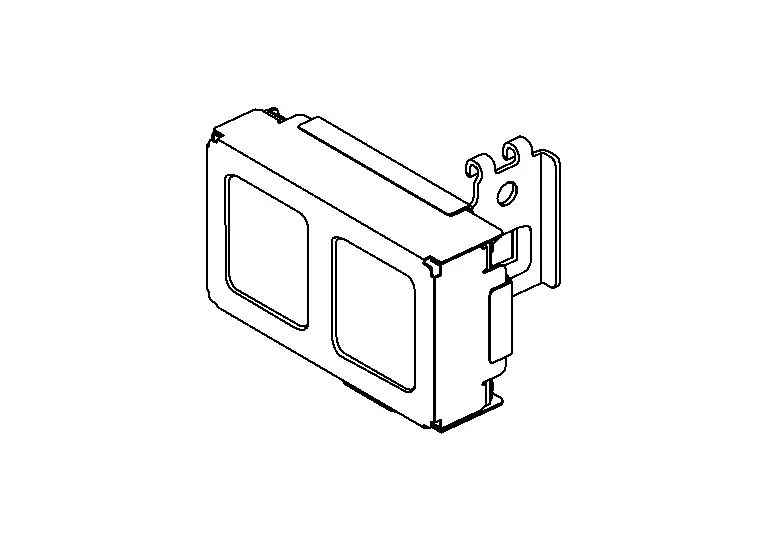

Approaching Vehicle Sound for Pedestrians (vsp) Control Unit

Component Description

FUNCTIONS WITHIN THE SYSTEM

The VSP control unit contains power amplifier for the VSP speakers.
The VSP control unit controls the following systems according to the signals from each unit via CAN communication.
- VSP system
- Charging sound system

INDIVIDUAL FUNCTIONS WITHIN THE SYSTEM

When the VSP control unit judges that VSP system and charge sound system operation is necessary, it outputs the VSP speaker signal to the VSP speakers.

INDIVIDUAL OPERATION

VSP system : Refer to System Description.

PARTS LOCATION

The VSP control unit is located behind the instrument lower panel. Refer to Component Parts Location.

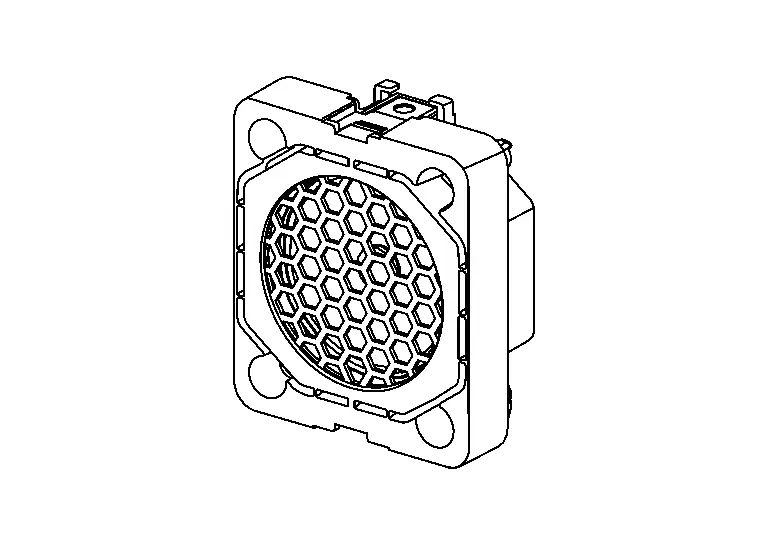

Approaching Vehicle Sound for Pedestrians (vsp) Speakers

Component Description

FUNCTIONS WITHIN THE SYSTEM

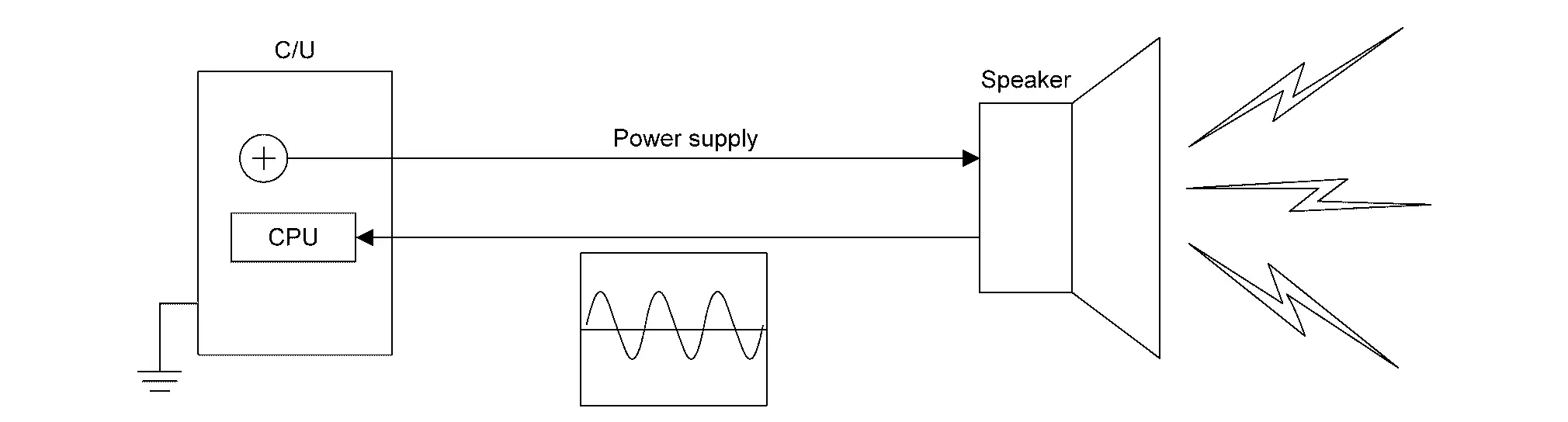

The VSP speakers output the approaching vehicle sound for pedestrians (VSP) and charge sound according to the VSP speakers signal from the VSP control unit.
