Nissan Ariya: Ev Battery System

• Diagnosis and Repair Work Flow
• Service When Replacing Li-Ion Battery Parts
• Additional Service When Replacing Li-Ion Battery Controller
• Additional Service When Replacing Module
• Module Charge Balance

Diagnosis and Repair Work Flow

Work Flow

DETAILED FLOW

GET INFORMATION FOR SYMPTOM

Get detailed information from the customer about the symptom (the condition and the environment when the incident/malfunction occurred) using the “Diagnostic Work Sheet”. Refer to Diagnostic Work Sheet.)

>>

GO TO 2.

CHECK DTC AND FREEZE FRAME DATA

1. Perform self-diagnosis for "HIGH VOLTAGE BATTERY" and "HIGH VOLTAGE BATTERY 2" by connecting CONCULT.

2. If DTC is displayed, perform the following work.

   • Store DTC and freeze frame data.

   • Investigate the relationship between the cause specified by DTC and the malfunction information from customer.

Are any DTCs detected?

YES>>

GO TO 4.

NO>>

GO TO 3.

CONFIRM THE SYMPTOM

Try to confirm the symptom described by the customer on the car. Also study if it is fail-safe related symptoms. Refer to Fail-safe. "Diagnosis Work Sheet" is useful to verify the incident. Verify relation between the symptom and the condition when the symptom is detected.

Are any described symptoms occurred?

>>

GO TO 5.

NO>>

Perform DTC diagnosis simulation test. Refer to Intermittent Incident.

PERFORM DTC CONFIRMATION PROCEDURE

Perform DTC CONFIRMATION PROCEDURE for the displayed DTC, and then check that DTC is detected again.

When multi DTCs are detected, determine diagnosis order by referring to "DTC Inspection Priority Chart".

NOTE:

Freeze frame data is useful if the DTC is not detected.

Is DTC detected?

>>

GO TO 5.

NO>>

Perform DTC diagnosis simulation test. Refer to Intermittent Incident.

DETECT MALFUNCTIONING PART BY DIAGNOSIS PROCEDURE

Inspect according to Diagnosis Procedure of the system.

NOTE:

"Diagnosis Procedure" mainly checks open circuit. Short circuit check is also necessary in the diagnosis procedure. For more information see Refer to Intermittent Incident.

>>

GO TO 6.

REPAIR OR REPLACE THE MALFUNCTIONING PART

1. Repair or replace the malfunctioning part.

2. Reconnect parts or connectors disconnected during Diagnosis Procedure again after repair and replacement.

Check DTC. If DTC is displayed, erase it?

>>

GO TO 7.

FINAL CHECK

Check result of repair and replacement work, and perform DTC CONFIRMATION PROCEDURE or Component.

Function Check again, and check that the symptom is not detected the other malfunction is not occurred.

NOTE:

Delete DTC "HIGH VOLTAGE BATTERY 2" and then "HIGH VOLTAGE BATTERY" in order.

>>

Before delivery of the Nissan Ariya vehicle to the customer, always erase DTC

Diagnostic Work Sheet

DESCRIPTION

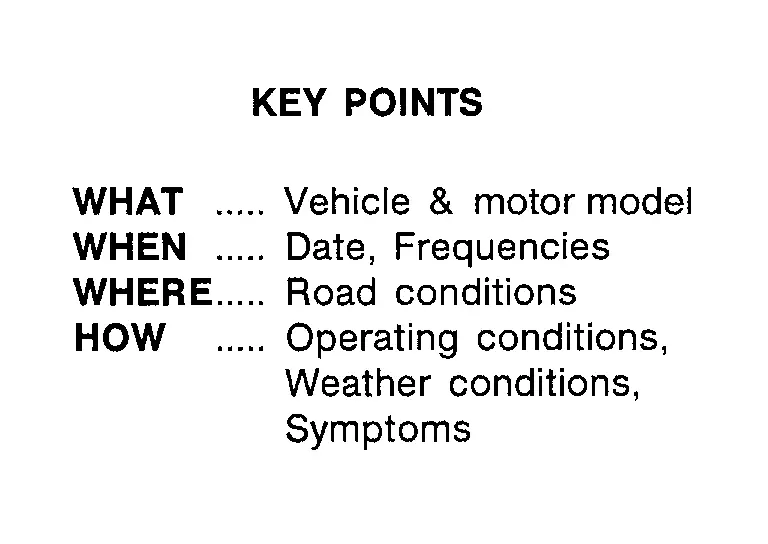

There are many operating conditions that lead to the malfunction of EV battery system. A good grasp of such conditions can make troubleshooting faster and more accurate.

In general, each customer feels differently about symptoms. It is important to fully understand the symptoms or conditions of customer complaint.

Utilize the diagnostic worksheet in order to organize all the information for troubleshooting.

NOTE:

Duplication of some conditions may cause DTC to be detected.

WORKSHEET SAMPLE

Question Sheet
Customer name MR/MS		Incident Date			VIN
		Model & Year			In Service Date
		Trans.			Mileage	km/mile
Symptoms		□ Does not switch to READY		□ EV system warning lamp is on		□ Power limitation indicator lamp is on
		□ Water leak*	□ Noise*	□ Vibration*	□ Shock*	□ Gear noise*
		□ Unable to drive*	□ Poor acceleration*		□ Poor torque*	□ Radio noise*
		□ Does not charge		□ Other*	*: If applied, enter in detail
		Detailed symptom
		Onomatopoeia
Frequency		□ All the time	□ Once	□ Sometimes (  times a day)		□ Others
Charging condition		□ Full	□ Medium	□ Low
Weather conditions		□ Not affected
	Weather	□ Fine	□ Cloudy	□ Raining	□ Snowing	□ Others (      )
	Temp.	□ Hot	□ Warm	□ Cool	□ Cold	□ Temp. [Approx.  °C (  °F)]
	Humidity	□ High	□ Middle	□ Low	□ Humidity (Approx.   %)
Road conditions		□ Not affected	□ In town	□ Freeway	□ Off road (Up / Down)		□ Rough road
		□ Flat road	□ While turning (Right / Left)		□ Bump
		□ Others
Shift position		□ Not affected
		□ P position	□ R position	□ N position	□ D position	□ ECO mode
Driving conditions		□ Not affected
		□ Power switch ON → OFF		□ Power switch OFF → ON		□ READY (stopping Nissan Ariya vehicle)
		□ While cruising	□ While decelerating	□ Just before stopping	□ Just after stopping	□ D position (stopping Nissan Ariya vehicle)
		□ While recharging		□ Other
		□ Nissan Ariya Vehicle speed [   km/h (   MPH)]			□ Accelerator pedal (  / 8)
		□ Battery level (Low / Middle / High)
Moments when symptom disappears		□ Disappears while driving		□ Disappears when stopped		□ Disappears with shift operation
		□ Disappears when power switch is pushed OFF		□ Disappears when battery charge is stopped		□ Does not disappear
		□ Others
Others

Service When Replacing Li-Ion Battery Parts

Work Item List

When replacing Li-ion battery assembly or parts in Li-ion battery, refer to the following table. The numbers included in the table represent the work sequence.

Supplementary work			Replacing parts				Reference
			Li-ion battery assembly (With LBC)	LBC	Some of modules	Battery junction box
LBC	Before replacing parts	Save battery information		1			Refer to Work Procedure.
	After replacing parts	LBC programming		1			Refer to Work Procedure.
		Write battery information		2			Refer to Work Procedure.
Module	Before replacing parts	Adjust module voltage			1		Refer to Work Procedure.

Additional Service When Replacing Li-Ion Battery Controller

Description

When replacing Li-ion battery controller (LBC), the following procedures must be performed.

Work Procedure

Work before replacement

The following procedure is performed before removing battery pack from vehicle.

NOTE:

For details the operation, refer to “CONSULT Operation Manual”.

SAVE THE LBC INTERNAL INFORMATION

With CONSULT

Perform saving Nissan Ariya vehicle internal information according to "Replace ECU" in CONSULT Operation Manual.

>>

Replace Li-ion battery controller. Refer to Removal & Installation.

Work after replacement

Vehicle specification needs to be written with CONSULT because it is not written after replacing the Li-ion battery controller (LBC).

CONSULT connects to network and then it downloads the configuration data from the server. Then CONSULT writes the Nissan Ariya vehicle specification to the Li-ion battery controller (LBC).

NOTE:

For details the operation, refer to “CONSULT Operation Manual”.

WRITING VEHICLE SPECIFICATION

With CONSULT

Perform writing Nissan Ariya vehicle specification to Li-ion battery controller (LBC) according to "Replace ECU" in CONSULT Operation Manual.

>>

GO TO 2.

CHECK DTC

1. Press and hold the power switch for at least 2 seconds to turn OFF high voltage system and check that charge indicator is OFF.

   NOTE:

   When high voltage system is ON, charge indicator flashes green every 1 second.

2. After turning OFF high voltage system, open driver's door, get out the car, close driver's door, and wait at least 5 minutes.

   CAUTION:

   • Do not operate Nissan Ariya vehicle such as door lock operation or door open/close while waiting because accessory power is turned ON by auto ACC function.

     If Nissan Ariya vehicle is operated, wait at least 5 minutes after that.

   • Check 12V battery voltage is at least 11 V.

3. Power switch ON.

4. Check DTC. If DTC is detected, erase DTC.

>>

WORK END

Additional Service When Replacing Module

Description

When replacing some of modules, the following procedure must be performed. For replacing all of modules, this procedure is not required. (For details, refer to Work Procedure.)

Work Procedure

CHECK MAXIMUM CELL VOLTAGE

With CONSULT

1. Power switch ON.

2. Select “Data Monitor” of “HIGH VOLTAGE BATTERY”.

3. Record “Maximum cell voltage”.

NOTE:

When adjusting module voltage, “Maximum cell voltage” is required.

>>

GO TO 2.

REMOVAL OF MODULE

Remove module.

• Refer to Disassembly & Assembly.

• Refer to Disassembly & Assembly.

>>

GO TO 3.

ADJUSTMENT OF MODULE VOLTAGE

Adjust the voltage of module requiring replacement. Refer to Work Procedure.

>>

GO TO 4.

INSTALLATION OF MODULE

Install new module.

• Refer to Disassembly & Assembly.

• Refer to Disassembly & Assembly.

>>

WORK END

Module Charge Balance

Work Procedure

If a malfunction (e.g. abnormal voltage) occurs in a Li-ion battery cell, the module which includes the malfunctioning cell must be replaced. When replacing a module with a new one, its voltage is required to be adjusted to the adjusting voltage calculated from the Maximum cell voltage of normal cells.

CAUTION:

PRECAUTION FOR VOLTAGE ADJUSTMENT WITH MODULE CHARGE BALANCER

To prevent the damage to the module balancer, follow the instructions.

• Be sure to choose the monitoring cable which adapted to a module type.

  • Because the shape of the module connector is same, the monitoring cable can be connected to all module type.

  • If an incompatible monitoring cable is connected, the module balancer may be damaged.

• Do not remove the module gauge from a monitoring cable. The module gauge (colored acrylic board) is distinguished from a monitoring cable with the same color by each module type.

NOTE:

Voltage adjustment under low temperature conditions may require a long time. To prevent this from occurring, it is advisable to adjust voltage under room temperature conditions [20°C ± 10°C (68°F ±18°F)].

CHECK ADJUSTMENT VOLTAGE VALUE

1. Check the recorded “Maximum cell voltage”.

   NOTE:

   • Record "Maximum cell voltage" with "Data Monitor" before removing Li-ion battery.

   • If it is not recorded with data monitor, each cell voltage is measured with a circuit tester and confirm maximum value of cell voltage.

2. Calculate the adjustment value as follows from "Maximum cell voltage".

   ModuleType	Adjustment voltage value
   2P7S (2 Parallel 7 Series)	: Maximum cell voltage× 7
   2P5S (2 Parallel 5 Series)	: Maximum cell voltage× 5

   Example: 3.925 V (Maximum cell voltage) × 7= 27.475 V (Adjustment voltage value)

>>

GO TO 2

VOLTAGE ADJUSTMENT WITH MODULE CHARGE BALANCER

NOTE:

For details on the module charge balancer operation, refer to the adjuster operation manual.

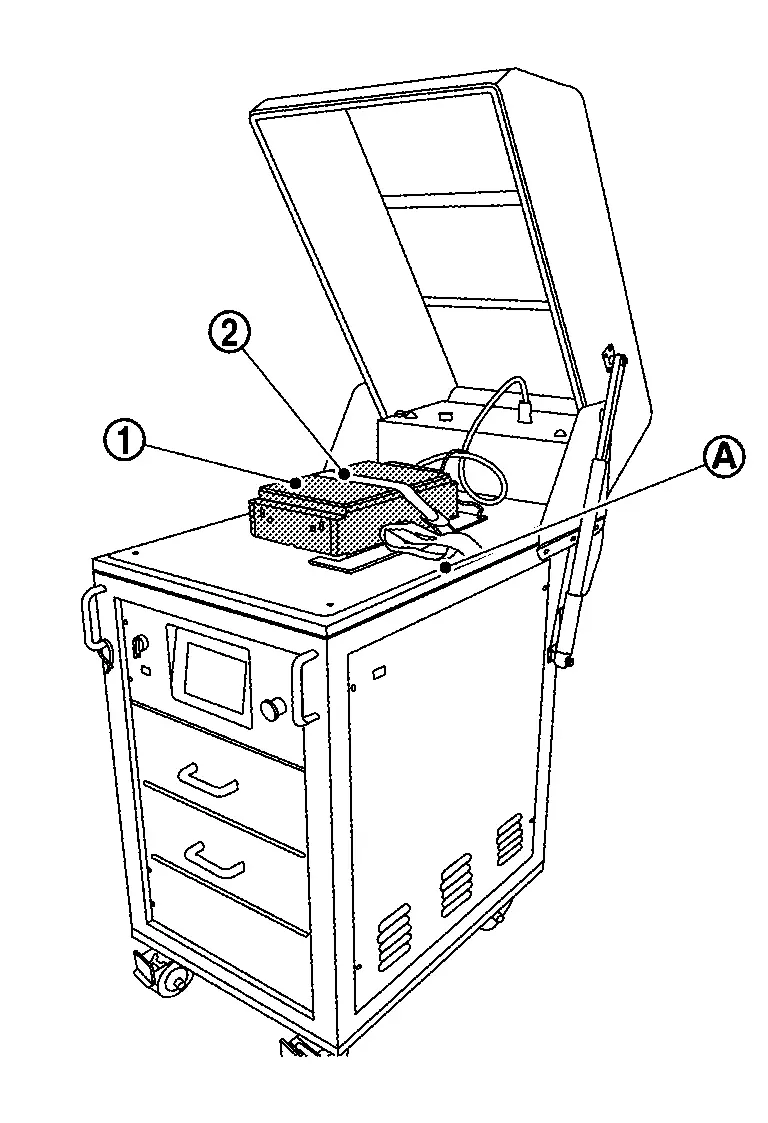

1. Set the new module to the module balancer [KV9911-8000 (J-52665)] and fix with the module fixation band .

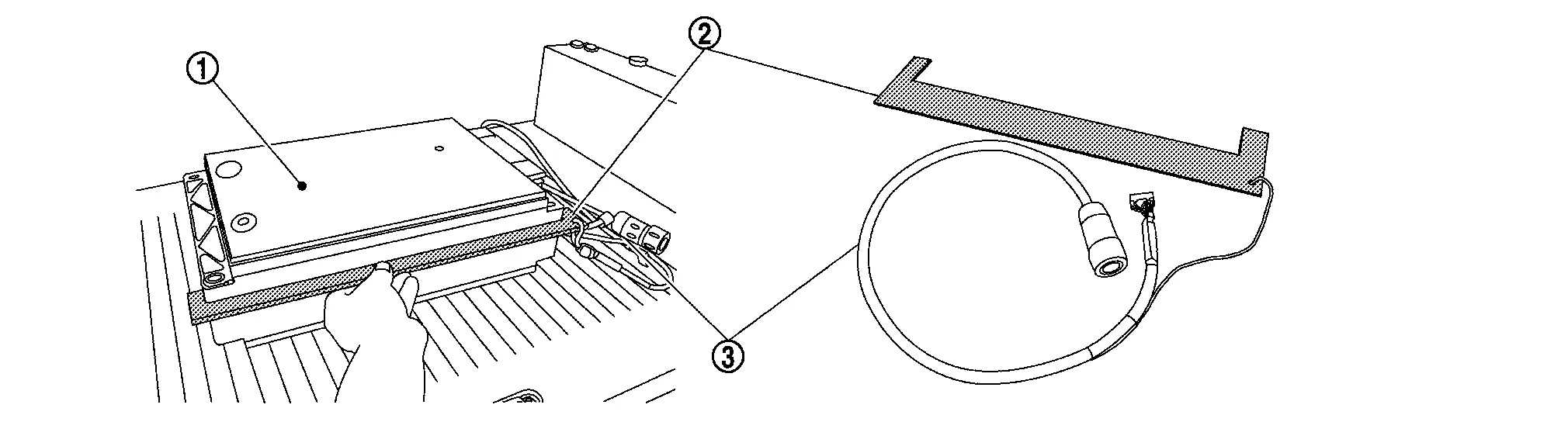

2. Choose the monitoring cable and connect to the module.

   CAUTION:

   1. Choose the module type to adjust on the data screen of the module balancer. Be sure to choose the monitoring cable of the same color as displayed on the screen.

   2. Match a module gauge with the length of the module.

      • Be sure to match a module gauge with the length of the module.

      • If an incompatible monitoring cable is connected, the module balancer may be damaged.



   :	Module
   :	Module gauge
   :	Monitoring cable

   ModuleType	Monitoring cable No. [Module gauge color]
   2P7S (2 Parallel 7 Series)	: KV9911-8400(J-53354)[Green]
   2P5S (2 Parallel 5 Series)	: KV9911-8300(J-53353)[Yellow]

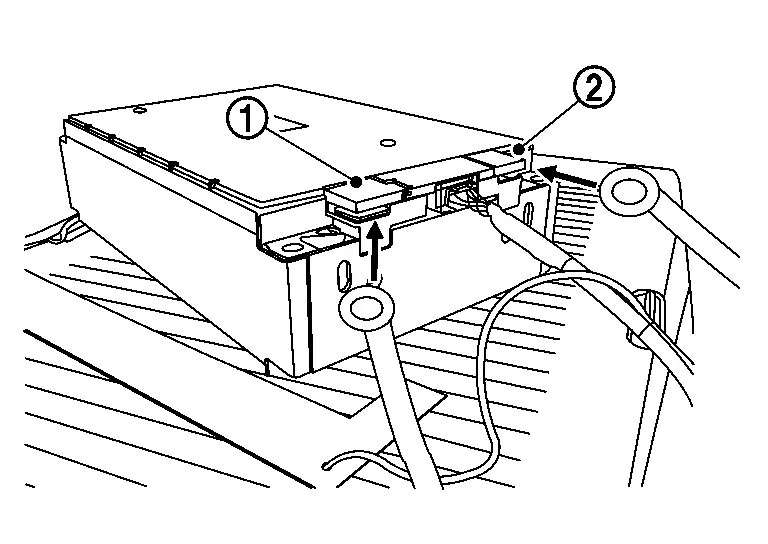

3. Connect the monitoring cable to the module balancer.

4. Connect the voltage adjustment power cable (+) terminal and the voltage adjustment power cable (-) to the module.



5. Input “adjustment voltage value” on the module balancer.

   ModuleType	Adjustment voltage value
   2P7S (2 Parallel 7 Series)	: Maximum cell voltage× 7
   2P5S (2 Parallel 5 Series)	: Maximum cell voltage× 5

   Example: 3.925 V (Maximum cell voltage) × 7= 27.475 V (Adjustment voltage value)

6. Start voltage adjustment according to indication of the module balancer.

>>

After module voltage adjustment completion, GO TO 3

CHECK MODULE VOLTAGE

1. Remove the module from the module charge balancer.

2. Using a circuit tester, check that the module voltage is within the specified range.

   Standard

   : Adjustment voltage value ± 10 mV

>>

GO TO 4

CHECK CELL VOLTAGE

With CONSULT

1. After adjusting the voltage, install the module to the Nissan Ariya vehicle.

2. Select “Data Monitor” of “HIGH VOLTAGE BATTERY”.

3. Check “Cell voltage” of install module.

4. Check that the difference from the “Maximum cell voltage” confirmed in Step1 is within the specified range.

   Standard

   : Maximum cell voltage ± 33 mV

>>

WORK END
