Nissan Ariya: Preparation. Vehicle Charging System

Nissan Ariya (FE0) 2023-2025 Service & Repair Manual / Electric Power Train / Vehicle Charging System / Preparation. Vehicle Charging System

Commercial Service Tools

Tool name		Description
Insulated gloves		Removing and installing high voltage components Comply with EN60903: Use protective gloves made of insulating material. The protective gloves must be capable of resisting the voltage of 600 or more.
Leather gloves		Removing and installing high voltage components Protect insulated gloves [Use leather gloves that can fasten the wrist tight]
Anti-static gloves		Gloves for preventing static electricity Disassembly and reassembly of the PDM (Power Delivery Module)
Insulated safety shoes		Removing and installing high voltage components Comply with EN60903: Use protective shoes made of insulating material. The protective shoes must be capable of resisting the voltage of 600 or more.
Face shield		Removing and installing high voltage components To protect face from the spatter on the work to electric line [Comply with EN166.]
Safety glasses		Removing and installing high voltage components To protect face from the spatter on the work to electric line
Insulated helmet		Removing and installing high voltage components

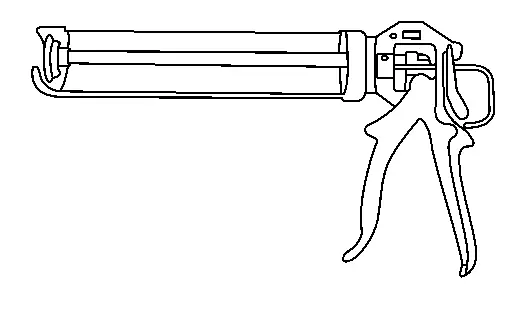

Tube presser [Gasket material applicator]		Installing PDM (Power Delivery Module) cover (Apply the liquid gasket)
Insulation resistance tester (Multi tester)		Measuring insulation resistance, voltage, and resistance
