Nissan Ariya: Front Door Lock

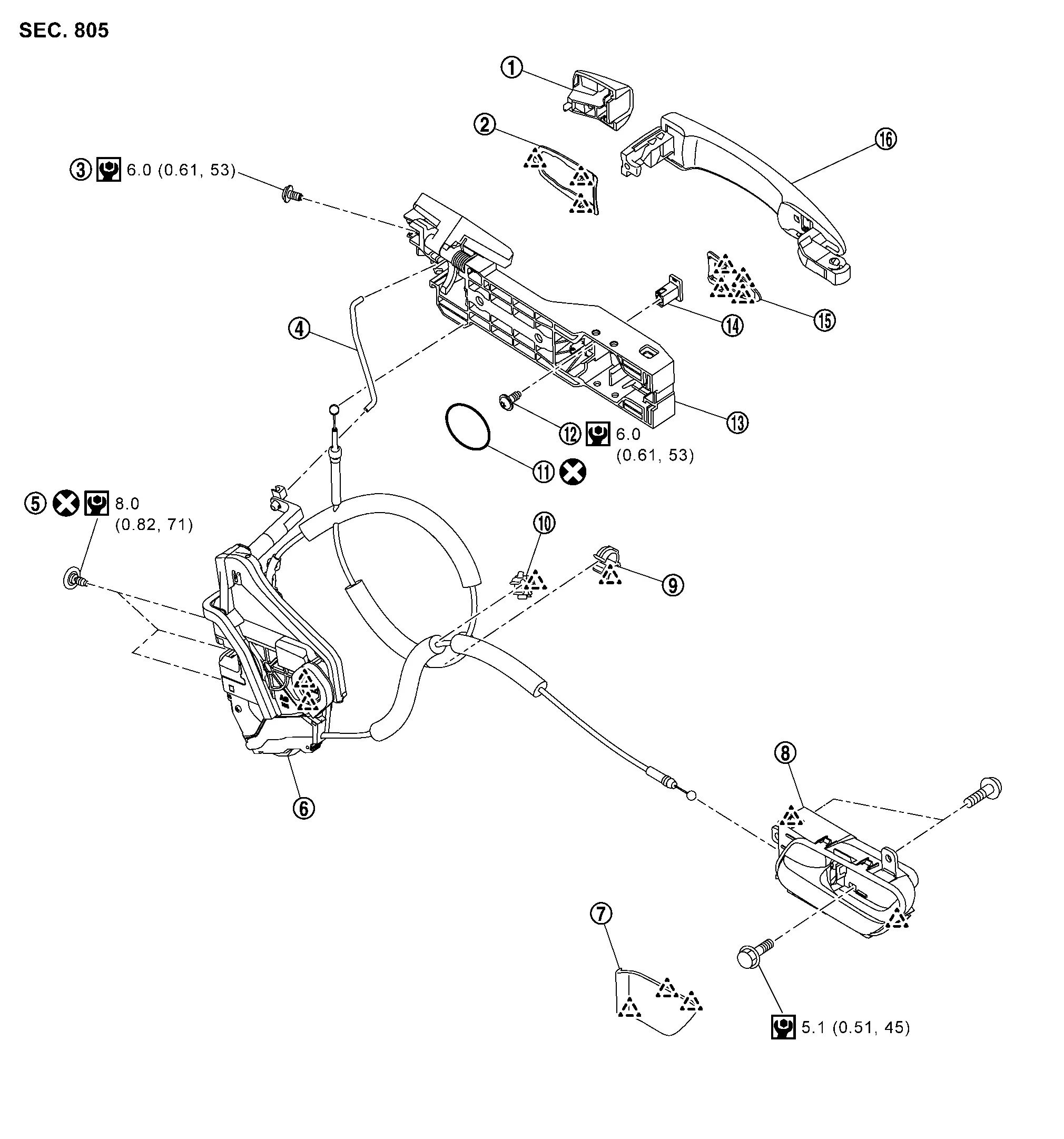

Exploded View

	Front door outside handle escutcheon		Rear gasket		TORX bolt
	Key rod (Driver side)		TORX bolt		Front door lock assembly
	Front door inside handle escutcheon		Front door inside handle		Outside handle cable clip
	Inside handle cable clip		Hole seal		TORX bolt
	Front door outside handle bracket		Front door outside handle bracket stopper		Front gasket
	Front door outside handle
	: Pawl
	: Always replace after every disassembly.
	: N·m (kg-m, in-lb)

• Front Door Lock
• Front Door Inside Handle
• Front Door Outside Handle

Front Door Lock

Removal & Installation

REMOVAL

Remove front door finisher. Refer to Removal & Installation.

Remove front door outside handle bracket. Refer to Removal & Installation.

Disengage front door inside handle cable from inside handle cable clip.

Remove front door glass run lower sash. Refer to Removal & Installation.

Remove front door lock assembly mounting TORX bolts.

Disengage front door lock assembly fixing pawls, and then remove front door lock assembly.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Never reuse front door lock assembly mounting TORX bolt. Always replace it with a new one when it is removed.

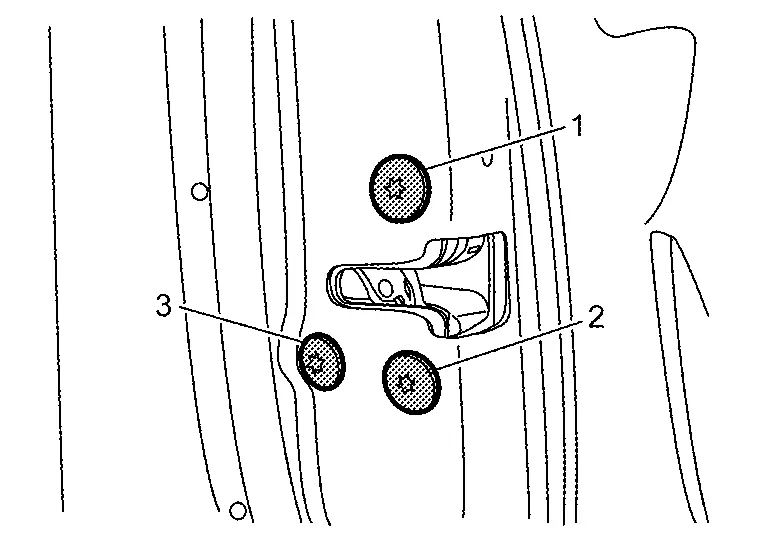

• When installing, tighten mounting TORX bolts according to numerical order 1→3 as shown in figure.



• When installing, be careful that cable is routed normally.

• After installation, check front door lock. Refer to Inspection.

Inspection

After opening and closing the door, check that door is fixed to the vehicle body normally.

Check the lock/unlock operation of door lock.

Front Door Inside Handle

Removal & Installation

REMOVAL

Remove front door finisher. Refer to Removal & Installation.

Remove front door inside handle fixing screws.

Disengage front door inside handle fixing pawls, and then remove front door inside handle.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

After installation, check front door lock. Refer to Inspection.

Front Door Outside Handle

Removal & Installation

REMOVAL

Fully close front door glass.

Remove front door finisher. Refer to Removal & Installation.

Remove front door sealing screen. Refer to Removal & Installation.

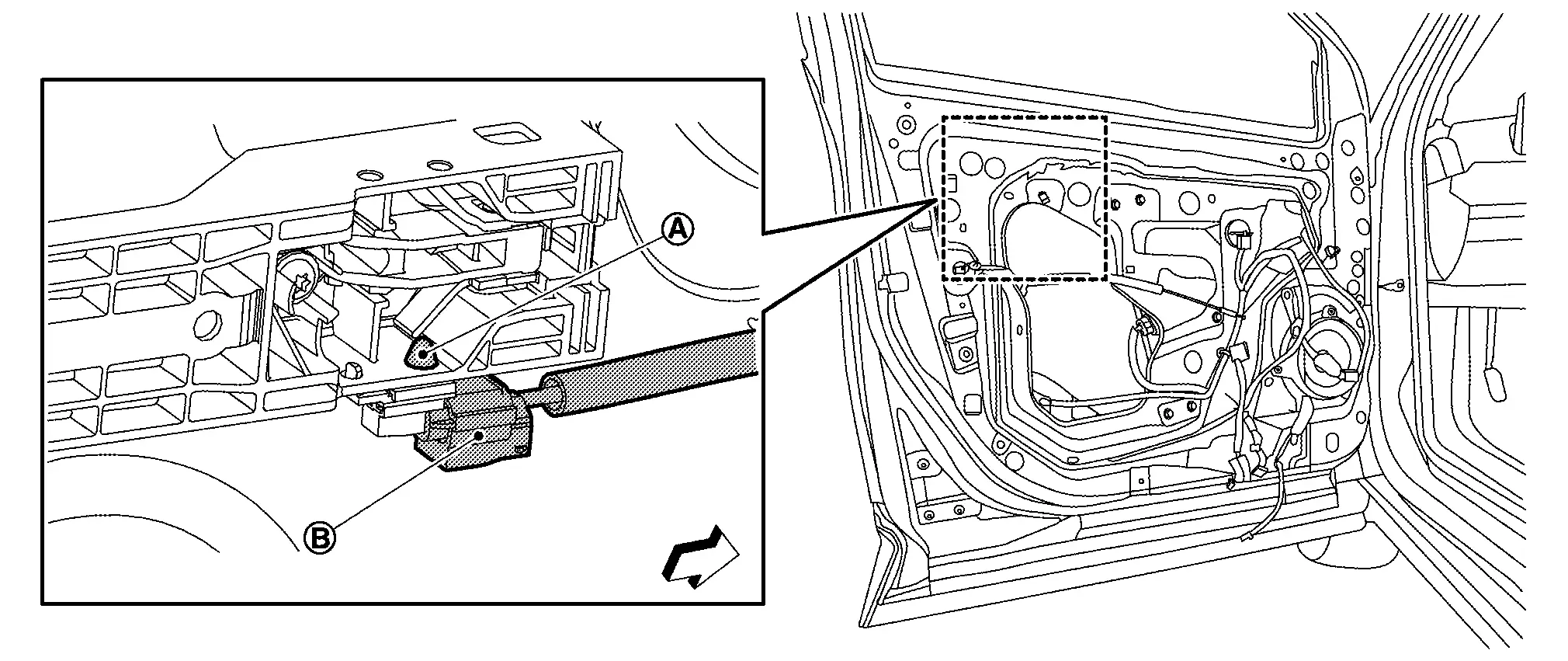

Disengage front door outside handle cable from outside handle cable clip.

Disengage front door outside handle harness connector , and then disengage front door outside handle harness connector fixing clip (if equipped).

: Nissan Ariya Vehicle front

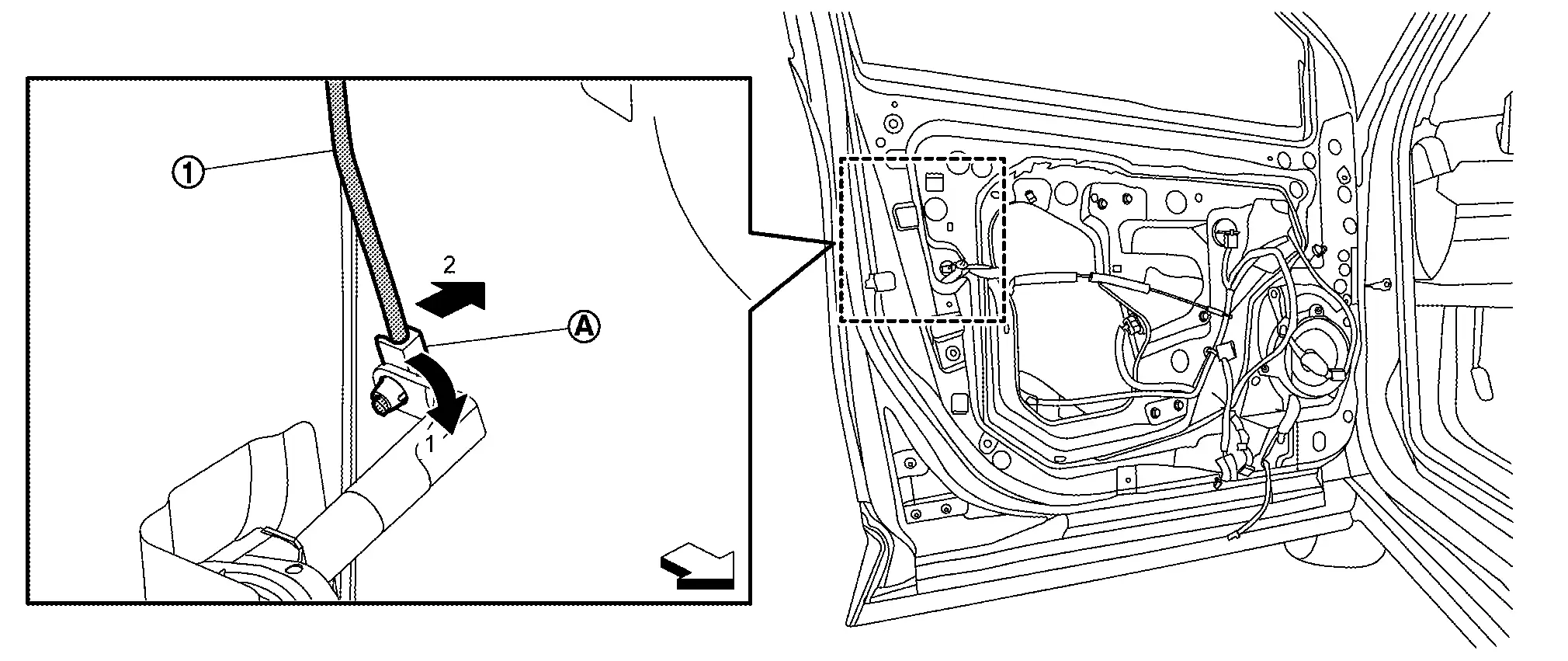

Remove key rod from key rod holder according to the numerical order 1→2 indicated by arrows as shown in figure (driver side).

: Nissan Ariya Vehicle front

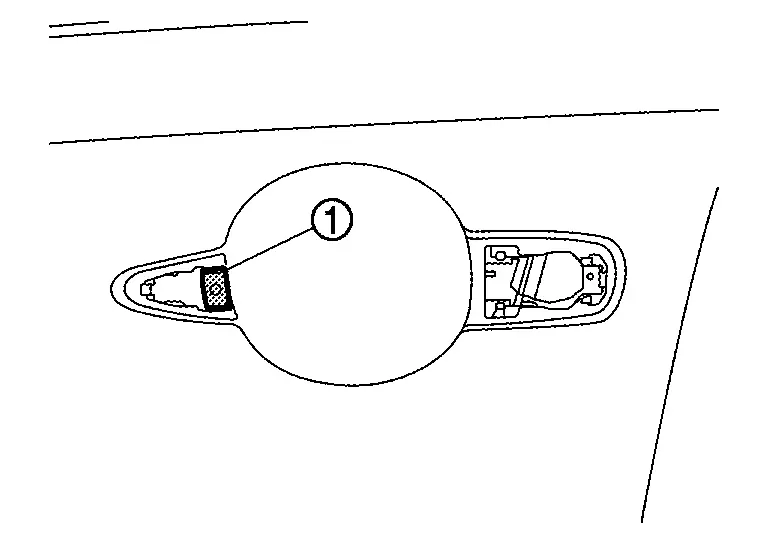

Remove door side grommet , and then loosen TORX bolt from grommet hole.

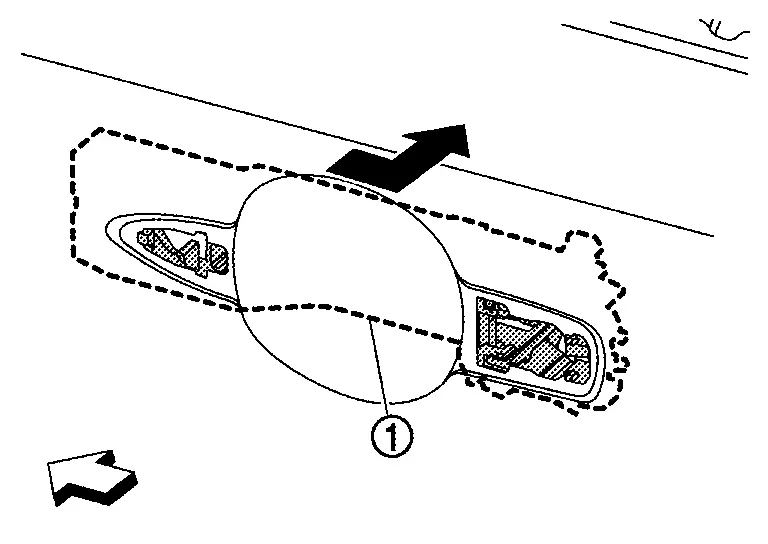

Remove front door outside handle escutcheon from front door panel.

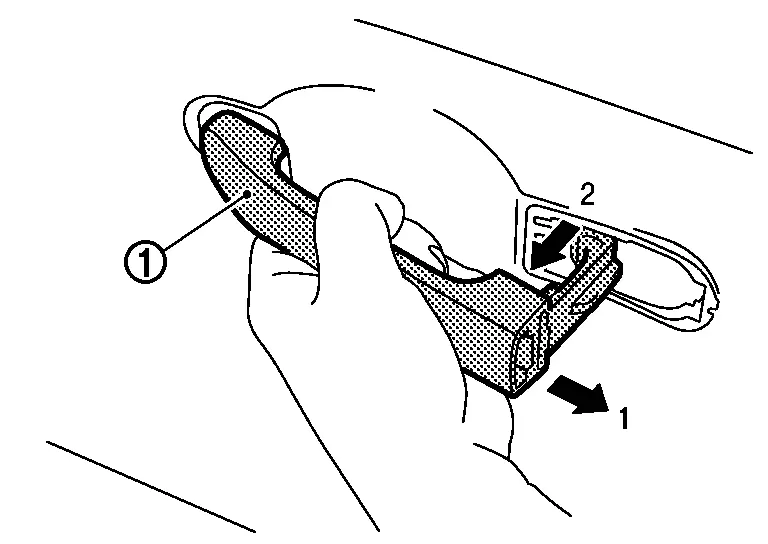

Slide front door outside handle grip toward rear of Nissan Ariya vehicle and remove it according to the numerical order 1→2 indicated by arrows as shown in figure.

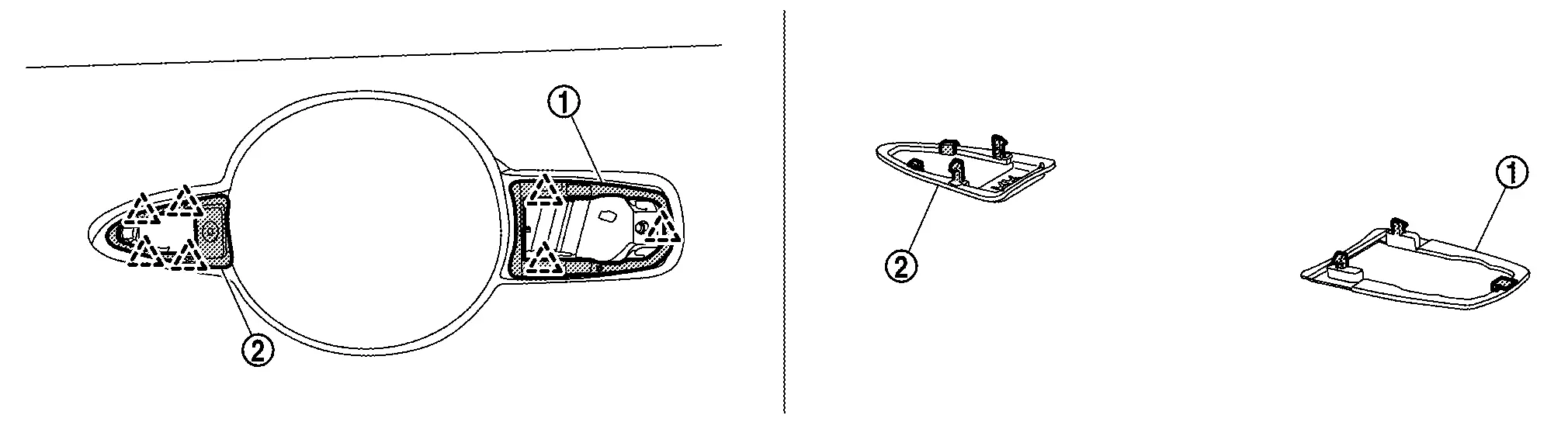

Disengage front gasket and rear gasket fixing pawls, and then remove front gasket and rear gasket.

: Pawl

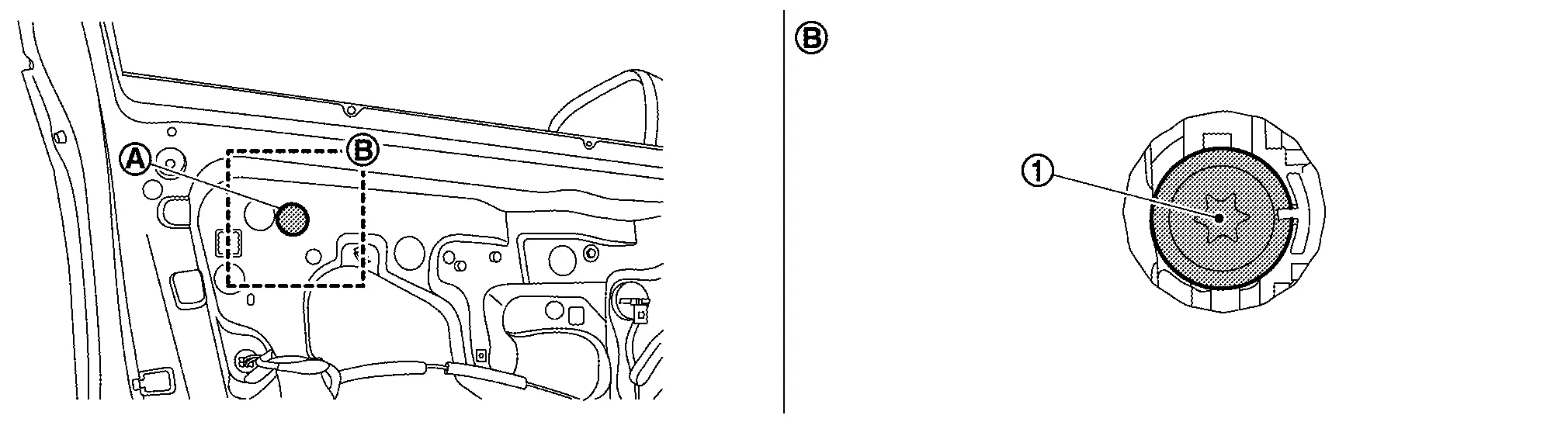

Remove hole seal , and then loosen TORX bolt from service hole.

Remove front door outside handle stopper .

Slide front door outside handle bracket toward rear of Nissan Ariya vehicle and remove it.

: Nissan Ariya Vehicle front

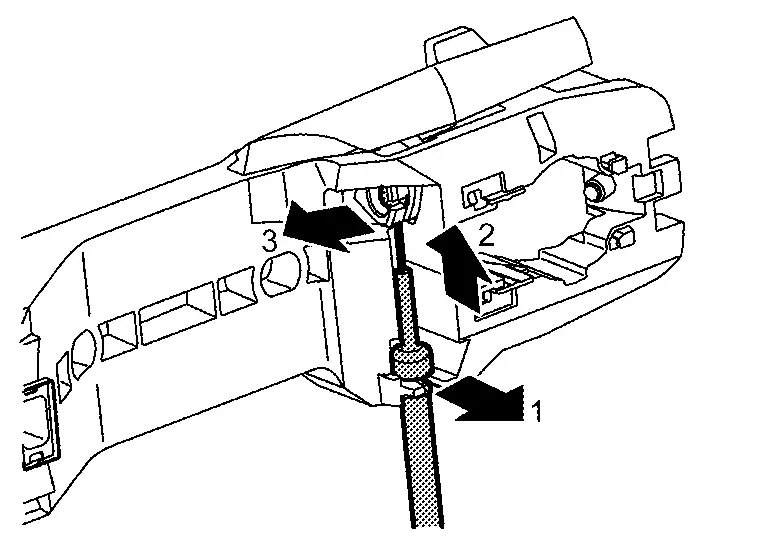

Disconnect front door outside handle cable from front door outside handle bracket according to the numerical order 1→3 indicated by arrows as shown in figure.

CAUTION:

Never bend the end of cable.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• When connecting front door outside handle cable to front door outside handle bracket, check that front door outside handle cable is properly engaged with front door outside handle bracket.

• When installing front door outside handle bracket, be careful that front door outside handle cable is routed normally.

• When installing key rod, rotate key rod holder until a click is felt.

• After installation, check door lock. Refer to Inspection.

• Never reuse hole seal. Always replace it with a new one when it is removed.
