Nissan Ariya: Hood Lock

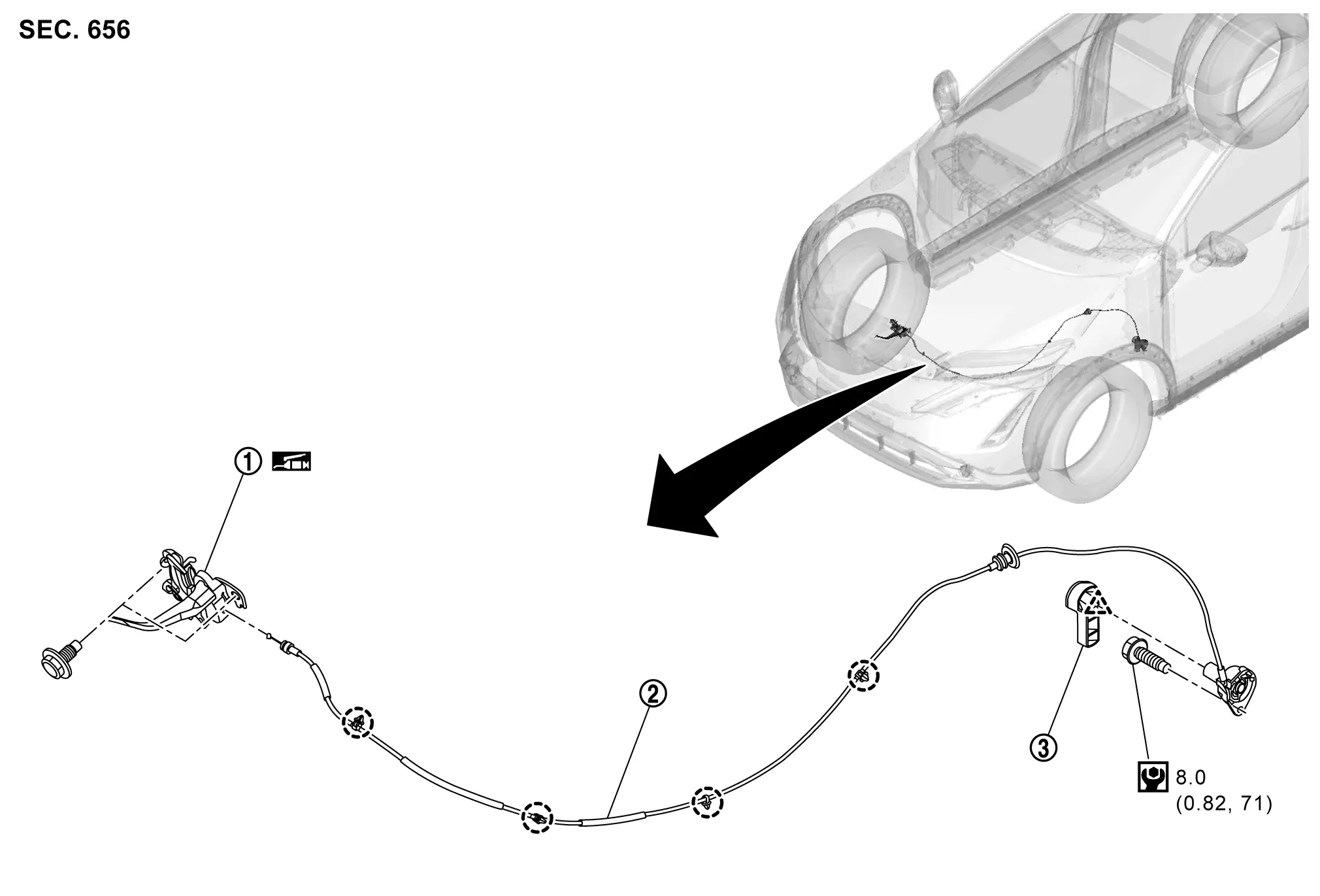

Exploded View

	Hood lock assembly		Hood lock control cable assembly		Hood lock control handle
	: Clip
	: Pawl
	: N·m (kg-m, in-lb)
	: Body grease

• Hood Lock
• Hood Lock Control Handle
• Hood Lock Control Cable

Hood Lock

Removal & Installation

REMOVAL

Disconnect hood lock assembly harness connector (if equipped).

Remove hood lock assembly mounting bolts, and then remove hood lock.

CAUTION:

Never bend hood lock control cable strongly.

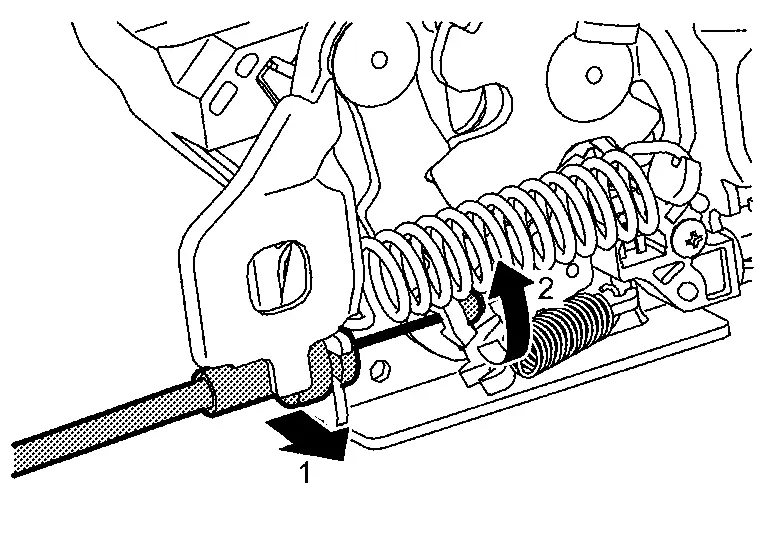

Disconnect hood lock control cable assembly from hood lock assembly according to the numerical order 1→2 indicated by arrows as shown in figure.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Check that hood lock control cable is properly engaged with hood lock.

• After installation, perform hood fitting adjustment. Refer to Adjustment.

• After installation, perform hood lock control inspection. Refer to Inspection.

Inspection

CAUTION:

If the hood lock control cable is bent or deformed, replace it.

Check that operating force of hood lock control handle shall be less than 49 N (5.0 kg, 11.0 lb).

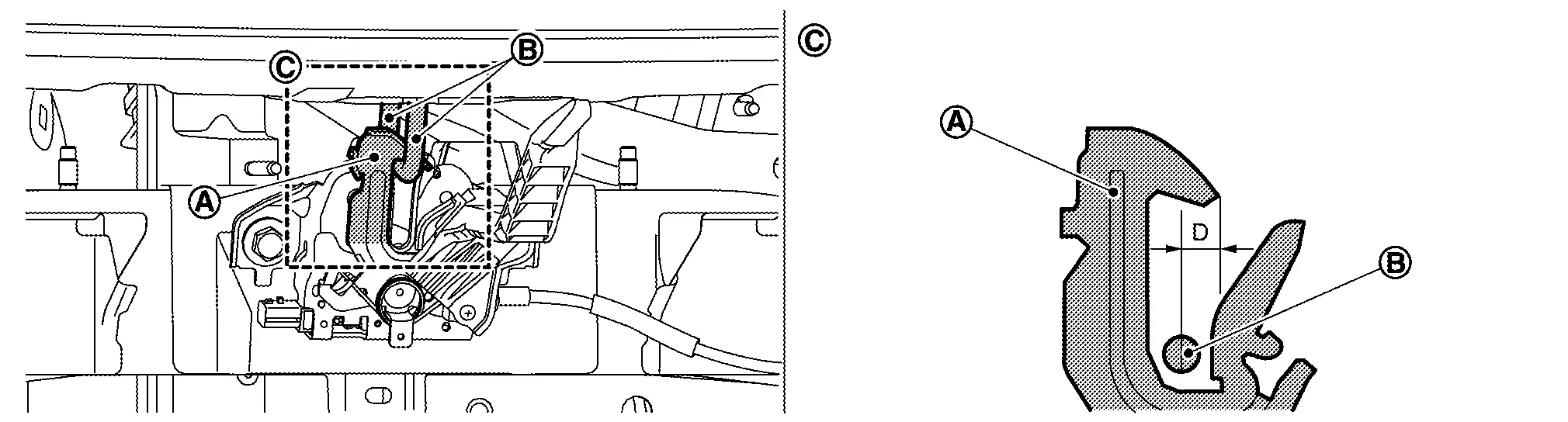

Check pitch that secondary latch is properly engaged with striker [8.1mm (0.319 in) MIN] (D).

While operating the hood lock control handle carefully, check that the front end of the hood is lifted by approximately 20 mm (0.787 in) (C). Also, check that the hood lock control handle returns to the original position.

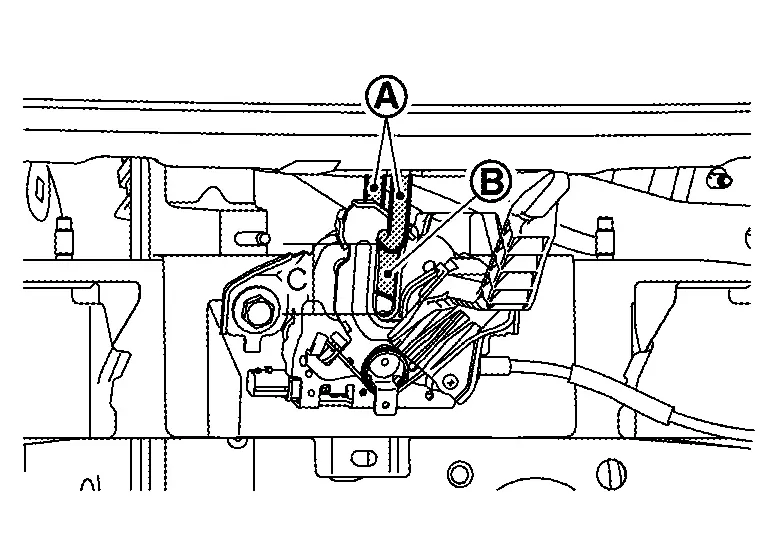

Striker

Primary latch

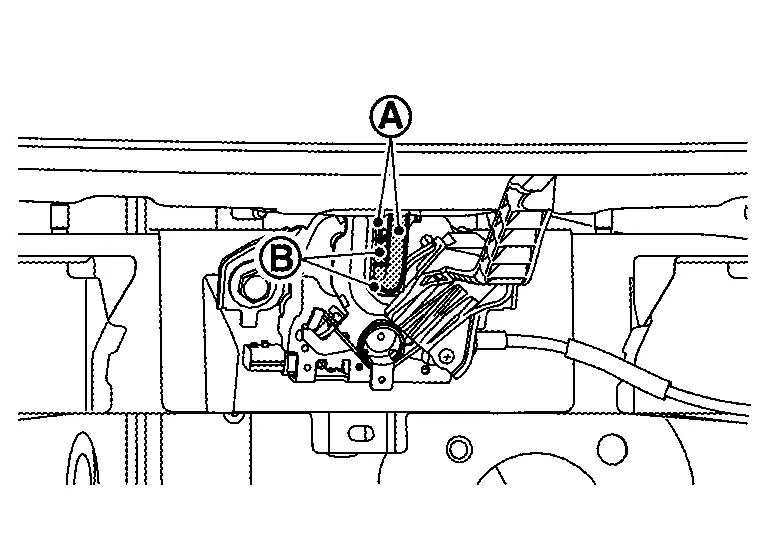

Check that primary latch is securely engaged with striker when hood assembly is closed [free-fall from approximately 200mm (7.874 in) height].

CAUTION:

Never free-fall hood assembly from a height of 300 mm (11.811 in) or more.

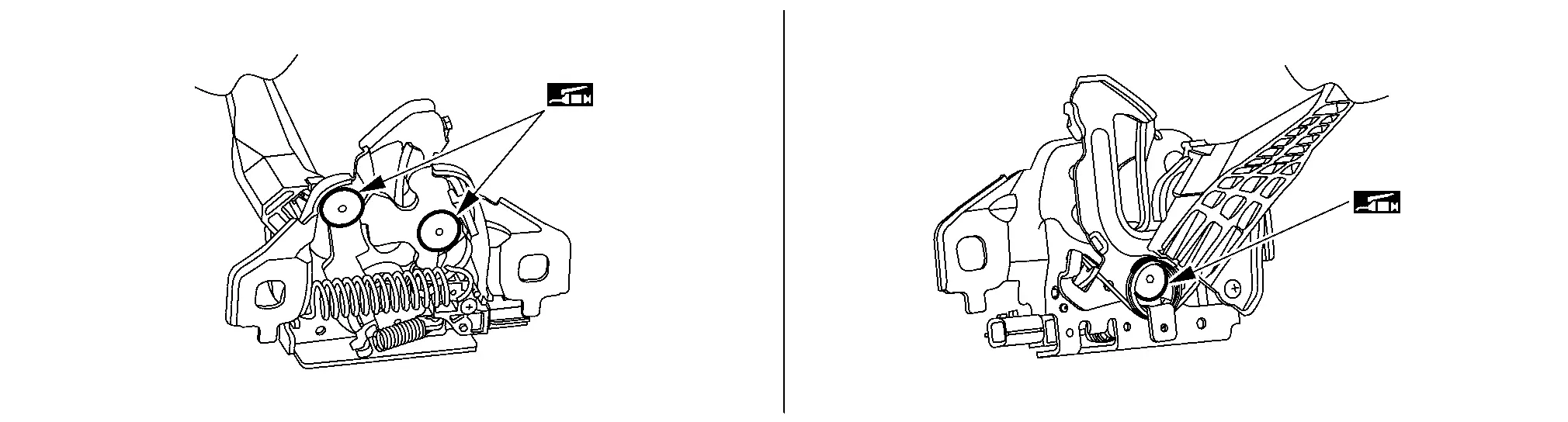

Check the hood lock assembly lubrication condition. If necessary, apply body grease to hood lock assembly.

: Body grease

Hood Lock Control Handle

Removal & Installation

REMOVAL

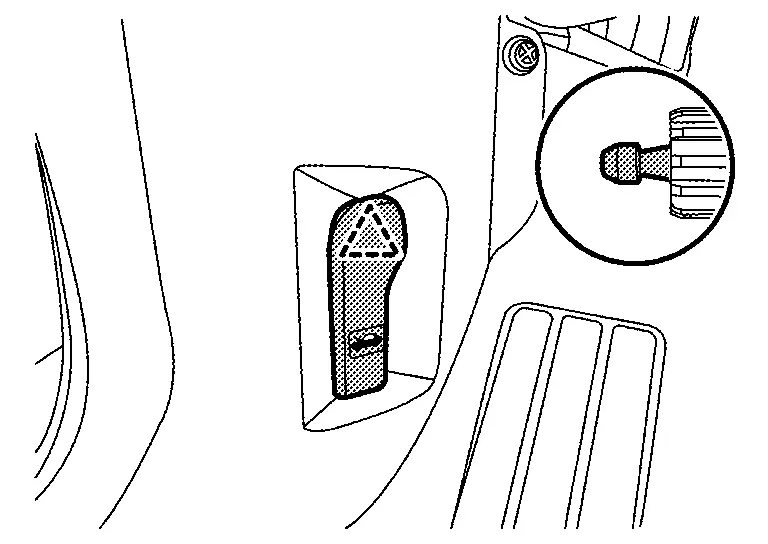

Disengage hood lock control handle fixing pawl, and then remove hood lock control handle.

: Pawl

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• When installing, install so that the tip of the hood lock control handle is directly below.

• After installation, perform hood lock control inspection. Refer to Inspection.

Hood Lock Control Cable

Removal & Installation

REMOVAL

Remove front grill. Refer to Removal & Installation.

Disconnect hood lock control cable assembly from hood lock assembly. Refer to Removal & Installation.

Remove hood lock control handle. Refer to Removal & Installation.

Remove dash side finisher LH. Refer to Removal & Installation.

Remove hood lock control cable assembly mounting bolt.

Remove front fender protector LH. Refer to Removal & Installation.

Disengage hood lock control cable assembly fixing clips.

Remove grommet of the lower dash, and pull the hood lock control cable toward inside Nissan Ariya vehicle.

CAUTION:

• While pulling, never damage (peeling) the outside of hood lock control cable.

• Pull out the hood lock control cable assembly while turning over the insulator around the grommet part of hood lock control cable assembly.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

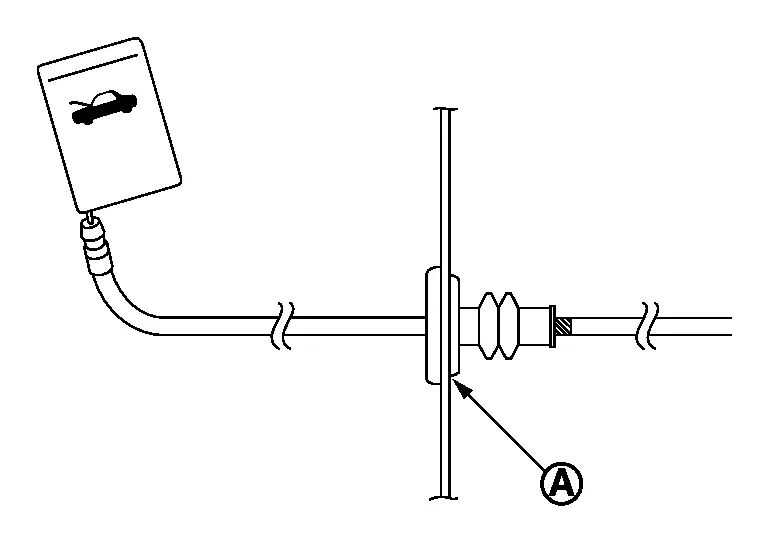

• Never bend cable too much, keeping the radius 100 mm (3.937 in) or more.

• Install grommet in the panel hole surely.

• Check that cable is not offset from the positioning grommet, and apply the sealant to the grommet properly.



• After installation, perform hood lock control inspection. Refer to Inspection.
