Nissan Ariya: Preparation. Front Suspension System
Nissan Ariya (FE0) 2023-2025 Service & Repair Manual / Suspension / Front Suspension / Preparation. Front Suspension System
Special Service Tools
The actual shapes of the Tech Mate tools may differ from those of the special service tools illustrated here.
|
Tool number (TechMate No.) Tool name | Description | |
|---|---|---|
|

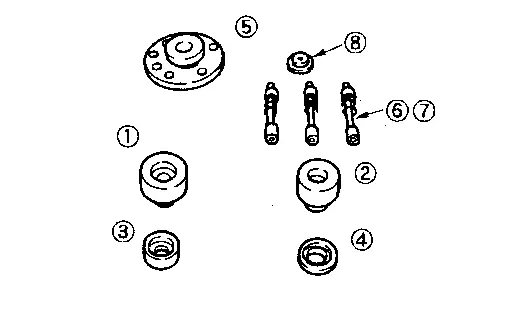

KV991040S1 CCK gauge attachment
 KV99104090 Center plate |
|
Measuring wheel alignment |
|

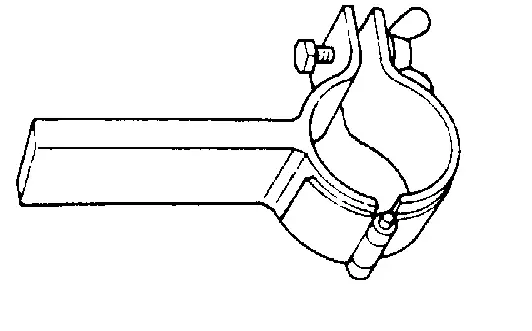

Strut attachment ST35652000 |
|
Disassembling and assembling strut |
KV99104020 Adapter A
KV99104030 Adapter B
KV99104040 Adapter C
KV99104050 Adapter D
KV99104060 Plate
KV99104070 Guide bolt
KV99104080 Spring
Commercial Service Tools
|
Tool number Tool name | Description | |
|---|---|---|
| Spring compressor |
|
Removing and installing coil spring |
|
Chisel A: 16 – 32 mm (0.63 – 1.26 in) B: 10 mm (0.39 in) or more C: 40 – 70 mm (1.57 – 2.76 in) L: 220 mm (7.87 in) or less S: 14 mm (0.55 in) or more |
|
Removing and installing steering knuckle and strut assembly |
