Nissan Ariya: System Description
Nissan Ariya (FE0) 2023-2025 Service & Repair Manual / Driver Controls / Interior Lighting System / System Description
Component Parts
Interior Lamp Appearance and Bulb Specifications
| No. | Item | Type | Wattage (W) |
|---|---|---|---|
 |
Map lamp | LED | — |
 |
Vanity mirror lamp | LED | — |
 |
Glove box lamp | LED | — |
 |
Flexible center storage lamp *1/ Center box lamp *2 | LED | — |
 |
Advanced ambient light (Front door) *3 | LED | — |
 |
Advanced ambient light (Instrument upper) *3 | LED | — |
 |
Accent light (Front door) | LED | — |
 |
Accent light (Instrument lower) | LED | — |
 |
Personal lamp | LED | — |
 |
Luggage room lamp | LED | — |
 |
Illumination emblem | LED | — |
 |
Charge port light | LED | — |
*1: With flexible center storage
*2: Without flexible center storage
*3: With advanced ambient lighting system

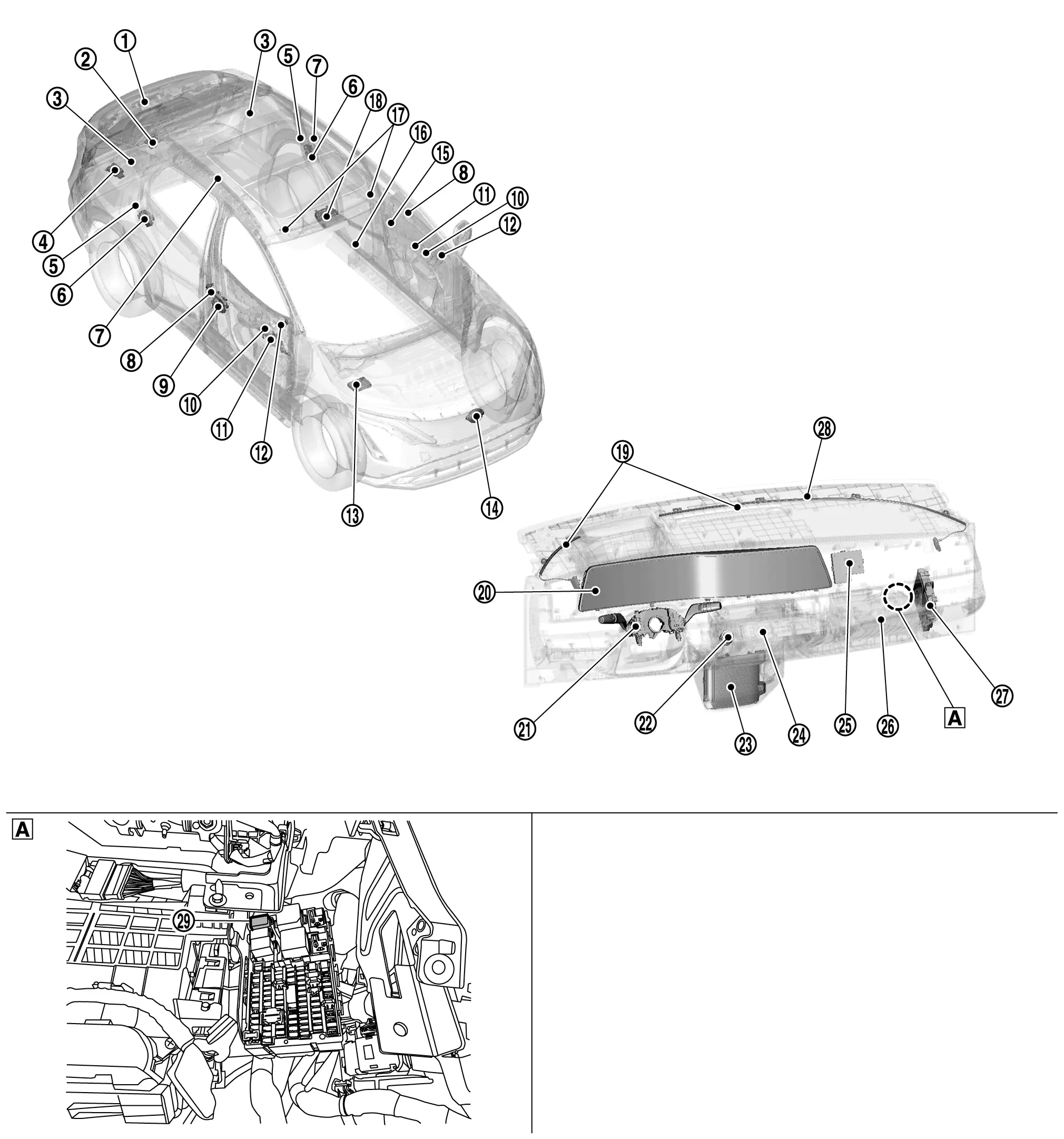

Component Parts Location
|
Back door opener switch assembly (Back door request switch) |
|
Back door lock assembly (Back door switch) |
|
Luggage room lamp |
|
ADAS control unit 2 Refer to Component Parts Location for detailed installation location. |
|
One touch sensor (rear) | |
Rear door lock assembly (Door switch) |
|
Personal lamp | |
One touch sensor (front) | |
Front door lock assembly (passenger side) (Door switch) |
|
Door lock and unlock switch | |
Accent light (front door) | |
Advanced ambient light (front door) |
 |
IPDM E/R Refer to XXX for detailed installation location. |
 |
Illumination emblem |  |
Front door lock assembly (driver side) (Door switch/Unlock sensor) |
 |
Light & rain sensor |  |
Vanity mirror lamp |  |
Map lamp |
 |
Advanced ambient light (instrument upper) |  |
Integrated interface display (Combination meter) |
 |
Combination switch |
 |
Power switch (Power switch illumination) |
 |
Accent light (instrument lower) |  |
|
 |
Intelligent Key unit Refer to Component Parts Location for detailed installation location. |
 |
Glove box lamp |  |
BCM Refer to Component Parts Location for detailed installation location. |
 |
Optical sensor |  |
Interior room lamp relay | ||
 |
View with BCM removed |
*1: Without flexible center storage
*2: With flexible center storage
