Nissan Ariya: System

• Interior Room Lamp Control System
• Interior Room Lamp Battery Saver System
• Illumination Control System
• Advanced Ambient Lighting System

Interior Room Lamp Control System

System Description

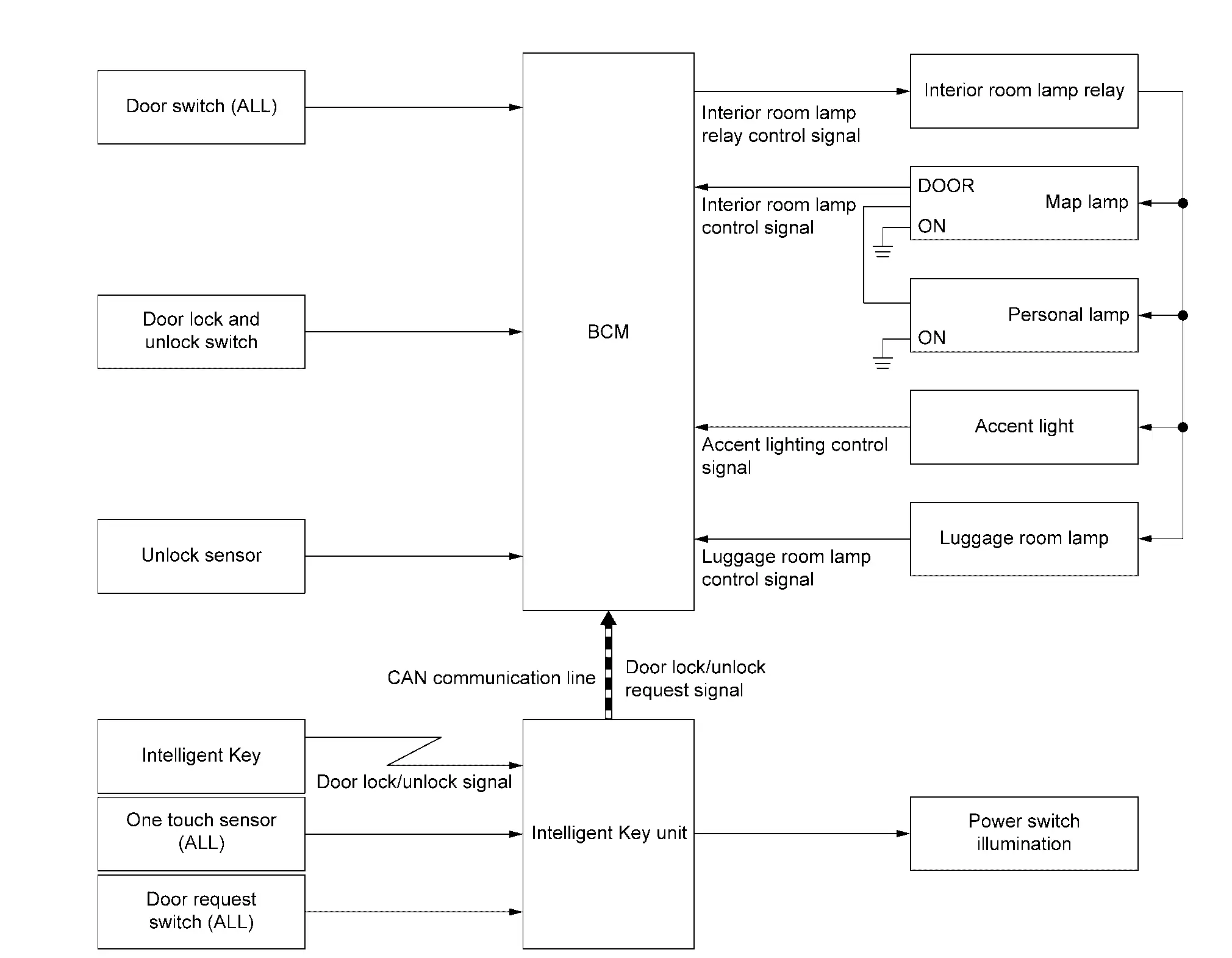

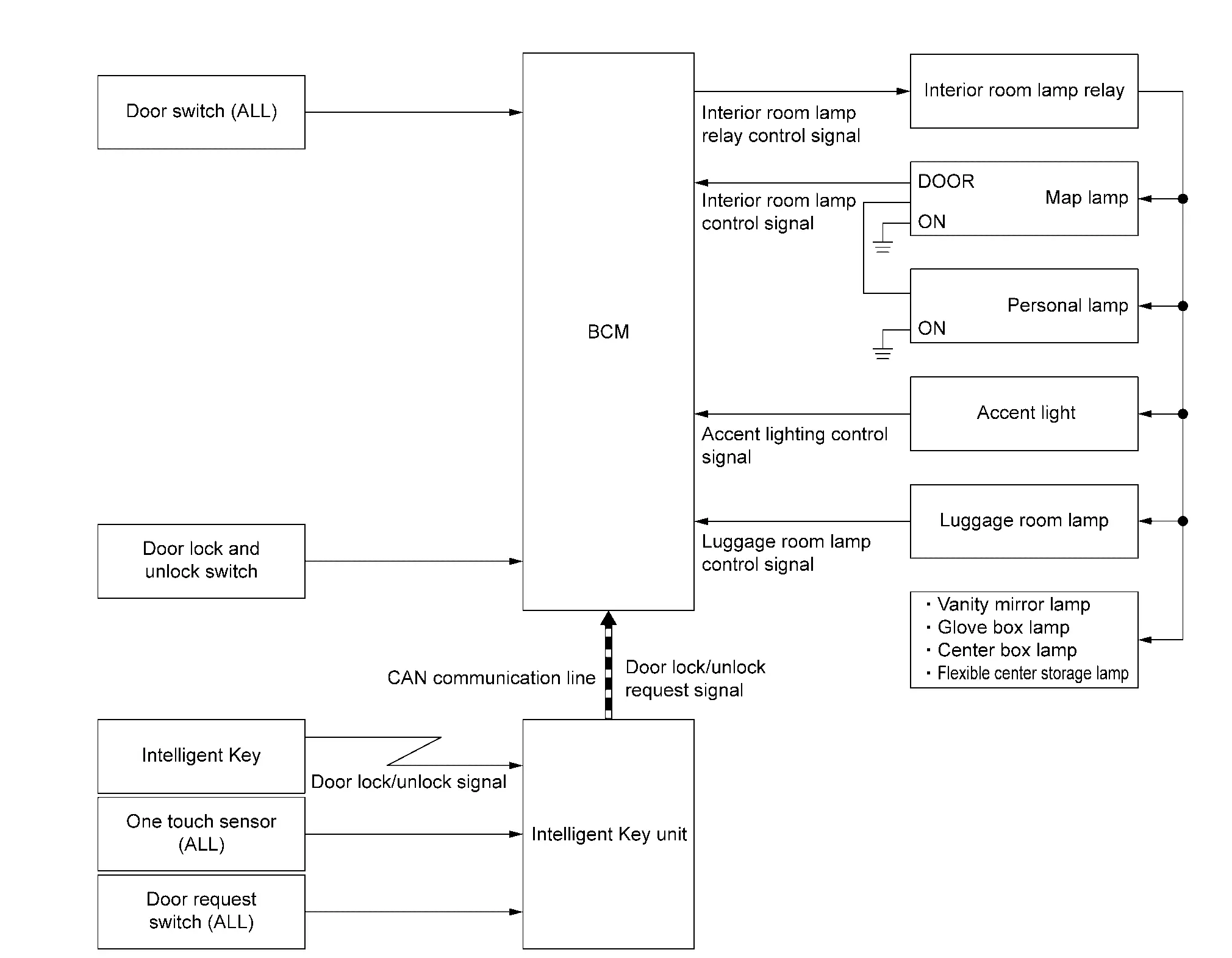

SYSTEM DIAGRAM

OUTLINE

• Following lamps are controlled by interior room lamp timer control function of BCM.

  • Map lamp

  • Personal lamp

  NOTE:

  Interior room lamp control operates when the map lamp door link switch is ON.

• Accent light is controlled by accent lighting control function of BCM.

• Power switch illumination is controlled by power switch illumination control function of Intelligent Key unit.

• Luggage room lamp is controlled by luggage room lamp control function of BCM.

INTERIOR ROOM LAMP TIMER CONTROL

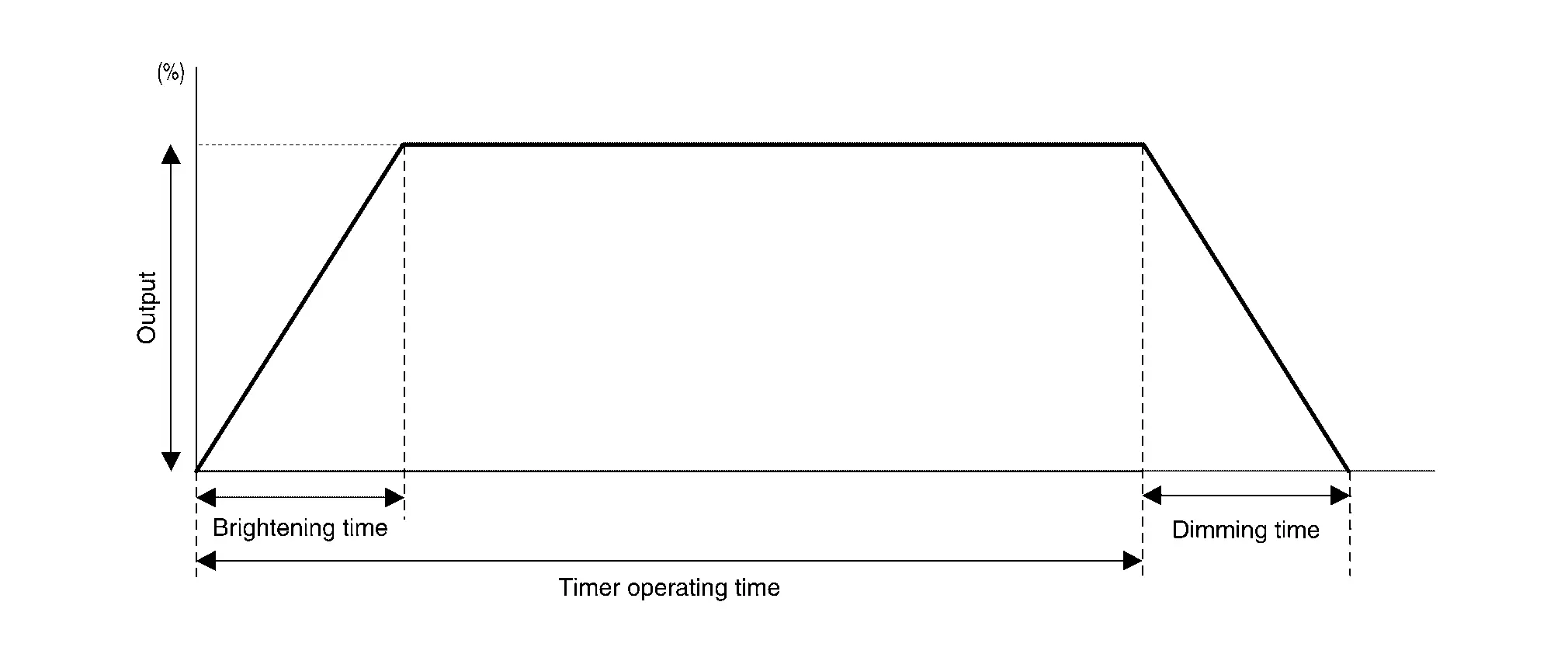

Interior Room Lamp Timer Basic Operation

• Interior room lamps turn ON and OFF (gradual brightening and dimming) by the interior room lamp timer.

• Timer operating time is 20 seconds.

• Brightening time is 2.8 second and dimming time is 1.5 seconds.

• BCM judges the Nissan Ariya vehicle condition with the following items and activates the interior room lamp timer.

  • Power switch condition

  • Door switch signal (except back door)

  • Unlock sensor signal

  • Door lock/unlock signal

  • Door lock/unlock request signal

Interior Room Lamp ON Operation

• BCM always turns the interior room lamp relay ON to turn on interior room lamp when any door opens (except back door).

• BCM activates the interior room lamp timer in any of the following condition to turn the interior room lamp ON for 20 seconds.

  • Status of all doors (except back door) are OPEN → CLOSE

  • Power switch ON → OFF

  • Door unlock signal is detected when all doors (except back door) close

NOTE:

The timer restarts if new condition is input during the timer operating time.

Interior Room Lamp OFF Operation

BCM stops the timer in any of the following condition to turn the interior room lamp OFF.

• The timer operating time is expired

• Power switch OFF → ON

• Door lock signal is detected with all doors (except back door) close.

ACCENT LIGHTING CONTROL

• BCM turns the accent light ON when any door (except back door) opens or any door unlock (except back door).

• BCM turns dimming operation of the accent light when READY condition.

• BCM turns the accent light OFF when all door (except back door) closes and door lock.

NOTE:

Illuminance value of accent light can be changed in the Nissan Ariya vehicle settings of the combination meter.

LUGGAGE ROOM LAMP CONTROL

• BCM turns the luggage room lamp ON when back door is open (back door switch is ON).

• BCM turns the luggage room lamp OFF when back door is close (back door switch is OFF).

POWER SWITCH ILLUMINATION CONTROL

• BCM turns the power switch illumination ON when power switch is ON.

• BCM turns the power switch illumination OFF when power switch is OFF.

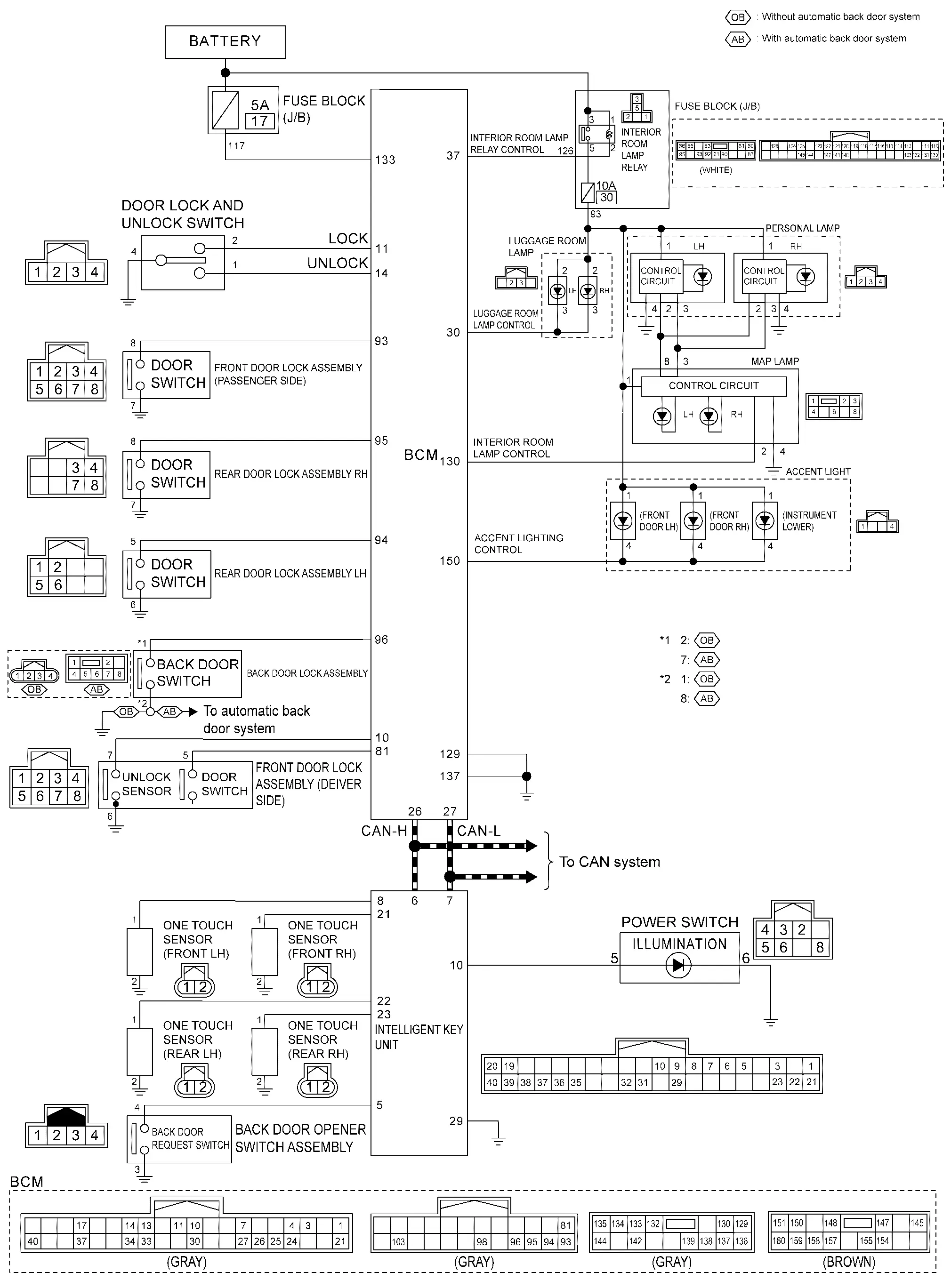

Circuit Diagram

Interior Room Lamp Battery Saver System

System Description

SYSTEM DIAGRAM

OUTLINE

• Interior room lamp battery saver is controlled by BCM.

• BCM turns interior room lamps OFF depending on the Nissan Ariya vehicle condition. This function prevent battery discharge if the driver neglects, turning OFF any lamps.

INTERIOR ROOM LAMP BATTERY SAVER FUNCTION

• When the power switch is turned OFF, BCM operates timer for 10 minutes and then turns interior room lamp relay OFF to cut the interior room lamp power supply.

• BCM restart the timer when any of the following signal changes while operating the timer.

  • Power switch condition

  • Door switch signal

  • Door lock/unlock signal

  • Door lock/unlock request signal

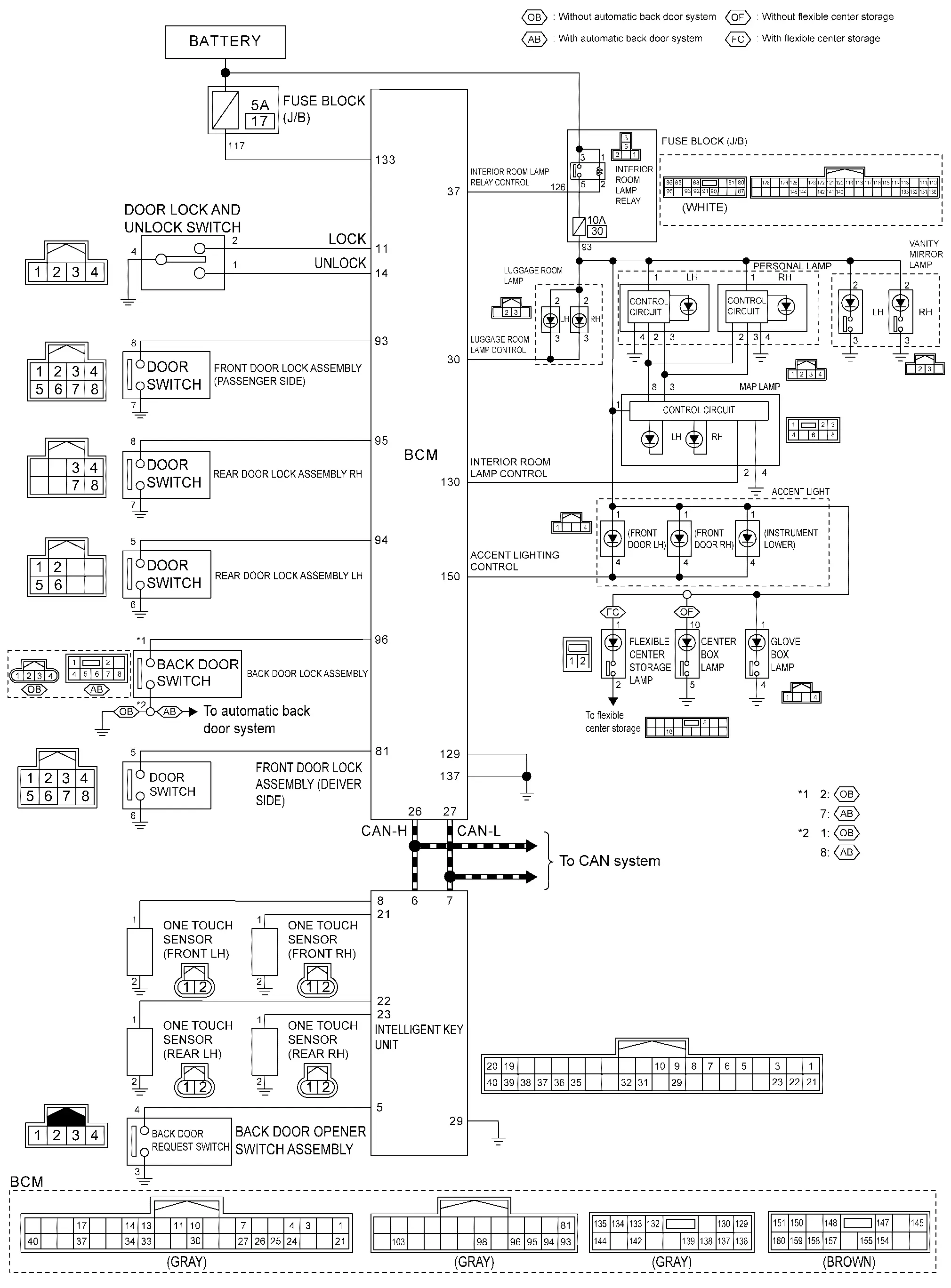

Circuit Diagram

Illumination Control System

System Description

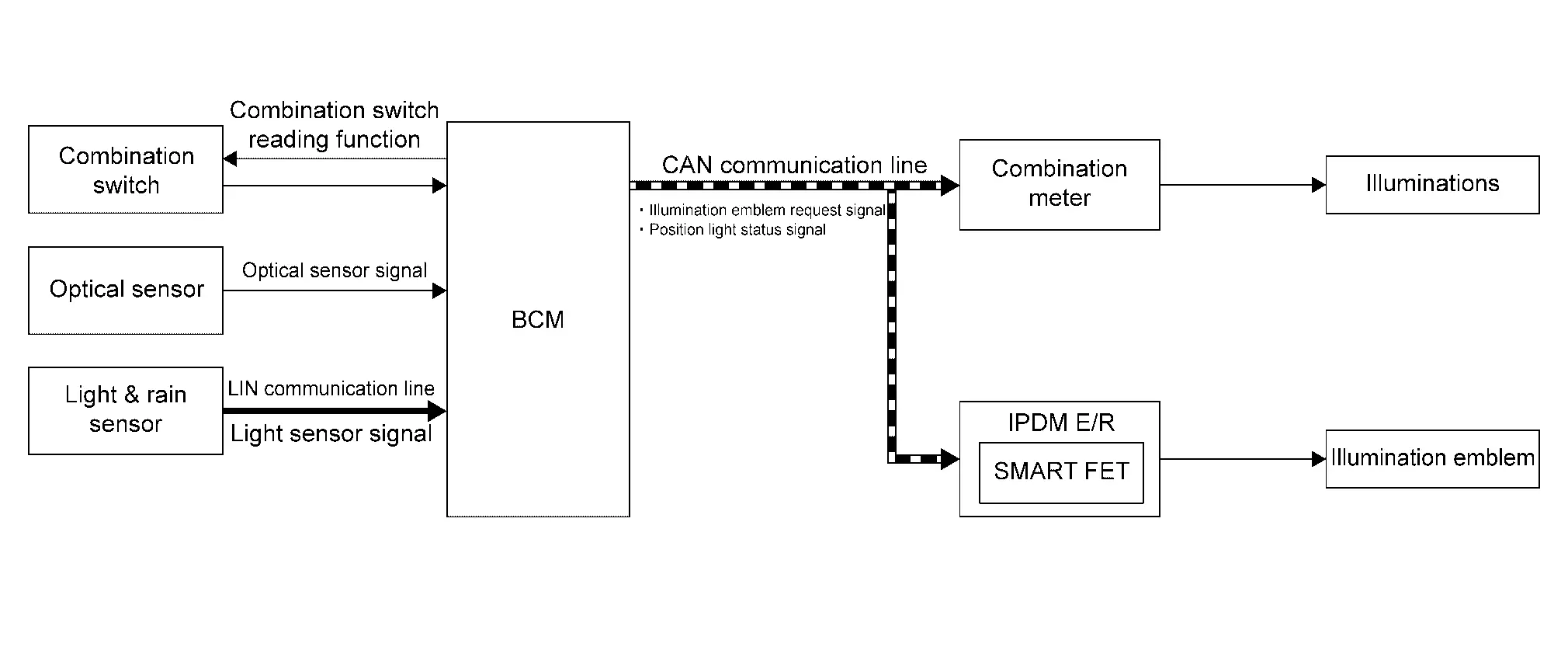

SYSTEM DIAGRAM

^*1: With optical sensor

^*2: With light & rain sensor

OUTLINE

Each illumination lamp is controlled by each function of BCM, IPDM E/R and combination meter.

Control by BCM

• Combination switch reading function

• Illumination emblem control function

• Auto light function (intelligent auto light system)

Control by IPDM E/R

Smart FET control function

Control by Combination Meter

Illumination control function

ILLUMINATION CONTROL

• BCM detects the combination switch condition with the combination switch reading function.

• BCM transmits illumination emblem request signal to IPDM E/R according to set the Nissan Ariya vehicle to READY or tail lamp ON condition.

• BCM transmits position light status signal to combination meter according to tail lamp ON condition.

• IPDM E/R turns the integrated smart FET ON according to illumination emblem request signal and provides the power supply to illumination emblem.

• Combination meter turns ON the illuminations according to position light status signal.

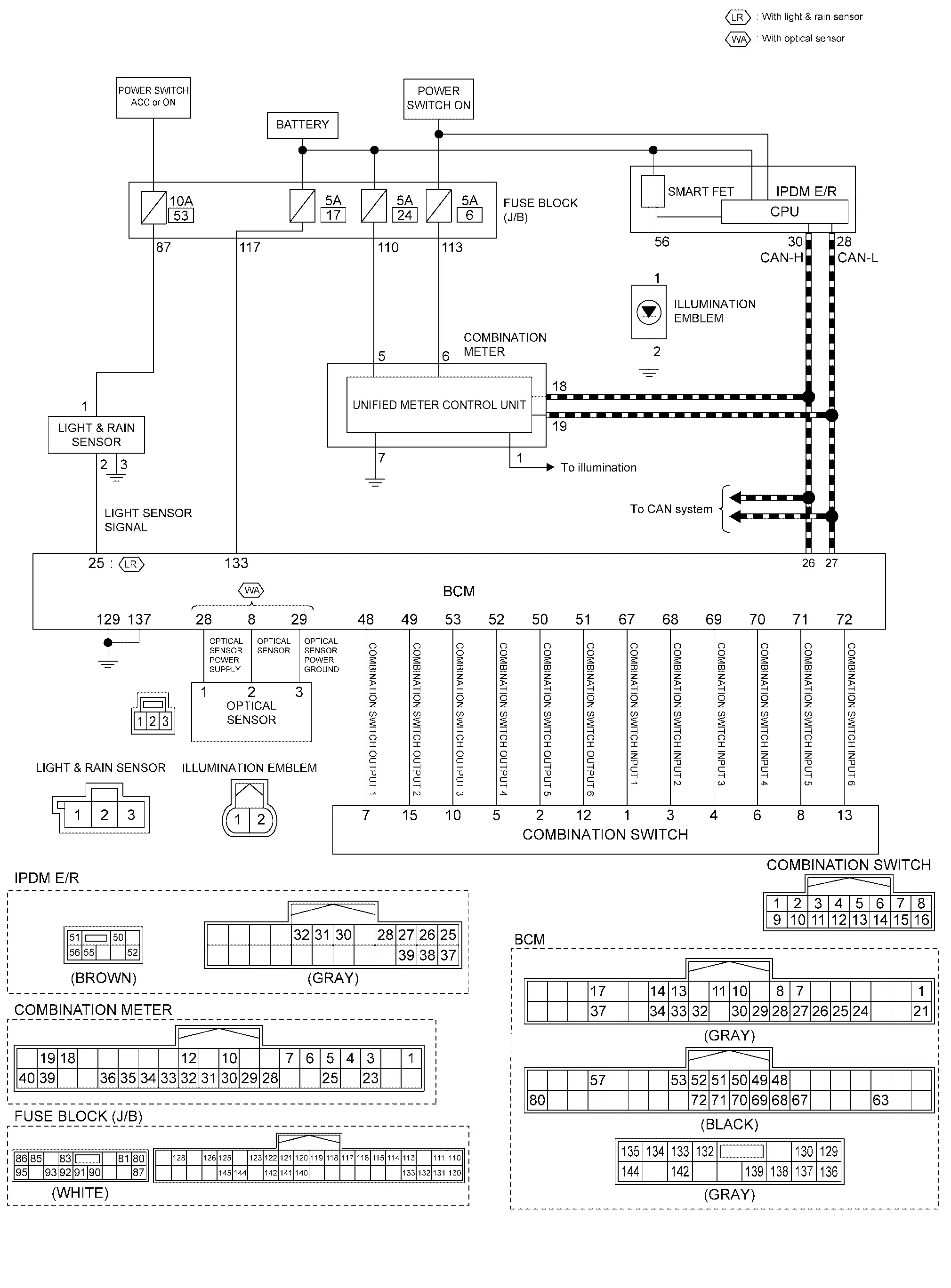

Circuit Diagram

Fail-safe

CAN COMMUNICATION CONTROL

When CAN communication with BCM is impossible, IPDM E/R performs fail-safe control. After CAN communication recovers normally, it also returns to normal control.

If No CAN Communication Is Available With BCM

Advanced Ambient Lighting System

System Description

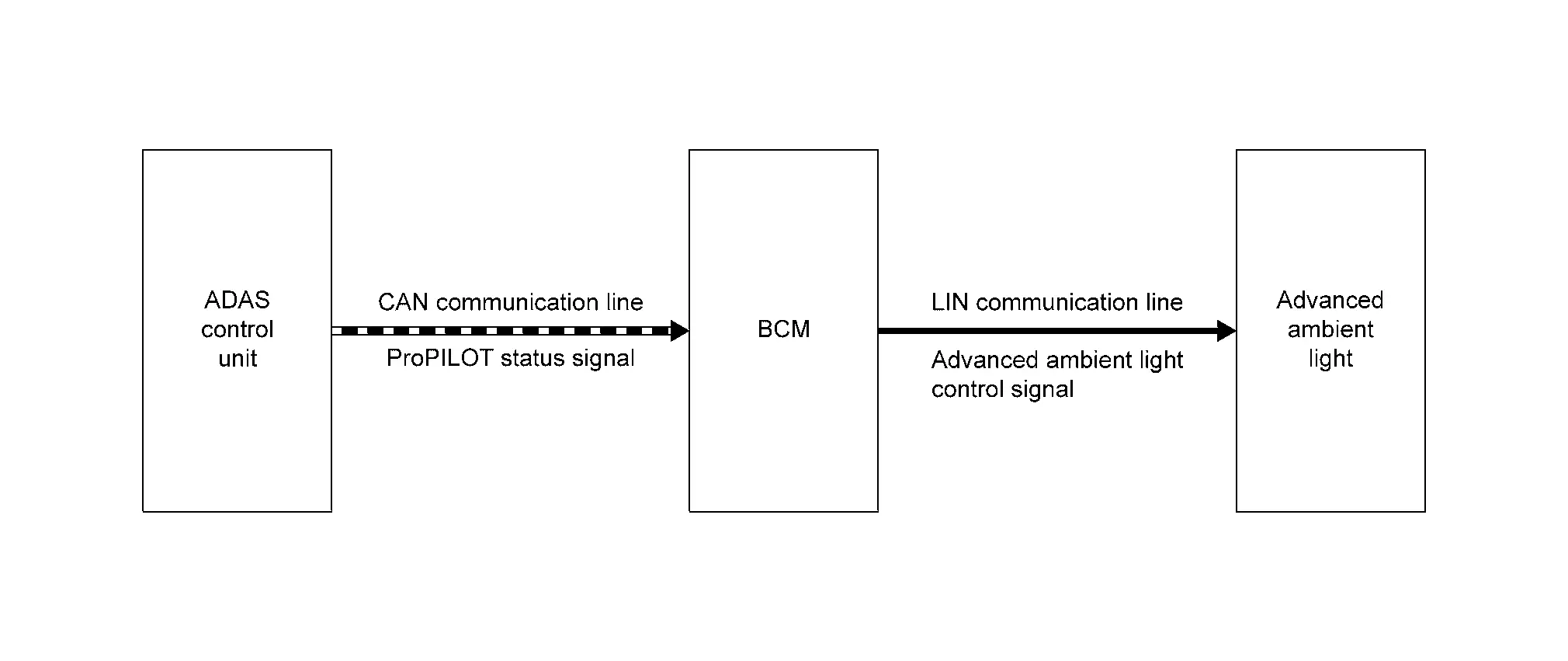

SYSTEM DIAGRAM

OUTLINE

Advanced ambient lighting system is controlled by advanced ambient lighting control function of BCM and ProPILOT control function of ADAS control unit 2.

ADVANCED AMBIENT LIGHTING CONTROL

• ADAS control unit 2 transmits the ProPILOT status signal to BCM (via CAN communication) according to ProPILOT Assist operation condition.

• BCM transmits the advanced ambient light control signal to advanced ambient light (via LIN communication) according to the ProPILOT status signal from ADAS control unit 2.

• Advance ambient light turns ON/OFF and changes color according to advanced ambient light control signal.

• For details, advance ambient light condition and ProPILOT Assist operation condition. Refer to System Description.

NOTE:

Illuminance value of advanced ambient light can be changed in the Nissan Ariya vehicle settings of the combination meter.

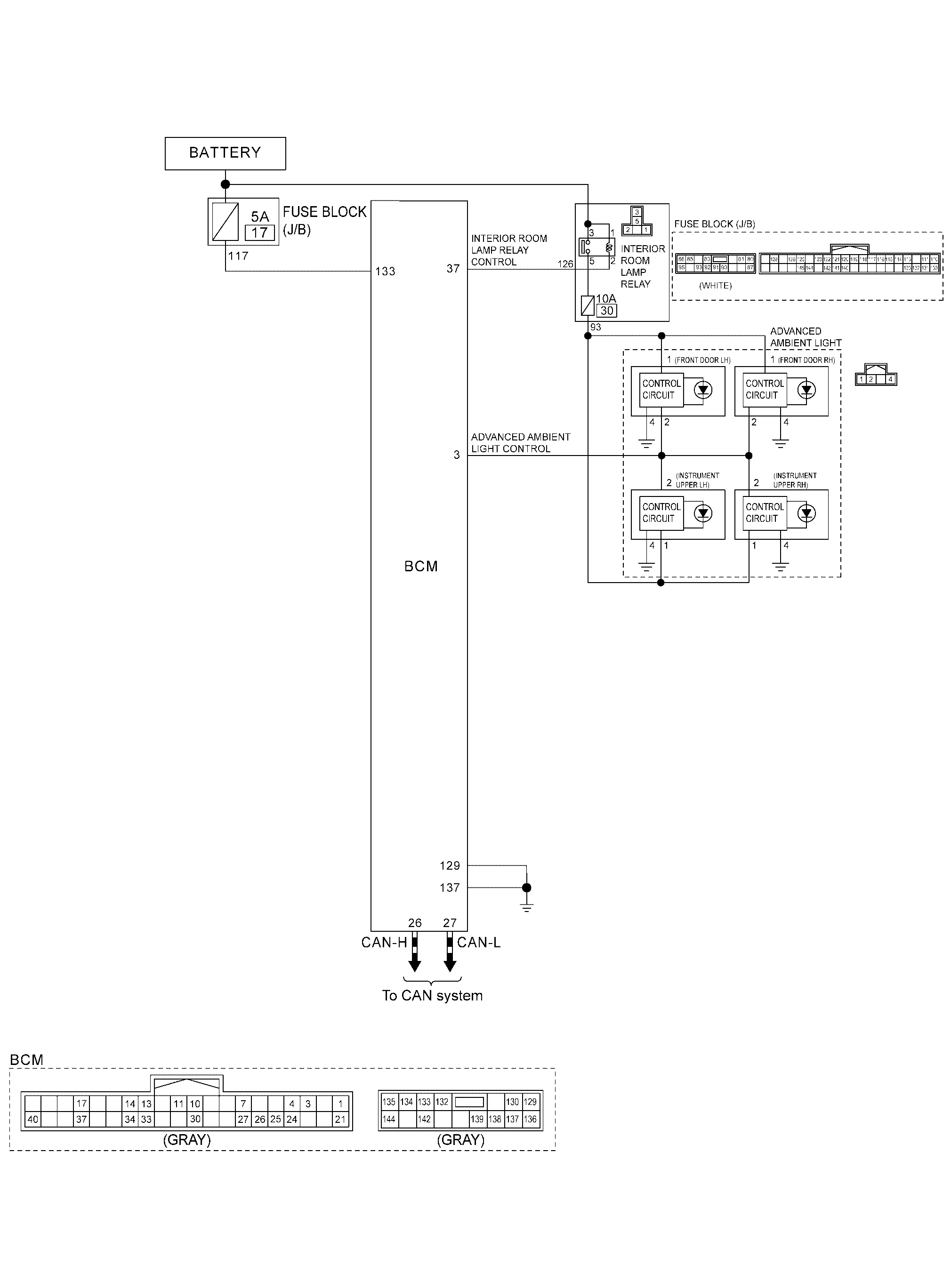

Circuit Diagram

Fail-safe

FAIL-SAFE CONTROL BY DTC

BCM performs fail-safe control when any DTC are detected.
